Bosch

Bosch Spare Parts for Lawnower UniversalRotak 450

SKU: Bosch Rotak 450 - 3600HB9000
€22.28
VAT included

Bosch Spare Parts for Lawnower UniversalRotak 450

Bosch original spare parts for to replace broken parts for to fix Lawnmower Universal Rotak 450 - 3600HB9000.

Bosch Rotak 450 - 3600HB9000
Bosch Spare Parts for Lawnower UniversalRotak 450
  • Online only
  • Bosch Spare Parts for Lawnower UniversalRotak 450
  • Bosch Spare Parts for Lawnower UniversalRotak 450
  • Bosch Spare Parts for Lawnower UniversalRotak 450
Bosch

Bosch Spare Parts for Lawnower UniversalRotak 450

SKU: Bosch Rotak 450 - 3600HB9000 Condition: New
€22.28
VAT included

Bosch Spare Parts for Lawnower UniversalRotak 450

Bosch original spare parts for to replace broken parts for to fix Lawnmower Universal Rotak 450 - 3600HB9000.

Bosch Rotak 450 - 3600HB9000
settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

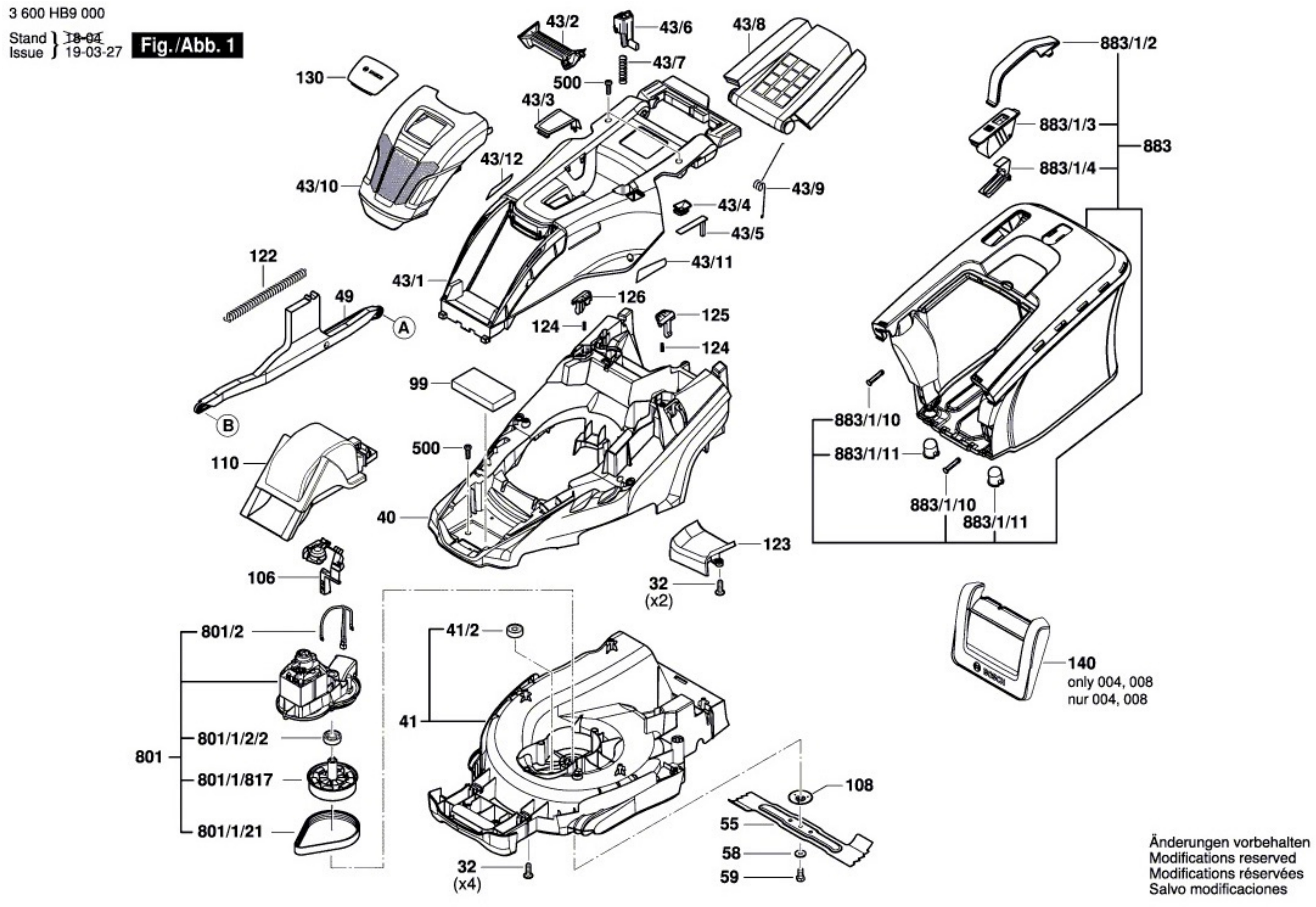

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
32
 Self-Cutting Screw for Lawnmover Bosch Rotak 40 F016L37433 Self-Cutting Screw for Lawnmover Bosch Rotak 40 €1.43
39/801
 photo_cameraImage coming soon F016105285 Clamping Lever €3.69
39/16
 photo_cameraImage coming soon F016L66895 Cable Clip €1.40
40
 photo_cameraImage coming soon F016L90015 Mower deck €26.51
41/2
 photo_cameraImage coming soon F016L67442 Bearing 6002-2RS  €4.74
41
 photo_cameraImage coming soon F016L90441 Housing 36 cm €47.02
43/9
 photo_cameraImage coming soon F016L66165 Spring €2.48
43/1
 photo_cameraImage coming soon F016L90017 Motor Hood €15.73
43/2
 photo_cameraImage coming soon F016L90018 Carrying Handle €1.31
43/6
 photo_cameraImage coming soon F016L90019 Button €1.73
43/10
 photo_cameraImage coming soon F016L90020 grille €6.42
43/8
 photo_cameraImage coming soon F016L90022 Guard Flap €5.51
43/11
 photo_cameraImage coming soon F016L90076 Sticker logo l €2.01
43/12
 photo_cameraImage coming soon F016L90077 Sticker logo r €2.01
43/4
 photo_cameraImage coming soon F016L90432 Transparent Cover €1.31
49
 photo_cameraImage coming soon F016L90027 Linkage part €6.42
52/805
 photo_cameraImage coming soon F016105108 Wheel €6.42
52/4
 photo_cameraImage coming soon F016L68095 Ratchet Cap €1.89
52/1
 photo_cameraImage coming soon F016L90005 Axle €4.25
52/2
 photo_cameraImage coming soon F016L90033 Link Piece €1.31
52/3
 photo_cameraImage coming soon F016L90037 Link Piece €1.31
55
 Bosch Cutting Blade for UniversalRotak 450 F016L69570 Bosch Cutting Blade for UniversalRotak 450 €33.90
58
 photo_cameraImage coming soon F016L18181 Locking Washer 1/2" €1.73
61/805
 photo_cameraImage coming soon F016105110 Wheel €5.51
61/4
 photo_cameraImage coming soon F016L68095 Ratchet Cap €1.89
61/1
 photo_cameraImage coming soon F016L90004 Axle €3.69
61/2
 photo_cameraImage coming soon F016L90032 Link Piece €1.31
75/3/805
 photo_cameraImage coming soon F016104213 Cable Guide €9.29
75/805
 photo_cameraImage coming soon F016104361 Sleeve €3.69
75/3/804
 photo_cameraImage coming soon F016104371 Switch Kit €8.73
75/804
 photo_cameraImage coming soon F016105287 Switching Unit €20.70
75/14
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
75/3/1
 photo_cameraImage coming soon F016L67217 Switch Housing €6.44
75/1
 photo_cameraImage coming soon F016L90608 Handle €20.46
75/3
 photo_cameraImage coming soon F016L90702 wiring unit €26.51
75/3/3
 photo_cameraImage coming soon F016L90708 Connection Cable €15.73
75/3/2
 photo_cameraImage coming soon F016L90781 Terminal Block €10.90
78/3
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
78/2
 photo_cameraImage coming soon F016L90890 Handle €7.68
78/1
 photo_cameraImage coming soon F016L91163 Bracket €1.31
79/3
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
79/1
 photo_cameraImage coming soon F016L91164 Bracket €1.31
99
 photo_cameraImage coming soon F016L69400 Balance Weights €17.97
106
 photo_cameraImage coming soon F016L90419 Wire Guide €3.69
108
 photo_cameraImage coming soon F016L67627 Bearing cover €2.09
110
 photo_cameraImage coming soon F016L90089 Baffle €5.51
122
 Spring for Lawnmover Bosch ARM 32 F016L59327 Spring for Lawnmover Bosch ARM 32 €4.74
123
 photo_cameraImage coming soon F016L90721 Plastic Insert €2.01
125
 photo_cameraImage coming soon F016L90197 Button €1.73
126
 photo_cameraImage coming soon F016L90198 Button €1.73
130
 photo_cameraImage coming soon F016L90872 front cover P1 DARK GREY €5.02
131
 photo_cameraImage coming soon F016L90163 Cover €2.01
132
 photo_cameraImage coming soon F016L90167 Cover €2.36
801/1/817
 photo_cameraImage coming soon F016103758 Drive Shaft €17.80
801
 photo_cameraImage coming soon F016105105 Motor €114.91
801/1/2/2
 photo_cameraImage coming soon F016L64594 Bearing €3.37
801/1/21
 photo_cameraImage coming soon F016L65351 Drive Belt €17.80
801/2
 photo_cameraImage coming soon F016L90879 Thermal protector €9.78
883
 photo_cameraImage coming soon F016105282 Collection box €51.85
883/1/2
 photo_cameraImage coming soon F016L90040 Handle €1.31
883/1/3
 photo_cameraImage coming soon F016L90557 Cover €1.73
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
39/801
 photo_cameraImage coming soon F016105285 Clamping Lever €3.69
39/16
 photo_cameraImage coming soon F016L66895 Cable Clip €1.40
52/805
 photo_cameraImage coming soon F016105108 Wheel €6.42
52/4
 photo_cameraImage coming soon F016L68095 Ratchet Cap €1.89
52/1
 photo_cameraImage coming soon F016L90005 Axle €4.25
52/2
 photo_cameraImage coming soon F016L90033 Link Piece €1.31
52/3
 photo_cameraImage coming soon F016L90037 Link Piece €1.31
61/805
 photo_cameraImage coming soon F016105110 Wheel €5.51
61/1
 photo_cameraImage coming soon F016L90004 Axle €3.69
61/2
 photo_cameraImage coming soon F016L90032 Link Piece €1.31
75/3/805
 photo_cameraImage coming soon F016104213 Cable Guide €9.29
75/805
 photo_cameraImage coming soon F016104361 Sleeve €3.69
75/3/804
 photo_cameraImage coming soon F016104371 Switch Kit €8.73
75/804
 photo_cameraImage coming soon F016105287 Switching Unit €20.70
75/14
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
75/3/1
 photo_cameraImage coming soon F016L67217 Switch Housing €6.44
75/1
 photo_cameraImage coming soon F016L90608 Handle €20.46
75/3/3
 photo_cameraImage coming soon F016L90708 Connection Cable €15.73
75/3/2
 photo_cameraImage coming soon F016L90781 Terminal Block €10.90
78/2
 photo_cameraImage coming soon F016L90890 Handle €7.68
78/1
 photo_cameraImage coming soon F016L91163 Bracket €1.31
79/1
 photo_cameraImage coming soon F016L91164 Bracket €1.31
131
 photo_cameraImage coming soon F016L90163 Cover €2.01
132
 photo_cameraImage coming soon F016L90167 Cover €2.36

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Lawnower UniversalRotak 450

Bosch original spare parts for to replace broken parts for to fix Lawnmower Universal Rotak 450 - 3600HB9000.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Bosch Rotak 450 - 3600HB9000

Lawnower UniversalRotak 450
# Part Num. Description
32 F016L37433 Self-Cutting Screw
39/16 F016L66895 Cable Clip
39/801 F016105285 Clamping Lever
40 F016L90015 Mower deck
41 F016L90441 Housing 36 cm
41/2 F016L67442 Bearing 6002-2RS
43/1 F016L90017 Motor Hood
43/2 F016L90018 Carrying Handle
43/3 F016L90081 Cover
43/4 F016L90432 Transparent Cover
43/5 F016L90434 Indicator
43/6 F016L90019 Button
43/7 F016L90071 Button Spring
43/8 F016L90022 Guard Flap
43/9 F016L66165 Spring
43/10 F016L90020 grille
43/11 F016L90076 Sticker logo l
43/12 F016L90077 Sticker logo r
49 F016L90027 Linkage part
52/1 F016L90005 Axle
52/2 F016L90033 Link Piece
52/3 F016L90037 Link Piece
52/4 F016L68095 Ratchet Cap
52/805 F016105108 Wheel
55 F016L69570 Cutter Blade 36 cm
58 F016L18181 Locking Washer 1/2"
59 F04N004003 Hex Screw
61/1 F016L90004 Axle
61/2 F016L90032 Link Piece
61/3 F016L90036 Spacer
61/4 F016L68095 Ratchet Cap
61/805 F016105110 Wheel
75/1 F016L90608 Handle
75/3 F016L90702 wiring unit
75/3/1 F016L67217 Switch Housing
75/3/2 F016L90781 Terminal Block
75/3/3 F016L90708 Connection Cable
75/3/804 F016104371 Switch Kit
75/3/805 F016104213 Cable Guide
75/14 F016L36542 Screw M5x8 Csk Hd.
75/15 F016L68124 Torx head screw
75/802 F016105314 Nut Holder
75/804 F016105287 Switching Unit
75/805 F016104361 Sleeve
78/1 F016L91163 Bracket
78/2 F016L90890 Handle
78/3 F016L36542 Screw M5x8 Csk Hd.
79/1 F016L91164 Bracket
79/2 F016L90891 Handle
79/3 F016L36542 Screw M5x8 Csk Hd.
99 F016L69400 Balance Weights
106 F016L90419 Wire Guide
108 F016L67627 Bearing cover
110 F016L90089 Baffle
121 F016L90029 Clip
122 F016L59327 Spring
123 F016L90721 Plastic Insert
124 F016L90701 Button Spring
125 F016L90197 Button
126 F016L90198 Button
130 F016L90872 front cover P1 DARK GREY
131 F016L90163 Cover
132 F016L90167 Cover
500 F016L68124 Torx head screw
801 F016105105 Motor
801/1/21 F016L65351 Drive Belt
801/1/817 F016103758 Drive Shaft
801/1/2/2 F016L64594 Bearing
801/2 F016L90879 Thermal protector
883 F016105282 Collection box
883/1/2 F016L90040 Handle
883/1/3 F016L90557 Cover
883/1/4 F016L90558 Pivot Plate
883/1/10 F016L90638 Pin
883/1/11 F016L90639 Socket insert
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch Rotak 450 - 3600HB9000
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch UniversalRotak 450

Diagram Bosch UniversalRotak 450

Download (317.57KB)

You might also like

Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Self-Cutting Screw for Lawnmover Bosch Rotak 40
Bosch SKU: F016L37433
Self-Cutting Screw for Lawnmover Bosch Rotak 40
Self-Cutting Screw for Lawnmover Bosch Rotak 40 Original Spare Part Bosch, Self-Cutting Screw mm 3,9X15 for Lawnmover Bosch Rotak 40/0 600 883 003. Part for the following article : - Lawnmover Bosch Rotak 40/0 600 883 003 - Code :...
AVAILABLE €1.43
Details
Spring for Lawnmover Bosch ARM 32
Bosch SKU: F016L59327
Spring for Lawnmover Bosch ARM 32
Spring for Lawnmover Bosch ARM 32 Genuine spare part Bosch, Spring for Lawnmover ARM 32 - Rotak 37 - Rotak 40 - Universal Rotak 450 Part for the following products: -  Lawnmover ARM 32 - 0600897003 -  Lawnmover Rotak 37 - 3600HA4100...
on 7/10 Business Days Approx €4.74
Details
Bosch Cutting Blade for UniversalRotak 450
Bosch SKU: F016L69570
Bosch Cutting Blade for UniversalRotak 450
Bosch Cutting Blade for Lawnmower UniversalRotak 450 Bosch original spare part, Cutting Blade 36 cm for Electric Lawnmower UniversalRotak 450. Part for the following products: -  Lawnmower UniversalRotak 450 -...
Last items in stock €33.90
Details
Comments (0)
