Annovi Reverberi S.p.A.

Black&Decker Spare Parts for Pressure Washer PW 1500 WP

SKU: Black&Decker PW 1500 WP 12343
€10.00
VAT included

Black&Decker Spare Parts for Pressure Washer PW 1500 WP

We have the original Black&Decker Spare Parts for Pressure Washer PW 1500 WP, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Pressure Washer PW 1500 WP – 12343. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine and with a Guarantee.

Black&Decker Spare Parts for Pressure Washer PW 1500 WP
  • Black&Decker Spare Parts for Pressure Washer PW 1500 WP
  • Black&Decker Spare Parts for Pressure Washer PW 1500 WP
  • Black&Decker Spare Parts for Pressure Washer PW 1500 WP
  • Black&Decker Spare Parts for Pressure Washer PW 1500 WP
  • Black&Decker Spare Parts for Pressure Washer PW 1500 WP
Annovi Reverberi S.p.A.

Black&Decker Spare Parts for Pressure Washer PW 1500 WP

SKU: Black&Decker PW 1500 WP 12343 Condition: New
€10.00
VAT included

Black&Decker Spare Parts for Pressure Washer PW 1500 WP

We have the original Black&Decker Spare Parts for Pressure Washer PW 1500 WP, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Pressure Washer PW 1500 WP – 12343. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine and with a Guarantee.

settings 50 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts

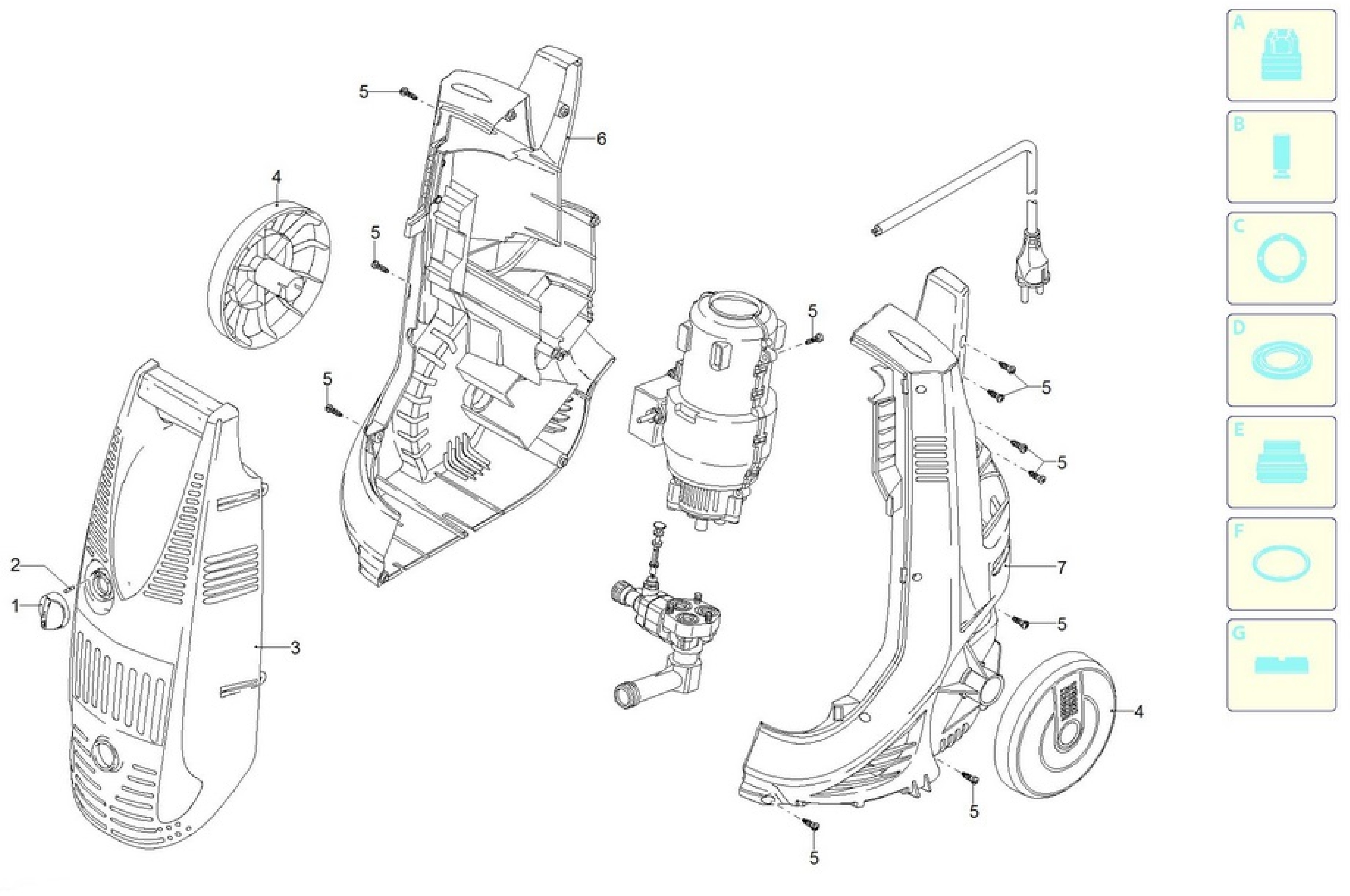

Esploso pagina 1
Pos. Item Price Buy
9
 Holder Seal for Pressure Washer AR BC Serie 1 - 2 2020041 Holder Seal for Pressure Washer AR BC Serie 1 - 2 €1.40
10
 photo_cameraImage coming soon 1461470 junction €3.26
11
 photo_cameraImage coming soon 2620760 Junction €9.10
12
 photo_cameraImage coming soon 390180 O-ring €1.58
13
 Fitting Assembly for Pressure Washers Black&Decker PW 1400-1500 2317 Fitting Assembly for Pressure Washers Black&Decker PW 1400-1500 €35.11 Not available for order
17
 photo_cameraImage coming soon 2440230 O-Ring €4.59
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2560380 Handle €6.12
2
 Elastic Pin 3x8,20 mm for Pressure Washer Black&Decker PW 1400 2560490 Elastic Pin 3x8,20 mm for Pressure Washer Black&Decker PW 1400 €0.27
3
 photo_cameraImage coming soon 2860200 Orange Casing €19.91
4
 photo_cameraImage coming soon 2440071 Wheel €9.78
5
 photo_cameraImage coming soon 2100300 screw €4.72
6
 photo_cameraImage coming soon 2860170 Black Casing €21.69
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

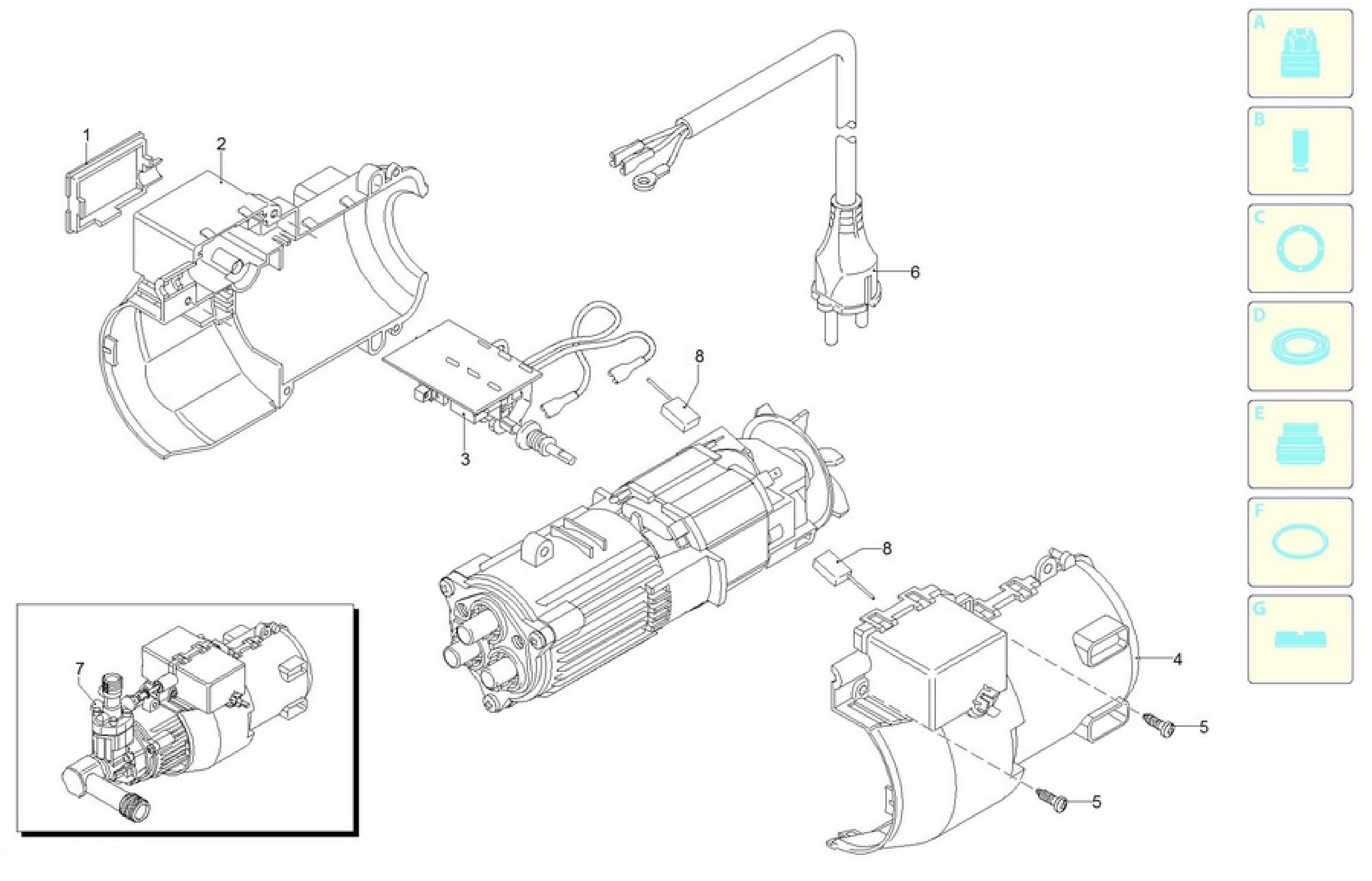

Esploso pagina 2
Pos. Item Price Buy
A
 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker 2574 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker €9.62
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
2
 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS 2109050 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS €2.41
4
 photo_cameraImage coming soon 2560690 Washer €4.01
5
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
6
 Head for Pressure Washers B&D and AR Farmer's Division 2560450 Head for Pressure Washers B&D and AR Farmer's Division €22.20
7
 photo_cameraImage coming soon 2560720 Lives €4.72
8
 O-R mm 12x18x5/4,5 for Pressure Washers DRIVE-PW-MR CLEAN-NRG 2101120 O-R mm 12x18x5/4,5 for Pressure Washers DRIVE-PW-MR CLEAN-NRG €2.72
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

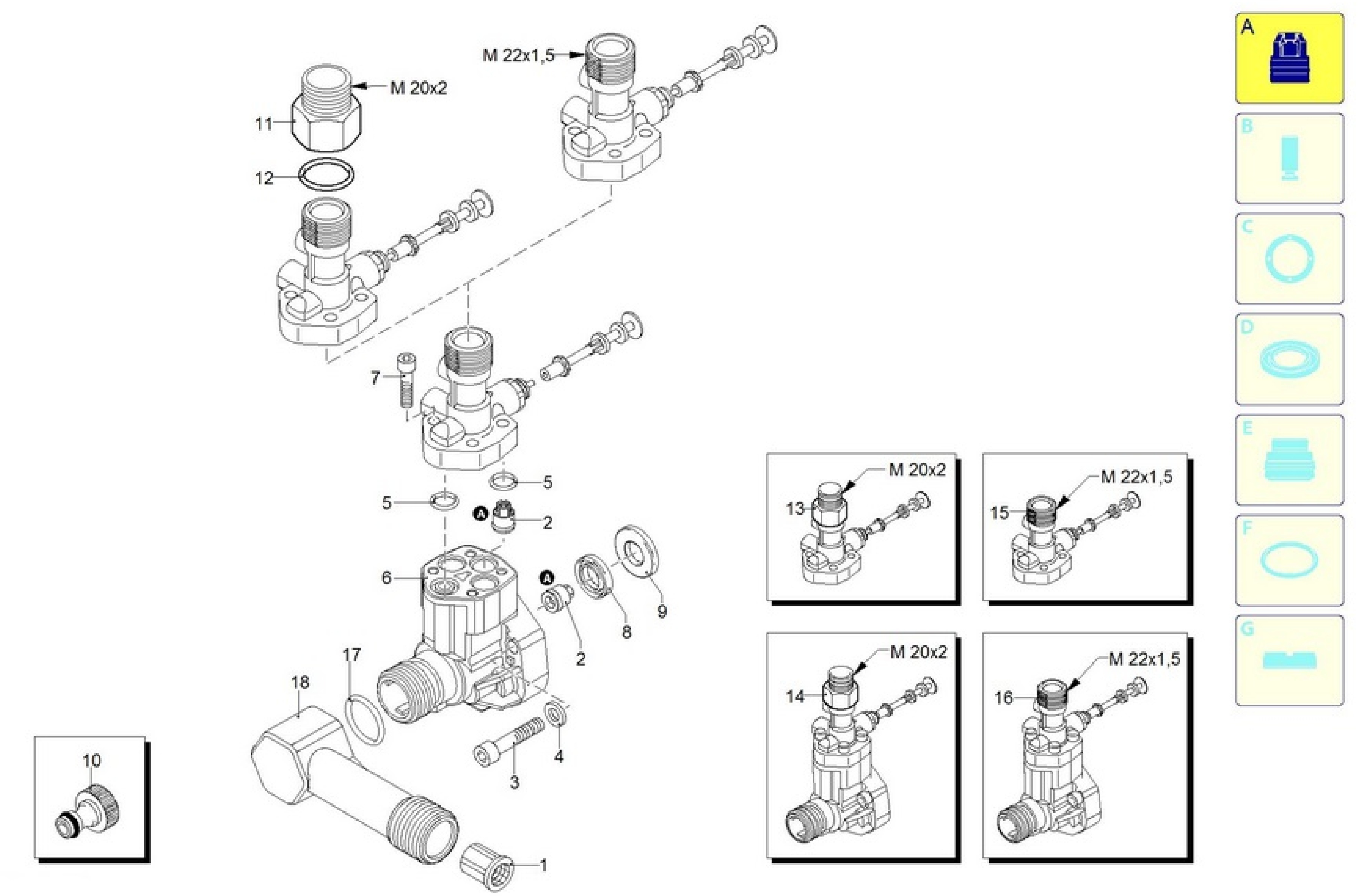

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2560350 Cover €5.80
2
 photo_cameraImage coming soon 2560130 Conveyor €10.49
3
 photo_cameraImage coming soon 2560390 Switch - DISCONTINUED €27.01
4
 photo_cameraImage coming soon 2560120 Conveyor €10.49
6
 photo_cameraImage coming soon 2560900 Cable €22.72
7
 photo_cameraImage coming soon 2569508 Pre Installation Pump €148.70
8
 Motor Carbon Brushes Set for Pressure Washers B & D PW 1400 2260 Motor Carbon Brushes Set for Pressure Washers B & D PW 1400 €6.35
18
 photo_cameraImage coming soon 2560700 Junction €8.19
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

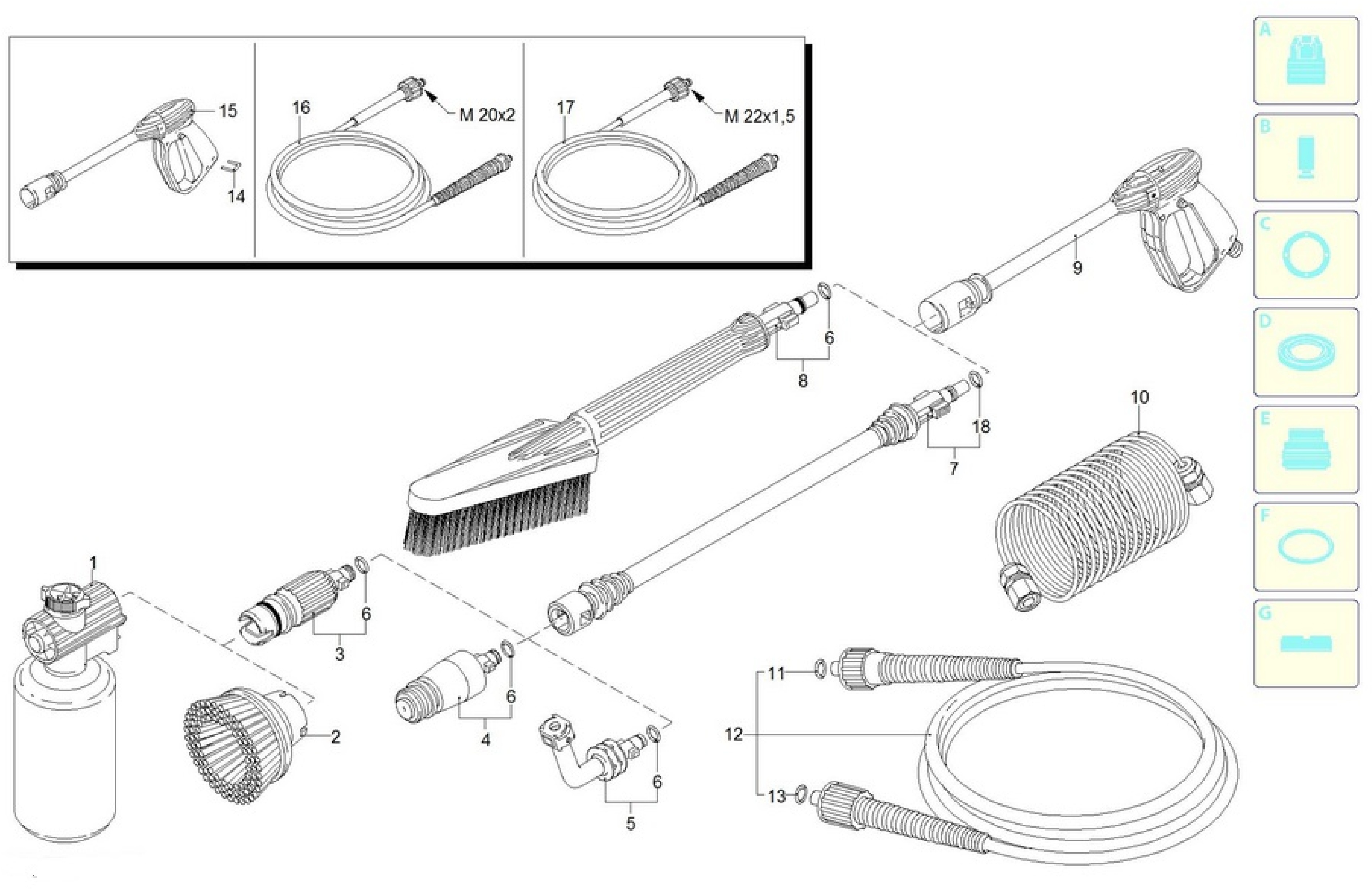

Esploso pagina 4
Pos. Item Price Buy
1
 Lance Head Brush for Pressure Washers Black & Decker PW 1300-1400-1500 40511 Lance Head Brush for Pressure Washers Black & Decker PW 1300-1400-1500 €11.02
2
 photo_cameraImage coming soon 40530 Tank €8.15
3
 Lance Head for Pressure Washers Black & Decker PW 1400-1500 40671 Lance Head for Pressure Washers Black & Decker PW 1400-1500 €19.54
4
 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 40344 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 €28.07 Not available for order
5
 Head for Pressure Washers Black&Decker PW 1400P-1500WP 40572 Head for Pressure Washers Black&Decker PW 1400P-1500WP €12.42
6
 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND 1680220 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND €0.45
7
 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 40667 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 €16.78
8
 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 40417 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 €12.42
9
 photo_cameraImage coming soon 40666 Gun->40925+3082750+3780492 €32.52
10
 photo_cameraImage coming soon 40679 Tube €37.54
11
 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
12
 Hose AP for Pressure Washer Annovi & Reverberi Blue Clean AR 410 2620400 Hose AP for Pressure Washer Annovi & Reverberi Blue Clean AR 410 €46.35
13
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
14
 Fork Lock High Pressure Hose for Pressure Washers B & D PW 1400 2000080 Fork Lock High Pressure Hose for Pressure Washers B & D PW 1400 €1.26
15
 Gun for Pressure Washer AR Farmer's Division 100-120 TSS-TSS2 40409 Gun for Pressure Washer AR Farmer's Division 100-120 TSS-TSS2 €25.87
16
 High Pressure Hose for Pressure Washers Black&Decker PW 1500 W 2001522 High Pressure Hose for Pressure Washers Black&Decker PW 1500 W €23.59
17
 High Pressure Hose for Pressure Washers Black&Decker PW 1400 B-P 2000420 High Pressure Hose for Pressure Washers Black&Decker PW 1400 B-P €37.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black&Decker Spare Parts for Pressure Washer PW 1500 WP

We have the original Black&Decker Spare Parts for Pressure Washer PW 1500 WP, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer PW 1500 WP – 12343.. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.


Casing PW 1500 WP – 12343 Pag.1
1 2560380 Knob
2 2560490 Plug
3 2860200 Orange Casing
4 2440071 Wheel
5 2100300 Screw
6 2860170 Black Casing
7 2860160 Black Casing
Pump PW 1500 WP – 12343 Pag.2
1 1340260 Filter
2 2109050 Valve
3 850850 Screw
4 2560690 Washer
5 880840 O-Ring
6 2560450 Head
7 2560720 Screw
8 2101120 Watertight
9 2020041 Ring
10 1461470 Junction
11 2620760 Junction
12 390180 O-Ring
13 2317 Pre-Assembly Fitting
14 42088 Pre-Assembly Head
15 2262 Pre-Assembly Fitting
16 2221 Pre-Assembly Head
17 2440230 O-Ring
18 2560700 Junction
A 2574 Valve Kit
Engine PW 1500 WP – 12343 Pag.3
1 2560350 Cover
2 2560130 Conveyor
3 2560390 Switch - DISCONTINUED
4 2560120 Conveyor
5 2100300 Screw
6 2560900 Cable
7 2569508 Pre Installation Pump
8 2260 Motor Brush Kit
Accessories PW 1500 WP – 12343 Pag.4
1 40511 Brush Head (Providing Cod.40592)
2 40530 Tank
3 40671 Head
4 40344 Rotopower Head
5 40572 Head
6 1680220 O-Ring
7 40667 Spear
8 40417 Fixed Brush
9 40666 Gun ->40925+3082750+3780492
10 40679 Tube
11 1080250 O-Ring
12 2620400 High Pressure Tube
13 2000770 O-Ring
14 2000080 Fork
15 40409 Gun
16 2001522 High Pressure Tube
17 2000420 High Pressure Tube
18 880840 O-Ring

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Black&Decker PW 1500 WP 12343
8 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram B&D PW 1500 WP – 12343

Diagram B&D PW 1500 WP – 12343

Download (425.11KB)
