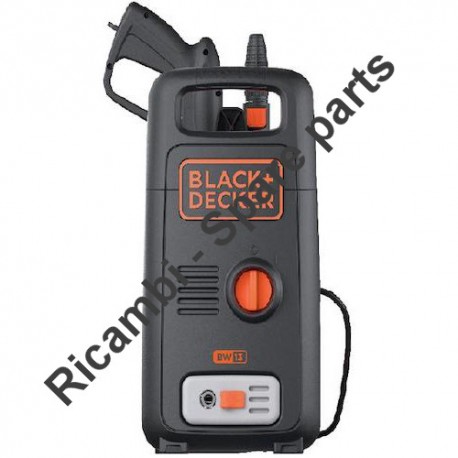

Annovi Reverberi S.p.A.

Black&Decker Spare Parts for Pressure Washer BW 13 AR

SKU: Black&Decker BW 13 AR 14403
€1.76
VAT included

Black&Decker Spare Parts for Pressure Washer BW 13 AR

We are Black&Decker original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Pressure Washer BW 13 AR - 14403.
Black&Decker Spare Parts for Pressure Washer BW 13 - B3
  • Black&Decker Spare Parts for Pressure Washer BW 13 - B3
  • Black&Decker Spare Parts for Pressure Washer BW 13 AR
  • Black&Decker Spare Parts for Pressure Washer BW 13 AR
Annovi Reverberi S.p.A.

Black&Decker Spare Parts for Pressure Washer BW 13 AR

SKU: Black&Decker BW 13 AR 14403 Condition: New
€1.76
VAT included

Black&Decker Spare Parts for Pressure Washer BW 13 AR

We are Black&Decker original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Pressure Washer BW 13 AR - 14403.
settings 38 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts

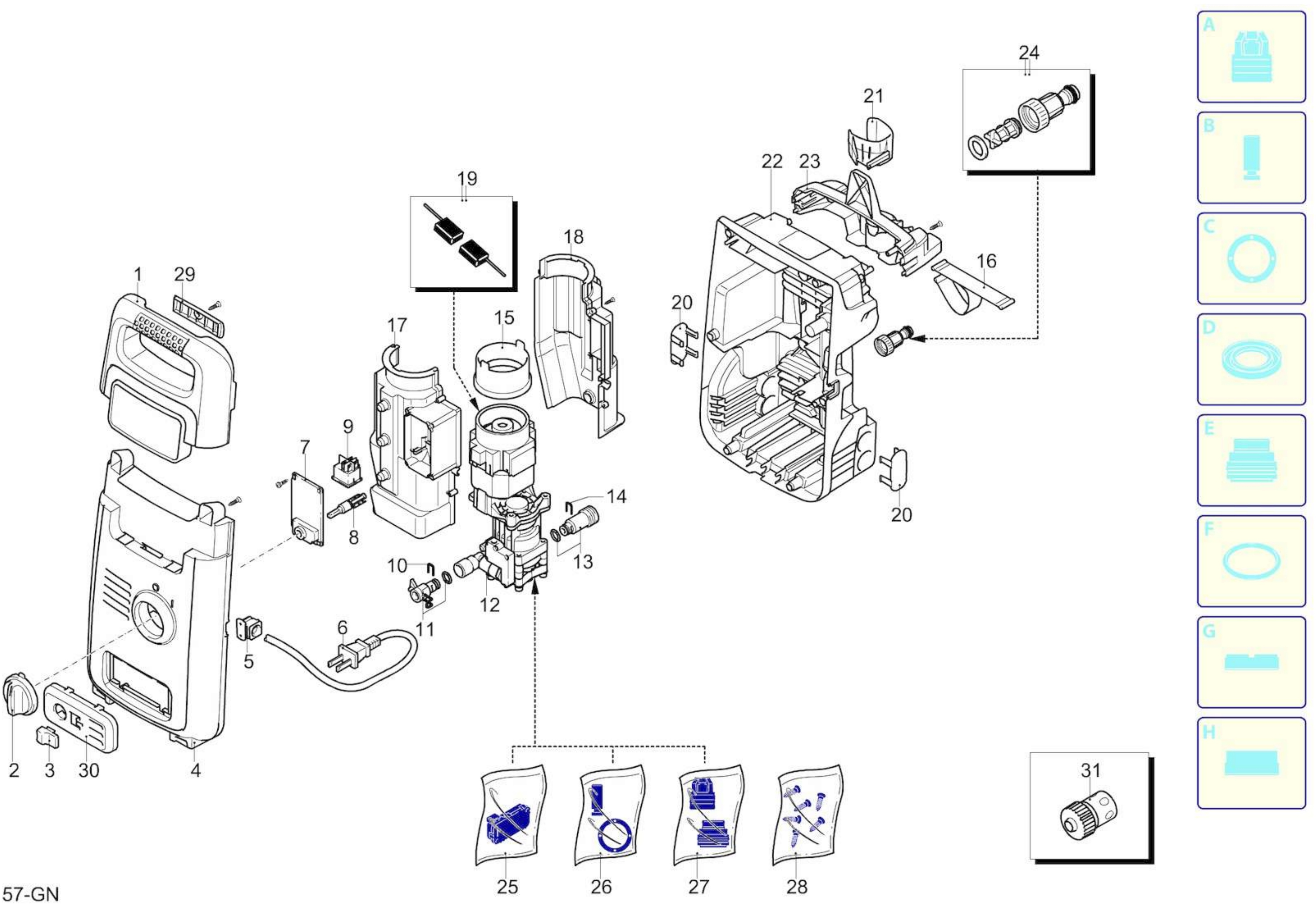

Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380220 Handle €8.89
2
 photo_cameraImage coming soon 4380250 Knob €6.02
3
 photo_cameraImage coming soon 4380390 Lever €1.35
4
 photo_cameraImage coming soon 4380210 Casing €20.57
5
 photo_cameraImage coming soon 3080580 cable clamp €2.88
6
 photo_cameraImage coming soon 3400350 Cable €26.84
7
 photo_cameraImage coming soon 3980130 Cover €6.22
8
 photo_cameraImage coming soon 3980160 Rod €5.27
9
 photo_cameraImage coming soon 3081450 Switch €13.09
10
 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B 3500090 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B €1.35
12
 photo_cameraImage coming soon 4381650 Pre-Assembly Electric Pump €120.66
13
 Suction Kit for Pressure Washers Black&Decker PW 1400 3480120 Suction Kit for Pressure Washers Black&Decker PW 1400 €8.23
14
 Fork Lock High Pressure Hose for B&D PW 1500 3480160 Fork Lock High Pressure Hose for B&D PW 1500 €1.35
15
 photo_cameraImage coming soon 4380180 Protection €3.73
16
 photo_cameraImage coming soon 4380280 Accessory Cases €6.30
17
 photo_cameraImage coming soon 4380170 Conveyor €13.13
18
 photo_cameraImage coming soon 4380160 Conveyor €17.29
19
 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S 3480170 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S €13.72
21
 photo_cameraImage coming soon 4381280 Accessory Cases €6.91
22
 Orange Base for Washer Black&Decker BXPW 1300 E 4380200 Orange Base for Washer Black&Decker BXPW 1300 E €22.20
23
 photo_cameraImage coming soon 4380230 Accessory Cases €8.85
24
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
25
 Kit TSS for Pressure Washers B&D BXPW 1300 E-1400 E-1500E 3480130 Kit TSS for Pressure Washers B&D BXPW 1300 E-1400 E-1500E €12.00
26
 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480150 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €24.00
27
 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480140 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €7.00
28
 photo_cameraImage coming soon 4381470 Screw Kit €4.35
29
 photo_cameraImage coming soon 4381300 Knob €12.19
30
 photo_cameraImage coming soon 4380380 Protection €7.83
31
 photo_cameraImage coming soon 3082660 Rapid Attack €5.30

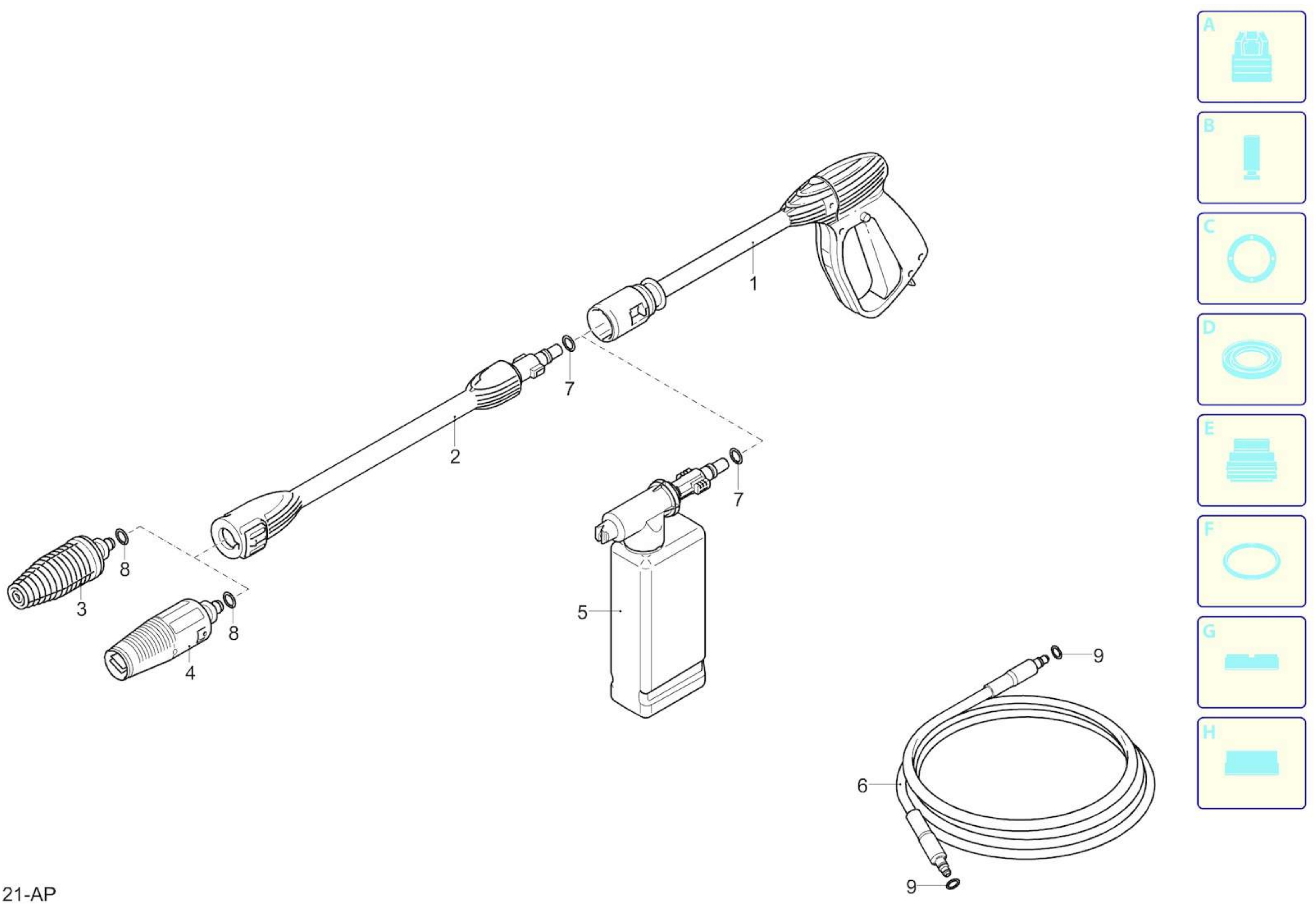

Page 2 zoom_in View exploded
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3082280 gun €20.02
2
 Gun Extension for Pressure Washers Black & Decker BXPW 1300-1400E-PE 4100772 Gun Extension for Pressure Washers Black & Decker BXPW 1300-1400E-PE €11.02
3
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.57
4
 Extension Head for Pressure Washers Black&Decker BXPW 1300-1400E-PE 4381800 Extension Head for Pressure Washers Black&Decker BXPW 1300-1400E-PE €13.81
5
 photo_cameraImage coming soon 4381500 Tank €9.46
6
 High Pressure Hose for Pressure Washers Black&Decker PW1300S–TD-TDW 3500340 High Pressure Hose for Pressure Washers Black&Decker PW1300S–TD-TDW €22.20
7
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
8
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black&Decker Spare Parts for Pressure Washer BW 13 AR

We are Black&Decker original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Pressure Washer BW 13 AR - 14403.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Black&Decker BW 13 AR 14403

Casing Pag.1
1 4380220 Handle
2 4380250 Knob
3 4380390 Lever
4 4380210 Casing
5 3080580 Cable gland
6 3400350 Cable
7 3980130 Cover
8 3980160 Pin
9 3081450 Switch
10 3500090 Fork
11 4383200 Fitting
12 4381650 Electric pump assembly
13 3480120 Suction kit
14 3480160 Fork
15 4380180 Guard
16 4380280 Accessories carrier
17 4380170 Conveyor
18 4380160 Conveyor
19 3480170 Brush kit for motor
20 4380260 Cover
21 4381280 Accessories carrier
22 4380200 Base
23 4380230 Accessories carrier
24 3082130 Water coupling kit
25 3480130 TSS kit
26 3480150 Piston + seals kit
27 3480140 Valves + seals kit
28 4381470 Screw kit
29 4381300 Knob
30 4380380 Guard
31 3082660 Quick coupling
Accessories Pag.2
1 3082280 Gun
2 4100772 Extension
3 4100800 Lance head
4 4381800 Lance head
5 4381500 Tank
6 3500340 High pressure hose
7 3083700 O-ring
8 3083370 O-ring
9 3083400 O-ring

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Black&Decker BW 13 AR 14403
6 Items

Specific References

New

Download

Diagram B&D BW 13 AR

Diagram B&D BW 13 AR

Download (179.81KB)
