Annovi Reverberi S.p.A.

Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477

SKU: Black&Decker PW 1600 WS 13477
€4.96
VAT included

Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477

Black&Decker genuine spare parts or replacements parts for to repair Pressure Washer PW 1600 WS - 13477.

Fix Your Pressure Washer PW 1600 WS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Black&Decker PW 1600 WS 13477
Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477
  • Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477
  • Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477
  • Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477
Annovi Reverberi S.p.A.

Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477

SKU: Black&Decker PW 1600 WS 13477 Condition: New
€4.96
VAT included

Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477

Black&Decker genuine spare parts or replacements parts for to repair Pressure Washer PW 1600 WS - 13477.

Fix Your Pressure Washer PW 1600 WS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Black&Decker PW 1600 WS 13477
settings 42 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts

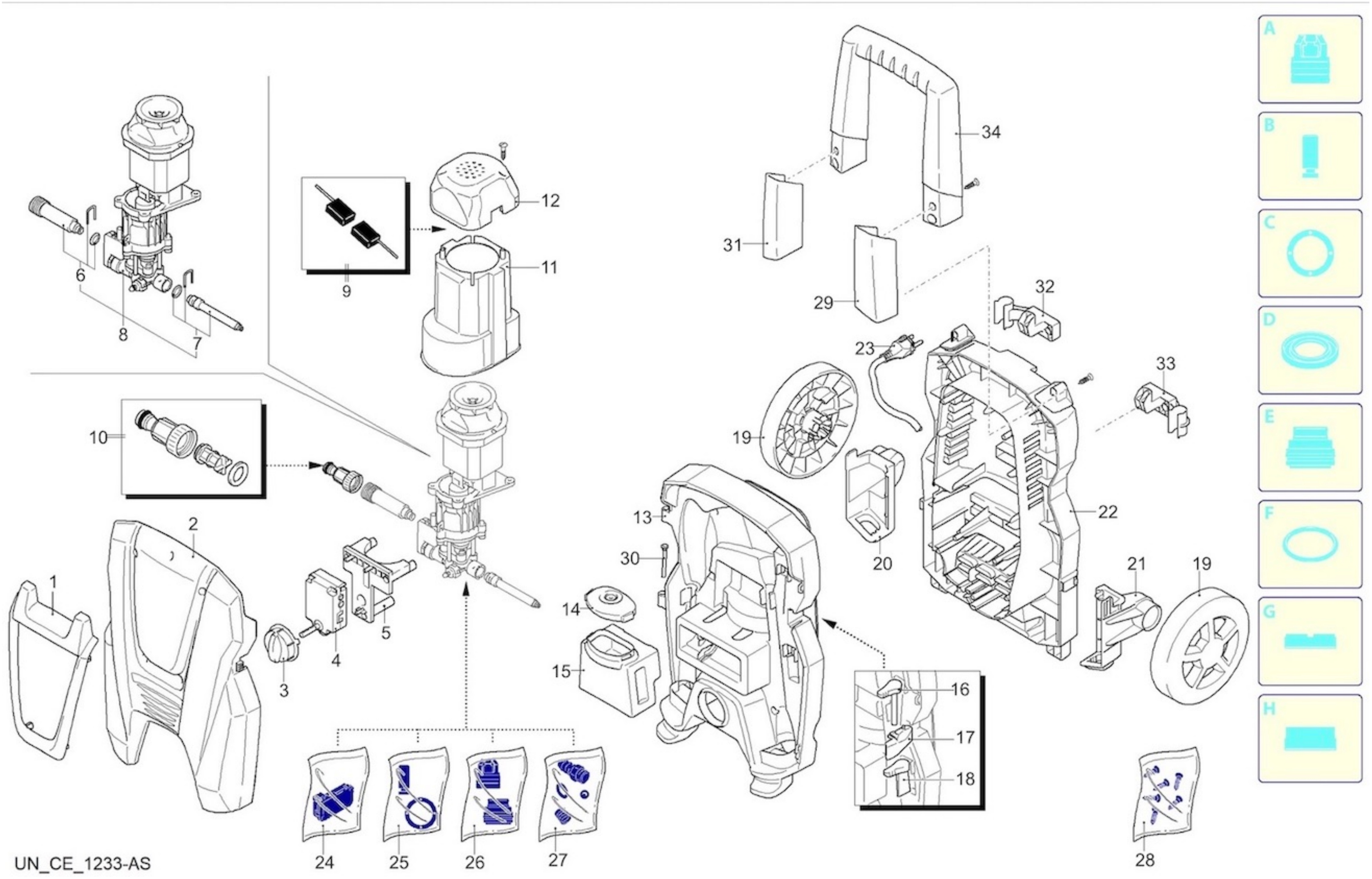

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3940090 Guard €8.85
2
 photo_cameraImage coming soon 3940010 Orange casing €18.04
3
 photo_cameraImage coming soon 3940190 Knob €7.80
4
 photo_cameraImage coming soon 3940290 Switch €9.99
5
 photo_cameraImage coming soon 3940120 Support €7.97
6
 photo_cameraImage coming soon 3640580 Suction kit €6.98
7
 photo_cameraImage coming soon 3940400 Delivery kit €12.43
8
 photo_cameraImage coming soon 3940390 Electric pump assembly €112.56
9
 photo_cameraImage coming soon 3641160 Motor Brush Kit €15.71
10
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
11
 photo_cameraImage coming soon 3620110 Conveyor €11.13
12
 photo_cameraImage coming soon 3620120 Cover €8.03
13
 photo_cameraImage coming soon 3940020 Casing €21.88
14
 photo_cameraImage coming soon 3940220 Plug €5.37
15
 photo_cameraImage coming soon 3940230 Tank €12.40
16
 photo_cameraImage coming soon 3940170 Nozzle cleaning tool €8.33
17
 photo_cameraImage coming soon 3940200 Lever €6.87
18
 photo_cameraImage coming soon 3940180 Lubrication grease €11.52
19
 photo_cameraImage coming soon 3940310 Wheel €16.41
20
 photo_cameraImage coming soon 3940160 Bracket €9.20
21
 photo_cameraImage coming soon 3940150 Bracket €9.20
22
 photo_cameraImage coming soon 3940030 base €21.88
23
 photo_cameraImage coming soon 3320950 Cable €22.32
24
 Kit TSS for Pressure Washers B&D PW 1600 WS - PW 1800 WS 3640720 Kit TSS for Pressure Washers B&D PW 1600 WS - PW 1800 WS €18.01
25
 photo_cameraImage coming soon 3640710 Piston + seals kit €21.52
26
 photo_cameraImage coming soon 3640550 Water seal kit €13.57
27
 Detergent Suction Kit for Washers Black & Decker PW 1600 WS 3640740 Detergent Suction Kit for Washers Black & Decker PW 1600 WS €11.30
28
 photo_cameraImage coming soon 3640690 Screw kit €10.24
29
 photo_cameraImage coming soon 3940060 Bracket €10.68
30
 photo_cameraImage coming soon 3940270 Hub pin €5.00
31
 photo_cameraImage coming soon 3940050 Bracket €10.68
32
 photo_cameraImage coming soon 3940100 Accessories carrier €7.16
33
 photo_cameraImage coming soon 3940110 Accessories carrier €7.16
34
 photo_cameraImage coming soon 3940040 Handle €14.43

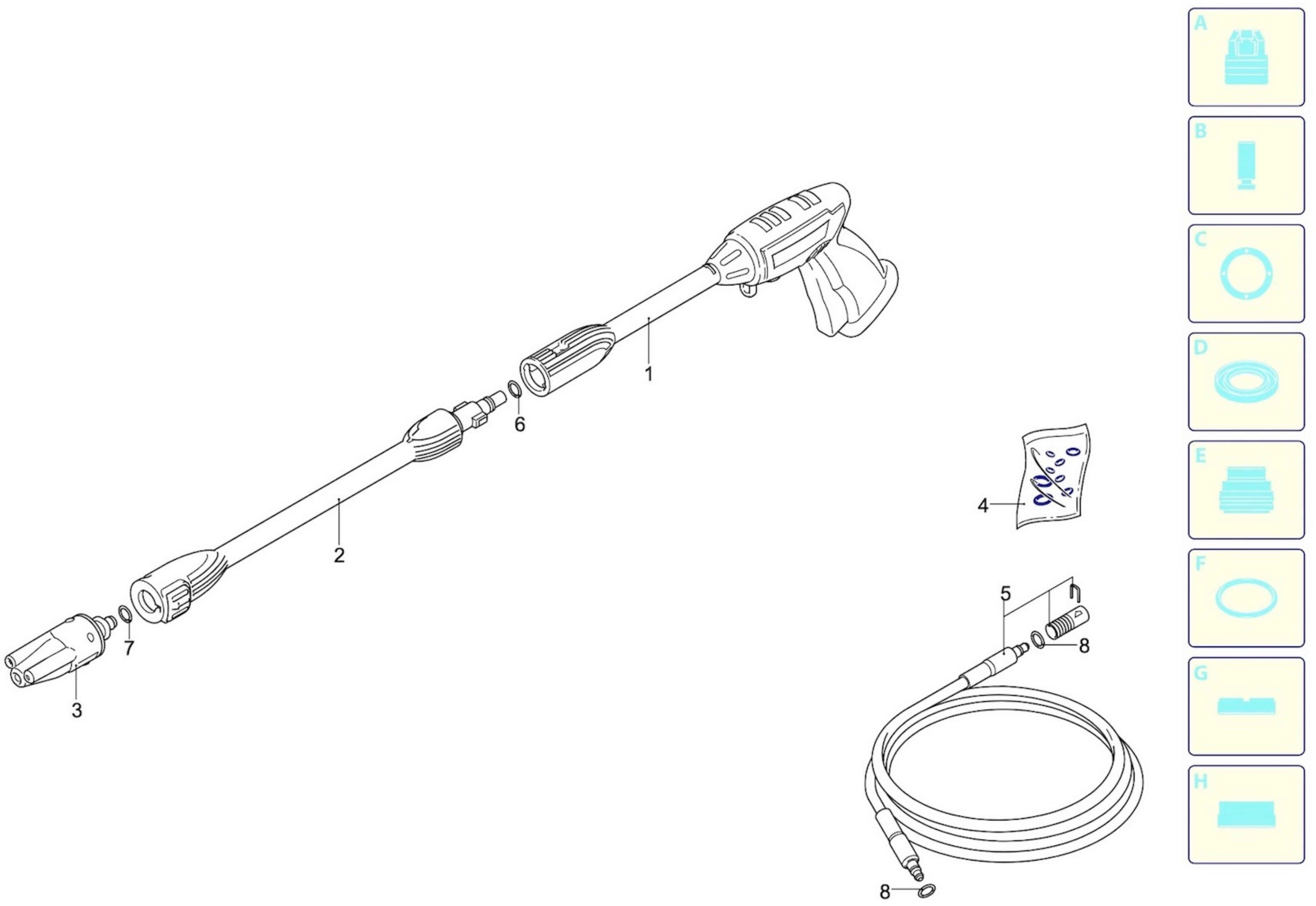

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washers Black&Decker PW 1600-1800 WS 3761151 Trigger Gun for Pressure Washers Black&Decker PW 1600-1800 WS €21.00
2
 Gun Extension for Pressure Washers Black & Decker BXPW 1300-1400E-PE 4100772 Gun Extension for Pressure Washers Black & Decker BXPW 1300-1400E-PE €11.02
3
 Extension Head for Pressure Washers Black&Decker PW 1600-1800 WS 3761690 Extension Head for Pressure Washers Black&Decker PW 1600-1800 WS €19.91
4
 Gasket Kit for Pressure Washers Black&Decker PW 1600-1800 WS 3641140 Gasket Kit for Pressure Washers Black&Decker PW 1600-1800 WS €4.87
5
 Extension Hose Kit 6MT for Pressure Washer PW 1600 WS 3620210 Extension Hose Kit 6MT for Pressure Washer PW 1600 WS €23.92
6
 photo_cameraImage coming soon 3761530 O-ring €4.58
7
 O-Ring mm 18x3 for Pressure Washers B&D PW 1600 WS - PW 1800 WS 3760660 O-Ring mm 18x3 for Pressure Washers B&D PW 1600 WS - PW 1800 WS €0.61
8
 O-Ring mm 5,3x1,6 NBR for Pressure Washers Black & Decker 3761360 O-Ring mm 5,3x1,6 NBR for Pressure Washers Black & Decker €1.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black&Decker Spare Parts for Pressure Washer PW 1600 WS - 13477

Fix Your Pressure Washer PW 1600 WS - 13477. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Black&Decker PW 1600 WS 13477

Black&Decker Pressure Washer PW 1600 WS - 13477
Casing Pag.1
# Part Num. Description
1 3940090 Guard
2 3940010 Orange casing
3 3940190 Knob
4 3940290 Switch
5 3940120 Support
6 3640580 Suction kit
7 3940400 Delivery kit
8 3940390 Electric pump assembly
9 3641160 Brush kit for motor
10 3082130 Water coupling kit
11 3620110 Conveyor
12 3620120 Cover
13 3940020 Casing
14 3940220 Plug
15 3940230 Tank
16 3940170 Nozzle cleaning tool
17 3940200 Lever
18 3940180 Lubrication grease
19 3940310 Wheel
20 3940160 Bracket
21 3940150 Bracket
22 3940030 Base
23 3320950 Cable
24 3640720 TSS kit
25 3640710 Piston + seals kit
26 3640550 Water seal kit
27 3640740 Detergent suction kit
28 3640690 Screw kit
29 3940060 Bracket
30 3940270 Hub pin
31 3940050 Bracket
32 3940100 Accessories carrier
33 3940110 Accessories carrier
34 3940040 Handle
Accessories Pag.2
1 3761151 Spray Gun- Code : 3761151 -> SUBSTITUITED BY  cod. 3760851
2 4100772 Extension
3 3761690 Lance head
4 3641140 Gasket kit
5 3620210 High pressure hose
6 3761530 O-ring
7 3760660 O-ring
8 3761360 O-ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Black&Decker PW 1600 WS 13477
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram B&D PW 1600 WS - 13477

Diagram B&D PW 1600 WS - 13477

Download (372.11KB)
