Black & Decker KR803K-QS Type1 Spare Parts

SKU: Black & Decker KR803K-QS-1
€31.92
VAT included

Black & Decker KR803K-QS Type1 Hammer Drill Spare Parts

Black&Decker, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KR803K-QS Type 1.
Black & Decker KR803K-QS Type1 Spare Parts
  • Online only
  • Black & Decker KR803K-QS Type1 Spare Parts

Black & Decker KR803K-QS Type1 Spare Parts

SKU: Black & Decker KR803K-QS-1 Condition: New
€31.92
VAT included

Black & Decker KR803K-QS Type1 Hammer Drill Spare Parts

Black&Decker, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KR803K-QS Type 1.
settings 24 spare parts

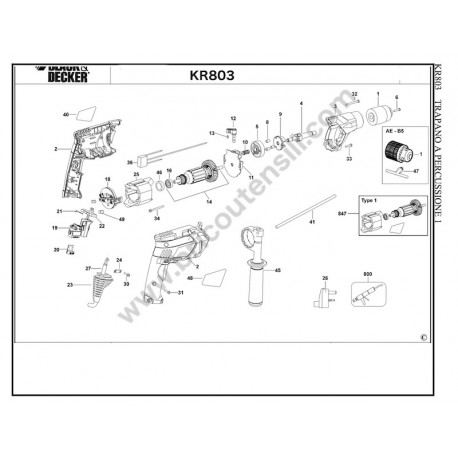

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

24 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
Black & Decker BEH850K Keyless Chuck 629530-01L Black & Decker BEH850K Keyless Chuck €31.93
4
photo_cameraImage coming soon 488643-00 SPINDLE SA €9.61
5
Black & Decker KR653 Gear 488642-00 Black & Decker KR653 Gear €12.47
6
Black&Decker BEH200K Chuck Special Screw 805434 Black&Decker BEH200K Chuck Special Screw €1.94
9
photo_cameraImage coming soon 478748-00 CARRIER €3.99
11
photo_cameraImage coming soon 488624-00 BEARING HOUSING €14.14
13
photo_cameraImage coming soon N403227 INDEXING BOLT €1.83
16
photo_cameraImage coming soon 606290-01 BEARING €3.35
18
Black&Decker KR653 Brush Holder Sa 90525184 Black&Decker KR653 Brush Holder Sa €13.53
19
photo_cameraImage coming soon 492290-00 SWITCH SA €26.44
21
photo_cameraImage coming soon 629167-00 SPRING COIL €1.83
24
photo_cameraImage coming soon 329301-00 CLAMP, CORD €1.83
26
photo_cameraImage coming soon 588384-00 ADAPTOR ASSY €11.76
27
photo_cameraImage coming soon 330080-03 CORDSET €11.76
30
photo_cameraImage coming soon 330019-38 SCREW €1.83
31
photo_cameraImage coming soon 90611830 SCREW €1.93
32
photo_cameraImage coming soon 330019-50 SCREW €1.88
33
photo_cameraImage coming soon 330019-32 SCREW €1.88
34
photo_cameraImage coming soon 330019-63 SCREW €1.83
41
photo_cameraImage coming soon 580787-00 DEPTH STOP €2.80
45
photo_cameraImage coming soon 939794-02 HANDLE SIDE SA €20.12
48
photo_cameraImage coming soon 90556844 RATING PLATE €2.91
49
photo_cameraImage coming soon 90587238 BRUSH PAIR 230V €2.46
800
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker KR803K-QS Type1 Hammer Drill Spare Parts

Black&Decker, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KR803K-QS Type 1.

In the following table, look for the model of the hammer and the respective parts of the code.
Black&Decker Black&Decker KR803K-QS Type 1
Black & Decker KR803K-QS Type 1 Hammer Drill Spare Parts
# Part NUm. Description
1 629530-01L HAMMER DRILL KEYLESS CHUCK
2 490560-00 CLAMSHELL
3 490559-00 GEARCASE SA
4 488643-00 SPINDLE SA
5 488642-00 GEAR
6 805434 Screw M5X18
8 478752-00 ROLLER - DISCONTINUED
9 478748-00 CARRIER
10 491055-00 SPRING - DISCONTINUED
11 488624-00 BEARING HOUSING
12 490715-00 SELECTOR SA
13 N403227 INDEXING BOLT
14 645698-01 ARMATURE SA
16 606290-01 BEARING
18 90525184 BRUSH HOLDER SA
19 492290-00 SWITCH SA
20 615538-01 PCB SA
21 629167-00 SPRING COIL
22 629168-00 LEVER
23 635395-00 CORD PROTECTOR
24 329301-00 CLAMP, CORD CORNER
25 645699-01 FIELD SA
26 588384-00 ADAPTOR SA
27 330080-03 CORDSET
30 330019-38 SCREW
31 90611830 SCREW, PLASTIC THREAD FORM M3.5 X 19 T1
32 330019-50 SCREW M4.55x50 PLASTIC THD FMG
33 330019-32 SCREW,PLASTITE
34 330019-63 Screw M3.15 X42
40 493395-00 LABEL
41 580787-00 DEPTH STOP
45 939794-02 HANDLE SIDE SA
46 635176-00 SLEEVE
48 90556844 RATING PLATE
49 90587238 BRUSH PAIR 230V
800 870889-02 RENOLIT PARAGON EP 1/2 90GR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Black&Decker websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Black&Decker brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
