Black&Decker KR653 Type 2 Hammer Drill Parts

SKU: KR653-QS Tipo 2
€31.92
VAT included

Black&Decker KR653-QS Type 2 Hammer Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KR653-QS TYPE 2 HAMMER DRILL Spare Parts.
Black&Decker KR653 Type 2 Hammer Drill Parts
  • Online only
  • Black&Decker KR653 Type 2 Hammer Drill Parts
  • Black&Decker KR653 Type 2 Hammer Drill Parts - Drawing

Black&Decker KR653 Type 2 Hammer Drill Parts

SKU: KR653-QS Tipo 2 Condition: New
€31.92
VAT included

Black&Decker KR653-QS Type 2 Hammer Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KR653-QS TYPE 2 HAMMER DRILL Spare Parts.
settings 28 spare parts

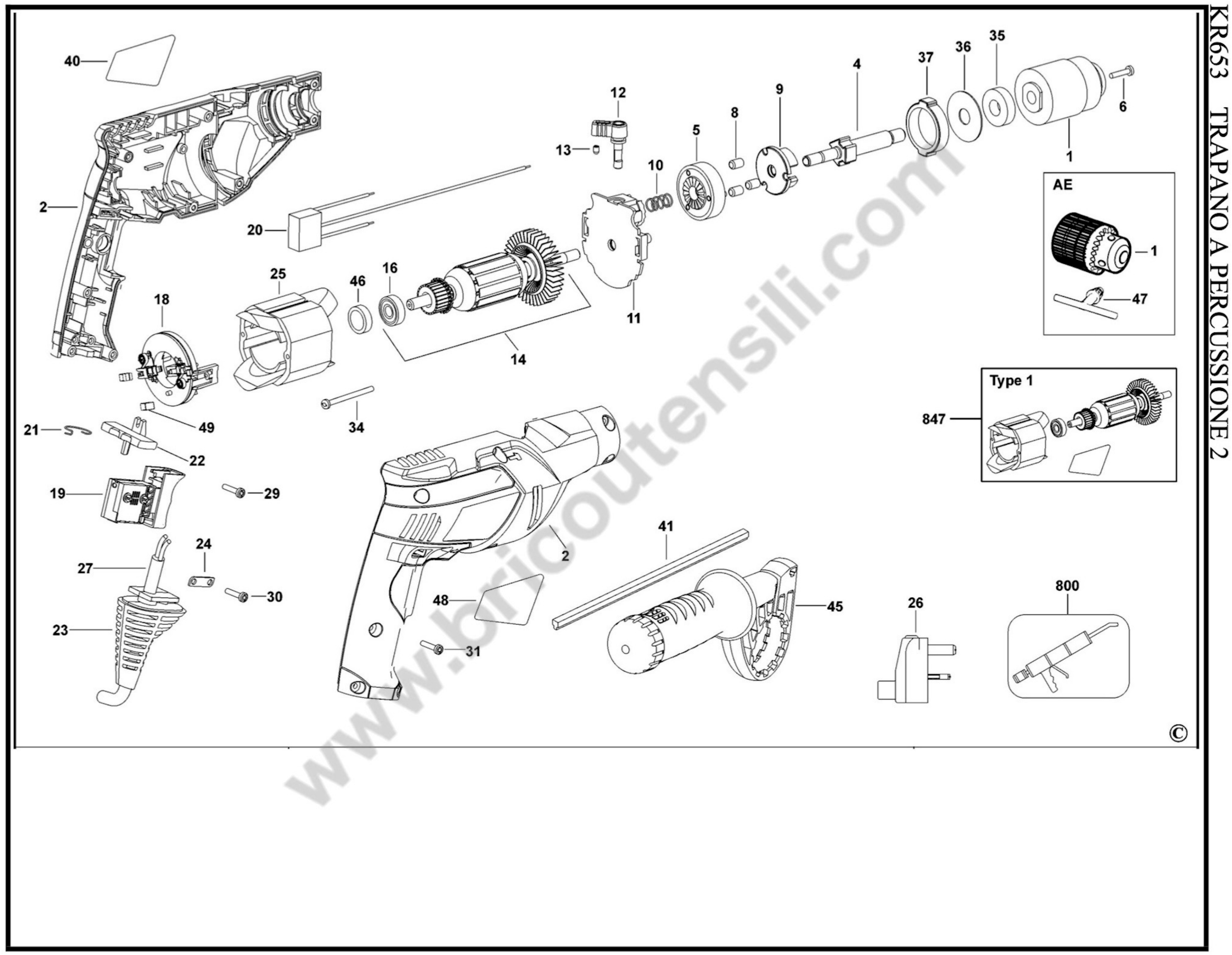

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

28 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
Black & Decker BEH850K Keyless Chuck 629530-01L Black & Decker BEH850K Keyless Chuck €31.93
4
photo_cameraImage coming soon 488643-00 SPINDLE SA €9.61
5
Black & Decker KR653 Gear 488642-00 Black & Decker KR653 Gear €12.47
6
Black&Decker BEH200K Chuck Special Screw 805434 Black&Decker BEH200K Chuck Special Screw €1.94
9
photo_cameraImage coming soon 478748-00 CARRIER €3.99
11
photo_cameraImage coming soon 488624-01 BEARING HOUSING €13.16
13
photo_cameraImage coming soon N403227 INDEXING BOLT €1.83
14
photo_cameraImage coming soon 645698-00 ARMATURE < 2009 47 €38.00
14
photo_cameraImage coming soon 90566176 ARMATURE > 2009 48 €33.28
16
photo_cameraImage coming soon 606290-01 BEARING €3.35
18
Black&Decker KR653 Brush Holder Sa 90525184 Black&Decker KR653 Brush Holder Sa €13.53
19
photo_cameraImage coming soon 492291-00 SWITCH SA €18.06
21
photo_cameraImage coming soon 629167-00 SPRING COIL €1.83
24
photo_cameraImage coming soon 329301-00 CLAMP, CORD €1.83
25
photo_cameraImage coming soon 645699-00 FIELD 230V < 2009 47 €25.31
25
photo_cameraImage coming soon 90566177 FIELD 230V > 2009 48 €18.24
27
photo_cameraImage coming soon 330080-03 CORDSET €11.76
29
photo_cameraImage coming soon 911026 SCREW €1.56
30
photo_cameraImage coming soon 330019-38 SCREW €1.83
31
photo_cameraImage coming soon 90611830 SCREW €1.93
34
photo_cameraImage coming soon 330019-63 SCREW €1.83
35
photo_cameraImage coming soon 606290-00 BEARING €4.46
36
photo_cameraImage coming soon 478753-00 WASHER €17.24
37
photo_cameraImage coming soon 478793-00 LOCKING RING €2.83
41
photo_cameraImage coming soon 372814-00 DEPTH STOP €2.46
45
photo_cameraImage coming soon 614670-01 HANDLE ASSY €8.49
49
photo_cameraImage coming soon 90587238 BRUSH PAIR 230V €2.46
800
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black&Decker KR653-QS Type 2 Hammer Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KR653-QS TYPE 2 HAMMER DRILL Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
Black&Decker BEH850K HAMMER DRILL TYPE 1
Black & Decker KR653-QS HAMMER DRILL Type 2
# PART NUM. Description
1 629530-01L CHUCK KEYLESS
2 492470-01 HOUSING SA
4 488643-00 SPINDLE SA
5 488642-00 GEAR
6 805434 Screw M5X18
8 478752-00 ROLLER - DISCONTINUED
9 478748-00 CARRIER
10 491055-00 SPRING - DISCONTINUED
11 488624-01 BEARING HOUSING
12 490715-00 SELECTOR SA
13 N403227 INDEXING BOLT
14 90566176 ARMATURE > 2009 48
14 645698-00 ARMATURE < 2009 47
16 606290-01 BEARING
18 90525184 BRUSH HOLDER SA
19 492291-00 SWITCH SA
20 492230-00 CAPACITOR
21 629167-00 SPRING COIL
22 629168-00 LEVER
23 635395-00 CORD PROTECTOR
24 329301-00 CLAMP, CORD CORNER
25 90566177 FIELD 230V > 2009 48
25 645699-00 FIELD 230V < 2009 47
27 330080-03 CORDSET
29 911026 SCREW
30 330019-38 SCREW
31 90611830 SCREW
34 330019-63 SCREW
35 606290-00 BEARING
36 478753-00 WASHER
37 478793-00 LOCKING RING
40 493395-00 LABEL
41 372814-00 DEPTH STOP
45 614670-01 HANDLE SA
46 635176-00 SLEEVE
48 496562-03 RATING PLATE
49 90587238 BRUSH PAIR 230V
800 870889-02 RENOLIT PARAGON EP 1/2 90GR
