Black&Decker KD1250K Type 1 Rotary Hammer Parts

SKU: KD1250K-QS Tipo 1
€3.07
VAT included

Black&Decker KD1250K Type 1 SDS Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KD1250K-QS TYPE 1 SDS Rotary Hammer Spare Parts.
Black&Decker KD1250K Type 1 Rotary Hammer Parts
  • Online only
  • Black&Decker KD1250K Type 1 Rotary Hammer Parts
  • Black&Decker KD1250K Type 1 Rotary Hammer Parts - Drawing

Black&Decker KD1250K Type 1 Rotary Hammer Parts

SKU: KD1250K-QS Tipo 1 Condition: New
€3.07
VAT included

Black&Decker KD1250K Type 1 SDS Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KD1250K-QS TYPE 1 SDS Rotary Hammer Spare Parts.
settings 65 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

65 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
Black & Decker KD1250K Cap 1004691-27 Black & Decker KD1250K Cap €3.06
2
Black & Decker KD1250K Locking Ring 1004691-28 Black & Decker KD1250K Locking Ring €1.91
3
Black & Decker KD1250K Collar 1004691-29 Black & Decker KD1250K Collar €9.41
4
Black & Decker KD1250K Spring 1004691-30 Black & Decker KD1250K Spring €3.07
5
photo_cameraImage coming soon 1004691-31 HOUSING SA €16.87
6
photo_cameraImage coming soon 1004691-32 SEAL €8.39
7
photo_cameraImage coming soon 1004691-33 WASHER €1.72
8
photo_cameraImage coming soon 1004691-34 CIRCLIP €1.72
9
photo_cameraImage coming soon 1004691-35 BEARING €10.01
10
Black & Decker KD1250K Steel Ball D7,11MM 1004691-36 Black & Decker KD1250K Steel Ball D7,11MM €1.73
11
photo_cameraImage coming soon 1004691-37 SPINDLE €13.63
14
photo_cameraImage coming soon 1004691-40 BEAT PIECE €8.39
16
photo_cameraImage coming soon 1004691-42 CYLINDER €35.25
18
photo_cameraImage coming soon 1004691-44 BUSH €1.72
19
photo_cameraImage coming soon 1004691-45 SPRING €13.63
20
photo_cameraImage coming soon 1004691-46 BUSH €4.55
21
photo_cameraImage coming soon 1004691-47 SPRING €1.72
24
photo_cameraImage coming soon 1004691-50 CLUTCH €2.53
26
photo_cameraImage coming soon 1004691-52 GEAR €25.95
28
photo_cameraImage coming soon 1004691-54 RAM €6.57
29
photo_cameraImage coming soon 1004691-55 O-RING €2.53
30
photo_cameraImage coming soon 1004691-56 PISTON €4.55
32
photo_cameraImage coming soon 1004691-58 CON ROD €7.17
34
photo_cameraImage coming soon 1004691-60 BUSH €2.53
39
photo_cameraImage coming soon 1004691-65 CRANKCASE €25.95
40
photo_cameraImage coming soon 1004691-66 COVER €2.13
42
photo_cameraImage coming soon 1004691-68 CRANKSHAFT inc 65,66,67 €8.39
44
photo_cameraImage coming soon 1004691-70 LEVER SA €4.55
45
photo_cameraImage coming soon 1004691-71 KNOB €2.53
51
photo_cameraImage coming soon 1004691-77 GEAR & PINION SA €13.63
57
photo_cameraImage coming soon 1004691-84 GEAR €8.39
60
photo_cameraImage coming soon 1004691-93 LEVER €4.95
61
photo_cameraImage coming soon 1004691-85 BUSH €1.72
62
photo_cameraImage coming soon 1004691-87 BEARING NEEDLE €1.72
63
photo_cameraImage coming soon 1004691-89 SEAL €2.53
64
photo_cameraImage coming soon 1004691-78 BEARING €3.34
65
photo_cameraImage coming soon 1004691-79 BEARING €5.56
66
photo_cameraImage coming soon 1004691-92 GEARCASE COVER SA €12.22
68
photo_cameraImage coming soon 1004691-94 BEARING €10.01
69
Black&Decker KD1250K Ball Bearing 608ZZ/LFK 1004691-96 Black&Decker KD1250K Ball Bearing 608ZZ/LFK €6.57
70
photo_cameraImage coming soon 1004691-95 ARMATURE SA €77.45
72
photo_cameraImage coming soon 1004691-98 FAN COVER €1.72
73
photo_cameraImage coming soon 1004692-00 FIELD €35.25
74
photo_cameraImage coming soon 1004692-01 HOUSING MOTOR €36.58
75
Black&Decker KD1250K Carbon Brush Set 1004692-02 Black&Decker KD1250K Carbon Brush Set €11.91
76
photo_cameraImage coming soon 1004692-03 BRUSH & HOLDER SA €10.01
79
photo_cameraImage coming soon 1004692-06 MOTOR COVER €8.39
81
photo_cameraImage coming soon 1004692-09 TRIGGER €1.72
82
photo_cameraImage coming soon 1004692-10 SWITCH €25.95
83
photo_cameraImage coming soon 1004692-11 POTENTIOMETER SA €22.73
84
photo_cameraImage coming soon 1004692-13 CAPACITOR €1.72
86
photo_cameraImage coming soon 1004692-19 LED (A) 220V-240V €5.56
87
photo_cameraImage coming soon 1004692-08 CLAMSHELL SA €42.92
88
photo_cameraImage coming soon 1004692-15 SCREW €2.53
90
photo_cameraImage coming soon 1004692-18 CORDSET LH (EURO) €22.73
91
photo_cameraImage coming soon 1004692-16 CORD GUARD €1.72
92
photo_cameraImage coming soon 1004692-20 SIDE HANDLE €13.63
93
photo_cameraImage coming soon 1004692-21 DEPTH ROD €2.53
94
photo_cameraImage coming soon 1004692-32 CHUCK KEY €1.72
95
photo_cameraImage coming soon 1004692-33 SPINDLE €16.87
96
photo_cameraImage coming soon 1004692-34 ADAPTOR €4.55
97
photo_cameraImage coming soon 1004692-22 KIT BOX €42.92
800
photo_cameraImage coming soon 1004692-23 GREASE €5.96
801
photo_cameraImage coming soon 1004692-25 SERVICE KIT €13.63
802
photo_cameraImage coming soon 1004692-24 GREASE €2.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black&Decker KD1250K Type 1 SDS Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KD1250K-QS TYPE 1 SDS Rotary Hammer Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
Black&Decker KD1250K-QS TYPE 1 SDS HAMMER DRILL
Black & Decker KD1250K - QS Type 1 Rotary Hammer Spare Parts
# Part Num. Description
1 1004691-27 CAP
2 1004691-28 RING
3 1004691-29 COLLAR
4 1004691-30 SPRING
5 1004691-31 HOUSING SA
6 1004691-32 SEAL
7 1004691-33 WASHER
8 1004691-34 CIRCLIP
9 1004691-35 BEARING
10 1004691-36 STEEL BALL
11 1004691-37 SPINDLE
12 1004691-38 O-RING
13 1004691-39 O-RING
14 1004691-40 BEAT PIECE
15 1004691-41 STEEL BALL
16 1004691-42 CYLINDER
17 1004691-43 KEY
18 1004691-44 BUSH
19 1004691-45 SPRING
20 1004691-46 BUSH
21 1004691-47 SPRING
22 1004691-48 BUSH
23 1004691-49 O-RING
24 1004691-50 CLUTCH
25 1004691-51 RING
26 1004691-52 GEAR
27 1004691-53 RING
28 1004691-54 RAM
29 1004691-55 O-RING
30 1004691-56 PISTON
31 1004691-57 PIN
32 1004691-58 CON ROD
33 1004691-59 BEARING
34 1004691-60 BUSH
35 1004691-61 SPRING WASHER
36 1004691-62 SCREW
37 1004691-63 SCREW
38 1004691-64 SPRING WASHER
39 1004691-65 CRANKCASE
40 1004691-66 COVER
41 1004691-67 O-RING
42 1004691-68 CRANKSHAFT
43 1004691-69 O-RING
44 1004691-70 LEVER SA
45 1004691-71 KNOB
46 1004691-72 WASHER 5 MM
47 1004691-73 SCREW
48 1004691-74 SPRING
49 1004691-75 BUTTON
50 1004691-76 SCREW
51 1004691-77 GEAR & PINION SA
52 1004691-80 CIRCLIP
53 1004691-81 CIRCLIP
54 1004691-82 SPRING
55 1004691-83 KEY
56 1004691-86 PIN
57 1004691-84 GEAR
58 1004691-90 STOP RUBBER
59 1004691-91 BALL STEEL 4MM
60 1004691-93 LEVER
61 1004691-85 BUSH
62 1004691-87 BEARING NEEDLE
63 1004691-89 SEAL
64 1004691-78 BEARING
65 1004691-79 BEARING
66 1004691-92 GEARCASE COVER SA
67 1004691-88 CAP
68 1004691-94 BEARING
69 1004691-96 BEARING
70 1004691-95 ARMATURE SA
71 1004691-97 SCREW
72 1004691-98 FAN COVER
73 1004692-00 FIELD
74 1004692-01 HOUSING MOTOR
75 1004692-02 BRUSHES & LEAD
76 1004692-03 BRUSH & HOLDER SA
77 1004692-04 SCREW
78 1004692-05 CONTACT
79 1004692-06 MOTOR COVER
80 1004692-07 SCREW
81 1004692-09 TRIGGER
82 1004692-10 SWITCH
83 1004692-11 POTENTIOMETER SA
84 1004692-13 CAPACITOR
85 1004692-12 TERMINAL BLOCK
86 1004692-19 LED
87 1004692-08 CLAMSHELL SA
88 1004692-15 SCREW
89 1004692-14 CORD CLAMP
90 1004692-18 CORDSET (EURO)
91 1004692-16 CORD PROTECTOR
92 1004692-20 SIDE HANDLE
93 1004692-21 DEPTH ROD
94 1004692-32 CHUCK KEY
95 1004692-33 CHUCK
96 1004692-34 ADAPTOR
97 1004692-22 KIT BOX
800 1004692-23 GREASE
801 1004692-25 SERVICE KIT
802 1004692-24 GREASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Black&Decker websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Black&Decker brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
KD1250K-QS Tipo 1
5 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

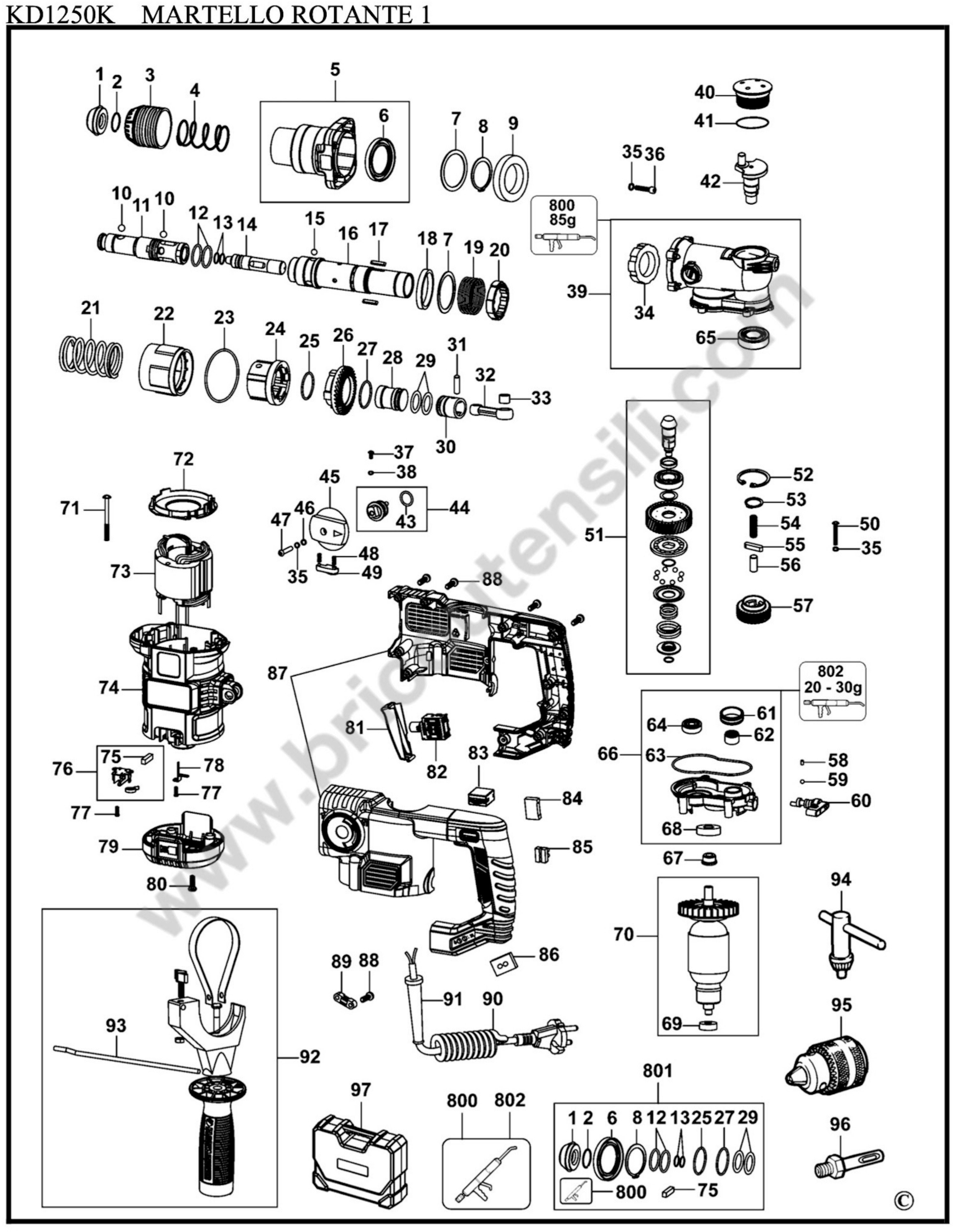

B&D KD1250K Tipo 1 Drawing

B&D KD1250K Tipo 1 Drawing

Download (440.3KB)
