Black & Decker KR806K Hammer Drill Spare Parts

SKU: Black & Decker KR806K
€28.58
VAT included

Black & Decker KR806K Hammer Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker 850 WATT SINGLE SPEED HAMMER DRILL Spare Parts.
Black & Decker KR806K Hammer Drill Spare Parts
  • Online only
  • Black & Decker KR806K Hammer Drill Spare Parts
  • Black & Decker KR806K Hammer Drill Spare Parts - Drawing

Black & Decker KR806K Hammer Drill Spare Parts

SKU: Black & Decker KR806K Condition: New
€28.58
VAT included

Black & Decker KR806K Hammer Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker 850 WATT SINGLE SPEED HAMMER DRILL Spare Parts.
settings 28 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

28 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
2
photo_cameraImage coming soon 90573880 FIELD ASSY €26.95
3
Black & Decker KR806K Keyless Chuck 90571273 Black & Decker KR806K Keyless Chuck €32.19
4
photo_cameraImage coming soon 90552945 SPECIAL SCREW €1.63
5
photo_cameraImage coming soon 330019-32 SCREW €1.88
7
photo_cameraImage coming soon 330041-12 PIN €1.63
9
photo_cameraImage coming soon 90564352 SPINDLE ASSY €7.91
10
photo_cameraImage coming soon 478753-00 WASHER €17.24
11
photo_cameraImage coming soon 90564351 CARRIER €2.77
12
photo_cameraImage coming soon 90571958 PIN €1.63
13
photo_cameraImage coming soon 90567546 TRANSMISSION GEAR €8.49
15
photo_cameraImage coming soon 90564356 BEARING HOUSING ZSB €13.82
16
photo_cameraImage coming soon 90564365 LEVER €3.16
18
photo_cameraImage coming soon 90573144N HOUSING SA €18.57
19
photo_cameraImage coming soon 330019-03 SCREW EMS 705 €1.97
20
photo_cameraImage coming soon 90564324 LEVER €1.83
22
Black & Decker KR806K Switch 90541944N Black & Decker KR806K Switch €21.05
23
photo_cameraImage coming soon 90574765 CAPACITOR €5.25
24
photo_cameraImage coming soon 329301-00 CLAMP, CORD €1.83
25
photo_cameraImage coming soon 330019-01 SCREW GO. PL41,42 €1.83
26
photo_cameraImage coming soon 770235 CABLE GROMMET €1.63
27
photo_cameraImage coming soon 90570474 CABLE SET (EURO) €7.91
28
photo_cameraImage coming soon 614670-01 HANDLE ASSY €8.49
29
Black & Decker KR806K Brush Single 90573527 Black & Decker KR806K Brush Single €3.14
33
photo_cameraImage coming soon 574853-08 BEARING €2.39
34
photo_cameraImage coming soon 606290-00 BEARING €4.46
50
photo_cameraImage coming soon 588384-00 ADAPTOR ASSY €11.76
800
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
800
photo_cameraImage coming soon 870889-03 GREASE , 90 ML €12.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker KR806K Hammer Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker 850 WATT SINGLE SPEED HAMMER DRILL Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
Black&Decker 850 WATT SINGLE SPEED HAMMER DRILL Spare Parts
Black&Decker 850 WATT SINGLE SPEED HAMMER DRILL Spare Parts
Item Code: KR806K
Model: KR806K-QS
# Part Num. Description
1 90573879 ARMATURE ASSY - DISCONTINUED
2 90573880 FIELD ASSY
3 90571273 DRILL CHUCK
4 90552945 SPECIAL SCREW
5 330019-32 SCREW
6 90564350 GEAR CASE SPRING 7.20
7 330041-12 PIN
8 330045-01 SCREW 0.80
9 90564352 SPINDLE ASSY
10 478753-00 WASHER
11 90564351 CARRIER
12 90571958 PIN
13 90567546 TRANSMISSION GEAR
14 90571237 SPRING
15 90564356 BEARING HOUSING ZSB
16 90564365 LEVER
17 90573075 PIN
18 90573144N HOUSING SA
19 330019-03 SCREW EMS 705
20 90564324 LEVER
21 90560638 LEAF SPRING
22 90541944N SWITCH ASSY
23 90574765 CAPACITOR
24 329301-00 CABLE CLAMP
25 330019-01 SCREW GO. PL41,42
26 770235 CABLE GROMMET
27 90570474 CABLE SET (EURO)
28 614670-01 HANDLE ASSY
29 90573527 BRUSH SINGLE
30 90568926 BRAND LABEL
31 90568929 STICKER
33 574853-08 BEARING
34 606290-00 BEARING
50 588384-00 ADAPTOR ASSY
800 870889-02 GREASE Renolit Paragon EP 1/2 90Gr.
800 870889-03 GREASE , 90 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Black&Decker websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Black&Decker brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Black & Decker KR806K
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

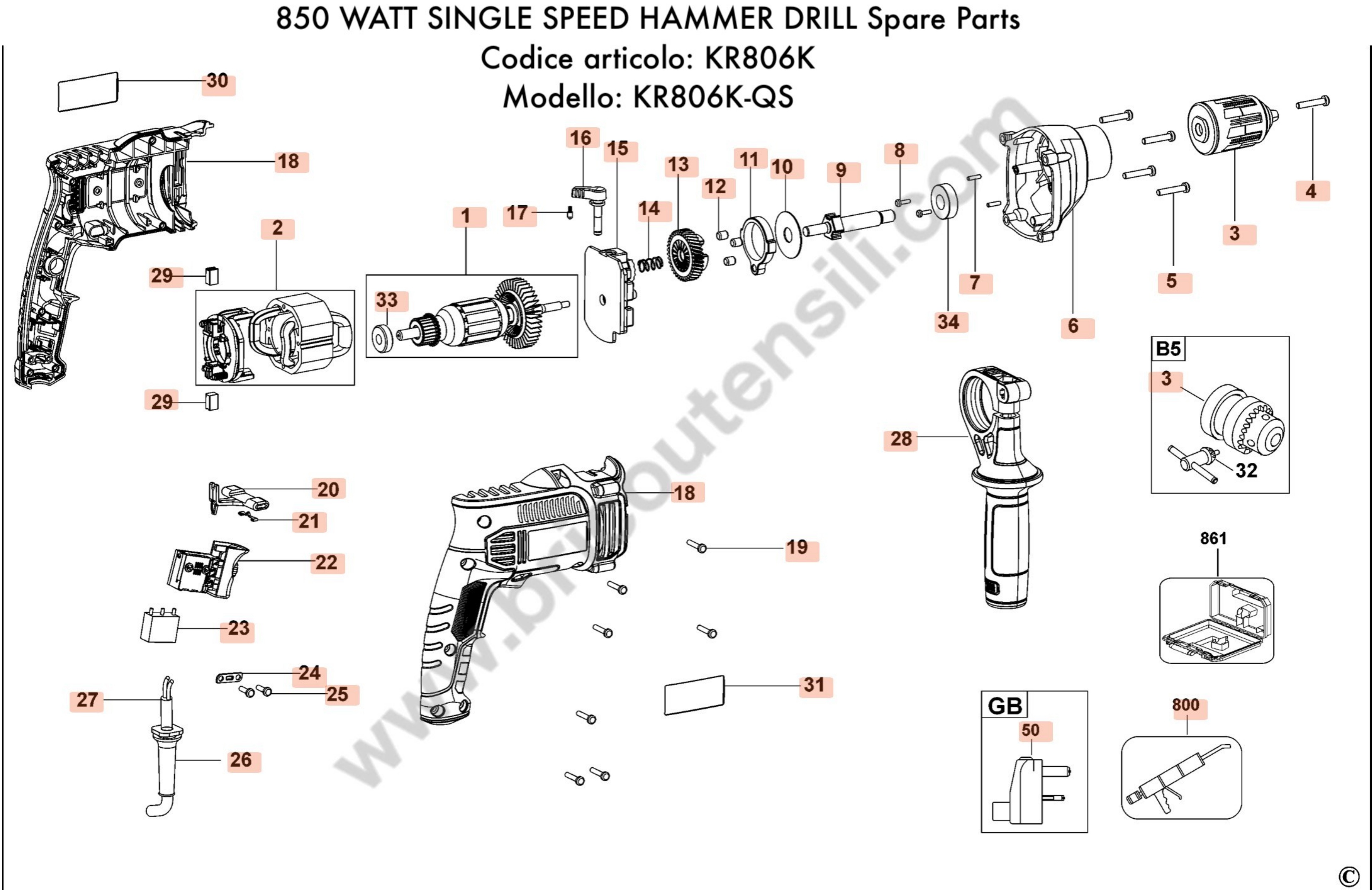

Black & Decker KR806K Drawing

Black & Decker KR806K Drawing

Download (346.57KB)
