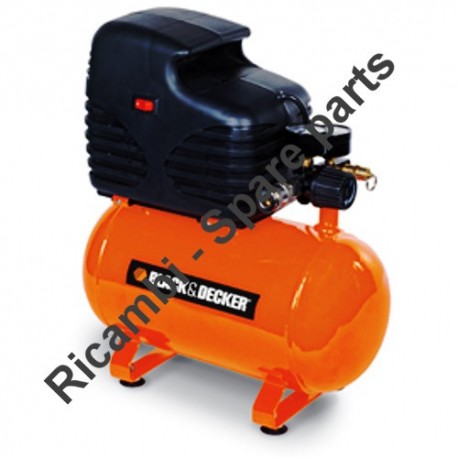

Black & Decker Spare Parts for Air Compressor CP6

SKU: Black & Decker CP6
€0.63
VAT included

Black & Decker Spare Parts for Air Compressor CP6

Black & Decker Genuine parts or replacement parts for to repair components for Air Compressor Black & Decker CP6.
Black & Decker Spare Parts for Air Compressor CP6
  • Black & Decker Spare Parts for Air Compressor CP6
  • Black & Decker Spare Parts for Air Compressor CP6
FIAC spa

Black & Decker Spare Parts for Air Compressor CP6

SKU: Black & Decker CP6 Condition: New
€0.63
VAT included

Black & Decker Spare Parts for Air Compressor CP6

Black & Decker Genuine parts or replacement parts for to repair components for Air Compressor Black & Decker CP6.
settings 46 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

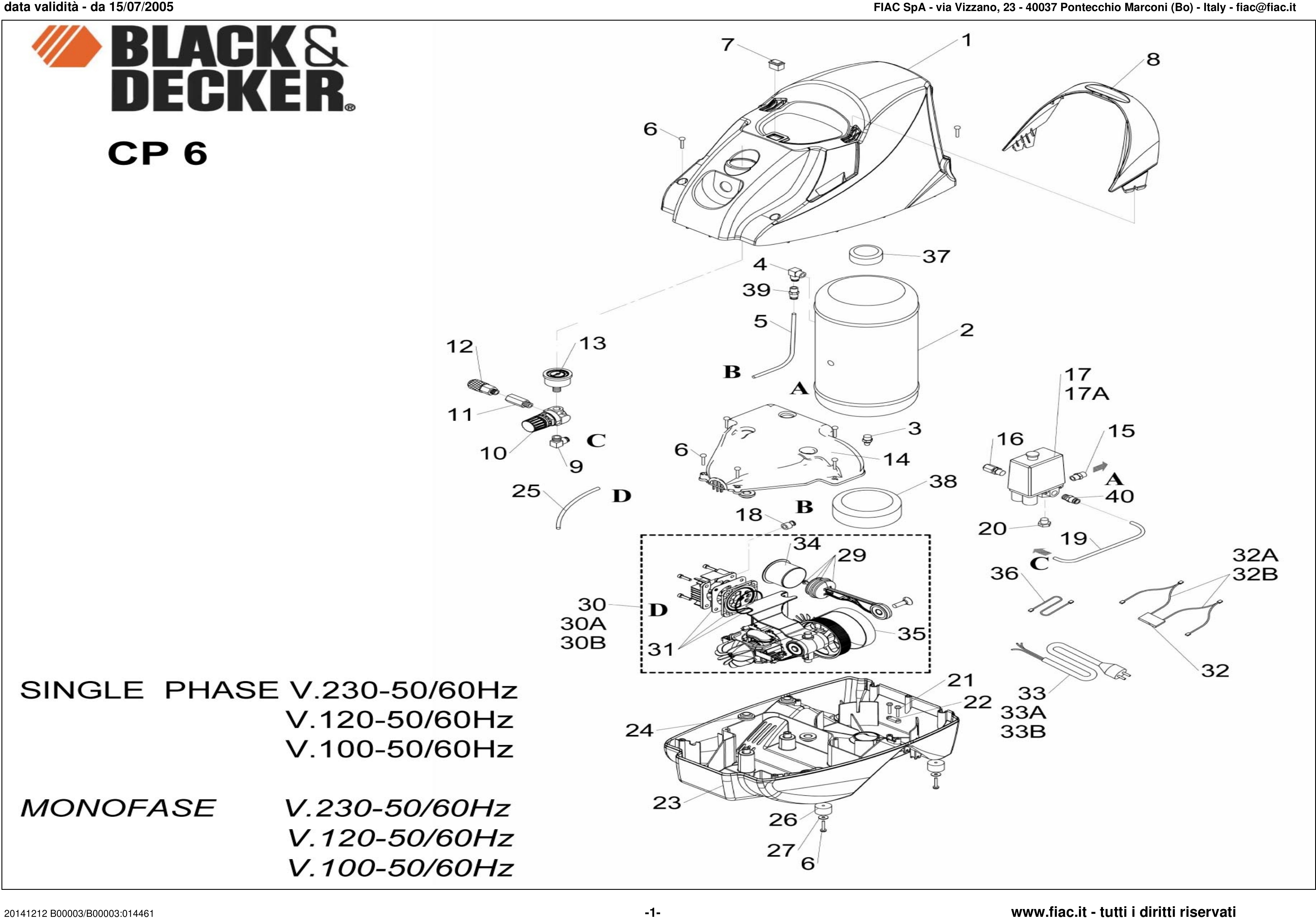

Esploso pagina 1

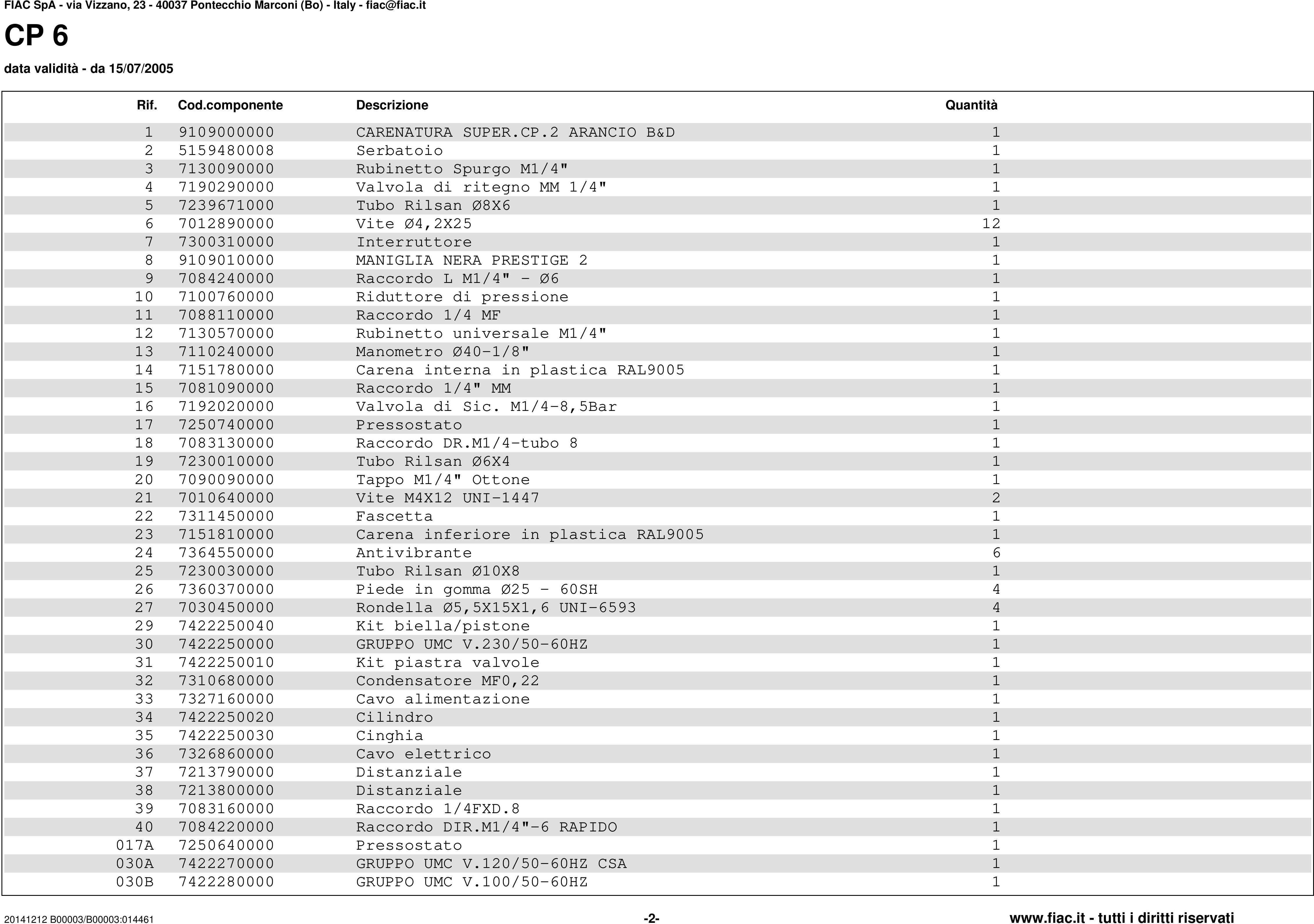

Esploso pagina 2

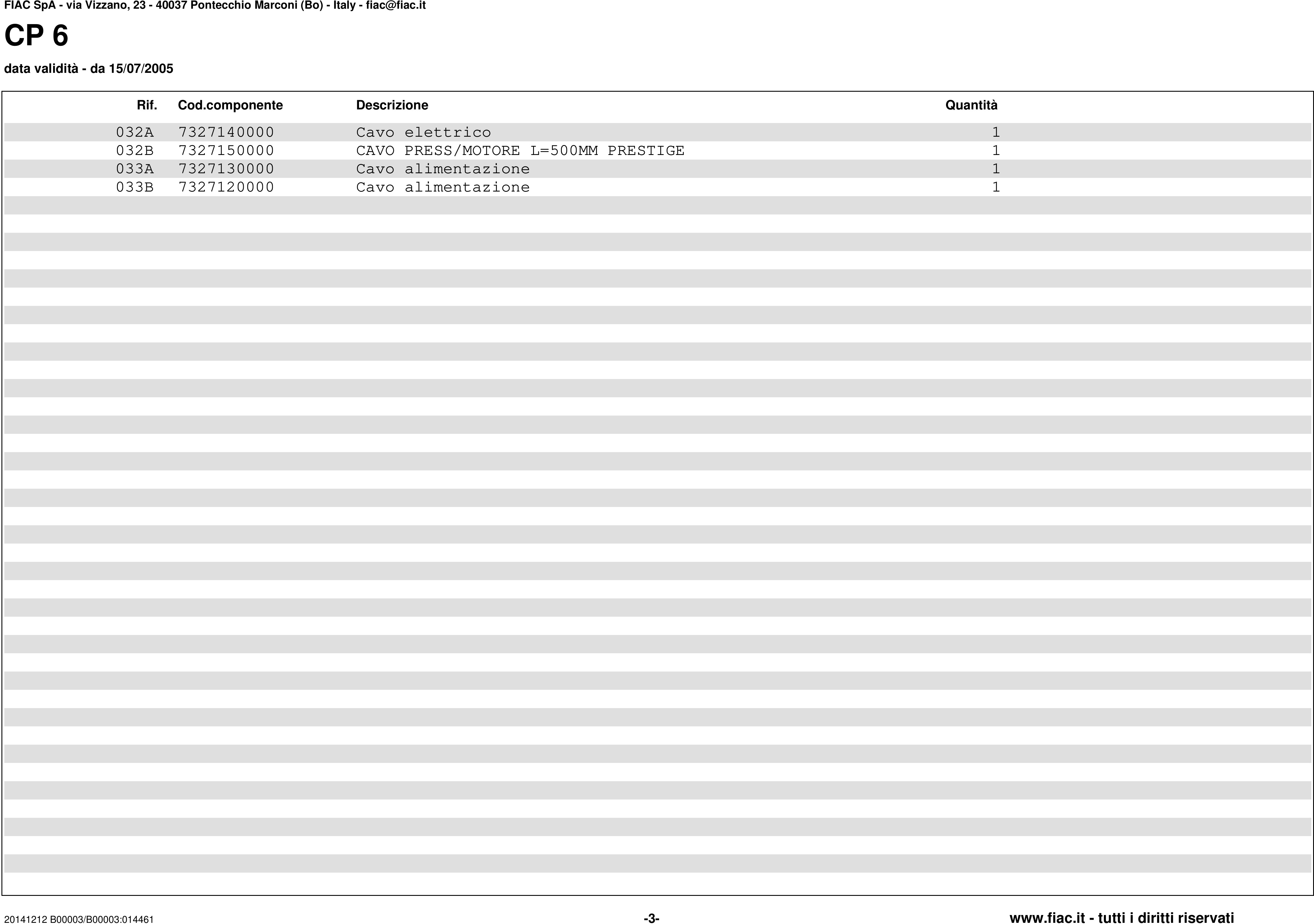

Esploso pagina 3
1 / 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9109000000 CASING SUPER.CP.2 ORANGE B & D €31.62
3
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
4
 photo_cameraImage coming soon 7190290000 CHECK VALVE MM 1/4" €15.79
5
 photo_cameraImage coming soon 7239671000 TUBE RILSAN Ø8X6 €40.63
7
 photo_cameraImage coming soon 7300310000 SWITCH €7.62
8
 photo_cameraImage coming soon 9109010000 BLACK HANDLE PRESTIGE 2 €5.37
9
 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €12.09
10
 Pressure Regulator for Air Compressors Michelin MCX 6 - MCX 20 7100760000 Pressure Regulator for Air Compressors Michelin MCX 6 - MCX 20 €22.36
11
 photo_cameraImage coming soon 7088110000 FITTING 1/4 MF €12.83
12
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
13
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
14
 photo_cameraImage coming soon 7151780000 COVER INNER PLASTIC RAL9005 €6.39
15
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
16
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
017A
 photo_cameraImage coming soon 7250640000 PRESSURE SWITCH €30.24
17
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
18
 photo_cameraImage coming soon 7083130000 FITTING DR.M 1/4-TUBE 8 €5.51
19
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
20
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
22
 photo_cameraImage coming soon 7311450000 BAND €1.42
23
 photo_cameraImage coming soon 7151810000 LOWER FAIRING PLASTIC RAL9005 €23.47
25
 photo_cameraImage coming soon 7230030000 TUBE RILSAN Ø10X8 €8.96
26
 Rubber Holder for Air Compressor Fiac ECU201-FB-210 7360370000 Rubber Holder for Air Compressor Fiac ECU201-FB-210 €3.00
29
 Conrod + Piston Kit for Air Compressor Black & Decker CP6 7422250040 Conrod + Piston Kit for Air Compressor Black & Decker CP6 €54.33
30
 photo_cameraImage coming soon 7422250000 GROUP UMC V.230 / 50-60HZ €209.61
030A
 photo_cameraImage coming soon 7422270000 GROUP UMC V.120/50-60HZ CSA €222.90
030B
 photo_cameraImage coming soon 7422280000 GROUP UMC V.100/50-60HZ €390.12
31
 Valve Plate Kit for Air Compressors B&D CP 6 - Michelin MCX 6-MCX 20 7422250010 Valve Plate Kit for Air Compressors B&D CP 6 - Michelin MCX 6-MCX 20 €36.17
32
 photo_cameraImage coming soon 7310680000 CAPACITOR MF 0,22 €5.51
33
 photo_cameraImage coming soon 7327160000 POWER CABLE €9.52
34
 Cylinder for Air Compressor Black & Decker CP6 7422250020 Cylinder for Air Compressor Black & Decker CP6 €15.97
35
 Belt for Air Compressor Yamato Oil-Less 6-1,5 7422250030 Belt for Air Compressor Yamato Oil-Less 6-1,5 €24.80
36
 photo_cameraImage coming soon 7326860000 ELECTRICAL CABLE €1.34
37
 photo_cameraImage coming soon 7213790000 SPACER €4.12
38
 photo_cameraImage coming soon 7213800000 SPACER €6.89
39
 photo_cameraImage coming soon 7083160000 FITTING 1/4 FXD.8 €11.26
40
 photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
7327120000
 photo_cameraImage coming soon 7327120000 POWER CABLE €13.53
7327130000
 photo_cameraImage coming soon 7327130000 POWER CABLE €11.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker Spare Parts for Air Compressor CP6

Black & Decker Genuine parts or replacement parts for to repair components for Air Compressor Black & Decker CP6.

In the following table, look for the type of the air compressor and the respective parts of the code .

Air Compressor Black & Decker CP6
RIF. CODE DESCRIPTION
1 9109000000 CASING SUPER.CP.2 ORANGE B & D
2 5159480008 TANK
3 7130090000 BLEEDING TAP M 1/4"
4 7190290000 CHECK VALVE MM 1/4"
5 7239671000 TUBE RILSAN Ø8X6
6 7012890000 SCREW Ø 4,2X25
7 7300310000 SWITCH
8 9109010000 BLACK HANDLE PRESTIGE 2
9 7084240000 FITTING L M 1/4"- Ø6
10 7100760000 PRESSURE REDUCER
11 7088110000 FITTING 1/4 MF
12 7130570000 TAP UNIVERSAL M1/4"
13 7110240000 MANOMETER Ø40-1/8"
14 7151780000 COVER INNER PLASTIC RAL9005
15 7081090000 FITTING 1/4" MM
16 7192020000 VALVE SIC. M 1/4-8,5 BAR
17 7250740000 PRESSURE SWITCH
18 7083130000 FITTING DR.M 1/4-TUBE 8
19 7230010000 TUBE RILSAN Ø 6X4
20 7090090000 CAP M 1/4" BRASS
21 7010640000 SCREW M4X12 UNI-1447
22 7311450000 BAND
23 7151810000 LOWER FAIRING PLASTIC RAL9005
24 7364550000 ANTIVIBRATION
25 7230030000 TUBE RILSAN Ø10X8
26 7360370000 RUBBER FOOT Ø25 - 60SH FOR MOUNTING GLASS
27 7030450000 WASHER Ø 5,5X15X1,6 UNI-6593
29 7422250040 KIT ROD / PISTON
30 7422250000 GROUP UMC V.230 / 50-60HZ
31 7422250010 KIT VALVE PLATE
32 7310680000 CAPACITOR MF 0,22
33 7327160000 POWER CABLE
34 7422250020 CYLINDER
35 7422250030 BELT
36 7326860000 ELECTRICAL CABLE
37 7213790000 SPACER
38 7213800000 SPACER
39 7083160000 FITTING 1/4 FXD.8
40 7084220000 FITTING DIR.M 1/4"-6 QUICK
017A 7250640000 PRESSURE SWITCH
030A 7422270000 GROUP UMC V.120/50-60HZ CSA
030B 7422280000 GROUP UMC V.100/50-60HZ
032A 7327140000 ELECTRICAL CABLE
032B 7327150000 CABLE PRESS / ENGINE L = 500MM PRESTIGE
033A 7327130000 POWER CABLE
033B 7327120000 POWER CABLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Black & Decker CP6
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Black & Decker CP6

Diagram Black & Decker CP6

Download (266.8KB)
