FIAC spa

Black&Decker Air Compressor CP2525 GM145 Parts

SKU: Black&Decker CP2525 91081100000
€10.95
VAT included

Black&Decker Air Compressor CP2525 91081100000 Spare Parts

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 91081100000 S/N: 621204230C.
Black&Decker Air Compressor CP2525 91081100000 Parts
  • Black&Decker Air Compressor CP2525 91081100000 Parts
  • Black&Decker Air Compressor CP2525 91081100000 Parts - Compressor Drawing
  • Black&Decker Air Compressor CP2525 91081100000 Parts - Pump Drawing
FIAC spa

Black&Decker Air Compressor CP2525 GM145 Parts

SKU: Black&Decker CP2525 91081100000 Condition: New
€10.95
VAT included

Black&Decker Air Compressor CP2525 91081100000 Spare Parts

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 91081100000 S/N: 621204230C.
settings 67 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
67 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

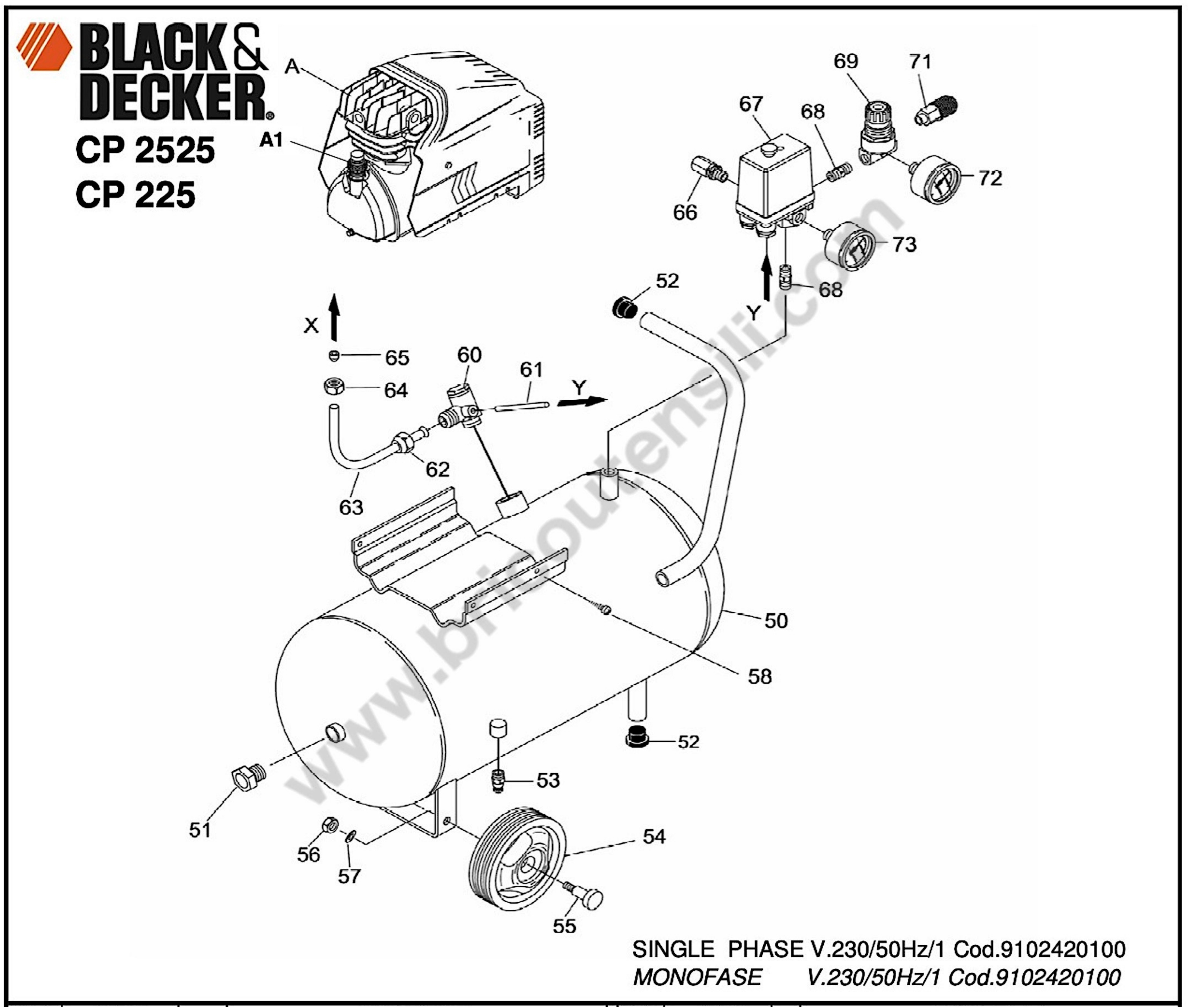

Esploso pagina 1
Pos. Item Price Buy
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
50
 photo_cameraImage coming soon 5153950008 24lt tank €269.02
51
 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S 9100010750 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S €5.39
52
 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 9100010380 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 €9.12
53
 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S 9700000324 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S €7.17
54
 Wheel D.125x30 for Air Compressor Black&Decker CP2525 9100010450 Wheel D.125x30 for Air Compressor Black&Decker CP2525 €14.37
55
 Wheel Pin 15MM for Air Compressor Black&Decker CP2525 9100010390 Wheel Pin 15MM for Air Compressor Black&Decker CP2525 €2.20
56
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
57
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
58
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
59
 photo_cameraImage coming soon 9100010400 power cable €12.65
60
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
61
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
62
 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S 9700000327 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S €2.48
63
 Aluminium Pipe for Air Compressor FIAC COSMOS 225 S 9700000342 Aluminium Pipe for Air Compressor FIAC COSMOS 225 S €12.15
64
 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S 9700000325 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S €2.84
65
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
66
 FIAC Safety Valve M1-4-9Bar 9700000303 FIAC Safety Valve M1-4-9Bar €10.71
67
 Pressure Switch 10 BAR CE for FIAC Air Compressors 9700000388 Pressure Switch 10 BAR CE for FIAC Air Compressors €42.54
68
 FIAC Joint for COSMOS 225 S 9700000330 FIAC Joint for COSMOS 225 S €7.19
69
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
71
 photo_cameraImage coming soon 9700000276 universal tap €16.78
72
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
73
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

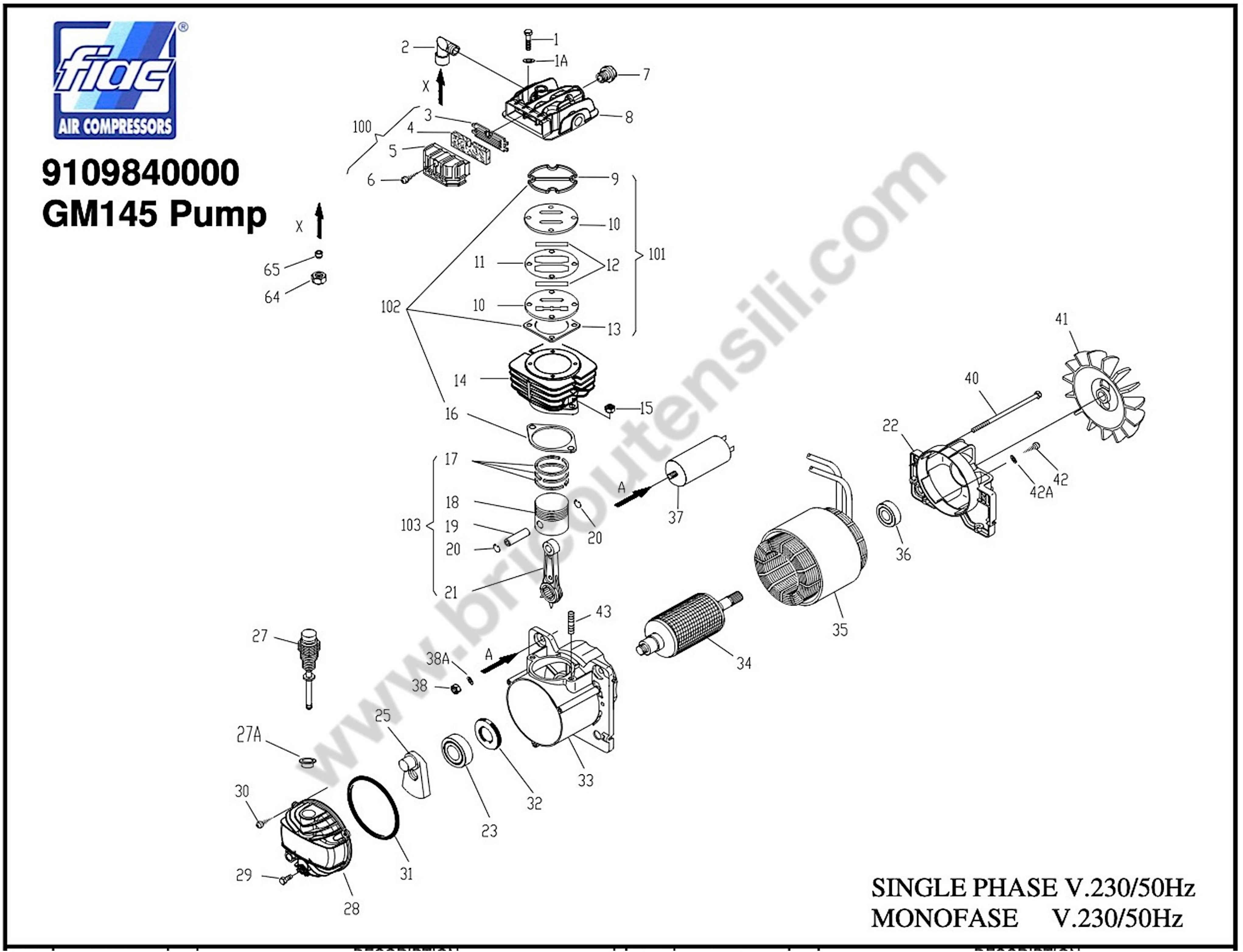

Esploso pagina 2
Pos. Item Price Buy
Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S 9700000325 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S €2.84
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €10.13
8
 Head for Air Compressors FIAC COSMOS S 225-255 9101410070 Head for Air Compressors FIAC COSMOS S 225-255 €30.64
9
 Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410080 Head Gasket for Air Compressors FIAC COSMOS S 225-255 €2.91
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
 photo_cameraImage coming soon 9100010370 valve €4.23
13
 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410090 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 €1.51
14
 photo_cameraImage coming soon 9101410060 cylinder €25.56
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 photo_cameraImage coming soon 9100590060 Gasket 1.5mm €1.39
17
 Piston Rings for Pump Unit FIAC Series GM 4080010000 Piston Rings for Pump Unit FIAC Series GM €28.26
18
 photo_cameraImage coming soon 9100580050 piston €15.99
19
 photo_cameraImage coming soon 9100580090 pin €3.91
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
22
 Motor Hood for Pump Unit FIAC GM 145 7640060000 Motor Hood for Pump Unit FIAC GM 145 €27.79
23
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
25
 photo_cameraImage coming soon 9101410050 crank €20.54
27
 photo_cameraImage coming soon 9700010061 Dipstick €10.13
27A
 photo_cameraImage coming soon 9700010089 Plastic Cover €4.11
28
 photo_cameraImage coming soon 9101410020 crankcase cover €14.64
29
 photo_cameraImage coming soon 7012160000 screw €1.48
30
 photo_cameraImage coming soon 9700010187 screw M5x14 €1.44
31
 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 9700000016 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 €2.29
32
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
33
 photo_cameraImage coming soon 9700001865 Cranckcase €62.23
34
 photo_cameraImage coming soon 9700002512 Rotor €73.36
35
 photo_cameraImage coming soon 9700002515 Stator 230V/50Hz €149.71
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
38A
 photo_cameraImage coming soon 9700010184 washer Ø8 €1.44
41
 Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €15.06
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
100
 photo_cameraImage coming soon 4094470000 Suction filter kit €13.15
101
 Valve Plate Kit for Pump Unit FIAC GM 142 7459480000 Valve Plate Kit for Pump Unit FIAC GM 142 €26.28
102
 photo_cameraImage coming soon 4082390000 Seal kit €5.31
103
 Fiac Conrod-Piston Kit D.42MM 4190330000 Fiac Conrod-Piston Kit D.42MM €66.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black&Decker Air Compressor CP2525 91081100000 Spare Parts

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 91081100000 S/N: 621204230C.

In the following table, look for the type of the air compressor and the respective parts of the code.
Black&Decker CP 2525 91081100000

Black&Decker CP 2525 91081100000 - S/N: 621204230C GM145 Pag.1
# Part Num. Description
A 9101721000 PUMP UNIT GM 142 ALUMINIUM V230/50 H75
A1 7181150000 Oil dipstick
50 5153950008 24lt tank - Cod.9100010550
51 9100010750 Cap M1/2"
52 9100010380 Rubber Footh
53 9700000324 Drain Valve 3/8"
54 9100010450 WHEEL FOR 24LT.
55 9100010390 wheel Pin
56 7020080000 Nut M10 UNI-5588
57 7030040000 Washer Ø10 UNI-6592
58 7012290000 Screw M5X20 TAP-TITE
59 9100010400 power cable
60 7190180000 Check valve MM 1.2"x3/8" -sX
61 7230010000 Rilsan tube Ø6X4
62 9700000327 Nut 3/8"
63 9700000342 tube feeding
64 9700000325 nut M10
65 7041070000 Ogiva tube Ø10
66 9700000303 Safety Valve M1 / 4-9 bar
67 9700000388 pressure
68 9700000330 Fitting MM 1/4"
69 7100640000 Pressure reducer
71 9700000276 universal tap
72 7110240000 Gauge Ø40-1/8"
73 7110300000 Gauge Ø50-1/4"
FIAC 9109840000 GM145 Pump Pag.2
1 7011220000 Screw M6x40
1A 9700010186 washer D6
2 7084040000 Joint
3 7458340000 Plate
4 7210010000 Filtering element
5 7210430000 Intatake filter
6 7012100000 Screw ST4.2x19
7 7196010000 START valve 1.5bar
8 9101410070 Head
9 9101410080 Gasket
10 9100010240 Valve plate
11 9100010080 Gasket 0.2mm
12 9100010370 Valve
13 9101410090 Gasket 0.5mm
14 9101410060 Cylinder Ф42
15 7020070000 Nut M8
16 9100590060 Gasket 1.5mm
17 4080010000 Piston ring Ф42
18 9100580050 Piston Ф42
19 9100580090 Piston pin Ф12x34
20 7041010000 Internal snapring D12 Seeger D12
21 5050150008 Con rod
22 7640060000 Rear Cover
23 7060200000 Bearing 6204
25 9101410050 Counter weight
27 9700010061 Oil dipstick
27A 9700010089 Plastic Cover
28 9101410020 Carter cover
29 7012160000 Screw M6x12
30 9700010187 Screw M5x14
31 9700000016 O-ring
32 9100270150 Oil seal d20xD47x7
33 9700001865 Cranckcase
34 9700002512 Rotor
35 9700002515 Stator 230V/50Hz
36 7060010000 Bearing 6203-2RS/2RZ
37 7310320000 Capacitor
38 9700010188 Nut M8
38A 9700010184 Washer D8
40 9700002831 Tension rod M6x110
41 9100010200 Fan
42 9700002031 Screw ST4.2x9.5
42A 9700010183 Washer D4
43 9100010050 Stud bolt M8x36
64 9700000325 Nut M16
65 7041070000 Ogive
100 4094470000 Filter kit
101 7459480000 Valve plate kit
102 4082390000 Seal kit
103 4190330000 Conrod-Piston kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Black&Decker CP2525 91081100000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

B&D CP2525 GM145 Drawing

B&D CP2525 GM145 Drawing

Download (674.45KB)

You might also like

Pressure Regulator for Air Compressor 25/50 lt
FIAC spa SKU: 7100640000
Pressure Regulator for Air Compressor 25/50 lt
Pressure Regulator for Air Compressor 25/50 lt Genuine part FIAC, Pressure regulator for air compressors single phase, 25/50 liters. - Pressure connection: 1/4'' - Gauge: 1/8'' - Fittings Air connection : 1/4'' - Adjustable...
on 7/10 Business Days Approx €25.40
Details
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP
FIAC spa SKU: 7181150000
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP Original part FIAC, oil dipstick with plug oil for pump units : GM142 - GM143 - GM201, Air Compressors Michelin MB50 _GM142 - MB50_GM143 - MCX24 - MCX50 - Black&Decker...
Last items in stock €10.95
Details
Check Valve F-M 3/4"-3/4'' for Air Compressors -20% Sale
FIAC spa SKU: 6005453434
Check Valve F-M 3/4"-3/4'' for Air Compressors
Check Valve F-M 3/4"-3/4'' for Air Compressors Check valve for air compressors, Model Female-Male 3/4''-3/4'' FVR545, complete with nipple. Technical data: - Thread tank: Feale 3/4'' - Hose connection head: Male 3/4'' - Pressure...
AVAILABLE €23.29 €29.12
Details
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S
FIAC spa SKU: 9700000343
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S Genuine part FIAC, Aluminium Pipe for Air Compressors FIAC COSMOS 255 S - MICHELIN MB 50 GM142 - BLACK & DECKER CP 5050. Parts for the following products: - Air Compressor FIAC...
AVAILABLE €12.15
Details
Tank Cap for Pumping Unit Fiac Cosmos 225S-250S
FIAC spa SKU: 9100010750
Tank Cap for Pumping Unit Fiac Cosmos 225S-250S
Tank Cap for Pumping Unit Fiac Cosmos 225S-250S Genuine spare part FIAC, Tank Cap for Pumping Unit Cosmos 225S/250S, Black&Decker CP 2525/5050. Part for the following products: - Pumping Unit COSMOS 225 S  - Pumping Unit COSMOS...
AVAILABLE €5.39
Details
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S
FIAC spa SKU: 9700000342
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S Genuine part FIAC, Aluminium Pipe for Air Compressors FIAC COSMOS 225 S - MICHELIN MB 24 GM142 - BLACK & DECKER CP 2525. Parts for the following products: - Air Compressor FIAC...
AVAILABLE €12.15
Details
Wheel D.125x30 for Air Compressor Black&Decker CP2525
FIAC spa SKU: 9100010450
Wheel D.125x30 for Air Compressor Black&Decker CP2525
Wheel D.125x30 for Air Compressor Black&Decker CP2525 Genuine part FIAC, Wheel D.125x30 DI-15 for Air Compressors 24Lt Black&Decker CP2525. Part for the following Products: -  Air Compressor Black & Decker CP2525...
AVAILABLE €14.37
Details
Fiac Conrod-Piston Kit D.42MM
FIAC spa SKU: 4190330000
Fiac Conrod-Piston Kit D.42MM
Fiac Conrod-Piston Kit D.42MM Genuine replacement part FIAC, Conrod-Piston Kit D.42MM for Pump Units FIAC GM Series. Part for the following products: PUMP UNITS - Fiac GM110 15 BAR - da 27/02/2003 - Fiac GM142 - Aluminium -...
AVAILABLE €66.03
Details
FIAC Safety Valve M1-4-9 Bar
FIAC spa SKU: 9700000303
FIAC Safety Valve M1-4-9Bar
FIAC Safety Valve M1/4 - 9 Bar Genuine replacement part FIAC, Safety Valve M1/4 - 9 Bar for Air Compressors FIAC - MICHELIN Black&Decker. Parts for the following products: - Air Compressor COSMOS 225 S - da 10/01/2011 - Air...
AVAILABLE €10.71
Details
FIAC Joint for COSMOS 225 S
FIAC spa SKU: 9700000330
FIAC Joint for COSMOS 225 S
FIAC Joint for Air Compressor COSMOS 225 S Genuine replacement part FIAC, Joint MM 1/4" for Air Compressors COSMOS 225 S - CP 2525. Part for the following products: -  Air Compressor COSMOS 225 S - from 10/01/2011 -  Air...
Usually Ships in: 7/10 Business Days Approx. €7.19
Details
Comments (0)
