FIAC spa

Black & Decker Spare Parts for Air Compressor CP 100/2

SKU: Black & Decker CP 100/2
€107.23
VAT included

Black & Decker Spare Parts for Air Compressor CP 100/2

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 100/2 - Single-Phase V.230-50Hz validity date - from 07/20/2005 a 09/07/2005
Black & Decker Spare Parts for Air Compressor CP 100/2
  • Black & Decker Spare Parts for Air Compressor CP 100/2
  • Black & Decker Spare Parts for Air Compressor CP 100/2
FIAC spa

Black & Decker Spare Parts for Air Compressor CP 100/2

SKU: Black & Decker CP 100/2 Condition: New
€107.23
VAT included

Black & Decker Spare Parts for Air Compressor CP 100/2

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 100/2 - Single-Phase V.230-50Hz validity date - from 07/20/2005 a 09/07/2005
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
32 spare parts

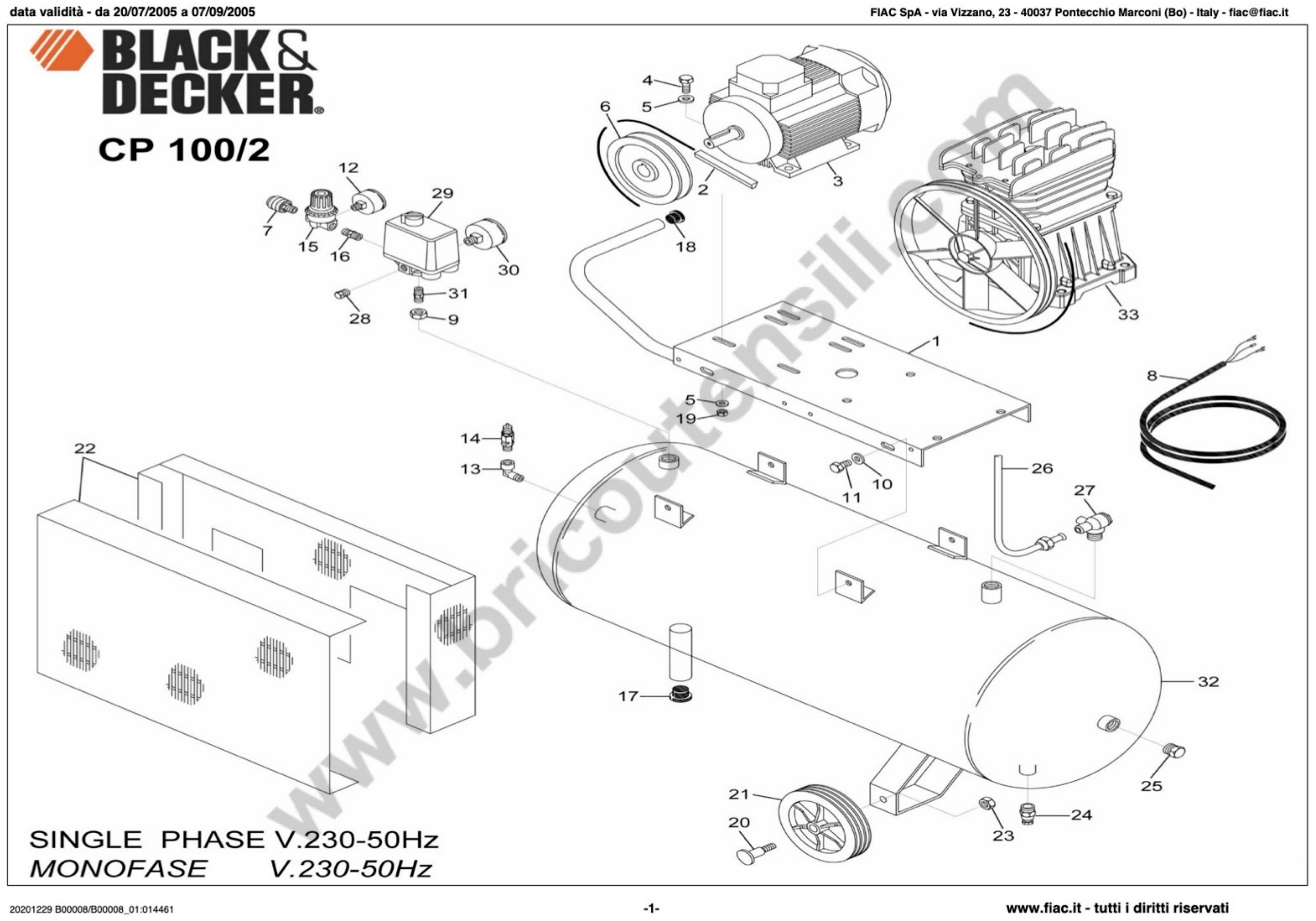

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5010990008 basis €99.11
2
 V-Belt for Compressor Fiac AB100/248 - 338M 7370740000 V-Belt for Compressor Fiac AB100/248 - 338M €8.19
3
 photo_cameraImage coming soon 7384860000 Single Phase motor €239.30
4
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
5
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
6
 Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 7408690000 Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 €33.32
7
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
8
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
9
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
10
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
11
 photo_cameraImage coming soon 7011410000 Screw M10x20 DIN 6921 €2.03
12
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
13
 FIAC Apollo 100 L Joint 7080130000 FIAC Apollo 100 L Joint €12.86
14
 photo_cameraImage coming soon 7192050000 Valve Sic. M3/8 to 10.5 Bar €21.10
15
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
16
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
17
 Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
18
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
20
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
21
 photo_cameraImage coming soon 7260050000 Wheel Ø150X30 F15 €7.55
22
 photo_cameraImage coming soon 4170250000 belt guard Kit €84.67
23
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
24
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
25
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
26
 photo_cameraImage coming soon 7237570000 tube feeding €20.11
27
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
28
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
29
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
30
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
31
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
32
 photo_cameraImage coming soon 5151720008 Tank 100lt €559.58
33
 photo_cameraImage coming soon 9100280000 Pump unit AB268 EX AB248 €198.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker Spare Parts for Air Compressor CP 100/2

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 100/2 - Single-Phase V.230-50Hz validity date - from 07/20/2005 a 09/07/2005

In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor CP 100/2 - Single-Phase V.230

Black & Decker CP 100/2 - Single-Phase V.230-50Hz
# Part Num. Description
1 5010990008 Base
2 7370740000 V-belt. A 45
3 7384860000 Single-phase motor
4 7011100000 Screw M8X25 UNI-5739
5 7030030000 Washer Ø8 UNI-6592
6 7408690000 Pulley Øp100 1-A-HOLE 19
7 7130570000 Universal tap M1/4"
8 7329070000 Power Cord
9 7023050000 Locknut 3/8"
10 7030040000 Washer Ø10 UNI-6592
11 7011410000 Screw M10X20 DIN-6921
12 7110240000 Pressure Gauce Ø40-1/8"
13 7080130000 L Joint 1/2-3/8MF
14 7192050000 Pre-set safety valve M3/8"-10.5 Bar
15 7100640000 Pressure regulator
16 7081090000 Cylindrical thread nipple 1/4 "MM
17 7360040000 Grommet Ø22
18 7360020000 Grommet Ø16
19 7020240000 Nut M8 DIN-6923
20 7018290000 Wheel Bolt
21 7260050000 Wheel Ø150X30 F15
22 4170250000 Belt guard kit
23 7020080000 Nut M10 UNI-5588
24 7130160000 Drain valve M3/8"
25 7090030000 cap 1/2
26 7237570000 Feeding tube
27 7190090000 Non Return valve MM 1/2"-DX
28 7090090000 Cap M1/4" Brass
29 7250740000 Pressure switch
30 7110300000 Pressure Gauce Ø50-1/4"
31 7088060000 Cylindrical thread nipple MM 3/8-1/4 CIL 3/8
32 5151720008 Tank 100lt
33 9100280000 Pump Unit AB248

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Black & Decker CP 100/2
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Black & Decker CP 100/2

Diagram Black & Decker CP 100/2

Download (252.5KB)
