Black & Decker Spare Parts for Air Compressor CPS 3

Black & Decker Genuine parts or replacement parts for to repair components for Air Compressor B&D CPS 3 - 23/01/2006.
Black & Decker Spare Parts for Air Compressor CPS 3
  • Black & Decker Spare Parts for Air Compressor CPS 3
  • Black & Decker Spare Parts for Air Compressor CPS 3
FIAC spa

Black & Decker Spare Parts for Air Compressor CPS 3

SKU: B&D CPS 3 - 23/01/2006 Condition: New
€188.99
VAT included

Black & Decker Spare Parts for Air Compressor CPS 3

Black & Decker Genuine parts or replacement parts for to repair components for Air Compressor B&D CPS 3 - 23/01/2006.
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
30 spare parts

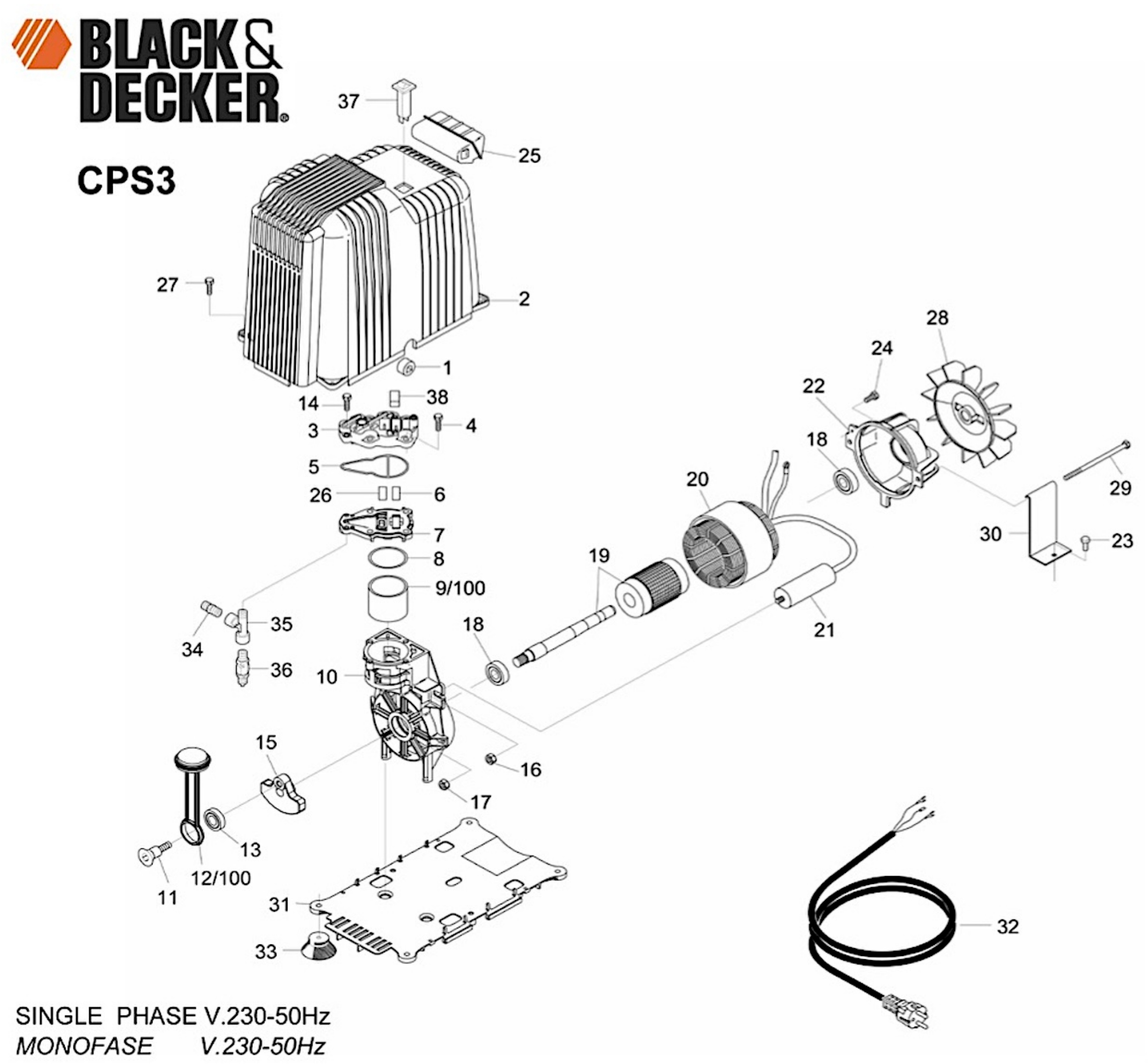

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
2
 photo_cameraImage coming soon 7152130000 COVER X "F1" ORANGE B & D.S / RID. €19.27
3
 photo_cameraImage coming soon 7570620000 Head €10.92
5
 Silicon OR for Head of Air Compressors Fiac Air Click-Airsplash 24 7078670000 Silicon OR for Head of Air Compressors Fiac Air Click-Airsplash 24 €7.89
6
 Flap Valve 32x10x0,010 for Air Compressors Fiac Air Click-Airsplash 24 7199160000 Flap Valve 32x10x0,010 for Air Compressors Fiac Air Click-Airsplash 24 €1.44 Not available for order
7
 Valve Plate for Air Compressor Fiac Air Click 7459360000 Valve Plate for Air Compressor Fiac Air Click €12.51
8
 O-Ring for Compressors Cylinder FIAC Air Splash 24-Air Click 7070420000 O-Ring for Compressors Cylinder FIAC Air Splash 24-Air Click €1.44
9
 Cilinder for Air Compressor Fiac Air Click-Airsplash 5062040008 Cilinder for Air Compressor Fiac Air Click-Airsplash €22.41 Not available for order
10
 photo_cameraImage coming soon 7670070000 Sump €29.18
11
 photo_cameraImage coming soon 7018500000 PIVOT ROD 203 F. €4.34
13
 photo_cameraImage coming soon 7060420000 6201 2RS1 bearing 12X32X10 - SKF €8.34
14
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
15
 Brass Crank F-203 for Air Compressor Fiac Air Click 7585050000 Brass Crank F-203 for Air Compressor Fiac Air Click €35.93
17
 photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
18
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
19
 photo_cameraImage coming soon 7584000000 GROUP TREE + ROTOR F-203-H 60- €51.96
20
 photo_cameraImage coming soon 4013030000 Stator €164.64
21
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
22
 photo_cameraImage coming soon 7640130000 Cover €17.64
24
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
25
 photo_cameraImage coming soon 7150470000 PLASTIC HANDLE X FAIRING F-203 €3.39
26
 Flap Valve 32x10x0,015 for Air Compressors Fiac Air Click-Airsplash 24 7199170000 Flap Valve 32x10x0,015 for Air Compressors Fiac Air Click-Airsplash 24 €1.44
28
 Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
31
 photo_cameraImage coming soon 7158030000 PLASTIC BASE X "F1" €11.88
32
 photo_cameraImage coming soon 7327740000 Power cord €19.27
33
 photo_cameraImage coming soon 7360350000 Rubber foot €4.22
34
 photo_cameraImage coming soon 7081720000 1/4 "connection €4.09
35
 photo_cameraImage coming soon 7082050000 Fitting "T" fourth FFM €12.10
36
 photo_cameraImage coming soon 7196350000 Maximum valve M1 / 4-8bar €6.78
37
 photo_cameraImage coming soon 7300180000 SWITCH 16 (8) A-250V "UL-CSA" 0-1 €6.49

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker Spare Parts for Air Compressor CPS 3

Black & Decker Genuine parts or replacement parts for to repair components for Air Compressor B&D CPS 3 - 23/01/2006.

In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor B&D CPS 3 - 23/01/2006
Air Compressor B&D CPS 3 - 23/01/2006
# Part Num. Description
1 7501050000 Lock cable
2 7152130000 COVER X "F1" ORANGE B & D.S / RID.
3 7570620000 Head
4 7012790000 Screw M6X35 UNI-8112
5 7078670000 Seal
6 7199160000 Valve
7 7459360000 Valve plate
8 7070420000 O-Ring 476
9 5062040008 Cylinder
10 7670070000 Carter
11 7018500000 CONROD BOLT F. 203
12 4082900000 CONROD SET F-203 X AIRCLIK
13 7060420000 Bearing 6201 12X32X10 2RS1 - SKF
14 7012290000 M5X20 TAP-TITE screw
15 7585050000 BRASS CRANKSHAFT F 203-AIRCLIK
16 7020240000 Nut M8 DIN-6923
17 7020200000 Nut M6 UNI-5587
18 7060010000 Bearing 6203 ZZ 17.40.12 QE6
19 7584000000 GROUP SHAFT + ROTOR F-203-H 60-
20 4013030000 Stator
21 7310590000 CAPACITOR MF.25 V450
22 7640130000 Cap
23 7012490000 Screw M6X40 UNI-7686
24 7013060000 Screw M4X8 UNI-8112
25 7150470000 PLASTIC HANDLE X FAIRING F-203
26 7199170000 Valve
27 7015440000 GALVANIZED M5X20 screw
28 7201280000 Fan of raff
29 7011400000 Screw M6X100 UNI-5737
30 7459400000 Support
31 7158030000 PLASTIC BASE X "F1"
32 7327740000 Power cord
33 7360350000 Rubber foot
34 7081720000 1/4 "connection
35 7082050000 T fitting 1/4 FFM
36 7196350000 Maximum valve M1 / 4-8bar
37 7300180000 SWITCH 16 (8) A-250V "UL-CSA" 0-1
38 7210810000 Intake filter
100 4190420000 CONROD GROUP - CYLINDER F-203 AIRCLIK - DISCONTINUED
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
B&D CPS 3 - 23/01/2006
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Black&Decker CPS 3

Diagram Black&Decker CPS 3

Download (187.37KB)
