FIAC spa

Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T

SKU: CP 50 2M 3M 3T - da 01/04/2007
€281.71
VAT included

Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 50 2M 3M 3T Validity date - from 01/04/2007.
Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T
  • Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T
  • Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T
FIAC spa

Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T

SKU: CP 50 2M 3M 3T - da 01/04/2007 Condition: New
€281.71
VAT included

Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 50 2M 3M 3T Validity date - from 01/04/2007.
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

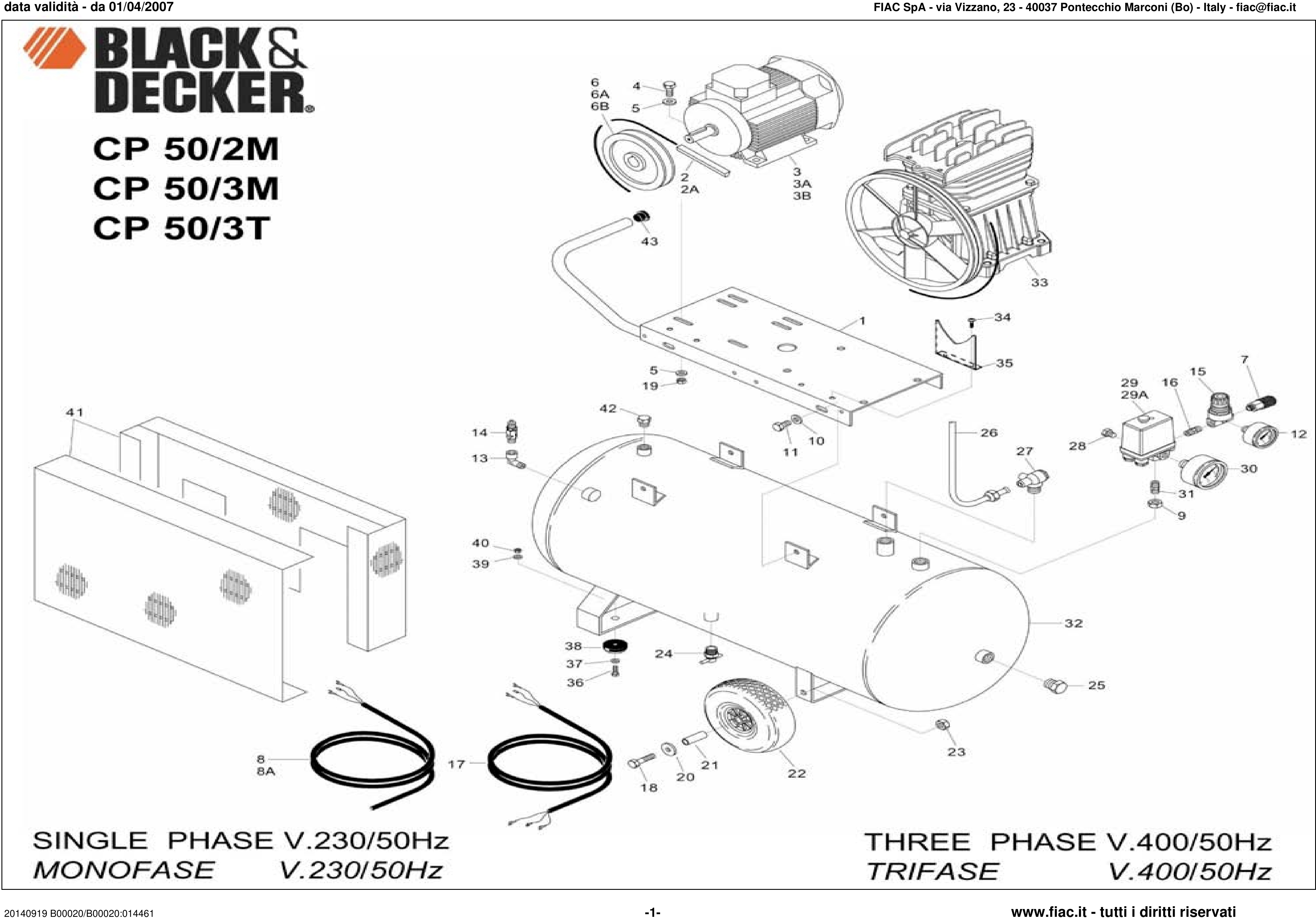

Esploso pagina 1

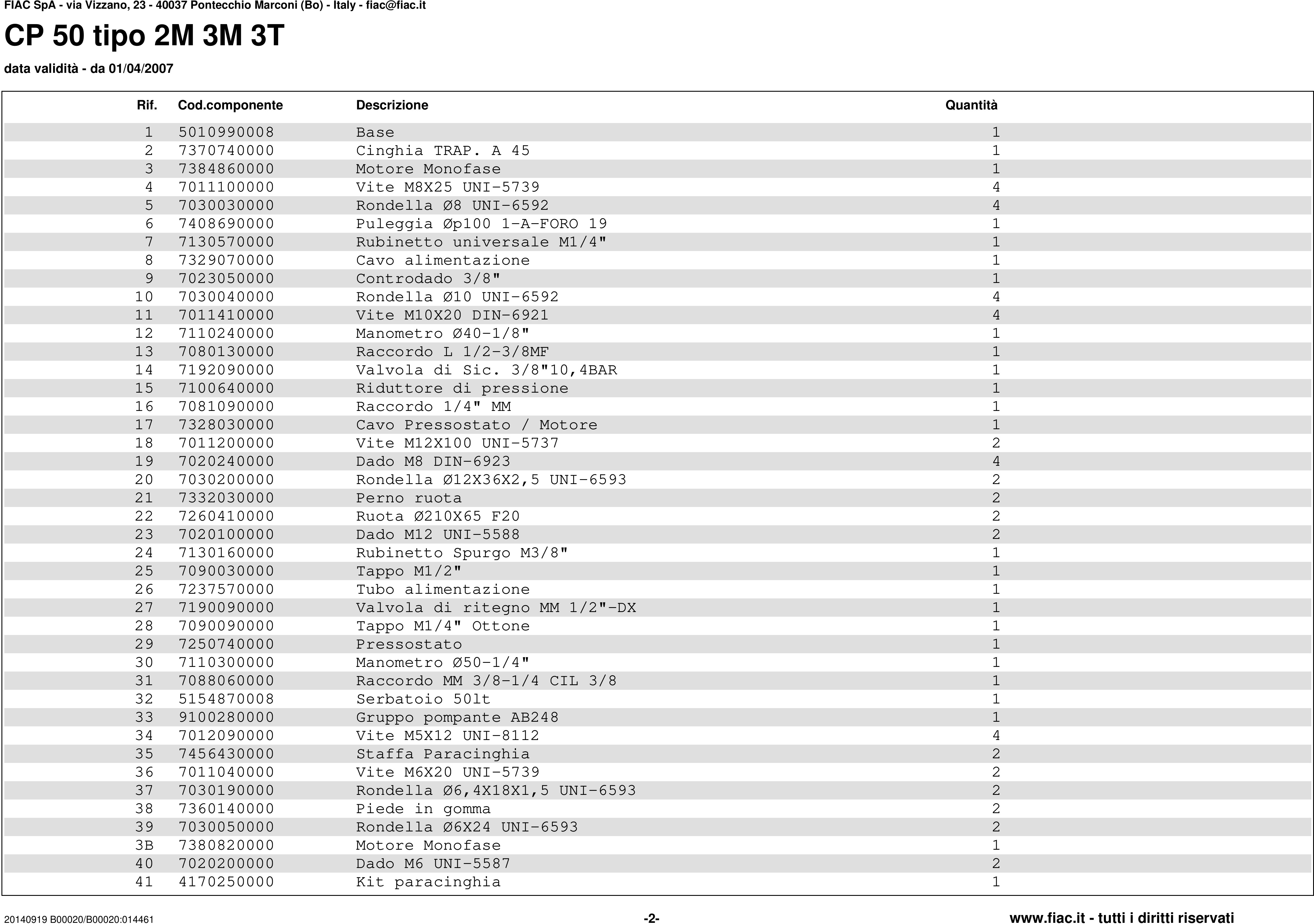

Esploso pagina 2

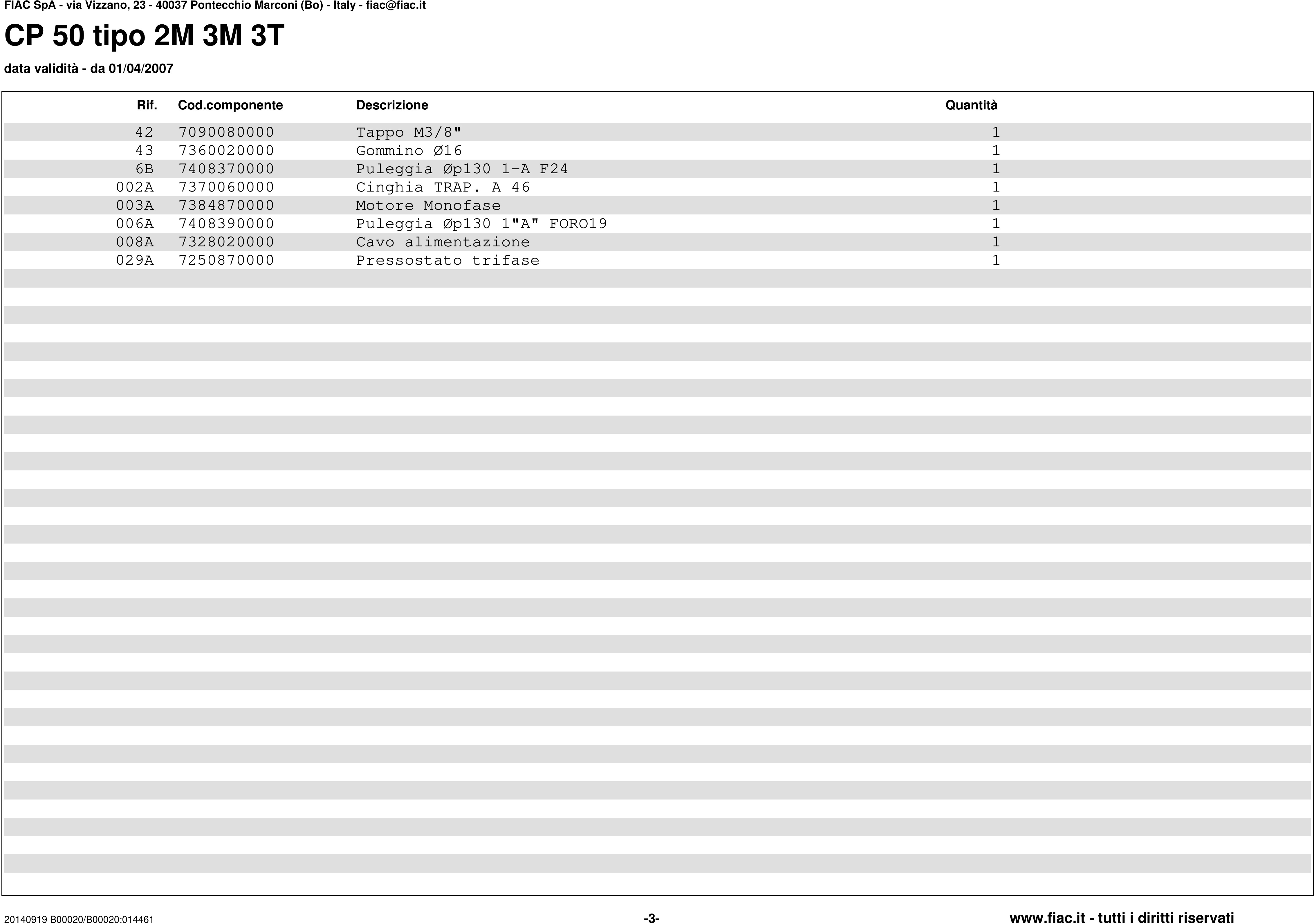

Esploso pagina 3
1 / 3
Pos. Item Price Buy
002A
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
003A
 Single-Phase Motor KW 2.2 RPM 2770 for Compressors Fiac 7384870000 Single-Phase Motor KW 2.2 RPM 2770 for Compressors Fiac €307.27
6B
 Motor Pulley Ø 130 1-A F24 for Air Compressor Fiac AB 50/245 -335 7408370000 Motor Pulley Ø 130 1-A F24 for Air Compressor Fiac AB 50/245 -335 €41.69
006A
 photo_cameraImage coming soon 7408390000 Pulley Øp130 1 "A" HOLE 19 €38.95
008A
 photo_cameraImage coming soon 7328020000 Alimentation cable €34.30
029A
 photo_cameraImage coming soon 7250870000 pressure phase €79.94
42
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
43
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
4170250000
 photo_cameraImage coming soon 4170250000 belt guard Kit €84.67
5010990008
 photo_cameraImage coming soon 5010990008 basis €99.11
5154870008
 photo_cameraImage coming soon 5154870008 50lt tank €238.26
7011040000
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
7011100000
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
7011200000
 photo_cameraImage coming soon 7011200000 Screw M12X100 UNI-5737 €5.77
7011410000
 photo_cameraImage coming soon 7011410000 Screw M10x20 DIN 6921 €2.03
7012090000
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
7020200000
 photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
7023050000
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
7030030000
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
7030040000
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
7080130000
 FIAC Apollo 100 L Joint 7080130000 FIAC Apollo 100 L Joint €12.86
7081090000
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
7088060000
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
7090030000
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
7090090000
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
7100640000
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
7110240000
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
7110300000
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
7130160000
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
7130570000
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
7190090000
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
7192090000
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
7237570000
 photo_cameraImage coming soon 7237570000 tube feeding €20.11
7250740000
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
7260410000
 photo_cameraImage coming soon 7260410000 Wheel Ø210X65 F20 €24.64
7328030000
 photo_cameraImage coming soon 7328030000 Cable Pressure Switch / Motor €27.62
7329070000
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
7332030000
 photo_cameraImage coming soon 7332030000 wheel axle €4.32
7360140000
 FIAC Rubber Foot D.40X15 F.7 7360140000 FIAC Rubber Foot D.40X15 F.7 €5.17
7370740000
 V-Belt for Compressor Fiac AB100/248 - 338M 7370740000 V-Belt for Compressor Fiac AB100/248 - 338M €8.19
7380820000
 photo_cameraImage coming soon 7380820000 Single Phase motor €325.40
7384860000
 photo_cameraImage coming soon 7384860000 Single Phase motor €239.30
7408690000
 Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 7408690000 Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 €33.32
7456430000
 photo_cameraImage coming soon 7456430000 Belt Guard bracket €16.83
9100280000
 photo_cameraImage coming soon 9100280000 Pump unit AB268 EX AB248 €198.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker Spare Parts for Air Compressor CP 50 2M 3M 3T

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 50 2M 3M 3T Validity date - from 01/04/2007.

In the following table, look for the type of the air compressor and the respective parts of the code .
Compressore CP 50 2M 3M 3T data validità - da 01/04/2007

CP 50 tipo 2M 3M 3T Validity date - from 01/04/2007
Rif. Cod. Descrizione
1 5010990008 base
2 7370740000 V-belt. A 45
3 7384860000 Single-phase motor
4 7011100000 Screw M8X25 UNI-5739
5 7030030000 Washer Ø8 UNI-6592
6 7408690000 OP100 pulley 1-A-HOLE 19
7 7130570000 Tap Universal M1/4"
8 7329070000 power cable
9 7023050000 Locknut 3/8"
10 7030040000 Washer Ø10 UNI-6592
11 7011410000 Screw M10x20 DIN-6921
12 7110240000 Gauge Ø40-1/8"
13 7080130000 Fitting L 1/2-3/8MF
14 7192090000 Valve Sic. 3.8 "10,4BAR
15 7100640000 Pressure reducer
16 7081090000 Fitting 1/4" MM
17 7328030000 Cable Pressure Switch / Motor
18 7011200000 Screw M12X100 UNI-5737
19 7020240000 Nut M8 DIN-6923
20 7030200000 Washer Ø12X36X2,5 UNI-6593
21 7332030000 wheel axle
22 7260410000 Wheel Ø210X65 F20
23 7020100000 Nut M12 UNI-5588
24 7130160000 Draining tap M3/8"
25 7090030000 Cap M1/2"
26 7237570000 tube feeding
27 7190090000 Check Valve 1/2'' MM -DX
28 7090090000 Cap M /4" Brass
29 7250740000 pressure
30 7110300000 Gauge Ø50-1/4"
31 7088060000 Fitting MM 3/8-1/4 CYL 8.3
32 5154870008 50lt tank
33 9100280000 Pumping unit AB248
34 7012090000 Screw M5X12 UNI-8112
35 7456430000 Belt Guard bracket
36 7011040000 Screw M6x20 UNI-5739
37 7030190000 Washer Ø6,4X18X1,5 UNI-6593
38 7360140000 Rubber foot
39 7030050000 Washer Ø6X24 UNI-6593
3B 7380820000 Single-phase motor
40 7020200000 Nut M6-5587 UNI
41 4170250000 belt guard Kit
42 7090080000 Cap M3/8"
43 7360020000 Rubber Ø16
6B 7408370000 Øp130 pulley 1-A F24
002A 7370060000 TRAP belt. A 46
003A 7384870000 Single-phase motor
006A 7408390000 Pulley Øp130 1 "A" FORO19
008A 7328020000 power cable
029A 7250870000 pressure switch three phase
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
CP 50 2M 3M 3T - da 01/04/2007
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram B&D CP50 2-3-3T

Diagram B&D CP50 2-3-3T

Download (82.79KB)
