BALMA NS19-100 CT3 V400 Parts

SKU: NS19/100 CT3 V400 4116024244
€368.18
VAT included

BALMA NS19/100 CT3 V400 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor NS19/100 CT3 V400 PLAST. BALMA by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
BALMA NS19-100 CT3 V400 Parts Drawing
  • BALMA NS19-100 CT3 V400 Parts Drawing
  • BALMA NS19-100 CT3 V400 Parts Drawing
  • BALMA NS19-100 CT3 V400 Parts Drawing - 1

BALMA NS19-100 CT3 V400 Parts

SKU: NS19/100 CT3 V400 4116024244 Condition: New
€368.18
VAT included

BALMA NS19/100 CT3 V400 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor NS19/100 CT3 V400 PLAST. BALMA by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 57 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
099
photo_cameraImage coming soon 4116090297 Pump PAT 38 SPAR GRAY €357.46
100
photo_cameraImage coming soon 1127090003 Plug -receiver €5.45
102
photo_cameraImage coming soon 2236112179 Wheel D200 HOLE 20 LAG CL 13 €61.50
102
photo_cameraImage coming soon 6214347700 Wheel €11.03
103
ABAC Pivot Wheel D.70 for Air Compressors 6214344300 ABAC Pivot Wheel D.70 for Air Compressors €14.05
104
photo_cameraImage coming soon 6214343700 Handle €19.78
105
photo_cameraImage coming soon 2236100840 Non return valve €38.91
105
ABAC Non-Return Valve 3/4" Male 14 mm Tube for Air Compressors 2HP 2236110536 ABAC Non-Return Valve 3/4" Male 14 mm Tube for Air Compressors 2HP €40.07
105
Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA 2236110537 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA €21.75
106
photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €10.63
106
Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
107
photo_cameraImage coming soon 2236111480 Drain tap €12.14
107
Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €4.32
108
Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA 6214344200 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA €44.42
109
Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
photo_cameraImage coming soon 2236105562 Delivery pipe fitting €5.14
114
photo_cameraImage coming soon 6214348400 Wheel pin €3.12
114
ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €5.30
118
photo_cameraImage coming soon 2236105466 Fitting €4.41
118
ABAC 4 Ways Connection 6231943000 ABAC 4 Ways Connection €27.52
118
photo_cameraImage coming soon 8973036197 Fitting €4.10
126
V-Belt A59 for Air Compressors ABAC - BALMA 6214632100 V-Belt A59 for Air Compressors ABAC - BALMA €10.07
127
Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
131
photo_cameraImage coming soon 2236100435 Pressure switch 1/4" MDR3/11 R3/6 3 9063058 €104.08
131
photo_cameraImage coming soon 2236100456 Pressure switch €119.92
131
photo_cameraImage coming soon 2236109923 Pressure switch 4V 3/8" Sost. 9063147 - 9063125 €139.49
131
photo_cameraImage coming soon 2236112288 Pressure Switches 4V 3/8+MDR3/11-R3/6 3 10B €103.38
132
photo_cameraImage coming soon 6256395800 Cable €38.37
135
photo_cameraImage coming soon 6226121900 Motor €584.43
141
photo_cameraImage coming soon 2236111659 Plastic Back Belt Guard PAT 38 / A39 €47.26
142
Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
ABAC A39 100 CM3 Delivery Pipe 2236112414 ABAC A39 100 CM3 Delivery Pipe €26.31
146
photo_cameraImage coming soon 0606000032 Nipple 3/8 F-1/2M ELKTR €15.47
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
PK1
Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €65.74
KM1
ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €22.13
305
ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €15.15
305
Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €16.99
310
Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €71.50
325
Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €46.73
330
ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.54
335
ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €38.15
340
ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €35.94
341
photo_cameraImage coming soon 2236112795 Female connection kit €63.65
345
photo_cameraImage coming soon 2236112435 CYLINDER KIT PAT38 €71.94
350
ABAC Flywheel Kit for Pump Unit A29B - PAT38 2901325050 ABAC Flywheel Kit for Pump Unit A29B - PAT38 €92.11
355
ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €56.70
355
ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 2236111620 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 €56.47
360
photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €16.26
365
ABAC Pump Unit PAT38 - NS19 Kit Crank Cover 2236112438 ABAC Pump Unit PAT38 - NS19 Kit Crank Cover €27.05
375
photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €16.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

BALMA NS19/100 CT3 V400 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor NS19/100 CT3 V400 PLAST. BALMA by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
NS19/100 CT3 V400

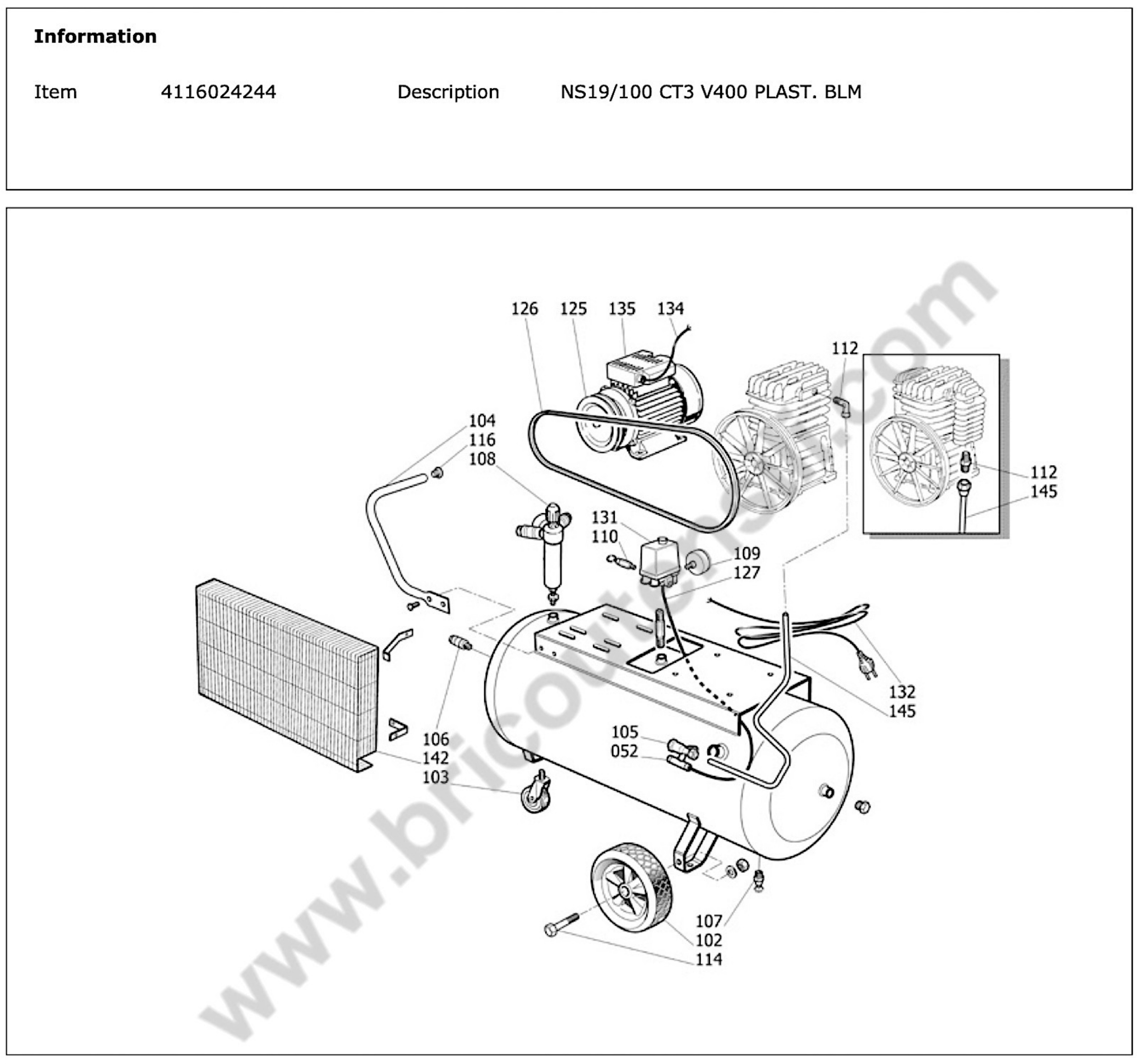

Air Compressor 4116024244 NS19/100 CT3 V400 PLAST. BALMA Pag.1
Nr. Item Description End
099 4116090297 Pump PAT 38 SPAR GRAY 21/07/15
100 1127090003 Plug -receiver 1/2" 21/07/15
102 6214347700 Wheel 200X47 03/10/12
102 2236112179 Wheel D200 HOLE 20 LAG CL 13 21/07/15
102 2236112029 Wheel 23/11/12
103 2236108062 Pivot wheel - front pin 08/11/12
103 6214344300 Pivot wheel - front pin PIV.D70 H=99 Q=70 KG 9044010 21/07/15
104 6214343700 Handle 21/07/15
105 2236110536 NO RET.VALVE 3/4M-BIC.14 VITON 02/03/14
105 2236110537 CHECK VALVE 3/4M-1/2M-1/8 21/07/15
105 2236100840 Non return valve>>> NEW 2236110536 22/04/12
106 2236112708 UNIV COUPLING 1/2+ M 05/11/13
106 6231944100 QUICK RELEASE COUPLING 21/07/15
107 6210717700 Drain tap 25DC2 200C4RPR 17/09/12
107 2236111480 BALL VALVE 3/8+M 21/07/15
108 6214344200 MIGNON 3/8 PRESSURE REDUCER 21/07/15
109 6214345000 PRESSURE GAUGE 50REAR 1/4 0/20 FOR PISTON COMPRESSORS 21/07/15
110 6210719900 Safety valve 25BC2 50BC2 200C4RPRO 21/07/15
112 2236100817 NIPPLO 1/2 M-BIC.14 (79RT1201) 02/03/14
112 2236105562 NIPPLO 1/2 1/2 RACCORDO B2/3 9053004 21/07/15
114 6214348400 Wheel pin 200 TESTA ES. D.15 9011026 03/10/12
114 6214348500 Wheel pin 21/07/15
114 2236112033 Wheel pin 23/11/12
118 8973036197 SPACING MM 3/8 85 07/09/12
118 2236105466 Fitting EXTENTION 3/8+ 21/07/15
118 6231943000 Fitting 4 WAYS CONNEC.VIE HOBBY150/500 26/06/05
125 2236110190 Pulley 21/07/15
126 6214632100 Belt A59 21/07/15
127 2236112998 TUBE PNEUMATIC 6X4 PA6 BLACK 21/07/15
131 6256397300 PRESSURE SWITCH 4 WAYS 3/8+ 04/03/12
131 2236112288 PRESS.SWITCH 10B 3/8+ 4-6,3A 05/05/13
131 2236100435 PRESS.1/4 MDR3/11-R3/6 3 13/06/04
131 2236109923 PRESS.4V 3/8 SOST.9063147 14/01/07
131 2236100456 Pressure switch PRESS.1/4 12B-4/6 3A THERM2 26/06/05
132 6256395800 Cable PRESS.SWITCH 21/07/15
135 6226121900 MOT.HP 3 50C3RPRO 100C3RPRO 200C3RPRO 21/07/15
141 2236111659 BELT GUARD PLASTIC REAR PAT38 21/07/15
142 2236111656 Belt guard PLASTIC FRONT PAT 38 21/07/15
145 2236112414 Delivery pipe PAT38/100 21/07/15
146 0606000032 Nipple 3/8 F-1/2M ELKTR 21/07/15
147 0606000032 Nut 1/2 ELKTR 21/07/15
148 0606000032 Fitting 3/8 ELKTR 21/07/15

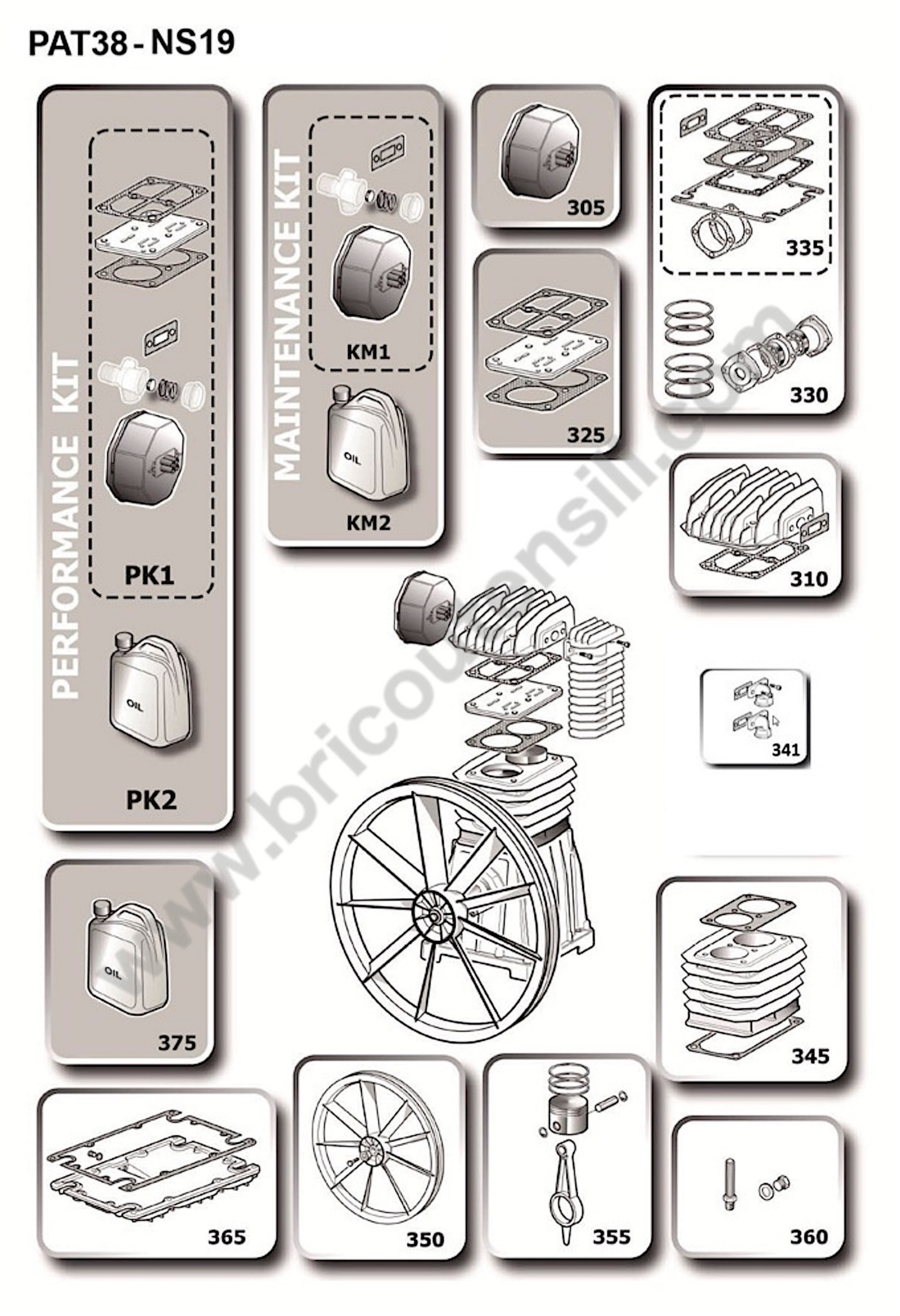

Item 4116024244 NS19/100 CT3 V400 PLAST. BALMA KIT Pag.2
Nr. Item Description End
305 2236112835 KIT AIR FILTER V.2 PAT24/38 16/11/10
305 2236112735 AIR FILTER PAT24/38 21/07/15
310 2901325044 Cylinder head kit PAT24/PAT38 21/07/15
325 2236112518 Valve plate kit PAT24/38 21/07/15
330 2901325046 Upgrade kit PAT24/PAT38 21/07/15
335 2901325045 Joints kit GASKET PAT24/38 21/07/15
340 2901325047 KIT AFTERCOOLER PAT24/PAT38 06/10/14
341 2236112795 Female connection kit 21/07/15
345 2236112435 Cylinder kit PAT38 21/07/15
350 2901325050 Flywheel kit PAT38 21/07/15
355 2236111619 Conrod-piston kit LP PAT24 16/11/10
355 2236111620 Conrod-piston kit LP PAT38 21/07/15
360 2901325049 Oil level kit PAT24/PAT38 21/07/15
365 2236112438 Crankcase cover kit PAT38 21/07/15
375 1630020700 Oil can Altair 1Lt 21/07/15
KM1 8973037864 KIT PERFORMANCE LIGHT PAT24/38 21/07/15
PK1 8973037657 KIT PERFORMANCE PAT24/PAT38 21/07/15
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BALMA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BALMA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
