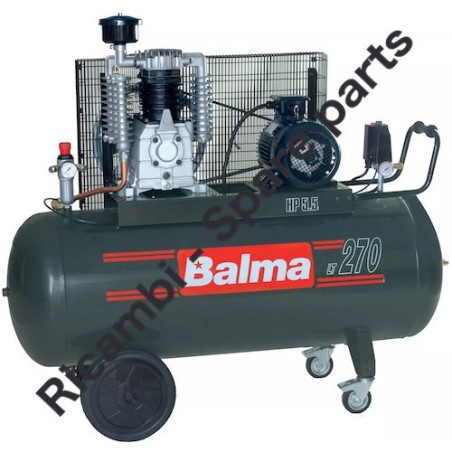

BALMA Air Compressor NS 39/270 CT5,5 V400 Parts

SKU: BALMA NS 39/270 CT5,5 V400
€770.77
VAT included

BALMA Air Compressor NS 39/270 CT5,5 V400 Spare Parts

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for Air Compressor NS 39/270 CT5 5 V400 BALMA - 4116019383.

BALMA Air Compressor NS 39/270 CT5,5 V400 Parts
  • BALMA Air Compressor NS 39/270 CT5,5 V400 Parts

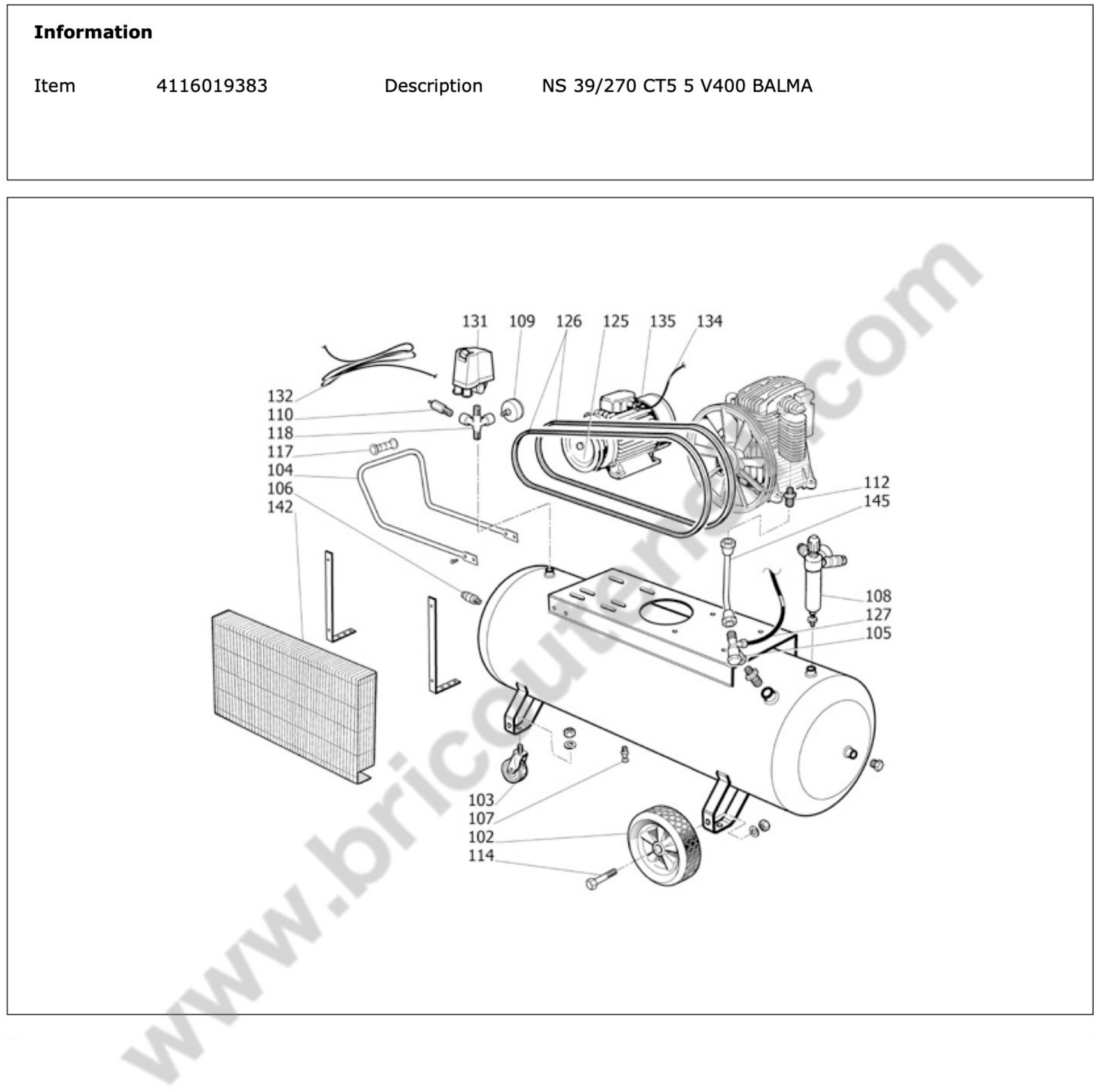

  • BALMA Air Compressor NS 39/270 CT5,5 V400 Parts - Drawing
  • BALMA Air Compressor NS 39/270 CT5,5 V400 Parts - Kit Drawing

BALMA Air Compressor NS 39/270 CT5,5 V400 Parts

SKU: BALMA NS 39/270 CT5,5 V400 Condition: New
€770.77
VAT included

BALMA Air Compressor NS 39/270 CT5,5 V400 Spare Parts

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for Air Compressor NS 39/270 CT5 5 V400 BALMA - 4116019383.

settings 49 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
099
photo_cameraImage coming soon 6218739900 Pump Unit NS39 €770.77
100
photo_cameraImage coming soon 1127090003 Plug -receiver €5.45
102
photo_cameraImage coming soon 6214350000 Fix Wheel 300 Ø 20 €30.14
103
photo_cameraImage coming soon 2236105336 Pivoting Wheel Ø 100 127 C/Freno €31.97
104
photo_cameraImage coming soon 6214343500 Handle €32.40
105
Non Return Valve 1+M-3/4+M VITON 6210718500 Non Return Valve 1+M-3/4+M VITON €37.40
106
photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €10.63
106
Drain Tap 3/8" for Air Compressors ABAC - BALMA 6210717800 Drain Tap 3/8" for Air Compressors ABAC - BALMA €12.31
106
Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
108
Pressure Reducer 1/2" for Air Compressors ABAC - BALMA 6214345100 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA €68.12
109
Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
110
photo_cameraImage coming soon 6211113568 Safety valve 1/4" Coll.13 SB 9049011 €8.50
112
photo_cameraImage coming soon 6231943400 Fitting €12.79
114
ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €5.30
117
photo_cameraImage coming soon 2236105157 Knob €9.06
118
photo_cameraImage coming soon 8973036197 Fitting €4.10
125
photo_cameraImage coming soon 2236110188 Pulley €61.76
125
BALMA Pulley Kit D132-2A-28 2901320263 BALMA Pulley Kit D132-2A-28 €53.34
126
photo_cameraImage coming soon 2236100520 Belt €14.16
126
photo_cameraImage coming soon 6214633100 Belt €10.49
127
Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
131
photo_cameraImage coming soon 2236101208 Pressure switch €108.58
131
Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €43.51
131
photo_cameraImage coming soon 6256397400 Pressure switch €108.58
132
photo_cameraImage coming soon 6256395600 Cable €69.59
134
photo_cameraImage coming soon 2236112745 Motor - pressure switch cable €24.21
135
photo_cameraImage coming soon 6226131900 Motor €1,014.97
142
photo_cameraImage coming soon 6214342700 Belt guard €384.67
145
photo_cameraImage coming soon 2236111040 DELIVERY PIPE NS39 / 270 BS ALUM €35.38
164
photo_cameraImage coming soon 2236112766 Bush pulley €31.18
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
PK2
ABAC Can Altair Plus Synthetic Oil 5L 6215715800 ABAC Can Altair Plus Synthetic Oil 5L €82.29
da 2 pz: €4.11 da 4 pz: €8.23
MK2
photo_cameraImage coming soon 6215716300 Oil bottle €19.44
PK1
Performance Kit for Pump Unit ABAC NS39 8973037638 Performance Kit for Pump Unit ABAC NS39 €184.91
MK1
SERVICE KIT LIGHT 8973037875 SERVICE KIT LIGHT €38.70
310
BALMA Pump Unit NS39 Head Kit 2901324971 BALMA Pump Unit NS39 Head Kit €71.26
320
photo_cameraImage coming soon 2901324972 kit 2 ways cooler NS39 €319.16
325
photo_cameraImage coming soon 2236113051 Valve plate kit €84.70
330
Upgrade Kit for Pump Unit NS39 6229018500 Upgrade Kit for Pump Unit NS39 €193.82
335
Set Gaskets for Pump Unit NS39 2901323578 Set Gaskets for Pump Unit NS39 €68.81
340
photo_cameraImage coming soon 2901324973 kit 3 ways cooler NS39 €345.51
350
Flywheel Kit for Pump Unit NS39 6229018800 Flywheel Kit for Pump Unit NS39 €177.18
360
photo_cameraImage coming soon 2901324954 Oil level kit €36.60
370
ABAC Pressure Relief Safety Valve 1/4" 15 BAR for Pump Unit NS39 6210716500 ABAC Pressure Relief Safety Valve 1/4" 15 BAR for Pump Unit NS39 €8.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

BALMA Air Compressor NS 39/270 CT5,5 V400 Spare Parts

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for Air Compressor NS 39/270 CT5 5 V400 BALMA - 4116019383.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
BALMA NS 39/270 CT5 5 V400 BALMA - 4116019383

Air Compressor NS 39/270 CT5 5 V400 BALMA - 4116019383 Spare Parts Pag.1
# Part Num. Description End
099 6218739900 Pump Unit NS39
100 1127090003 Plug -receiver 20/10/19
102 6214350000 Wheel
102 6214350000 Wheel 19/02/13
103 2236105336 Pivot wheel - front pin
103 2236105336 Pivot wheel - front pin 19/02/13
104 6214343500 Handle
105 6210718500 Non return valve
106 6231944100 Tap
106 6210717800 Drain Tap 01/06/12
106 2236112708 Tap 05/11/13
107 6210717800 Drain Tap
108 6214345100 Pressure reducer 1/2"
109 6214345000 Gauge
110 6210719900 Safety valve 3/8" 11BAR
110 6211113568 Safety valve 30/09/97
110 6211113568 Safety valve 31/08/00
112 6231943400 Fitting
114 6214348500 Wheel pin
114 6214348500 Wheel pin 19/02/13
117 2236105157 Knob
118 8973036197 Fitting
125 2236101088 Pulley
125 2901320263 Pulley 10/05/09
125 2236110188 Pulley 11/11/12
125 2236110212 Pulley 13/11/12
125 2236110188 Pulley 22/09/14
126 6214633100 Belt
126 6214633100 Belt 11/11/12
126 2236100520 Belt 13/11/12
127 2236112998 Rilsan tube
127 2236112998 Rilsan tube 18/12/15
131 2236112291 Pressure switch
131 2236101202 Pressure switch 03/05/13
131 6256397400 Pressure switch 14/01/07
131 2236101208 Pressure switch 17/04/11
131 2236106647 Pressure switch 17/04/11
131 2236106647 Pressure switch 17/04/11
131 6256397400 Pressure switch 17/04/11
131 6256397400 Pressure switch 17/04/11
131 2236101208 Pressure switch 26/02/12
132 6256395600 Cable
132 6256395600 Cable 17/04/11
134 2236112745 Motor - pressure switch cable
134 6256395500 Motor - pressure switch cable 10/11/15
135 6226131900 Motor
142 6214342700 Belt guard
142 6214342700 Belt guard 20/09/11
145 2236111040 Delivery pipe
145 2236111040 Delivery pipe 30/10/11
164 2236112766 Bush pulley
Air Compressor NS 39/270 CT5 5 V400 BALMA - 4116019383 Kit Pag.2
310 2901324971 Cylinder head kit
320 2901324972 Cooler kit
325 2236113051 Valve plate kit
330 6229018500 Upgrade kit
335 2901323578 GASKET KIT
340 2901324973 Aftercooler kit
350 6229018800 Flywheel kit
360 2901324954 Oil level kit
370 6210716500 Safety valve kit
MK1 8973037875 SERVICE KIT LIGHT
MK2 6215716300 ALTAIR OIL 1L
PK1 8973037638 Performance kit
PK2 6215715800 ALTAIR OIL PLUS 3000 5L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BALMA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BALMA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BALMA NS 39/270 CT5,5 V400
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

NS 39/270 CT5,5 V400 Drawing

NS 39/270 CT5,5 V400 Drawing

Download (382.86KB)
