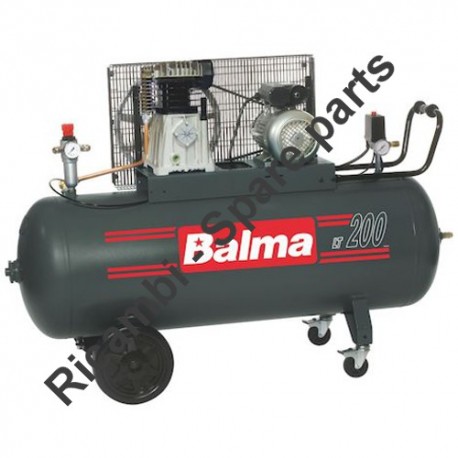

BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400

SKU: BALMA NS19S-200 CT3 4116024230
€378.84
VAT included

BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for Air Compressor NS19S/200 CT3 V400 BALMA - 4116024230.
BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400
  • BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400
  • BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400
  • BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400

BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400

SKU: BALMA NS19S-200 CT3 4116024230 Condition: New
€378.84
VAT included

BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for Air Compressor NS19S/200 CT3 V400 BALMA - 4116024230.
settings 50 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
99
photo_cameraImage coming soon 4116090298 Pump Unit PAT 38-A SPAR GREY €367.81
100
photo_cameraImage coming soon 1127090003 Plug -receiver €5.45
102
ABAC-BALMA Wheel D.250MM hole 20MM 6214347900 ABAC-BALMA Wheel D.250MM hole 20MM €29.10
103
ABAC-BALMA Pivot Wheel D.80 W/Lock 2236105333 ABAC-BALMA Pivot Wheel D.80 W/Lock €21.68
104
photo_cameraImage coming soon 6214343600 Handle €58.73
105
Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA 2236110537 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA €21.75
106
photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €10.63
106
Drain Tap 3/8" for Air Compressors ABAC - BALMA 6210717800 Drain Tap 3/8" for Air Compressors ABAC - BALMA €12.31
106
Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
107
photo_cameraImage coming soon 2236111480 Drain tap €12.14
108
Pressure Reducer 1/2" for Air Compressors ABAC - BALMA 6214345100 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA €68.12
109
Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
photo_cameraImage coming soon 6231943500 Fitting €10.69
114
ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €5.30
117
photo_cameraImage coming soon 2236105157 Knob €9.06
118
ABAC 4 Ways Connection 6231943000 ABAC 4 Ways Connection €27.52
118
photo_cameraImage coming soon 8973036197 Fitting €4.10
125
ABAC - BALMA Pulley Kit D130-1A-24 Aluminium 2901320206 ABAC - BALMA Pulley Kit D130-1A-24 Aluminium €41.04
126
V-Belt A59 for Air Compressors ABAC - BALMA 6214632100 V-Belt A59 for Air Compressors ABAC - BALMA €10.07
127
Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
131
photo_cameraImage coming soon 2236100435 Pressure switch 1/4" MDR3/11 R3/6 3 9063058 €104.08
131
photo_cameraImage coming soon 2236100456 Pressure switch €119.92
131
photo_cameraImage coming soon 2236109923 Pressure switch 4V 3/8" Sost. 9063147 - 9063125 €139.49
131
photo_cameraImage coming soon 2236112288 Pressure Switches 4V 3/8+MDR3/11-R3/6 3 10B €103.38
132
photo_cameraImage coming soon 6256395800 Cable €38.37
135
photo_cameraImage coming soon 6226121900 Motor €584.43
142
photo_cameraImage coming soon 2236111641 Belt Guard Rete NS19 €92.48
142
photo_cameraImage coming soon 2236112756 Belt guard €186.91
145
BALMA NS 18S/200 CM3 Delivery Pipe 2236111073 BALMA NS 18S/200 CM3 Delivery Pipe €26.61
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
PK1
photo_cameraImage coming soon 3001528000 Performance kit €67.85
PK2
ABAC Can Altair Plus Synthetic Oil 5L 6215715800 ABAC Can Altair Plus Synthetic Oil 5L €82.29
da 2 pz: €4.11 da 4 pz: €8.23
KM2
photo_cameraImage coming soon 6215716300 Oil bottle €19.44
PK1
Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €65.74
KM1
ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €22.13
305
ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €15.15
305
Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €16.99
310
Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €71.50
325
Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €46.73
330
ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.54
335
ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €38.15
340
ABAC PAT24A-PAT38A Aftercooler Kit 2236112794 ABAC PAT24A-PAT38A Aftercooler Kit €16.75
340
ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €35.94
345
photo_cameraImage coming soon 2236112435 CYLINDER KIT PAT38 €71.94
350
ABAC Flywheel Kit for Pump Unit A29B - PAT38 2901325050 ABAC Flywheel Kit for Pump Unit A29B - PAT38 €92.11
355
ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 2236111620 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 €56.47
360
photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €16.26
365
ABAC Pump Unit PAT38 - NS19 Kit Crank Cover 2236112438 ABAC Pump Unit PAT38 - NS19 Kit Crank Cover €27.05
375
photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €16.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

BALMA Spare Parts for Air Compressor NS19S-200 CT3 V400

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for Air Compressor NS19S/200 CT3 V400 BALMA - 4116024230.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
BALMA NS59S - 4116090253

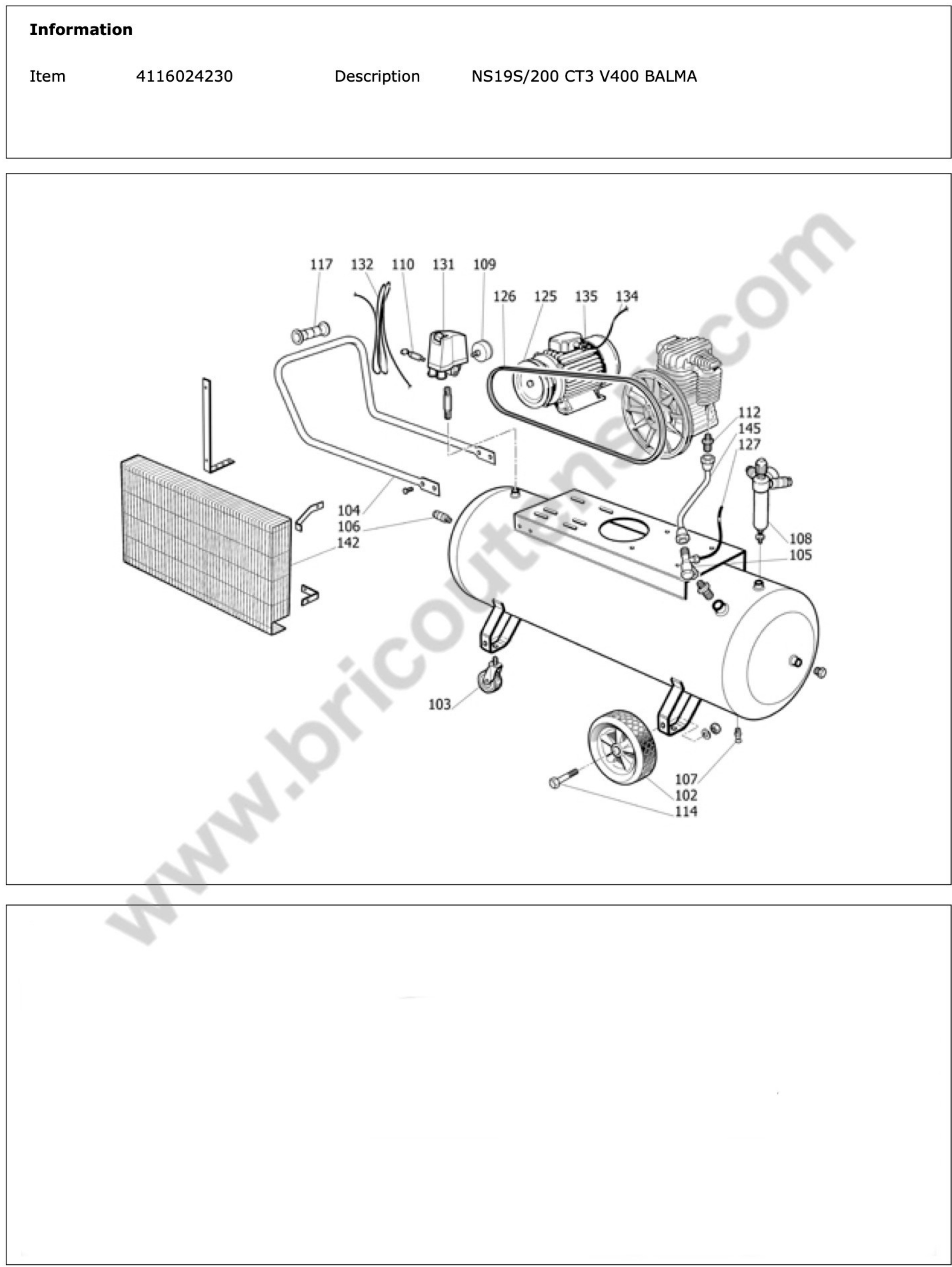

NS19S/200 CT3 V400 BALMA - 4116024230 Tank Pag.1
Nr. Item Description End
99 4116090298 Pump Unit PAT 38-A SPAR GREY 27/10/20
100 1127090003 Plug -receiver 01/08/14
102 6214347900 Wheel 250 FORO 20
103 2236105333 Pivot wheel - front pin
104 6214343600 Handle
105 2236110537 Non return valve 3/4" M 1/2" M Viton
106 6231944100 Quick Coupling 1/4" M 01/06/12
106 6210717800 Drain Tap 2*11DM3Pro 3/8" 05/11/13
106 2236112708 Tap 1/2" NICHEL
107 2236111480 Drain tap 3/8" M
108 6214345100 Pressure Reducer 1/2"Un. 1/4" 2R PU4 200CRPRO
109 6214345000 Gauge 50MM
110 6210719900 Safety valve 25BC2 50BC2 200C4RPRO
112 6231943500 Fitting
114 6214348500 Wheel pin 15/09/14
114 6214348500 Wheel pin
117 2236105157 Knob
118 8973036197 Fitting 26/06/05
118 6231943000 Fitting
125 2901320206 Pulley D130-1A H24 + DOWEL KIT
126 6214632100 Belt A59
127 2236112998 Rilsan tube 18/12/15
127 2236112998 Rilsan tube
131 2236112288 Pressure switch 4V 3/8" + MDR3/6 3 10 04/03/12
131 2236112288 Pressure switch 05/05/13
131 2236112288 Pressure switch 13/06/04
131 2236100435 Pressure switch 1/4" MDR3/11 R3/6 3 9063058 14/01/07
131 2236109923 Pressure switch 4V 3/8" Sost. 9063147 - 9063125 17/07/12
131 2236112288 Pressure switch 26/06/05
131 2236109899 Pressure switch 1/4" 12B - 4/6 3A Therm2 9063143
132 6256395800 Cable 17/07/12
132 6256395800 Cable
135 6226121900 Motor HP 3 50C3RPRO 100C3RPRO 200C3RPRO
142 2236112756 Belt guard 16/10/14
142 2236111641 Belt guard
145 2236111073 Delivery pipe

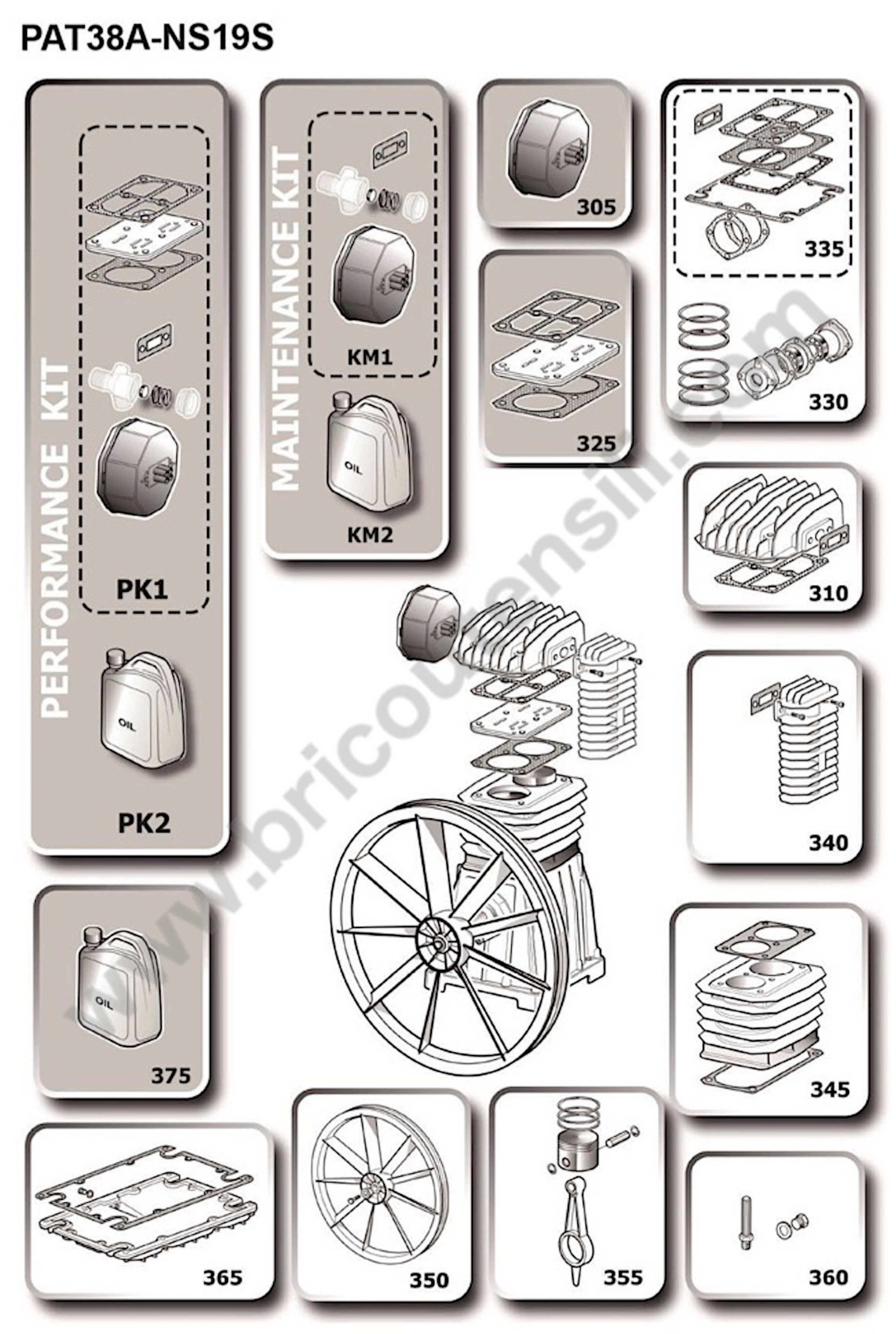

NS19S/200 CT3 V400 BALMA - 4116024230 Pump Unit Pag.2
305 2236112835 Kit Air Filter V.2 PAT24/38 04/02/15
305 2236112735 Air filter V.2 PAT24/38 05/02/11
310 2901325044 Cylinder head kit 27/10/20
325 2236112518 Valve plate kit 27/10/20
330 2901325046 Upgrade kit 27/10/20
335 2901325045 Gasket kit 27/10/20
340 2236112794 Aftercooler kit 27/10/20
340 2901325047 Aftercooler kit 06/10/14
345 2236112435 Cylinder kit 27/10/20
350 2901325050 Flywheel kit 27/10/20
355 2236111620 KIT PISTONE + BIELLA PAT38 27/10/20
360 2901325049 Oil level kit 27/10/20
365 2236112438 Crankcase cover kit 27/10/20
375 1630020700 Oil can
375 2901160600 Oil can 10/11/20
KM1 8973037864 Maintenance kit 27/10/20
KM2 6215716300 ALTAIR OIL 1L
PK1 3001528000 Performance kit 10/11/20
PK1 8973037657 Performance kit 27/10/20
PK2 6215715800 ALTAIR OIL PLUS 5L 31/01/12
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BALMA NS19S-200 CT3 4116024230
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing NS19S-200 CT3 V400

Drawing NS19S-200 CT3 V400

Download (593.6KB)
