Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR490 - 13348

SKU: Annovi Reverberi 490 - 13348
€28.26
VAT included

Annovi Reverberi Parts for Pressure Washer AR490 - 13348

Annovi Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Blue Clean AR490 - 13348.


Annovi Reverberi 490 - 13348
Annovi & Reverberi Parts for Pressure Washer AR490/12769/13087/13348
  • Annovi & Reverberi Parts for Pressure Washer AR490/12769/13087/13348
  • Annovi & Reverberi Parts for Pressure Washer AR490 - 13348
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR490 - 13348

SKU: Annovi Reverberi 490 - 13348 Condition: New
€28.26
VAT included

Annovi Reverberi Parts for Pressure Washer AR490 - 13348

Annovi Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Blue Clean AR490 - 13348.


Annovi Reverberi 490 - 13348
settings 55 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

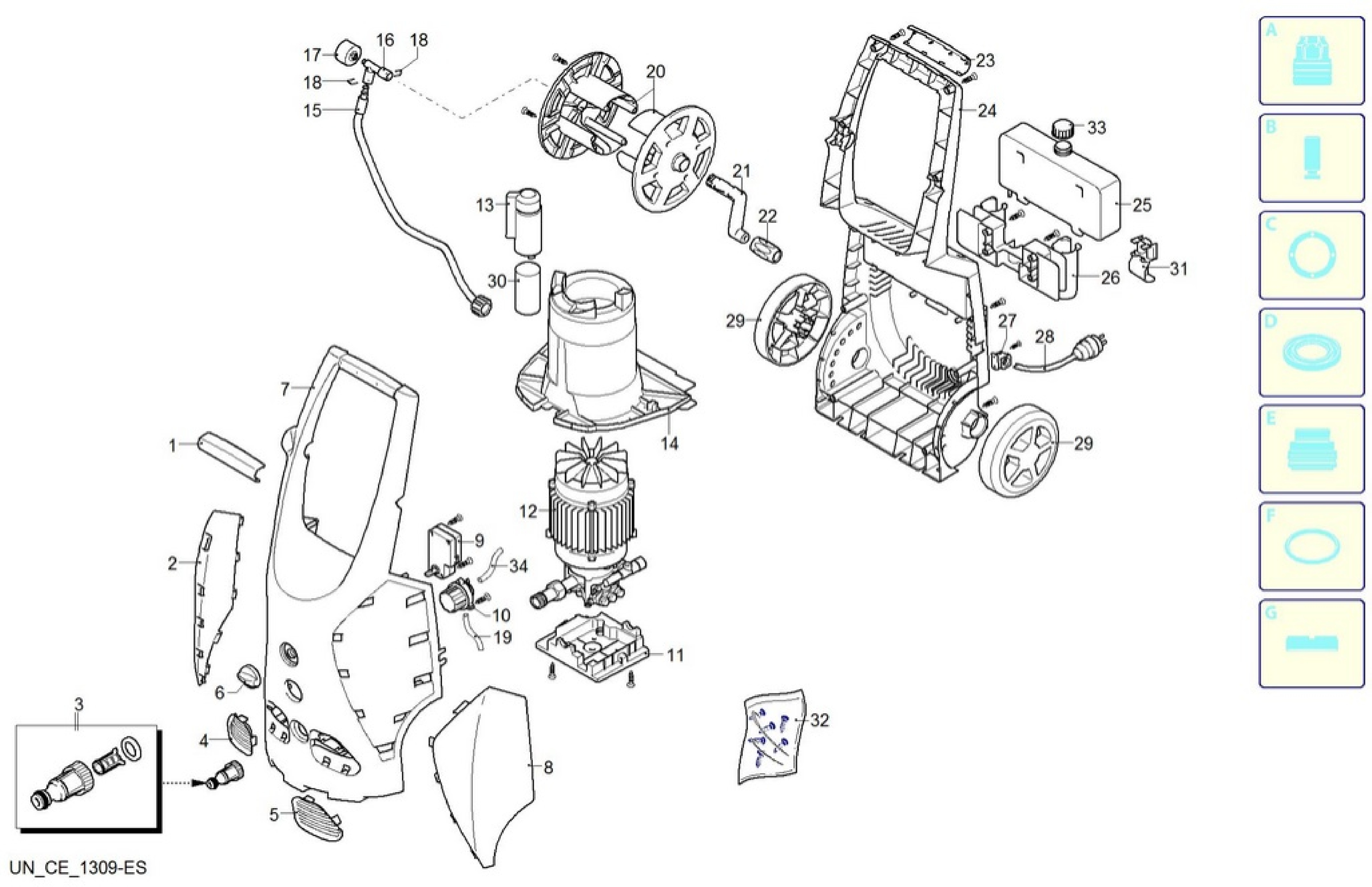

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3080810 knob €7.52
2
 photo_cameraImage coming soon 3082680 Protection €10.52
3
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
4
 photo_cameraImage coming soon 3080340 Grid €1.46
5
 photo_cameraImage coming soon 3080330 Grid €1.46
6
 Switch Knob for Pressure Washers Annovi & Reverberi AR395-490 3080480 Switch Knob for Pressure Washers Annovi & Reverberi AR395-490 €2.86
7
 photo_cameraImage coming soon 3080291 Blue Casing €28.20
8
 photo_cameraImage coming soon 3082690 Protection €10.52
9
 Switch for Pressure Washers Annovi & Reverberi AR395-490 3082010 Switch for Pressure Washers Annovi & Reverberi AR395-490 €15.67
10
 Chemical Regulator for Blue Clean Pressure Washer AR395-490-588-590 3082000 Chemical Regulator for Blue Clean Pressure Washer AR395-490-588-590 €14.23
11
 photo_cameraImage coming soon 3441170 Support €13.18
12
 photo_cameraImage coming soon 3441190 Pre-Assembly Electric €420.51
13
 photo_cameraImage coming soon 3081630 capacitor carrier €3.36
14
 photo_cameraImage coming soon 3080520 Conveyor €14.87
15
 High Pressure Hose for Pressure Washers Blue Clean AR490-588-590 3081640 High Pressure Hose for Pressure Washers Blue Clean AR490-588-590 €38.69
16
 Annovi T Joint for AR590 3080780 Annovi T Joint for AR590 €16.94
17
 Gauge for Pressure Washers Annovi & Reverberi AR 490 3080420 Gauge for Pressure Washers Annovi & Reverberi AR 490 €22.86
18
 photo_cameraImage coming soon 3081650 fork €4.67
19
 AR395 Detergent hose 3081490 AR395 Detergent hose €4.73
20
 photo_cameraImage coming soon 3080390 Plate €14.66
21
 Handle Hose Reel for Pressure Washer AR BC 383 - 388 - 490 3080220 Handle Hose Reel for Pressure Washer AR BC 383 - 388 - 490 €3.58
da 2 pz: €0.48
22
 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 3081060 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 €3.58
23
 photo_cameraImage coming soon 3080820 knob €7.52
24
 photo_cameraImage coming soon 3080321 base €28.62
25
 photo_cameraImage coming soon 3080370 tank €20.24
26
 photo_cameraImage coming soon 3080190 accessories carrier €14.83
27
 photo_cameraImage coming soon 3080580 cable clamp €2.88
28
 photo_cameraImage coming soon 1683250 Cable €27.44
29
 photo_cameraImage coming soon 3080361 Wheel €10.10
30
 Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €22.86
31
 photo_cameraImage coming soon 3081070 accessories carrier €3.57
32
 photo_cameraImage coming soon 3400530 screw Kit €2.89
33
 photo_cameraImage coming soon 3080380 stopper €2.15
34
 AR490 Detergent hose 3084130 AR490 Detergent hose €3.81
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

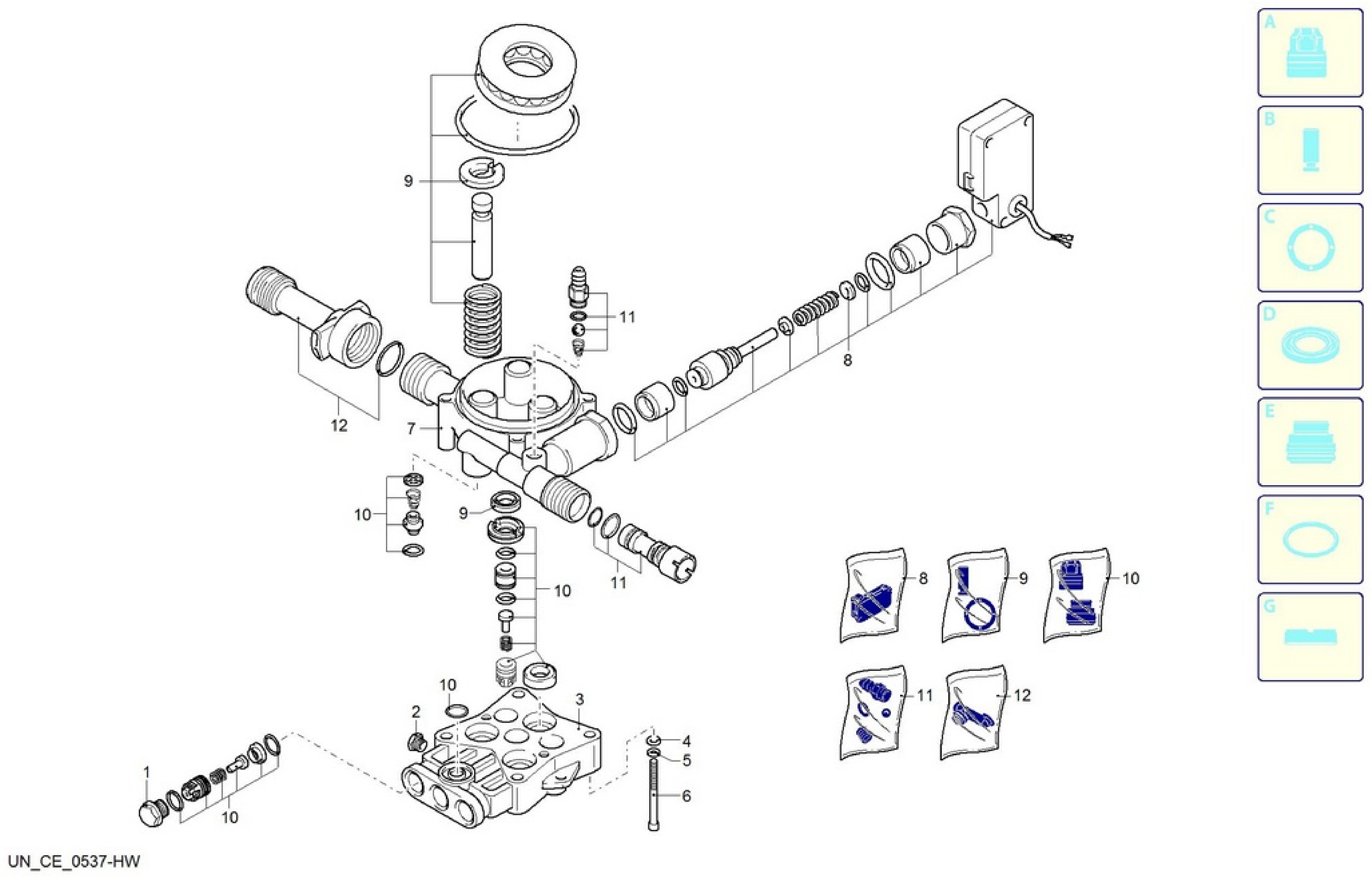

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3083210 Cork €7.45
2
 photo_cameraImage coming soon 3081730 Vine €4.88
3
 photo_cameraImage coming soon 3083220 Head €31.25
5
 photo_cameraImage coming soon 3081750 washer €4.22
6
 photo_cameraImage coming soon 3081740 Vine €1.99
7
 Pump Body for Pressure Washers AR BC 395 - 490 - 491 3083230 Pump Body for Pressure Washers AR BC 395 - 490 - 491 €17.94
8
 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 3440560 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 €21.53
9
 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 3440570 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 €17.00
10
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
11
 Detergent Suction Kit for Pressure Washer AR BC 381 3440610 Detergent Suction Kit for Pressure Washer AR BC 381 €15.54
12
 photo_cameraImage coming soon 3440620 Suction Kit €7.24
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

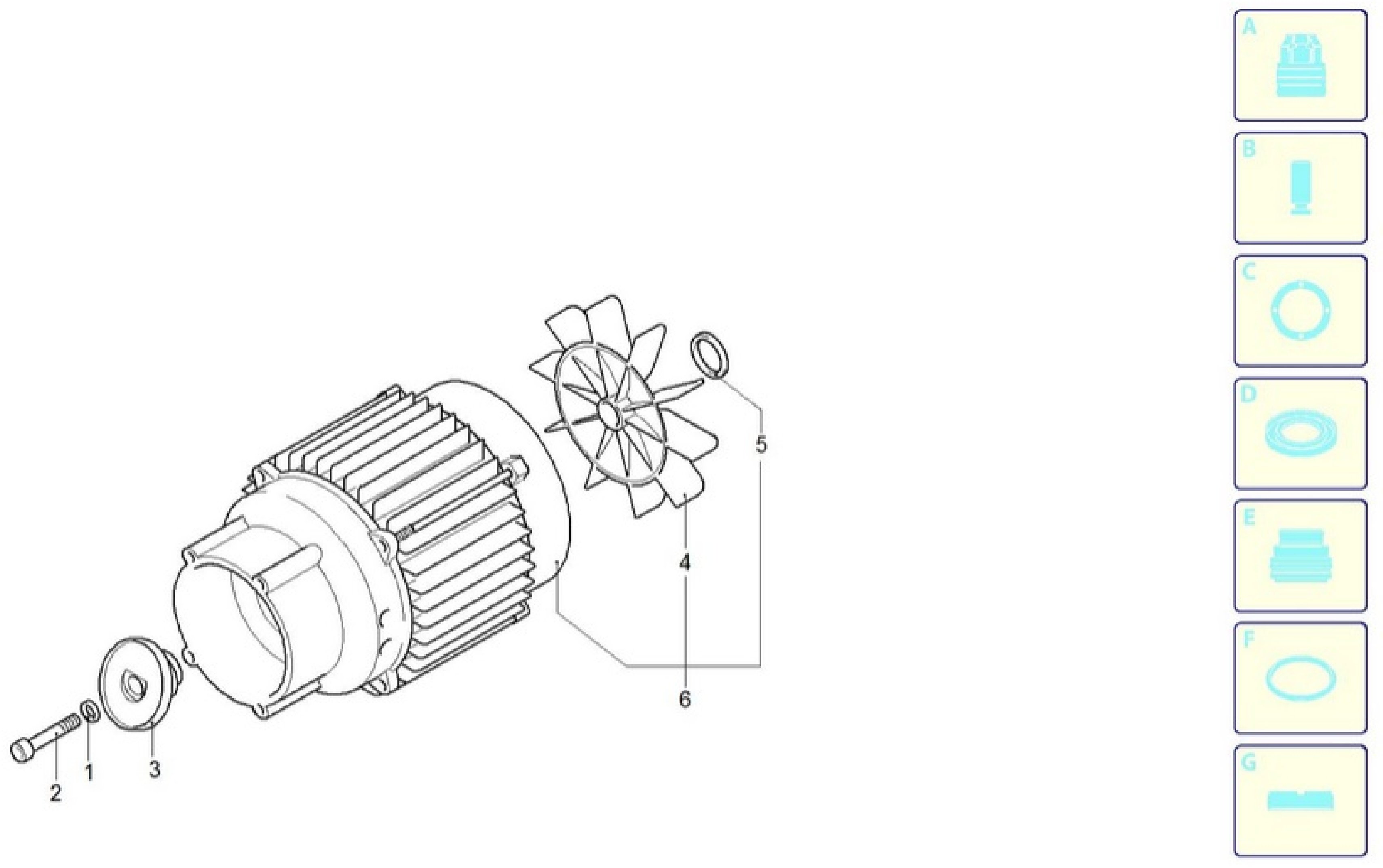

Esploso pagina 3
Pos. Item Price Buy
2
 photo_cameraImage coming soon 3081950 screw €1.89
3
 photo_cameraImage coming soon 3440950 Disk €15.05
4
 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 3440370 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 €7.03
5
 photo_cameraImage coming soon 3441000 ring €2.09
6
 photo_cameraImage coming soon 3441180 Engine €228.39
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

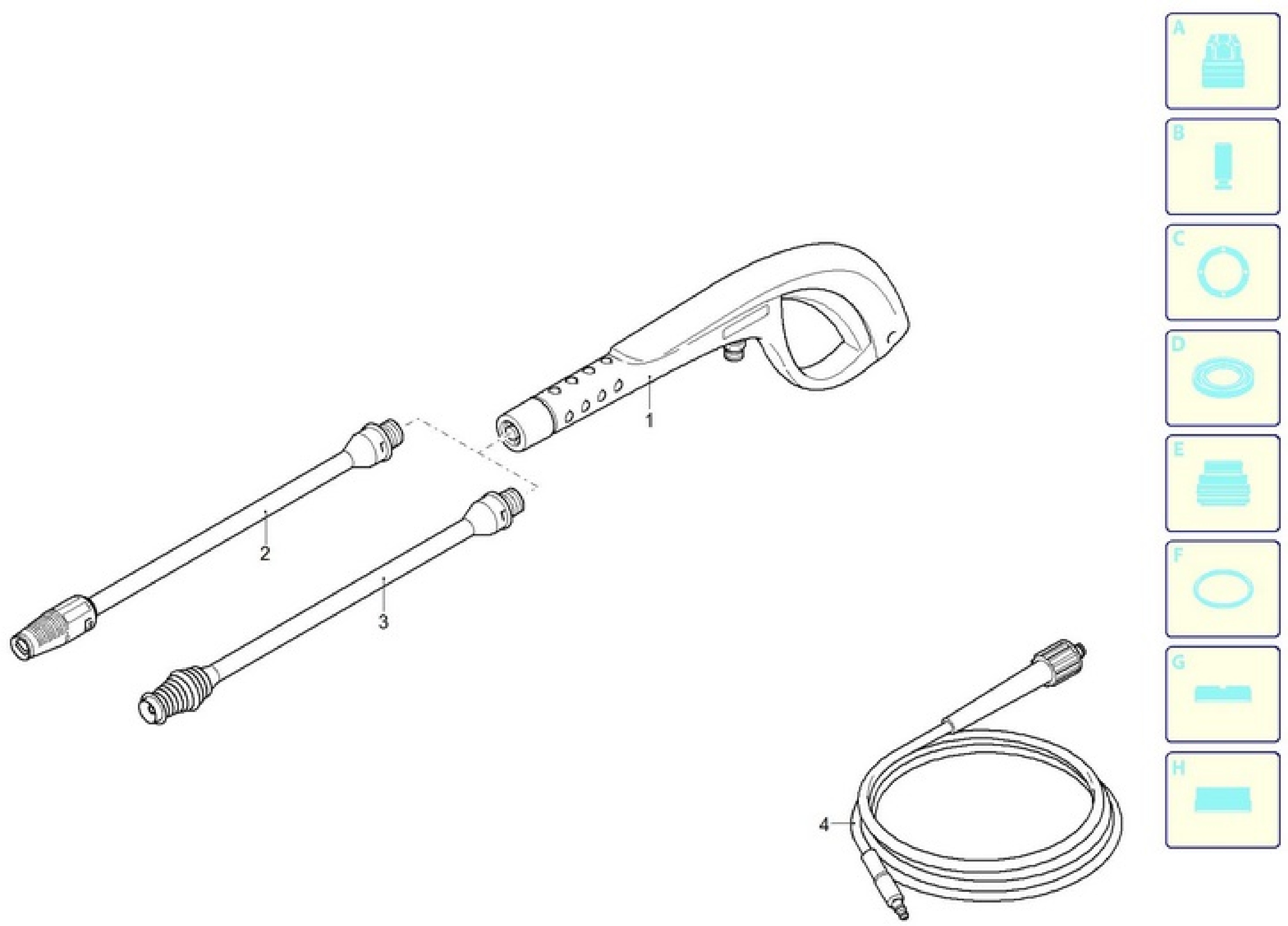

Esploso pagina 4
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer Annovi & Reverberi Blue Clean AR395/490 3082710 Trigger Gun for Pressure Washer Annovi & Reverberi Blue Clean AR395/490 €40.13
2
 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 3083070 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 €20.36
3
 Lance + Rotopower for Pressure Washer AR Blue Clean AR395/490 3400340 Lance + Rotopower for Pressure Washer AR Blue Clean AR395/490 €42.06
4
 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 3082100 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 €65.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR490 - 13348

Annovi Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Blue Clean AR490 - 13348.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 490 - 13348

Pressure Washer AR Blue Clean AR490 - 13348
Casing AR 490 - 13348 Pag.1
# Part Num. Description
1 3080810 Knob
2 3082680 Protection
3 3082130 Kit For Water
4 3080340 Grid
5 3080330 Grid
6 3080480 Knob
7 3080291 Blue Casing
8 3082690 Protection
9 3082010 Switch Box
10 3082000 Detergent Regulator
11 3441170 Support
12 3441190 Pre-Assembly Electric
13 3081630 Capacitor Holder
14 3080520 Conveyor
15 3081640 High Pressure Hose
16 3080780 Junction
17 3080420 Gauge
18 3081650 Fork
19 3081490 Pipe Cleaner
20 3080390 Disk
21 3080220 Lever
22 3081060 Knob
23 3080820 Knob
24 3080321 Base
25 3080370 Tank
26 3080190 Porta-Accessories
27 3080580 Strain Relief
28 1683250 Cable
29 3080361 Wheel
30 3081620 Condenser
31 3081070 Porta-Accessories
32 3400530 Kit Lives
33 3080380 Cork
34 3084130 Pipe Cleaner
Pump AR 490 - 13348 Pag.2
1 3083210 Cork
2 3081730 Vine
3 3083220 Head
4 3081760 Washer
5 3081750 Washer
6 3081740 Vine
7 3083230 Pump Body
8 3440560 Kit TSS
9 3440570 Kit + Piston Seals
10 3081290 Kit Valves + Seals
11 3440610 Kit Suction Cleaner
12 3440620 Suction Kit
Engine AR 490 - 13348 Pag.3
1 3081750 Washer
2 3081950 Vine
3 3440950 Disk
4 3440370 Fan
5 3441000 Ring
6 3441180 Engine
Accessories AR 490 - 13348 Pag.4
1 3082710 Gun
2 3083070 Lance Head
3 3400340 Lance + Rotopower
4 3082100 High Pressure Hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 490 - 13348
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR490/13348

Diagram Annovi AR490/13348

Download (359.73KB)
