Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR7850

SKU: Annovi Reverberi 7850 - 22911
€11.93
VAT included

Annovi & Reverberi Parts for Pressure Washer AR7850

Annovi & Reverberi Genuine Parts or replacement Parts for to repair Pressure Washer AR Blue Clean AR7850 - 22911.

Annovi Reverberi 7850 - 22911
Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
  • Annovi & Reverberi Parts for Pressure Washer AR7850
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR7850

SKU: Annovi Reverberi 7850 - 22911 Condition: New
€11.93
VAT included

Annovi & Reverberi Parts for Pressure Washer AR7850

Annovi & Reverberi Genuine Parts or replacement Parts for to repair Pressure Washer AR Blue Clean AR7850 - 22911.

Annovi Reverberi 7850 - 22911
settings 201 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
194 spare parts
Esploso pagina 1
Pos. Item Price Buy
31
 photo_cameraImage coming soon 3162300 Gasket €4.66
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

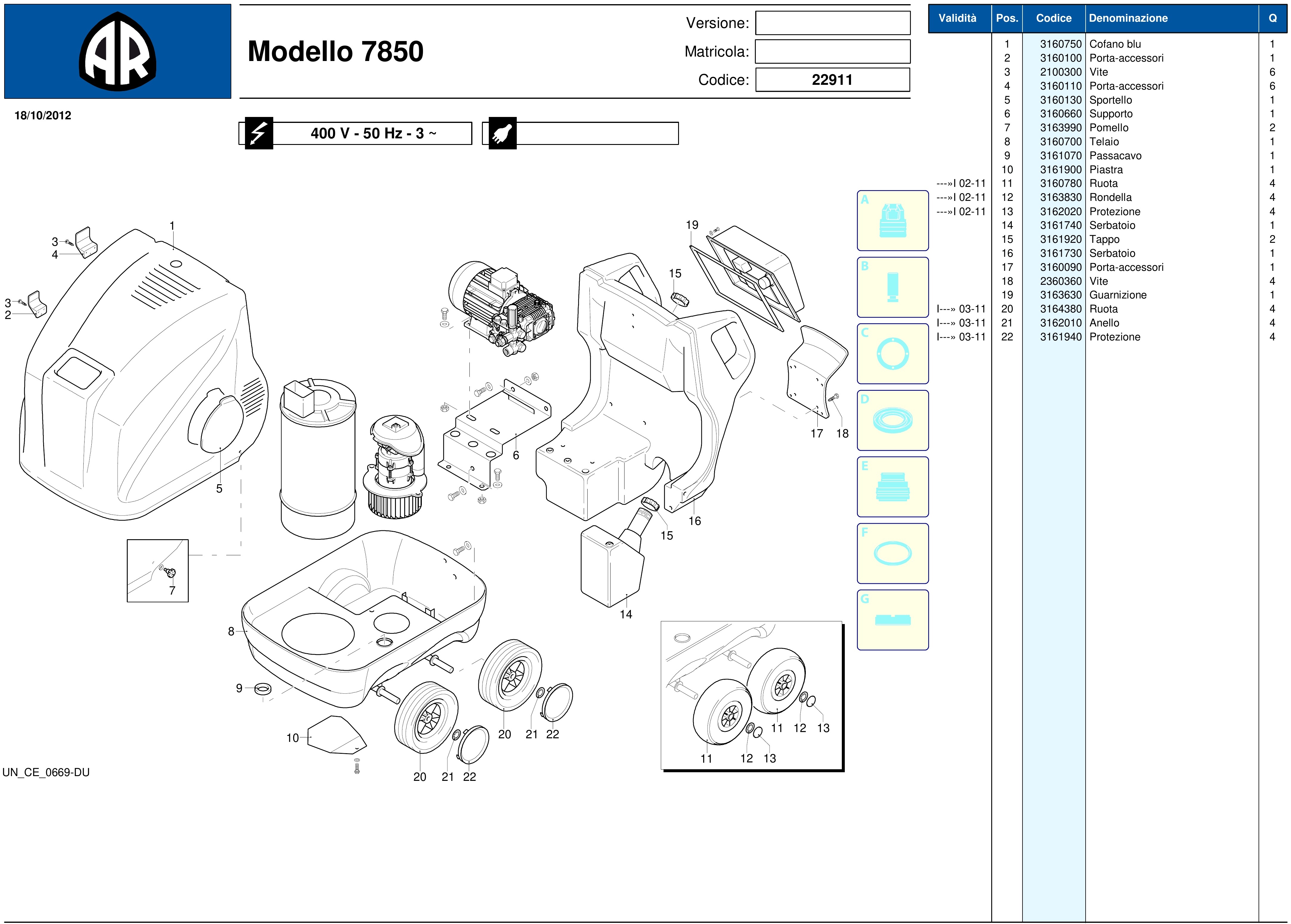

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3160750 Blue Casing €336.63
2
 photo_cameraImage coming soon 3160100 Porta-Accessories €11.78
3
 photo_cameraImage coming soon 2100300 screw €4.72
4
 photo_cameraImage coming soon 3160110 Porta-Accessories €11.99
5
 photo_cameraImage coming soon 3160130 Door €13.60
6
 photo_cameraImage coming soon 3160660 Support €26.91
7
 photo_cameraImage coming soon 3163990 Knob €14.29
8
 photo_cameraImage coming soon 3160700 Frame €211.69
9
 photo_cameraImage coming soon 3161070 Fairlead €22.40
10
 photo_cameraImage coming soon 3161900 Plate €9.43
11
 photo_cameraImage coming soon 3160780 Wheel €89.85
12
 photo_cameraImage coming soon 3163830 Washer €12.57
13
 photo_cameraImage coming soon 3162020 Protection €11.15
14
 photo_cameraImage coming soon 3161740 Tank €61.30
15
 photo_cameraImage coming soon 3161920 Stopper €13.93
16
 photo_cameraImage coming soon 3161730 Tank €476.91
17
 photo_cameraImage coming soon 3160090 Porta-Accessories €15.75
19
 photo_cameraImage coming soon 3163630 Gasket €8.98
20
 photo_cameraImage coming soon 3164380 Wheel €46.58
21
 photo_cameraImage coming soon 3162010 Ring €8.52
22
 photo_cameraImage coming soon 3161940 Protection €12.05
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

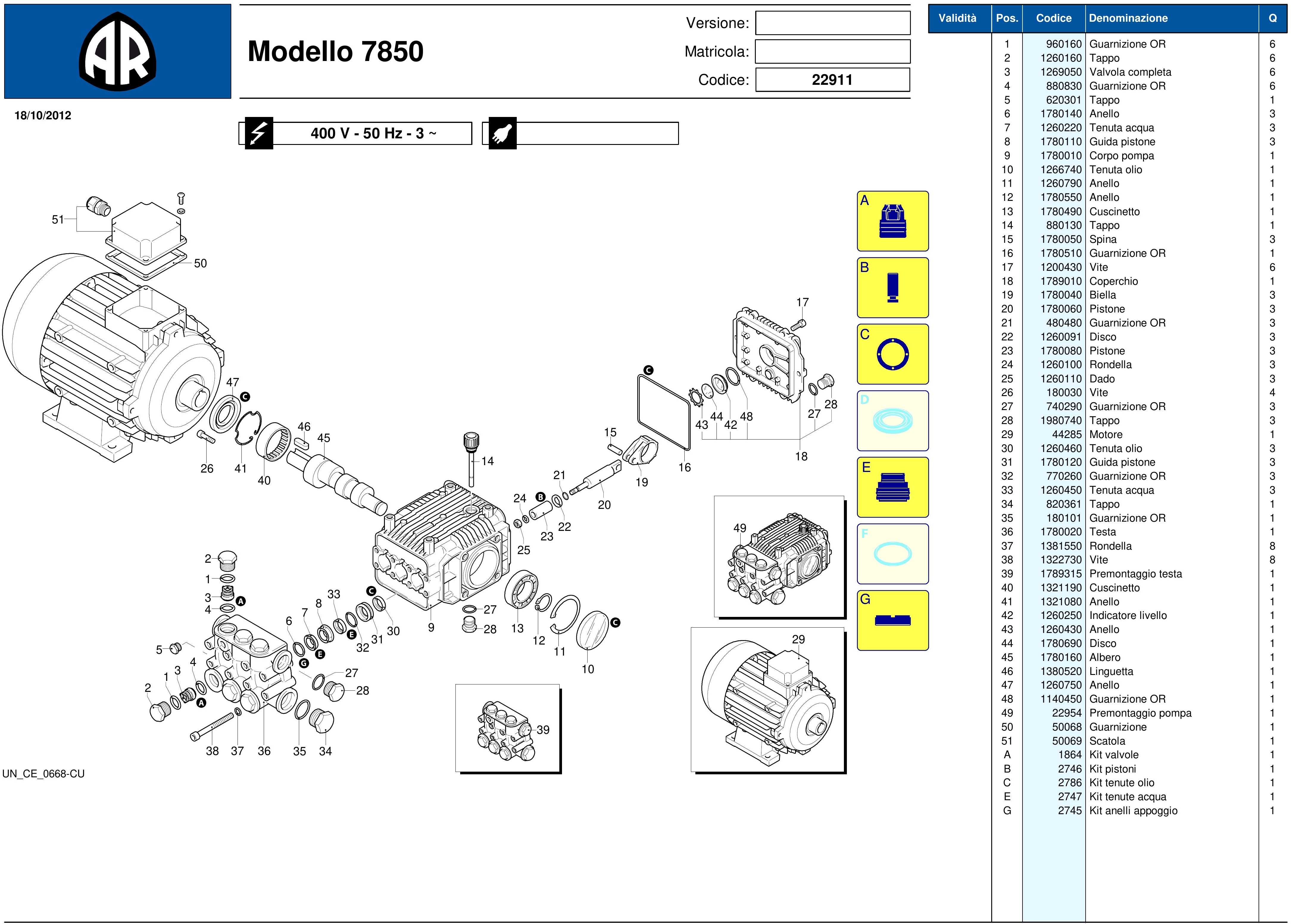

Esploso pagina 2
Pos. Item Price Buy
A
 photo_cameraImage coming soon 1864 Kit Valves €29.19
G
 AR Seal Support Ring Kit 2745 AR Seal Support Ring Kit €3.00
B
 photo_cameraImage coming soon 2746 Piston Kit €76.44
E
 photo_cameraImage coming soon 2747 Kit Held Water €37.09
C
 photo_cameraImage coming soon 2786 Kit Kept Oil €18.72
1
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
2
 photo_cameraImage coming soon 1260160 Cork €14.13
3
 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 1269050 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 €4.43
4
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
5
 photo_cameraImage coming soon 620301 Cork €2.46
6
 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 1780140 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 €0.96
7
 Gasket for Pressure Washers 780-787-797-945-6670-7850 1260220 Gasket for Pressure Washers 780-787-797-945-6670-7850 €10.78
8
 photo_cameraImage coming soon 1780110 Piston Guide €8.29
9
 photo_cameraImage coming soon 1780010 Pump Housing €67.94
10
 photo_cameraImage coming soon 1266740 Oil Seal €3.95
11
 photo_cameraImage coming soon 1260790 Ring €1.36
12
 photo_cameraImage coming soon 1780550 Ring €4.87
13
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
14
 photo_cameraImage coming soon 880130 Stopper €6.67
15
 photo_cameraImage coming soon 1780050 Plug €6.18
16
 photo_cameraImage coming soon 1780510 O-Ring €5.35
17
 photo_cameraImage coming soon 1200430 Screw €4.64
18
 photo_cameraImage coming soon 1789010 Cover €24.45
19
 photo_cameraImage coming soon 1780040 Piston Rod €13.05
20
 photo_cameraImage coming soon 1780060 Piston €18.35
21
 photo_cameraImage coming soon 480480 O-ring €5.63
23
 photo_cameraImage coming soon 1780080 Piston €25.49
25
 photo_cameraImage coming soon 1260110 Nut €1.65
26
 photo_cameraImage coming soon 180030 screw €2.03
27
 photo_cameraImage coming soon 740290 O-ring €2.67
28
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
29
 photo_cameraImage coming soon 44285 Engine €496.77
30
 photo_cameraImage coming soon 1260460 oil seal €4.47
31
 photo_cameraImage coming soon 1780120 Piston Guide €7.61
32
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
33
 O-R mm 18x25x5,5 for Pressure Washers 780-787-797-945-6670-7850 1260450 O-R mm 18x25x5,5 for Pressure Washers 780-787-797-945-6670-7850 €2.93
34
 photo_cameraImage coming soon 820361 Stopper €4.41
35
 photo_cameraImage coming soon 180101 O-Ring €4.73
36
 photo_cameraImage coming soon 1780020 Head €114.06
38
 photo_cameraImage coming soon 1322730 Screw €1.53
39
 photo_cameraImage coming soon 1789315 Pre-Assembly Head €284.50
40
 photo_cameraImage coming soon 1321190 Bearing €14.57
41
 photo_cameraImage coming soon 1321080 Ring €7.98
42
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
45
 photo_cameraImage coming soon 1780160 Tree €100.15
47
 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
48
 photo_cameraImage coming soon 1140450 O-Ring €4.25
49
 photo_cameraImage coming soon 22954 Pre-Installing Pump €615.94
50
 photo_cameraImage coming soon 50068 Gasket €6.57
51
 photo_cameraImage coming soon 50069 Box €18.90
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

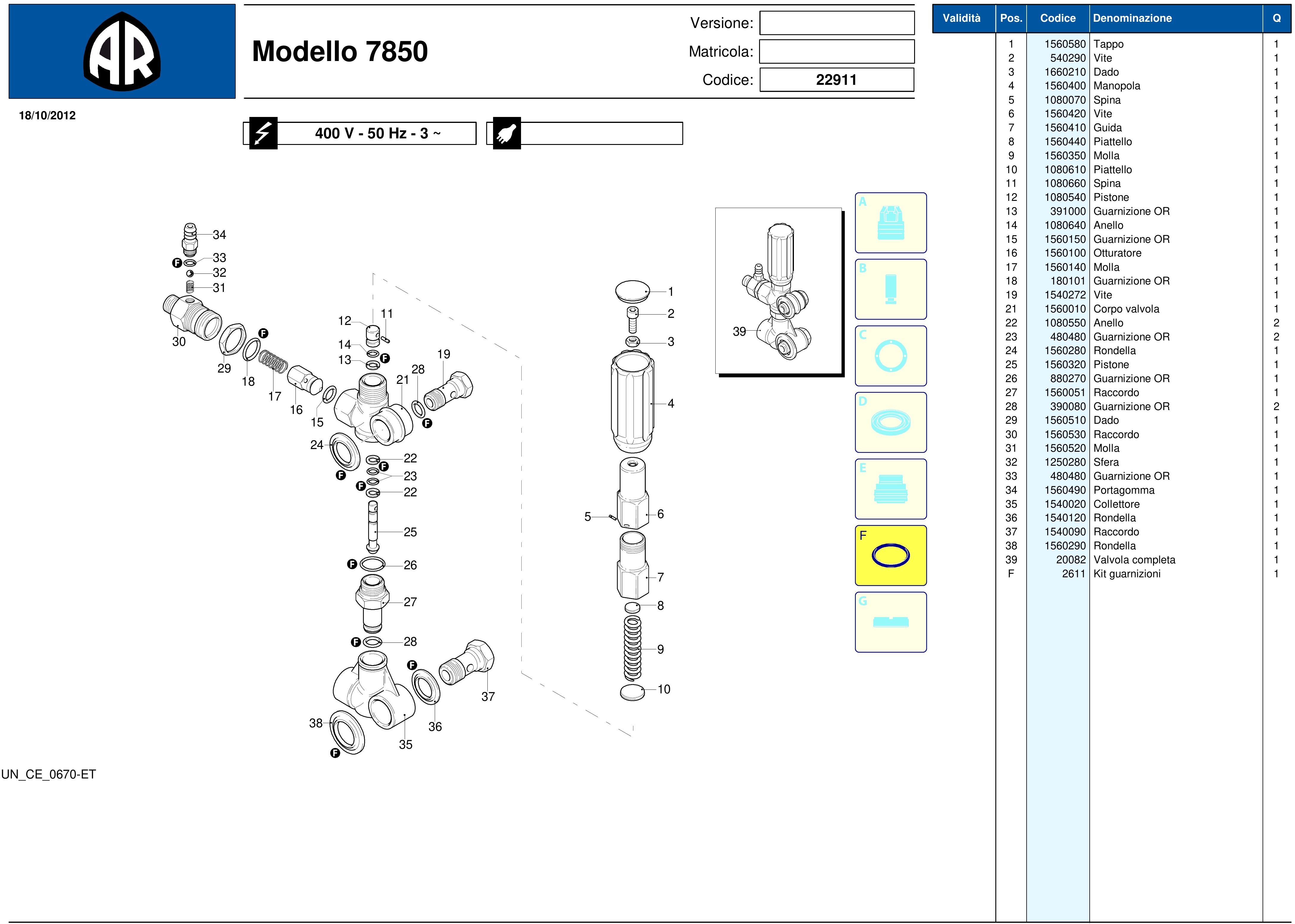

Esploso pagina 3
Pos. Item Price Buy
F
 photo_cameraImage coming soon 2611 Gasket Kit €17.56
1
 photo_cameraImage coming soon 1560580 Stopper €5.28
2
 photo_cameraImage coming soon 540290 Screw €5.47
3
 photo_cameraImage coming soon 1660210 Nut €4.59
4
 photo_cameraImage coming soon 1560400 Knob €6.39
5
 photo_cameraImage coming soon 1080070 plug €2.64
6
 photo_cameraImage coming soon 1560420 Screw €30.81
7
 photo_cameraImage coming soon 1560410 Driving €27.03
8
 photo_cameraImage coming soon 1560440 Disk €12.46
9
 photo_cameraImage coming soon 1560350 Spring €7.98
10
 photo_cameraImage coming soon 1080610 Disk €6.61
11
 photo_cameraImage coming soon 1080660 Plug €5.54
12
 photo_cameraImage coming soon 1080540 Piston €18.64
13
 photo_cameraImage coming soon 391000 O-Ring €4.73
14
 photo_cameraImage coming soon 1080640 Ring €5.20
15
 photo_cameraImage coming soon 1560150 O-Ring €4.59
16
 photo_cameraImage coming soon 1560100 Shutter €12.13
17
 photo_cameraImage coming soon 1560140 Spring €5.98
19
 Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
21
 photo_cameraImage coming soon 1560010 Valve Body €27.03
22
 photo_cameraImage coming soon 1080550 Ring €5.42
24
 photo_cameraImage coming soon 1560280 Washer €7.49
25
 photo_cameraImage coming soon 1560320 Piston €22.26
26
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
 photo_cameraImage coming soon 1560051 Junction €21.52
28
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
 photo_cameraImage coming soon 1560510 Nut €10.40
30
 photo_cameraImage coming soon 1560530 Junction €23.07
31
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
32
 photo_cameraImage coming soon 1250280 sphere €2.67
34
 photo_cameraImage coming soon 1560490 Hose €7.24
35
 photo_cameraImage coming soon 1540020 Collector €24.21
36
 photo_cameraImage coming soon 1540120 Washer €5.81
37
 photo_cameraImage coming soon 1540090 Junction €17.83
38
 photo_cameraImage coming soon 1560290 Washer €7.62
39
 Complete Valve for Pressure Washers AR BC 6950 20082 Complete Valve for Pressure Washers AR BC 6950 €144.99
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

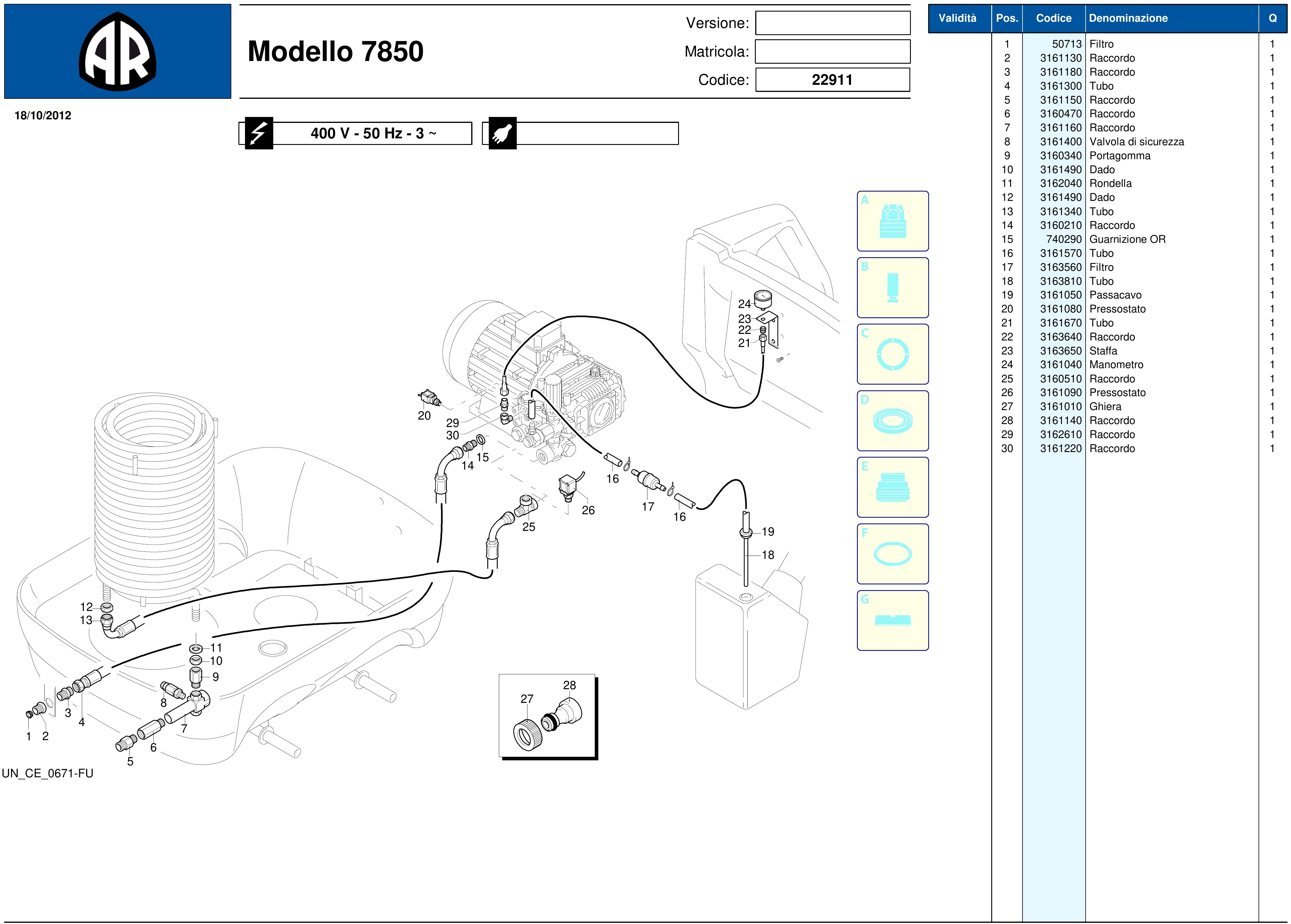

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50713 Filter €10.53
2
 photo_cameraImage coming soon 3161130 Junction €33.37
3
 photo_cameraImage coming soon 3161180 Fitting €11.28
4
 photo_cameraImage coming soon 3161300 Tube €44.51
5
 photo_cameraImage coming soon 3161150 Fitting €11.28
6
 photo_cameraImage coming soon 3160470 Junction €25.53
7
 photo_cameraImage coming soon 3161160 Junction €82.03
8
 photo_cameraImage coming soon 3161400 Safety Valve €49.74
9
 photo_cameraImage coming soon 3160340 Hose €5.36
10
 photo_cameraImage coming soon 3161490 Nut €14.70
11
 photo_cameraImage coming soon 3162040 Washer €5.85
13
 photo_cameraImage coming soon 3161340 Tube €47.18
14
 photo_cameraImage coming soon 3160210 Junction €18.77
16
 photo_cameraImage coming soon 3161570 Tube €11.70
17
 photo_cameraImage coming soon 3163560 Filter €10.84
18
 photo_cameraImage coming soon 3163810 Tube €19.20
19
 photo_cameraImage coming soon 3161050 Fairlead €10.68
20
 Pressure Switch 15 Bar for Washers Annovi & Reverberi AR7850/7870 3161080 Pressure Switch 15 Bar for Washers Annovi & Reverberi AR7850/7870 €33.47
21
 photo_cameraImage coming soon 3161670 Tube €33.55
22
 photo_cameraImage coming soon 3163640 Junction €6.93
23
 photo_cameraImage coming soon 3163650 Stirrup €10.90
24
 Gauge for Pressure Washers Annovi & Reverberi Series 66 3161040 Gauge for Pressure Washers Annovi & Reverberi Series 66 €50.93
25
 photo_cameraImage coming soon 3160510 Fitting €22.16
26
 Pressure Switch 30 Bar for Washers Annovi & Reverberi AR7850/7870 3161090 Pressure Switch 30 Bar for Washers Annovi & Reverberi AR7850/7870 €33.47
27
 photo_cameraImage coming soon 3161010 Ferrule €16.53
28
 photo_cameraImage coming soon 3161140 Junction €16.53
29
 photo_cameraImage coming soon 3162610 Junction €7.51
30
 photo_cameraImage coming soon 3161220 Junction €12.81
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

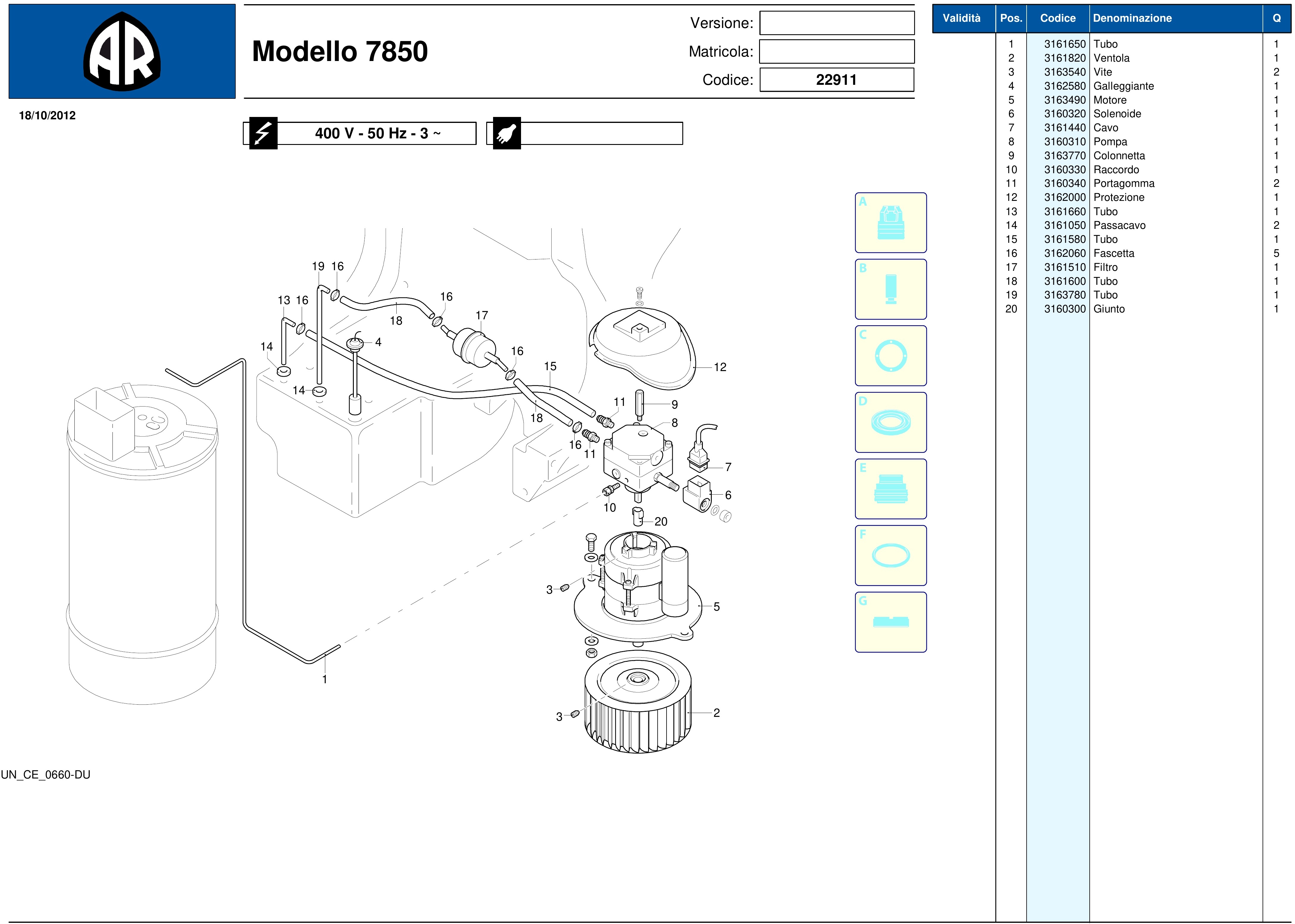

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3161650 Tube €38.77
2
 photo_cameraImage coming soon 3161820 Fan €29.54
3
 photo_cameraImage coming soon 3163540 Screw €1.56
4
 photo_cameraImage coming soon 3162580 Float €80.78
5
 photo_cameraImage coming soon 3163490 Engine €180.77
6
 photo_cameraImage coming soon 3160320 Solenoid €44.36
7
 photo_cameraImage coming soon 3161440 Cable €8.80
8
 photo_cameraImage coming soon 3160310 Pump €141.04
9
 photo_cameraImage coming soon 3163770 Standoff €19.20
10
 photo_cameraImage coming soon 3160330 Fitting €11.28
12
 photo_cameraImage coming soon 3162000 Protection €13.92
13
 photo_cameraImage coming soon 3161660 Tube €10.37
15
 photo_cameraImage coming soon 3161580 Tube €20.01
16
 photo_cameraImage coming soon 3162060 Band €7.51
17
 photo_cameraImage coming soon 3161510 Filter €13.47
18
 photo_cameraImage coming soon 3161600 Tube €10.37
19
 photo_cameraImage coming soon 3163780 Tube €19.43
20
 photo_cameraImage coming soon 3160300 Coupling €8.52
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

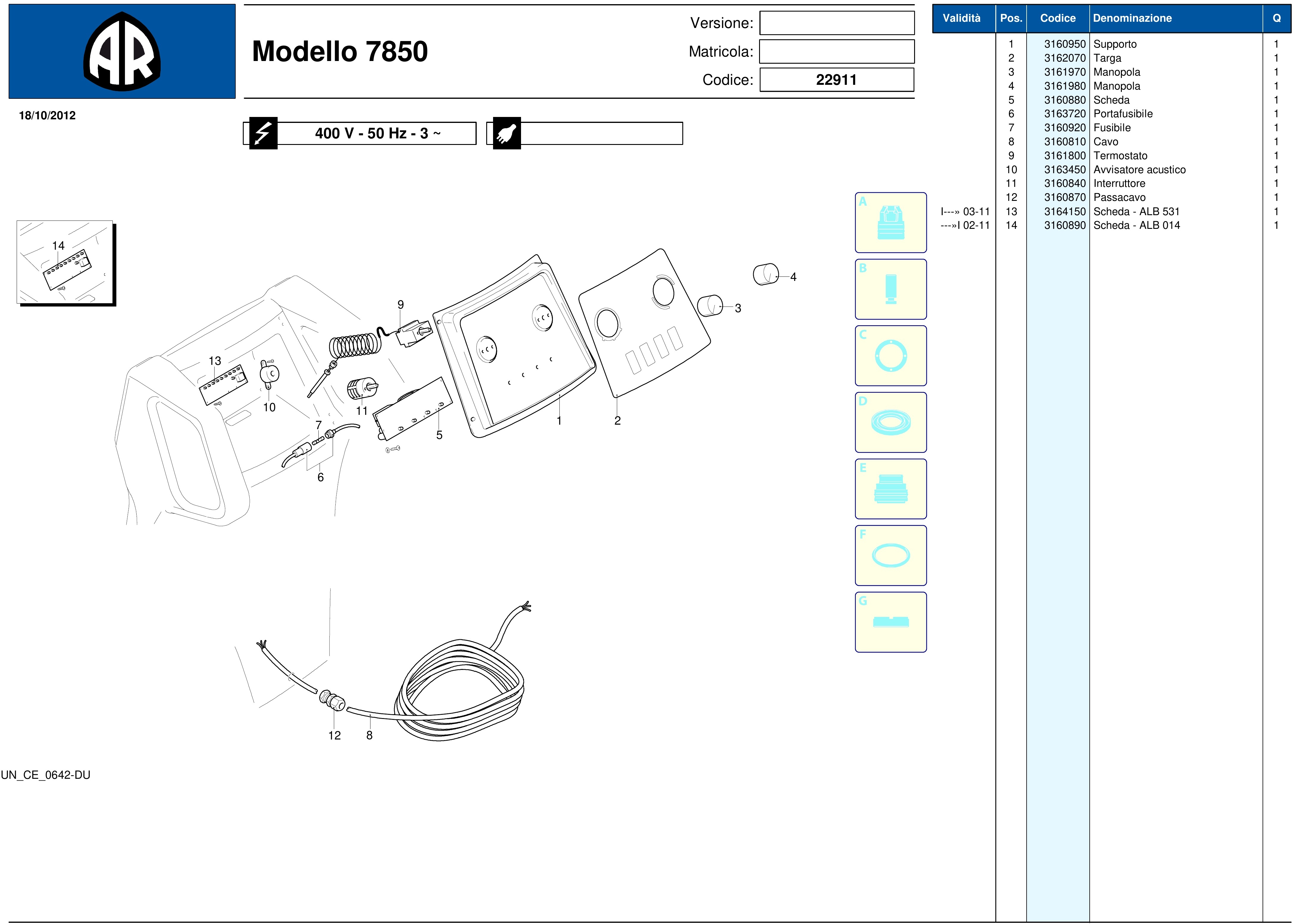

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3160950 Support €122.19
2
 photo_cameraImage coming soon 3162070 License Plate €66.02
3
 photo_cameraImage coming soon 3161970 Knob €8.18
4
 photo_cameraImage coming soon 3161980 Knob €8.18
5
 photo_cameraImage coming soon 3160880 Card €344.08
6
 photo_cameraImage coming soon 3163720 Fuse Holder €11.28
7
 photo_cameraImage coming soon 3160920 Fuse €9.64
8
 photo_cameraImage coming soon 3160810 Cable €47.45
9
 Thermostat for Pressure Washers Annovi&Reverberi AR 6950-6970-7850-8840 3161800 Thermostat for Pressure Washers Annovi&Reverberi AR 6950-6970-7850-8840 €89.05
10
 photo_cameraImage coming soon 3163450 Horn €47.33
11
 photo_cameraImage coming soon 3160840 Switch €60.09
12
 photo_cameraImage coming soon 3160870 Fairlead €17.70
13
 photo_cameraImage coming soon 3164150 Card - ALB 531 €290.70
14
 photo_cameraImage coming soon 3160890 Card - ALB 014 €327.94
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

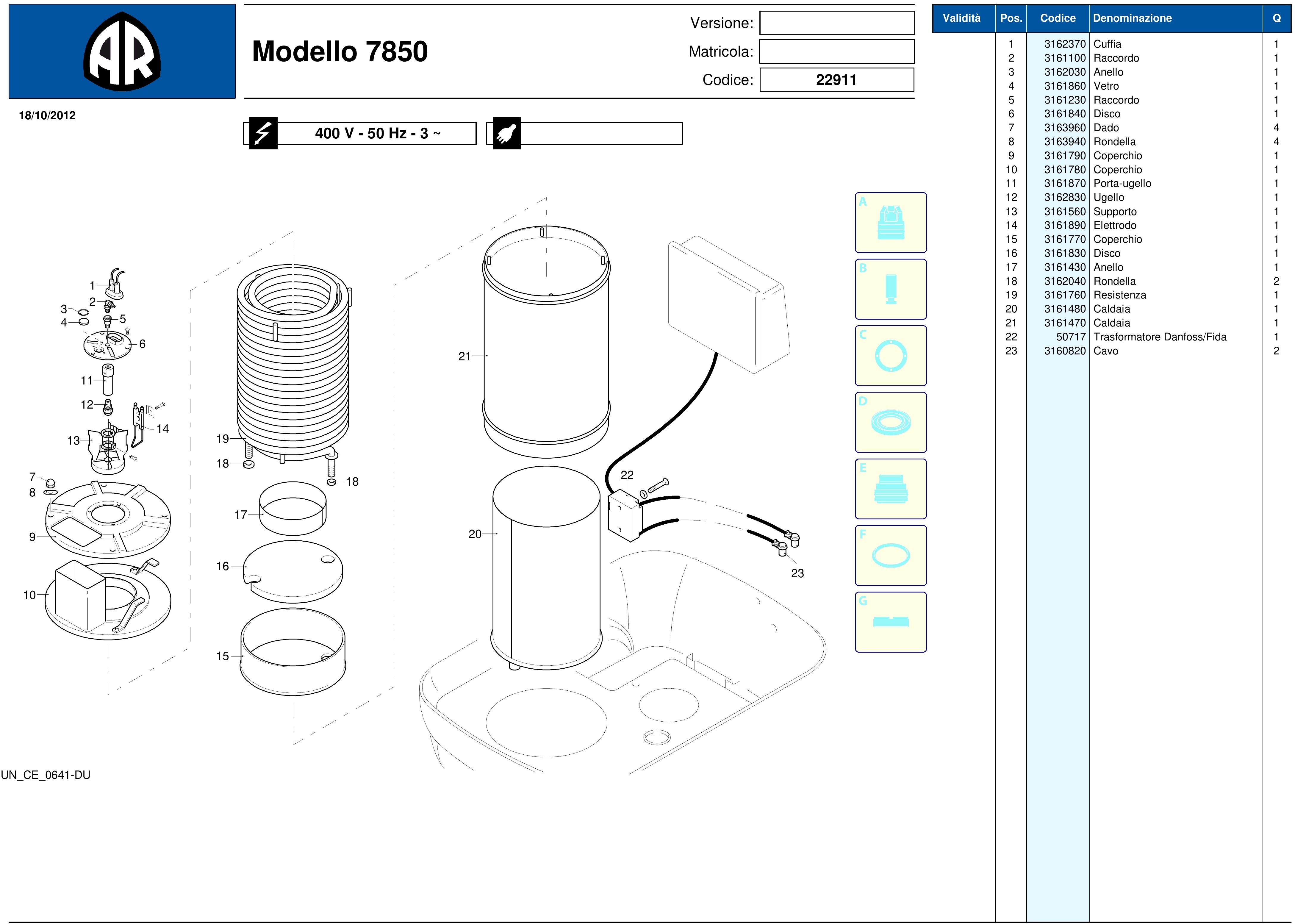

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3162370 Headphones €19.38
2
 photo_cameraImage coming soon 3161100 Fitting €14.81
3
 photo_cameraImage coming soon 3162030 Ring €7.58
4
 photo_cameraImage coming soon 3161860 Glass €9.39
5
 photo_cameraImage coming soon 3161230 Fitting €4.67
6
 photo_cameraImage coming soon 3161840 Disk €32.98
7
 photo_cameraImage coming soon 3163960 Nut €7.58
8
 photo_cameraImage coming soon 3163940 Washer €8.59
9
 photo_cameraImage coming soon 3161790 Cover €57.44
10
 photo_cameraImage coming soon 3161780 Cover €136.45
11
 photo_cameraImage coming soon 3161870 The Nozzle Holder €13.86
12
 photo_cameraImage coming soon 3162830 Nozzle €33.11
13
 photo_cameraImage coming soon 3161560 Support €74.79
14
 photo_cameraImage coming soon 3161890 Electrode €26.92
15
 photo_cameraImage coming soon 3161770 Cover €57.44
16
 photo_cameraImage coming soon 3161830 Disk €49.94
17
 photo_cameraImage coming soon 3161430 Ring €43.79
19
 photo_cameraImage coming soon 3161760 Resistance €336.61
20
 photo_cameraImage coming soon 3161480 Boiler €284.19
21
 photo_cameraImage coming soon 3161470 Boiler €169.60
22
 photo_cameraImage coming soon 50717 Transformer Danfoss / Fida €120.57
23
 photo_cameraImage coming soon 3160820 Cable €25.01
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

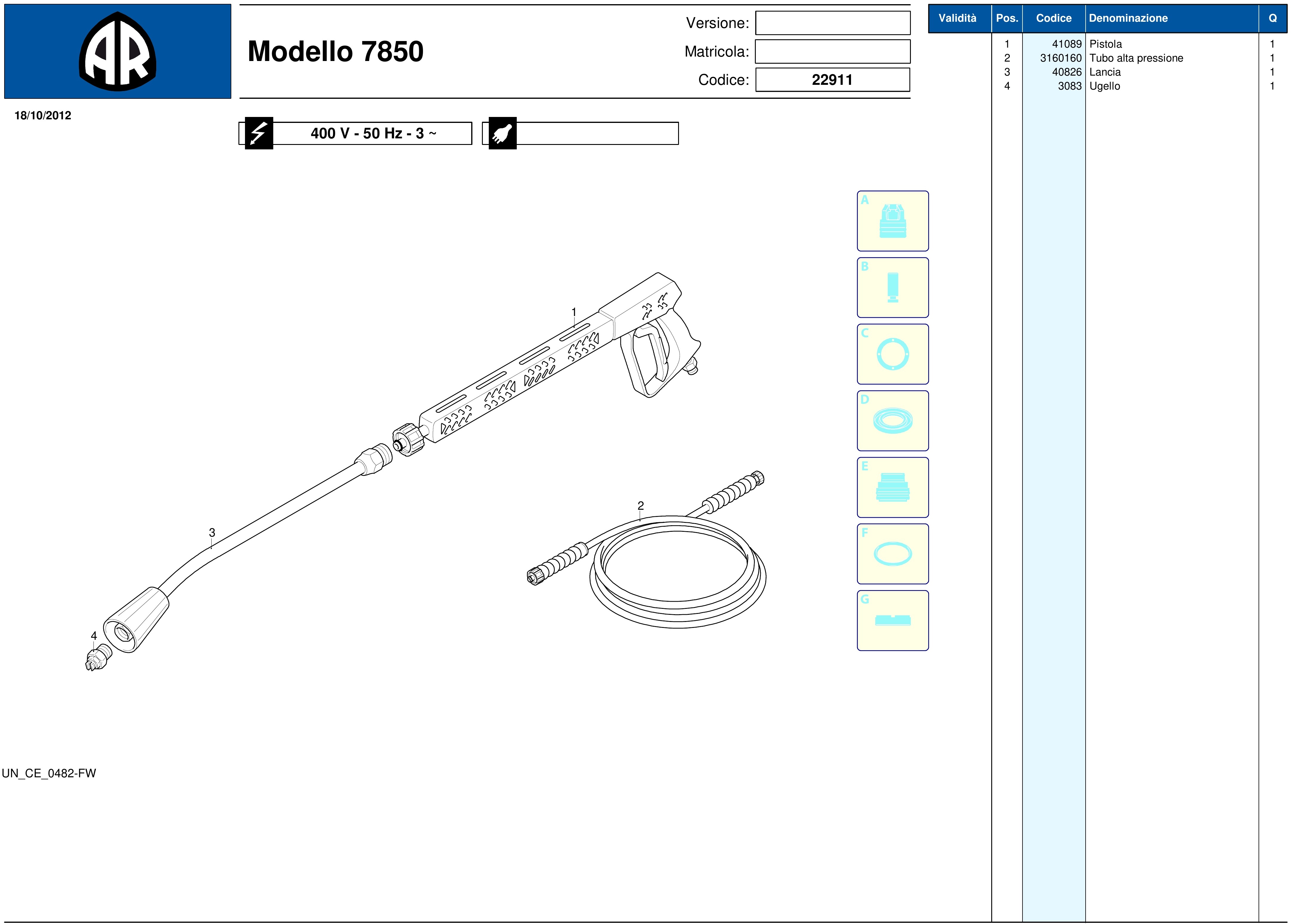

Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 41089 Gun €133.22
2
 photo_cameraImage coming soon 3160160 High Pressure Hose €224.56
3
 Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
4
 photo_cameraImage coming soon 3083 Nozzle €21.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR7850

Annovi & Reverberi Genuine Parts or replacement Parts for to repair Pressure Washer AR Blue Clean AR7850 - 22911.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 7850 - 22911

Pressure Washer AR Blue Clean 7850 - 22911
Casing AR7850 - 22911 Pag.1
# Part Num. Description
1 3160750 Blue Casing
2 3160100 Holds Accessories
3 2100300 Screw
4 3160110 Holds Accessories
5 3160130 Door
6 3160660 Support
7 3163990 Knob
8 3160700 Frame
9 3161070 Fairlead
10 3161900 Plate
11 3160780 Wheel
12 3163830 Washer
13 3162020 Protection
14 3161740 Tank
15 3161920 Cork
16 3161730 Tank
17 3160090 Holds Accessories
18 2360360 Vine
19 3163630 Gasket
20 3164380 Wheel
21 3162010 Ring
22 3161940 Protection
Pump 7850 Pag.2
1 960160 O-Ring
2 1260160 Cork
3 1269050 Complete Valve
4 880830 O-Ring
5 620301 Cork
6 1780140 Ring
7 1260220 Watertight
8 1780110 Piston Guide
9 1780010 Pump Housing
10 1266740 Oil Seal
11 1260790 Ring
12 1780550 Ring
13 1780490 Bearing
14 880130 Cork
15 1780050 Plug
16 1780510 O-Ring
17 1200430 Screw
18 1789010 Cover
19 1780040 Piston Rod
20 1780060 Piston
21 480480 O-Ring
22 1260091 Disk
23 1780080 Piston
24 1260100 Washer
25 1260110 Nut
26 180030 Screw
27 740290 O-Ring
28 1980740 Cork
29 44285 Engine
30 1260460 Oil Seal
31 1780120 Piston Guide
32 770260 O-Ring
33 1260450 Watertight
34 820361 Cork
35 180101 O-Ring
36 1780020 Head
37 1381550 Washer
38 1322730 Screw
39 1789315 Pre-Assembly Head
40 1321190 Bearing
41 1321080 Ring
42 1260250 Level Indicator
43 1260430 Ring
44 1780690 Disk
45 1780160 Tree
46 1380520 Tongue
47 1260750 Ring
48 1140450 O-Ring
49 22954 Pre-Installing Pump
50 50068 Gasket
51 50069 Box
A 1864 Kit Valves
B 2746 Piston Kit
C 2786 Kit Kept Oil
E 2747 Kit Held Water
G 2745 Kit Support Rings
Valve 7850 Pag.3
1 1560580 Cork
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1080070 Plug
6 1560420 Screw
7 1560410 Driving
8 1560440 Disk
9 1560350 Spring
10 1080610 Disk
11 1080660 Plug
12 1080540 Piston
13 391000 O-Ring
14 1080640 Ring
15 1560150 O-Ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-Ring
19 1540272 Screw
21 1560010 Valve Body
22 1080550 Ring
23 480480 O-Ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Sphere
33 480480 O-Ring
34 1560490 Hose
35 1540020 Collector
36 1540120 Washer
37 1540090 Junction
38 1560290 Washer
39 20082 Complete Valve
F 2611 Seal Kit
Water Circuit 7850 Pag.4
1 50713 Filter
2 3161130 Junction
3 3161180 Junction
4 3161300 Tube
5 3161150 Junction
6 3160470 Junction
7 3161160 Junction
8 3161400 Safety Valve
9 3160340 Hose
10 3161490 Nut
11 3162040 Washer
12 3161490 Nut
13 3161340 Tube
14 3160210 Junction
15 740290 O-Ring
16 3161570 Tube
17 3163560 Filter
18 3163810 Tube
19 3161050 Fairlead
20 3161080 Pressure Switch
21 3161670 Tube
22 3163640 Junction
23 3163650 Stirrup
24 3161040 Manometer
25 3160510 Junction
26 3161090 Pressure Switch
27 3161010 Ferrule
28 3161140 Junction
29 3162610 Junction
30 3161220 Junction
31 3162300 Gasket
Fuel Circuit 7850 Pag.5
1 3161650 Tube
2 3161820 Fan
3 3163540 Screw
4 3162580 Float
5 3163490 Engine
6 3160320 Solenoid
7 3161440 Cable
8 3160310 Pump
9 3163770 Colonnetta
10 3160330 Junction
11 3160340 Hose
12 3162000 Protection
13 3161660 Tube
14 3161050 Fairlead
15 3161580 Tube
16 3162060 Band
17 3161510 Filter
18 3161600 Tube
19 3163780 Tube
20 3160300 Coupling
Electric Circuit 7850 Pag.6
1 3160950 Support
2 3162070 License Plate
3 3161970 Knob
4 3161980 Knob
5 3160880 Card
6 3163720 Fuse Holder
7 3160920 Fuse
8 3160810 Cable
9 3161800 Thermostat
10 3163450 Horn
11 3160840 Switch
12 3160870 Fairlead
13 3164150 Card - ALB 531
14 3160890 Card - ALB 014
Boiler 7850 Pag.7
1 3162370 Headphones
2 3161100 Junction
3 3162030 Ring
4 3161860 Glass
5 3161230 Junction
6 3161840 Disk
7 3163960 Nut
8 3163940 Washer
9 3161790 Cover
10 3161780 Cover
11 3161870 The Nozzle Holder
12 3162830 Nozzle
13 3161560 Support
14 3161890 Electrode
15 3161770 Cover
16 3161830 Disk
17 3161430 Ring
18 3162040 Washer
19 3161760 Resistance
20 3161480 Boiler
21 3161470 Boiler
22 50717 Transformer Danfoss / Fida
23 3160820 Cable
Accessories 7850 Pag.8
1 41089 Gun
2 3160160 High Pressure Hose
3 40826 Lance
4 3083 Nozzle

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Annovi Reverberi 7850 - 22911
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi Reverberi AR7850

Diagram Annovi Reverberi AR7850

Download (739.92KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Gasket for Pressure Washers 780-787-797-945-6670-7850 Sale
Annovi Reverberi S.p.A. SKU: 1260220
Gasket for Pressure Washers 780-787-797-945-6670-7850
Gasket for Pressure Washers 780-787-797-945-6670-7850 Genuine Parts for Annovi & Reverberi, Gasket mm 28x18x5,5/3,5 for Pressure Washer AR 780/787/797 - AR 6670 - PROLINER XPRO 13.17 -AR 945 - AR 7850. Part for the following...
AVAILABLE €10.78
Details
Gauge for Pressure Washers Annovi & Reverberi Series 66 Sale
Annovi Reverberi S.p.A. SKU: 3161040
Gauge for Pressure Washers Annovi & Reverberi Series 66
Gauge for Pressure Washers Annovi & Reverberi Series 66 Original part Annovi & Reverberi, High pressure gauge for pressure washers models Blue Clean Series 66 - 6630 - 6640 - 6650 - 6670 Part for the Following Products: - AR...
AVAILABLE €50.93
Details
Complete Valve for Pressure Washers AR BC 6950
Annovi Reverberi S.p.A. SKU: 20082
Complete Valve for Pressure Washers AR BC 6950
Complete Valve for Pressure Washers AR BC 6950 Original part Annovi Reverberi, Complete Valve for Pressure Washers models Blue Clean AR 6950 - AR 6970 - AR 7850 - AR 7870. Part for the following...
Last items in stock €144.99
Details
Comments (0)
