Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1120

SKU: Annovi Reverberi 1120 - 22374
€9.85
VAT included

Annovi & Reverberi Parts for Pressure Washer AR1120

Annovi & Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR1120 cod.22374.

Annovi Reverberi 1120 - 22374
Annovi & Reverberi Parts for Pressure Washer AR1120
  • Annovi & Reverberi Parts for Pressure Washer AR1120
  • Annovi & Reverberi Parts for Pressure Washer AR1120
  • Annovi & Reverberi Parts for Pressure Washer AR1120
  • Annovi & Reverberi Parts for Pressure Washer AR1120
  • Annovi & Reverberi Parts for Pressure Washer AR1120
  • Annovi & Reverberi Parts for Pressure Washer AR1120
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1120

SKU: Annovi Reverberi 1120 - 22374 Condition: New
€9.85
VAT included

Annovi & Reverberi Parts for Pressure Washer AR1120

Annovi & Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR1120 cod.22374.

Annovi Reverberi 1120 - 22374
settings 123 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Last items in stock

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded

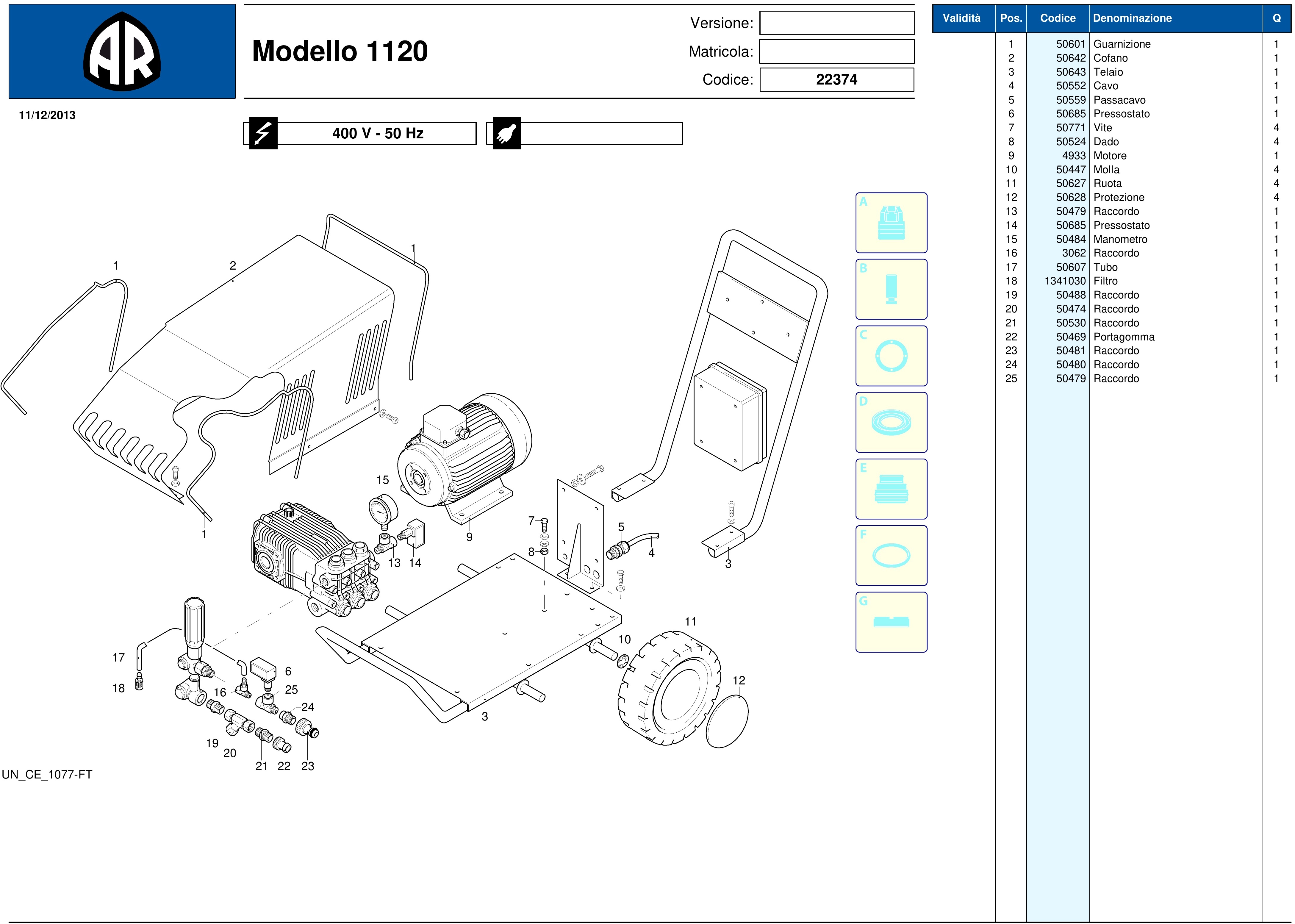

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50601 Gasket €11.73
2
 photo_cameraImage coming soon 50642 Hood €330.81
3
 photo_cameraImage coming soon 50643 Frame €364.48
4
 photo_cameraImage coming soon 50552 Cable €243.65
5
 photo_cameraImage coming soon 50559 Fairlead €5.56
6
 photo_cameraImage coming soon 50685 Pressure Switch €35.37
7
 photo_cameraImage coming soon 50771 Screw €3.23
8
 photo_cameraImage coming soon 50524 Nut €3.17
9
 photo_cameraImage coming soon 4933 Engine €840.86
10
 photo_cameraImage coming soon 50447 Spring €7.91
11
 photo_cameraImage coming soon 50627 Wheel €55.98
12
 photo_cameraImage coming soon 50628 Protection €4.26
13
 photo_cameraImage coming soon 50479 Junction €26.40
15
 photo_cameraImage coming soon 50484 Manometer €32.40
16
 photo_cameraImage coming soon 3062 Junction €22.79
17
 photo_cameraImage coming soon 50607 Tube €5.31
18
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
19
 photo_cameraImage coming soon 50488 Junction €4.42
20
 photo_cameraImage coming soon 50474 Junction €21.36
21
 photo_cameraImage coming soon 50530 Junction €9.96
22
 photo_cameraImage coming soon 50469 Hose €11.72
23
 photo_cameraImage coming soon 50481 Junction €18.51
24
 photo_cameraImage coming soon 50480 Junction €8.41
Page 2 zoom_in View exploded

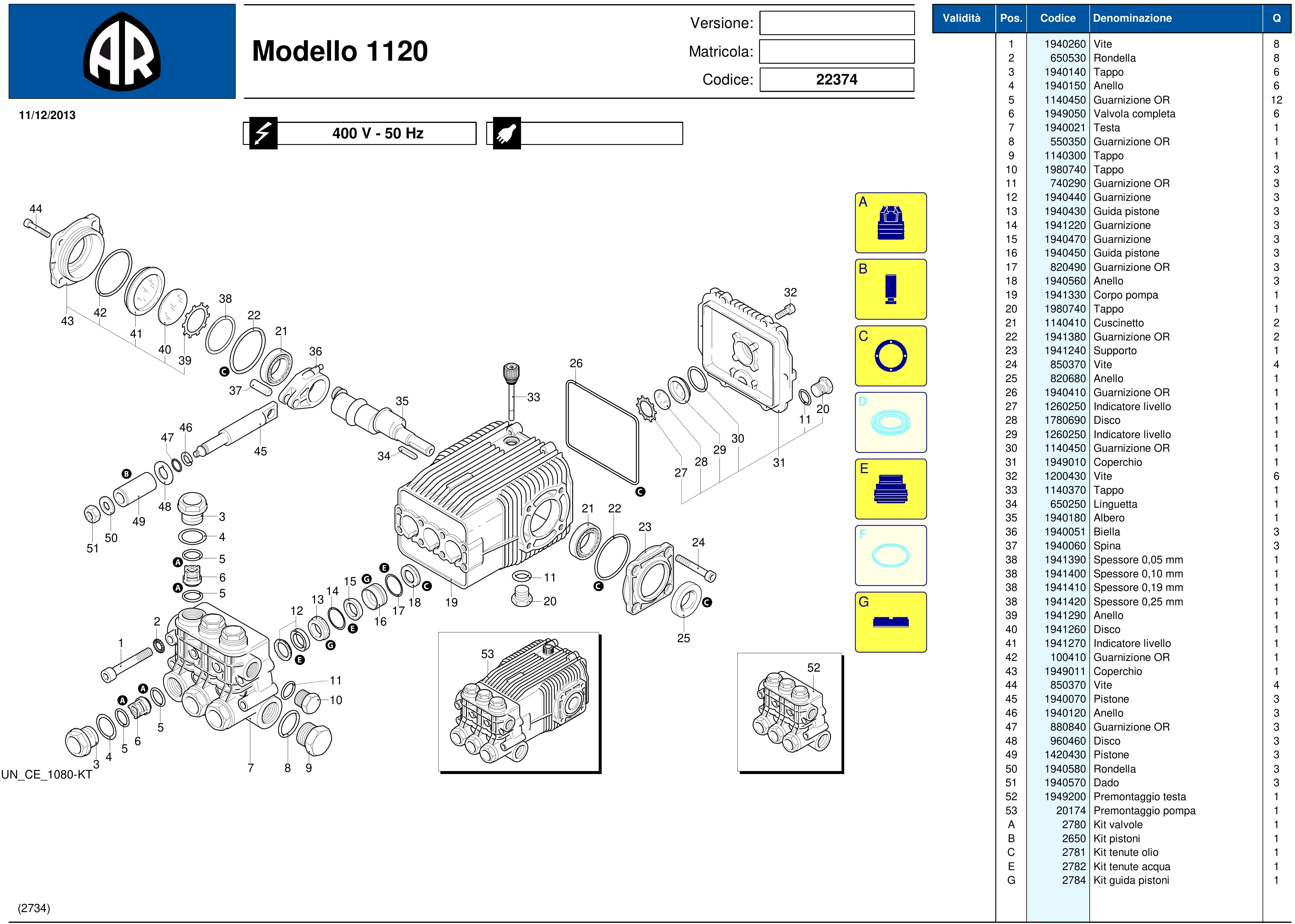

Esploso pagina 2
Pos. Item Price Buy
F
 photo_cameraImage coming soon 2193 Gasket Kit €3.93
B
 photo_cameraImage coming soon 2650 Piston Kit €108.84
A
 photo_cameraImage coming soon 2780 Kit Valves €73.75
C
 photo_cameraImage coming soon 2781 Kit Oil Seals €15.86
E
 photo_cameraImage coming soon 2782 Kit Kept Water €68.44
G
 photo_cameraImage coming soon 2784 Kit Driving Pistons €63.52
1
 photo_cameraImage coming soon 1940260 Screw €4.89
2
 photo_cameraImage coming soon 650530 washer €2.03
3
 photo_cameraImage coming soon 1940140 Stopper €12.37
4
 photo_cameraImage coming soon 1940150 Ring €5.60
5
 photo_cameraImage coming soon 1140450 O-Ring €4.25
6
 photo_cameraImage coming soon 1949050 Complete Valve €16.08
7
 photo_cameraImage coming soon 1940021 Head €219.57
8
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
9
 photo_cameraImage coming soon 1140300 Stopper €15.44
10
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
11
 photo_cameraImage coming soon 740290 O-ring €2.67
12
 photo_cameraImage coming soon 1940440 Gasket €16.08
13
 photo_cameraImage coming soon 1940430 Piston Guide €10.71
14
 photo_cameraImage coming soon 1941220 Gasket €4.32
15
 photo_cameraImage coming soon 1940470 Gasket €13.78
16
 photo_cameraImage coming soon 1940450 Piston Guide €18.57
18
 photo_cameraImage coming soon 1940560 Ring €4.84
19
 photo_cameraImage coming soon 1941330 Pump Housing €98.04
21
 photo_cameraImage coming soon 1140410 Bearing €51.56
23
 photo_cameraImage coming soon 1941240 Support €21.45
24
 photo_cameraImage coming soon 850370 screw €2.26
25
 photo_cameraImage coming soon 820680 Ring €7.00
26
 photo_cameraImage coming soon 1940410 O-Ring €2.04
27
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
31
 photo_cameraImage coming soon 1949010 Cover €24.46
32
 photo_cameraImage coming soon 1200430 Screw €4.64
33
 photo_cameraImage coming soon 1140370 Stopper €6.17
34
 photo_cameraImage coming soon 650250 Tongue €5.75
35
 photo_cameraImage coming soon 1940180 Tree €129.05
36
 photo_cameraImage coming soon 1940051 Piston Rod €31.30
37
 photo_cameraImage coming soon 1940060 Plug €4.16
38
 photo_cameraImage coming soon 1941390 Thickness 0.05 Mm €4.70
38
 photo_cameraImage coming soon 1941400 Thickness 0.10 Mm €5.34
38
 photo_cameraImage coming soon 1941410 Thickness 0.19 Mm €5.60
38
 photo_cameraImage coming soon 1941420 Thickness 0.25 Mm €6.17
39
 photo_cameraImage coming soon 1941290 Ring €2.30
41
 photo_cameraImage coming soon 1941270 Level Indicator €1.66
43
 photo_cameraImage coming soon 1949011 Cover €23.69
45
 photo_cameraImage coming soon 1940070 Piston €32.77
46
 photo_cameraImage coming soon 1940120 Ring €4.96
47
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
48
 photo_cameraImage coming soon 960460 Disk €4.83
49
 photo_cameraImage coming soon 1420430 Piston €38.71
50
 photo_cameraImage coming soon 1940580 Washer €4.70
51
 photo_cameraImage coming soon 1940570 Nut €6.17
52
 photo_cameraImage coming soon 1949200 Pre-Assembly Head €391.48
53
 photo_cameraImage coming soon 20174 Pre-Assembly Pump €693.29
Page 3 zoom_in View exploded

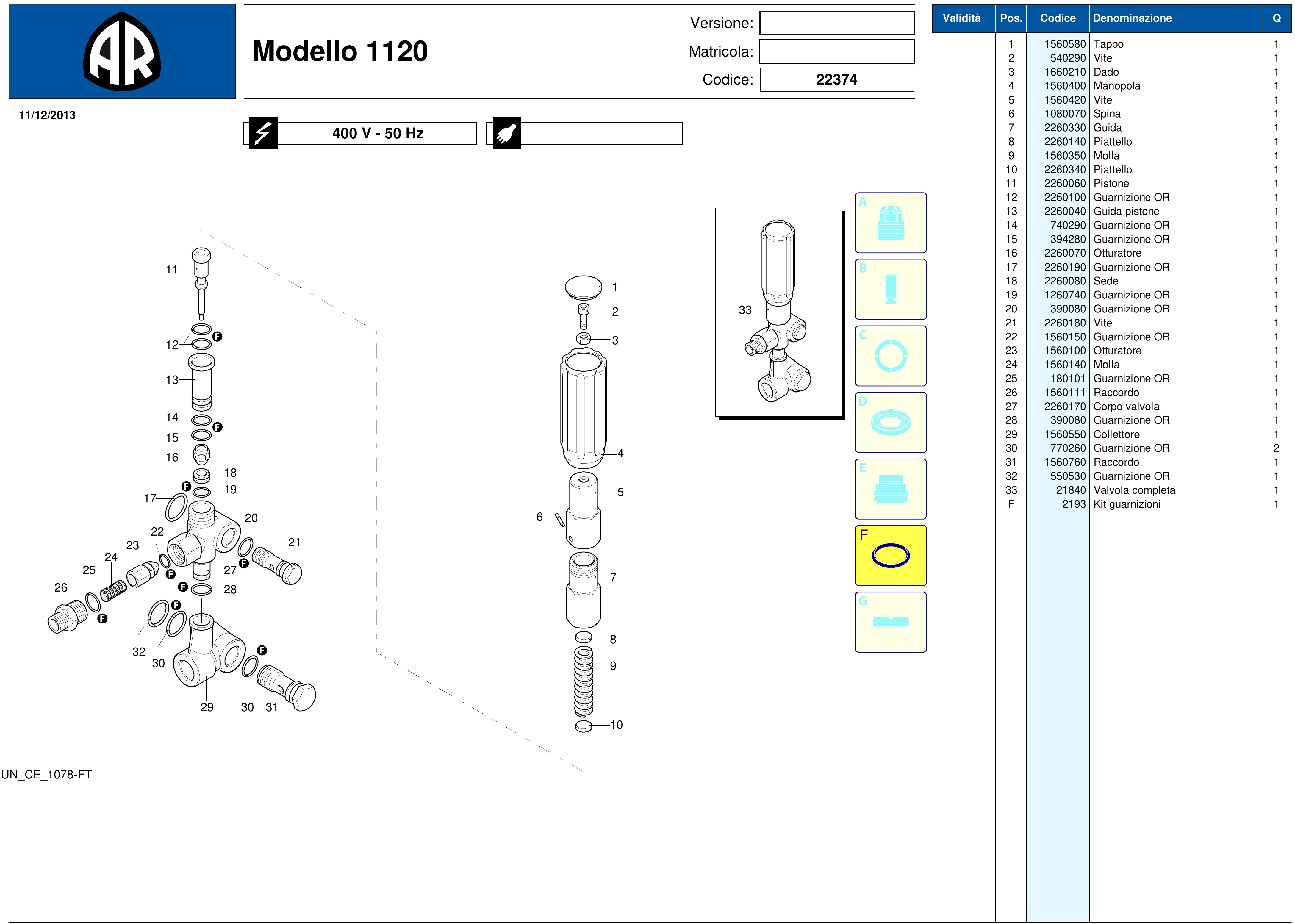

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1560580 Stopper €5.28
2
 photo_cameraImage coming soon 540290 Screw €5.47
3
 photo_cameraImage coming soon 1660210 Nut €4.59
4
 photo_cameraImage coming soon 1560400 Knob €6.39
5
 photo_cameraImage coming soon 1560420 Screw €30.81
6
 photo_cameraImage coming soon 1080070 plug €2.64
7
 photo_cameraImage coming soon 2260330 Driving €22.44
8
 photo_cameraImage coming soon 2260140 Disk €7.15
9
 photo_cameraImage coming soon 1560350 Spring €7.98
10
 photo_cameraImage coming soon 2260340 Disk €7.98
11
 photo_cameraImage coming soon 2260060 Piston €24.31
12
 photo_cameraImage coming soon 2260100 O-Ring €1.29
13
 photo_cameraImage coming soon 2260040 Piston Guide €19.81
15
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
 photo_cameraImage coming soon 2260070 Shutter €15.62
17
 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
18
 photo_cameraImage coming soon 2260080 Office €16.49
19
 photo_cameraImage coming soon 1260740 O-Ring €4.59
20
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
 photo_cameraImage coming soon 2260180 Screw €5.31
22
 photo_cameraImage coming soon 1560150 O-Ring €4.59
23
 photo_cameraImage coming soon 1560100 Shutter €12.13
24
 photo_cameraImage coming soon 1560140 Spring €5.98
25
 photo_cameraImage coming soon 180101 O-Ring €4.73
26
 photo_cameraImage coming soon 1560111 Junction €13.09
27
 photo_cameraImage coming soon 2260170 Valve Body €26.52
29
 photo_cameraImage coming soon 1560550 Collector €24.77
30
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
31
 photo_cameraImage coming soon 1560760 Junction €24.22
32
 photo_cameraImage coming soon 550530 O-Ring €1.90
33
 photo_cameraImage coming soon 21840 Complete Valve €126.78
Page 4 zoom_in View exploded

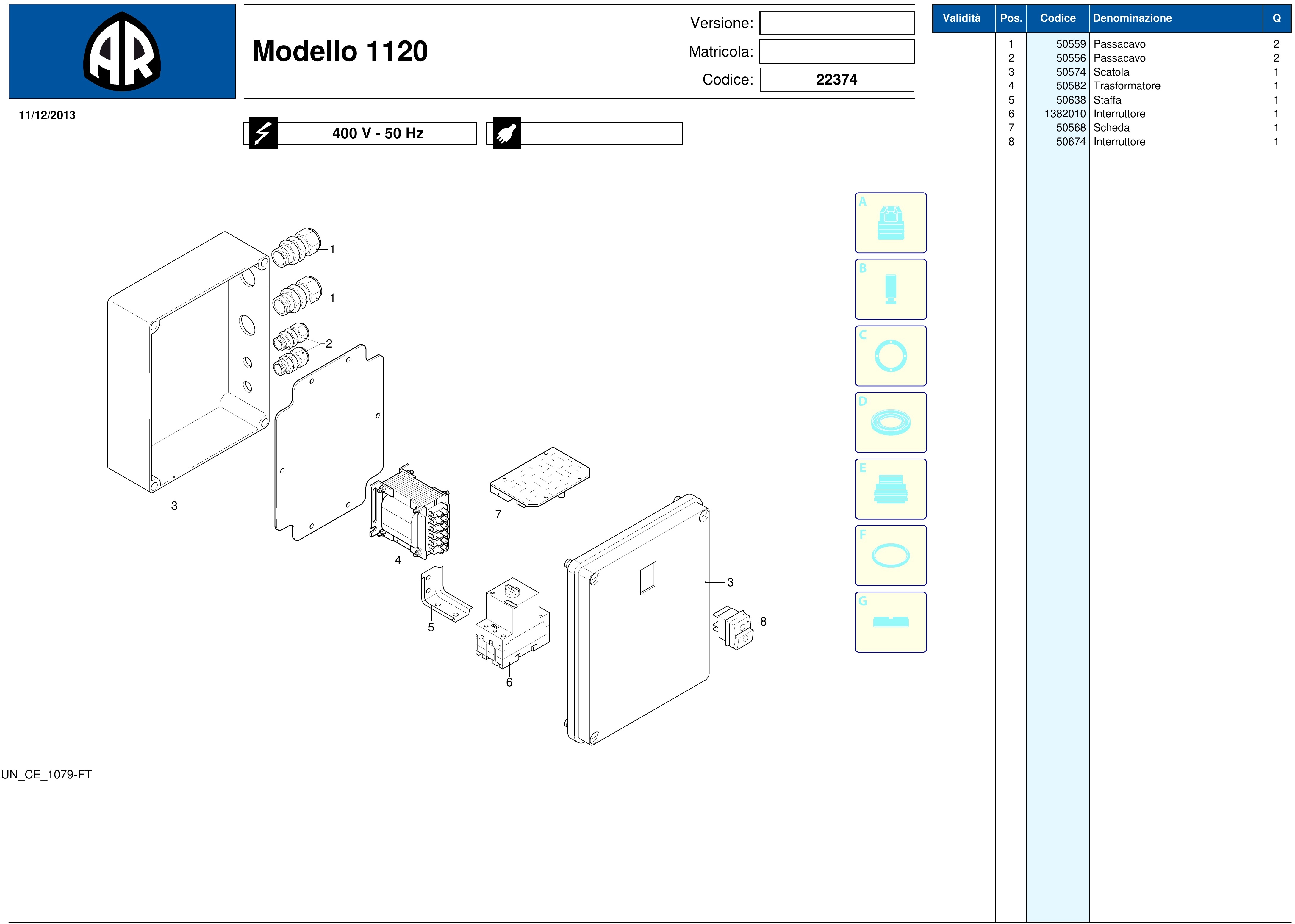

Esploso pagina 4
Pos. Item Price Buy
2
 photo_cameraImage coming soon 50556 Fairlead €5.01
3
 photo_cameraImage coming soon 50574 Box €39.28
4
 photo_cameraImage coming soon 50582 Transformer €102.12
5
 photo_cameraImage coming soon 50638 Stirrup €14.62
6
 photo_cameraImage coming soon 1382010 Switch €73.40
7
 photo_cameraImage coming soon 50568 Card €144.46
8
 photo_cameraImage coming soon 50674 Switch €10.99
Page 5 zoom_in View exploded

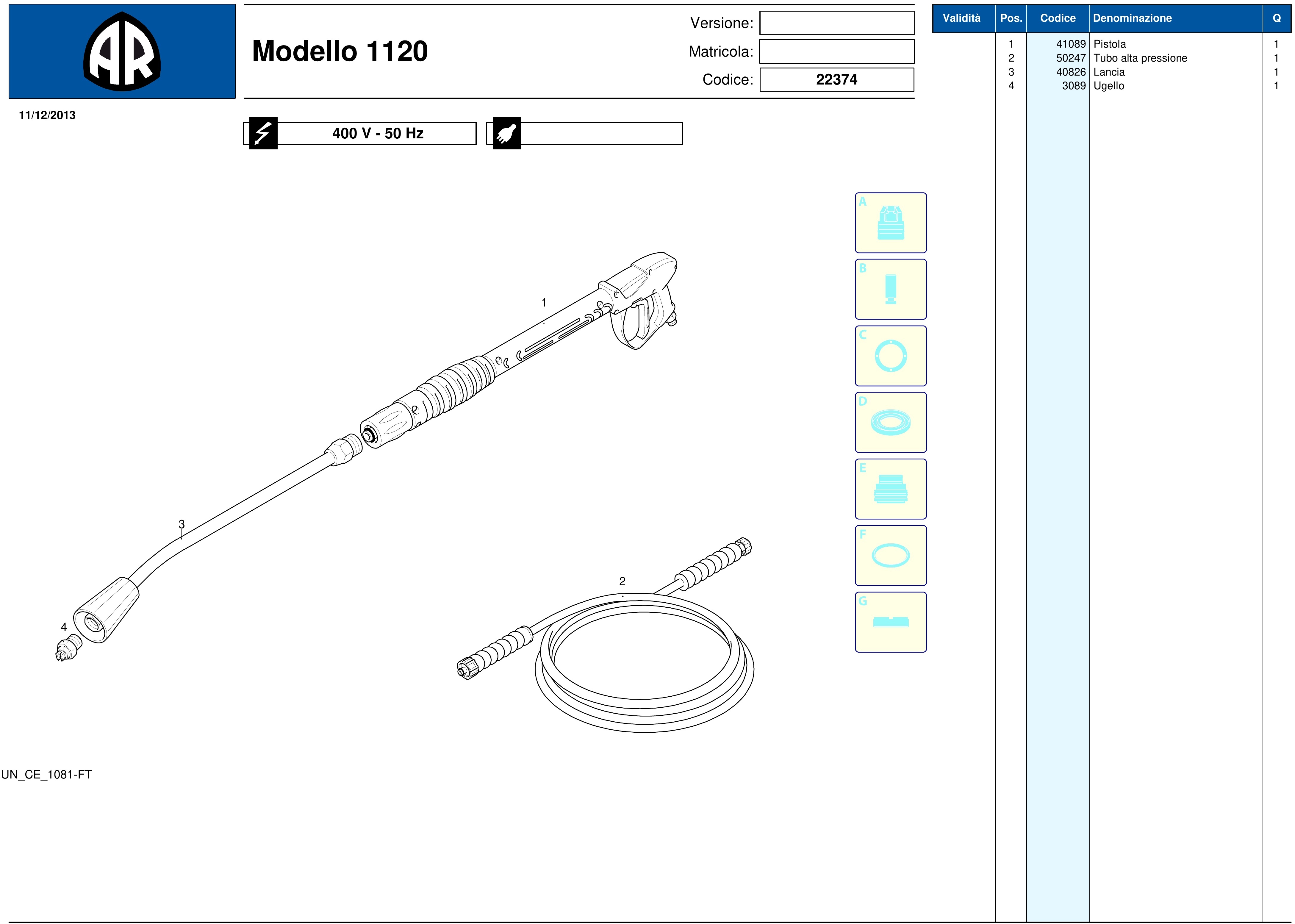

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 41089 Gun €133.22
2
 photo_cameraImage coming soon 50247 High Pressure Hose €83.21
3
 Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
4
 photo_cameraImage coming soon 3089 Nozzle €13.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR1120

Annovi & Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR1120 cod.22374.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 1120 - 22374

Pressure Washer Blue Clean AR1120 cod.22374
Casing 1120 Pag.1
# Part Num. Description
1 50601 Gasket
2 50642 Hood
3 50643 Frame
4 50552 Cable
5 50559 Fairlead
6 50685 Pressure Switch
7 50771 Screw
8 50524 Nut
9 4933 Engine
10 50447 Spring
11 50627 Wheel
12 50628 Protection
13 50479 Junction
14 50685 Pressure Switch
15 50484 Manometer
16 3062 Junction
17 50607 Tube
18 1341030 Filter
19 50488 Junction
20 50474 Junction
21 50530 Junction
22 50469 Hose
23 50481 Junction
24 50480 Junction
25 50479 Junction
Pump 1120 Pag.2
1 1940260 Screw
2 650530 Washer
3 1940140 Stopper
4 1940150 Ring
5 1140450 O-Ring
6 1949050 Complete Valve
7 1940021 Head
8 550350 O-Ring
9 1140300 Stopper
10 1980740 Stopper
11 740290 O-Ring
12 1940440 Gasket
13 1940430 Piston Guide
14 1941220 Gasket
15 1940470 Gasket
16 1940450 Piston Guide
17 820490 O-Ring
18 1940560 Ring
19 1941330 Pump Housing
20 1980740 Stopper
21 1140410 Bearing
22 1941380 O-Ring
23 1941240 Support
24 850370 Screw
25 820680 Ring
26 1940410 O-Ring
27 1260250 Level Indicator
28 1780690 Disk
29 1260250 Level Indicator
30 1140450 O-Ring
31 1949010 Cover
32 1200430 Screw
33 1140370 Stopper
34 650250 Tongue
35 1940180 Tree
36 1940051 Piston Rod
37 1940060 Plug
38 1941390 Thickness 0.05 Mm
38 1941400 Thickness 0.10 Mm
38 1941410 Thickness 0.19 Mm
38 1941420 Thickness 0.25 Mm
39 1941290 Ring
40 1941260 Disk
41 1941270 Level Indicator
42 100410 O-Ring
43 1949011 Cover
44 850370 Screw
45 1940070 Piston
46 1940120 Ring
47 880840 O-Ring
48 960460 Disk
49 1420430 Piston
50 1940580 Washer
51 1940570 Nut
52 1949200 Pre-Assembly Head
53 20174 Pre-Assembly Pump
A 2780 Kit Valves
B 2650 Piston Kit
C 2781 Kit Oil Seals
E 2782 Kit Kept Water
G 2784 Kit Driving Pistons
Valve 1120 Pag.3
1 1560580 Stopper
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1560420 Screw
6 1080070 Plug
7 2260330 Driving
8 2260140 Disk
9 1560350 Spring
10 2260340 Disk
11 2260060 Piston
12 2260100 O-Ring
13 2260040 Piston Guide
14 740290 O-Ring
15 394280 O-Ring
16 2260070 Shutter
17 2260190 O-Ring
18 2260080 Office
19 1260740 O-Ring
20 390080 O-Ring
21 2260180 Screw
22 1560150 O-Ring
23 1560100 Shutter
24 1560140 Spring
25 180101 O-Ring
26 1560111 Junction
27 2260170 Valve Body
28 390080 O-Ring
29 1560550 Collector
30 770260 O-Ring
31 1560760 Junction
32 550530 O-Ring
33 21840 Complete Valve
F 2193 Gasket Kit
Elettrical Circuit 1120 Pag.4
1 50559 Fairlead
2 50556 Fairlead
3 50574 Box
4 50582 Transformer
5 50638 Stirrup
6 1382010 Switch
7 50568 Card
8 50674 Switch
Accessories 1120 Pag.5
1 41089 Gun
2 50247 High Pressure Hose
3 40826 Lance
4 3089 Nozzle

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1120 - 22374
3 Items

Specific References

New

Download

Diagram Annovi&Reverberi AR1120

Diagram Annovi&Reverberi AR1120

Download (599.91KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
AR O RING for Pressure Washer AR8880
Annovi Reverberi S.p.A. SKU: 550350
AR O-RING for Pressure Washer AR8880
AR O-RING for Pressure Washer AR8880 Genuine spare part Annovi Reverberi, O-RING for Pressure Washers AR8880 - AR8840 - AR8860 - AR1120. Part for the following products: -  Pressure Washer Annovi Reverberi 8880 - 22915 - ...
AVAILABLE €0.62
Details
Comments (0)
