Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1018

SKU: Annovi Reverberi 1018 - 24491
€18.08
VAT included

Annovi Reverberi Parts for Pressure Washer AR1018

Genuine Parts Annovi Reverberi for repair or replacement of Pressure Washer Blue Clean AR 1018 - 24491.

Fix Your Annovi Reverberi Pressure Washer Blue Clean AR1018 - 24491. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
Annovi & Reverberi Parts for Pressure Washer AR1010/1015/1018
  • Annovi & Reverberi Parts for Pressure Washer AR1010/1015/1018
  • Annovi & Reverberi Parts for Pressure Washer AR1010/1015/1018
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1018

SKU: Annovi Reverberi 1018 - 24491 Condition: New
€18.08
VAT included

Annovi Reverberi Parts for Pressure Washer AR1018

Genuine Parts Annovi Reverberi for repair or replacement of Pressure Washer Blue Clean AR 1018 - 24491.

Fix Your Annovi Reverberi Pressure Washer Blue Clean AR1018 - 24491. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
settings 134 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
120 spare parts
Esploso pagina 1
Pos. Item Price Buy
11
 photo_cameraImage coming soon 1080660 Plug €5.54
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

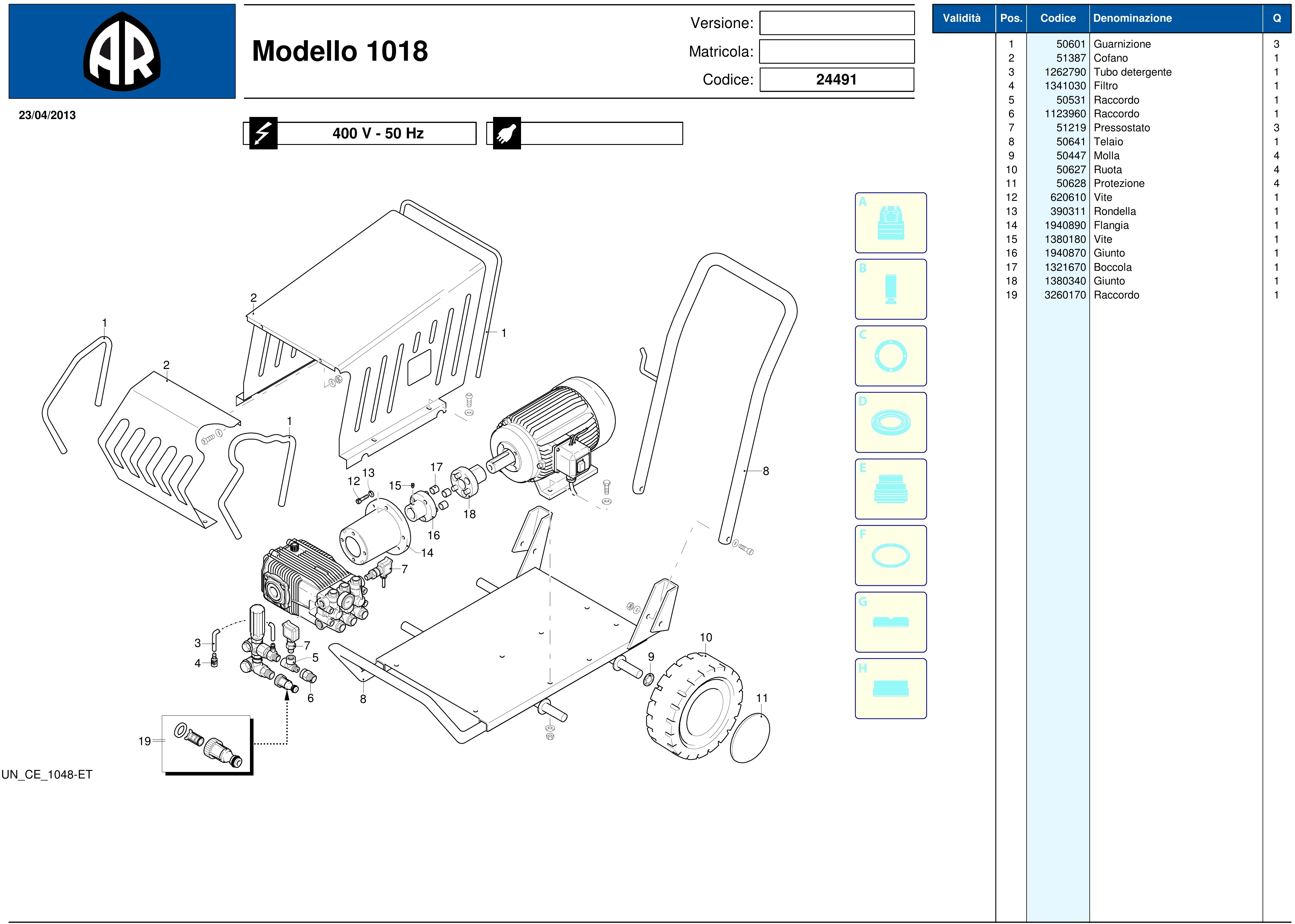

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50601 Gasket €11.73
2
 photo_cameraImage coming soon 51387 Hood €460.97
3
 photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
4
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
5
 photo_cameraImage coming soon 50531 Junction €15.15
6
 photo_cameraImage coming soon 1123960 Junction €14.87
7
 photo_cameraImage coming soon 51219 Pressure Switch €48.32
8
 photo_cameraImage coming soon 50641 Frame €328.56
9
 photo_cameraImage coming soon 50447 Spring €7.91
10
 photo_cameraImage coming soon 50627 Wheel €55.98
11
 photo_cameraImage coming soon 50628 Protection €4.26
12
 photo_cameraImage coming soon 620610 Screw €5.01
13
 photo_cameraImage coming soon 390311 Washer €4.60
14
 photo_cameraImage coming soon 1940890 Flange €45.57
16
 photo_cameraImage coming soon 1940870 Coupling €20.86
18
 photo_cameraImage coming soon 1380340 Coupling €23.68
19
 photo_cameraImage coming soon 3260170 Junction €5.86
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

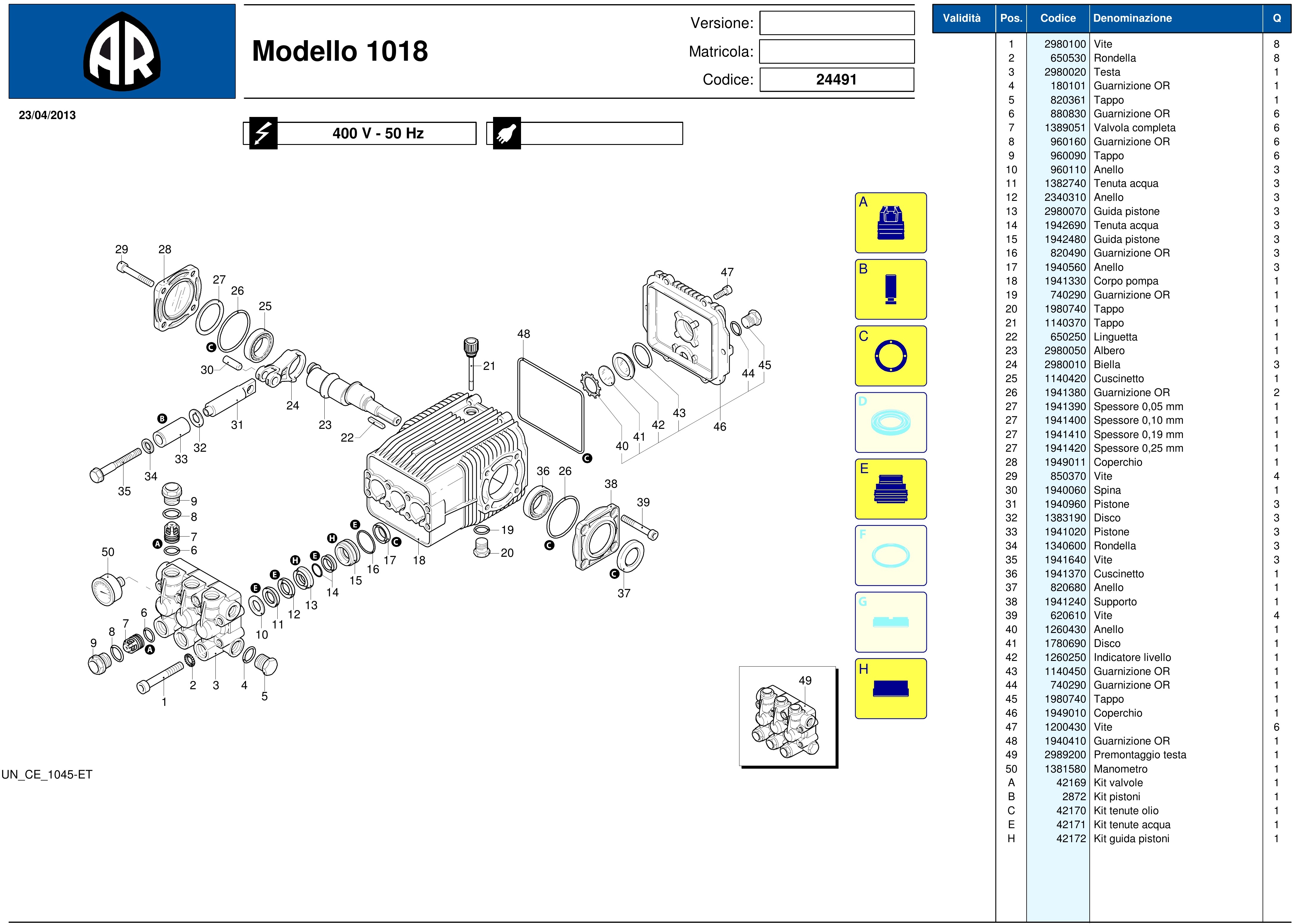

Esploso pagina 2
Pos. Item Price Buy
B
 photo_cameraImage coming soon 2872 Piston Kit €81.75
A
 photo_cameraImage coming soon 42169 Kit Valves €12.39
C
 photo_cameraImage coming soon 42170 Kit Oil Seals €11.16
E
 photo_cameraImage coming soon 42171 Kit Kept Water €30.37
H
 photo_cameraImage coming soon 42172 Kit Driving Pistons €90.02
2
 photo_cameraImage coming soon 650530 washer €2.03
3
 photo_cameraImage coming soon 2980020 Head €126.34
4
 photo_cameraImage coming soon 180101 O-Ring €4.73
5
 photo_cameraImage coming soon 820361 Stopper €4.41
6
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
7
 photo_cameraImage coming soon 1389051 Complete Valve €4.82
8
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
9
 photo_cameraImage coming soon 960090 Stopper €5.85
10
 photo_cameraImage coming soon 960110 Ring €2.41
11
 photo_cameraImage coming soon 1382740 Tenuta Water €16.70
13
 photo_cameraImage coming soon 2980070 Piston Guide €17.48
14
 photo_cameraImage coming soon 1942690 Tenuta Water €10.47
15
 photo_cameraImage coming soon 1942480 Piston Guide €13.76
17
 photo_cameraImage coming soon 1940560 Ring €4.84
18
 photo_cameraImage coming soon 1941330 Pump Housing €98.04
19
 photo_cameraImage coming soon 740290 O-ring €2.67
20
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
21
 photo_cameraImage coming soon 1140370 Stopper €6.17
22
 photo_cameraImage coming soon 650250 Tongue €5.75
23
 photo_cameraImage coming soon 2980050 Tree €96.82
24
 Annovi Pressure Washer AR1018 Conrod 2980010 Annovi Pressure Washer AR1018 Conrod €20.49
25
 photo_cameraImage coming soon 1140420 Bearing €15.00
27
 photo_cameraImage coming soon 1941390 Thickness 0.05 Mm €4.70
27
 photo_cameraImage coming soon 1941400 Thickness 0.10 Mm €5.34
27
 photo_cameraImage coming soon 1941410 Thickness 0.19 Mm €5.60
27
 photo_cameraImage coming soon 1941420 Thickness 0.25 Mm €6.17
28
 photo_cameraImage coming soon 1949011 Cover €23.69
29
 photo_cameraImage coming soon 850370 screw €2.26
30
 photo_cameraImage coming soon 1940060 Plug €4.16
31
 photo_cameraImage coming soon 1940960 Piston €21.93
33
 photo_cameraImage coming soon 1941020 Piston €27.51
36
 photo_cameraImage coming soon 1941370 Bearing €10.97
37
 photo_cameraImage coming soon 820680 Ring €7.00
38
 photo_cameraImage coming soon 1941240 Support €21.45
42
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
43
 photo_cameraImage coming soon 1140450 O-Ring €4.25
46
 photo_cameraImage coming soon 1949010 Cover €24.46
47
 photo_cameraImage coming soon 1200430 Screw €4.64
48
 photo_cameraImage coming soon 1940410 O-Ring €2.04
49
 photo_cameraImage coming soon 2989200 Pre-Assembly Head €241.67
50
 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

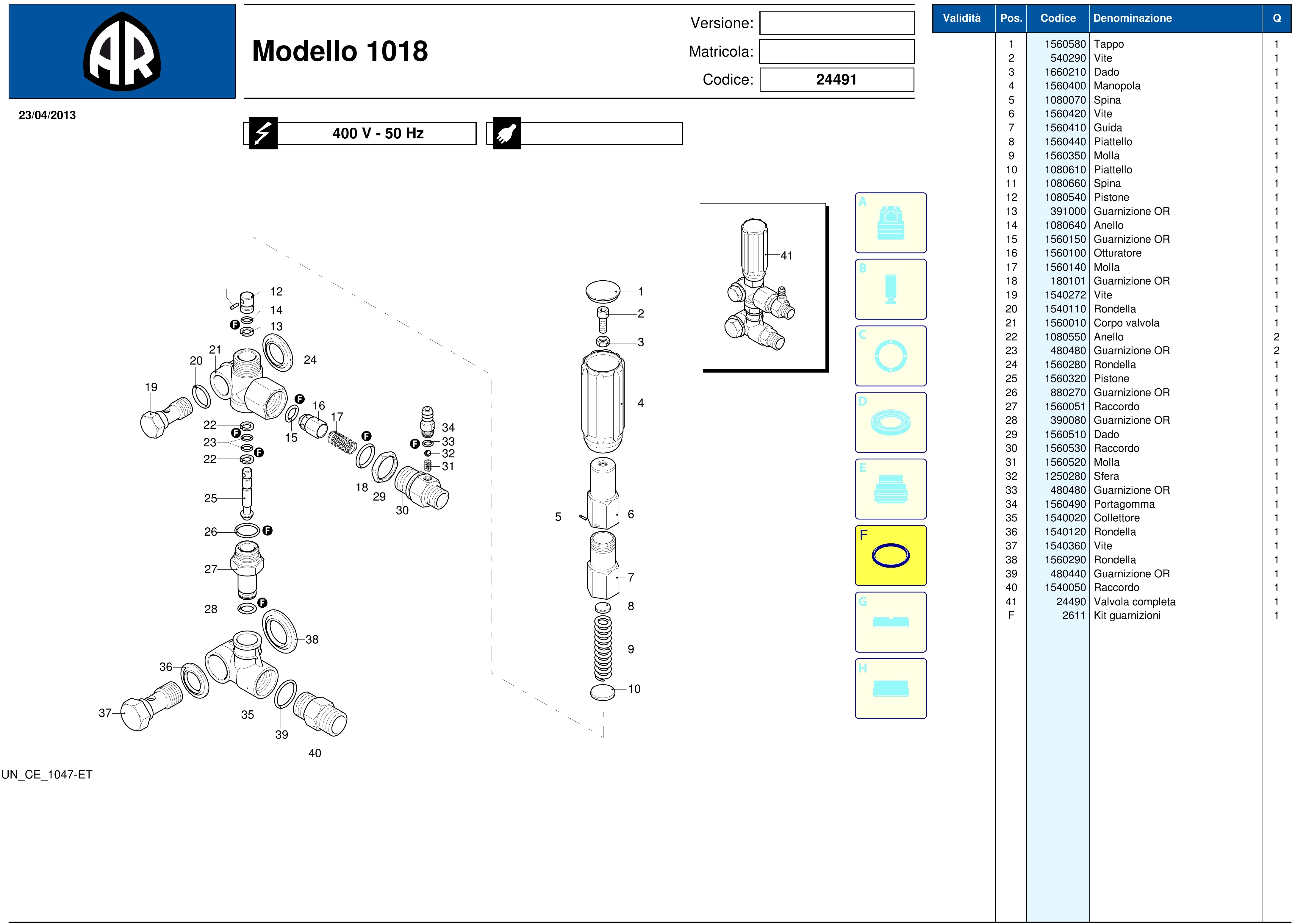

Esploso pagina 3
Pos. Item Price Buy
F
 photo_cameraImage coming soon 2611 Gasket Kit €17.56
1
 photo_cameraImage coming soon 1560580 Stopper €5.28
2
 photo_cameraImage coming soon 540290 Screw €5.47
3
 photo_cameraImage coming soon 1660210 Nut €4.59
4
 photo_cameraImage coming soon 1560400 Knob €6.39
5
 photo_cameraImage coming soon 1080070 plug €2.64
6
 photo_cameraImage coming soon 1560420 Screw €30.81
7
 photo_cameraImage coming soon 1560410 Driving €27.03
8
 photo_cameraImage coming soon 1560440 Disk €12.46
9
 photo_cameraImage coming soon 1560350 Spring €7.98
10
 photo_cameraImage coming soon 1080610 Disk €6.61
12
 photo_cameraImage coming soon 1080540 Piston €18.64
13
 photo_cameraImage coming soon 391000 O-Ring €4.73
14
 photo_cameraImage coming soon 1080640 Ring €5.20
15
 photo_cameraImage coming soon 1560150 O-Ring €4.59
16
 photo_cameraImage coming soon 1560100 Shutter €12.13
17
 photo_cameraImage coming soon 1560140 Spring €5.98
19
 Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
20
 photo_cameraImage coming soon 1540110 Washer €5.54
21
 photo_cameraImage coming soon 1560010 Valve Body €27.03
22
 photo_cameraImage coming soon 1080550 Ring €5.42
23
 photo_cameraImage coming soon 480480 O-ring €5.63
24
 photo_cameraImage coming soon 1560280 Washer €7.49
25
 photo_cameraImage coming soon 1560320 Piston €22.26
26
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
 photo_cameraImage coming soon 1560051 Junction €21.52
28
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
 photo_cameraImage coming soon 1560510 Nut €10.40
30
 photo_cameraImage coming soon 1560530 Junction €23.07
31
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
32
 photo_cameraImage coming soon 1250280 sphere €2.67
34
 photo_cameraImage coming soon 1560490 Hose €7.24
35
 photo_cameraImage coming soon 1540020 Collector €24.21
36
 photo_cameraImage coming soon 1540120 Washer €5.81
37
 photo_cameraImage coming soon 1540360 Screw €6.25
38
 photo_cameraImage coming soon 1560290 Washer €7.62
39
 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
40
 photo_cameraImage coming soon 1540050 Junction €12.57
41
 photo_cameraImage coming soon 24490 Complete Valve €97.07
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

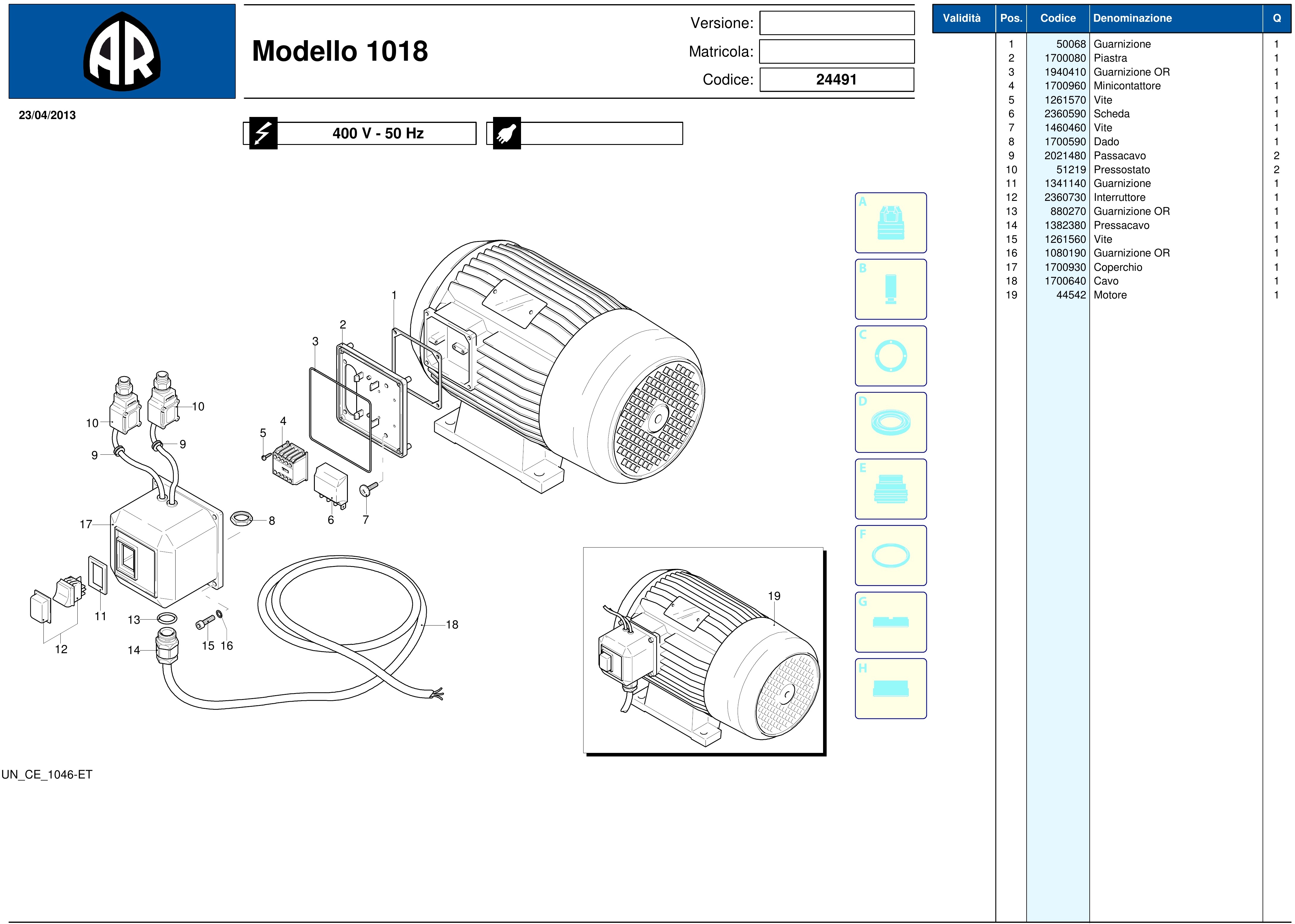

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50068 Gasket €6.57
2
 photo_cameraImage coming soon 1700080 Plate €2.44
4
 photo_cameraImage coming soon 1700960 Mini-Contactor €74.74
6
 photo_cameraImage coming soon 2360590 Card €64.21
7
 photo_cameraImage coming soon 1460460 screw €1.58
8
 photo_cameraImage coming soon 1700590 Nut €6.65
9
 photo_cameraImage coming soon 2021480 Grommet €4.16
12
 photo_cameraImage coming soon 2360730 Switch €9.09
14
 photo_cameraImage coming soon 1382380 Gland €8.18
15
 photo_cameraImage coming soon 1261560 Screw €4.67
16
 photo_cameraImage coming soon 1080190 O-ring €4.40
17
 photo_cameraImage coming soon 1700930 Cover €3.85
18
 photo_cameraImage coming soon 1700640 Cable €47.79
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

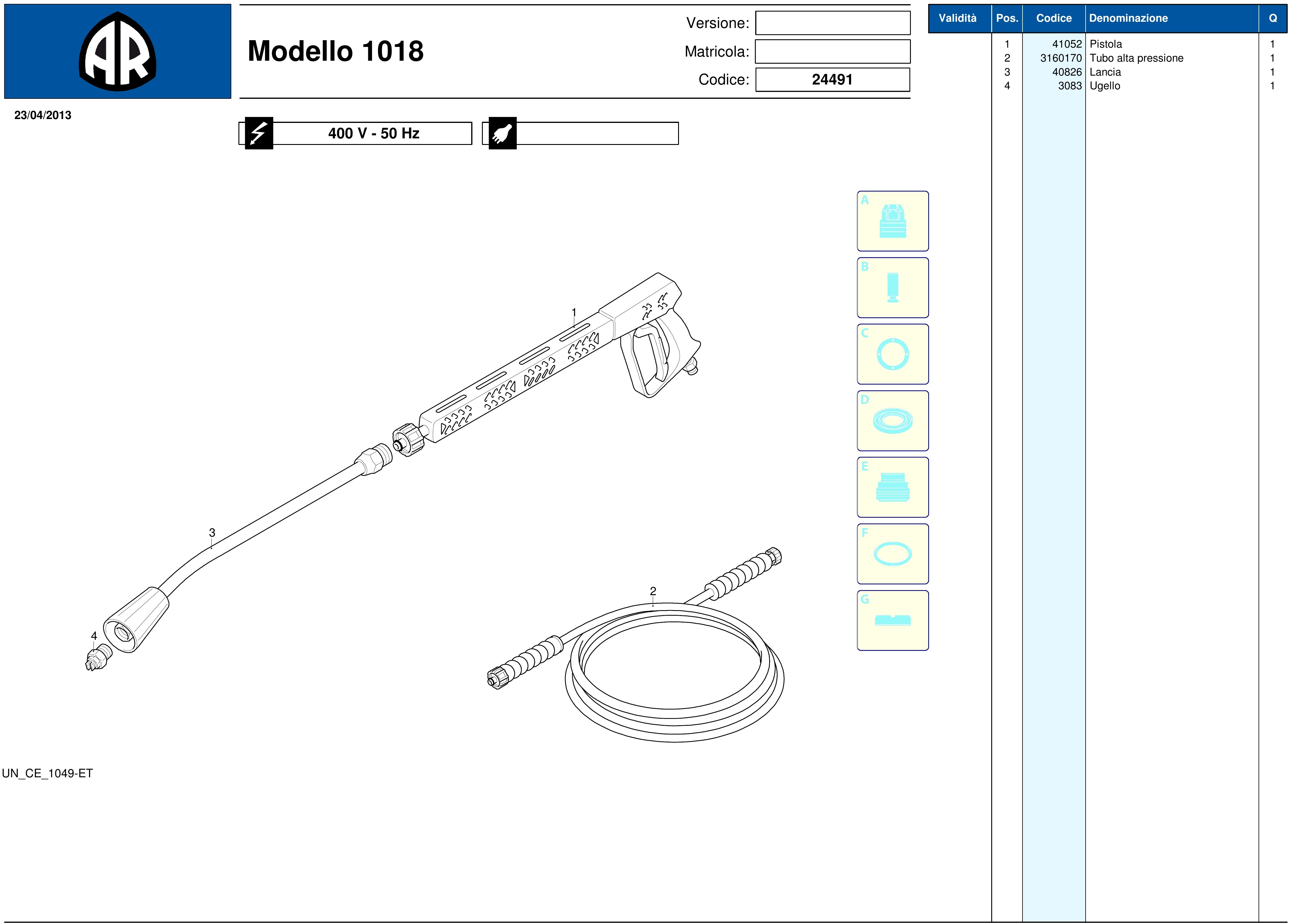

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 41052 Gun €97.94
2
 Annovi AR1018 High Pressure Hose 3160170 Annovi AR1018 High Pressure Hose €174.07 €135.77 -22%
3
 Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
4
 photo_cameraImage coming soon 3083 Nozzle €21.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR1018

Fix Your Annovi Reverberi Pressure Washer Blue Clean AR1018 - 24491. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi

AR Pressure Washer Blue Clean 1018 - 24491 Spare Parts
Casing Pag.1
# Part Num. Description
1 50601 Gasket
2 51387 Hood
3 1262790 Pipe Cleaner
4 1341030 Filter
5 50531 Junction
6 1123960 Junction
7 51219 Pressure Switch
8 50641 Frame
9 50447 Spring
10 50627 Wheel
11 50628 Protection
12 620610 Screw
13 390311 Washer
14 1940890 Flange
15 1380180 Screw
16 1940870 Coupling
17 1321670 Bushing
18 1380340 Coupling
19 3260170 Junction
Pump Pag.2
1 2980100 Screw
2 650530 Washer
3 2980020 Head
4 180101 O-Ring
5 820361 Stopper
6 880830 O-Ring
7 1389051 Complete Valve
8 960160 O-Ring
9 960090 Stopper
10 960110 Ring
11 1382740 Tenuta Water
12 2340310 Ring
13 2980070 Piston Guide
14 1942690 Tenuta Water
15 1942480 Piston Guide
16 820490 O-Ring
17 1940560 Ring
18 1941330 Pump Housing
19 740290 O-Ring
20 1980740 Stopper
21 1140370 Stopper
22 650250 Tongue
23 2980050 Tree
24 2980010 Piston Rod
25 1140420 Bearing
26 1941380 O-Ring
27 1941390 Thickness 0.05 Mm
27 1941400 Thickness 0.10 Mm
27 1941410 Thickness 0.19 Mm
27 1941420 Thickness 0.25 Mm
28 1949011 Cover
29 850370 Screw
30 1940060 Plug
31 1940960 Piston
32 1383190 Disk
33 1941020 Piston
34 1340600 Washer
35 1941640 Screw
36 1941370 Bearing
37 820680 Ring
38 1941240 Support
39 620610 Screw
40 1260430 Ring
41 1780690 Disk
42 1260250 Level Indicator
43 1140450 O-Ring
44 740290 O-Ring
45 1980740 Stopper
46 1949010 Cover
47 1200430 Screw
48 1940410 O-Ring
49 2989200 Pre-Assembly Head
50 1381580 Manometer
A 42169 Kit Valves
B 2872 Piston Kit
C 42170 Kit Oil Seals
E 42171 Kit Kept Water
H 42172 Kit Driving Pistons
Valve Pag.3
1 1560580 Stopper
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1080070 Plug
6 1560420 Screw
7 1560410 Driving
8 1560440 Disk
9 1560350 Spring
10 1080610 Disk
11 1080660 Plug
12 1080540 Piston
13 391000 O-Ring
14 1080640 Ring
15 1560150 O-Ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-Ring
19 1540272 Screw
20 1540110 Washer
21 1560010 Valve Body
22 1080550 Ring
23 480480 O-Ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Sphere
33 480480 O-Ring
34 1560490 Hose
35 1540020 Collector
36 1540120 Washer
37 1540360 Screw
38 1560290 Washer
39 480440 O-Ring
40 1540050 Junction
41 24490 Complete Valve
F 2611 Gasket Kit
Engine Pag.4
1 50068 Gasket
2 1700080 Plate
3 1940410 O-Ring
4 1700960 Mini-Contactor
5 1261570 Screw
6 2360590 Card
7 1460460 Screw
8 1700590 Nut
9 2021480 Fairlead
10 51219 Pressure Switch
11 1341140 Gasket
12 2360730 Switch
13 880270 O-Ring
14 1382380 Gland
15 1261560 Screw
16 1080190 O-Ring
17 1700930 Cover
18 1700640 Cable
19 44542 Engine
Accessories Pag.5
1 41052 Gun
2 3160170 High Pressure Hose
3 40826 Lance
4 3083 Nozzle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1018 - 24491
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR1018

Diagram Annovi AR1018

Download (615.46KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Annovi Pressure Washer AR1018 Conrod
Annovi Reverberi S.p.A. SKU: 2980010
Annovi Pressure Washer AR1018 Conrod
Annovi Conrod for Pressure Washer AR1018 Genuine replacement part Annovi Reverberi, Piston Conrod for Pressure Washer AR1018 - 1280S. Part for the following items: - Pressure Washer Annovi Reverberi Series SKID-PRO HD 15.20...
Last items in stock €20.49
Details
Comments (0)
