Annovi & Reverberi Parts for Pressure Washer AR1007

SKU: Annovi Reverberi 1007 - 24693
€11.93
VAT included

Annovi & Reverberi Parts for Pressure Washer AR1007

We have the original Spares Annovi & Reverberi Parts for Pressure Washer AR1007 - 24693, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer AR1007. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Full Guarantee.
Annovi Reverberi 1007 - 24693
Annovi & Reverberi Parts for Pressure Washer AR1005/1007
  • Annovi & Reverberi Parts for Pressure Washer AR1005/1007
  • Annovi & Reverberi Parts for Pressure Washer AR1007
  • Annovi & Reverberi Parts for Pressure Washer AR1007
  • Annovi & Reverberi Parts for Pressure Washer AR1007
  • Annovi & Reverberi Parts for Pressure Washer AR1007
  • Annovi & Reverberi Parts for Pressure Washer AR1007

Annovi & Reverberi Parts for Pressure Washer AR1007

SKU: Annovi Reverberi 1007 - 24693 Condition: New
€11.93
VAT included

Annovi & Reverberi Parts for Pressure Washer AR1007

We have the original Spares Annovi & Reverberi Parts for Pressure Washer AR1007 - 24693, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer AR1007. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Full Guarantee.
Annovi Reverberi 1007 - 24693
settings 145 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

125 spare parts

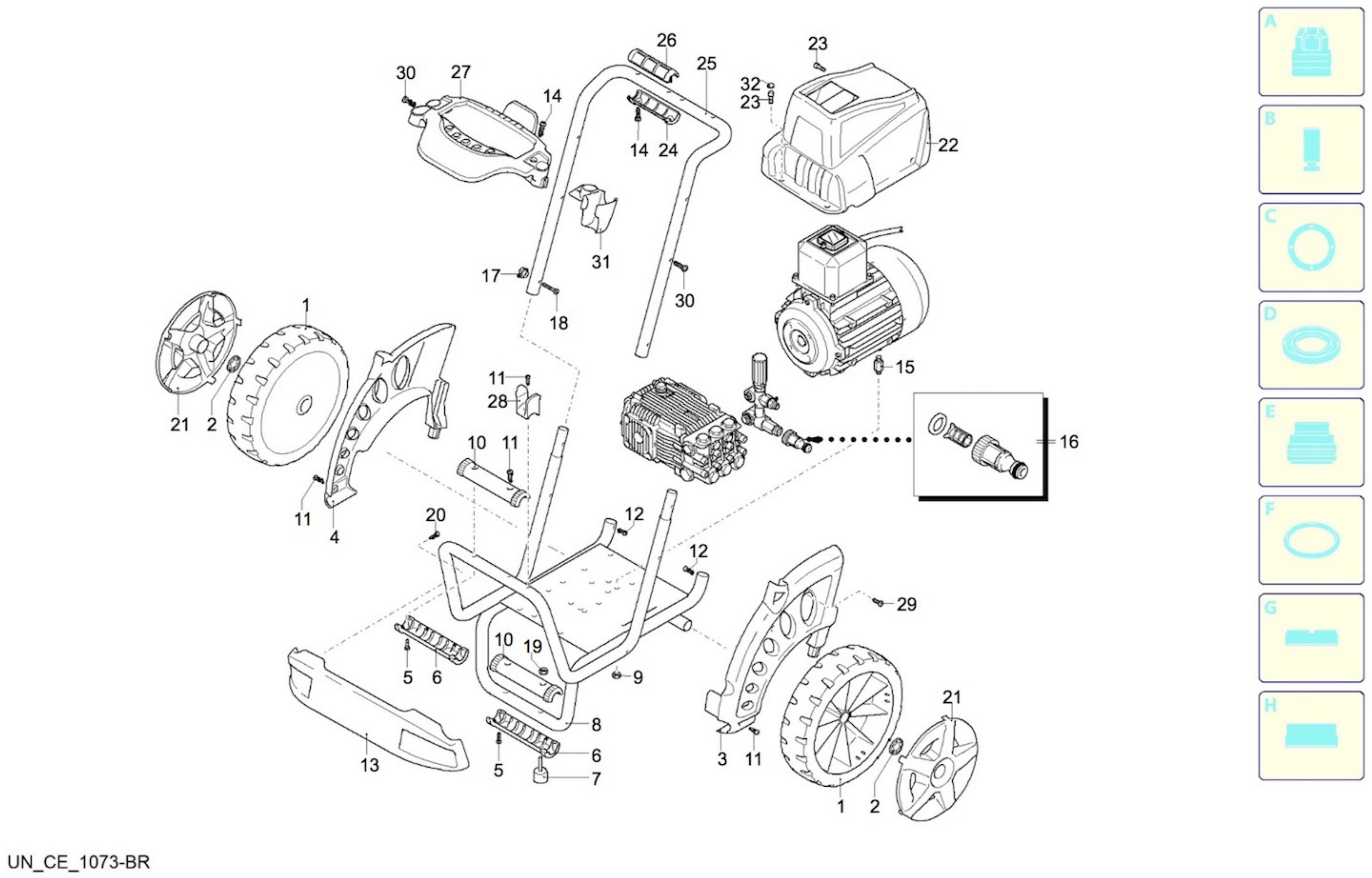

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3600140 Wheel €29.14
2
photo_cameraImage coming soon 3600180 Washer €2.37
3
photo_cameraImage coming soon 3600010 Protection €16.08
4
photo_cameraImage coming soon 3600020 Protection €16.08
6
photo_cameraImage coming soon 3600040 Protection €6.00
7
photo_cameraImage coming soon 3600190 Antivibration €10.58
8
photo_cameraImage coming soon 3600121 Frame €200.87
10
photo_cameraImage coming soon 3600200 Protection €5.85
12
photo_cameraImage coming soon 2100300 screw €4.72
13
photo_cameraImage coming soon 3600321 Protection €18.97
15
photo_cameraImage coming soon 2360580 Stud bolt €8.39
16
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
17
photo_cameraImage coming soon 50019 Knob €5.55
18
Armature Ball Bearing Bushing for Sander Stayer LOM10B 50037 Armature Ball Bearing Bushing for Sander Stayer LOM10B €3.05
19
photo_cameraImage coming soon 1060120 Nut €1.54
22
photo_cameraImage coming soon 3600301 Sump €78.17
24
photo_cameraImage coming soon 3580090 Knob €4.18
25
photo_cameraImage coming soon 3600130 Frame €43.65
26
photo_cameraImage coming soon 3580180 Knob €4.18
27
photo_cameraImage coming soon 3600050 Holds Accessories €14.62
28
photo_cameraImage coming soon 3600070 Holds Accessories €4.54
31
photo_cameraImage coming soon 3600060 Holds Accessories €4.54
32
photo_cameraImage coming soon 1270910 Stopper €5.01

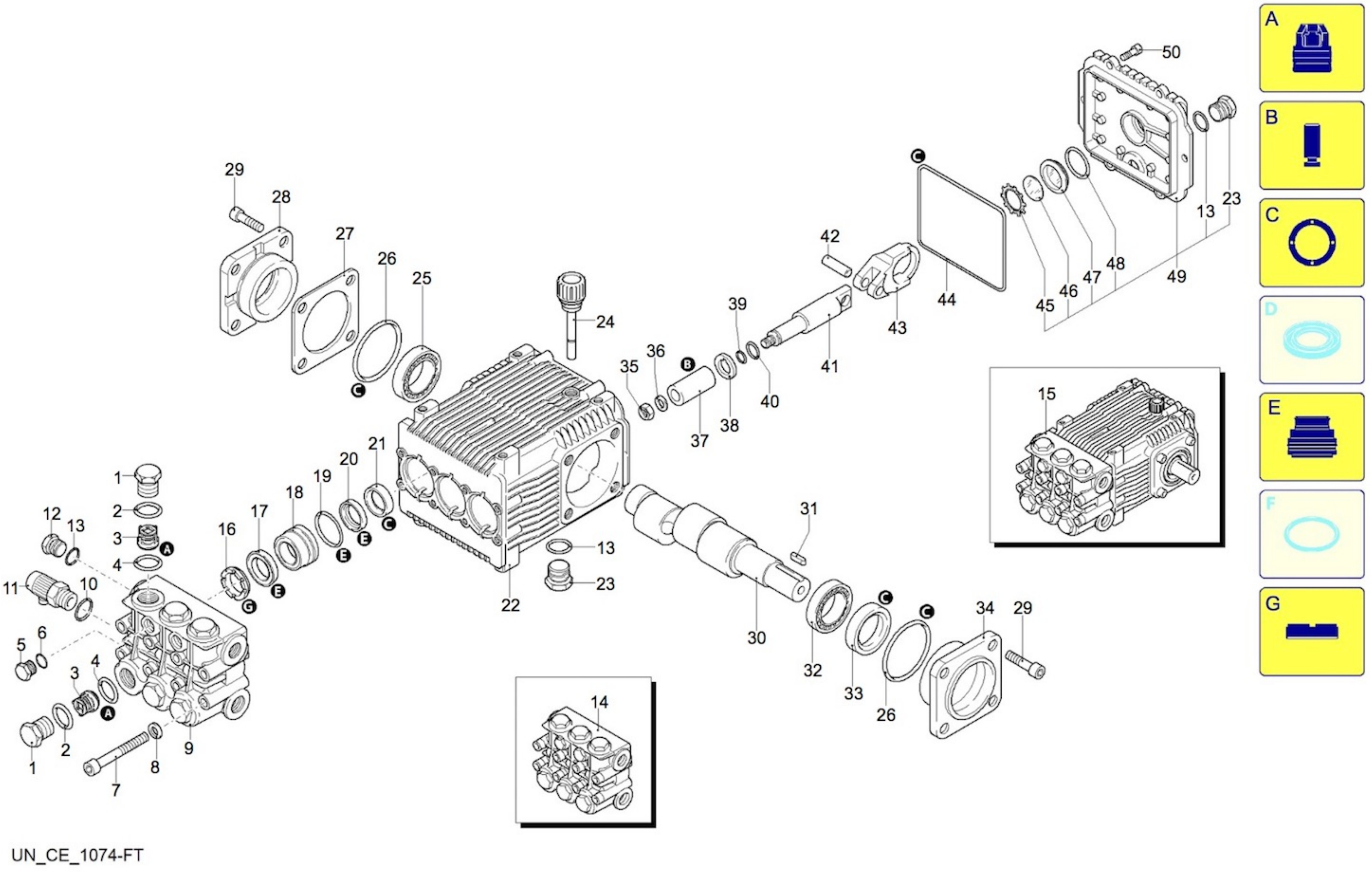

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 960090 Stopper €5.85
2
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
photo_cameraImage coming soon 1389051 Complete Valve €4.82
4
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
5
photo_cameraImage coming soon 880581 stopper €7.73
6
photo_cameraImage coming soon 820510 O-ring €5.63
7
photo_cameraImage coming soon 820150 Screw €5.42
9
photo_cameraImage coming soon 1381071 Head €140.12
10
photo_cameraImage coming soon 180101 O-Ring €4.73
11
photo_cameraImage coming soon 50129 POINTER €40.60
12
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
13
photo_cameraImage coming soon 740290 O-ring €2.67
14
photo_cameraImage coming soon 1389270 Pre-Assembly Head €231.02
15
photo_cameraImage coming soon 20897 Pre-Assembly Pump €668.52
16
photo_cameraImage coming soon 960110 Ring €2.41
17
photo_cameraImage coming soon 1382740 Tenuta Water €16.70
18
photo_cameraImage coming soon 1380090 Piston Guide €12.55
19
photo_cameraImage coming soon 961240 O-Ring €4.80
20
photo_cameraImage coming soon 880330 Tenuta Water €8.14
21
photo_cameraImage coming soon 1383130 Ring €10.75
22
photo_cameraImage coming soon 1382770 Pump Housing €112.58
24
photo_cameraImage coming soon 880130 Stopper €6.67
25
photo_cameraImage coming soon 2280340 Bearing €26.80
26
photo_cameraImage coming soon 640030 O-Ring €5.01
27
photo_cameraImage coming soon 1380120 Thickness 0.10 Mm €5.22
27
photo_cameraImage coming soon 1380130 Thickness 0.20 Mm €5.22
27
photo_cameraImage coming soon 1380530 Thickness 0.25 Mm €6.05
27
photo_cameraImage coming soon 1382810 Thickness 0.05 Mm €5.08
28
photo_cameraImage coming soon 1380050 Support €20.71
29
photo_cameraImage coming soon 850370 screw €2.26
30
photo_cameraImage coming soon 2280060 Tree €109.40
32
photo_cameraImage coming soon 1383140 Bearing €19.05
33
photo_cameraImage coming soon 180340 Ring €10.20
34
photo_cameraImage coming soon 1380040 Support €22.03
35
photo_cameraImage coming soon 962010 Nut €6.12
36
photo_cameraImage coming soon 962000 Washer €4.87
37
photo_cameraImage coming soon 1380940 Piston €31.99
38
photo_cameraImage coming soon 1380950 Disk €4.94
39
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
40
photo_cameraImage coming soon 1080401 ring €2.13
41
photo_cameraImage coming soon 1380920 Piston €26.73
42
photo_cameraImage coming soon 1380060 Plug €6.39
43
photo_cameraImage coming soon 1383050 Piston Rod €17.05
44
photo_cameraImage coming soon 1780510 O-Ring €5.35
47
photo_cameraImage coming soon 1260250 Level Indicator €1.69
48
photo_cameraImage coming soon 1140450 O-Ring €4.25
49
photo_cameraImage coming soon 1789010 Cover €24.45

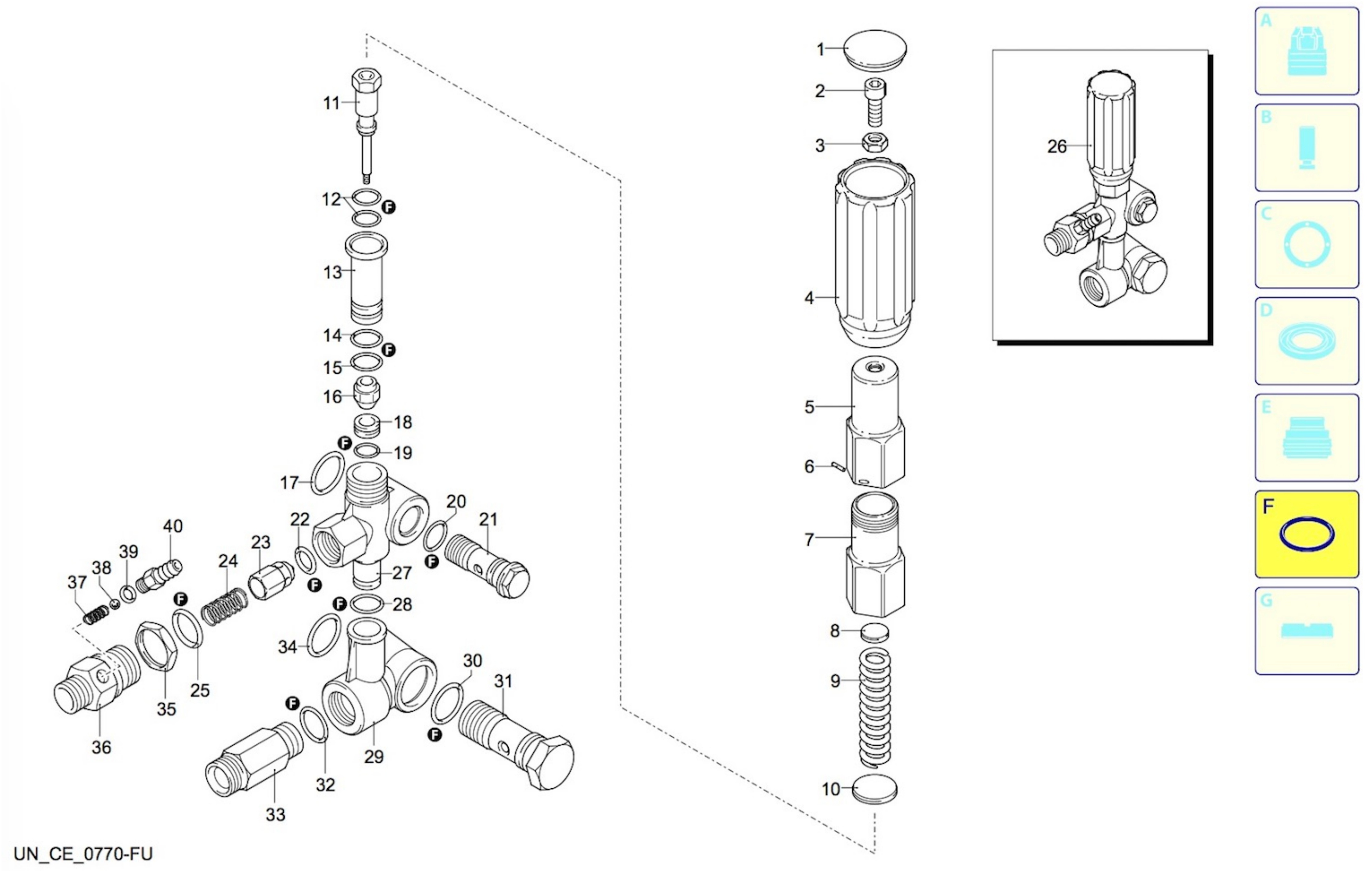

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1560580 Stopper €5.28
2
photo_cameraImage coming soon 540290 Screw €5.47
3
photo_cameraImage coming soon 1660210 Nut €4.59
4
photo_cameraImage coming soon 1560400 Knob €6.39
5
photo_cameraImage coming soon 1560420 Screw €30.81
6
photo_cameraImage coming soon 1080070 plug €2.64
7
photo_cameraImage coming soon 2260330 Driving €22.44
8
photo_cameraImage coming soon 2260140 Disk €7.15
9
photo_cameraImage coming soon 1560350 Spring €7.98
10
photo_cameraImage coming soon 2260340 Disk €7.98
11
photo_cameraImage coming soon 2260060 Piston €24.31
12
photo_cameraImage coming soon 2260100 O-Ring €1.29
13
photo_cameraImage coming soon 2260040 Piston Guide €19.81
15
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
photo_cameraImage coming soon 2260450 Shutter €15.32
17
O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
18
photo_cameraImage coming soon 2260080 Office €16.49
19
photo_cameraImage coming soon 1260740 O-Ring €4.59
20
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
photo_cameraImage coming soon 1560150 O-Ring €4.59
23
photo_cameraImage coming soon 1560100 Shutter €12.13
24
photo_cameraImage coming soon 1560140 Spring €5.98
26
Valve for Pressure Washer AR Blue Clean Series 10 - 1007 24617 Valve for Pressure Washer AR Blue Clean Series 10 - 1007 €169.04
27
photo_cameraImage coming soon 2260170 Valve Body €26.52
29
photo_cameraImage coming soon 1540470 Collector €26.45
30
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
31
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
32
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
33
photo_cameraImage coming soon 1560900 Junction €23.09
35
photo_cameraImage coming soon 1560510 Nut €10.40
36
photo_cameraImage coming soon 1560500 Junction €25.90
37
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
38
photo_cameraImage coming soon 1250280 sphere €2.67
39
photo_cameraImage coming soon 480480 O-ring €5.63
40
photo_cameraImage coming soon 1560490 Hose €7.24

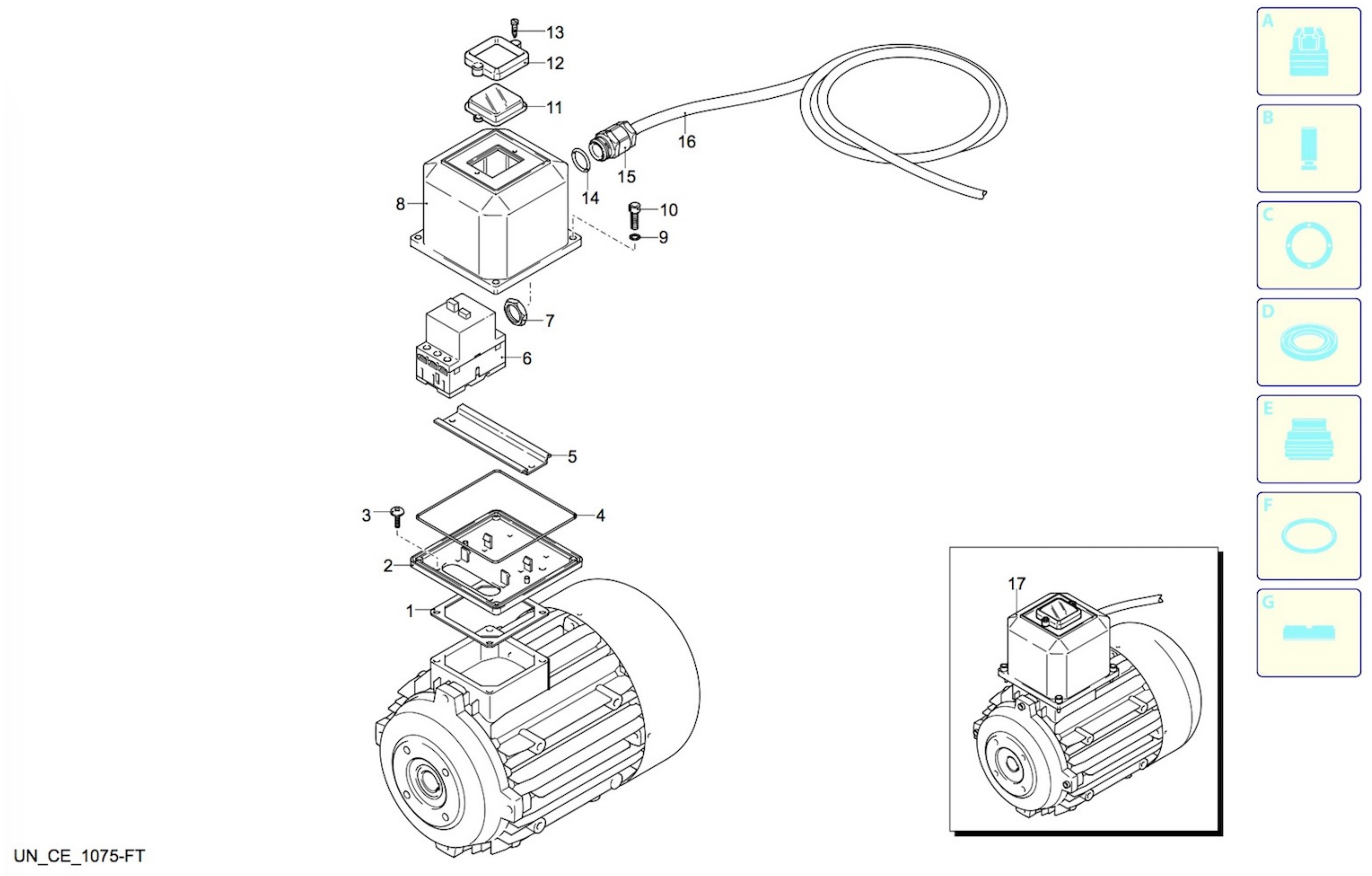

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 50068 Gasket €6.57
2
photo_cameraImage coming soon 1700080 Plate €2.44
4
photo_cameraImage coming soon 1940410 O-Ring €2.04
7
photo_cameraImage coming soon 1700590 Nut €6.65
9
photo_cameraImage coming soon 1080190 O-ring €4.40
10
photo_cameraImage coming soon 1261560 Screw €4.67
15
photo_cameraImage coming soon 1382380 Gland €8.18
16
photo_cameraImage coming soon 1700640 Cable €47.79

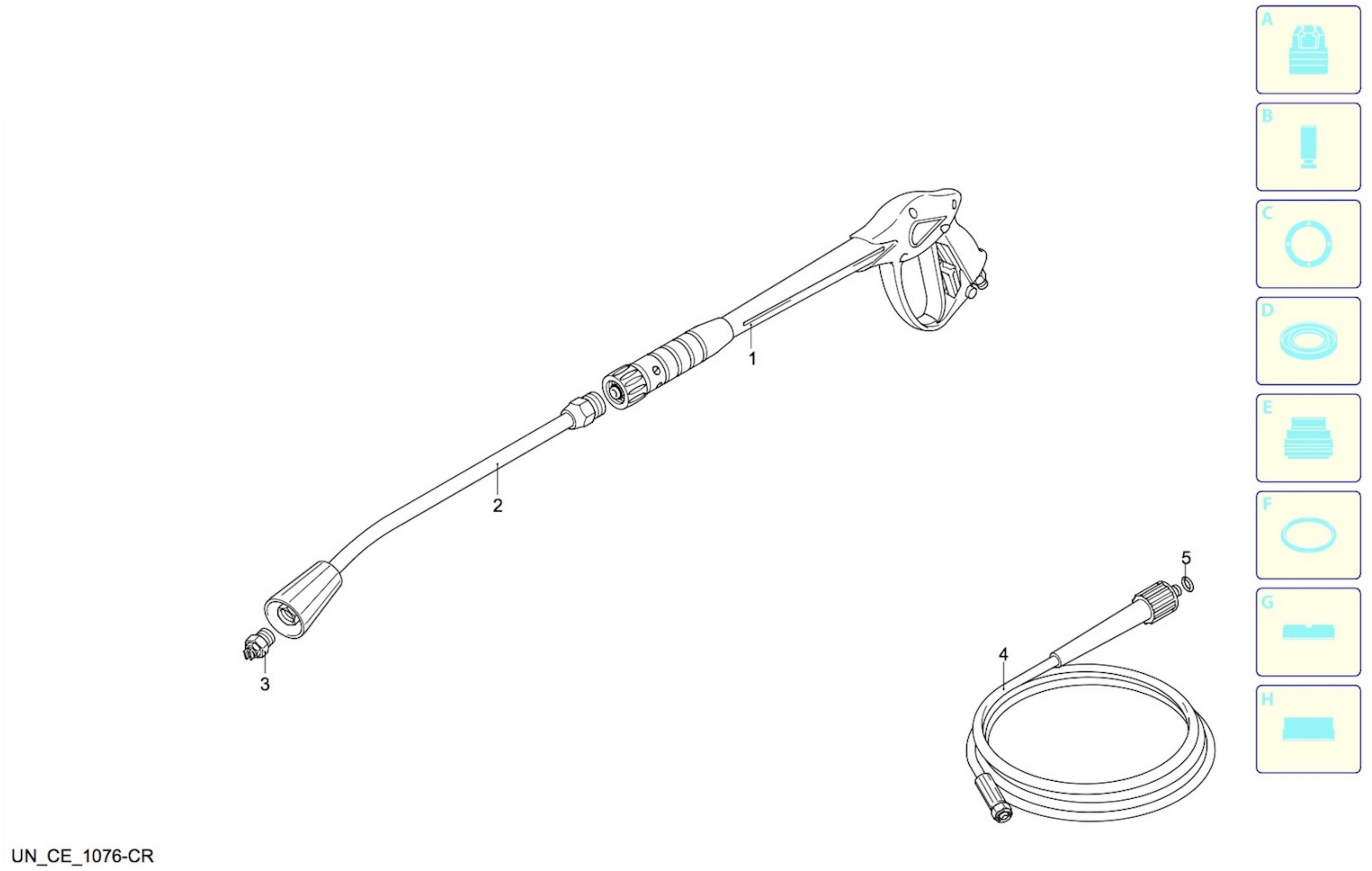

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
G
photo_cameraImage coming soon 1829 Kit Support Rings €11.93
C
photo_cameraImage coming soon 1855 Kit Oil Seals €35.52
E
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 1857 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 €60.64
B
photo_cameraImage coming soon 2757 Piston Kit €88.44
A
photo_cameraImage coming soon 2864 Kit Valves €18.08
F
photo_cameraImage coming soon 42598 Gasket Kit €11.62
1
photo_cameraImage coming soon 41045 Gun €38.82
2
Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
3
photo_cameraImage coming soon 3086 Nozzle €23.19
4
photo_cameraImage coming soon 1700980 High Pressure Hose €158.54
5
O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR1007

We have the original Spares Annovi & Reverberi Parts for Pressure Washer AR1007 - 24693, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer AR1007. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 1007 - 24693

Pressure Washer 1007 Casing Pag.1
# Part Num. Description
1 3600140 Wheel
2 3600180 Washer
3 3600010 Protection
4 3600020 Protection
5 2000110 Screw
6 3600040 Protection
7 3600190 Antivibration
8 3600121 Frame
9 380240 Nut
10 3600200 Protection
11 2060200 Screw
12 2100300 Screw
13 3600321 Protection
14 2100300 Screw
15 2360580 Colonnetta
16 3082130 Kit For Water
17 50019 Knob
18 50037 Screw
19 1060120 Nut
20 2021780 Screw
21 3600031 Protection
22 3600301 Sump
23 850250 Screw
24 3580090 Knob
25 3600130 Frame
26 3580180 Knob
27 3600050 Holds Accessories
28 3600070 Holds Accessories
29 2360360 Screw
30 2060200 Screw
31 3600060 Holds Accessories
32 1270910 Stopper
Pump 1007 Pag.2
1 960090 Stopper
2 960160 O-Ring
3 1389051 Complete Valve
4 880830 O-Ring
5 880581 Stopper
6 820510 O-Ring
7 820150 Screw
8 1381850 Washer
9 1381071 Head
10 180101 O-Ring
11 50129 Valve
12 1980740 Stopper
13 740290 O-Ring
14 1389270 Pre-Assembly Head
15 20897 Pre-Assembly Pump
16 960110 Ring
17 1382740 Tenuta Water
18 1380090 Piston Guide
19 961240 O-Ring
20 880330 Tenuta Water
21 1383130 Ring
22 1382770 Pump Housing
23 1980740 Stopper
24 880130 Stopper
25 2280340 Bearing
26 640030 O-Ring
27 1380120 Thickness 0.10 Mm
27 1380130 Thickness 0.20 Mm
27 1380530 Thickness 0.25 Mm
27 1382810 Thickness 0.05 Mm
28 1380050 Support
29 850370 Screw
30 2280060 Tree
31 1380520 Tongue
32 1383140 Bearing
33 180340 Ring
34 1380040 Support
35 962010 Nut
36 962000 Washer
37 1380940 Piston
38 1380950 Disk
39 600180 O-Ring
40 1080401 Ring
41 1380920 Piston
42 1380060 Plug
43 1383050 Piston Rod
44 1780510 O-Ring
45 1260430 Ring
46 1780690 Disk
47 1260250 Level Indicator
48 1140450 O-Ring
49 1789010 Cover
50 1343510 Screw
A 2864 Kit Valves
B 2757 Piston Kit
C 1855 Kit Oil Seals
E 1857 Water Sela Kit
G 1829 Kit Support Rings
Valve 1007 Pag.3
1 1560580 Stopper
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1560420 Screw
6 1080070 Plug
7 2260330 Driving
8 2260140 Disk
9 1560350 Spring
10 2260340 Disk
11 2260060 Piston
12 2260100 O-Ring
13 2260040 Piston Guide
14 740290 O-Ring
15 394280 O-Ring
16 2260450 Shutter
17 2260190 O-Ring
18 2260080 Office
19 1260740 O-Ring
20 390080 O-Ring
21 1540272 Screw
22 1560150 O-Ring
23 1560100 Shutter
24 1560140 Spring
25 180101 O-Ring
26 24617 Valve
27 2260170 Valve Body
28 390080 O-Ring
29 1540470 Collector
30 880270 O-Ring
31 2260420 Screw
32 480440 O-Ring
33 1560900 Junction
34 1540630 O-Ring
35 1560510 Nut
36 1560500 Junction
37 1560520 Spring
38 1250280 Sphere
39 480480 O-Ring
40 1560490 Hose
F 42598 Gasket Kit
Engine 1007 Pag.4
1 50068 Gasket
2 1700080 Plate
3 1470130 Screw
4 1940410 O-Ring
5 1381950 Stirrup
6 1382020 Contactor
7 1700590 Nut
8 1700090 Cover
9 1080190 O-Ring
10 1261560 Screw
11 1700130 Headphones
12 1700120 Frame
13 1261560 Screw
14 880270 O-Ring
15 1382380 Gland
16 1700640 Cable
17 44587 Engine
Accessories 1007 Pag.5
1 41045 Gun
2 40826 Lance
3 3086 Nozzle
4 1700980 High Pressure Hose
5 2000770 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1007 - 24693
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR1007

Diagram Annovi AR1007

Download (919.43KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Annovi Reverberi S.p.A. SKU: 50972
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Annovi Reverberi S.p.A. SKU: 2769050
Valve for Pressure Washers AR 780-787-797-810-820-830-840 Genuine Part for Annovi & Reverberi, Valve Assembly for Pressure Washer AR 780/787/797 - AR 810/820/830/840 - AR 6640/6670 - AR 6950/6970 - AR 1001/1003 - AR 1005/1007....
AVAILABLE €6.46
Annovi Reverberi S.p.A. SKU: 3232
Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 Original part Annovi & Reverberi, high pressure gauge for pressure washers models Blue Clean AR 777 - AR 787 - AR 797 - AR 810 - AR 935 - AR 1005 - PROLINER SV 1510...
Last items in stock €34.75
Annovi Reverberi S.p.A. SKU: 2260420
Collector Screw for Pressure Washers Annovi Reverberi Genuine Spare Part Annovi Reverberi, Collector Screw for Pressure Washers Blitz - 8.13 - 8.15 - 10.12 - Proliner SV - SV 1310 TSS - SV 1510 TSS...
Last items in stock €8.09
Annovi Reverberi S.p.A. SKU: 1857
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 Genuine Part Annovi & Reverberi, Water Seal Kit for Pressure Washers AR1010 - AR1015 - AR1007 - AR1380 - AR6970. Part for the Following Items: -  Pressure Washer...
AVAILABLE €60.64
Comments (0)
