| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
2500050 hook | €6.68 | |
|
2
|
|
2500035 blue Casing | €47.49 | |
|
3
|
|
1680880 Annovi AR747 Lock Washer |
€1.03
da 5 pz: €0.10
|
|
|
4
|
|
2500320 Wheel for Pressure Washers AR Farmer's - AR Blu Clean | €11.86 | |
|
5
|
|
2500090 plate | €24.97 | |
|
6
|
|
2320190 screw | €1.58 | |
|
7
|
|
2100300 screw | €4.72 | |
|
8
|
|
2600100 cable clamp | €2.74 | |
|
9
|
|
850370 screw | €2.26 | |
|
10
|
|
2100300 screw | €4.72 | |
|
11
|
|
2500020 handle | €62.87 | |
|
12
|
|
2500130 ARSG - AR Pressure Washer Grommet | €3.09 | |
|
13
|
|
880280 screw | €2.03 | |
|
14
|
|
2180300 washer | €2.20 | |
|
15
|
|
2500120 Axle | €16.59 | |
|
16
|
|
2500110 tank | €23.19 | |
|
17
|
|
2500010 base | €82.50 | |
|
18
|
|
1270960 pipe cleaner | €4.41 | |
|
19
|
|
2500310 knob | €7.15 | |
|
20
|
|
42113 Pre-assembly plug | €5.62 | |
|
21
|
|
2500330 pipe cleaner | €4.40 | |
|
22
|
|
2000230 filter | €2.03 | |
|
23
|
|
2509000 Pre-assembly base | €111.35 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV | €28.00 | |
|
2
|
|
40029 Lance for Washers AR Farmer's Division Proliner Z - 8.150 - 9.160 | €60.20 | |
|
3
|
|
3780441 High pressure hose | €105.89 | |
|
4
|
|
2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker | €0.53 |
Shipping and delivery information will be available shortly.
We are Annovi Reverberi original spare parts Worldwide Dealers
at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer AR 747 - 12362.
In the following tables, look for the spare part and its respective code.![]()

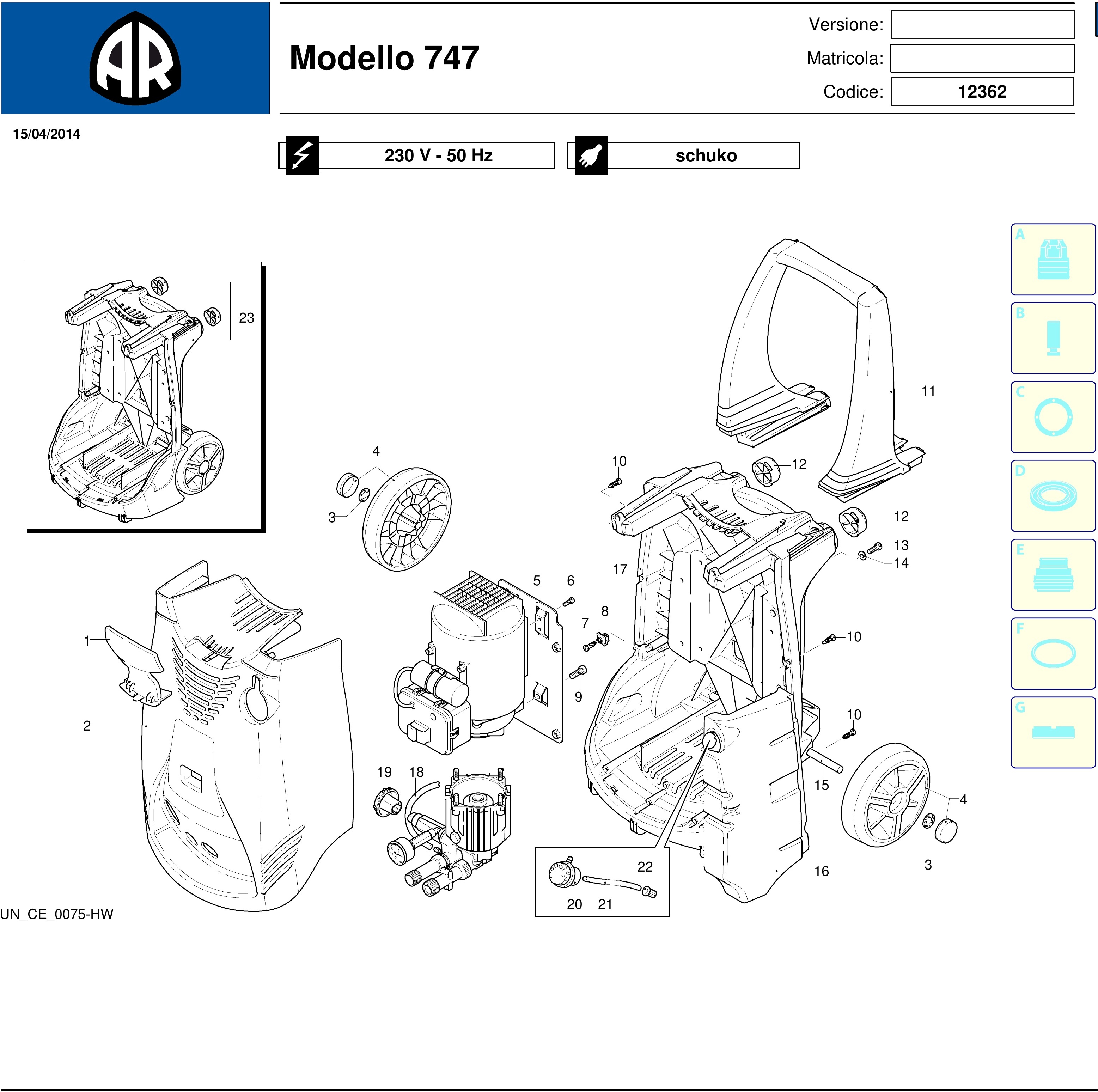

| Pressure Washer Model AR 747 - 12362 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 2500050 | hook |
| 2 | 2500035 | blue Casing |
| 3 | 1680880 | washer |
| 4 | 2500320 | wheel |
| 5 | 2500090 | plate |
| 6 | 2320190 | screw |
| 7 | 2100300 | screw |
| 8 | 2600100 | cable clamp |
| 9 | 850370 | screw |
| 10 | 2100300 | screw |
| 11 | 2500020 | handle |
| 12 | 2500130 | Rubber |
| 13 | 880280 | screw |
| 14 | 2180300 | washer |
| 15 | 2500120 | Axle |
| 16 | 2500110 | tank |
| 17 | 2500010 | base |
| 18 | 1270960 | pipe cleaner |
| 19 | 2500310 | knob |
| 20 | 42113 | Pre-assembly plug |
| 21 | 2500330 | pipe cleaner |
| 22 | 2000230 | filter |
| 23 | 2509000 | Pre-assembly base |

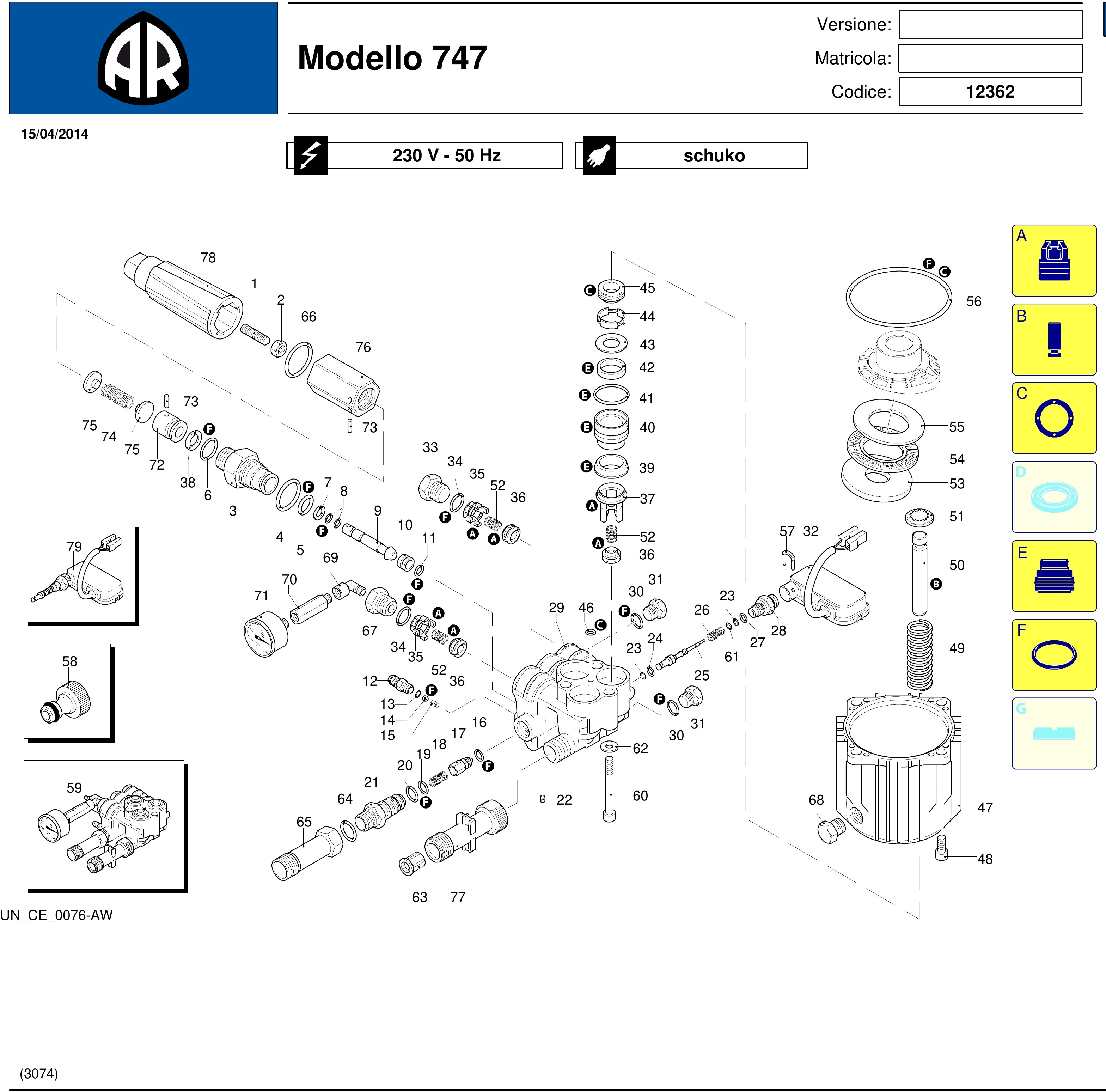

| Corpo Pompa 747 12362 Pag.2 |
||
| 1 | 1980470 | screw |
| 2 | 1980300 | nut |
| 3 | 1980210 | piston guide |
| 4 | 740290 | O-ring |
| 5 | 800560 | O-ring |
| 6 | 1080250 | O-ring |
| 7 | 1271170 | ring |
| 8 | 1080190 | O-ring |
| 9 | 1271160 | piston |
| 10 | 1980200 | seat |
| 11 | 1470210 | O-ring |
| 12 | 1982520 | Hose |
| 13 | 480480 | O-ring |
| 14 | 1250280 | sphere |
| 15 | 1560520 | spring |
| 16 | 1460430 | O-ring |
| 17 | 1540170 | shutter |
| 18 | 1080091 | spring |
| 19 | 394280 | O-ring |
| 20 | 1200690 | O-ring |
| 21 | 1270091 | injector |
| 22 | 1981190 | screw |
| 23 | 1080190 | O-ring |
| 24 | 660190 | O-ring |
| 25 | 1982990 | piston |
| 26 | 1981320 | spring |
| 27 | 880840 | O-ring |
| 28 | 1983360 | junction |
| 29 | 1982170 | head |
| 30 | 820510 | O-ring |
| 31 | 880581 | stopper |
| 32 | 2029752 | Pre-assembly box TSS |
| 33 | 1260162 | stopper |
| 34 | 960160 | O-ring |
| 35 | 1981460 | bushing |
| 36 | 880240 | valve |
| 37 | 1981450 | bushing |
| 38 | 1080401 | ring |
| 39 | 2460180 | Tenuta water |
| 40 | 1981470 | piston guide |
| 41 | 770130 | O-ring |
| 42 | 1260440 | Watertight 3 |
| 43 | 1980170 | ring |
| 44 | 1980430 | spacer |
| 45 | 1260460 | oil seal |
| 46 | 770090 | O-ring |
| 47 | 1980460 | pump body |
| 48 | 180030 | screw |
| 49 | 1981140 | spring |
| 50 | 1981440 | piston |
| 51 | 1980150 | ring |
| 52 | 1322230 | spring |
| 53 | 1980130 | Fifth wheel |
| 54 | 1980250 | Fifth wheel |
| 55 | 1980240 | Fifth wheel |
| 56 | 1980340 | O-ring |
| 57 | 2022201 | fork |
| 58 | 1461470 | junction |
| 59 | 1989264 | Pre-assembly head |
| 60 | 1980310 | screw |
| 61 | 1260820 | O-ring |
| 62 | 650530 | washer |
| 63 | 1340260 | filter |
| 64 | 390180 | O-ring |
| 65 | 2440210 | extension |
| 66 | 1150640 | O-ring |
| 67 | 2500450 | stopper |
| 68 | 1980290 | stopper |
| 69 | 1465850 | junction |
| 70 | 2500140 | extension |
| 71 | 3230 | manometer |
| 72 | 1080041 | piston |
| 73 | 1080070 | plug |
| 74 | 1271070 | spring |
| 75 | 1980220 | disk |
| 76 | 1980390 | insert |
| 77 | 2500270 | extension + 1267810 >>42575 |
| 78 | 2500080 | knob |
| 79 | 42143 | Kit TSS |
| A | 2581 | valve Kit |
| B | 2593 | piston Kit |
| C | 2511 | Oil seals Kit |
| E | 2582 | Kit water seal |
| F | 2799 | seal Kits |

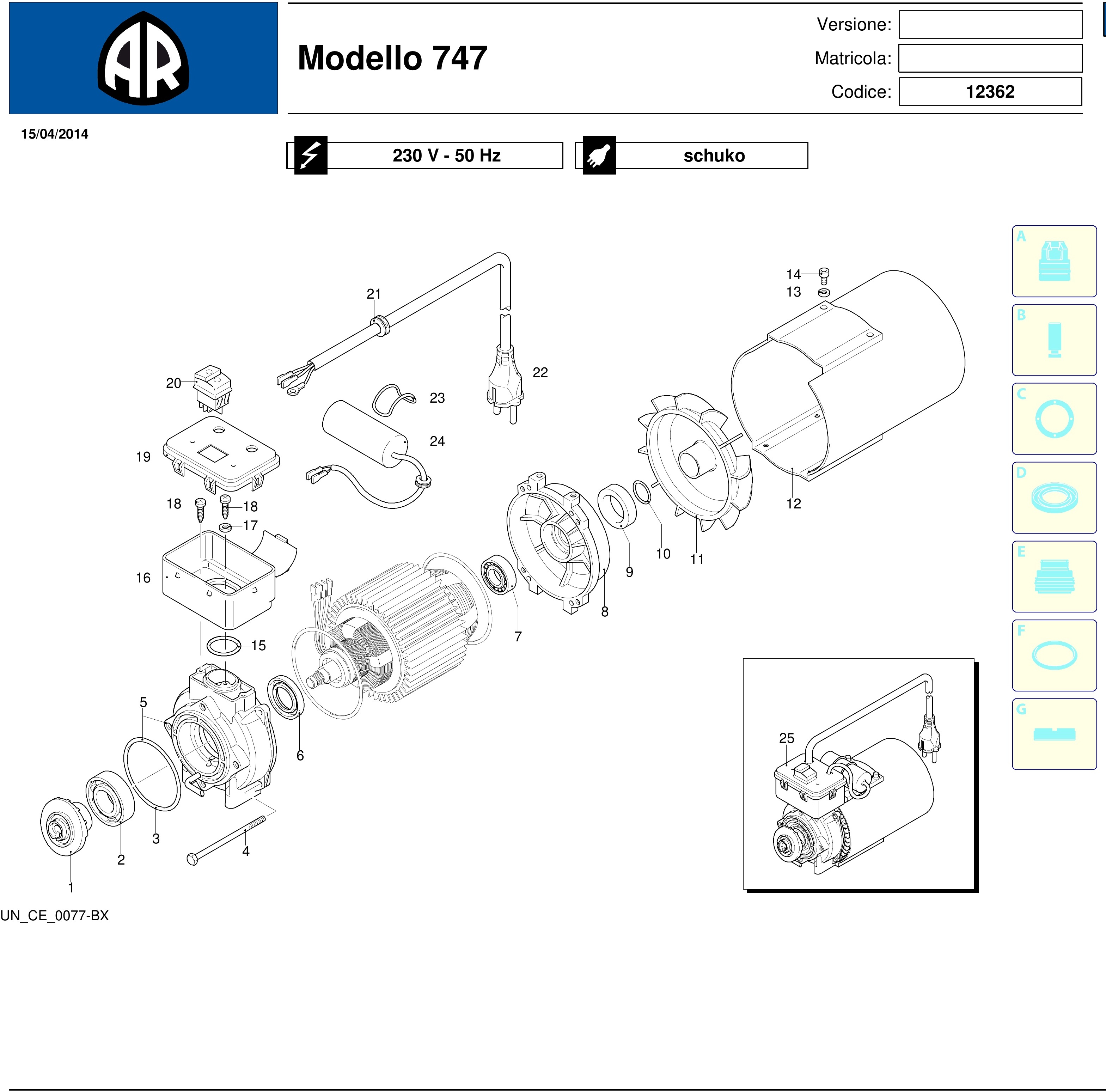

| Motor 747 - 12362 Pag.3 |
||
| 1 | 1983110 | disk |
| 2 | 1981210 | bearing |
| 3 | 1980340 | O-ring |
| 4 | 2320830 | screw |
| 5 | 1982040 | flange |
| 6 | 1260750 | ring |
| 7 | 1460590 | bearing |
| 8 | 1460040 | shield |
| 9 | 1461200 | oil seal |
| 10 | 394280 | O-ring |
| 11 | 1460370 | fan |
| 12 | 1460340 | conveyor |
| 13 | 1680960 | washer |
| 14 | 1460460 | screw |
| 15 | 660170 | O-ring |
| 16 | 2320131 | box |
| 17 | 1262400 | washer |
| 18 | 2020570 | screw |
| 19 | 2320270 | cover |
| 20 | 2320280 | switch |
| 21 | 2021480 | Grommet |
| 22 | 1760450 | cable |
| 23 | 2100840 | O-ring |
| 24 | 1982190 | capacitor 40 Mf |
| 25 | 4704 | engine |

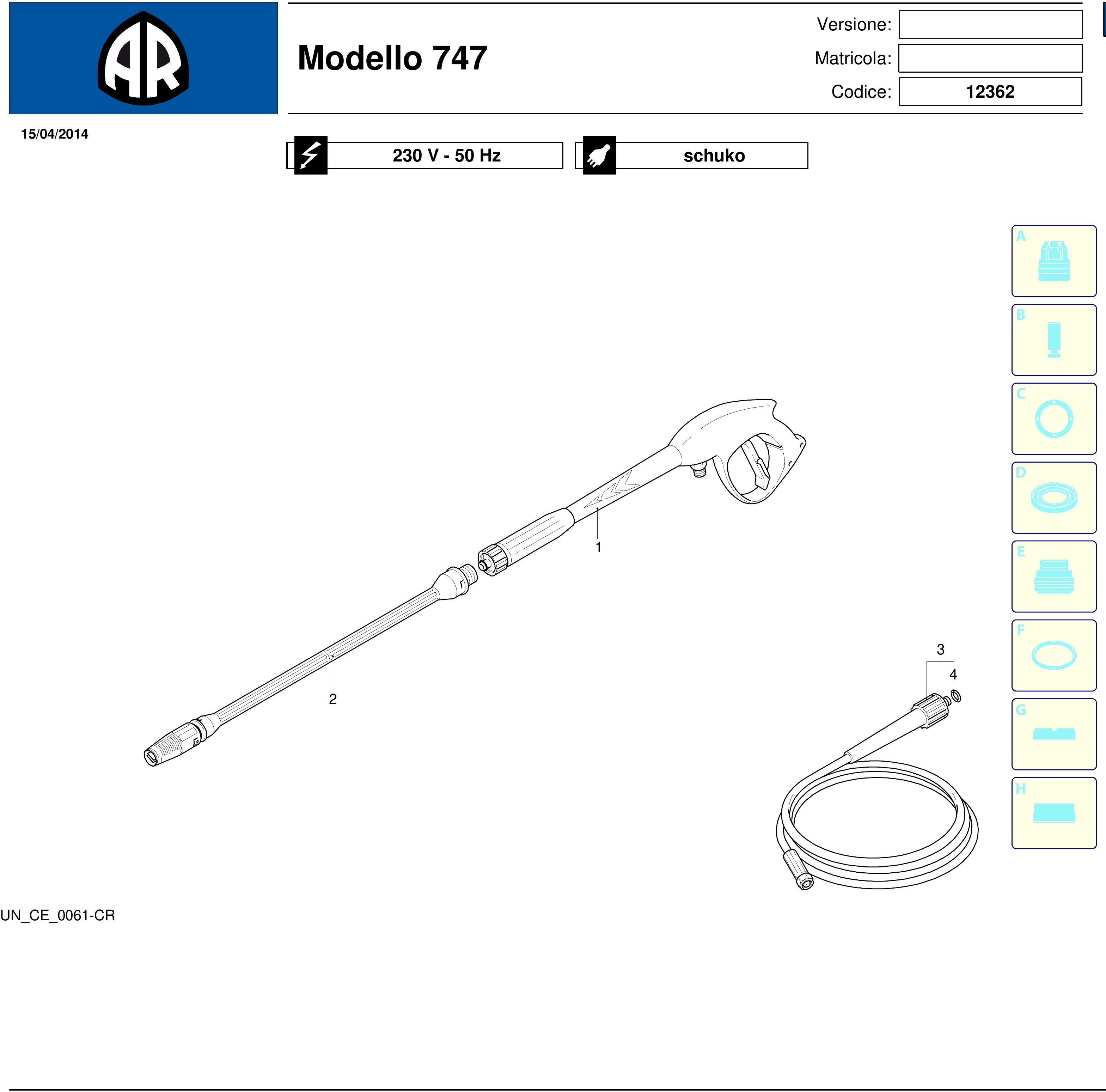

| Pistola + lancia + Tubo 747 12362 Pag.4 |
||
| 1 | 40925 | gun |
| 2 | 40029 | Lance + head |
| 3 | 3780441 | High pressure hose |
| 4 | 2000770 | O-ring |
