Annovi Reverberi S.p.A.

Annovi Reverberi AR1310 Parts

SKU: AR1310 - 24894
€513.46
VAT included

Annovi Reverberi Parts for Pressure Washer AR1310

Annovi Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR 1310 - 24894

Fix Your Annovi Reverberi Pressure Washer Blue Clean 1310 - 24894. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
Annovi Reverberi Pressure Washer 1310 Parts
  • Annovi Reverberi Pressure Washer 1310 Parts
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 1
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 2
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 3
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 4
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 5
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 6
  • Annovi Reverberi Pressure Washer 1310 Parts Drawing - 7
Annovi Reverberi S.p.A.

Annovi Reverberi AR1310 Parts

SKU: AR1310 - 24894 Condition: New
€513.46
VAT included

Annovi Reverberi Parts for Pressure Washer AR1310

Annovi Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR 1310 - 24894

Fix Your Annovi Reverberi Pressure Washer Blue Clean 1310 - 24894. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
settings 194 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
181 spare parts
Esploso pagina 1
Pos. Item Price Buy
16
 photo_cameraImage coming soon 3160620 Lances €61.45
18
 photo_cameraImage coming soon 41591 Sandblasting lance €191.80
19
 photo_cameraImage coming soon 3207 Sand €23.19
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

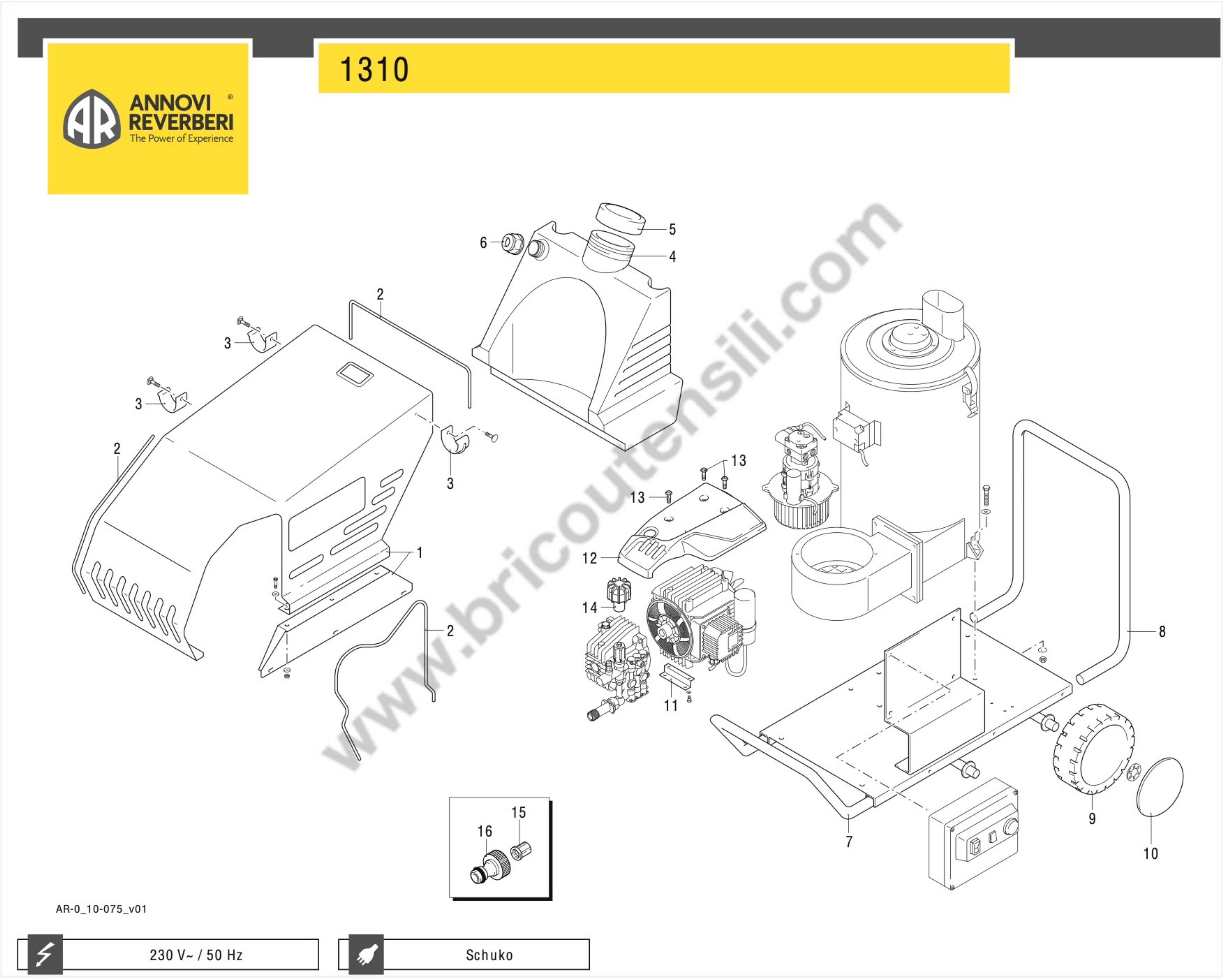

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 51469 Casing €498.51
2
 photo_cameraImage coming soon 50601 Gasket €11.73
3
 photo_cameraImage coming soon 51420 Porta-Accessories €7.29
4
 photo_cameraImage coming soon 51421 Tank €257.52
5
 photo_cameraImage coming soon 50611 Stopper €14.57
6
 photo_cameraImage coming soon 51443 Stopper €16.99
7
 photo_cameraImage coming soon 51470 Frame €655.14
8
 photo_cameraImage coming soon 51471 Handle €137.03
9
 photo_cameraImage coming soon 50627 Wheel €55.98
10
 photo_cameraImage coming soon 50628 Protection €4.26
11
 photo_cameraImage coming soon 1341840 Base €3.08
12
 photo_cameraImage coming soon 3600200 Protection €5.85
13
 photo_cameraImage coming soon 3600330 Screw €4.60
14
 photo_cameraImage coming soon 2360760 Knob €4.14
15
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
16
 photo_cameraImage coming soon 40393 Junction €13.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

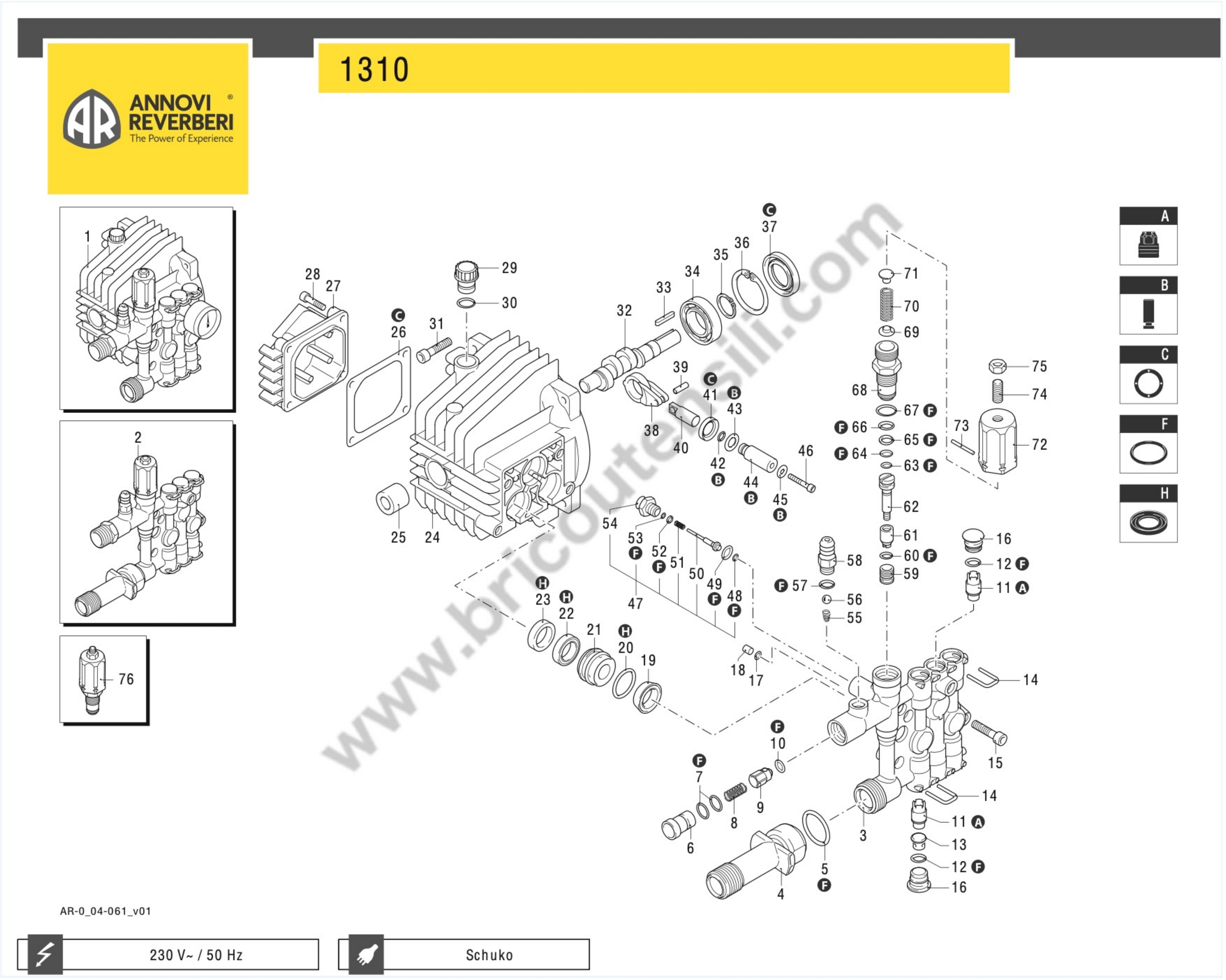

Esploso pagina 2
Pos. Item Price Buy
C
 photo_cameraImage coming soon 1876 Oil Seals Kit €19.97
B
 photo_cameraImage coming soon 2623 Piston Kit €64.53
A
 photo_cameraImage coming soon 42566 Kit Valves €58.17
H
 photo_cameraImage coming soon 42567 Kit Kept Water €28.64
F
 photo_cameraImage coming soon 42568 Gasket Kit €15.77
1
 photo_cameraImage coming soon 1349510 Pump assembly €288.19
2
 photo_cameraImage coming soon 1349204 Head assembly €234.52
3
 photo_cameraImage coming soon 1344850 Head €88.84
4
 photo_cameraImage coming soon 2440200 Extension €7.03
5
 photo_cameraImage coming soon 2440230 O-Ring €4.59
6
 photo_cameraImage coming soon 2901060 Injector €8.60
7
 photo_cameraImage coming soon 800560 O-ring €1.59
8
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
9
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
10
 photo_cameraImage coming soon 1460430 O-ring €4.60
11
 photo_cameraImage coming soon 1349055 Valve €13.52
13
 photo_cameraImage coming soon 1344770 Spacer €9.84
14
 photo_cameraImage coming soon 1344790 Fork €7.48
16
 photo_cameraImage coming soon 1344800 Stopper €6.69
18
 photo_cameraImage coming soon 1344890 Stopper €5.17
19
 photo_cameraImage coming soon 2460180 Tenuta water €7.58
20
 photo_cameraImage coming soon 41770 Sand €28.66
20
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
21
 photo_cameraImage coming soon 1344750 Piston Guide €10.65
21
 Water Suction Kit Annovi Reverberi cod. 41592 41592 Water Suction Kit Annovi Reverberi cod. 41592 €59.27
22
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
22
 photo_cameraImage coming soon 41580 Quick coupling €14.41
23
 photo_cameraImage coming soon 1344760 Ring €5.89
23
 photo_cameraImage coming soon 40439 Quick coupling €39.61
24
 photo_cameraImage coming soon 1344050 Pump Casing €81.14
24
 photo_cameraImage coming soon 41593 Water filter €20.99
25
 photo_cameraImage coming soon 1260050 Bush €12.90
25
 photo_cameraImage coming soon 3025 Nozzle €32.98
26
 photo_cameraImage coming soon 3251 Nozzle €20.93
27
 photo_cameraImage coming soon 1344060 Cover €14.54
28
 photo_cameraImage coming soon 1260780 Screw €4.81
29
 photo_cameraImage coming soon 1343900 Cork €6.43
30
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
32
 photo_cameraImage coming soon 1340170 Shaft €83.89
34
 photo_cameraImage coming soon 1341070 Bearing €13.15
36
 photo_cameraImage coming soon 111120 Ring €1.85
37
 photo_cameraImage coming soon 1341080 Ring €5.64
38
 photo_cameraImage coming soon 1340060 Piston Rod €10.36
39
 photo_cameraImage coming soon 1340080 Plug €1.77
40
 photo_cameraImage coming soon 1340070 Piston €18.25
41
 photo_cameraImage coming soon 1260460 oil seal €4.47
42
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
43
 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 1341010 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 €1.43
44
 photo_cameraImage coming soon 1342740 Piston €21.55
47
 TSS Retrofit kit for Pressure Washer AR 4590 42580 TSS Retrofit kit for Pressure Washer AR 4590 €24.00
48
 photo_cameraImage coming soon 1120680 O-Ring €1.54
50
 photo_cameraImage coming soon 2022040 Rod €4.56
51
 photo_cameraImage coming soon 2021630 Spring €1.99
52
 photo_cameraImage coming soon 2021650 Washer €1.74
53
 photo_cameraImage coming soon 1260820 O-ring €1.59
54
 photo_cameraImage coming soon 1344830 Junction €8.94
55
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
56
 photo_cameraImage coming soon 1250280 sphere €2.67
57
 photo_cameraImage coming soon 480480 O-ring €5.63
58
 photo_cameraImage coming soon 1982520 Hose €6.27
59
 photo_cameraImage coming soon 1342701 Office €8.45
61
 photo_cameraImage coming soon 1460151 Piston €7.26
62
 photo_cameraImage coming soon 2021900 Piston €10.84
63
 photo_cameraImage coming soon 1080190 O-ring €4.40
65
 photo_cameraImage coming soon 1080401 ring €2.13
66
 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
67
 photo_cameraImage coming soon 740290 O-ring €2.67
68
 photo_cameraImage coming soon 1344870 Piston Guide €19.32
69
 photo_cameraImage coming soon 1343450 Disk €3.26
70
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
71
 photo_cameraImage coming soon 1980220 disk €2.13
72
 photo_cameraImage coming soon 1344881 Insert €16.12
74
 photo_cameraImage coming soon 1980470 screw €1.73
75
 photo_cameraImage coming soon 1060120 Nut €1.54
76
 Valve Kit Adjustment for Pressure Washer AR BC PRO COLD 1001 42579 Valve Kit Adjustment for Pressure Washer AR BC PRO COLD 1001 €42.85
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

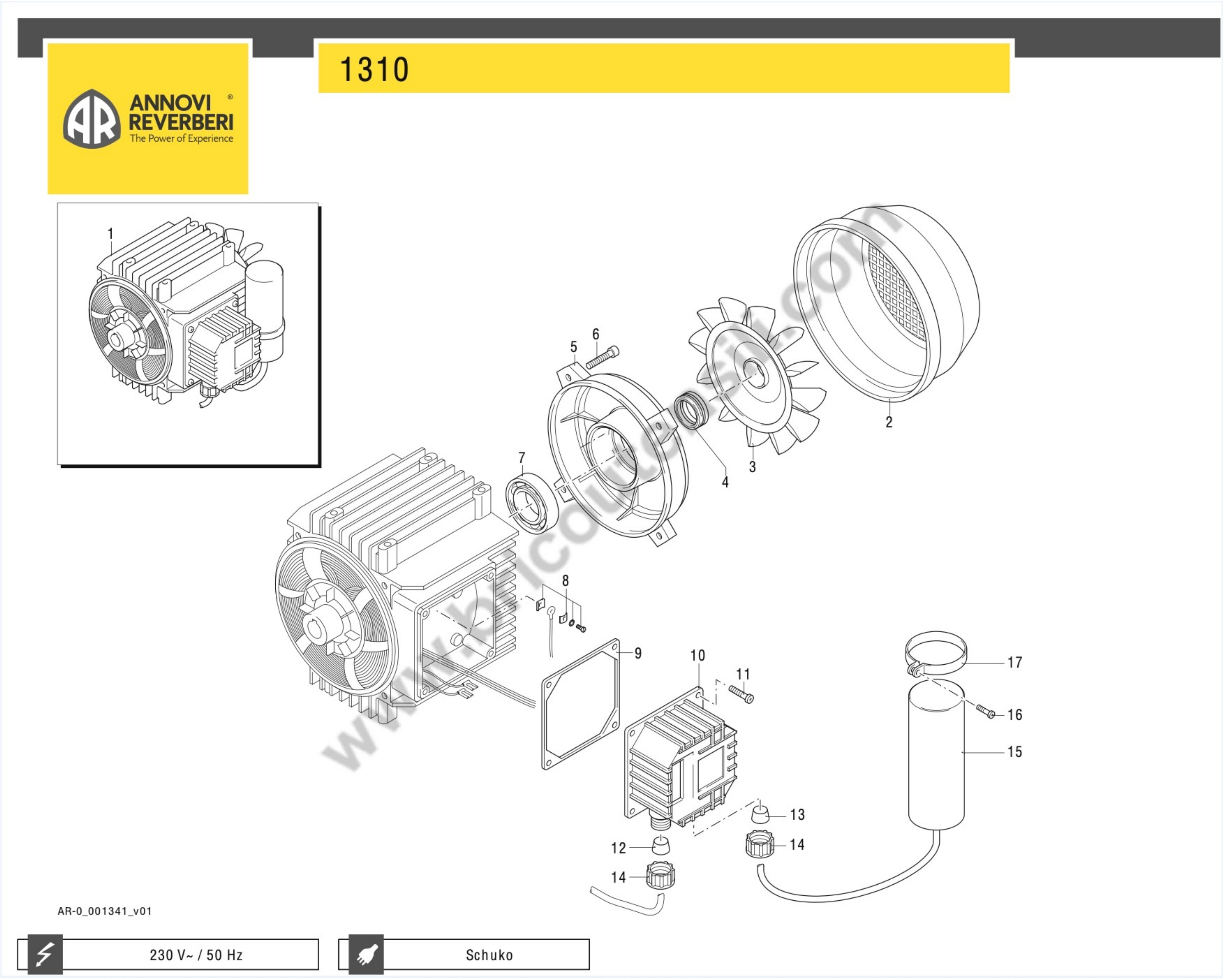

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 44451 Motor €288.19
2
 photo_cameraImage coming soon 1342040 Fan Cover €6.32
3
 photo_cameraImage coming soon 1260300 Fan €6.15
4
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
5
 photo_cameraImage coming soon 1340320 Shield €21.55
7
 photo_cameraImage coming soon 1340340 Bearing €7.38
8
 photo_cameraImage coming soon 1269100 Clamp €4.00
9
 photo_cameraImage coming soon 1340780 Gasket €2.85
10
 photo_cameraImage coming soon 1341831 Box €11.33
11
 photo_cameraImage coming soon 1261560 Screw €4.67
12
 photo_cameraImage coming soon 1340660 Fairlead €5.43
13
 photo_cameraImage coming soon 1340650 Fairlead €5.11
14
 photo_cameraImage coming soon 1340640 Ring €6.08
15
 photo_cameraImage coming soon 1263520 Capacitor €38.65
16
 photo_cameraImage coming soon 1271880 Screw €4.47
17
 photo_cameraImage coming soon 1982550 CLAMP €2.36
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

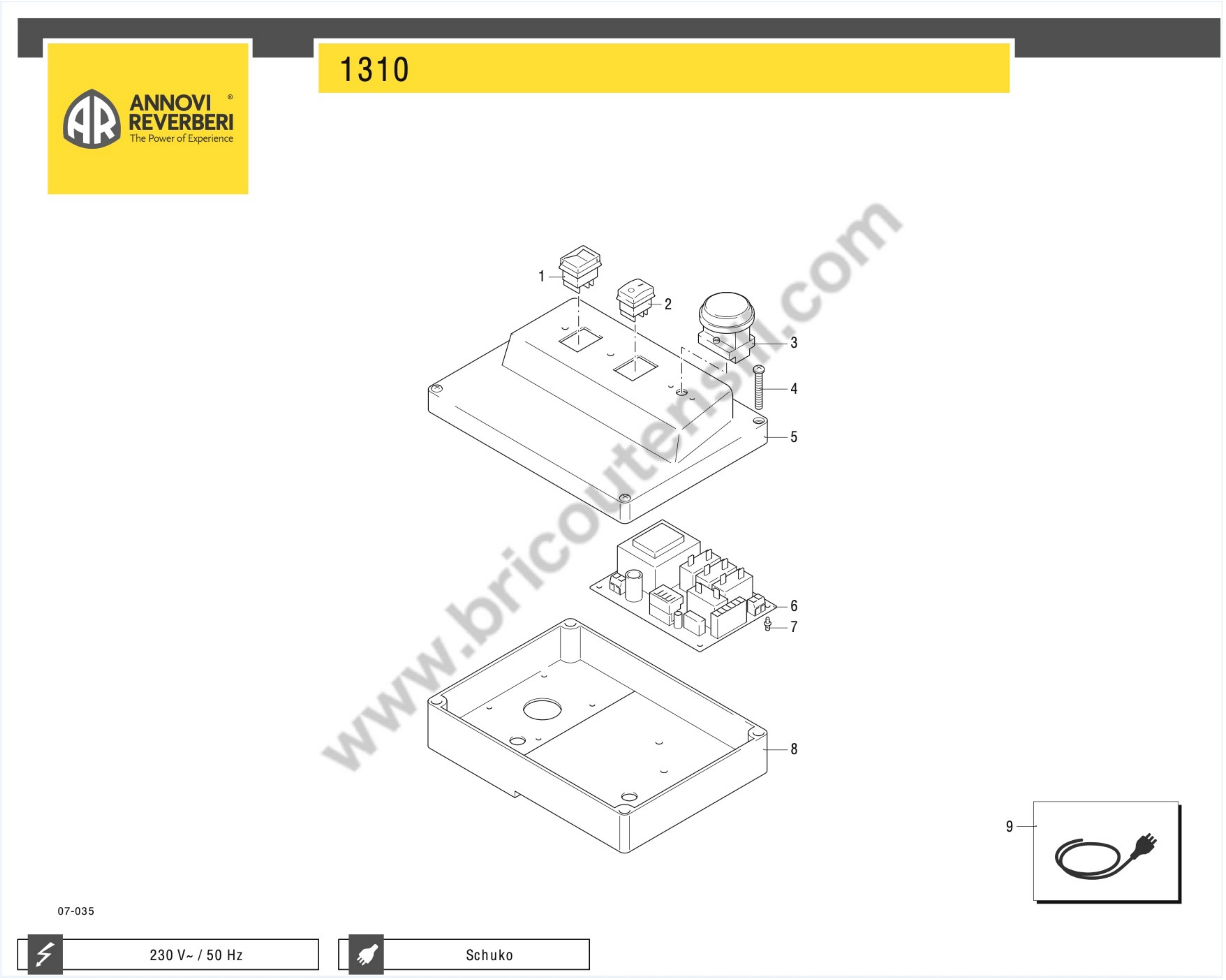

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1262180 Switch €61.45
2
 photo_cameraImage coming soon 50555 Switch €14.57
3
 photo_cameraImage coming soon 50646 Thermostat €50.17
4
 photo_cameraImage coming soon 50507 Screw €3.48
5
 photo_cameraImage coming soon 50676 Cover €77.89
6
 photo_cameraImage coming soon 3162790 Card €185.24
7
 photo_cameraImage coming soon 50602 Spacer €5.38
9
 photo_cameraImage coming soon 1270950 Cable €22.57
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

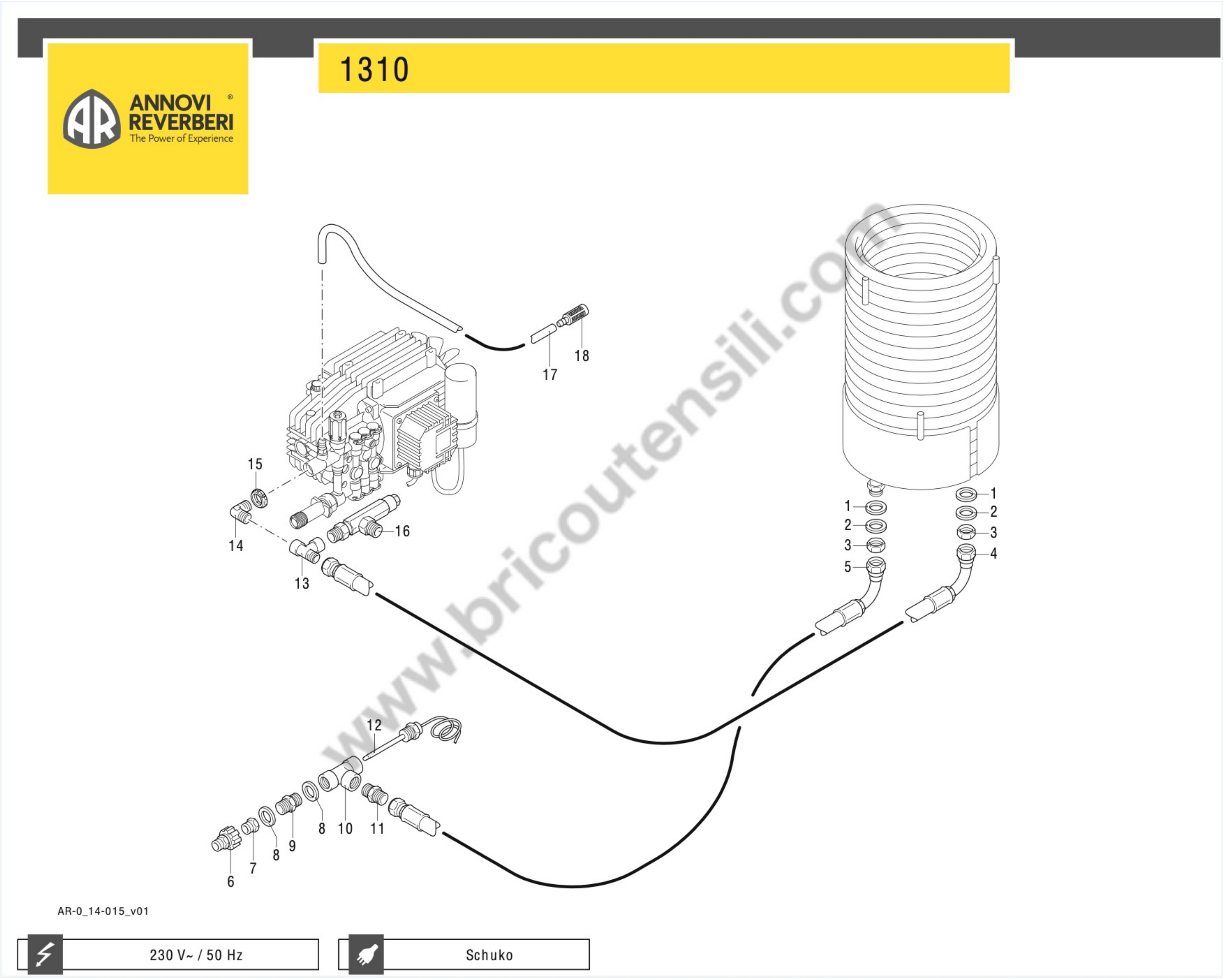

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50514 Washer €4.63
2
 photo_cameraImage coming soon 50541 Washer €1.48
3
 photo_cameraImage coming soon 50527 Nut €4.42
4
 photo_cameraImage coming soon 51415 Tube €47.55
5
 photo_cameraImage coming soon 50659 High pressure hose €60.03
6
 photo_cameraImage coming soon 50480 Junction €8.41
7
 photo_cameraImage coming soon 50481 Junction €18.51
8
 photo_cameraImage coming soon 50517 Washer €6.24
9
 photo_cameraImage coming soon 50463 Junction €9.59
10
 photo_cameraImage coming soon 50461 Junction €29.58
13
 photo_cameraImage coming soon 50479 Junction €26.40
14
 photo_cameraImage coming soon 50754 Fitting €17.21
15
 photo_cameraImage coming soon 50906 Nut €6.37
16
 photo_cameraImage coming soon 3260110 Safety Valve €43.48
17
 photo_cameraImage coming soon 50607 Tube €5.31
18
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

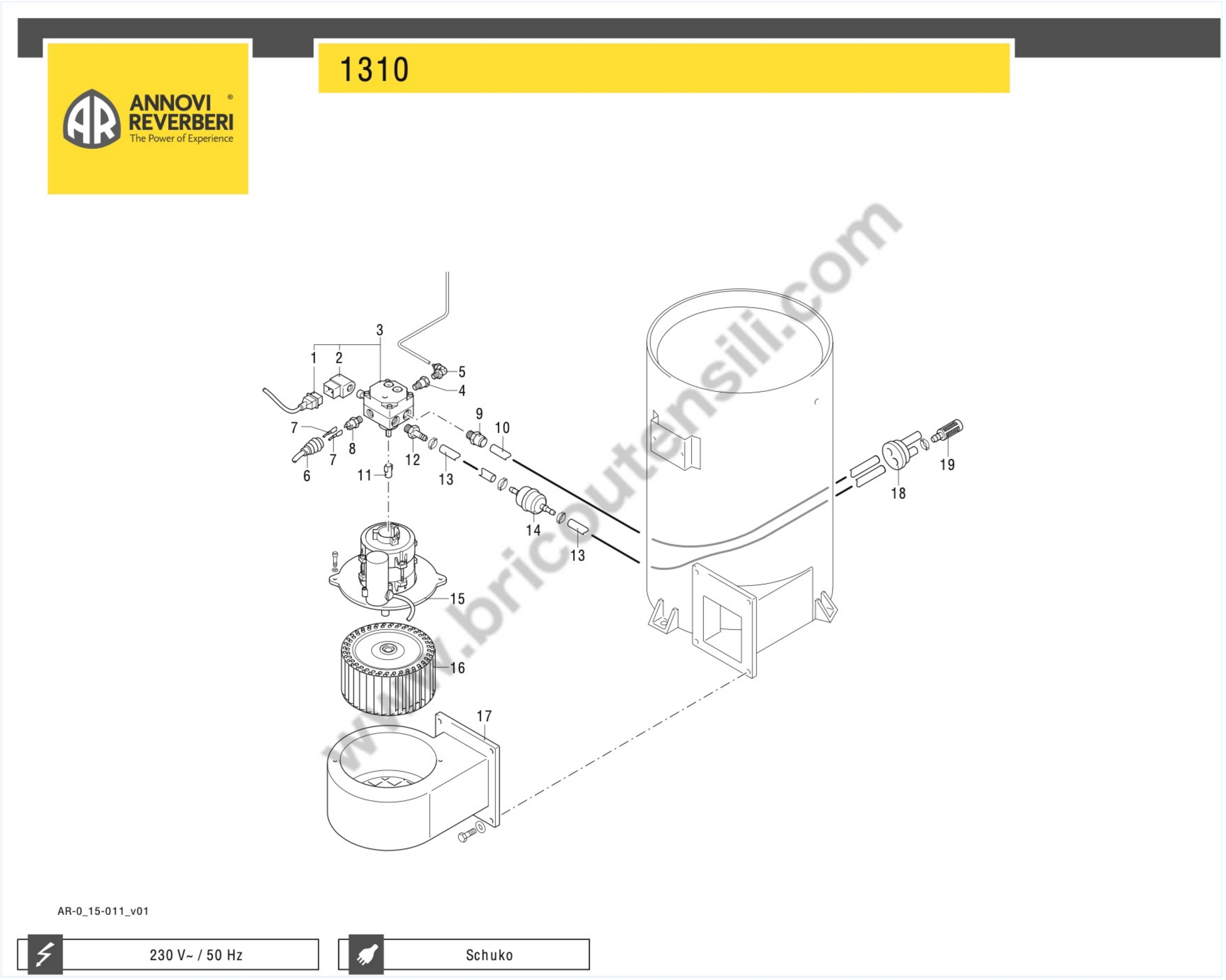

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3161440 Cable €8.80
2
 photo_cameraImage coming soon 3160320 Solenoid €44.36
3
 photo_cameraImage coming soon 3160310 Pump €141.04
4
 photo_cameraImage coming soon 50468 Junction €13.25
5
 photo_cameraImage coming soon 50751 Junction €9.38
6
 photo_cameraImage coming soon 3260380 Protection €13.25
7
 photo_cameraImage coming soon 3260370 Connector €3.86
8
 photo_cameraImage coming soon 3260050 Pressure Switch €67.59
9
 photo_cameraImage coming soon 50464 Junction €11.95
10
 photo_cameraImage coming soon 50603 Tube €7.23
11
 photo_cameraImage coming soon 3160300 Coupling €8.52
12
 photo_cameraImage coming soon 50491 Hose €5.89
13
 photo_cameraImage coming soon 50608 Tube €3.69
14
 photo_cameraImage coming soon 50747 Filter €8.86
15
 photo_cameraImage coming soon 50647 Engine €261.90
16
 photo_cameraImage coming soon 50584 Fan €39.54
17
 photo_cameraImage coming soon 50590 Sump €134.84
18
 photo_cameraImage coming soon 50595 Stopper €5.31
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3260520 Cable €14.57
2
 photo_cameraImage coming soon 41050 Rotopower Lance €88.84
2
 photo_cameraImage coming soon 50548 Electrode €30.45
4
 photo_cameraImage coming soon 3164470 High pressure hose €104.82
5
 photo_cameraImage coming soon 40641 High-pressure hose €184.14
5
 photo_cameraImage coming soon 50586 Cover €97.49
6
 photo_cameraImage coming soon 41552 Foam €104.24
6
 photo_cameraImage coming soon 50465 Junction €22.57
7
 photo_cameraImage coming soon 46368 Patio €247.73
7
 photo_cameraImage coming soon 51129 Nozzle €30.45
8
 photo_cameraImage coming soon 46370 Roller brush €78.97
9
 photo_cameraImage coming soon 1272520 Pipe cleaning accessory €132.65
10
 photo_cameraImage coming soon 1272530 Pipe cleaning accessory €185.24
10
 photo_cameraImage coming soon 50588 Support €40.88
11
 photo_cameraImage coming soon 40652 Lances €31.77
11
 photo_cameraImage coming soon 50593 Cover €602.56
12
 photo_cameraImage coming soon 40653 Lances €33.09
12
 photo_cameraImage coming soon 50317 Pipe coil €585.04
13
 photo_cameraImage coming soon 40654 Lances €42.18
13
 photo_cameraImage coming soon 50450 Hook €9.52
14
 photo_cameraImage coming soon 3260040 Transformer €110.74
14
 photo_cameraImage coming soon 40694 Lances €42.84
15
 photo_cameraImage coming soon 40695 Lances €53.78
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 47209 Gun €35.16
2
 photo_cameraImage coming soon 1080640 Ring €5.20
3
 photo_cameraImage coming soon 391000 O-Ring €4.73
4
 photo_cameraImage coming soon 46221 Lance €35.16
5
 photo_cameraImage coming soon 3104 Nozzle €24.85
6
 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR1310

Annovi Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR 1310 - 24894

Fix Your Annovi Reverberi Pressure Washer Blue Clean 1310 - 24894. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 1310 - 24894

AR 1310 - 24894
Carriage Pag.1
# Part Num Description
1 51469 Casing
2 50601 Gasket
3 51420 Accessories carrier
4 51421 Tank
5 50611 Plug
6 51443 Plug
7 51470 Frame
8 51471 Handle
9 50627 Wheel
10 50628 Guard
11 1341840 Base
12 3600200 Guard
13 3600330 Screw
14 2360760 Knob
15 1340260 Filter
16 40393 Fitting
Pump Pag.2
1 1349510 Pump assembly
2 1349204 Head assembly
3 1344850 Head
4 2440200 Extension
5 2440230 O-ring
6 2901060 Injector
7 800560 O-ring
8 1080091 Spring
9 2901070 Shutter
10 1460430 O-ring
11 1349055 Valve
12 1465720 O-ring
13 1344770 Spacer
14 1344790 Fork
15 850850 Screw
16 1344800 Plug
17 2560870 O-ring
18 1344890 Plug
19 2460180 O-ring
20 770260 O-ring
21 1344750 Piston guide
22 1260440 Water seal
23 1344760 Ring
24 1344050 Pump body
25 1260050 Bushing
26 1040710 O-ring
27 1344060 Cover
28 1260780 Screw
29 1343900 Plug
30 880840 O-ring
31 1260780 Screw
32 1340170 Shaft
33 880111 Key
34 1341070 Bearing
35 480890 Ring
36 111120 Ring
37 1341080 Ring
38 1340060 Connecting-rod
39 1340080 Pin
40 1340070 Piston
41 1260460 Oil seal
42 600180 O-ring
43 1341010 Plate
44 1342740 Piston
45 1341020 Washer
46 850670 Screw
47 42580 TSS Retrofit kit
48 1120680 O-ring
49 600180 O-ring
50 2022040 Pin
51 2021630 Spring
52 2021650 Washer
53 1260820 O-ring
54 1344830 Fitting
55 1560520 Spring
56 1250280 Ball
57 480480 O-ring
58 1982520 Hose tail
59 1342701 Seat
60 600180 O-ring
61 1460151 Piston
62 2021900 Piston
63 1080190 O-ring
64 600180 O-ring
65 1080401 Ring
66 770140 O-ring
67 740290 O-ring
68 1344870 Piston guide
69 1343450 Wobble plate
70 1460190 Spring
71 1980220 Plate
72 1344881 Insert
73 2500550 Split pin
74 1980470 Screw
75 1060120 Nut
76 42579 Valve kit adjustment
A 42566 Valve kit
B 2623 Piston kit
C 1876 Oil seal kit
F 42568 Gasket kit
H 42567 Water seal kit
Motor Pag.3
1 44451 Motor
2 1342040 Fan cowling
3 1260300 Fan
4 1340350 Seal
5 1340320 Shield
6 1260760 Screw
7 1340340 Bearing
8 1269100 Clamp
9 1340780 Gasket
10 1341831 Box
11 1261560 Screw
12 1340660 Gland
13 1340650 Gland
14 1340640 Ring nut
15 1263520 Capacitor
16 1271880 Screw
17 1982550 Clamp
Electric Circuit Pag.4
1 1262180 Switch
2 50555 Switch
3 50646 Thermostat
4 50507 Screw
5 50676 Cover
6 3162790 Board
7 50602 Spacer
8 50676 Cover
9 1270950 Cable
Water Circuit Pag.5
1 50514 Washer
2 50541 Washer
3 50527 Nut
4 51415 Pipe
5 50659 High pressure hose
6 50480 Fitting
7 50481 Fitting
8 50517 Washer
9 50463 Fitting
10 50461 Fitting
11 50463 Fitting
12 50646 Thermostat
13 50479 Fitting
14 50754 Fitting
15 50906 Nut
16 3260110 Safety valve
17 50607 Pipe
18 1341030 Filter
Fuel Circuit Pag.6
1 3161440 Cable
2 3160320 Solenoid
3 3160310 Pump
4 50468 Fitting
5 50751 Fitting
6 3260380 Guard
7 3260370 Connector
8 3260050 Pressure switch
9 50464 Fitting
10 50603 Pipe
11 3160300 Coupling
12 50491 Hose tail
13 50608 Pipe
14 50747 Filter
15 50647 Motor
16 50584 Fan
17 50590 Casing
18 50595 Plug
19 1341030 Filter

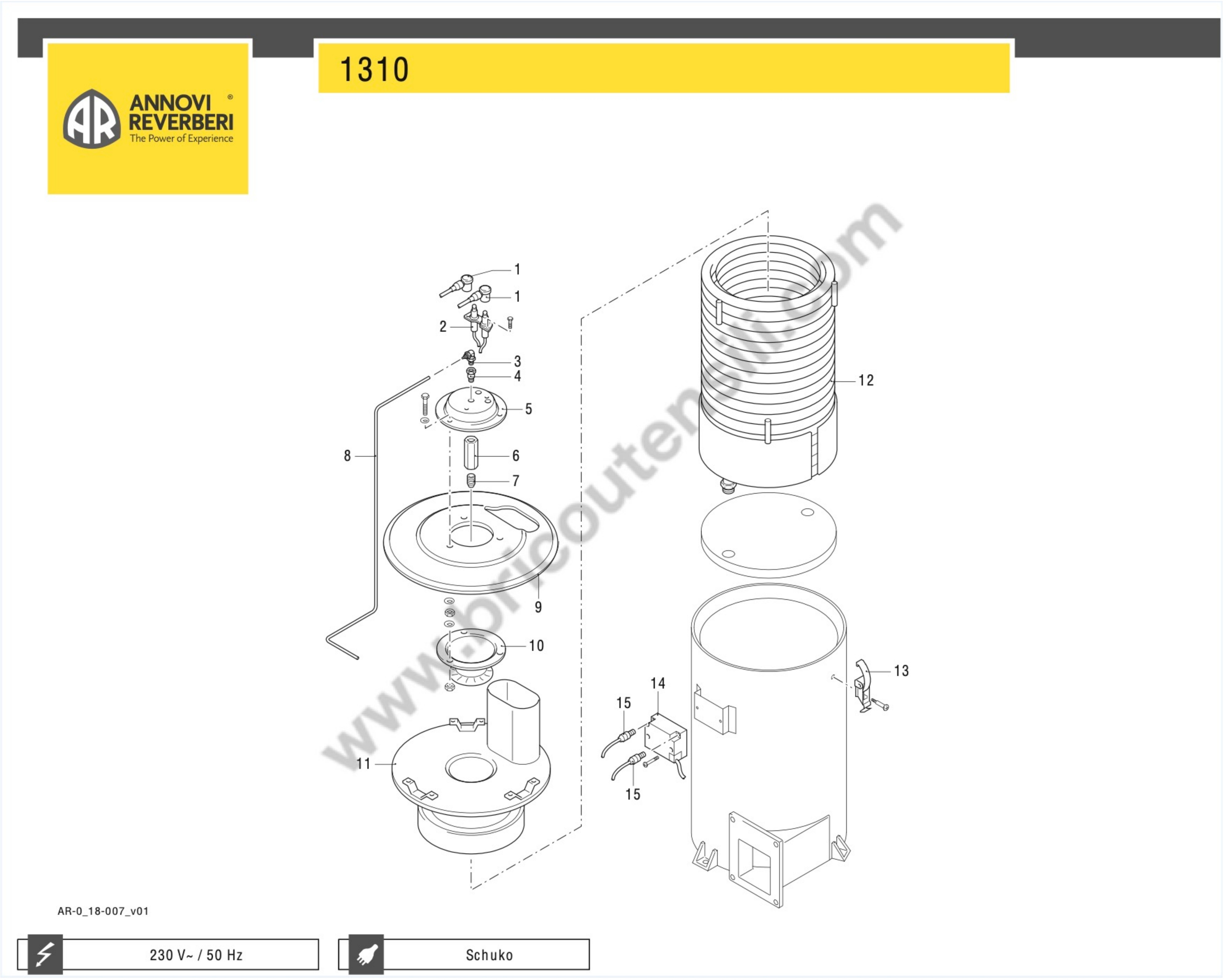

Boiler Pag.7
1 3260520 Cable
2 50548 Electrode
3 50751 Fitting
4 50468 Fitting
5 50586 Cover
6 50465 Fitting
7 51129 Nozzle
8 50603 Pipe
9 50586 Cover
10 50588 Support
11 50593 Cover
12 50317 Pipe coil
13 50450 Hook
14 3260040 Transformer
15 3260520 Cable

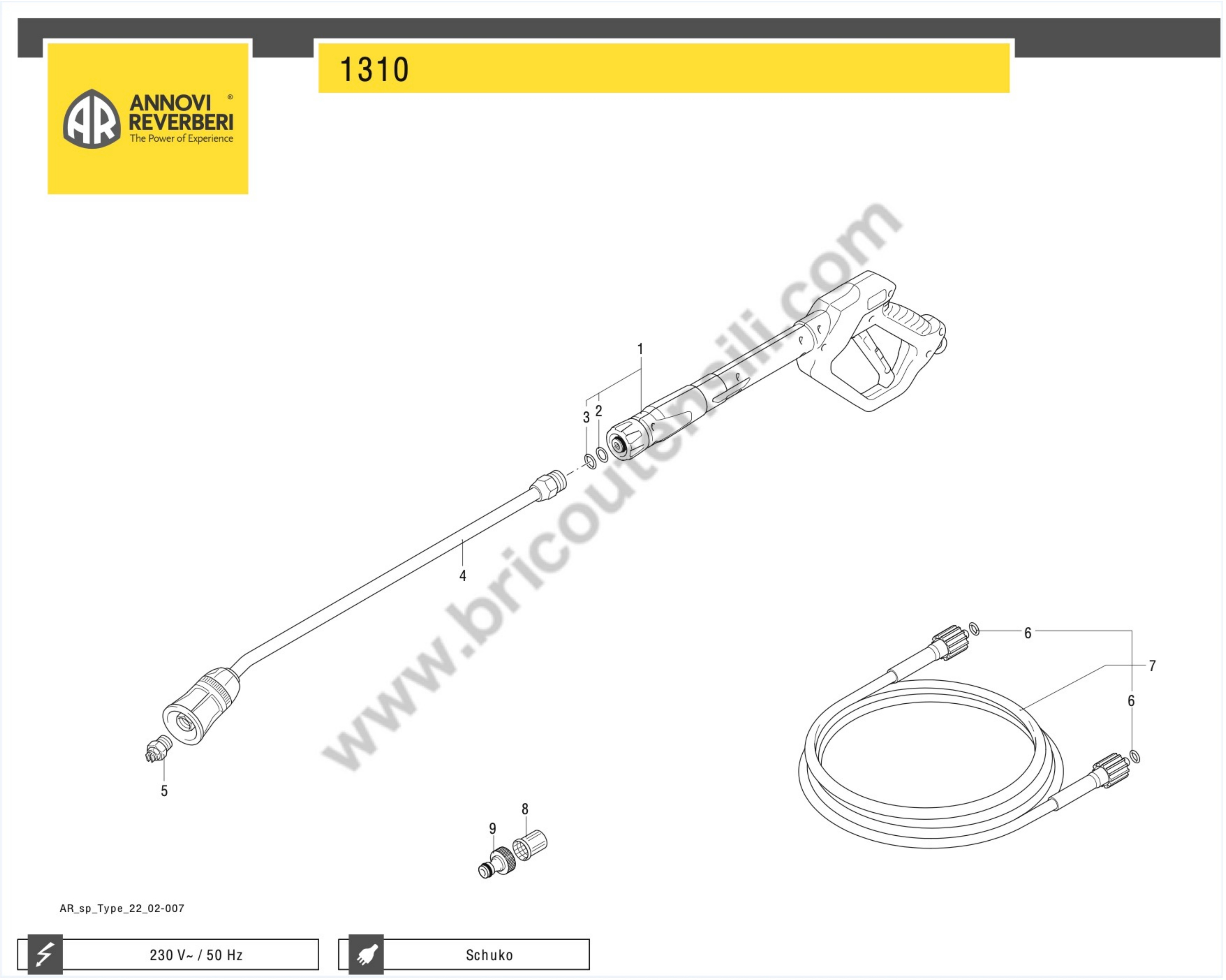

Standard Accessories Pag.8
1 47209 Gun
2 1080640 Ring
3 391000 O-ring
4 46221 Extension (Lance)
5 3104 Nozzle
6 2000570 O-ring
7 3164640 High pressure hose
8 1340260 Filter
9 40393 Fitting
Optional Pag.7
1 447209 Gun
2 41050 Rotopower Lance
3 46221 Lance Extension
4 3164470 High-pressure hose
5 40641 High-pressure hose
6 41552 High-pressure foam
7 46368 Patio
8 46370 Rotary brush
9 1272520 Pipe cleaning accessory
10 1272530 Pipe cleaning accessory
11 40652 Lance
12 40653 Lance
13 40654 Lance
14 40694 Lance
15 40695 Lance
16 3160620 Lance
17 47796 Lance
18 41591 Sandblasting lance
19 3207 Sand
20 41770 Sand
21 41592 Water suction
22 41580 Quick coupling
23 40439 Quick coupling
24 41593 Water filter
25 3025 Nozzle
26 3251 Nozzle
27 3104 Nozzle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AR1310 - 24894
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Annovi AR1310 Parts Drawing

Annovi AR1310 Parts Drawing

Download (1.87MB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590
Annovi Reverberi S.p.A. SKU: 3082130
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 Kit for water inlet with impurities filter, original spare Annovi Reverberi for repair or replacement of damaged parts, for models Blue Clean AR395 - AR490 - AR588 -...
Last items in stock €4.95
Details
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT
Annovi Reverberi S.p.A. SKU: 2000570
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT Original spare part Annovi & Reverberi, OR mm 10x2 Parker V1 1010 P5008 for Pressure Washers ARSG HOT 120-1106-1308-1309-1490N-1713-2015N-2021N-K-PRO 1508. Part for the...
AVAILABLE €1.78
Details
O-Ring for Pressure Washers AR Proliner SV
Annovi Reverberi S.p.A. SKU: 390080
O-Ring for Pressure Washers AR Proliner SV
O-Ring for Pressure Washers AR Proliner SV Original part Annovi & Rverberi, O-Ring For the Following Products: - Modelli 50 Hz - Serie 6 - 620 - 12359 - Modelli 50 Hz - Serie 6 - 625 - 13711 - Modelli 50 Hz - Serie 6 - 630 - 12360 -...
AVAILABLE €0.49
Details
O-Ring for Pressure Washers AR6640
Annovi Reverberi S.p.A. SKU: 880270
O-Ring for Pressure Washers AR6640
O-Ring for Pressure Washers AR6640 Original part Annovi & Rverberi, O-Ring For the Following Products: AR BC - Model 50 Hz - Serie 10 - 1003 - 25231 AR BC - Model 50 Hz - Serie 10 - 1003 - 25231 AR BC - Model 50 Hz - Serie 10 -...
Last items in stock €0.42
Details
Valve Screw for Pressure Washers Annovi & Reverberi
Annovi Reverberi S.p.A. SKU: 1540272
Valve Screw for Pressure Washers Annovi & Reverberi
Valve Screw for Pressure Washers Annovi & Reverberi Genuine Spare Part Annovi & Reverberi, Valve Screw for Pressure Washers. Part for the following products: - ARSG - Models 50 Hz - Blitz - 8.13 - 8740 - ARSG - Models 50 Hz...
Last items in stock €9.30
Details
Collector Screw for Pressure Washers Annovi & Reverberi
Annovi Reverberi S.p.A. SKU: 2260420
Collector Screw for Pressure Washers Annovi & Reverberi
Collector Screw for Pressure Washers Annovi Reverberi Genuine Spare Part Annovi Reverberi, Collector Screw for Pressure Washers Blitz - 8.13 - 8.15 - 10.12 - Proliner SV - SV 1310 TSS - SV 1510 TSS...
Last items in stock €8.09
Details
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 600180
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 7,66x1,78 For the Following Products: - Black & Decker - PW 1700 WB - 12344 - Black & Decker - PW 1700 WB - 2007...
AVAILABLE €0.38
Details
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935
Annovi Reverberi S.p.A. SKU: 770260
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 Original part Annovi & Rverberi, O-Ring 23,52x1,78 mm, for models AR Serie 6 - 610-613-614-615 - Serie 7 - 757 - Serie 8 - 810-820-830 - Serie 9 - 935-945 Part for the...
AVAILABLE €0.39
Details
Lance for Pressure Washer Annovi & Reverberi AR1001
Annovi Reverberi S.p.A. SKU: 3600650
Lance for Pressure Washer Annovi & Reverberi AR1001
Lance for Pressure Washer Annovi & Reverberi AR1001 Original part Annovi & Reverberi, Lance for Pressure Washers Models AR BC Serie 10 - 1001 - 1003 - 1004 - 1005 - 1007 - 1008 - Serie 14 - 1425 - 1430 - 1435 - 1440 Part for...
Last items in stock €26.27
Details
Water Suction Kit Annovi Reverberi cod. 41592
Annovi Reverberi S.p.A. SKU: 41592
Water Suction Kit Annovi Reverberi cod. 41592
Water Suction Kit Annovi Reverberi cod. 41592 Original Annovi Reverberi accessory, Water suction kit, Accessory for sucking water. Ideal for quick emptying of tanks, cisterns, containers, swimming pools. Replacement for the Following...
Last items in stock €59.27
Details
Detergent Filter for Pressure Washer Annovi Reverberi
Annovi Reverberi S.p.A. SKU: 1341030
Detergent Filter for Pressure Washer Annovi Reverberi
Detergent Filter for Pressure Washer Annovi Reverberi Genuine part Annovi Reverberi, Detergent Suction Filter Model F for Pressure Washers Annovi Reverberi. Parts For the Following Products: - AR BC - Models 50 Hz - Serie 6 - 613 -...
on 7/10 Business Days Approx. €14.06
Details
TSS Retrofit kit for Pressure Washer AR 4590
Annovi Reverberi S.p.A. SKU: 42580
TSS Retrofit kit for Pressure Washer AR 4590
TSS Retrofit kit for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, TSS Retrofit kit for Pressure Washers Annovi  Reverberi AR 4590 - Michelin MPX 150 HL. Parts For the Following Products: - ...
Last items in stock €24.00
Details
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO
Annovi Reverberi S.p.A. SKU: 1080091
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO - 1508 Genuine part Annovi Reverberi, Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO - 1508 - 1509. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €2.34
Details
AR Spring for Pressure Washer AR589
Annovi Reverberi S.p.A. SKU: 1460190
AR Spring for Pressure Washer AR589
Annovi Reverberi Spring for Pressure Washer AR589 Genuine spare part Annovi Reverberi, Spring for Pressure Washers AR589 - AR757 - AR1001 - AR555. Part for the following products: - Pressure Washer Annovi Reverberi 589 -...
AVAILABLE €3.09
Details
Comments (0)
