Annovi Reverberi S.p.A.

Annovi Reverberi 2K X-TRA Parts

SKU: Annovi Rev. 2KX-TRA - 14992
€17.22
VAT included

Annovi Reverberi 2K X-TRA Spare Parts

We have the original Annovi Reverberi Parts for Pressure Washer Series 2KX-TRA - 14992, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi Series 2K X-TRA - 14992. All Spares are original and can be supplied at Low and discounted prices.

Pressure Washer Annovi Reverberi Series DTS - 5.0 - 14793
Annovi Reverberi 2K X-TRA Parts
  • Annovi Reverberi 2K X-TRA Parts
  • Annovi Reverberi 2K X-TRA Parts Drawing
  • Annovi Reverberi 2K X-TRA Parts Drawing - 1
  • Annovi Reverberi 2K X-TRA Parts Drawing - 2
  • Annovi Reverberi 2K X-TRA Parts Drawing - 3
Annovi Reverberi S.p.A.

Annovi Reverberi 2K X-TRA Parts

SKU: Annovi Rev. 2KX-TRA - 14992 Condition: New
€17.22
VAT included

Annovi Reverberi 2K X-TRA Spare Parts

We have the original Annovi Reverberi Parts for Pressure Washer Series 2KX-TRA - 14992, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi Series 2K X-TRA - 14992. All Spares are original and can be supplied at Low and discounted prices.

Pressure Washer Annovi Reverberi Series DTS - 5.0 - 14793
settings 63 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts

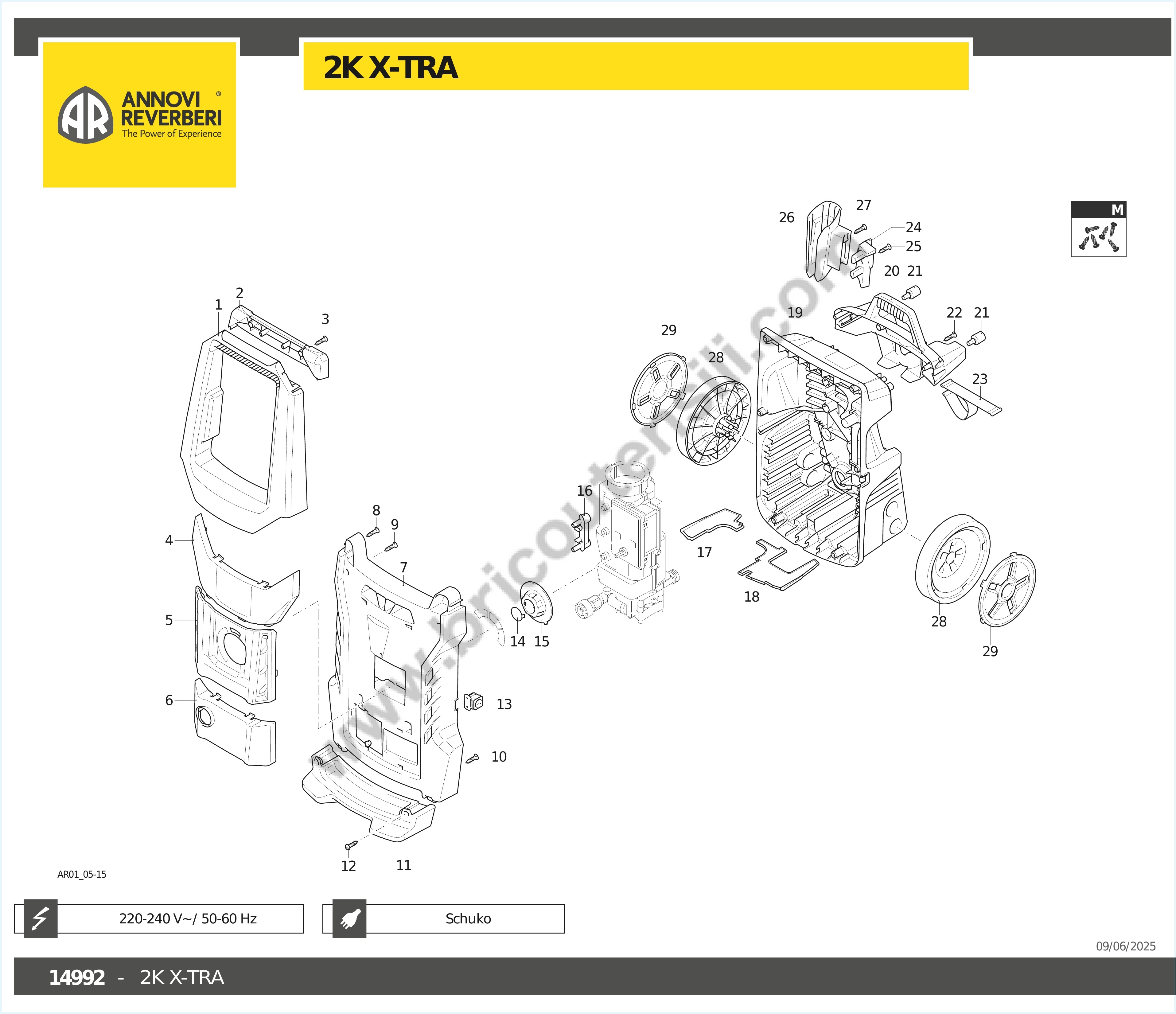

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
M
 photo_cameraImage coming soon 4381470 Screw Kit €4.35
1
 photo_cameraImage coming soon 4380640 HANDLE SA €21.58
3
 photo_cameraImage coming soon 50943 Screw €3.06
4
 photo_cameraImage coming soon 4383330 Protection €3.15
6
 photo_cameraImage coming soon 4383410 Guard €2.55
7
 photo_cameraImage coming soon 4380650 CASING SA €26.45
9
 photo_cameraImage coming soon 3081390 Screw €1.29
11
 photo_cameraImage coming soon 4380680 FOOT €14.41
13
 photo_cameraImage coming soon 3080580 cable clamp €2.88
15
 photo_cameraImage coming soon 4580672 Grey RAL 7042 knob €1.27
16
 photo_cameraImage coming soon 4720250 Locking €12.51
17
 photo_cameraImage coming soon 4380590 COVER €6.51
18
 photo_cameraImage coming soon 4380580 COVER €5.87
19
 photo_cameraImage coming soon 4380491 base €27.51
20
 photo_cameraImage coming soon 4380540 Accessories carrier €10.46
21
 photo_cameraImage coming soon 2180330 Rubber €4.96
23
 photo_cameraImage coming soon 4383420 Accessories Holder €2.37
24
 photo_cameraImage coming soon 4383400 Support €4.26
26
 Annovi Accessory Holder for AR589 4580590 Annovi Accessory Holder for AR589 €7.72
28
 photo_cameraImage coming soon 4720760 Wheel €10.75

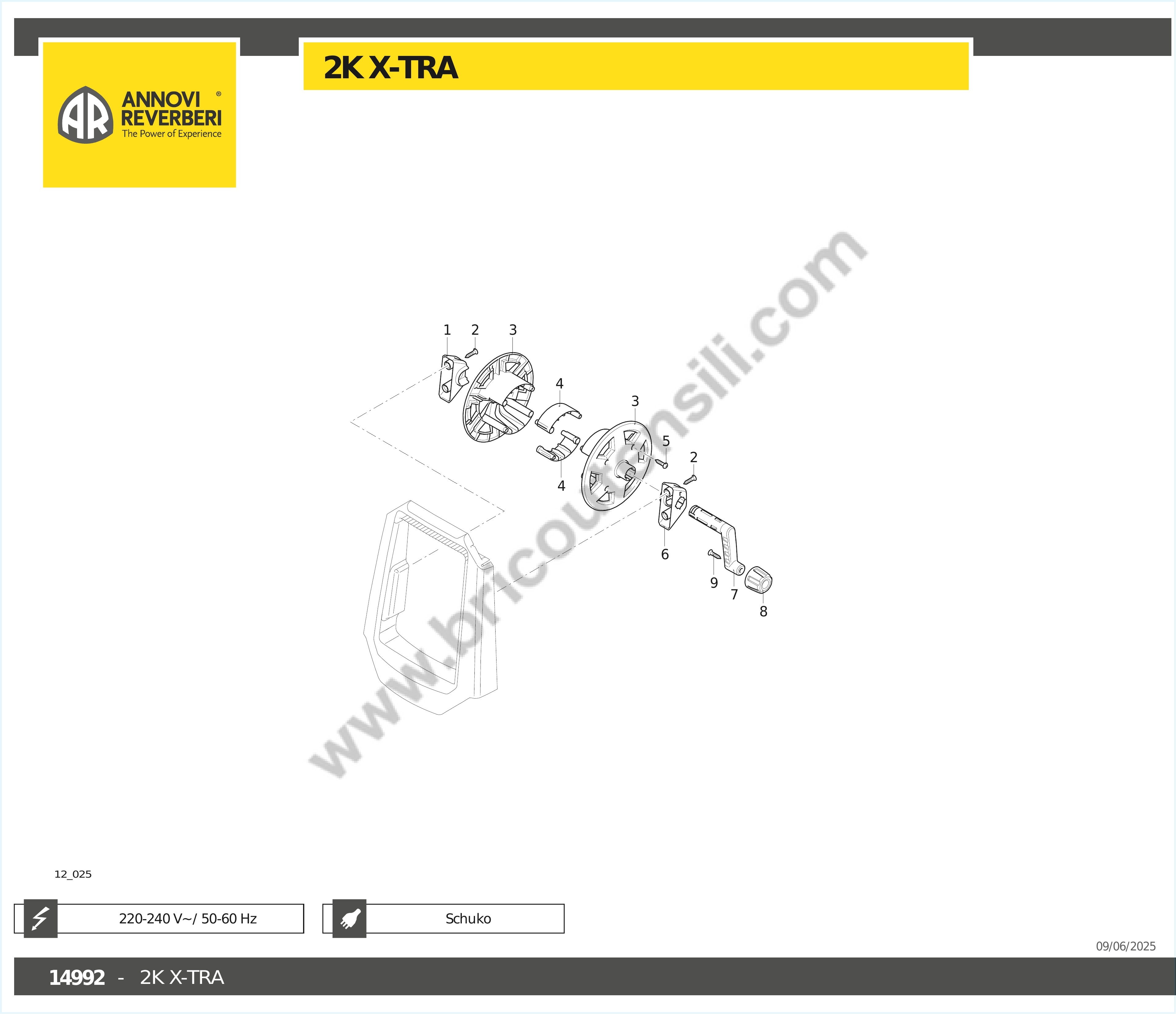

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380470 BRACKET €8.48
3
 photo_cameraImage coming soon 3080200 Plate €9.92
4
 photo_cameraImage coming soon 4380550 SHIM €8.54
6
 photo_cameraImage coming soon 4380460 BRACKET €7.45
7
 photo_cameraImage coming soon 4380560 LEVER €8.00

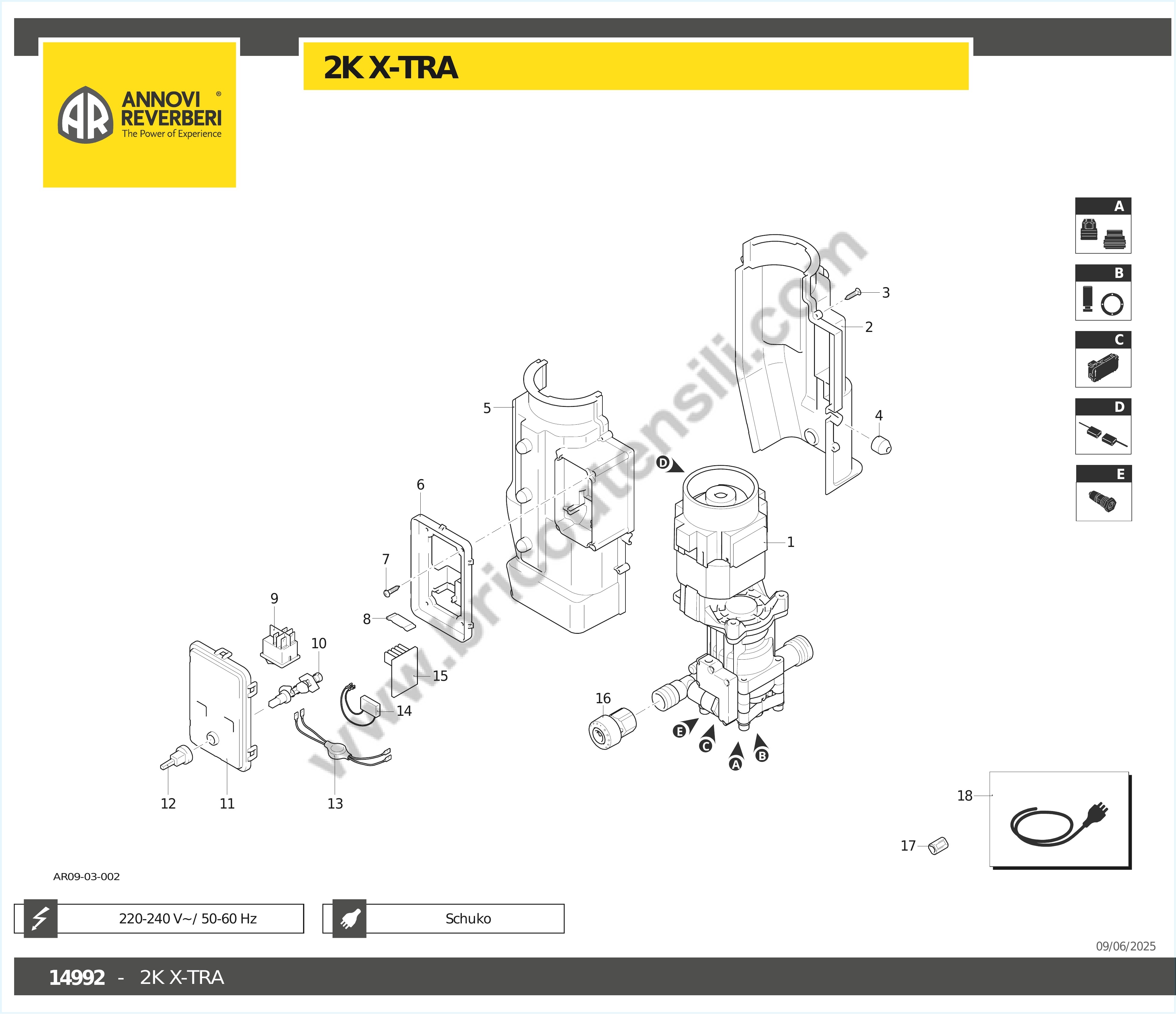

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
B
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
A
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
E
 photo_cameraImage coming soon 4384310 TSS valve kit €15.67
1
 photo_cameraImage coming soon 4720680 Electric pump pre-assembly €190.70
2
 photo_cameraImage coming soon 4380170 Conveyor €13.13
5
 photo_cameraImage coming soon 4380160 Conveyor €17.29
6
 photo_cameraImage coming soon 4720480 Support €2.37
8
 photo_cameraImage coming soon 4720500 Spring €2.37
9
 photo_cameraImage coming soon 4720610 Switch €11.15
10
 photo_cameraImage coming soon 4720470 Rod €5.62
11
 photo_cameraImage coming soon 4720490 Cover €9.91
12
 photo_cameraImage coming soon 4383370 Extension cord €8.15
13
 photo_cameraImage coming soon 3086020 Inductance €24.38
15
 photo_cameraImage coming soon 4720620 Board €28.78
16
 photo_cameraImage coming soon 4383521 Fitting €10.59
18
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €21.06

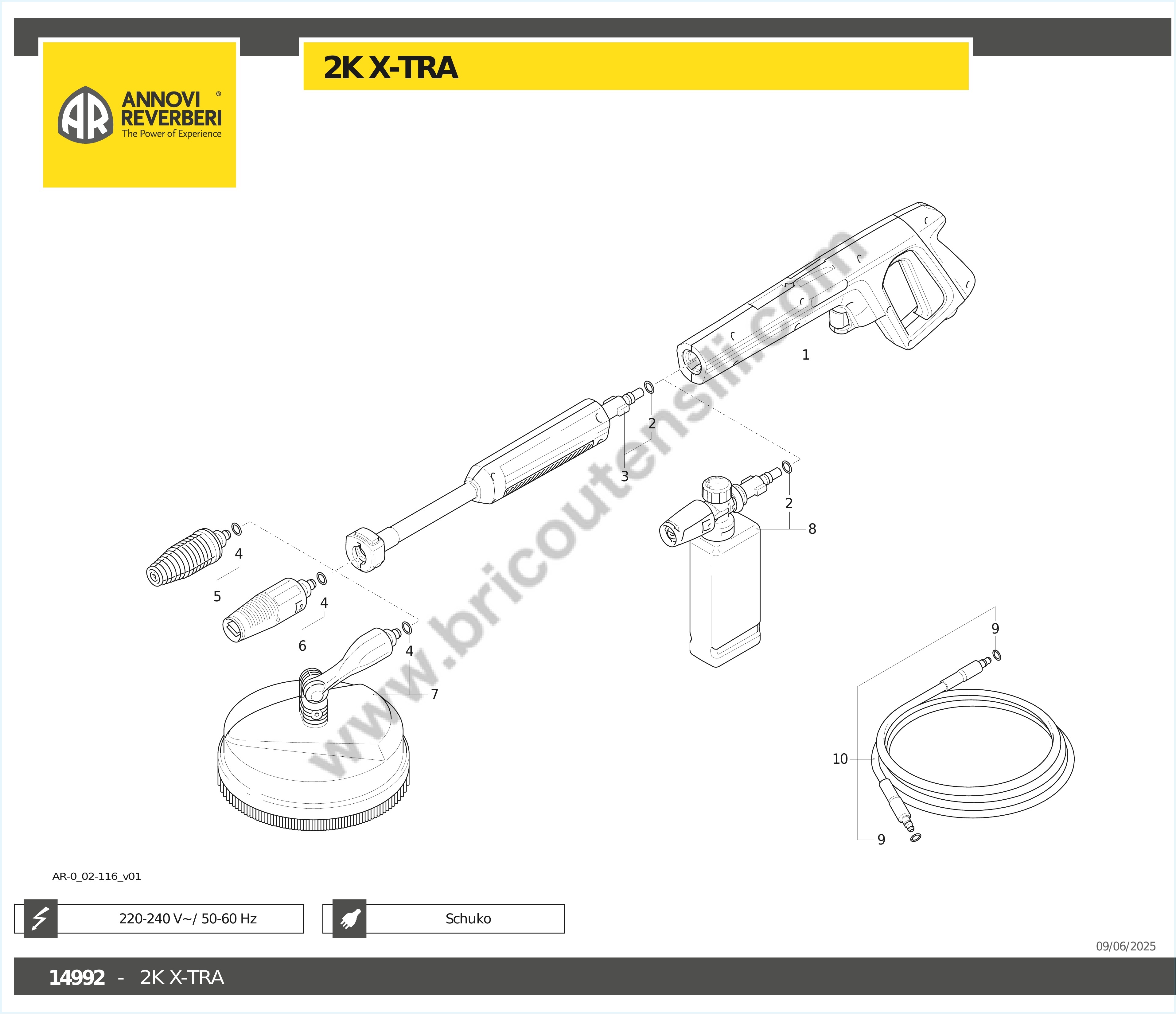

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381485 Gun €24.94
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4381495 Extension €18.41
4
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
5
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.57
6
 Lance Head for Pressure Washer Stanley SXPW22E 4101550 Lance Head for Pressure Washer Stanley SXPW22E €10.50
7
 photo_cameraImage coming soon 3085480 Mini Patio Blue RAL 5002 €35.24
8
 photo_cameraImage coming soon 4383500 High pressure foam lance €16.91
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53
10
 photo_cameraImage coming soon 4821170 High pressure hose €31.22

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi 2K X-TRA Spare Parts

We have the original Annovi Reverberi Parts for Pressure Washer Series 2K X-TRA - 14992, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi Series 2K X-TRA - 14992. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi Series 2K X-TRA - 14992
Pressure Cleaner 2K X-TRA - 14992
Chassis Pag.1
# Part Num Description
1 4380640 Handle
2 4380692 Knob
3 50943 Screw
4 4383330 Guard
5 4383322 Guard
6 4383410 Guard
7 4380650 Casing
8 50943 Screw
9 3081390 Screw
10 5480500 Screw
11 4380680 Base
12 3081390 Screw
13 3080580 Cable gland
14 4580802 Plug
15 4580672 Knob
16 4720250 Lock
17 4380590 Guard
18 4380580 Guard
19 4380491 Base
20 4380540 Accessories carrier
21 2180330 Rubber foot
22 50943 Screw
23 4383420 Accessories carrier
24 4383400 Support
25 3081390 Screw
26 4580590 Accessories carrier
27 5480500 Screw
28 4720760 Wheel
29 4380621 Guard
M 4381470 Scew
Hose Reel Pag.2
1 4380470 Bracket
2 50943 Screw
3 3080200 Plate
4 4380550 Shim
5 50943 Screw
6 4380460 Bracket
7 4380560 Lever
8 4380453 Knob
9 5460700 Screw
Electric Pump
1 4720680 Electric pump assembly
2 4380170 Conveyor
3 5480500 Screw
4 4720590 Shim
5 4380160 Conveyor
6 4720480 Support
7 5480500 Screw
8 4720500 Spring
9 4720610 Switch
10 4720470 Pin
11 4720490 Cover
12 4383370 Extension
13 3086020 Inductance
14 3081440 Capacitor
15 4720620 Board
16 4383521 Fitting
17 5480830 EMC Interference filter
18 3082360 Cable
A 3081290 Valves + seals kit
B 3081270 Piston + seals kit
C 4384420 TSS kit
D 4720810 Brush kit for motor
E 4384310 Valve kit TSS
Accessories Pag.4
1 4381485 Gun
2 3083700 O-ring
3 4381495 Extension (Lance)
4 3083370 O-ring
5 4100800 Lance head (Rotopower)
6 4101550 Lance head (Adjustable jet)
7 3085480 Mini Patio
8 4383500 High pressure foam lance
9 3083400 O-ring
10 4821170 High pressure hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
