Annovi Reverberi DTS 4K - 14823 Spare Parts

Fix Your Pressure Washer Annovi Reverberi Series DTS - 4K - 14823. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarante.

Annovi Reverberi DTS 4K - 14823
Annovi Reverberi DTS 4K Parts
  • Annovi Reverberi DTS 4K Parts
  • Annovi Reverberi DTS 4K Parts - Drawing
  • Annovi Reverberi DTS 4K Parts - Drawing 1
  • Annovi Reverberi DTS 4K Parts - Drawing 2
  • Annovi Reverberi DTS 4K Parts - Drawing 3
  • Annovi Reverberi DTS 4K Parts - Drawing 4
  • Annovi Reverberi DTS 4K Parts - Drawing 5
  • Annovi Reverberi DTS 4K Parts - Drawing 6
Annovi Reverberi S.p.A.

Annovi Reverberi DTS 4K Parts

SKU: Annovi Rev. DTS4K-14823 Condition: New
€10.75
VAT included

Annovi Reverberi DTS 4K - 14823 Spare Parts

Fix Your Pressure Washer Annovi Reverberi Series DTS - 4K - 14823. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarante.

Annovi Reverberi DTS 4K - 14823
settings 82 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4580530 Guard €10.44
3
 photo_cameraImage coming soon 4580800 Plug €3.12
4
 photo_cameraImage coming soon 4580670 Knob €2.91
5
 photo_cameraImage coming soon 4580630 Lock €1.42
6
 photo_cameraImage coming soon 4580500 Casing €27.44
7
 Annovi Accessory Holder for AR589 4580590 Annovi Accessory Holder for AR589 €7.72
9
 photo_cameraImage coming soon 4381640 Rubber foot €2.85
11
 photo_cameraImage coming soon 3080580 cable clamp €2.88
12
 photo_cameraImage coming soon 4580930 Cable €28.91
13
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4820410 Cover €2.26
2
 photo_cameraImage coming soon 4580540 Bracket €9.09
3
 photo_cameraImage coming soon 4101680 Plate €13.18
4
 photo_cameraImage coming soon 4102120 Support €7.99
5
 photo_cameraImage coming soon 50943 Screw €3.06
6
 photo_cameraImage coming soon 4580550 Bracket €9.09
8
 photo_cameraImage coming soon 4101750 Hub pin €3.71
10
 photo_cameraImage coming soon 4101660 Lever €4.84
11
 photo_cameraImage coming soon 4101678 Knob €3.96
12
 photo_cameraImage coming soon 4581980 Screw €3.28
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4580600 Handle €16.17
5
 photo_cameraImage coming soon 4580770 Pipe €20.92
6
 photo_cameraImage coming soon 3081390 Screw €1.29
7
 photo_cameraImage coming soon 4821080 Guide €5.42
9
 photo_cameraImage coming soon 4821110 Hook €2.35
10
 photo_cameraImage coming soon 4821020 Spring €1.62
11
 photo_cameraImage coming soon 4220277 Lever €2.85
12
 photo_cameraImage coming soon 4580560 base €28.91
13
 photo_cameraImage coming soon 4580620 Accessories carrier €10.84
14
 photo_cameraImage coming soon 2180330 Rubber €4.96
16
 photo_cameraImage coming soon 4580763 Accessories carrier €7.24
21
 photo_cameraImage coming soon 4220288 Accessories carrier €4.03
23
 photo_cameraImage coming soon 4580780 Guard €2.02
25
 photo_cameraImage coming soon 4580570 Cover €1.65
26
 photo_cameraImage coming soon 4580880 Axle €17.71
27
 photo_cameraImage coming soon 4381100 Wheel €27.44
29
 photo_cameraImage coming soon 4980160 Pin €1.29
30
 photo_cameraImage coming soon 4381631 Guard €12.28
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4580640 Conveyor €10.20
2
 photo_cameraImage coming soon 4580660 Gland €6.22
4
 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow 4580900 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow €14.05
5
 photo_cameraImage coming soon 4380180 Protection €3.73
6
 photo_cameraImage coming soon 4580910 Delivery kit €25.86
7
 photo_cameraImage coming soon 4580650 Conveyor €9.73
8
 photo_cameraImage coming soon 4580870 Rubber foot €6.84
9
 photo_cameraImage coming soon 4580840 Guard €6.03
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
D1
 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 3082580 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 €17.11
A
 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480140 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €7.00
B
 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480150 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €24.00
D2
 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S 3480170 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S €13.72
G
 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 4580940 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 €20.49
F
 photo_cameraImage coming soon 4580950 TSS plug kit €14.38
F1
 photo_cameraImage coming soon 4581860 TSS kit €12.11
C
 photo_cameraImage coming soon 4581870 TSS kit €19.71
1
 AR Blue Clean 4.0 Twin Flow Electric Pump Assy 4580970 AR Blue Clean 4.0 Twin Flow Electric Pump Assy €152.47
2
 photo_cameraImage coming soon 4580960 Electric pump assembly €149.43
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380840 Cover €4.90
2
 photo_cameraImage coming soon 2180670 O RING €3.18
3
 AR Blue Clean 4.0 Twin Flow Switch 4580050 AR Blue Clean 4.0 Twin Flow Switch €23.19
5
 photo_cameraImage coming soon 4580680 Box €5.33
7
 photo_cameraImage coming soon 2021480 Grommet €4.16
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381485 Gun €24.94
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4381495 Extension €18.41
4
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
5
 photo_cameraImage coming soon 4581012 Lanceheads-holder €24.94
6
 AR Rev. 4.0 Rotopower head 4580990 AR Rev. 4.0 Rotopower head €15.21
7
 photo_cameraImage coming soon 4581000 Lance head €14.49
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53
10
 photo_cameraImage coming soon 4581030 High pressure hose €31.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi DTS 4K - 14823 Spare Parts

Fix Your Pressure Washer Annovi Reverberi Series DTS - 4K - 14823. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Pressure Washer Annovi Reverberi Series DTS - 4K - 14823
Annovi Reverberi Pressure Washer Serie DTS4K - 14823
Cleaning / Annovi Reverberi / HOME&GARDEN / Pressure Washers / Serie DTS / 4K • 14823

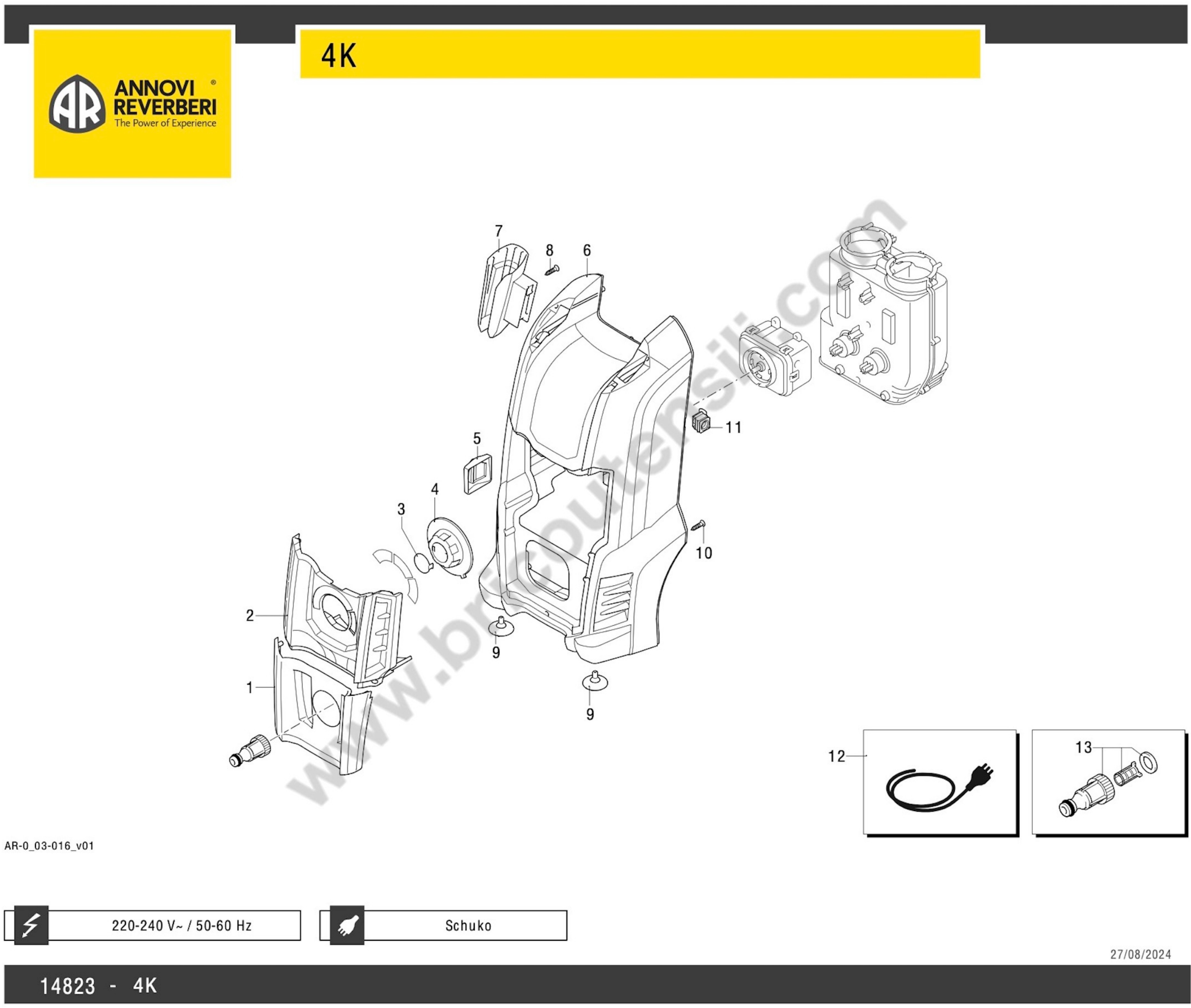

Casing Pag.1
Pos. Part Num. Description
1 4580530 Guard
2 4580524 Guard
3 4580800 Plug
4 4580670 Knob
5 4580630 Lock
6 4580500 Casing
7 4580590 Accessories carrier
8 5480500 Screw
9 4381640 Rubber foot
10 4582020 Screw
11 3080580 Cable gland
12 4580930 Cable
13 3082130 Water coupling kit

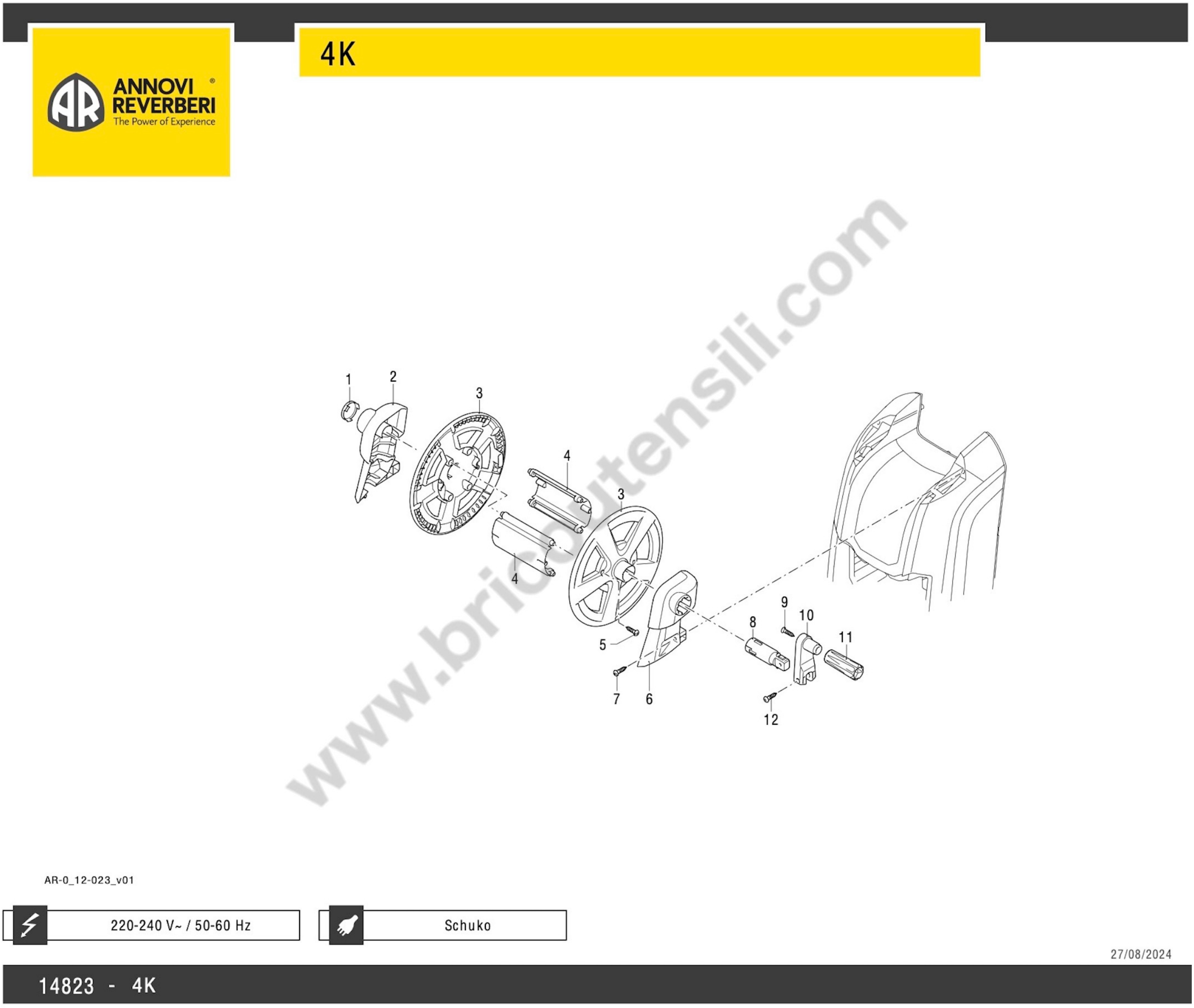

Hose Reel Pag.2
Pos. Part Num. Description
1 4820410 Cover
2 4580540 Bracket
3 4101680 Plate
4 4102120 Support
5 50943 Screw
6 4580550 Bracket
7 50943 Screw
8 4101750 Hub pin
9 5460700 Screw
10 4101660 Lever
11 4101678 Knob
12 4581980 Screw

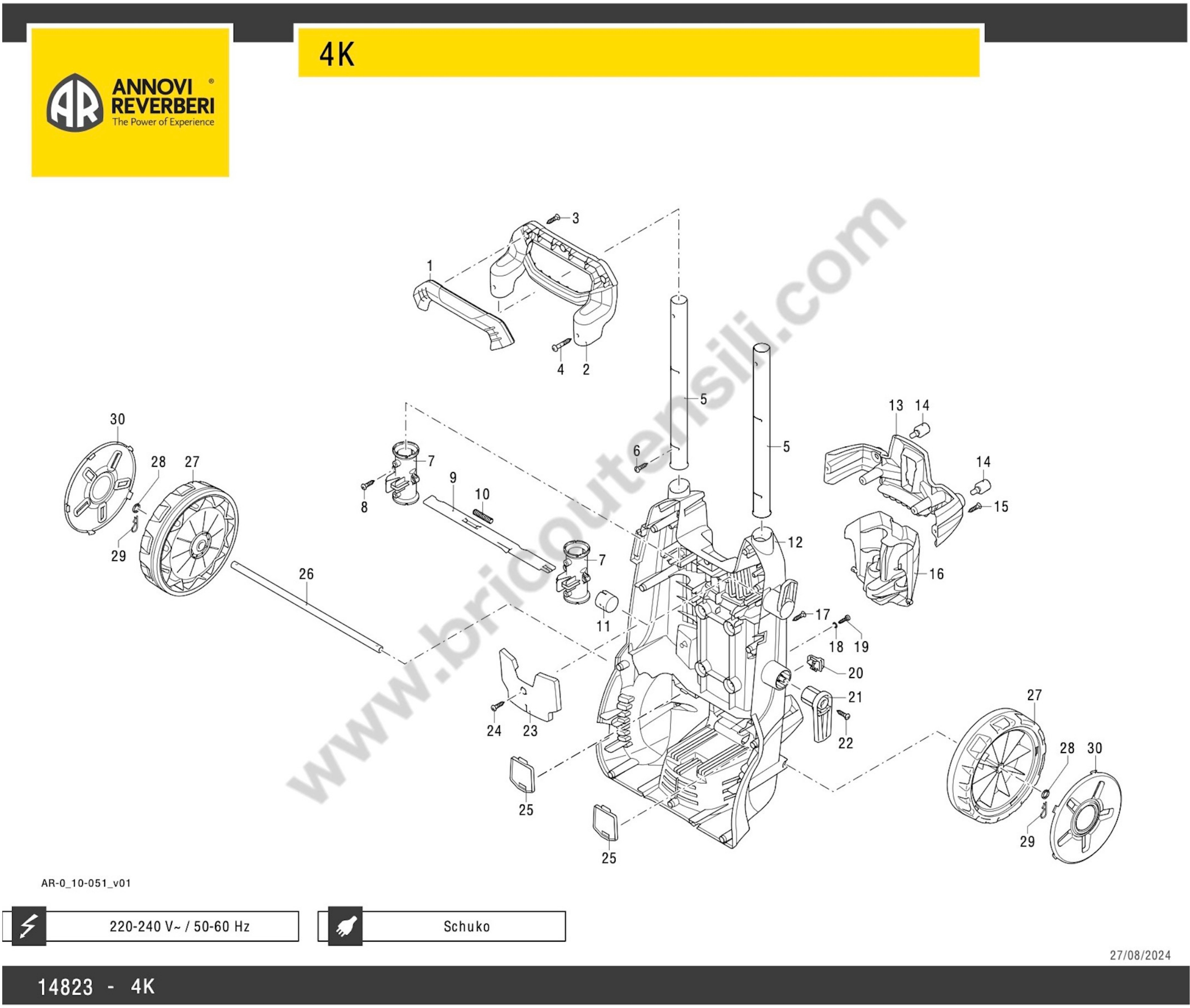

Carriage Pag.3
Pos. Part Num. Description
1 4580613 Knob
2 4580600 Handle
3 50943 Screw
4 4581990 Screw
5 4580770 Pipe
6 3081390 Screw
7 4821080 Guide
8 50943 Screw
9 4821110 Hook
10 4821020 Spring
11 4220277 Lever
12 4580560 Base
13 4580620 Accessories carrier
14 2180330 Rubber foot
15 50943 Screw
16 4580763 Accessories carrier
17 50943 Screw
18 4581960 Washer
19 4582010 Screw
20 4100186 Lever
21 4220288 Accessories carrier
22 4240590 Screw
23 4580780 Guard
24 50943 Screw
25 4580570 Cover
26 4580880 Axle
27 4381100 Wheel
28 4980170 Washer
29 4980160 Pin
30 4381631 Guard
Guard Pag.4
Pos. Part Num. Description
1 4580640 Conveyor
2 4580660 Gland
3 5480500 Screw
4 4580900 Suction kit
5 4380180 Guard
6 4580910 Delivery kit
7 4580650 Conveyor
8 4580870 Rubber foot
9 4580840 Guard
10 5480500 Screw

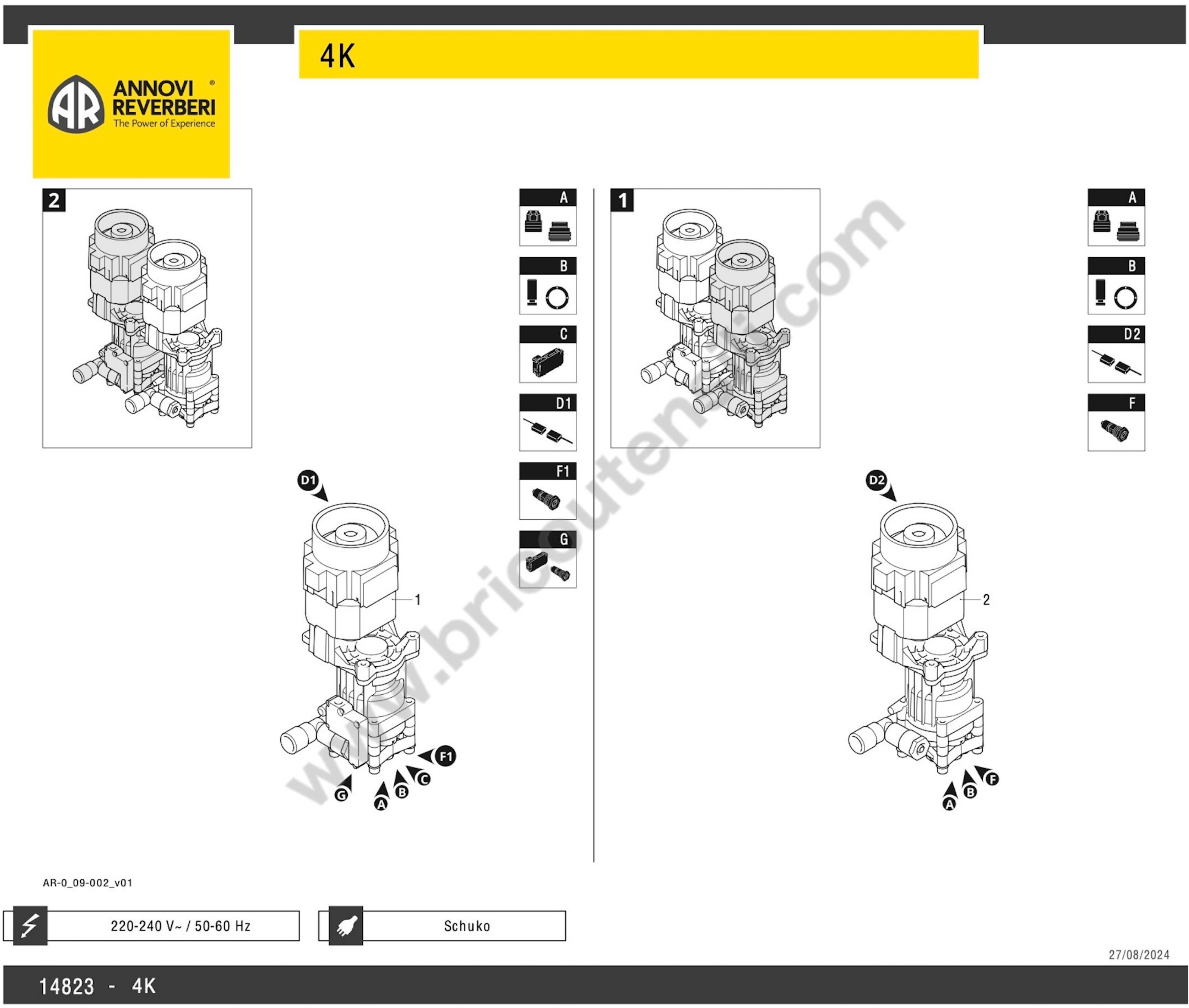

Electric Pump Pag.5
Pos. Part Num. Description
1 4580970 Electric pump assembly
2 4580960 Electric pump assembly
A 3480140 Valves + seals kit
B 3480150 Piston + seals kit
C 4581870 TSS kit
D1 3082580 Brush kit for motor
D2 3480170 Brush kit for motor
F 4580950 TSS plug kit
F1 4581860 Valve kit TSS
G 4580940 TSS kit

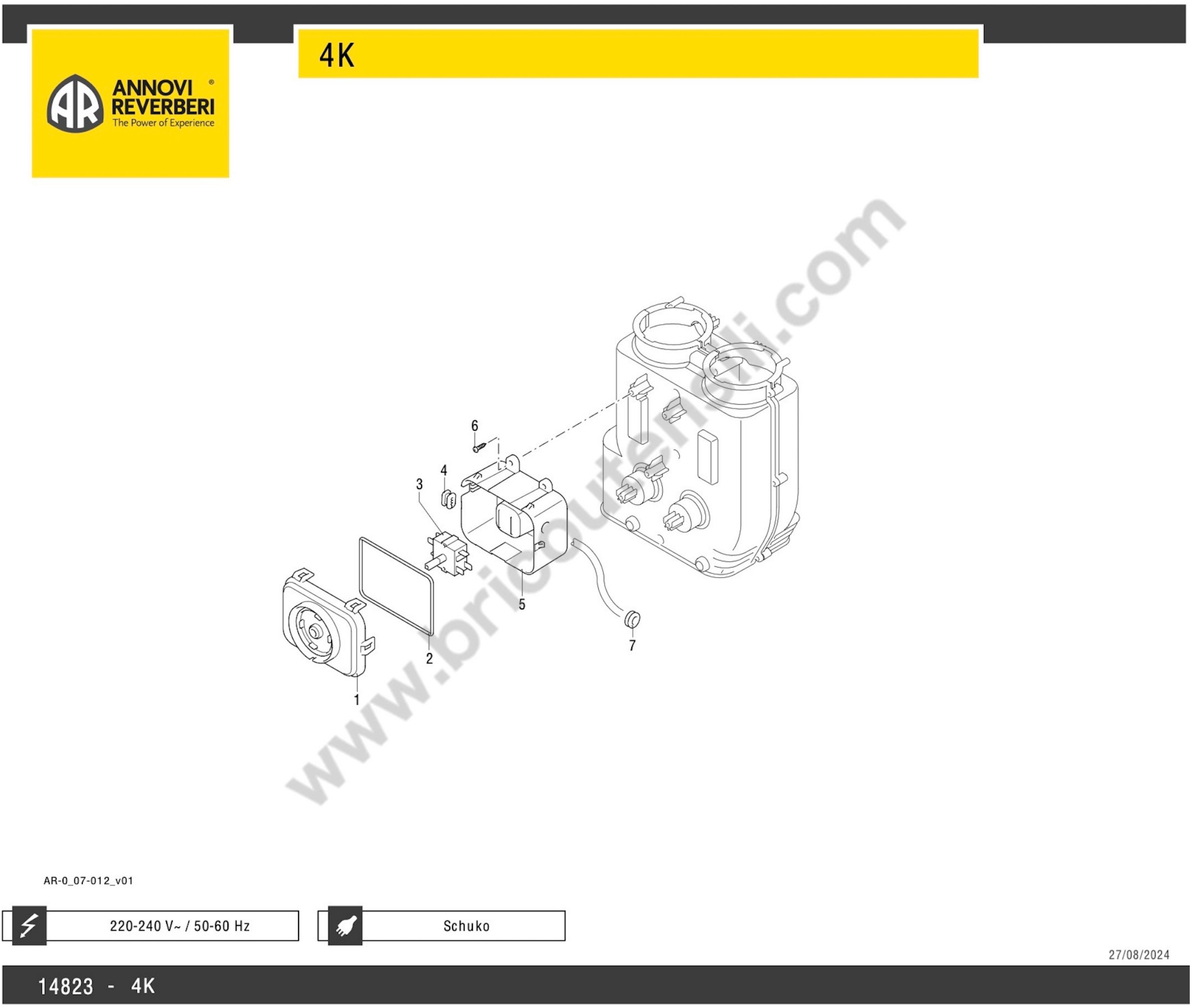

Carriage Pag.6
Pos. Part Num. Description
1 4380840 Cover
2 2180670 O-ring
3 4580050 Switch
4 4580660 Gland
5 4580680 Box
6 50943 Screw
7 2021480 Gland

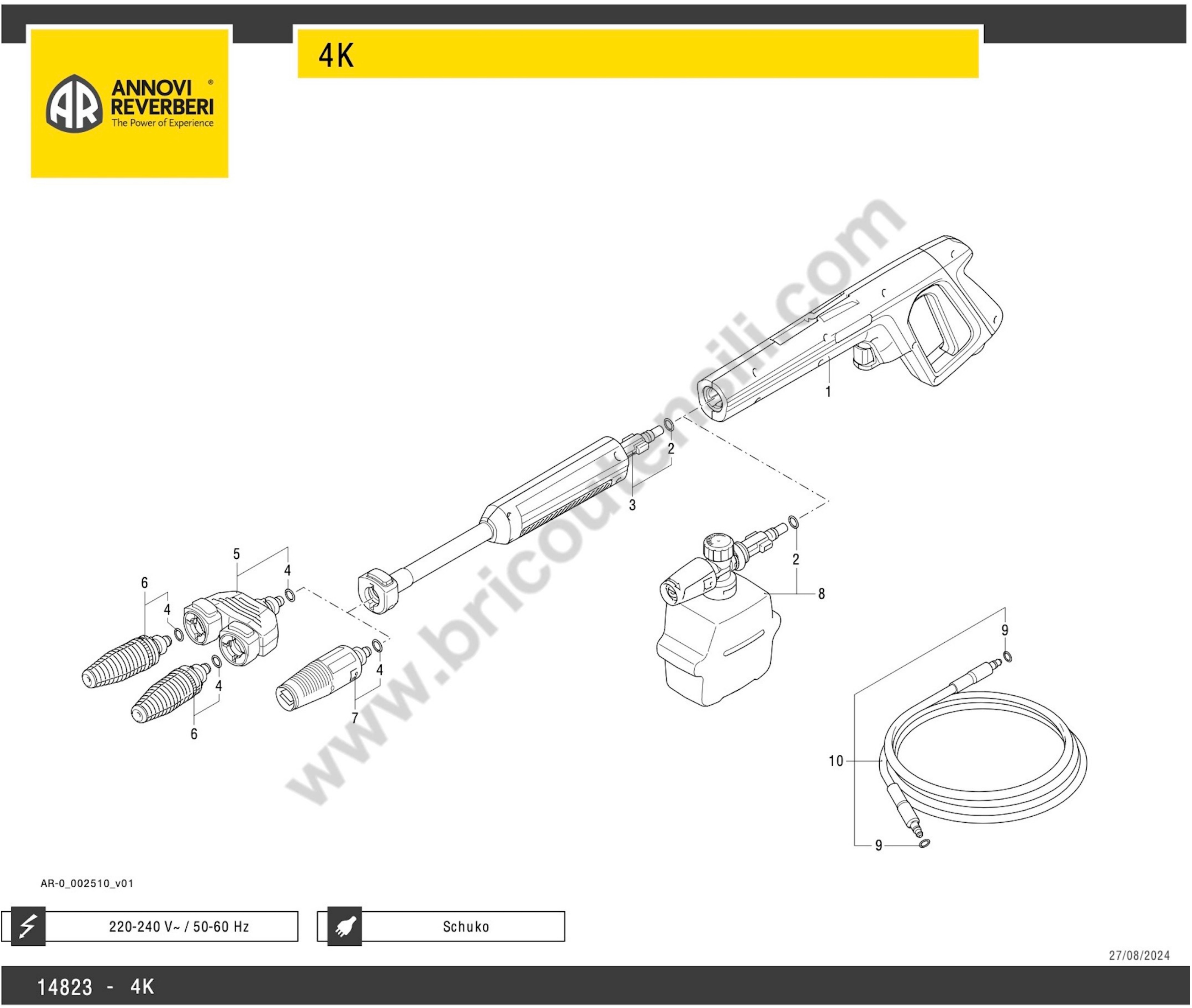

Standard Accessories Pag.7
Pos. Part Num. Description
1 4381485 Gun
2 3083700 O-ring
3 4381495 Extension (Lance)
4 3083370 O-ring
5 4581012 Lanceheads-holder
6 4580990 Rotopower Head
7 4581000 Lance head (Adjustable jet)
8 4580989 High pressure foam lance
9 3083400 O-ring
10 4581030 High pressure hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Rev. DTS4K-14823
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Annovi Reverberi DTS 4K Drawing

Annovi Reverberi DTS 4K Drawing

Download (1.69MB)

You might also like

Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590
Annovi Reverberi S.p.A. SKU: 3082130
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 Kit for water inlet with impurities filter, original spare Annovi Reverberi for repair or replacement of damaged parts, for models Blue Clean AR395 - AR490 - AR588 -...
Last items in stock €4.95
Details
O-Ring for Pressure Washers AR Proliner SV
Annovi Reverberi S.p.A. SKU: 390080
O-Ring for Pressure Washers AR Proliner SV
O-Ring for Pressure Washers AR Proliner SV Original part Annovi & Rverberi, O-Ring For the Following Products: - Modelli 50 Hz - Serie 6 - 620 - 12359 - Modelli 50 Hz - Serie 6 - 625 - 13711 - Modelli 50 Hz - Serie 6 - 630 - 12360 -...
AVAILABLE €0.49
Details
O-Ring for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 3083700
O-Ring for Pressure Washers Black & Decker
O-Ring for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring For the Following Products: - Black & Decker - BXPW 1300 E - 14107 - Black & Decker - BXPW 1300 PE - 14117 - Black & Decker - BXPW 1400 E -...
AVAILABLE €0.53
Details
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow
Annovi Reverberi S.p.A. SKU: 4580900
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow Original Part Annovi Reverberi, Suction Kit for Pressure Washers Twin-Flow > 4.0 ARBC - 14792 - Stanley > SXPW25DTS-E - 14796 . Replacement for the...
Usually Ships in: 7/10 Business Days Approx. €14.05
Details
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0
Annovi Reverberi S.p.A. SKU: 4580940
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 Genuine part Annovi Reverberi, TSS-Kit for Pressure Washers AR Blue Clean Series DTS 4.0 - 5.0. Part for the following products: - ...
Last items in stock €20.49
Details
AR Blue Clean 4.0 Twin Flow Switch
Annovi Reverberi S.p.A. SKU: 4580050
AR Blue Clean 4.0 Twin Flow Switch
AR Blue Clean 4.0 Twin Flow Switch Genuine part Annovi Reverberi, 3-Way Square Rotary Switch for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley SXPW25DTS-E 14796 -...
Last items in stock €23.19
Details
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y
Annovi Reverberi S.p.A. SKU: 4580970
AR Blue Clean 4.0 Twin Flow Electric Pump Assy
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y Genuine part Annovi Reverberi, Electric Pump Assembly for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley...
Last items in stock €152.47
Details
AR Rev. 4.0 Rotopower head
Annovi Reverberi S.p.A. SKU: 4580990
AR Rev. 4.0 Rotopower head
AR Rev. 4.0 Twin Flow Rotopower Head Original spare part by Annovi & Reverberi, Rotopower Head for pressure washers Rev. 4.0 Twin Flow – Stanley SXPW25DTS-E – Twin-Flow 4.M – Annovi Rev. DTS4K. Parts for the following products: -...
Last items in stock €15.21
Details
Annovi Accessory Holder for AR589
Annovi Reverberi S.p.A. SKU: 4580590
Annovi Accessory Holder for AR589
Annovi Accessory Holder for Pressure Washer AR589 Genuine part Annovi Reverberi, Accessory Holder for Pressure Washer AR589 - AR 4.0 Twin Flow. Part for the Following Products: -  Pressure Washer Pressure Washer Annovi Reverberi...
Usually Ships in: 7/10 Business Days Approx. €7.72
Details
Comments (0)
