Annovi Reverberi DTS - 5.0 - 14793 Spare Parts

SKU: Annovi Rev. DTS - 5.0 - 14793
€10.75
VAT included

Annovi Reverberi DTS - 5.0 - 14793 Spare Parts

We have the original Annovi Reverberi Parts for Pressure Washer Series DTS - 5.0 Twin Flow - 14793, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi Series DTS - 5.0 Twin Flow - 14793. All Spares are original and can be supplied at Low and discounted prices.

Pressure Washer Annovi Reverberi Series DTS - 5.0 - 14793

Annovi Reverberi DTS - 5.0 - 14793 Spare Parts
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts - Casing
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts - Carriage
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts - Guard
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts - Electric Pump
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts - Electric Circuit
  • Annovi Reverberi DTS - 5.0 - 14793 Spare Parts - Standard Accessories
Annovi Reverberi S.p.A.

Annovi Reverberi DTS - 5.0 - 14793 Spare Parts

SKU: Annovi Rev. DTS - 5.0 - 14793 Condition: New
€10.75
VAT included

Annovi Reverberi DTS - 5.0 - 14793 Spare Parts

We have the original Annovi Reverberi Parts for Pressure Washer Series DTS - 5.0 Twin Flow - 14793, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi Series DTS - 5.0 Twin Flow - 14793. All Spares are original and can be supplied at Low and discounted prices.

Pressure Washer Annovi Reverberi Series DTS - 5.0 - 14793

settings 79 Spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

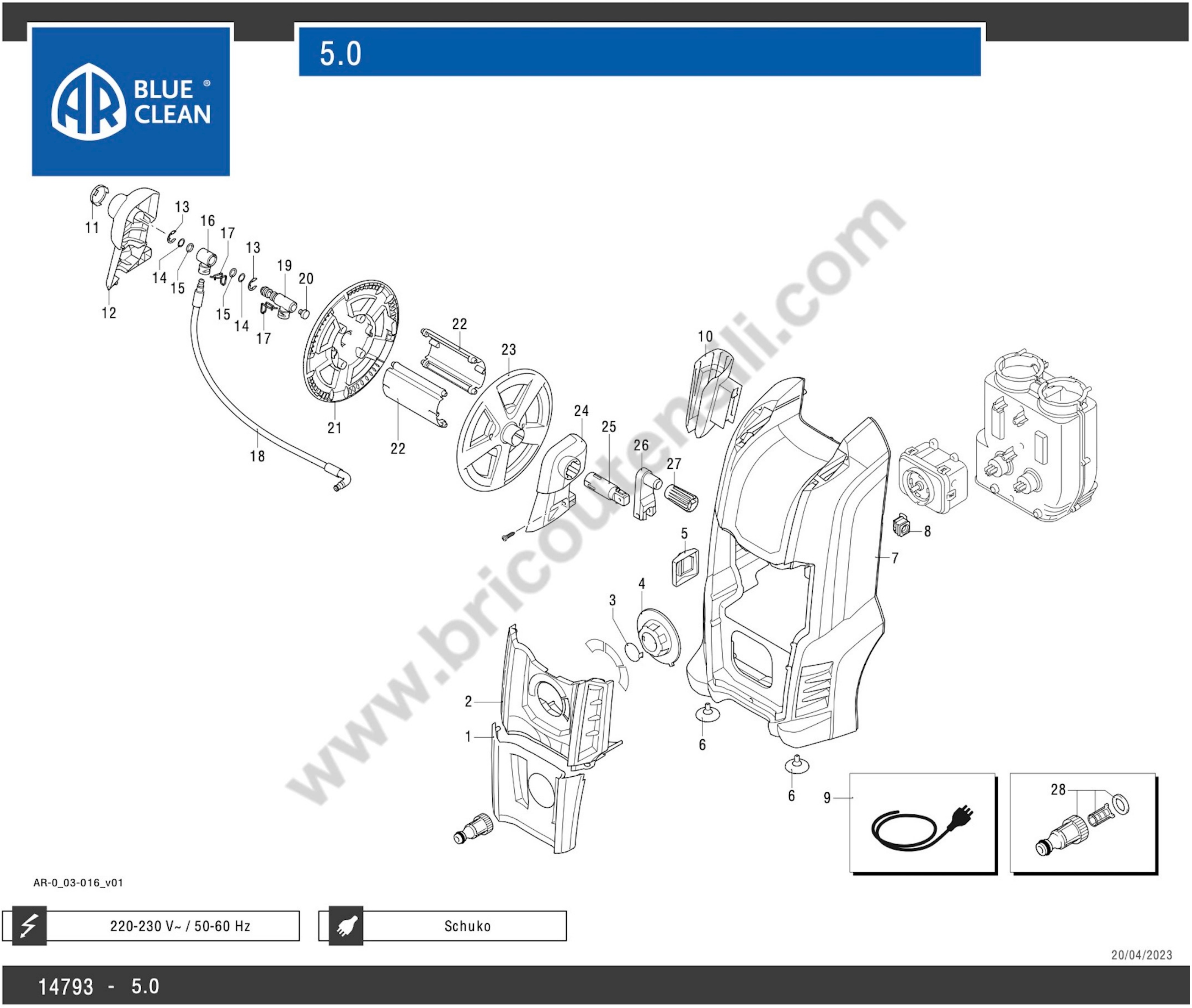

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4580530 Guard €10.44
2
 photo_cameraImage coming soon 4580520 Guard €18.04
3
 photo_cameraImage coming soon 4580800 Plug €1.92
4
 photo_cameraImage coming soon 4580670 Knob €2.91
5
 photo_cameraImage coming soon 4580630 Lock €1.42
6
 photo_cameraImage coming soon 4381640 Rubber foot €1.65
7
 photo_cameraImage coming soon 4580500 Casing €23.34
8
 photo_cameraImage coming soon 3080580 cable clamp €1.37
9
 photo_cameraImage coming soon 4580930 Cable €24.63
10
 Annovi Accessory Holder for AR589 4580590 Annovi Accessory Holder for AR589 €6.56
11
 photo_cameraImage coming soon 4820410 Cover €1.04
12
 photo_cameraImage coming soon 4580540 Bracket €7.65
13
 photo_cameraImage coming soon 4101710 Ring €0.83
14
 photo_cameraImage coming soon 4200060 Ring €0.35
15
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
16
 photo_cameraImage coming soon 4101760 Fitting €19.15
17
 photo_cameraImage coming soon 4101520 Fork €0.40
18
 photo_cameraImage coming soon 4581060 High pressure hose €26.12
19
 photo_cameraImage coming soon 4581020 Fitting €21.86
20
 photo_cameraImage coming soon 4580450 Screw €0.57
21
 photo_cameraImage coming soon 4101770 Plate €11.18
22
 photo_cameraImage coming soon 4101730 Support €5.30
23
 photo_cameraImage coming soon 4101680 Plate €11.18
24
 photo_cameraImage coming soon 4580550 Bracket €7.65
25
 photo_cameraImage coming soon 4101750 Hub pin €2.54
26
 photo_cameraImage coming soon 4101660 Lever €3.68
27
 Knob 4101673 Knob €2.54
28
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

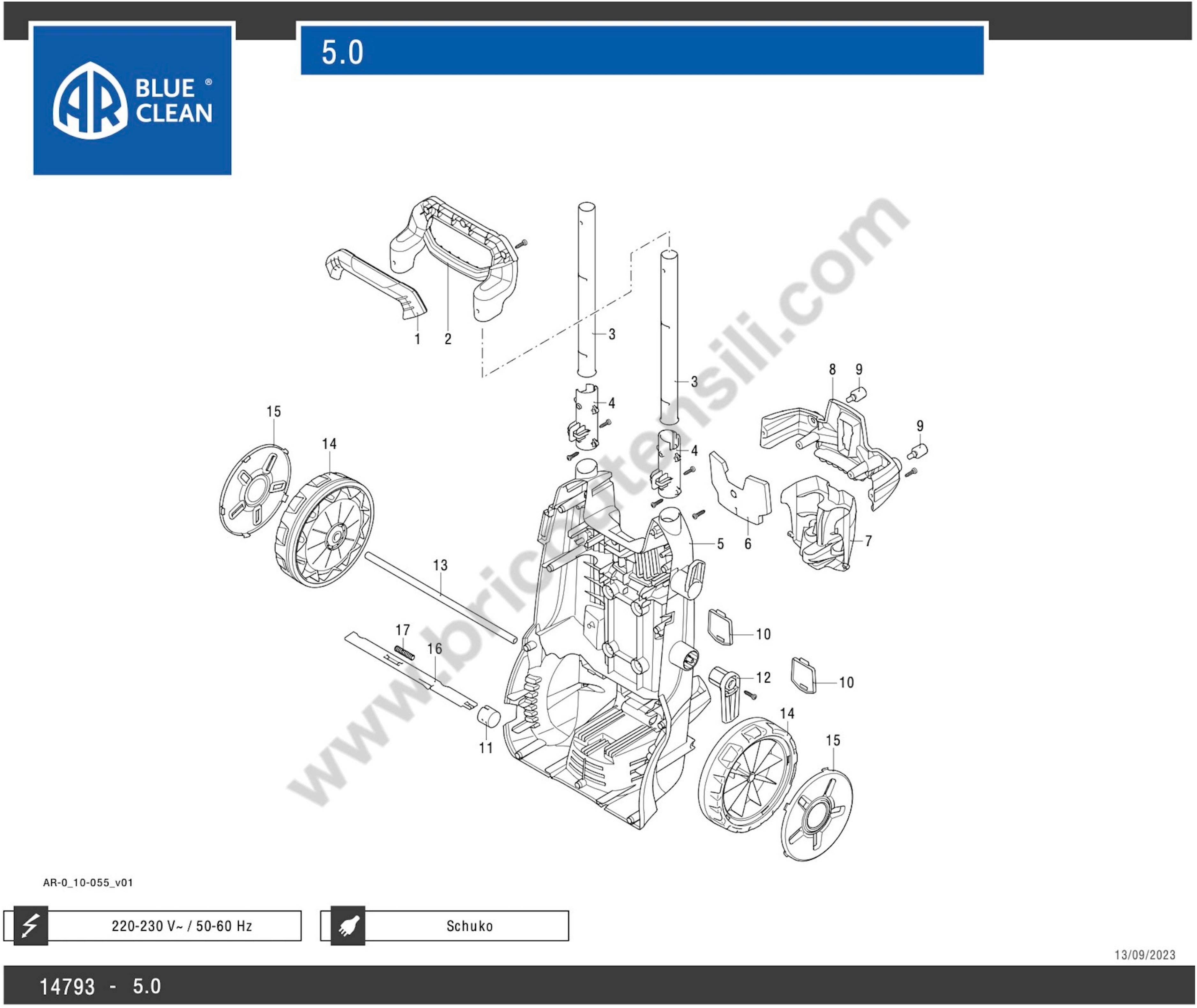

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4580610 Knob €4.89
2
 photo_cameraImage coming soon 4580600 Handle €10.69
3
 photo_cameraImage coming soon 4580770 Pipe €17.80
4
 photo_cameraImage coming soon 4821080 Guide €4.34
5
 photo_cameraImage coming soon 4580560 base €24.63
6
 photo_cameraImage coming soon 4580780 Guard €1.63
7
 photo_cameraImage coming soon 4580760 Accessories carrier €7.81
8
 photo_cameraImage coming soon 4580620 Accessories carrier €9.16
9
 photo_cameraImage coming soon 2180330 Rubber €3.86
10
 photo_cameraImage coming soon 4580570 Cover €1.31
11
 photo_cameraImage coming soon 4220271 Lever €0.45
12
 photo_cameraImage coming soon 4220280 Accessories carrier €1.31
13
 photo_cameraImage coming soon 4580880 Axle €15.03
14
 photo_cameraImage coming soon 4381100 Wheel €23.34
15
 photo_cameraImage coming soon 4381631 Guard €10.64
16
 photo_cameraImage coming soon 4821110 Hook €1.11
17
 photo_cameraImage coming soon 4821020 Spring €0.35
Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

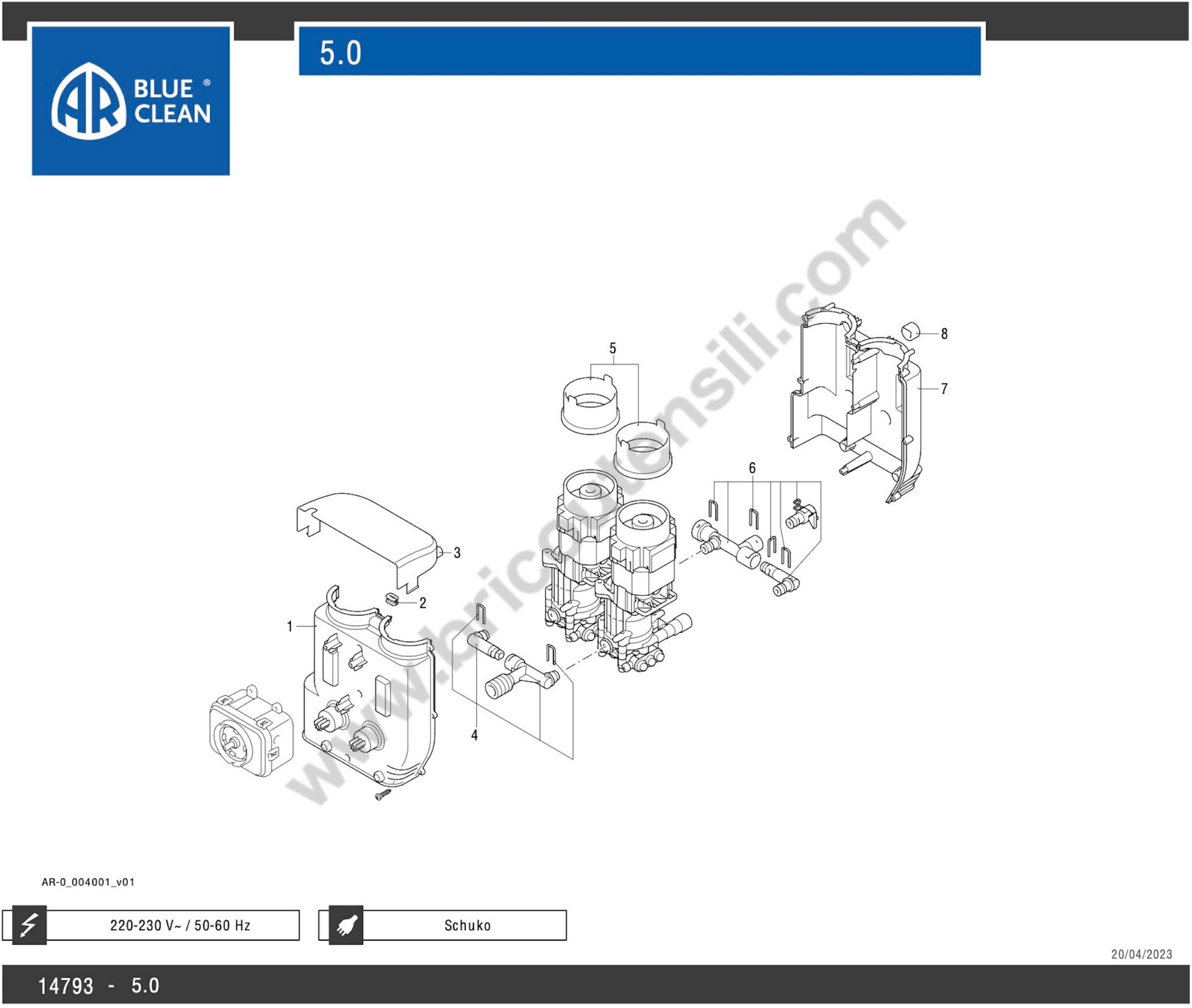

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4580640 Conveyor €8.63
2
 Gland 4580660 Gland €2.12
3
 photo_cameraImage coming soon 4580840 Guard €5.04
4
 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow 4580900 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow €11.50
5
 photo_cameraImage coming soon 4380180 Protection €3.07
6
 photo_cameraImage coming soon 4580911 Delivery kit €23.09
7
 photo_cameraImage coming soon 4580650 Conveyor €8.20
8
 photo_cameraImage coming soon 4580870 Rubber foot €5.76
Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

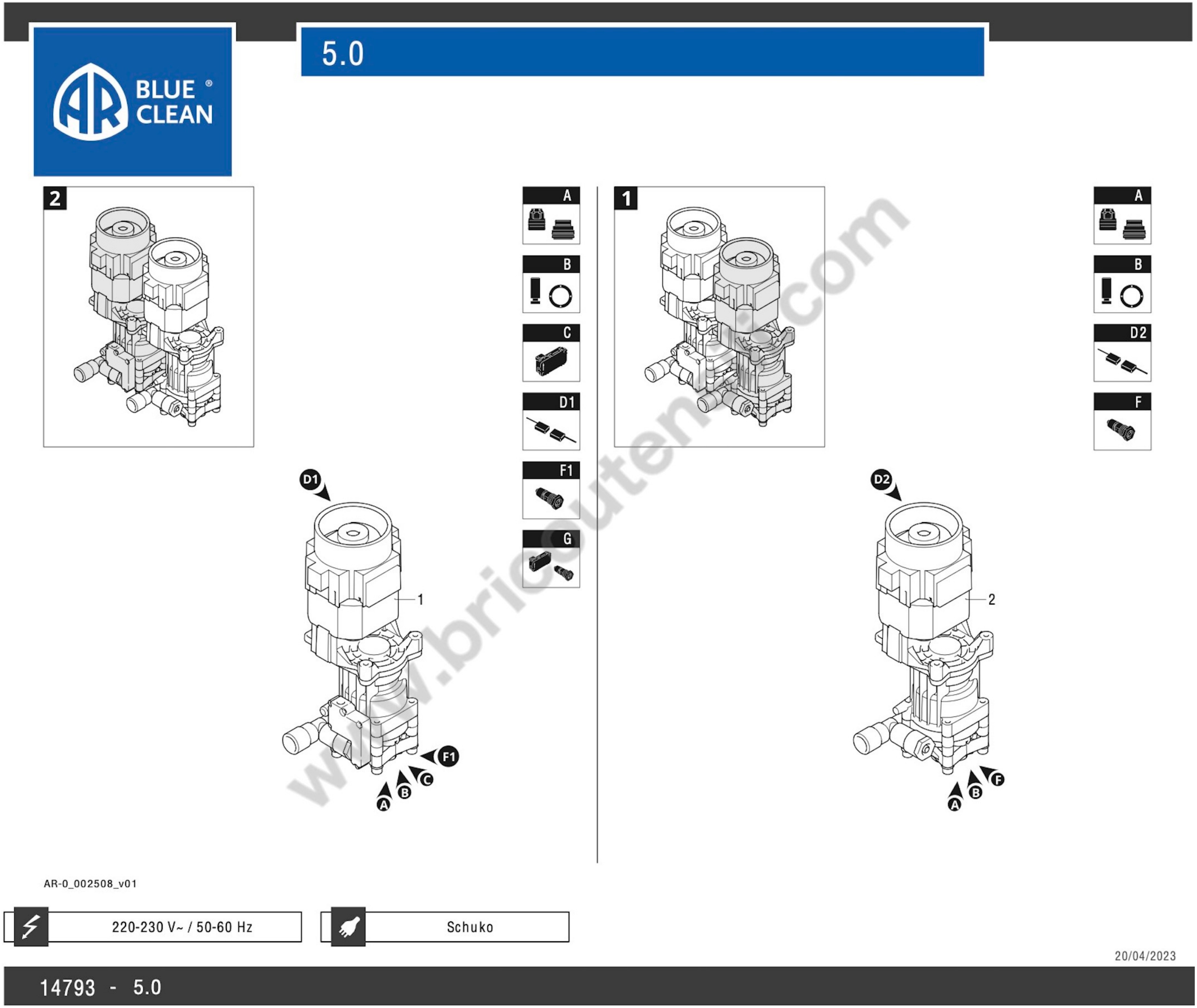

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
D1
 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 3082580 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 €9.90
A
 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480140 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €6.51
B
 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480150 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €21.86
D2
 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S 3480170 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S €8.00
G
 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 4580940 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 €19.49
F
 photo_cameraImage coming soon 4580950 TSS plug kit €12.20
F1
 TSS kit 4581860 TSS kit €10.25
C
 photo_cameraImage coming soon 4581870 TSS kit €16.76
1
 AR Blue Clean 4.0 Twin Flow Electric Pump Assy 4580970 AR Blue Clean 4.0 Twin Flow Electric Pump Assy €143.23
2
 photo_cameraImage coming soon 4580960 Electric pump assembly €128.04
Page 5 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

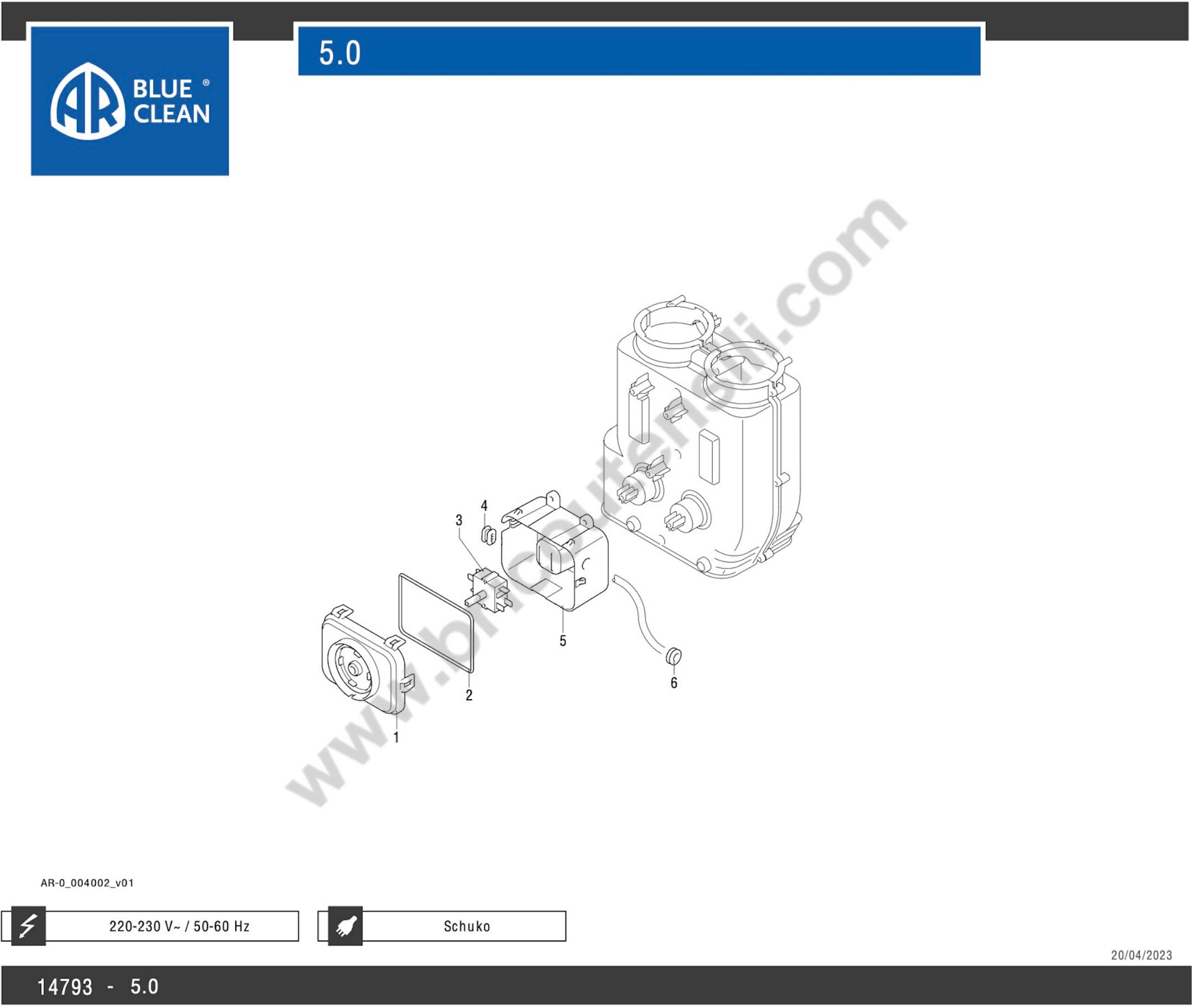

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380840 Cover €3.75
2
 photo_cameraImage coming soon 2180670 O RING €1.99
3
 AR Blue Clean 4.0 Twin Flow Switch 4580050 AR Blue Clean 4.0 Twin Flow Switch €19.15
4
 Gland 4580660 Gland €2.12
5
 photo_cameraImage coming soon 4580680 Box €5.33
6
 photo_cameraImage coming soon 2021480 Grommet €2.54
Page 6 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

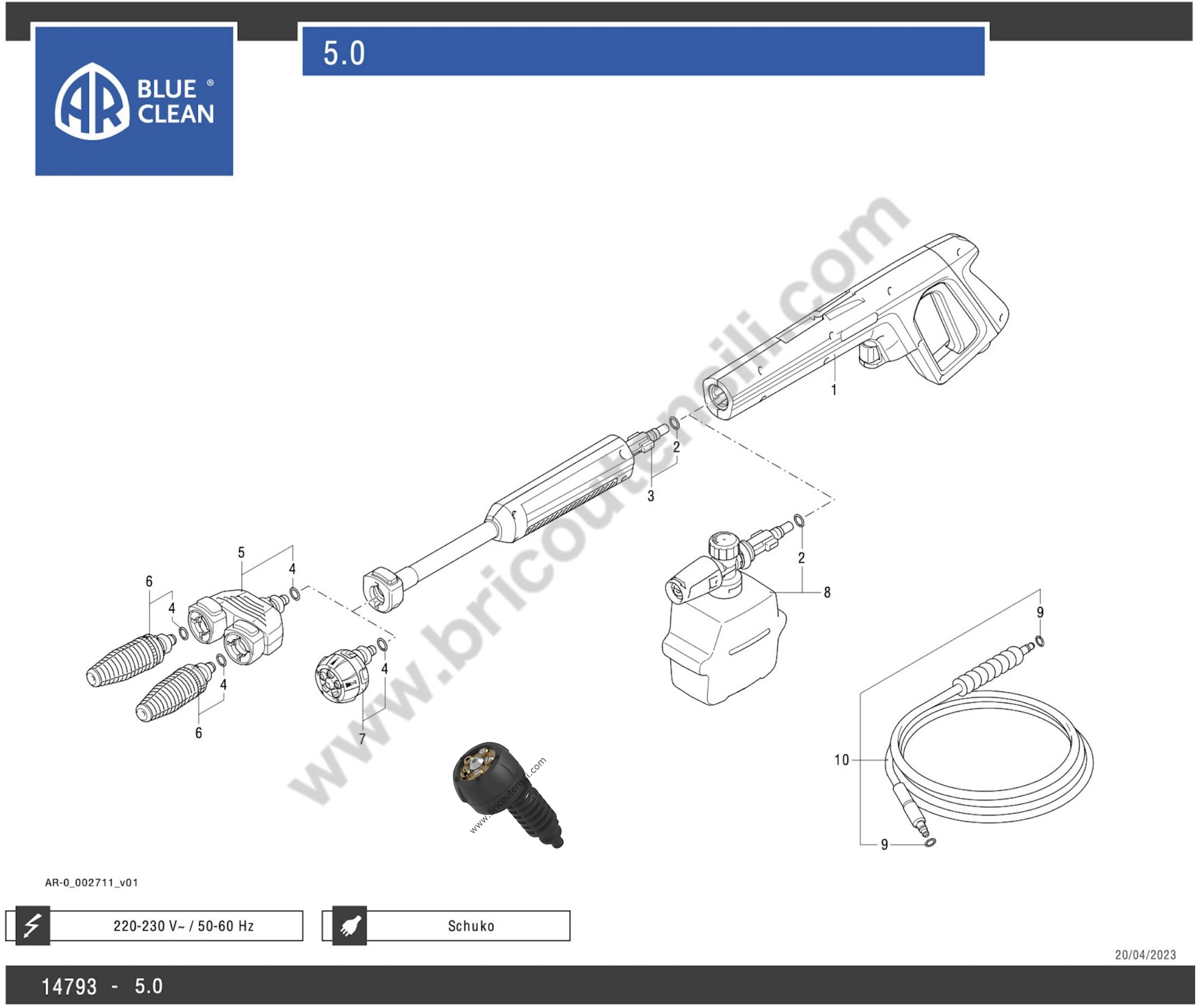

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381482 Gun €22.79
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.40
3
 photo_cameraImage coming soon 4381492 Extension €19.36
4
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.40
5
 photo_cameraImage coming soon 4581010 Lanceheads-holder €13.68
6
 AR Rev. 4.0 Rotopower head 4580990 AR Rev. 4.0 Rotopower head €15.21
7
 photo_cameraImage coming soon 4102370 Lance head €35.65
8
 photo_cameraImage coming soon 4580981 Lance €20.51
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.40
10
 photo_cameraImage coming soon 4581180 High pressure hose €39.46
500
 Head 46342 Head €36.69

Shipping and delivery information will be available shortly.

Annovi Reverberi DTS - 5.0 - 14793 Spare Parts

We have the original Annovi Reverberi Parts for Pressure Washer Series DTS - 5.0 Twin Flow - 14793, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi Series DTS - 5.0 Twin Flow - 14793. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi Series DTS - 5.0 - 14793

Annovi Reverberi Pressure Washer Series DTS - 5.0 Twin Flow - 14793 - Spare Parts
Casing Pag.1
# Part Num. Description
1 4580530 Guard
2 4580520 Guard
3 4580800 Plug
4 4580670 Knob
5 4580630 Lock
6 4381640 Rubber foot
7 4580500 Casing
8 3080580 Cable gland
9 4580930 Cable
10 4580590 Accessories carrier
11 4820410 Cover
12 4580540 Bracket
13 4101710 Ring
14 4200060 Ring
15 390080 O-ring
16 4101760 Fitting
17 4101520 Fork
18 4581060 High pressure hose
19 4581020 Fitting
20 4580450 Screw
21 4101770 Plate
22 4101730 Support
23 4101680 Plate
24 4580550 Bracket
25 4101750 Hub pin
26 4101660 Lever
27 4101673 Knob
28 3082130 Water coupling kit
Carriage Pag.2
1 4580610 Knob
2 4580600 Handle
3 4580770 Pipe
4 4821080 Guide
5 4580560 Base
6 4580780 Guard
7 4580760 Accessories carrier
8 4580620 Accessories carrier
9 2180330 Rubber foot
10 4580570 Cover
11 4220271 Lever
12 4220280 Accessories carrier
13 4580880 Axle
14 4381100 Wheel
15 4381631 Guard
16 4821110 Hook
17 4821020 Spring
Guard Pag.3
1 4580640 Conveyor
2 4580660 Gland
3 4580840 Guard
4 4580900 Suction kit
5 4380180 Guard
6 4580911 Delivery kit
7 4580650 Conveyor
8 4580870 Rubber foot
Electric Pump Pag.4
1 4580970 Electric pump assembly
2 4580960 Electric pump assembly
A 3480140 Valves + seals kit
B 3480150 Piston + seals kit
C 4581870 TSS kit
D1 3082580 Brush kit for motor
D2 3480170 Brush kit for motor
F 4580950 TSS plug kit
F1 4581860 TSS kit
G 4580940 TSS kit
Electric Circuit Pag.5
1 4380840 Cover
2 2180670 O-ring
3 4580050 Switch
4 4580660 Gland
5 4580680 Box
6 2021480 Gland
Standard Accessories Pag.6
1 4381482 Gun
2 3083700 O-ring
3 4381492 Extension
4 3083370 O-ring
5 4581010 Lanceheads-holder
6 4580990 Rotopower head
7 4102370 Lance head
8 4580981 Lance
9 3083400 O-ring
10 4581180 High pressure hose
500 46342 Head
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Rev. DTS - 5.0 - 14793
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type
Pressure Washer

Specific References

New

Download

Annovi Reverberi DTS 5.0 Drawing

Annovi Reverberi DTS 5.0 Drawing

Download (3.19MB)

You might also like

O-Ring for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 3083700
O-Ring for Pressure Washers Black & Decker
O-Ring for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring For the Following Products: - Black & Decker - BXPW 1300 E - 14107 - Black & Decker - BXPW 1300 PE - 14117 - Black & Decker...
AVAILABLE €0.40
Details
Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S
Annovi Reverberi S.p.A. SKU: 3480170
Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S
Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S Genuine part Black & Decker, Kit Motor Brushes for Pressure Washers B&D PW 1300 S-TD-TDW - 1400 S-TDK - TDK PLUS - PW 1500 S - S PLUS - BXPW 1300-1400-1500 E...
AVAILABLE €8.00
Details
O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 3083400
O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker
O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker Original part Annovi & Rverberi, HP Hose O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker - Michelin - AR BC - ARSG - Stanley. Part for the...
Usually Ships in: 7/10 Business Days Approx. €0.40
Details
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 3083370
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker Original part Annovi & Rverberi, HP Hose O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker - Michelin - AR BC - ARSG - Stanley. Part for the...
AVAILABLE €0.40
Details
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow
Annovi Reverberi S.p.A. SKU: 4580900
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow Original Part Annovi Reverberi, Suction Kit for Pressure Washers Twin-Flow > 4.0 ARBC - 14792 - Stanley > SXPW25DTS-E - 14796 . Replacement for the Following Products: -  AR...
Usually Ships in: 7/10 Business Days Approx. €11.50
Details
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0
Annovi Reverberi S.p.A. SKU: 4580940
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 Genuine part Annovi Reverberi, TSS-Kit for Pressure Washers AR Blue Clean Series DTS 4.0 - 5.0. Part for the following products: -  Cleaning - AR Blue Clean - HOME&GARDEN -...
Usually Ships in: 10 Business Days Approx. €19.49
Details
AR Blue Clean 4.0 Twin Flow Switch
Annovi Reverberi S.p.A. SKU: 4580050
AR Blue Clean 4.0 Twin Flow Switch
AR Blue Clean 4.0 Twin Flow Switch Genuine part Annovi Reverberi, 3-Way Square Rotary Switch for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley SXPW25DTS-E 14796 -...
Usually Ships in: 10/15 Business Days Approx. €19.15
Details
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y
Annovi Reverberi S.p.A. SKU: 4580970
AR Blue Clean 4.0 Twin Flow Electric Pump Assy
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y Genuine part Annovi Reverberi, Electric Pump Assembly for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley SXPW25DTS-E...
Usually Ships in: 10/15 Business Days Approx. €143.23
Details
AR Rev. 4.0 Rotopower head
Annovi Reverberi S.p.A. SKU: 4580990
AR Rev. 4.0 Rotopower head
AR Rev. 4.0 Twin Flow Rotopower Head Original spare part by Annovi & Reverberi, Rotopower Head for pressure washers Rev. 4.0 Twin Flow – Stanley SXPW25DTS-E – Twin-Flow 4.M – Annovi Rev. DTS4K. Parts for the following products: -...
Usually Ships in 10 Business Days Approx. €15.21
Details
Annovi Accessory Holder for AR589
Annovi Reverberi S.p.A. SKU: 4580590
Annovi Accessory Holder for AR589
Annovi Accessory Holder for Pressure Washer AR589 Genuine part Annovi Reverberi, Accessory Holder for Pressure Washer AR589 - AR 4.0 Twin Flow. Part for the Following Products: -  Pressure Washer Pressure Washer Annovi Reverberi...
Usually Ships in: 7/10 Business Days Approx. €6.56
Details
Comments (0)
No customer reviews for the moment.
