Annovi Reverberi S.p.A.

Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029

SKU: Annovi Rev. Twin-Flow e-4 15029
€1.35
VAT included

Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029

We have the original Annovi Reverberi Parts for Pressure Washer e-4 TWINFLOW - 15029, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi e-4 TWINFLOW - 15029. All Spares are original and can be supplied at Low prices. Our Spares are Guarantee

Annovi Reverberi e-4 TWINFLOW - 15029
Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029
  • Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029
  • Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029 - Diagram
  • Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029 - Diagram - 1
  • Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029 - Diagram - 2
  • Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029 - Diagram - 3
  • Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029 - Diagram - 4
Annovi Reverberi S.p.A.

Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029

SKU: Annovi Rev. Twin-Flow e-4 15029 Condition: New
€1.35
VAT included

Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029

We have the original Annovi Reverberi Parts for Pressure Washer e-4 TWINFLOW - 15029, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi Reverberi e-4 TWINFLOW - 15029. All Spares are original and can be supplied at Low prices. Our Spares are Guarantee

Annovi Reverberi e-4 TWINFLOW - 15029
settings 65 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Ship on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

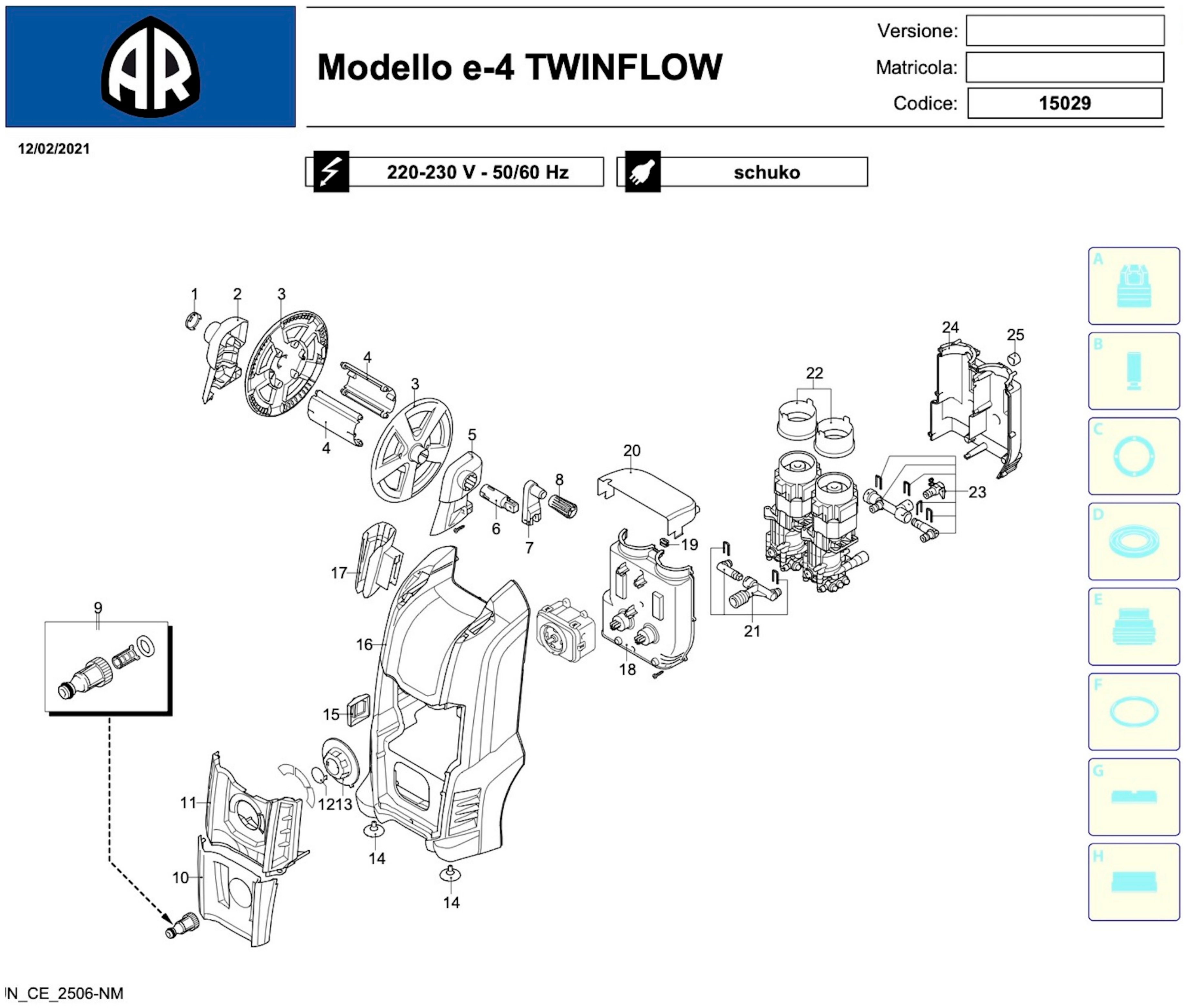

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4820410 Cover €2.26
2
 photo_cameraImage coming soon 4580540 Bracket €9.09
3
 photo_cameraImage coming soon 4101680 Plate €13.18
4
 photo_cameraImage coming soon 4102120 Support €7.99
5
 photo_cameraImage coming soon 4580550 Bracket €9.09
6
 photo_cameraImage coming soon 4101750 Hub pin €3.71
7
 photo_cameraImage coming soon 4101660 Lever €4.84
8
 photo_cameraImage coming soon 4101673 Knob €4.27
9
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
12
 photo_cameraImage coming soon 4580800 Plug €3.12
13
 photo_cameraImage coming soon 4580670 Knob €2.91
14
 photo_cameraImage coming soon 4381640 Rubber foot €2.85
15
 photo_cameraImage coming soon 4580630 Lock €1.42
16
 photo_cameraImage coming soon 4580500 Casing €27.44
17
 Annovi Accessory Holder for AR589 4580590 Annovi Accessory Holder for AR589 €7.72
18
 photo_cameraImage coming soon 4580640 Conveyor €10.20
19
 photo_cameraImage coming soon 4580660 Gland €6.22
20
 photo_cameraImage coming soon 4580840 Guard €6.03
21
 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow 4580900 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow €14.05
22
 photo_cameraImage coming soon 4380180 Protection €3.73
23
 photo_cameraImage coming soon 4580910 Delivery kit €25.86
24
 photo_cameraImage coming soon 4580650 Conveyor €9.73
25
 photo_cameraImage coming soon 4580870 Rubber foot €6.84
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

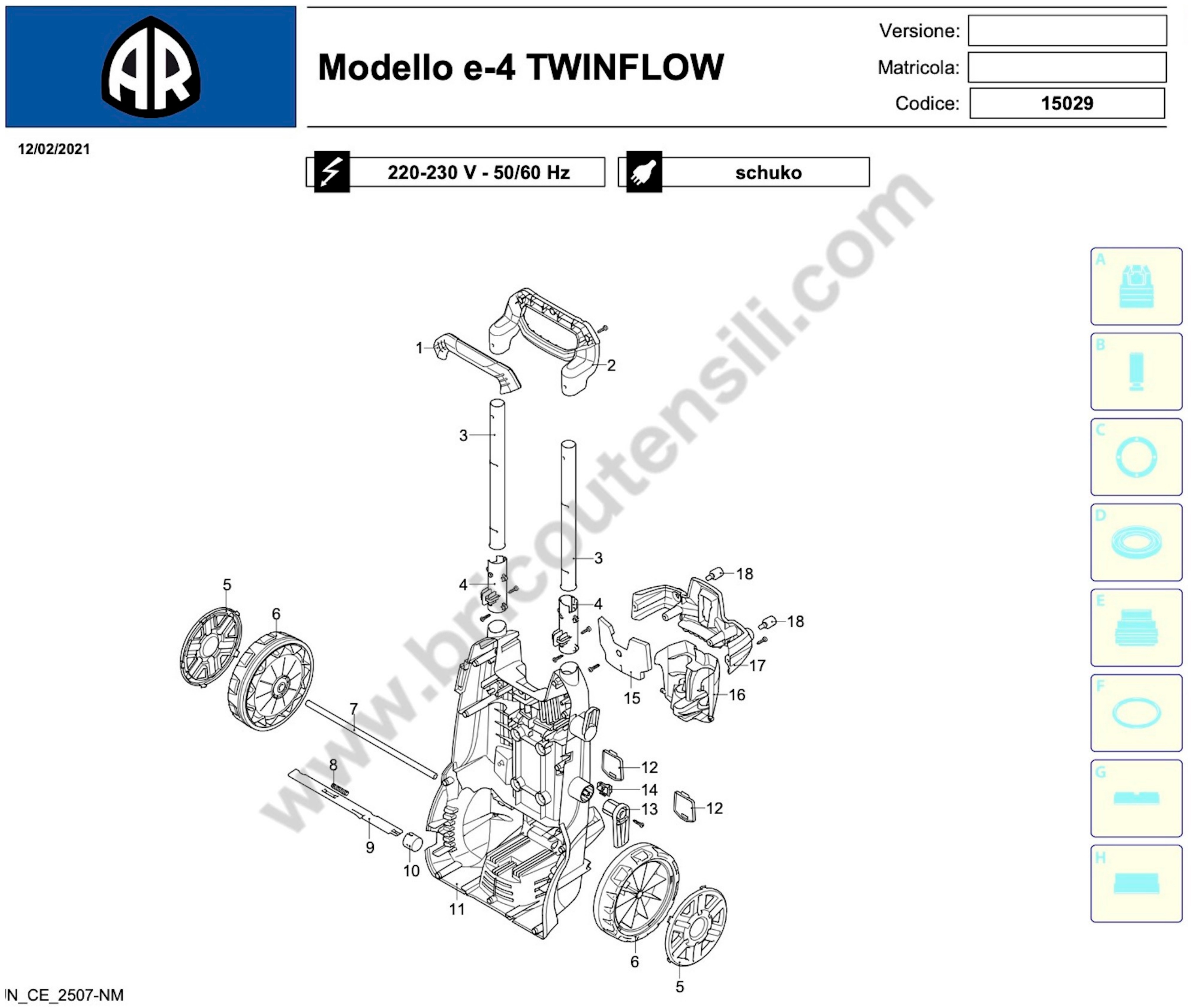

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4580610 Knob €8.07
2
 photo_cameraImage coming soon 4580600 Handle €16.17
3
 photo_cameraImage coming soon 4580770 Pipe €20.92
4
 photo_cameraImage coming soon 4821080 Guide €5.42
6
 photo_cameraImage coming soon 4381100 Wheel €27.44
7
 photo_cameraImage coming soon 4580880 Axle €17.71
8
 photo_cameraImage coming soon 4821020 Spring €1.62
9
 photo_cameraImage coming soon 4821110 Hook €2.35
10
 photo_cameraImage coming soon 4220271 Lever €1.71
11
 photo_cameraImage coming soon 4580560 base €28.91
12
 photo_cameraImage coming soon 4580570 Cover €1.65
13
 photo_cameraImage coming soon 4220280 Accessories carrier €5.53
14
 photo_cameraImage coming soon 4100180 Lever €4.90
15
 photo_cameraImage coming soon 4580780 Guard €2.02
16
 photo_cameraImage coming soon 4580760 Accessories carrier €12.91
17
 photo_cameraImage coming soon 4580620 Accessories carrier €10.84
18
 photo_cameraImage coming soon 2180330 Rubber €4.96
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

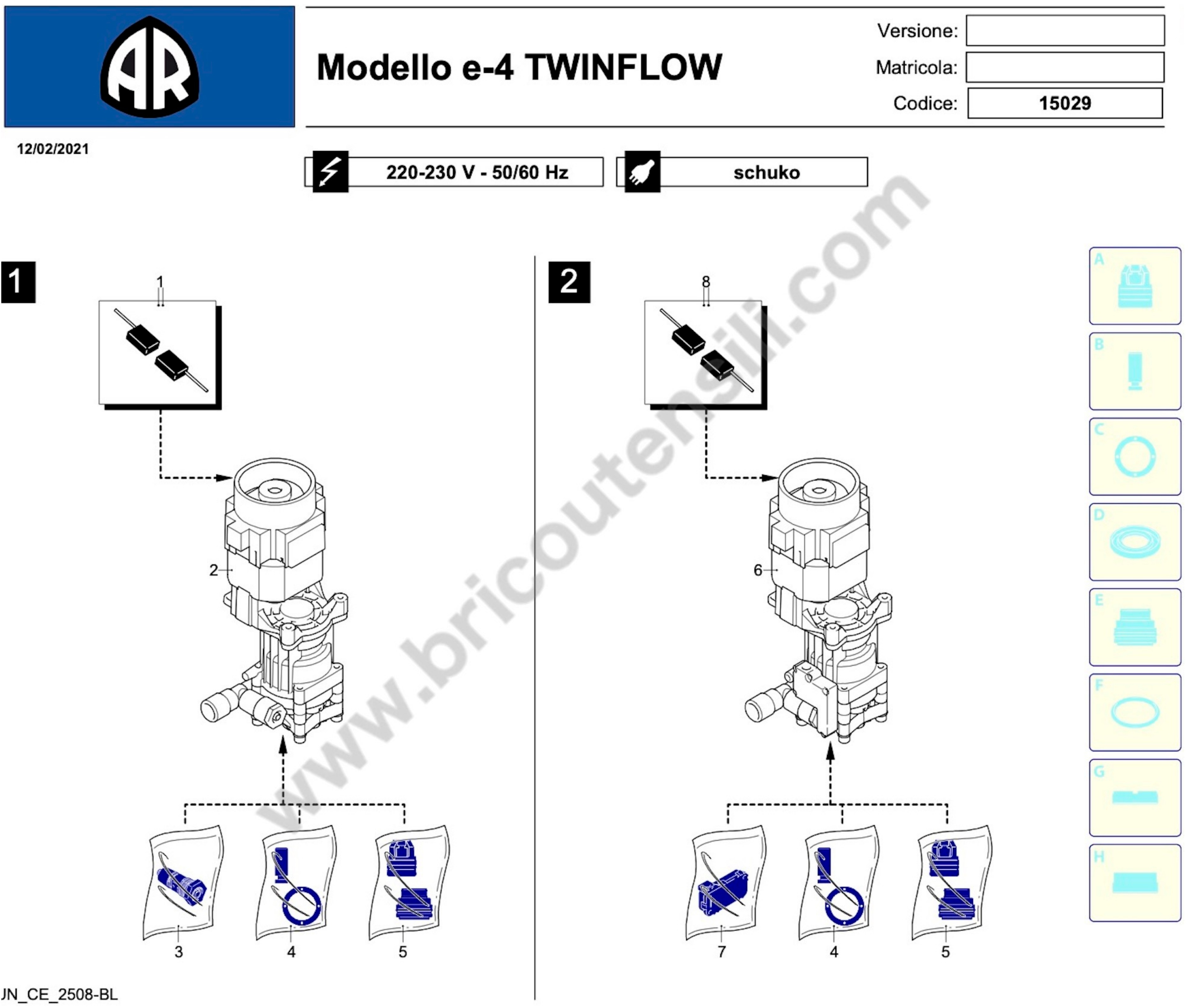

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S 3480170 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S €13.72
2
 photo_cameraImage coming soon 4580960 Electric pump assembly €149.43
3
 photo_cameraImage coming soon 4580950 TSS plug kit €14.38
4
 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480150 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €24.00
5
 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480140 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €7.00
6
 AR Blue Clean 4.0 Twin Flow Electric Pump Assy 4580970 AR Blue Clean 4.0 Twin Flow Electric Pump Assy €152.47
7
 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 4580940 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 €20.49
8
 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 3082580 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 €17.11
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

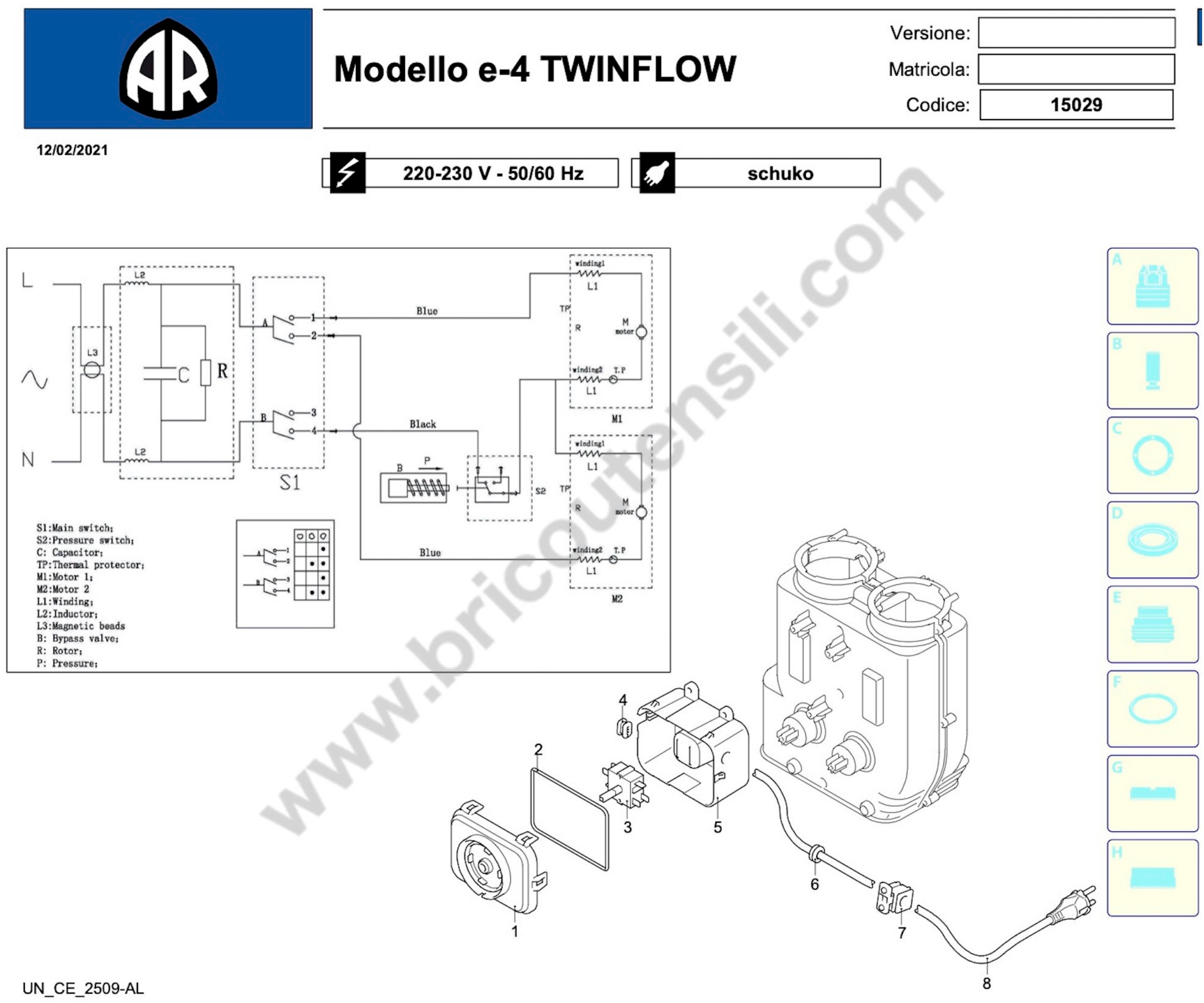

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380840 Cover €4.90
2
 photo_cameraImage coming soon 2180670 O RING €3.18
3
 AR Blue Clean 4.0 Twin Flow Switch 4580050 AR Blue Clean 4.0 Twin Flow Switch €23.19
4
 photo_cameraImage coming soon 4580660 Gland €6.22
5
 photo_cameraImage coming soon 4580680 Box €5.33
6
 photo_cameraImage coming soon 2021480 Grommet €4.16
7
 photo_cameraImage coming soon 3080580 cable clamp €2.88
8
 photo_cameraImage coming soon 4580930 Cable €28.91
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

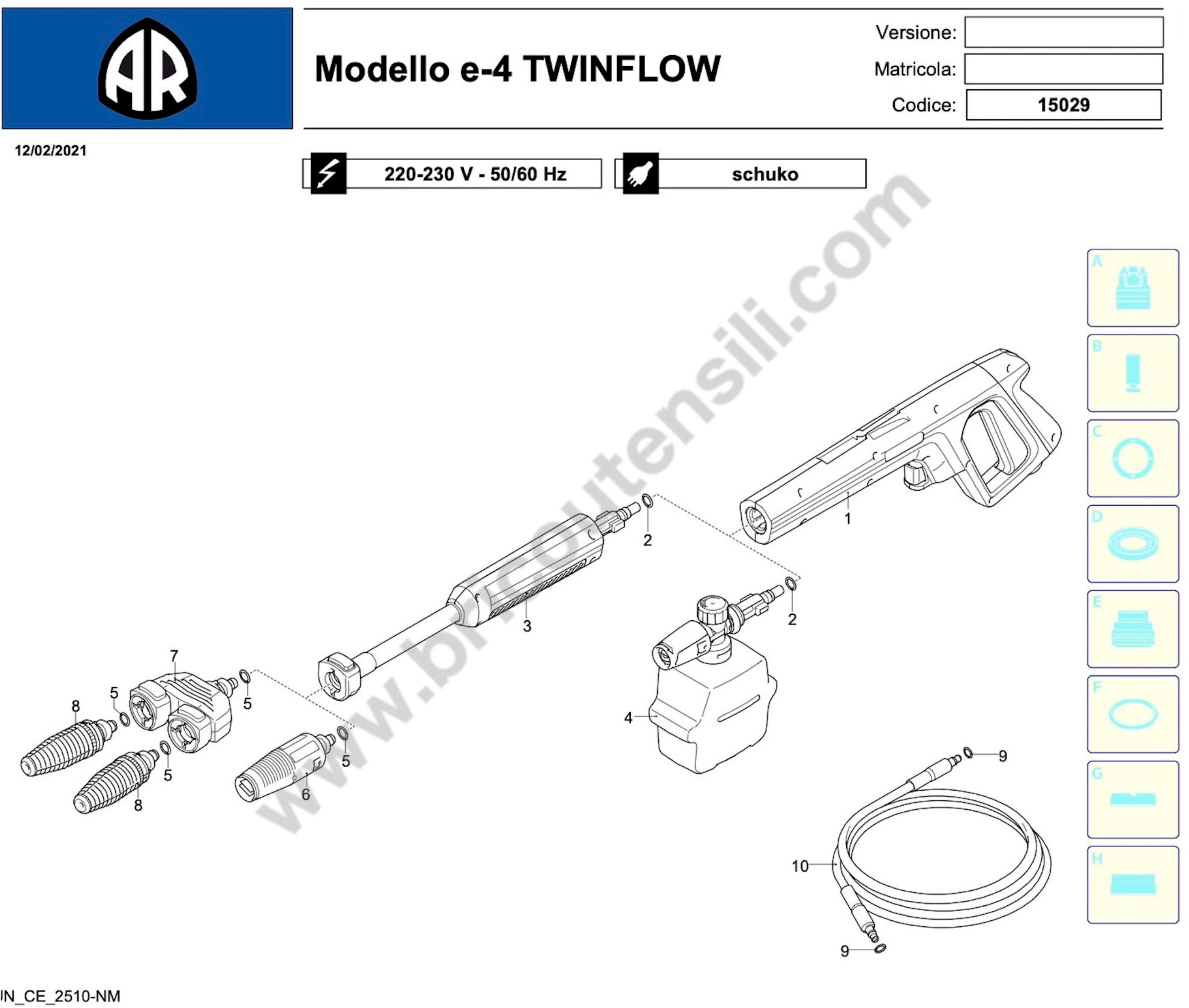

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381482 Gun €20.11
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4381492 Extension €22.61
4
 photo_cameraImage coming soon 4580980 Tank €17.04
5
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
6
 photo_cameraImage coming soon 4581000 Lance head €14.49
7
 photo_cameraImage coming soon 4581010 Lanceheads-holder €22.52
8
 AR Rev. 4.0 Rotopower head 4580990 AR Rev. 4.0 Rotopower head €15.21
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53 Not available for order
10
 photo_cameraImage coming soon 4222550 High pressure hose €45.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Washer e-4 TWINFLOW - 15029

We have the original Annovi Reverberi Parts for Pressure Washer e-4 TWINFLOW - 15029, the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi e-4 TWINFLOW - 15029

Annovi Reverberi HPW e-4 TWINFLOW - 15029 ita pag.1
# Part Num. Description
1 4820410 Cover
2 4580540 Bracket
3 4101680 Plate
4 4102120 Support
5 4580550 Bracket
6 4101750 Hub Pin
7 4101660 Lever
8 4101673 Knob
9 3082130 Water coupling kit
10 4580531 Guard
11 4580526 Guard
12 4580800 Plug
13 4580670 Knob
14 4381640 Rubber foot
15 4580630 Lock
16 4580500 Casing
17 4580590 Accessory Carrier
18 4580640 Guard
19 4580660 Cable gland
20 4580840 Guard
21 4580900 Suction kit
22 4380180 Guard
23 4580910 Delivery kit
24 4580650 Guard
25 4580870 Rubber foot
Annovi Reverberi HPW e-4 TWINFLOW - 15029 ita pag.2
1 4580610 Knob
2 4580600 Handle
3 4580770 Pipe
4 4821080 Guide
5 4381632 Guard
6 4381100 Wheel
7 4580880 Axle
8 4821020 Spring
9 4821110 Hook
10 4220271 Lever
11 4580560 Base
12 4580570 Cover
13 4220280 Accessory Carrier
14 4100180 Lever
15 4580780 Guard
16 4580760 Accessory Carrier
17 4580620 Accessory Carrier
18 2180330 Rubber foot
Annovi Reverberi HPW e-4 TWINFLOW - 15029 ita pag.3
1 3480170 Brush kit for motor
2 4580960 Electric pump assembly
3 4580950 TSS plug kit
4 3480150 Pistons + seals kit
5 3480140 Valve kit + seals
6 4580970 Electric pump assembly
7 4580940 TSS kit
8 3082580 Brush kit for motor
Annovi Reverberi HPW e-4 TWINFLOW - 15029 ita pag.4
1 4380840 Cover
2 2180670 OR gasket
3 4580050 Switch
4 4580660 Cable gland
5 4580680 Box
6 2021480 Cable gland
7 3080580 Cable gland
8 4580930 Cable
Annovi Reverberi HPW e-4 TWINFLOW - 15029 ita pag.5
1 4381482 Gun
2 3083700 O-ring
3 4381492 Extension
4 4580980 Tank
5 3083370 O-Ring
6 4581000 Lance Head
7 4581010 Lanceheads-holder
8 4580990 Rotopower head
9 3083400 O-Ring
10 4222550 High pressure hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Rev. Twin-Flow e-4 15029
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR e-4 TWINFLOW - 15029

Diagram AR e-4 TWINFLOW - 15029

Download (1.43MB)

You might also like

O-Ring for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 3083700
O-Ring for Pressure Washers Black & Decker
O-Ring for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring For the Following Products: - Black & Decker - BXPW 1300 E - 14107 - Black & Decker - BXPW 1300 PE - 14117 - Black & Decker...
AVAILABLE €0.53
Details
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 3083370
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker Original part Annovi & Rverberi, HP Hose O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker - Michelin - AR BC - ARSG - Stanley. Part for the...
AVAILABLE €0.53
Details
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow
Annovi Reverberi S.p.A. SKU: 4580900
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow Original Part Annovi Reverberi, Suction Kit for Pressure Washers Twin-Flow > 4.0 ARBC - 14792 - Stanley > SXPW25DTS-E - 14796 . Replacement for the...
Usually Ships in: 7/10 Business Days Approx. €14.05
Details
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0
Annovi Reverberi S.p.A. SKU: 4580940
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0
TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 Genuine part Annovi Reverberi, TSS-Kit for Pressure Washers AR Blue Clean Series DTS 4.0 - 5.0. Part for the following products: -  Cleaning - AR Blue Clean - HOME&GARDEN -...
Usually Ships in: 10 Business Days Approx. €20.49
Details
AR Blue Clean 4.0 Twin Flow Switch
Annovi Reverberi S.p.A. SKU: 4580050
AR Blue Clean 4.0 Twin Flow Switch
AR Blue Clean 4.0 Twin Flow Switch Genuine part Annovi Reverberi, 3-Way Square Rotary Switch for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley SXPW25DTS-E 14796 -...
Last items in stock €23.19
Details
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y
Annovi Reverberi S.p.A. SKU: 4580970
AR Blue Clean 4.0 Twin Flow Electric Pump Assy
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y Genuine part Annovi Reverberi, Electric Pump Assembly for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley...
Usually Ships in: 10/15 Business Days Approx. €152.47
Details
AR Rev. 4.0 Rotopower head
Annovi Reverberi S.p.A. SKU: 4580990
AR Rev. 4.0 Rotopower head
AR Rev. 4.0 Twin Flow Rotopower Head Original spare part by Annovi & Reverberi, Rotopower Head for pressure washers Rev. 4.0 Twin Flow – Stanley SXPW25DTS-E – Twin-Flow 4.M – Annovi Rev. DTS4K. Parts for the following products: -...
Usually Ships in 10 Business Days Approx. €15.21
Details
Annovi Accessory Holder for AR589
Annovi Reverberi S.p.A. SKU: 4580590
Annovi Accessory Holder for AR589

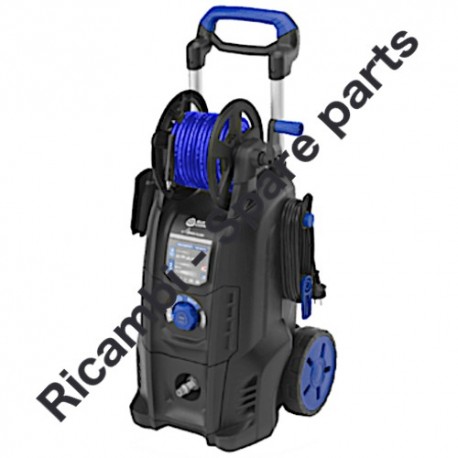

Annovi Accessory Holder for Pressure Washer AR589 Genuine part Annovi Reverberi, Accessory Holder for Pressure Washer AR589 - AR 4.0 Twin Flow. Part for the Following Products: -  Pressure Washer Pressure Washer Annovi Reverberi...
Usually Ships in: 7/10 Business Days Approx. €7.72
Details
Comments (0)
