Annovi Reverberi S.p.A.

Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019

SKU: Annovi Rev. Twin-Flow 4.M 15019
€9.35
VAT included

Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019

We have the original Annovi & Reverberi Parts for Pressure Washer Twin-Flow 4.M - 15019, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi & Reverberi Twin-Flow 4.M. All Spares are original and can be supplied at Low prices. Our Spares are Guarantee

Annovi Reverberi Twin-Flow 4.M - 15019
Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
  • Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
  • Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
  • Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
  • Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
  • Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
  • Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019
Annovi Reverberi S.p.A.

Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019

SKU: Annovi Rev. Twin-Flow 4.M 15019 Condition: New
€9.35
VAT included

Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019

We have the original Annovi & Reverberi Parts for Pressure Washer Twin-Flow 4.M - 15019, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Washer Annovi & Reverberi Twin-Flow 4.M. All Spares are original and can be supplied at Low prices. Our Spares are Guarantee

Annovi Reverberi Twin-Flow 4.M - 15019
settings 68 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

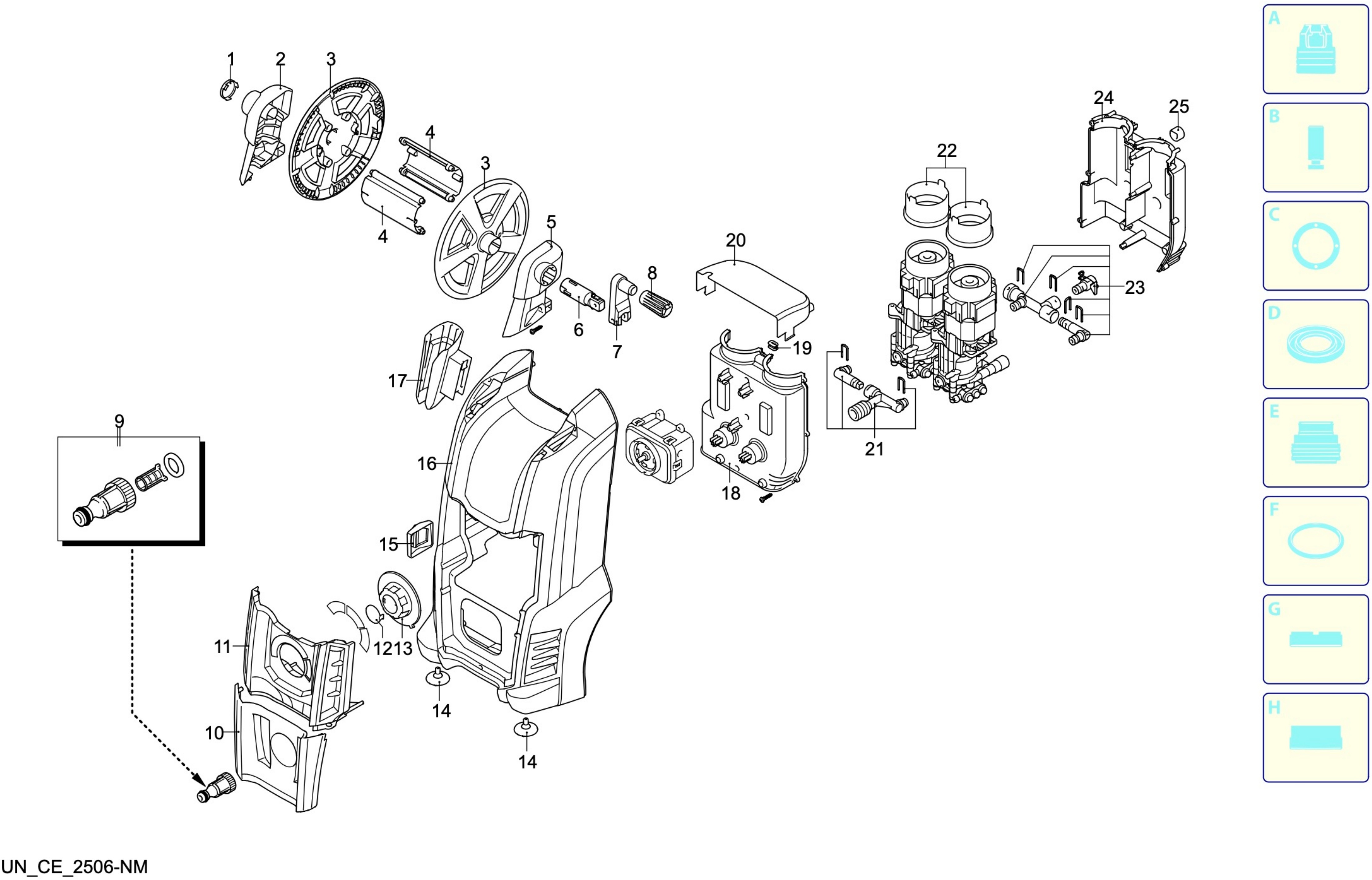

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4820410 Cover €2.26
2
 photo_cameraImage coming soon 4580540 Bracket €9.09
3
 photo_cameraImage coming soon 4101680 Plate €13.18
4
 photo_cameraImage coming soon 4102120 Support €7.99
5
 photo_cameraImage coming soon 4580550 Bracket €9.09
6
 photo_cameraImage coming soon 4101750 Hub pin €3.71
7
 photo_cameraImage coming soon 4101660 Lever €4.84
9
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
10
 photo_cameraImage coming soon 4580530 Guard €10.44
14
 photo_cameraImage coming soon 4381640 Rubber foot €2.85
15
 photo_cameraImage coming soon 4580630 Lock €1.42
16
 photo_cameraImage coming soon 4580500 Casing €27.44
17
 Annovi Accessory Holder for AR589 4580590 Annovi Accessory Holder for AR589 €7.72
18
 photo_cameraImage coming soon 4580640 Conveyor €10.20
19
 photo_cameraImage coming soon 4580660 Gland €6.22
20
 photo_cameraImage coming soon 4580840 Guard €6.03
21
 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow 4580900 Suction Kit for Pressure Washer ARBC 4.0 Twin Flow €14.05
22
 photo_cameraImage coming soon 4380180 Protection €3.73
23
 photo_cameraImage coming soon 4580910 Delivery kit €25.86
24
 photo_cameraImage coming soon 4580650 Conveyor €9.73
25
 photo_cameraImage coming soon 4580870 Rubber foot €6.84
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

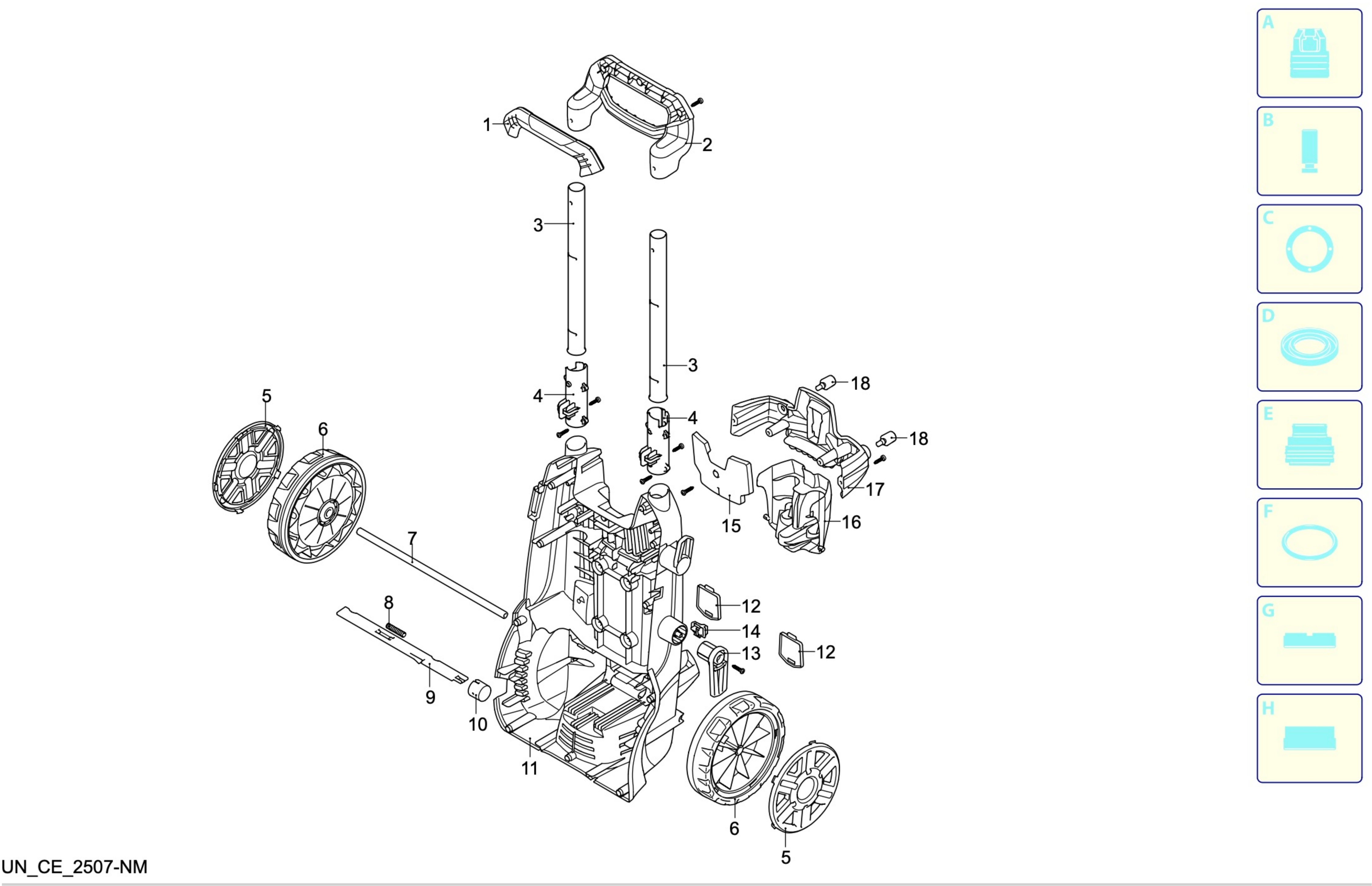

Esploso pagina 2
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4580600 Handle €16.17
3
 photo_cameraImage coming soon 4580770 Pipe €20.92
4
 photo_cameraImage coming soon 4821080 Guide €5.42
5
 photo_cameraImage coming soon 4381111 Guard €10.39
6
 photo_cameraImage coming soon 4381100 Wheel €27.44
7
 photo_cameraImage coming soon 4580880 Axle €17.71
8
 photo_cameraImage coming soon 4821020 Spring €1.62
9
 photo_cameraImage coming soon 4821110 Hook €2.35
10
 photo_cameraImage coming soon 4220271 Lever €1.71
11
 photo_cameraImage coming soon 4580560 base €28.91
12
 photo_cameraImage coming soon 4580570 Cover €1.65
13
 photo_cameraImage coming soon 4220280 Accessories carrier €5.53
14
 photo_cameraImage coming soon 4100180 Lever €4.90
15
 photo_cameraImage coming soon 4580780 Guard €2.02
17
 photo_cameraImage coming soon 4580620 Accessories carrier €10.84
18
 photo_cameraImage coming soon 2180330 Rubber €4.96
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

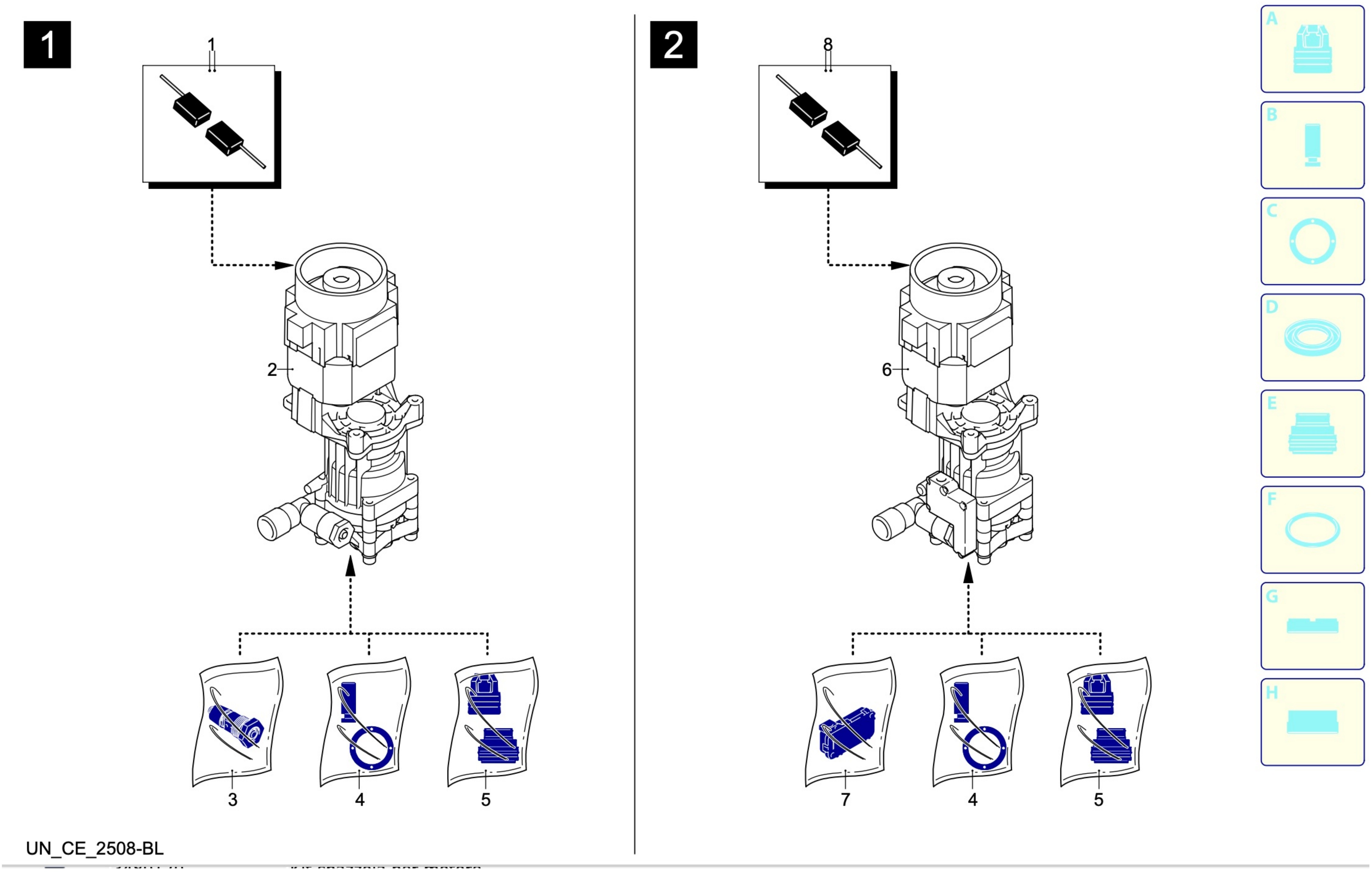

Esploso pagina 3
Pos. Item Price Buy
1
 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S 3480170 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S €13.72
2
 photo_cameraImage coming soon 4580960 Electric pump assembly €149.43
3
 photo_cameraImage coming soon 4580950 TSS plug kit €14.38
4
 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480150 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €24.00
5
 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480140 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €7.00
6
 AR Blue Clean 4.0 Twin Flow Electric Pump Assy 4580970 AR Blue Clean 4.0 Twin Flow Electric Pump Assy €152.47
7
 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 4580940 TSS-Kit for Pressure Washer AR Blue Clean DTS 4.0 - 5.0 €20.49
8
 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 3082580 Kit Carbon Brushes for Pressure Washers Blue Clean AR142-AR260 €17.11
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

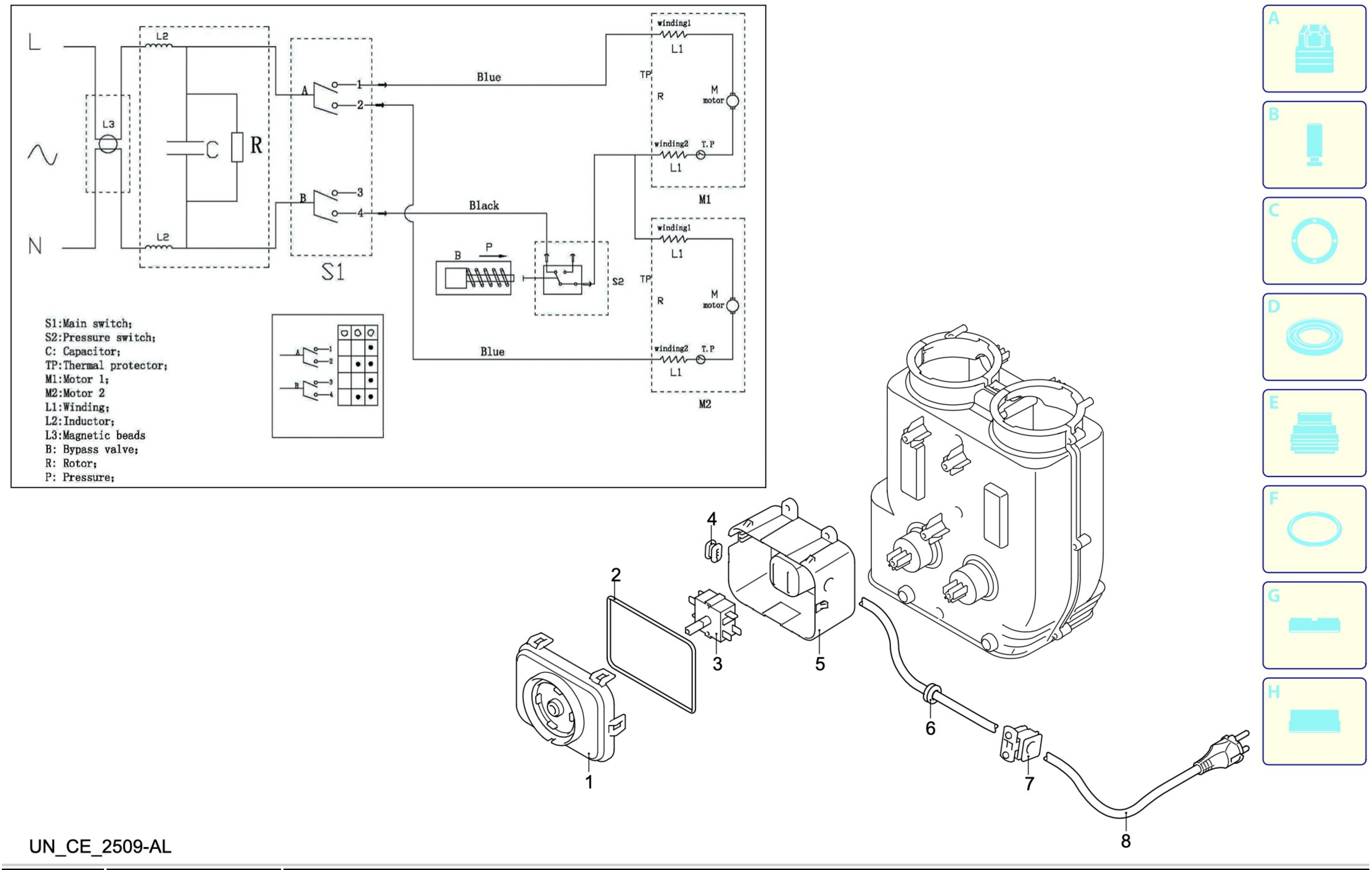

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380840 Cover €4.90
2
 photo_cameraImage coming soon 2180670 O RING €3.18
3
 AR Blue Clean 4.0 Twin Flow Switch 4580050 AR Blue Clean 4.0 Twin Flow Switch €23.19
5
 photo_cameraImage coming soon 4580680 Box €5.33
6
 photo_cameraImage coming soon 2021480 Grommet €4.16
7
 photo_cameraImage coming soon 3080580 cable clamp €2.88
8
 photo_cameraImage coming soon 4580930 Cable €28.91
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

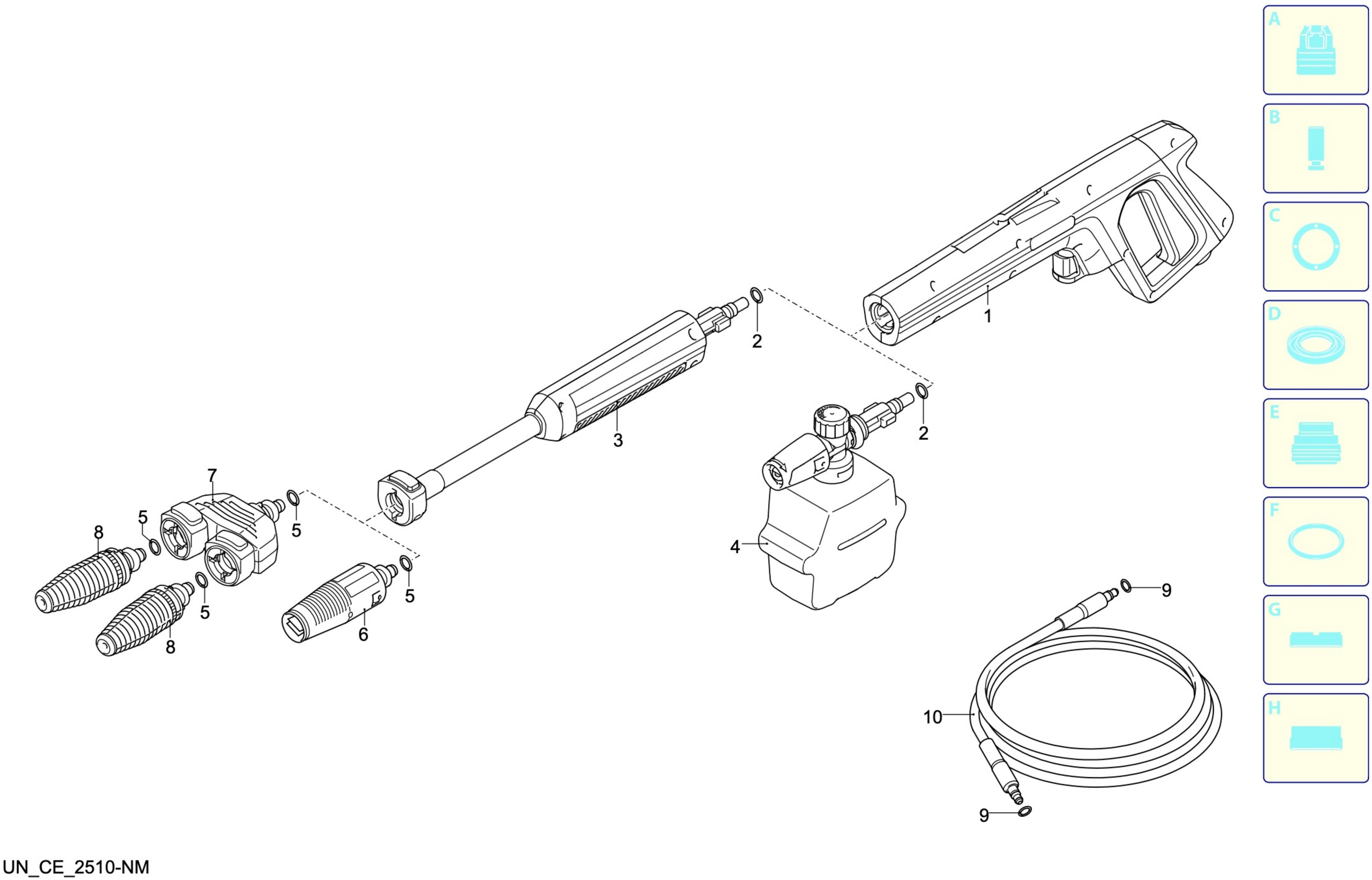

Esploso pagina 5
Pos. Item Price Buy
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4381497 Extension €15.24
4
 photo_cameraImage coming soon 4580985 Tank €16.54
5
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
6
 photo_cameraImage coming soon 4581000 Lance head €14.49
8
 AR Rev. 4.0 Rotopower head 4580990 AR Rev. 4.0 Rotopower head €15.21
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53
10
 photo_cameraImage coming soon 4581030 High pressure hose €31.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Washer Twin-Flow 4.M - 15019

We have the original Annovi & Reverberi Parts for Pressure Washer Twin-Flow 4.M - 15019, the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi Twin-Flow 4.M - 15019

PRESSURE WASHER Annovi Reverberi Twin-Flow -> 4.M - 15019 - CASING Pag.1
# Part Num. Description
1 4820410 Cover
2 4580540 Bracket
3 4101680 Plate
4 4102120 Support
5 4580550 Bracket
6 4101750 Hub pin
7 4101660 Lever
8 4101677 Knob
9 3082130 Water coupling kit
10 4580530 Guard
11 4580523 Guard
12 4580801 Plug
13 4580671 Knob
14 4381640 Rubber foot
15 4580630 Lock
16 4580500 Casing
17 4580590 Accessories carrier
18 4580640 Conveyor
19 4580660 Gland
20 4580840 Guard
21 4580900 Suction kit
22 4380180 Guard
23 4580910 Delivery kit
24 4580650 Conveyor
25 4580870 Rubber foot
PRESSURE WASHER Annovi Reverberi Twin-Flow -> 4.M - 15019 - HANDLE Pag.2
1 4580612 Knob
2 4580600 Handle
3 4580770 Pipe
4 4821080 Guide
5 4381111 Guard
6 4381100 Wheel
7 4580880 Axle
8 4821020 Spring
9 4821110 Hook
10 4220271 Lever
11 4580560 Base
12 4580570 Cover
13 4220280 Accessories carrier
14 4100180 Lever
15 4580780 Guard
16 4580762 Accessories carrier
17 4580620 Accessories carrier
18 2180330 Rubber foot
PRESSURE WASHER Annovi Reverberi Twin-Flow -> 4.M - 15019 - PUMP Pag.3
1 3480170 Brush kit for motor
2 4580960 Electric pump assembly
3 4580950 TSS plug kit
4 3480150 Piston + seals kit
5 3480140 Valves + seals kit
6 4580970 Electric pump assembly
7 4580940 TSS kit
8 3082580 Brush kit for motor
PRESSURE WASHER Annovi Reverberi Twin-Flow -> 4.M - 15019 - ELECTRIC CIRCUIT Pag.4
1 4380840 Cover
2 2180670 O-ring
3 4580050 Switch
4 4580660 Gland
5 4580680 Box
6 2021480 Gland
7 3080580 Cable gland
8 4580930 Cable
PRESSURE WASHER Annovi Reverberi Twin-Flow -> 4.M - 15019 - STANDARD ACCESSORIES Pag.5
1 4381487 Gun
2 3083700 O-ring
3 4381497 Extension
4 4580985 Tank
5 3083370 O-ring
6 4581000 Lance head
7 4581015 Lanceheads-holder
8 4580990 Rotopower head
9 3083400 O-ring
10 4581030 High pressure hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Rev. Twin-Flow 4.M 15019
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Twin-Flow 4.M 15019

Diagram Twin-Flow 4.M 15019

Download (1.59MB)
