Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Washer AR 120 PLUS - 14845

SKU: Annovi Reverberi 120 PLUS 14845
€13.73
VAT included

Annovi Reverberi Parts for Washer AR 120 PLUS - 14845

We are Annovi Reverberi original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer Annovi Reverberi AR 120 PLUS - 14845.

Annovi Reverberi 120 PLUS 14845
Annovi & Reverberi Parts for Washer AR 120 PLUS - 14845
  • Annovi & Reverberi Parts for Washer AR 120 PLUS - 14845
  • Annovi & Reverberi Parts for Washer AR 120 PLUS - 14845
  • Annovi & Reverberi Parts for Washer AR 120 PLUS - 14845
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Washer AR 120 PLUS - 14845

SKU: Annovi Reverberi 120 PLUS 14845 Condition: New
€13.73
VAT included

Annovi Reverberi Parts for Washer AR 120 PLUS - 14845

We are Annovi Reverberi original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer Annovi Reverberi AR 120 PLUS - 14845.

Annovi Reverberi 120 PLUS 14845
settings 25 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S 3480170 Kit Motor Brushes for Pressure Washers B&D PW 1300S - 1400S €13.72
4
 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480140 Valves + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €7.00
5
 photo_cameraImage coming soon 4220580 Accessories carrier €4.24
7
 photo_cameraImage coming soon 4220540 Wheel €5.74
10
 photo_cameraImage coming soon 4220590 Hook €4.24
11
 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E 3480150 Pistons + Oil Seal Kit for Pressure Washers B&D BXPW 1300 E-1400 E €22.00
12
 photo_cameraImage coming soon 4221630 Electric pump assembly €83.66
13
 photo_cameraImage coming soon 4220840 Switch €10.31
14
 photo_cameraImage coming soon 3080580 cable clamp €1.37 Not available for order
15
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €20.62
19
 photo_cameraImage coming soon 4220830 Knob €1.31
23
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
24
 Kit TSS for Pressure Washers B&D BXPW 1300 E-1400 E-1500E 3480130 Kit TSS for Pressure Washers B&D BXPW 1300 E-1400 E-1500E €12.00
25
 photo_cameraImage coming soon 3082663 Fitting €11.07
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4120391 Gun €16.82
2
 photo_cameraImage coming soon 4120400 Extension €11.43
3
 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR120 4120410 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR120 €19.99
4
 photo_cameraImage coming soon 4120430 Lance €14.22
5
 Chemical Tank for Pressure Washer AR Blue Clean 142 50954 Chemical Tank for Pressure Washer AR Blue Clean 142 €15.00
6
 Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 3082290 Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 €18.90
7
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.40
8
 O-Ring mm 10x2,5 for Pressure Washers Black & Decker 3083380 O-Ring mm 10x2,5 for Pressure Washers Black & Decker €0.46
9
 O-Ring mm 4,8x1,8 for Pressure Washers Black & Decker 3083390 O-Ring mm 4,8x1,8 for Pressure Washers Black & Decker €0.46
10
 Gun Extension for Washers Black&Decker PW1400K–TDK-X-TRA 3082860 Gun Extension for Washers Black&Decker PW1400K–TDK-X-TRA €12.53
11
 photo_cameraImage coming soon 41156 Mini Patio brush €38.87

Shipping and delivery information will be available shortly.

Annovi Reverberi Parts for Washer AR 120 PLUS - 14845

We are Annovi Reverberi original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer Annovi Reverberi AR 120 PLUS - 14845.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 120 PLUS 14845

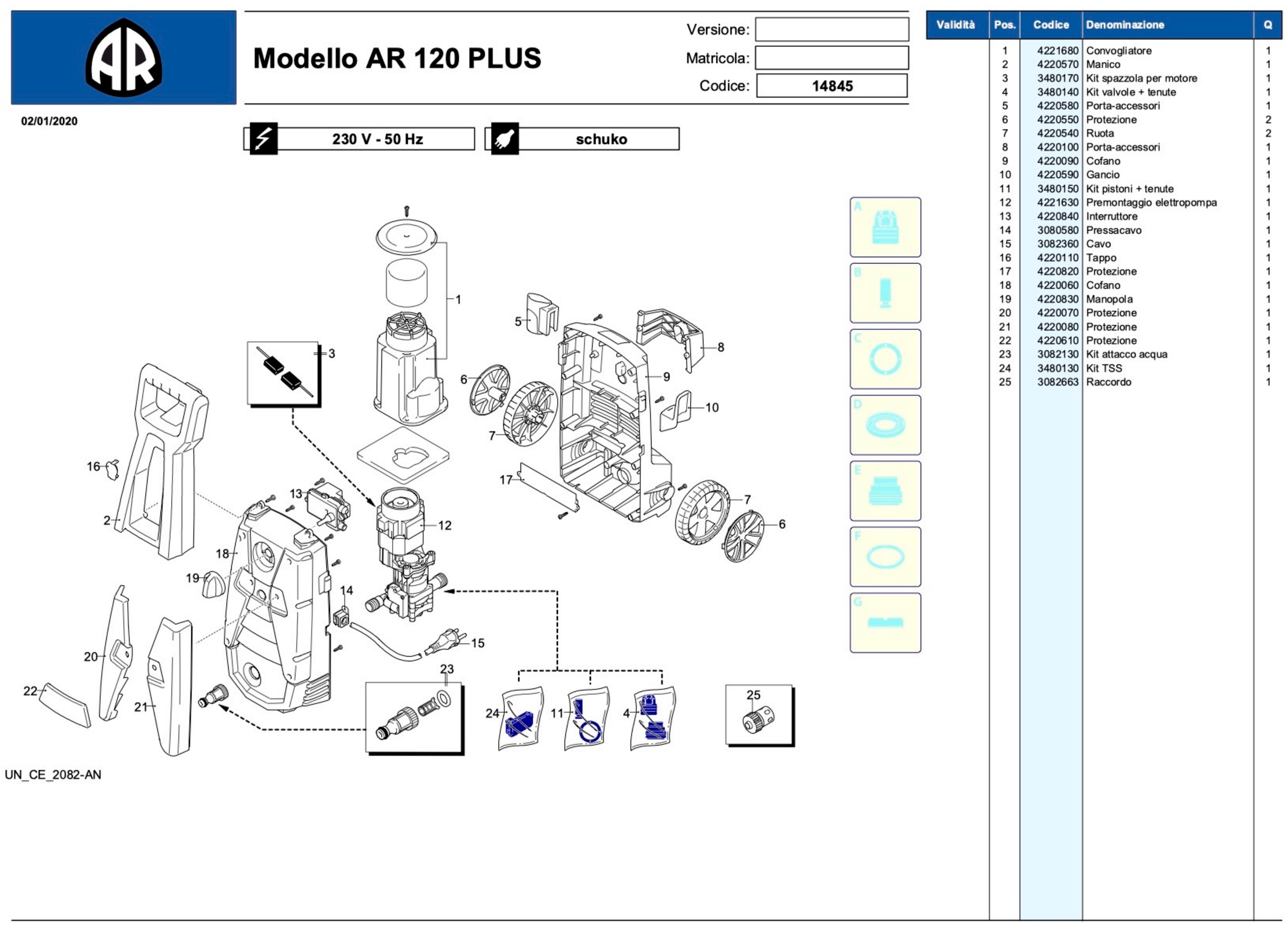

Pressure Washer AR 120 PLUS - 14845 Pag.1
# Part Num. Description
1 4221680 Conveyor
2 4220570 Handle
3 3480170 motor Brush kit
4 3480140 Valve + seals kit
5 4220580 Accessory Carrier
6 4220550 Protection
7 4220540 Wheel
8 4220100 Accessory Carrier
9 4220090 Casing
10 4220590 Hook
11 3480150 Pistons + seals kit
12 4221630 Electric pump pre-assembly
13 4220840 Switch
14 3080580 Cable gland
15 3082360 Cable
16 4220110 Plug
17 4220820 Guard
18 4220060 Casing
19 4220830 Knob
20 4220070 Guard
21 4220080 Guard
22 4220610 Guard
23 3082130 Water connection kit
24 3480130 TSS kit
25 3082663 Fitting

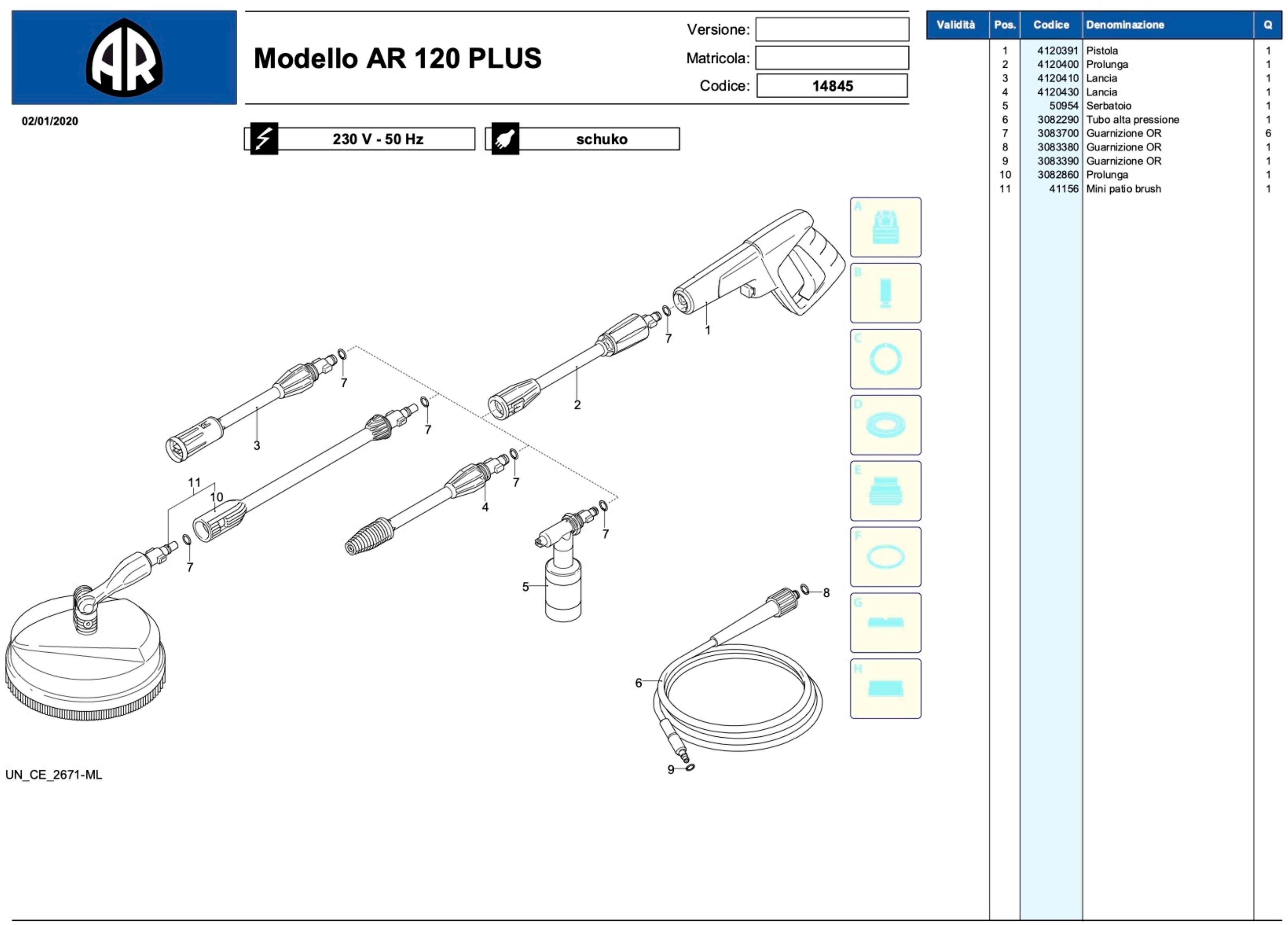

 Standard Accessories Pag.2
1 4120391 Gun
2 4120400 Extension
3 4120410 Lance
4 4120430 Lance
5 50954 Tank
6 3082290 High pressure hose
7 3083700 O-Ring
8 3083380 O-Ring
9 3083390 O-Ring
10 3082860 Extension
11 41156 Mini patio brush
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 120 PLUS 14845
5 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Drawing AR 120 PLUS - 14845

Drawing AR 120 PLUS - 14845

Download (515.23KB)
