Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR 585

SKU: Annovi Reverberi 585 - 12404
€10.53
VAT included

Annovi & Reverberi Parts for Pressure Washer AR 585

Annovi & Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Annovi & Reverberi AR 585 - 12404.

Pressure Washer Annovi & Reverberi AR 585 - 12404
Annovi & Reverberi Parts for Pressure Washer AR 585
  • Annovi & Reverberi Parts for Pressure Washer AR 585
  • Annovi & Reverberi Parts for Pressure Washer AR 585
  • Annovi & Reverberi Parts for Pressure Washer AR 585
  • Annovi & Reverberi Parts for Pressure Washer AR 585
  • Annovi & Reverberi Parts for Pressure Washer AR 585
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR 585

SKU: Annovi Reverberi 585 - 12404 Condition: New
€10.53
VAT included

Annovi & Reverberi Parts for Pressure Washer AR 585

Annovi & Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Annovi & Reverberi AR 585 - 12404.

Pressure Washer Annovi & Reverberi AR 585 - 12404
settings 107 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
102 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

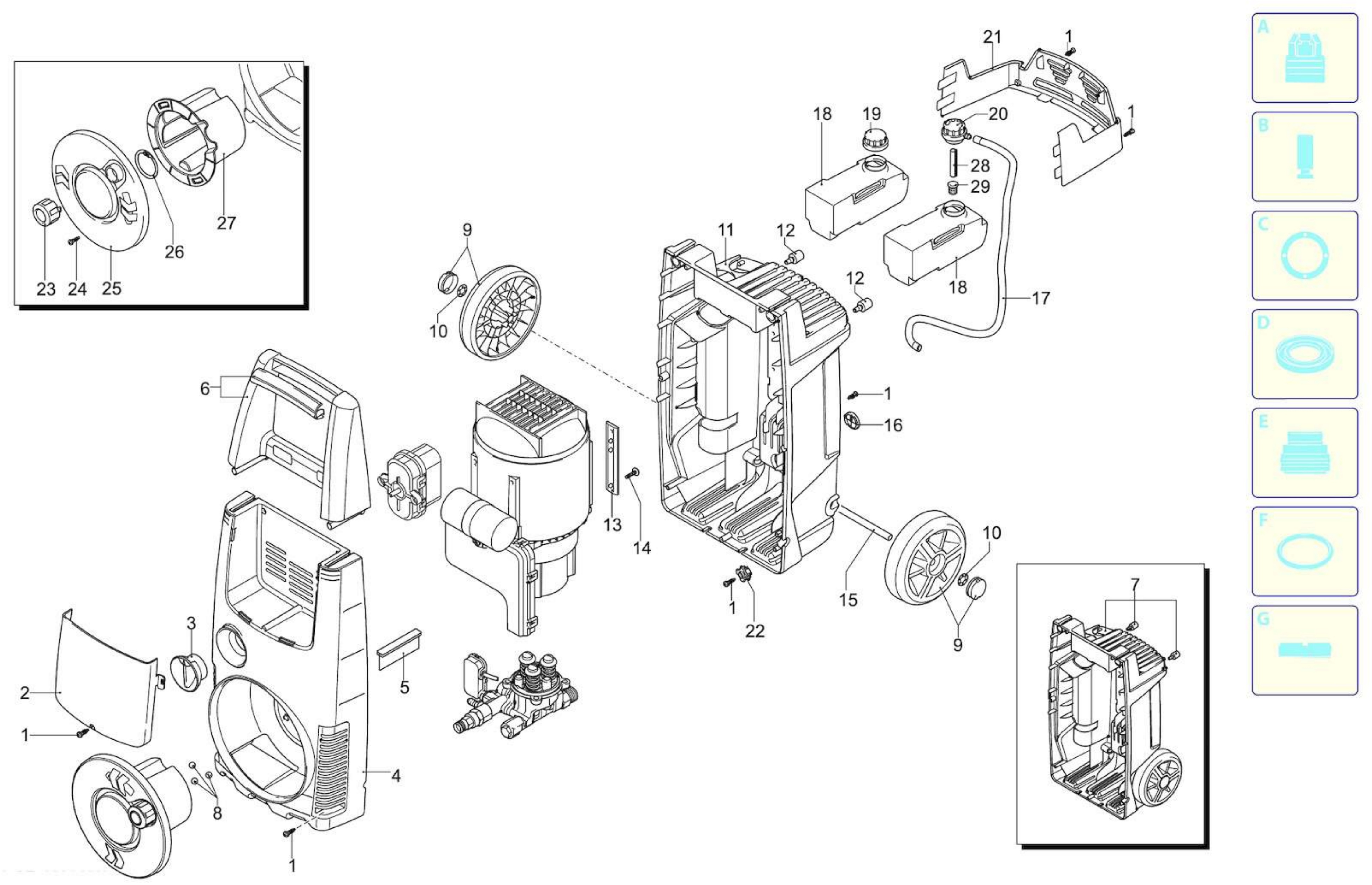

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2100300 screw €4.72
2
 photo_cameraImage coming soon 2900650 Protection €14.40
3
 photo_cameraImage coming soon 2900620 Handle €8.38
4
 photo_cameraImage coming soon 2900610 Blue casing €28.79
5
 photo_cameraImage coming soon 2900870 Pipe Clips €9.73
6
 photo_cameraImage coming soon 2909009 Handle €20.89
7
 photo_cameraImage coming soon 2909007 Pre-Assembly Base €63.66
8
 photo_cameraImage coming soon 2900900 Ball €5.54
9
 Wheel for Pressure Washers AR Farmer's - AR Blu Clean 2500320 Wheel for Pressure Washers AR Farmer's - AR Blu Clean €11.86
10
 Annovi AR747 Lock Washer 1680880 Annovi AR747 Lock Washer €1.03
da 5 pz: €0.10
11
 photo_cameraImage coming soon 2900600 base €38.32
12
 photo_cameraImage coming soon 2180330 Rubber €4.96
13
 photo_cameraImage coming soon 2900720 Plate €7.03
14
 photo_cameraImage coming soon 2440280 Screw €4.73
15
 photo_cameraImage coming soon 2900840 Axle €15.21
16
 photo_cameraImage coming soon 1682310 Stopper €5.34
17
 photo_cameraImage coming soon 2901000 Tube Cleaner €7.57
18
 photo_cameraImage coming soon 2900710 Tank €18.39
19
 photo_cameraImage coming soon 2900690 Stopper €8.65
20
 photo_cameraImage coming soon 42113 Pre-assembly plug €5.62
21
 photo_cameraImage coming soon 2900640 Holders Accessories €8.18
22
 photo_cameraImage coming soon 2600100 cable clamp €2.74
23
 photo_cameraImage coming soon 2900680 Knob €7.64
25
 photo_cameraImage coming soon 2900670 Disk €13.72
27
 photo_cameraImage coming soon 2900660 Rotor Hose Reel €14.67
28
 photo_cameraImage coming soon 2900940 Tube Cleaner €4.80
29
 photo_cameraImage coming soon 2000230 filter €2.03
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

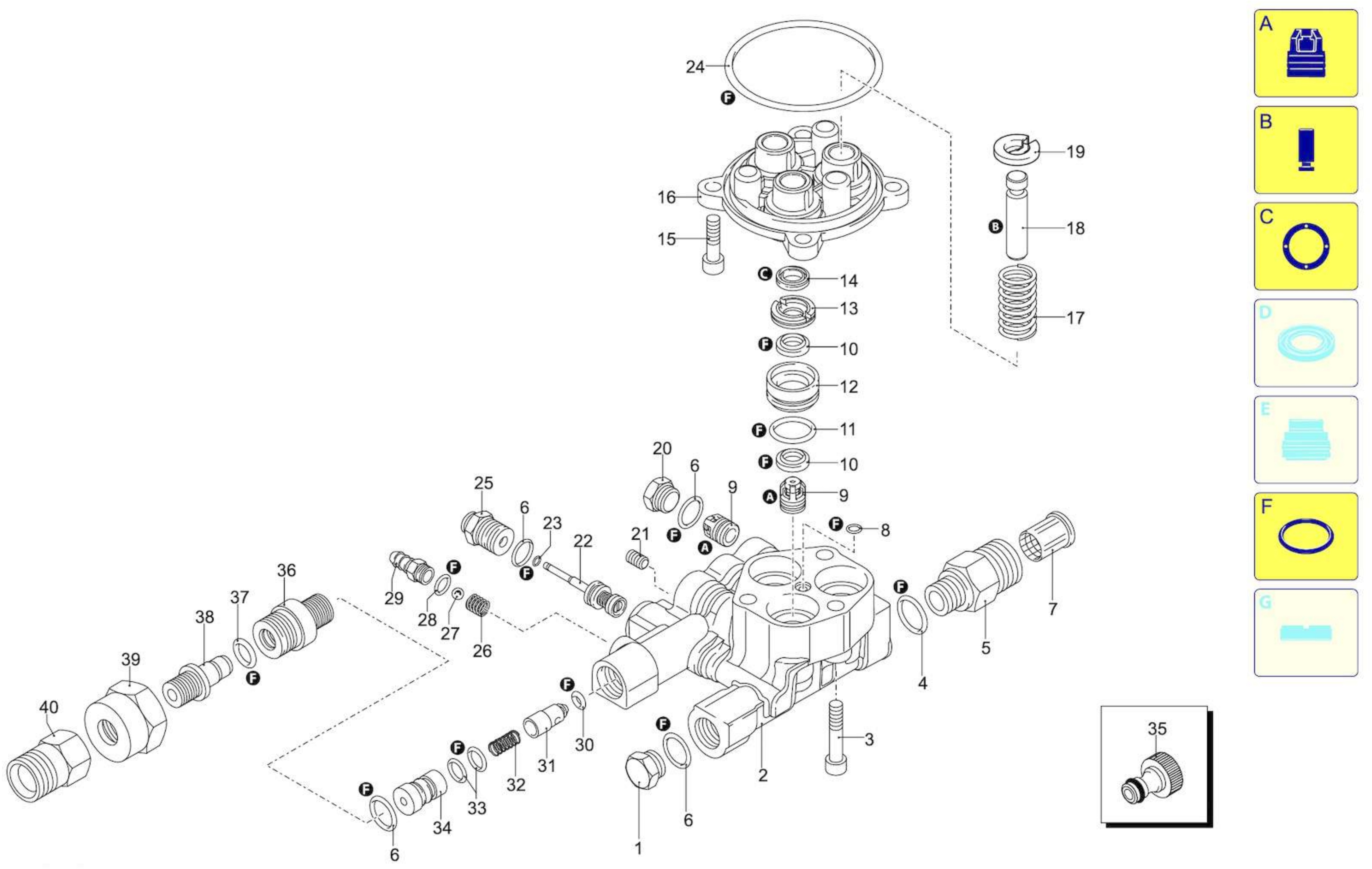

Esploso pagina 2
Pos. Item Price Buy
1
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
2
 photo_cameraImage coming soon 2900200 Top €49.14
3
 photo_cameraImage coming soon 800220 screw €2.26
4
 photo_cameraImage coming soon 820510 O-ring €5.63
5
 photo_cameraImage coming soon 2900850 Junction €20.41
6
 photo_cameraImage coming soon 740290 O-ring €2.67
7
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
9
 photo_cameraImage coming soon 2849051 Complete Valve €2.99
10
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
11
 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
12
 photo_cameraImage coming soon 2840550 bushing €7.80
13
 photo_cameraImage coming soon 2840540 bushing €3.25
14
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
15
 photo_cameraImage coming soon 2900500 Screw €2.26
16
 photo_cameraImage coming soon 2900020 Piston Guide €17.05
17
 AR589 Spring 2901170 AR589 Spring €4.38
18
 photo_cameraImage coming soon 2840530 Piston €7.59
19
 AR589 Lock 2840050 AR589 Lock €2.18
20
 photo_cameraImage coming soon 2840130 stopper €4.71
21
 photo_cameraImage coming soon 2840470 Screw €2.79
22
 photo_cameraImage coming soon 2909005 Pre-Assembly Spring €19.23
23
 photo_cameraImage coming soon 1120680 O-Ring €1.54
25
 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 2900130 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 €10.82
26
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
27
 photo_cameraImage coming soon 1250280 sphere €2.67
28
 photo_cameraImage coming soon 480480 O-ring €5.63
29
 photo_cameraImage coming soon 1982520 Hose €6.27
30
 photo_cameraImage coming soon 1460430 O-ring €4.60
31
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
32
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
33
 photo_cameraImage coming soon 800560 O-ring €1.59
34
 photo_cameraImage coming soon 2901060 Injector €8.60
35
 photo_cameraImage coming soon 1461470 junction €3.26
36
 photo_cameraImage coming soon 2900810 Junction €21.83
37
 photo_cameraImage coming soon 1260740 O-Ring €4.59
38
 photo_cameraImage coming soon 2900800 Pin €18.66
39
 photo_cameraImage coming soon 2900820 Ferrule €14.26
40
 photo_cameraImage coming soon 2900830 Junction €20.82
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2233 Valve Kit €10.83
B
 photo_cameraImage coming soon 2313 Piston Kit €10.55
C
 photo_cameraImage coming soon 42124 Oil Seals Kit €7.33
F
 photo_cameraImage coming soon 42438 Seal Kit €8.67
1
 photo_cameraImage coming soon 44111 Engine €276.07
2
 Thrust Bearing for Pressure Washer DeWalt DXPW001E 2900170 Thrust Bearing for Pressure Washer DeWalt DXPW001E €20.36
3
 photo_cameraImage coming soon 2900260 Plate €13.92
4
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
5
 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E 1460530 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E €7.93
7
 photo_cameraImage coming soon 2900010 Body Pump €22.70
8
 photo_cameraImage coming soon 1460590 bearing €7.15
9
 photo_cameraImage coming soon 1460040 shield €23.19
10
 photo_cameraImage coming soon 1461200 oil seal €1.88
11
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
12
 photo_cameraImage coming soon 1460370 fan €6.01
13
 photo_cameraImage coming soon 1460340 conveyor €16.59
14
 photo_cameraImage coming soon 2900780 Cover €7.91
16
 photo_cameraImage coming soon 2900420 Switch €15.10
17
 photo_cameraImage coming soon 2900770 Box €8.05
18
 photo_cameraImage coming soon 2900930 Cable €17.57
19
 photo_cameraImage coming soon 2021480 Grommet €4.16
20
 photo_cameraImage coming soon 2900750 Box €8.79
21
 photo_cameraImage coming soon 2020570 screw €1.59
22
 photo_cameraImage coming soon 2900760 Cover €7.10
24
 photo_cameraImage coming soon 1340280 Band €2.02
25
 photo_cameraImage coming soon 2900980 Capacitor €22.78
26
 photo_cameraImage coming soon 1760450 cable €28.26
27
 photo_cameraImage coming soon 660170 O-ring €1.81
28
 photo_cameraImage coming soon 2022201 fork €3.36
29
 Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 2029753 Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 €32.93
30
 photo_cameraImage coming soon 1262400 washer €1.73
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

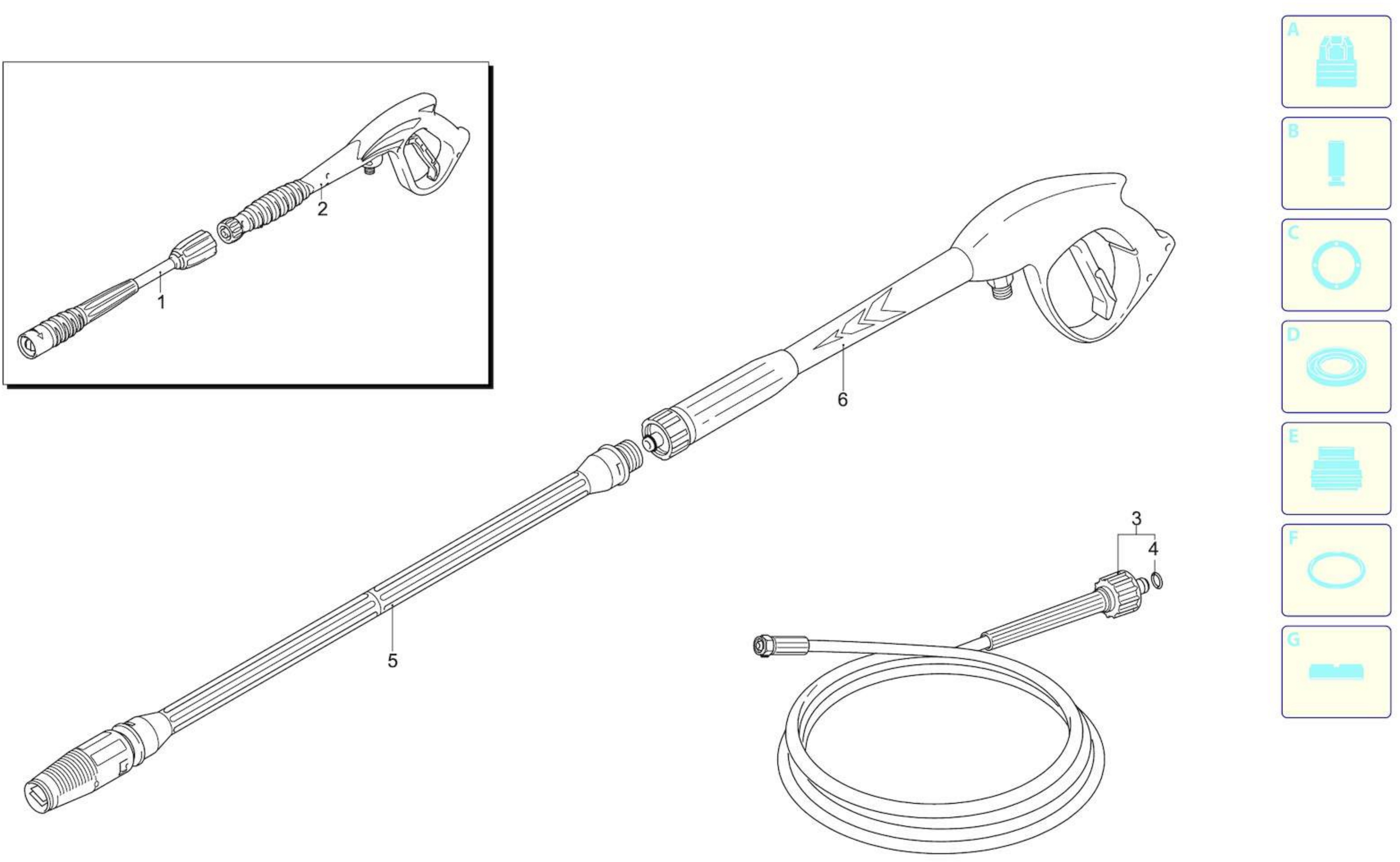

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 40715 Lance + Head €76.78
2
 photo_cameraImage coming soon 40714 Gun €66.44
3
 High Pressure Hose for Pressure Washer ARSG Vip - 8.130 1460702 High Pressure Hose for Pressure Washer ARSG Vip - 8.130 €22.66
4
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
5
 photo_cameraImage coming soon 40246 Spear + Head €43.59
6
 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR 585

Annovi & Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Annovi & Reverberi AR 585 - 12404.

In the following tables, look for the spare part and its respective code.
Pressure Washer Annovi & Reverberi AR 585 - 12404

Pressure Washer Annovi Reverberi AR 585 - 12404
Casing Pag.1
# Part Num. Description
1 2100300 Screw
2 2900650 Guard
3 2900620 Knob
4 2900610 Blue casing
5 2900870 Tube clip
6 2909009 Handle
7 2909007 Base assembly
8 2900900 Ball
9 2500320 Wheel
10 1680880 Washer
11 2900600 Base
12 2180330 Rubber foot
13 2900720 Plate
14 2440280 Screw
15 2900840 Axle
16 1682310 Plug
17 2901000 Detergent hose
18 2900710 Tank
19 2900690 Plug
20 42113 Plug assembly
21 2900640 Accessories carrier
22 2600100 Cable gland
23 2900680 Knob
24 2100300 Screw
25 2900670 Plate
26 380420 Ring
27 2900660 Hose reel rotor
28 2900940 Detergent hose
29 2000230 Filter
Pump Pag.2
1 1980740 Plug
2 2900200 Head
3 800220 Screw
4 820510 O-ring
5 2900850 Fitting
6 740290 O-ring
7 1340260 Filter
8 480560 O-ring
9 2849051 Complete valve
10 2200141 Water seal
11 770590 O-ring
12 2840550 Bushing
13 2840540 Bushing
14 1683500 Oil seal
15 2900500 Screw
16 2900020 Piston guide
17 2901170 Spring
18 2840530 Piston
19 2840050 Lock
20 2840130 Plug
21 2840470 Screw
22 2909005 Spring assembly
23 1120680 O-ring
24 3040270 O-ring
25 2900130 Fitting
26 1560520 Spring
27 1250280 Ball
28 480480 O-ring
29 1982520 Hose tail
30 1460430 O-ring
31 2901070 Shutter
32 1080091 Spring
33 800560 O-ring
34 2901060 Injector
35 1461470 Fitting
36 2900810 Fitting
37 1260740 O-ring
38 2900800 Hub pin
39 2900820 Ring nut
40 2900830 Fitting
A 2233 Valve kit
B 2313 Piston kit
C 42124 Oil seal kit
F 42438 Gasket kit
Motor Pag.3
1 44111 Motor
2 2900170 Thrust Bearing
3 2900260 Wobble plate
4 1780490 Ball Bearing
5 1460530 Oil seal
6 2320090 Screw
7 2900010 Pump body
8 1460590 Bearing
9 1460040 Shield
10 1461200 Oil seal
11 394280 O-ring
12 1460370 Fan
13 1460340 Conveyor
14 2900780 Cover
15 2000210 Screw
16 2900420 Switch
17 2900770 Box
18 2900930 Cable
19 2021480 Gland
20 2900750 Box
21 2020570 Screw
22 2900760 Cover
23 2100300 Screw
24 1340280 Clamp
25 2900980 Capacitor
26 1760450 Cable
27 660170 O-ring
28 2022201 Fork
29 2029753 TSS box assembly
30 1262400 Washer
Accessories Pag.4
1 40715 Lance+lance head
2 40714 Gun
3 1460702 High pressure hose
4 2000770 O-ring
5 40246 Lance+lance head
6 40925 Gun
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 585 - 12404
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR 585

Diagram Annovi AR 585

Download (428.37KB)

You might also like

Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Annovi Reverberi S.p.A. SKU: 2029753
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 Genuine part Annovi & Reverberi, Pre-assembly box TSS for Pressure Washers Blue Clean AR767 - AR1003 - AR3590. - For the Following items : - AR Blue Clean Models 50...
Last items in stock €32.93
Details
Wheel for Pressure Washers AR Farmer's - AR Blu Clean
Annovi Reverberi S.p.A. SKU: 2500320
Wheel for Pressure Washers AR Farmer's - AR Blu Clean
Wheel for Pressure Washers AR Farmer's - AR Blu Clean Original Parts Annovi & Reverberi, Wheel for Pressure Washers ARSG - AR Blu Clean - Michelin. Part for the following items: - ARSG - Models 50 Hz - Proliner Z - 8.150 Z TSS -...
Last items in stock €11.86
Details
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 2900170
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Thrust Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Thrust Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Ball Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1780490
Ball Bearing for Pressure Washer DeWalt DXPW001E
Ball Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Ball Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1460530
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674...
on 7/10 Business Days Approx €7.93
Details
AR Pressure Washer 585 Shutter
Annovi Reverberi S.p.A. SKU: 2901070
AR Pressure Washer 585 Shutter
AR Shutter for Pressure Washer AR 585 Genuine Parts for Annovi Reverberi, non return Valve (Shutter) for Pressure Washer AR585 - MPX 150 HL - MPX 160 RBP - AR589. Part for the following products: - Annovi Reverberi 4590 - 24426 -...
Usually Ships in: 7/10 Business Days Approx. €3.84
Details
AR589 Spring
Annovi Reverberi S.p.A. SKU: 2901170
AR589 Spring
AR Spring for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Spring for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Annovi Reverberi 589 - 14989 - ARSG PRO CLEAN 150...
Last items in stock €4.38
Details
AR589
Annovi Reverberi S.p.A. SKU: 2840050
AR589 Lock
AR Lock for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Lock for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Michelin MPX 200 THO - 25619 - Annovi Reverberi 589 -...
Last items in stock €2.18
Details
Annovi AR747 Lock Washer
Annovi Reverberi S.p.A. SKU: 1680880
Annovi AR747 Lock Washer
Annovi Washer for Pressure Washer AR747 Genuine replacement part Annovi Reverberi, Lock Washer for Pressure Washer AR747 - AR780. Part for the following items: -  Pressure Washer Annovi Reverberi 747 - 12362 -  Pressure...
AVAILABLE €1.03
Details
Comments (0)
