Annovi & Reverberi Parts for Pressure Washer AR KDB 940

SKU: KDB 940 - 26777
€22.00
VAT included

Annovi & Reverberi Parts for Pressure Washer AR KDB 940

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Annovi & Reverberi AR KDB 940 - 26777.

Annovi & Reverberi Parts for Pressure Washer AR KDB 940
  • On sale!
  • Annovi & Reverberi Parts for Pressure Washer AR KDB 940
  • Annovi & Reverberi Parts for Pressure Washer AR KDB 940
  • Annovi & Reverberi Parts for Pressure Washer AR KDB 940
  • Annovi & Reverberi Parts for Pressure Washer AR KDB 940

Annovi & Reverberi Parts for Pressure Washer AR KDB 940

SKU: KDB 940 - 26777 Condition: New
€22.00
VAT included

Annovi & Reverberi Parts for Pressure Washer AR KDB 940

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Annovi & Reverberi AR KDB 940 - 26777.

settings 122 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

113 spare parts

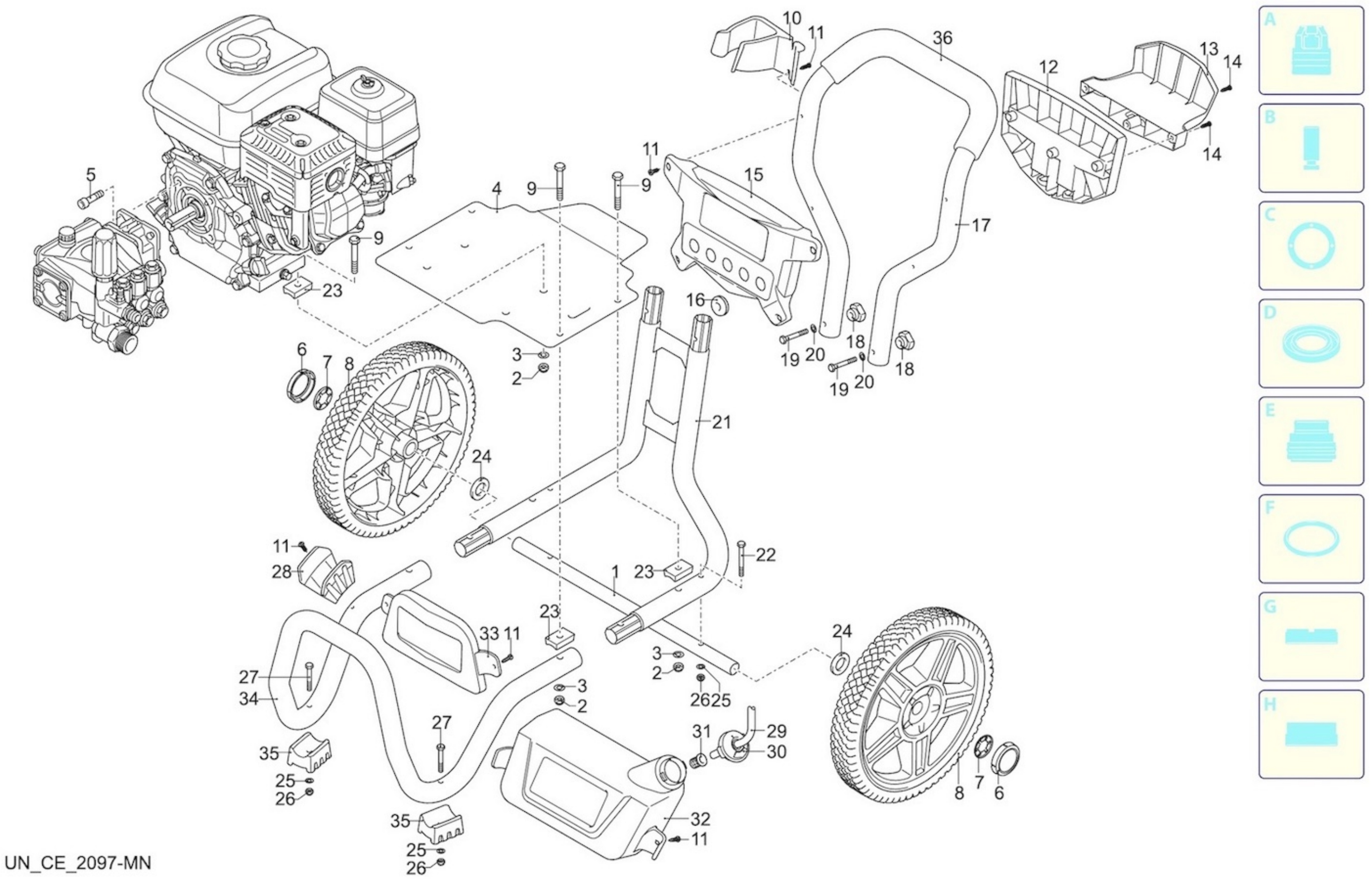

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3200110 Stopper €8.03
2
photo_cameraImage coming soon 1200690 O-ring €4.26
2
photo_cameraImage coming soon 160311 Nut €6.22
2
photo_cameraImage coming soon 51796 Starter €89.50
3
Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
3
photo_cameraImage coming soon 390311 Washer €4.60
3
photo_cameraImage coming soon 51795 Filter €137.55
4
photo_cameraImage coming soon 4000030 Support €40.15
4
photo_cameraImage coming soon 51803 Coil €221.25
4
photo_cameraImage coming soon 800410 Screw €4.60
5
photo_cameraImage coming soon 180432 Screw €4.67
6
photo_cameraImage coming soon 3200930 Head €103.40
6
photo_cameraImage coming soon 4000610 Cover €6.15
7
photo_cameraImage coming soon 380620 Washer €5.39
7
photo_cameraImage coming soon 820440 Screw €4.74
8
photo_cameraImage coming soon 4000320 Wheel €24.40
8
photo_cameraImage coming soon 42712 Valve kit adjustment €38.39
9
photo_cameraImage coming soon 621780 Screw €5.21
9
photo_cameraImage coming soon 740290 O-ring €2.67
10
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
10
photo_cameraImage coming soon 4000210 Accessories carrier €13.92
11
photo_cameraImage coming soon 2760220 Ring €4.94
12
photo_cameraImage coming soon 1342761 Tenuta Water €10.92
12
photo_cameraImage coming soon 4000230 Guard €15.21
13
photo_cameraImage coming soon 3200160 Piston guide €8.99
13
photo_cameraImage coming soon 4000260 Accessories carrier €13.45
14
photo_cameraImage coming soon 2100300 screw €4.72
14
photo_cameraImage coming soon 3200690 GASKET €2.12
15
photo_cameraImage coming soon 4000220 Support €14.67
16
photo_cameraImage coming soon 4000790 Nozzle holder €5.01
16
O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
17
photo_cameraImage coming soon 3200150 Piston guide €7.84
17
photo_cameraImage coming soon 4000060 Handle €48.93
18
photo_cameraImage coming soon 3200010 Pump Housing €71.98
18
photo_cameraImage coming soon 50019 Knob €5.55
19
Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
19
photo_cameraImage coming soon 4000360 Screw €4.60
20
photo_cameraImage coming soon 1260790 Ring €1.36
20
photo_cameraImage coming soon 4000860 Washer €4.53
21
photo_cameraImage coming soon 1780550 Ring €4.87
21
photo_cameraImage coming soon 4000010 Frame €62.65
22
photo_cameraImage coming soon 395081 O-Ring €5.72
22
photo_cameraImage coming soon 4000830 Screw €4.60
23
photo_cameraImage coming soon 3209615 LEVEL €15.89
23
photo_cameraImage coming soon 4000350 Spacer €5.01
24
photo_cameraImage coming soon 1122260 Junction €9.61
24
photo_cameraImage coming soon 4000780 Spacer €9.94
25
photo_cameraImage coming soon 3200070 Support €6.38
25
photo_cameraImage coming soon 550331 Washer €4.73
26
photo_cameraImage coming soon 1200430 Screw €4.64
26
photo_cameraImage coming soon 3000170 Nut €4.53
27
photo_cameraImage coming soon 4000370 Screw €4.67
27
photo_cameraImage coming soon 880130 Stopper €6.67
28
photo_cameraImage coming soon 1260110 Nut €1.65
28
photo_cameraImage coming soon 4000240 Accessories carrier €11.90
29
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
30
Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1260120 Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €23.59
30
photo_cameraImage coming soon 4000750 Plug €8.45
31
photo_cameraImage coming soon 2000230 filter €2.03
32
photo_cameraImage coming soon 1260460 oil seal €4.47
32
photo_cameraImage coming soon 4000160 Tank €18.18
33
photo_cameraImage coming soon 4000180 Guard €11.56
33
photo_cameraImage coming soon 480480 O-ring €5.63
34
Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200060 Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €16.12
34
photo_cameraImage coming soon 4000050 Frame €49.20
35
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200040 Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €9.34
36
photo_cameraImage coming soon 1780050 Plug €6.18
36
photo_cameraImage coming soon 4000770 Knob €14.20

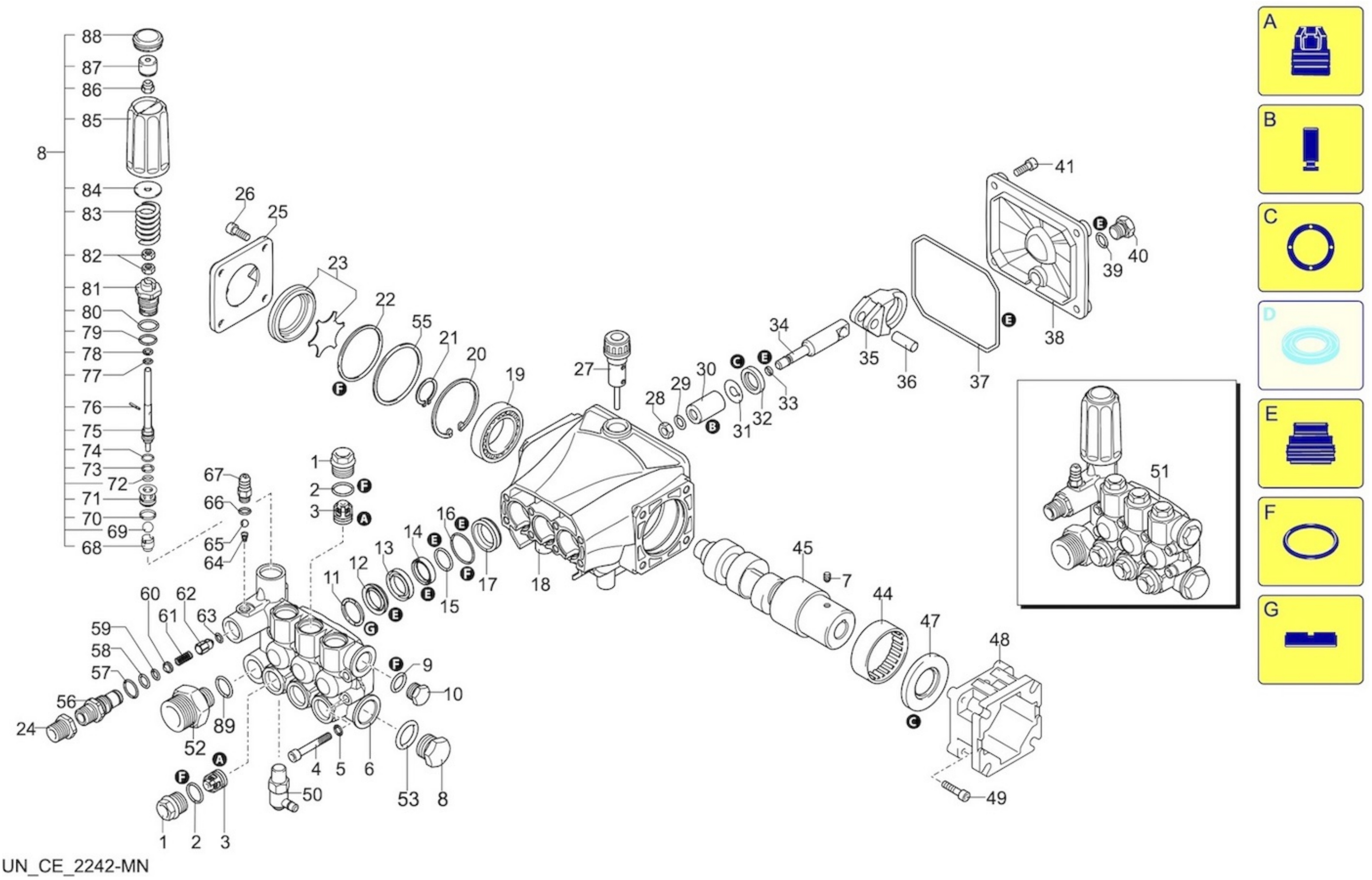

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
A
photo_cameraImage coming soon 2186 Kit Valves €21.37
G
photo_cameraImage coming soon 2191 Kit Support Rings €6.22
F
photo_cameraImage coming soon 42470 Gasket Kit €9.15
C
photo_cameraImage coming soon 42474 Oil seal kit €20.14
B
photo_cameraImage coming soon 42475 Piston kit €58.80
E
photo_cameraImage coming soon 42476 Water seal kit €22.98
37
photo_cameraImage coming soon 2760280 O-Ring €5.06
38
photo_cameraImage coming soon 3200030 Cover €12.79
39
photo_cameraImage coming soon 820510 O-ring €5.63
40
photo_cameraImage coming soon 880581 stopper €7.73
44
photo_cameraImage coming soon 1321190 Bearing €14.57
45
photo_cameraImage coming soon 3200350 Shaft €97.59
47
photo_cameraImage coming soon 480671 Ring €11.25
48
photo_cameraImage coming soon 1320050 Flange €22.03
50
photo_cameraImage coming soon 2761380 Valve €18.72
52
photo_cameraImage coming soon 2841070 Fitting €19.26
53
photo_cameraImage coming soon 180101 O-Ring €4.73
55
photo_cameraImage coming soon 3201860 RING €4.67
56
photo_cameraImage coming soon 2760230 Junction €11.62
57
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
59
photo_cameraImage coming soon 1470210 O-ring €1.58
60
photo_cameraImage coming soon 2761550 Injector €3.79
62
AR Pressure Washer 787 Shutter 2760130 AR Pressure Washer 787 Shutter €6.40
63
photo_cameraImage coming soon 1460430 O-ring €4.60
64
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
65
photo_cameraImage coming soon 1250280 sphere €2.67
67
photo_cameraImage coming soon 1982520 Hose €6.27
68
photo_cameraImage coming soon 3200560 Guide €8.18
69
photo_cameraImage coming soon 3200590 Ball €4.87
70
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
71
photo_cameraImage coming soon 3200550 Seat €11.15
72
photo_cameraImage coming soon 660191 O-Ring €4.52
73
photo_cameraImage coming soon 1080401 ring €2.13
75
photo_cameraImage coming soon 3200510 4 WHEEL KIT €32.32
76
photo_cameraImage coming soon 3201820 Pin €5.34
77
photo_cameraImage coming soon 770090 O-ring €1.58
78
photo_cameraImage coming soon 3200540 Ring €6.15
81
photo_cameraImage coming soon 3200530 Piston guide €19.47
82
photo_cameraImage coming soon 1980300 nut €1.58
83
photo_cameraImage coming soon 3201340 Spring €6.42
84
photo_cameraImage coming soon 3200600 Washer €5.07
85
photo_cameraImage coming soon 3200480 HANDWHEEL MALE PULL BLADE €17.17
87
photo_cameraImage coming soon 3200520 Bushing €13.86
88
photo_cameraImage coming soon 3200500 Band Puller €5.61
89
photo_cameraImage coming soon 2840890 O RING €4.60

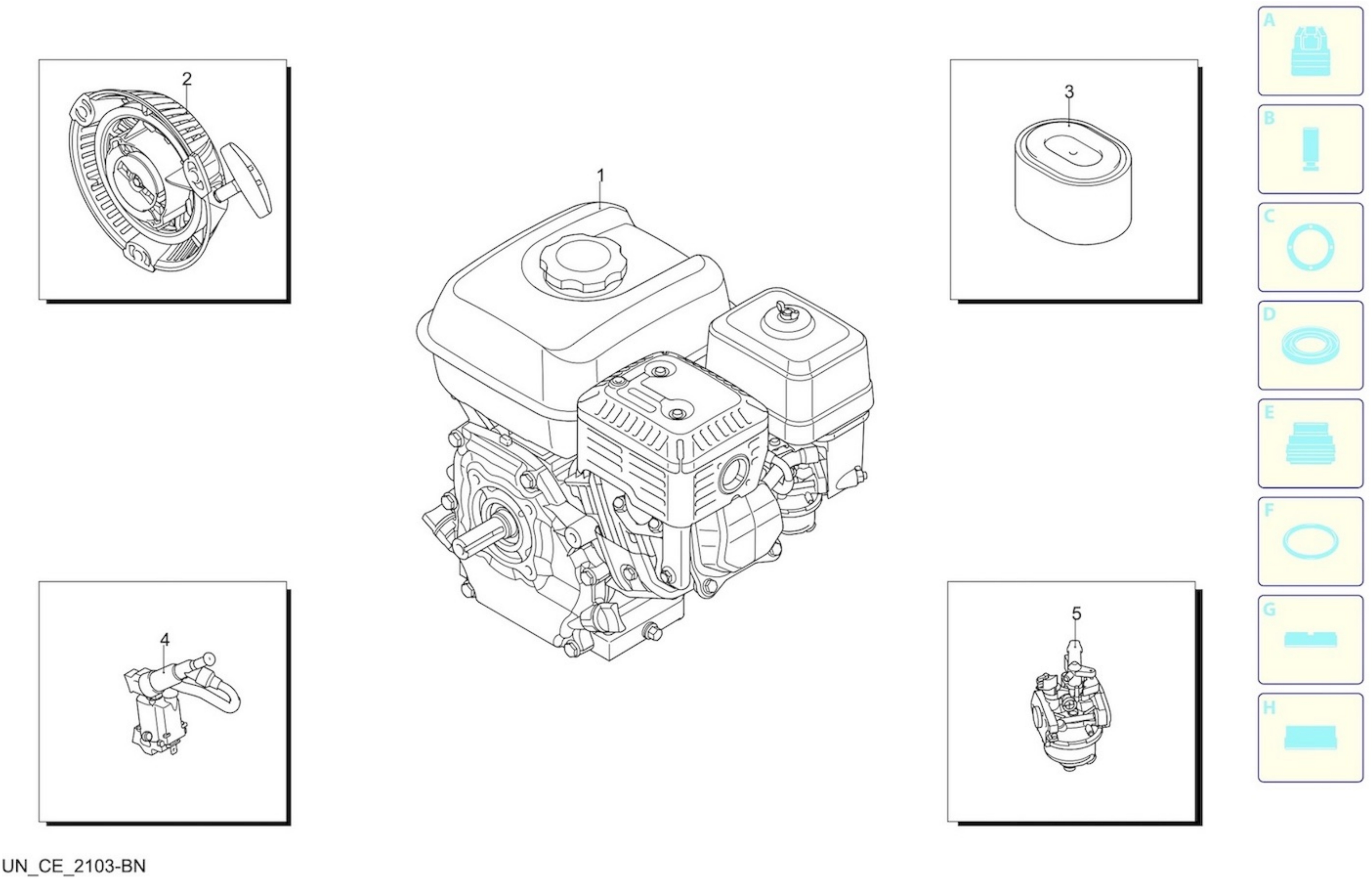

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR KDB 940

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Annovi & Reverberi AR KDB 940 - 26777.

In the following tables, look for the spare part and its respective code.


Casing
1 4008610 Axle
2 160311 Nut
3 390311 Washer
4 4000030 Support
5 180432 Screw
6 4000610 Cover
7 380620 Washer
8 4000320 Wheel
9 621780 Screw
10 4000210 Accessories carrier
11 2060200 Screw
12 4000230 Guard
13 4000260 Accessories carrier
14 2100300 Screw
15 4000220 Support
16 4000790 Nozzle holder
17 4000060 Handle
18 50019 Knob
19 4000360 Screw
20 4000860 Washer
21 4000010 Frame
22 4000830 Screw
23 4000350 Spacer
24 4000780 Spacer
25 550331 Washer
26 3000170 Nut
27 4000370 Screw
28 4000240 Accessories carrier
29 1270960 Detergent hose
30 4000750 Plug
31 2000230 Filter
32 4000160 Tank
33 4000180 Guard
34 4000050 Frame
35 4000400 Foot
36 4000770 Knob
Pump
1 3200110 Plug
2 1200690 O-ring
3 2769050 Complete valve
4 800410 Screw
5 1381550 Washer
6 3200930 Head
7 820440 Screw
8 42712 Valve kit adjustment
9 740290 O-ring
10 1980740 Plug
11 2760220 Ring
12 1342761 Water seal
13 3200160 Piston guide
14 3200690 Gasket
15 3200700 Ring
16 770590 O-ring
17 3200150 Piston guide
18 3200010 Pump body
19 1780490 Bearing
20 1260790 Ring
21 1780550 Ring
22 395081 O-ring
23 3209615 Oil level assembly
24 1122260 Fitting
25 3200070 Support
26 1200430 Screw
27 880130 Plug
28 1260110 Nut
29 1260100 Washer
30 1260120 Piston
31 1260091 Plate
32 1260460 Oil seal
33 480480 O-ring
34 3200060 Piston
35 3200040 Connecting-rod
36 1780050 Pin
37 2760280 O-ring
38 3200030 Cover
39 820510 O-ring
40 880581 Plug
41 3200220 Screw
44 1321190 Bearing
45 3200350 Shaft
47 480671 Ring
48 1320050 Flange
49 1200430 Screw
50 2761380 Valve
51 3209222 Head assembly
52 2841070 Fitting
53 180101 O-ring
55 3201860 Ring
56 2760230 Fitting
57 394280 O-ring
58 2760270 O-ring
59 1470210 O-ring
60 2761550 Injector
61 2760200 Spring
62 2760130 Shutter
63 1460430 O-ring
64 1560520 Spring
65 1250280 Ball
66 480480 O-ring
67 1982520 Hose tail
68 3200560 Guide
69 3200590 Ball
70 770140 O-ring
71 3200550 Seat
72 660191 O-ring
73 1080401 Ring
74 480560 O-ring
75 3200510 Piston
76 3201820 Pin
77 770090 O-ring
78 3200540 Ring
79 394280 O-ring
80 1200690 O-ring
81 3200530 Piston guide
82 1980300 Nut
83 3201340 Spring
84 3200600 Washer
85 3200480 Knob
86 3000170 Nut
87 3200520 Bushing
88 3200500 Plug
89 2840890 O-ring
A 2186 Valve kit
B 42475 Piston kit
C 42474 Oil seal kit
E 42476 Water seal kit
F 42470 Gasket kit
G 2191 Support ring kit
Motor
1 44941 Motor
2 51796 Start
3 51795 Filter
4 51803 Coil
5 51802 Carburetor

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
KDB 940 - 26777
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi KDB 940

Diagram Annovi KDB 940

Download (674.97KB)

You might also like

Annovi Reverberi S.p.A. SKU: 2760130
AR Shutter for Pressure Washer AR 787 Genuine Parts for Annovi & Reverberi, Shutter for Pressure Washer AR787 - ARSG 830 H4S - KDB 940 - PROLINER RS 15.15 RLW. Part for the following products: - Annovi Reverberi 820 - 22327 -...
Last items in stock €6.40
Comments (0)
