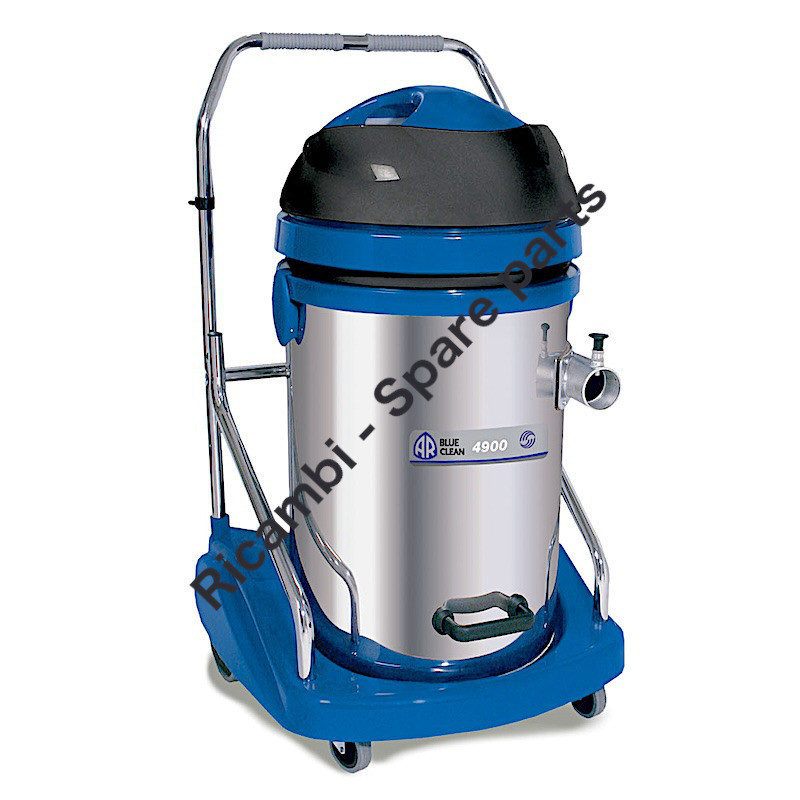

Annovi Reverberi Parts for Vacuum Cleaner 4900

SKU: 51067
€0.11
VAT included

Annovi Reverberi Parts for Vacuum Cleaner 4900 - 51067

Annovi Reverberi original spare parts for to replace broken parts for to fix Vacuum Cleaner 4900 - 51067.

Fix Your Vacuum Cleaner. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Annovi Reverberi Parts for Vacuum Cleaner 4900
  • On sale!
  • New
  • Out-of-Stock
  • Annovi Reverberi Parts for Vacuum Cleaner 4900
  • Annovi Reverberi 4900 Drawing
  • Annovi Reverberi 4900 Drawing - 1
  • Annovi Reverberi 4900 Drawing - 2
  • Annovi Reverberi 4900 Drawing - 3
  • Annovi Reverberi 4900 Drawing - 4
Annovi Reverberi S.p.A.

Annovi Reverberi Parts for Vacuum Cleaner 4900

SKU: 51067 Condition: New
€0.11
VAT included

Annovi Reverberi Parts for Vacuum Cleaner 4900 - 51067

Annovi Reverberi original spare parts for to replace broken parts for to fix Vacuum Cleaner 4900 - 51067.

Fix Your Vacuum Cleaner. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 62 Spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Vacuum
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50424 Handle €31.57
2
 photo_cameraImage coming soon 50331 Trademark AR f.to 59x31,5  €4.23
3
 photo_cameraImage coming soon 50329 Self Tipping Screw €0.40
4
 photo_cameraImage coming soon 50330 Switch €12.32
5
 photo_cameraImage coming soon 50344 Self Tipping Screw €0.10
6
 photo_cameraImage coming soon 50334 Self Tipping Screw 5x25 TC ZN  €0.48
7
 photo_cameraImage coming soon 50335 Cablefix  €0.77
8
 photo_cameraImage coming soon 50337 Terminal board €2.20
9
 photo_cameraImage coming soon 50338 Filter €7.06
10
 photo_cameraImage coming soon 50332 Fairlead €7.38
11
 photo_cameraImage coming soon 50339 Black Esat Cover €46.49
12
 photo_cameraImage coming soon 50343 Filter €14.01
13
 photo_cameraImage coming soon 50341 Self Tipping Screw €1.92
14
 photo_cameraImage coming soon 50336 Self Tipping Screw €1.72
15
 photo_cameraImage coming soon 50342 Motor Cover €38.31
16
 photo_cameraImage coming soon 50346 Black Motor Holder €42.48
17
 photo_cameraImage coming soon 50340 Electric cable €18.78
18
 photo_cameraImage coming soon 50345 Terminal board 5 poles €18.78
19
 photo_cameraImage coming soon 50344 Self Tipping Screw €0.10
20
 photo_cameraImage coming soon 52521 Spacer €13.35
21
 photo_cameraImage coming soon 50423 Motor €152.99
22
 photo_cameraImage coming soon 50350 L Gasket s/f h=5 €7.54
23
 photo_cameraImage coming soon 50359 Self Tipping Screw 5x16 ZN  €0.35
24
 photo_cameraImage coming soon 50356 Single Stage Motor Base €94.40
25
 photo_cameraImage coming soon 50353 Filter €14.92
26
 photo_cameraImage coming soon 50360 Gasket €23.34
27
 photo_cameraImage coming soon 50328 Electric cable €58.06
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50364 Float Ø80  €4.61
2
 photo_cameraImage coming soon 50366 Float Supporting Ø168  €16.38
3
 photo_cameraImage coming soon 50365 Self Tipping Screw €1.72
4
 photo_cameraImage coming soon 50371 Insert €10.42
5
 photo_cameraImage coming soon 51070 Filter €17.09
6
 photo_cameraImage coming soon 51080 Filter €99.28
7
 photo_cameraImage coming soon 50373 Gasket €1.24 Not available for order
8
 photo_cameraImage coming soon 50369 Butterfly nut €4.77 Not available for order
9
 photo_cameraImage coming soon 51081 Cyclone €387.36
Page 3 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 50375 Spring Hook  €6.78
4
 photo_cameraImage coming soon 50376 Thorn €1.44
5
 photo_cameraImage coming soon 50377 Thorn €1.44
6
 photo_cameraImage coming soon 50334 Self Tipping Screw 5x25 TC ZN  €0.48
7
 photo_cameraImage coming soon 51311 Gasket €6.41
8
 photo_cameraImage coming soon 51310 Inlet fitting €70.53
9
 photo_cameraImage coming soon 51678 Stopper €116.10
10
 photo_cameraImage coming soon 50383 Hinge €3.59
11
 photo_cameraImage coming soon 50380 Gasket €4.23
12
 photo_cameraImage coming soon 50329 Self Tipping Screw €0.40
13
 photo_cameraImage coming soon 50379 Esat Handle €33.46
14
 photo_cameraImage coming soon 50380 Gasket €4.23
15
 photo_cameraImage coming soon 50381 Self Tipping Screw €1.83
Page 4 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50311 Wheel €30.22
2
 photo_cameraImage coming soon 50359 Self Tipping Screw 5x16 ZN  €0.35
3
 photo_cameraImage coming soon 50390 Body Trolley €112.84
4
 photo_cameraImage coming soon 50391 Self Tipping Screw €3.31
5
 photo_cameraImage coming soon 50336 Self Tipping Screw €1.72
7
 photo_cameraImage coming soon 50310 Wheel €32.01
8
 photo_cameraImage coming soon 50396 Weel axle €7.21
9
 photo_cameraImage coming soon 50395 Plug €7.38
10
 photo_cameraImage coming soon 50389 Spacer €3.31
11
 photo_cameraImage coming soon 50393 Self Tipping Screw €2.33
12
 photo_cameraImage coming soon 50384 Esat Handle €99.28
13
 photo_cameraImage coming soon 50385 Clips €12.10
14
 photo_cameraImage coming soon 50397 Self Tipping Screw €1.24
15
 photo_cameraImage coming soon 50387 Esat Handle €6.62
16
 photo_cameraImage coming soon 50394 Self Tipping Screw €2.20
17
 photo_cameraImage coming soon 50388 Radial coonector Ø25 €19.15
Page 5 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 51074 Hose €285.36
3
 photo_cameraImage coming soon 51075 Lance €71.61
4
 photo_cameraImage coming soon 51078 Lance €71.61

Shipping and delivery information will be available shortly.

Annovi Reverberi Parts for Vacuum Cleaner 4900 - 51067

Annovi Reverberi original spare parts for to replace broken parts for to fix Vacuum Cleaner 4900 - 51067.

Fix Your Vacuum Cleaner. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 4900 - 51067

AR Vacuum cleaner 4900 - 51067
Vacuum Pag.1
# Part Num. Description
1 50424 Handle
2 50331 Nameplate
3 50329 Screw
4 50330 Switch
5 50344 Screw
6 50334 Screw
7 50335 Cord clamp
8 50337 Terminal block
9 50338 Filter
10 50332 Cord guard
11 50339 Cover
12 50343 Filter
13 50341 Screw
14 50336 Screw
15 50342 Guard
16 50346 Stopper
17 50340 Cable
18 50345 Terminal block
19 50344 Screw
20 52521 Spacer
21 50423 Motor
22 50350 Gasket
23 50359 Screw
24 50356 Base
25 50353 Filter
26 50360 Gasket
27 50328 Cable
Filter group Pag.2
# Part Num. Description
1 50364 Float
2 50366 Support
3 50365 Screw
4 50371 Insert
5 51070 Filter
6 51080 Filter
7 50373 Gasket
8 50369 Screw
9 51081 Cyclone
Tank Pag.3
# Part Num. Description
1 51680 Tank
2 50375 Hook
3 51456 Rivet
4 50376 Pin
5 50377 Pin
6 50334 Screw
7 51311 Gasket
8 51310 Inlet fitting
9 51678 Stopper
10 50383 Hinge
11 50380 Washer
12 50329 Screw
13 50379 Handle
14 50380 Washer
15 50381 Screw
Carriage Pag.4
# Part Num. Description
1 50311 Wheel
2 50359 Screw
3 50390 Body
4 50391 Screw
5 50336 Screw
6 50386 Axle
7 50310 Wheel
8 50396 Tube
9 50395 Plug
10 50389 Spacer
11 50393 Screw
12 50384 Handle
13 50385 Hook
14 50397 Screw
15 50387 Knob
16 50394 Screw
17 50388 Connector
Accessories Pag.5
# Part Num. Description
1 51074 Hose
3 51075 Lance
4 51078 Lance
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
51067

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Vacuum
CHECK S/N AR
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

AR 4900 51067 Drawing

AR 4900 51067 Drawing

Download (1.49MB)
