Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR 410

SKU: Annovi Reverberi AR410 - 12354
€23.30
VAT included

Annovi & Reverberi Parts for Pressure Washer AR 410

Annovi & Reverberi Genuine spare parts or replacement parts for Pressure Washer Annovi & Reverberi AR 410 - 12354.

Pressure Washer Annovi & Reverberi AR 410 - 12354
Annovi & Reverberi Parts for Pressure Washer AR 410
  • Annovi & Reverberi Parts for Pressure Washer AR 410
  • Annovi & Reverberi Parts for Pressure Washer AR 410
  • Annovi & Reverberi Parts for Pressure Washer AR 410
  • Annovi & Reverberi Parts for Pressure Washer AR 410
  • Annovi & Reverberi Parts for Pressure Washer AR 410
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR 410

SKU: Annovi Reverberi AR410 - 12354 Condition: New
€23.30
VAT included

Annovi & Reverberi Parts for Pressure Washer AR 410

Annovi & Reverberi Genuine spare parts or replacement parts for Pressure Washer Annovi & Reverberi AR 410 - 12354.

Pressure Washer Annovi & Reverberi AR 410 - 12354
settings 69 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
A
 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division 2577 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division €14.62
D
 Kit Inlet-Outlet Valves for Pressure Washers Black & Decker PW 1800 W 2687 Kit Inlet-Outlet Valves for Pressure Washers Black & Decker PW 1800 W €18.20
B
 photo_cameraImage coming soon 2734 Piston Kit €22.01
1
 photo_cameraImage coming soon 2860088 Blue casing €24.12
2
 photo_cameraImage coming soon 2860050 Handle €20.35
3
 photo_cameraImage coming soon 2440075 Wheel €9.56
4
 photo_cameraImage coming soon 2100300 screw €4.72
5
 photo_cameraImage coming soon 2860030 Black Bonnet €24.38
6
 photo_cameraImage coming soon 1680190 Fan cowling €7.72
8
 photo_cameraImage coming soon 2860060 Bracket €20.10
9
 photo_cameraImage coming soon 2440270 Screw €4.72
10
 photo_cameraImage coming soon 2860020 Black Bonnet €24.38
11
 Cap for Pressure Washers AR Farmer's ProLiner 13.17-15.15-9.14-9.141 1682420 Cap for Pressure Washers AR Farmer's ProLiner 13.17-15.15-9.14-9.141 €1.24
12
 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner 2000240 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner €0.33
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
2
 photo_cameraImage coming soon 2101000 Screw €4.80
3
 photo_cameraImage coming soon 2100630 Junction €6.91
5
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
7
 photo_cameraImage coming soon 2109051 Valve €6.77
9
 AR410 Piston Guide 2020120 AR410 Piston Guide €21.12
10
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
11
 Head with O-R for Pressure Washers AR Top Wash 100 T-EXTREME 150 TSS 2123 Head with O-R for Pressure Washers AR Top Wash 100 T-EXTREME 150 TSS €22.20
15
 Water Seal for Pressure Washers ARSG FRESH FOG 2200140 Water Seal for Pressure Washers ARSG FRESH FOG €1.37
16
 AR Seal Support Ring D.12 2020040 AR Seal Support Ring D.12 €5.14
17
 photo_cameraImage coming soon 2021740 O-ring €4.80
18
 photo_cameraImage coming soon 2560480 Bushing €1.40
19
 photo_cameraImage coming soon 2020030 Bushing €7.11
20
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
21
 photo_cameraImage coming soon 2200210 Screw €4.86
22
 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS 2020150 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS €6.90
23
 photo_cameraImage coming soon 2020130 Piston €10.64
24
 photo_cameraImage coming soon 2020140 Ring €5.00
25
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
26
 photo_cameraImage coming soon 2021960 Fork €4.94
28
 photo_cameraImage coming soon 1680680 O-Ring €5.27
30
 photo_cameraImage coming soon 1461470 junction €3.26
33
 photo_cameraImage coming soon 2223 TSS pump assembly €121.14
34
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
37
 photo_cameraImage coming soon 2101450 Flange €6.77
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1680250 Fan €7.11
2
 photo_cameraImage coming soon 2020850 Washer €5.08
3
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
4
 photo_cameraImage coming soon 1680035 Shield €24.32
6
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
7
 Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410 1682640 Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410 €15.03
8
 photo_cameraImage coming soon 840020 Ring €5.69
9
 photo_cameraImage coming soon 1682110 Bearing €7.77
10
 photo_cameraImage coming soon 1680170 Wobble plate €12.37
13
 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 2320280 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 €10.01
14
 photo_cameraImage coming soon 2021480 Grommet €4.16
15
 photo_cameraImage coming soon 2022150 Cable €10.07
16
 photo_cameraImage coming soon 4610 Motor €165.24
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 Lance Head for Pressure Washer ARSG EVENT 131 N TSS 40359 Lance Head for Pressure Washer ARSG EVENT 131 N TSS €19.40
2
 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND 1680220 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND €0.45
3
 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 40344 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 €28.07 Not available for order
4
 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 40667 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 €16.78
5
 photo_cameraImage coming soon 40352 Tank €18.87
6
 photo_cameraImage coming soon 40350 Gun->40925+3082750+3780492 €36.26
7
 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 40417 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 €12.42
8
 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
9
 Hose AP for Pressure Washer Annovi & Reverberi Blue Clean AR 410 2620400 Hose AP for Pressure Washer Annovi & Reverberi Blue Clean AR 410 €46.35
10
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR 410

Annovi & Reverberi Genuine spare parts or replacement parts for Pressure Washer Annovi Reverberi AR 410 - 12354.

In the following tables, look for the spare part and its respective code.
Pressure Washer Annovi & Reverberi AR 410 - 12354

Pressure Washer Annovi Reverberi AR 410 - 12354

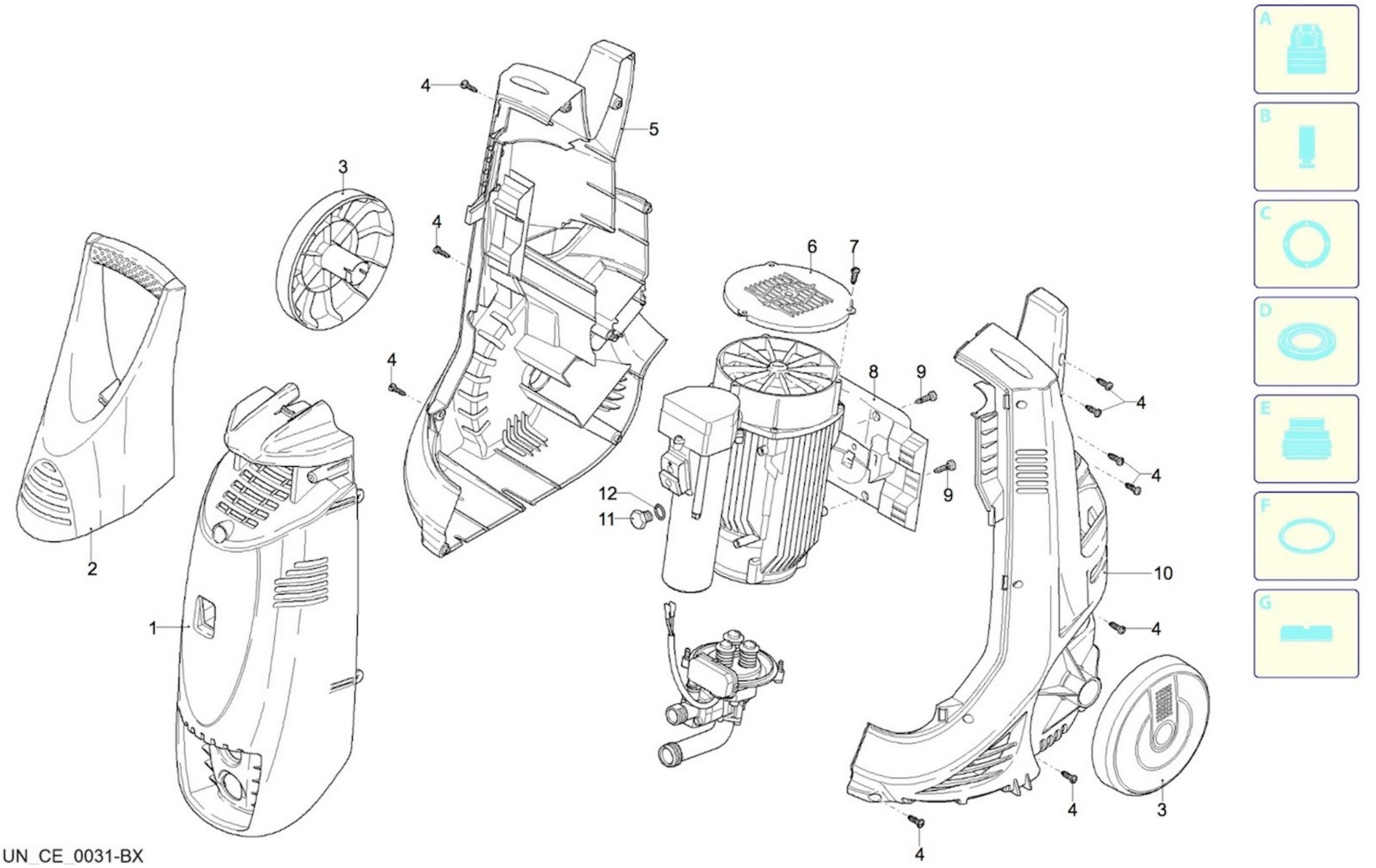

Casing Pag.1
# Part Num. Description
1 2860088 Blue casing
2 2860050 Handle
3 2440075 Wheel
4 2100300 Screw
5 2860030 Black casing
6 1680190 Fan cowling
7 1261570 Screw
8 2860060 Bracket
9 2440270 Screw
10 2860020 Black casing
11 1682420 Plug
12 2000240 O-ring

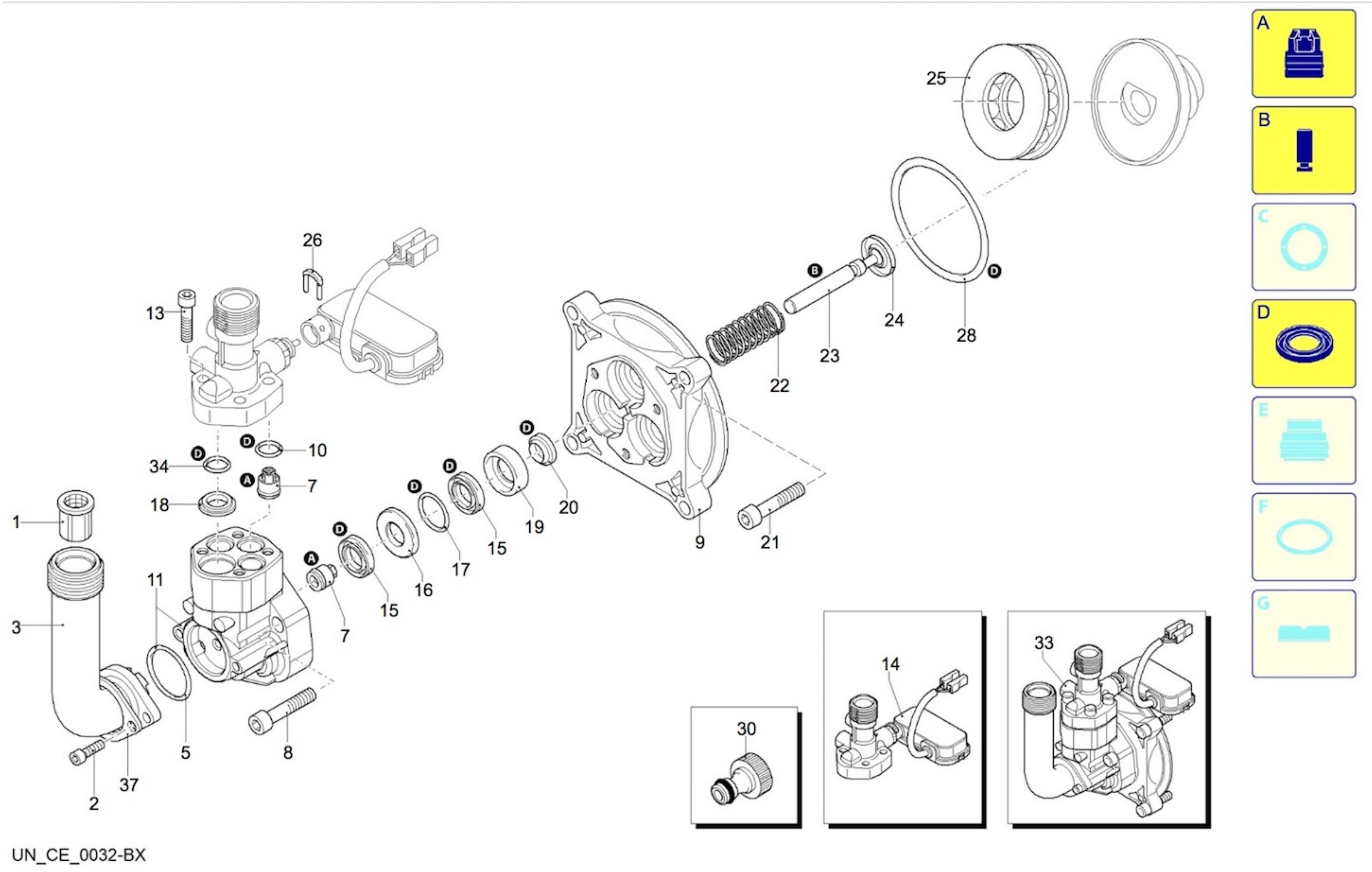

Pump Pag.2
1 1340260 Filter
2 2101000 Screw
3 2100630 Fitting
5 550350 O-ring
7 2109051 Valve
8 850850 Screw
9 2020120 Piston guide
10 880840 O-ring
11 2123 O-ring + head
13 1260760 Screw
14 2256 Fitting assembly
15 2200140 Water seal
16 2020040 Ring
17 2021740 O-ring
18 2560480 Bushing
19 2020030 Bushing
20 1683500 Oil seal
21 2200210 Screw
22 2020150 Spring
23 2020130 Piston
24 2020140 Ring
25 2021570 Bearing
26 2021960 Fork
28 1680680 O-ring
30 1461470 Fitting
33 2223 TSS pump assembly
34 394280 O-ring
37 2101450 Flange
A 2577 Valve kit
B 2734 Piston kit
D 2687 Seal kit

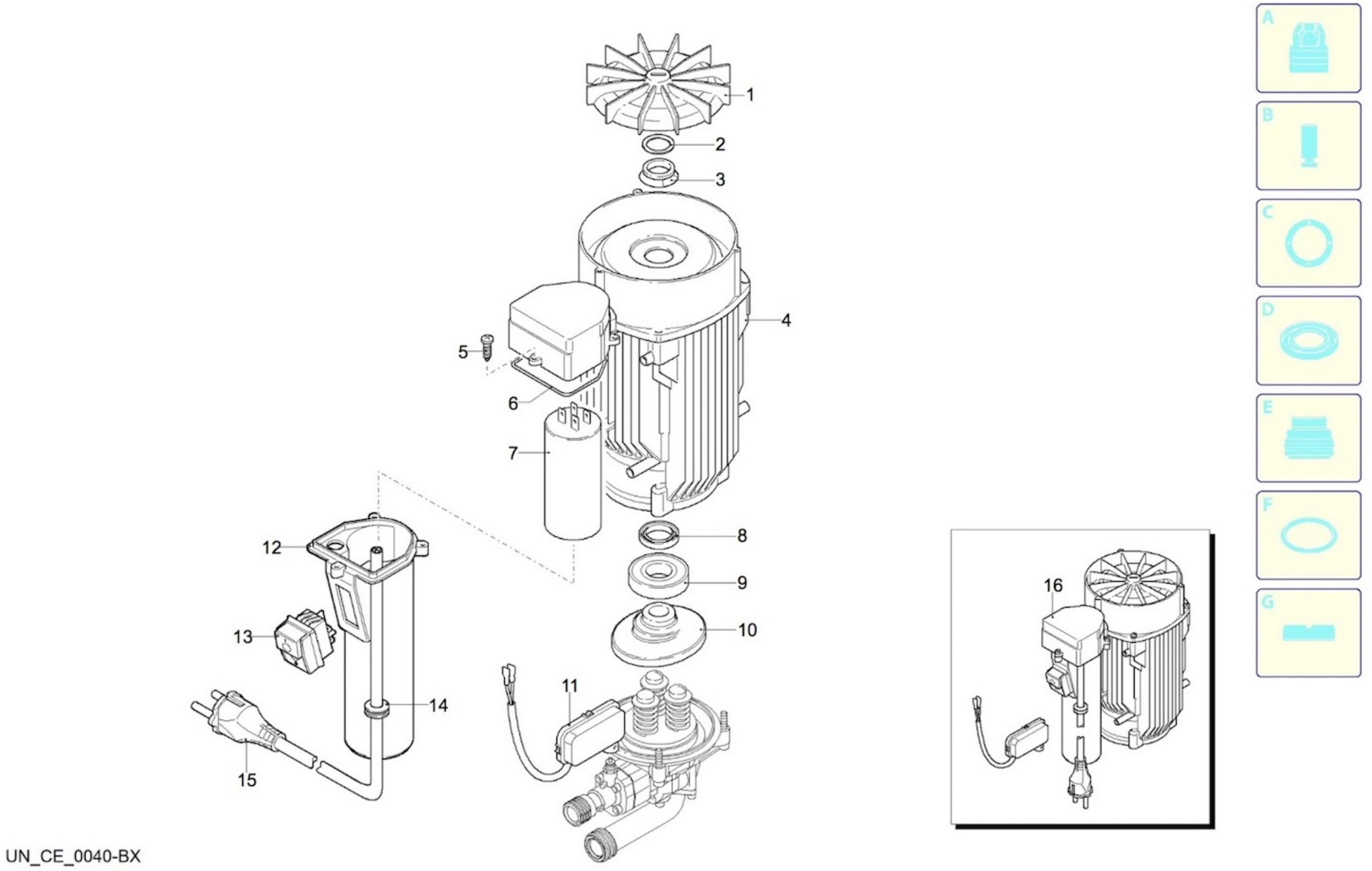

Motor Pag.3
1 1680250 Fan
2 2020850 Washer
3 1340350 Seal
4 1680035 Shield
5 1261551 Screw
6 850840 O-ring
7 1682640 Capacitor
8 840020 Ring
9 1682110 Bearing
10 1680170 Wobble plate
11 2029721 TSS box assembly
12 2440221 Box
13 2320280 Switch
14 2021480 Gland
15 2022150 Cable
16 4610 Motor

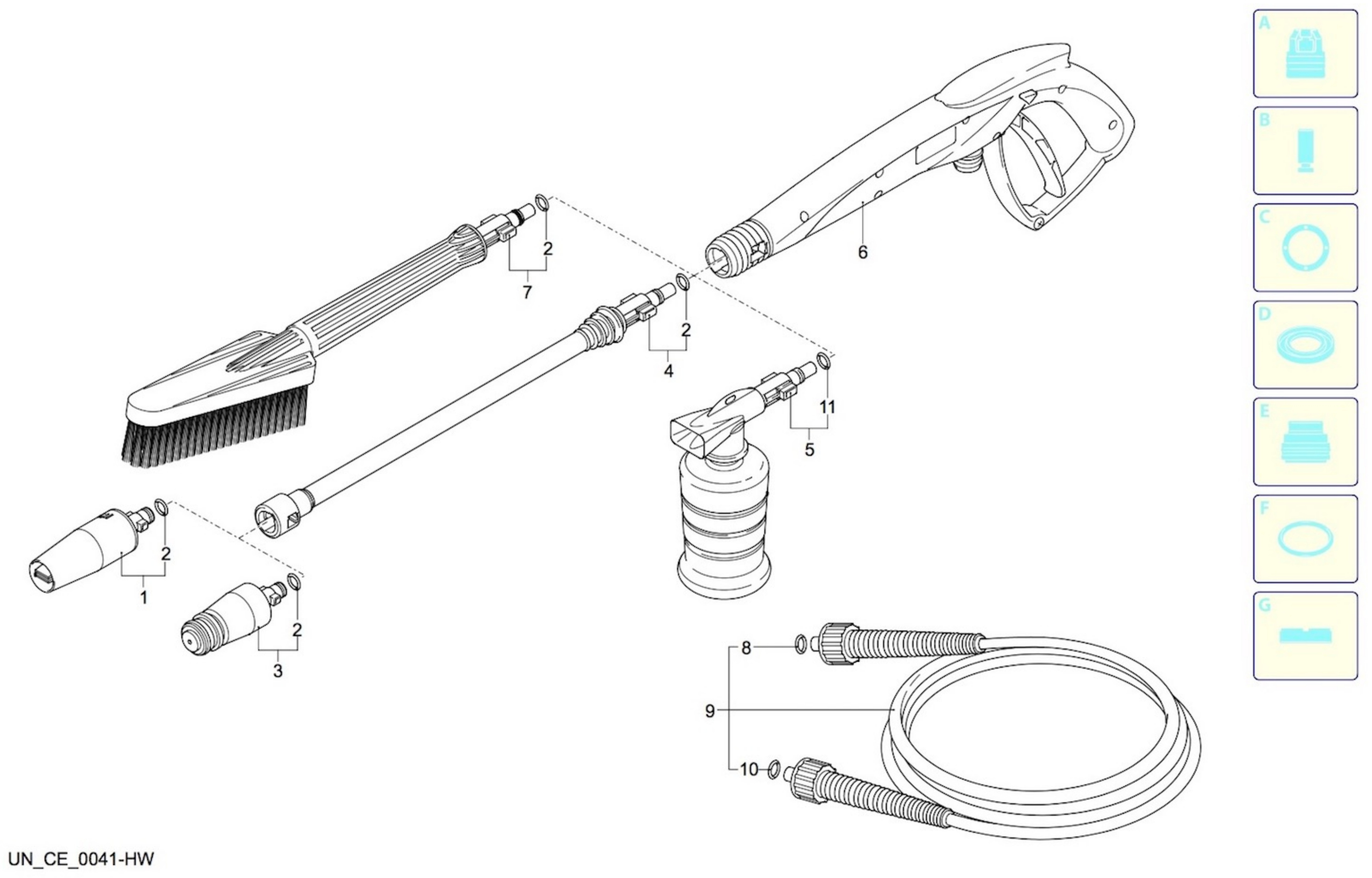

Accessories Pag.4
1 40359 Lance head
2 1680220 O-ring
3 40344 Rotopower head
4 40667 Lance
5 40352 Tank
6 40350 Gun Complete with Hose HP + Connection Joint
7 40417 Fixed brush
8 1080250 O-ring
9 2620400 High pressure hose
10 2000770 O-ring
11 880840 O-ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi AR410 - 12354
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR 410

Diagram Annovi AR 410

Download (750.5KB)
