Annovi & Reverberi Parts for Pressure Washer AR479

SKU: Annovi Reverberi 479 - 14440
€1.76
VAT included

Annovi Reverberi Parts for Pressure Washer AR479

Annovi Reverberi Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Pressure Washer AR 479 - 14440.

Annovi Reverberi 479 - 14440
Annovi & Reverberi Parts for Pressure Washer AR479
  • On sale!
  • Annovi & Reverberi Parts for Pressure Washer AR479
  • Annovi & Reverberi Parts for Pressure Washer AR479
  • Annovi & Reverberi Parts for Pressure Washer AR479

Annovi & Reverberi Parts for Pressure Washer AR479

SKU: Annovi Reverberi 479 - 14440 Condition: New
€1.76
VAT included

Annovi Reverberi Parts for Pressure Washer AR479

Annovi Reverberi Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Pressure Washer AR 479 - 14440.

Annovi Reverberi 479 - 14440
settings 44 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL 3082600 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL €9.71
2
photo_cameraImage coming soon 4101930 Plate €6.56
3
photo_cameraImage coming soon 4100890 Conveyor €14.92
4
photo_cameraImage coming soon 3085170 Guard €7.66
5
photo_cameraImage coming soon 3085160 Wheel €15.90
6
photo_cameraImage coming soon 3085210 Support €6.63
7
photo_cameraImage coming soon 3085200 base €21.15
8
photo_cameraImage coming soon 3085050 Guard €6.85
9
photo_cameraImage coming soon 4221120 Pipe €7.03
11
photo_cameraImage coming soon 3085190 Plug €3.46
12
photo_cameraImage coming soon 3085180 Tank €17.18
13
photo_cameraImage coming soon 3085150 Guard €2.47
14
Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
15
Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
16
Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS 3081280 Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS €12.87
17
photo_cameraImage coming soon 3085300 Electric pump assembly €159.61
18
photo_cameraImage coming soon 3085110 Guard €8.92
19
Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €21.06
20
photo_cameraImage coming soon 3080580 cable clamp €2.88
21
photo_cameraImage coming soon 3085220 Accessories carrier €4.27
22
Switch for Pressure Washer Annovi & Reverberi AR479 3085130 Switch for Pressure Washer Annovi & Reverberi AR479 €16.73
23
photo_cameraImage coming soon 3085091 Casing €22.93
24
photo_cameraImage coming soon 3085100 Guard €11.51
25
photo_cameraImage coming soon 3085230 Accessories carrier €5.20
26
photo_cameraImage coming soon 3085080 Knob €2.91
27
photo_cameraImage coming soon 3085070 Handle €15.89
28
photo_cameraImage coming soon 3085240 Hub pin €1.38
29
photo_cameraImage coming soon 3085250 Lever €4.01
30
photo_cameraImage coming soon 3085260 Knob €6.65
31
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
32
photo_cameraImage coming soon 3085060 Plate €21.55
33
photo_cameraImage coming soon 3085040 Bracket €5.52
34
photo_cameraImage coming soon 3085030 Guard €6.85
35
photo_cameraImage coming soon 3085140 Screw kit €1.96
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR479

Annovi Reverberi Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Pressure Washer AR 479 - 14440.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 479 - 14440

Annovi Reverberi Pressure Washer AR 479 - 14440

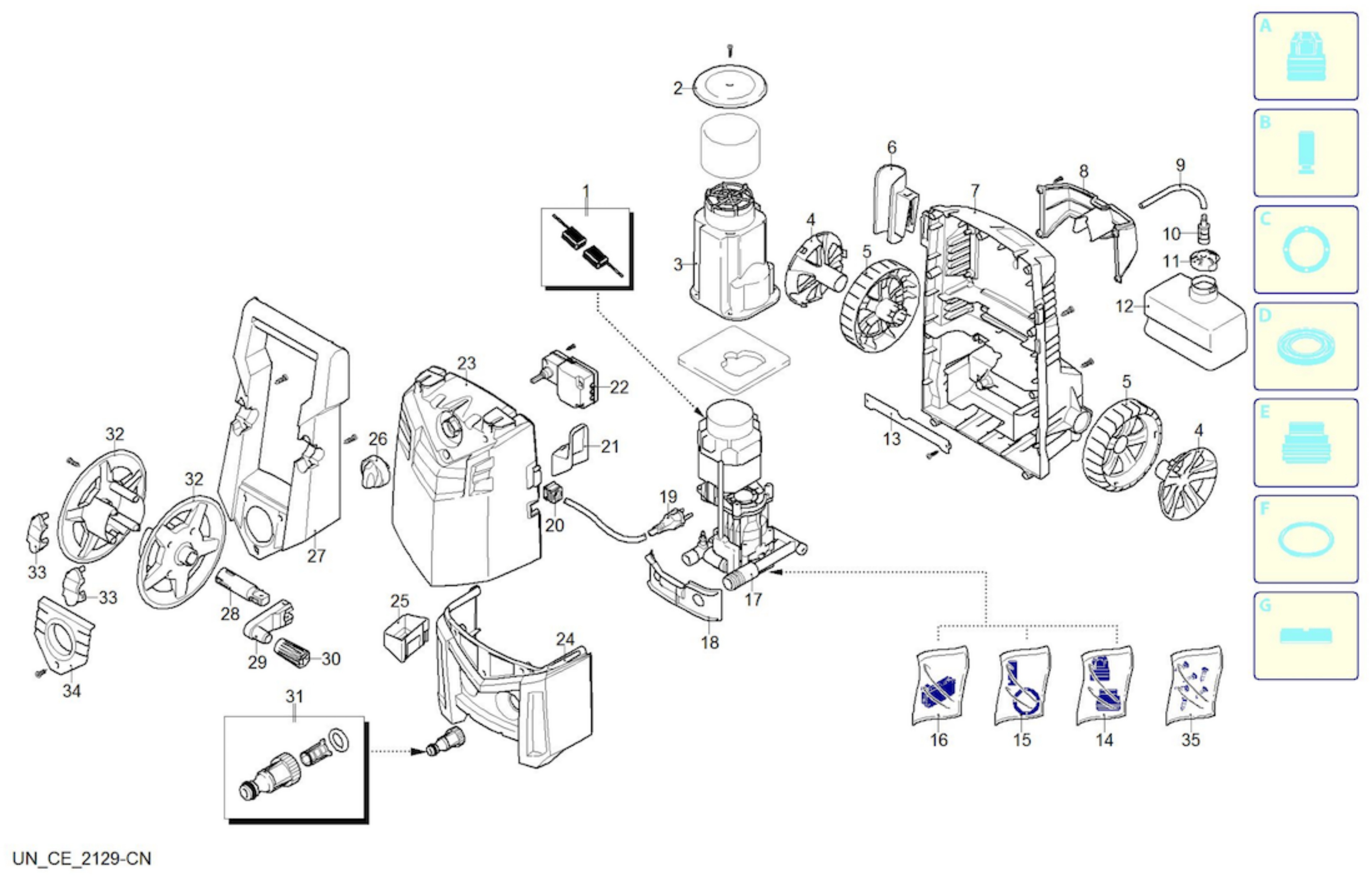

Casing AR 479 - 14440 Pag. 1
# Part Num. Description
1 3082600 Brush kit for motor
2 4101930 Plate
3 4100890 Conveyor
4 3085170 Guard
5 3085160 Wheel
6 3085210 Support
7 3085200 Base
8 3085050 Guard
9 4221120 Pipe
10 3440720 Filter
11 3085190 Plug
12 3085180 Tank
13 3085150 Guard
14 3081290 Valves + seals kit
15 3081270 Piston + seals kit
16 3081280 TSS kit
17 3085300 Electric pump assembly
18 3085110 Guard
19 3082360 Cable
20 3080580 Cable gland
21 3085220 Accessories carrier
22 3085130 Switch
23 3085091 Casing
24 3085100 Guard
25 3085230 Accessories carrier
26 3085080 Knob
27 3085070 Handle
28 3085240 Hub pin
29 3085250 Lever
30 3085260 Knob
31 3082130 Water coupling kit
32 3085060 Plate
33 3085040 Bracket
34 3085030 Guard
35 3085140 Screw kit

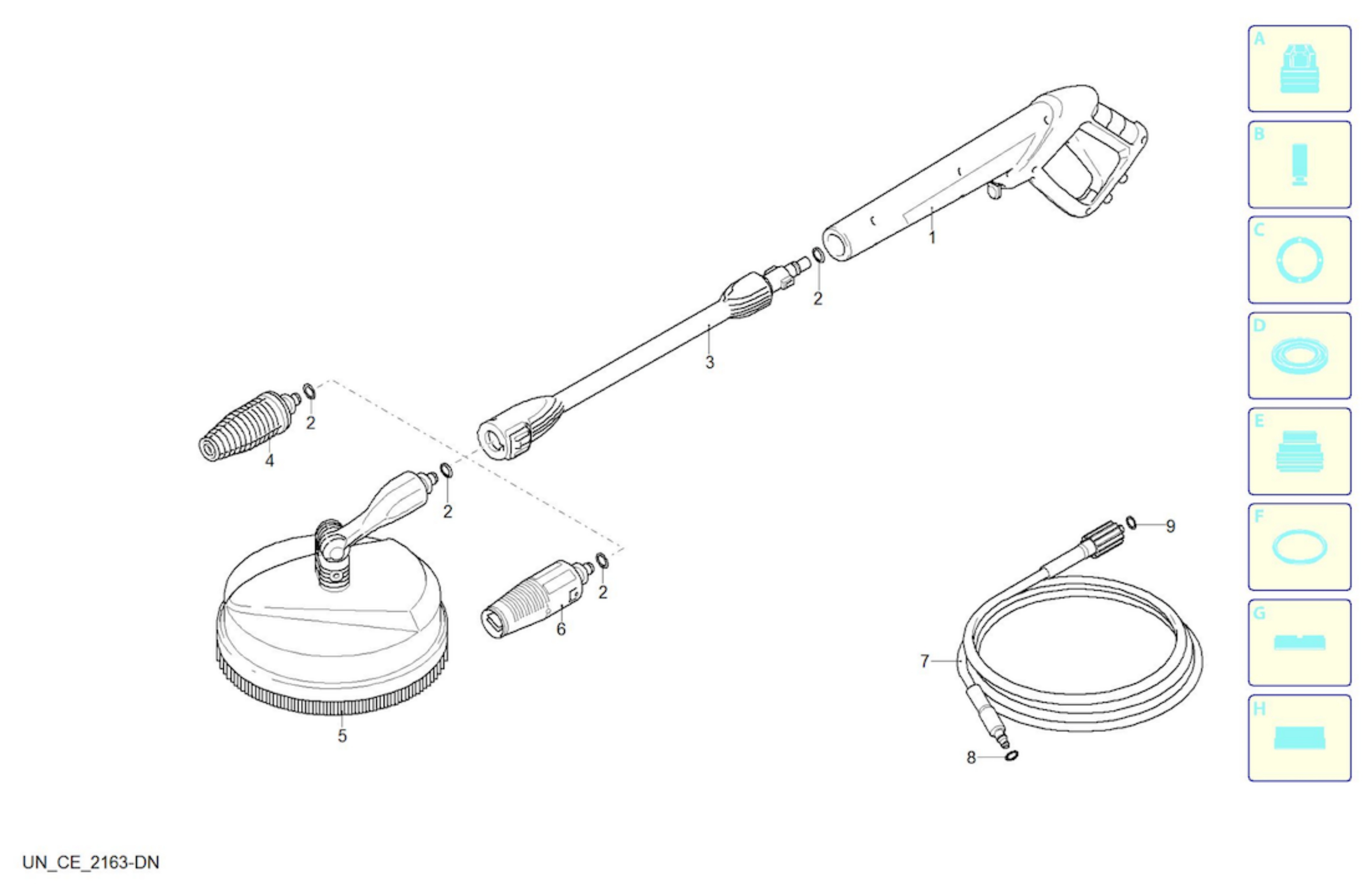

Accessories AR479 - 14440 Pag. 2
1 4100781 Gun
2 3083700 O-ring
3 4100771 Extension
4 4100800 Lance head
5 3084354 Mini Patio
6 4101550 Lance head
7 4101600 High pressure hose
8 3083380 O-ring
9 3083400 O-ring
