Annovi Reverberi S.p.A.

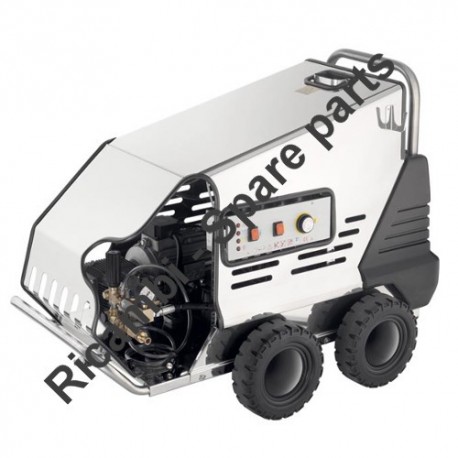

Annovi & Reverberi Parts for Pressure Washer AR1350

SKU: Annovi Reverberi 1350 - 23656
€11.93
VAT included

Annovi & Reverberi Parts for Pressure Washer AR 1350

Annovi & Reverberi Genuine Parts or replacement Parts for to repair damaged parts, for Pressure Washer Blue Clean 1350 - 23656.

Annovi Reverberi 1350 - 23656
Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
  • Annovi & Reverberi Parts for Pressure Washer AR1350
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1350

SKU: Annovi Reverberi 1350 - 23656 Condition: New
€11.93
VAT included

Annovi & Reverberi Parts for Pressure Washer AR 1350

Annovi & Reverberi Genuine Parts or replacement Parts for to repair damaged parts, for Pressure Washer Blue Clean 1350 - 23656.

Annovi Reverberi 1350 - 23656
settings 164 Spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
164 spare parts
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
14
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
15
 photo_cameraImage coming soon 1560600 Junction €19.94
16
 photo_cameraImage coming soon 3000 Filter €14.72
17
 photo_cameraImage coming soon 50488 Junction €4.42
18
 photo_cameraImage coming soon 50466 Junction €8.78
19
 photo_cameraImage coming soon 51416 Support €77.76
20
 photo_cameraImage coming soon 50467 Junction €6.47
20
 photo_cameraImage coming soon 880330 Tenuta Water €8.14
21
 photo_cameraImage coming soon 3260110 Safety Valve €43.48
24
 photo_cameraImage coming soon 3260510 Pressure Switch €29.74
25
 photo_cameraImage coming soon 50469 Hose €11.72
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

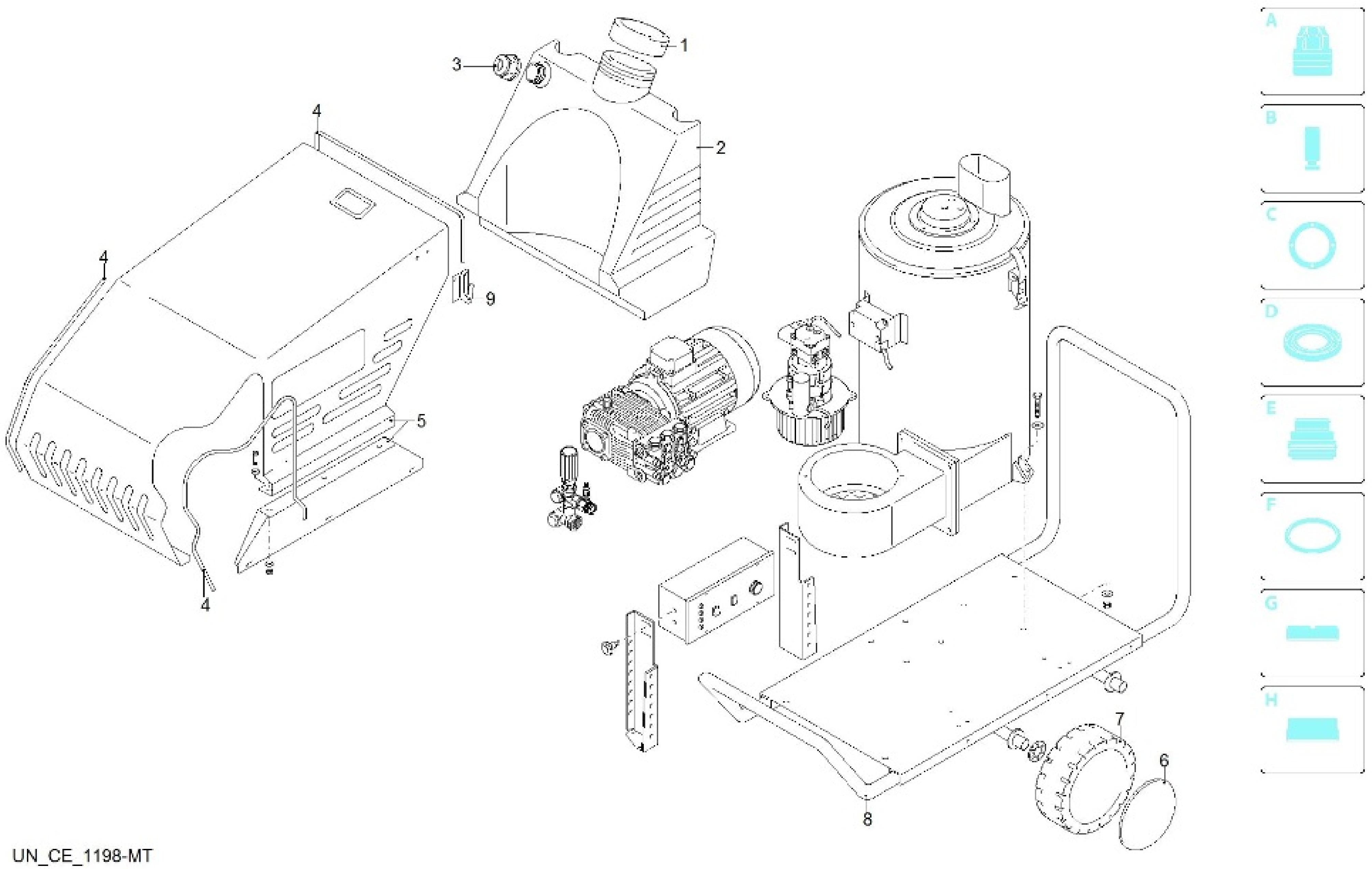

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50611 Stopper €14.57
2
 photo_cameraImage coming soon 51421 Tank €257.52
3
 photo_cameraImage coming soon 51443 Stopper €16.99
4
 photo_cameraImage coming soon 50601 Gasket €11.73
6
 photo_cameraImage coming soon 50628 Protection €4.26
7
 photo_cameraImage coming soon 50627 Wheel €55.98
9
 photo_cameraImage coming soon 51420 Porta-Accessories €7.29
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

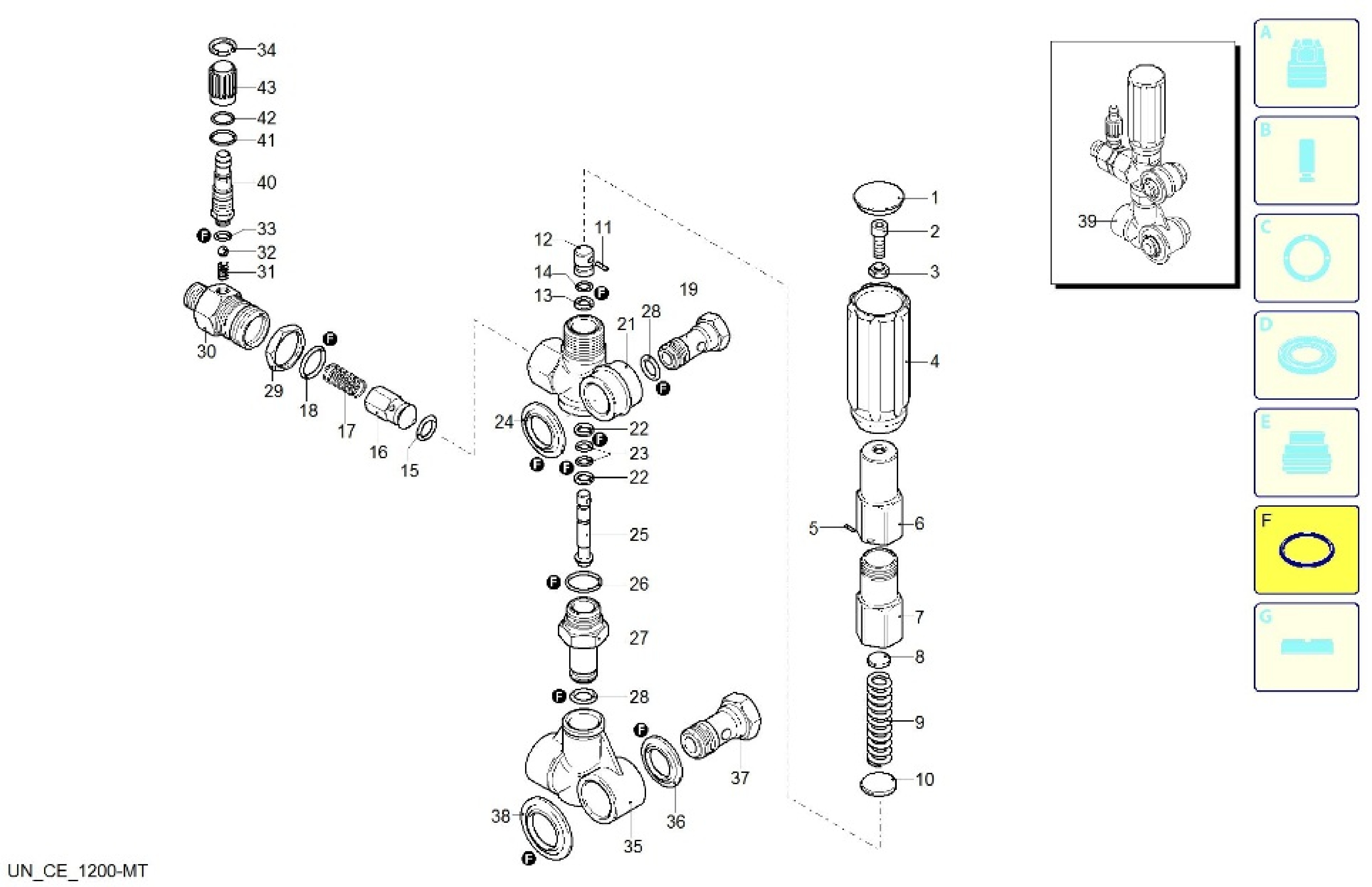

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
G
 Kit Support Rings 1829 Kit Support Rings €11.93
C
 Kit Oil Seals 1855 Kit Oil Seals €35.52
E
 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 1857 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 €60.64
B
 photo_cameraImage coming soon 2757 Piston Kit €88.44
A
 photo_cameraImage coming soon 2864 Kit Valves €18.08
1
 photo_cameraImage coming soon 960090 Stopper €5.85
2
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
 photo_cameraImage coming soon 1389051 Complete Valve €4.82
4
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
5
 photo_cameraImage coming soon 880581 stopper €7.73
6
 photo_cameraImage coming soon 820510 O-ring €5.63
7
 photo_cameraImage coming soon 820150 Screw €5.42
9
 photo_cameraImage coming soon 1381071 Head €140.12
10
 photo_cameraImage coming soon 180101 O-Ring €4.73
11
 photo_cameraImage coming soon 820361 Stopper €4.41
12
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
13
 photo_cameraImage coming soon 740290 O-ring €2.67
15
 photo_cameraImage coming soon 44285 Engine €496.77
16
 photo_cameraImage coming soon 960110 Ring €2.41
17
 photo_cameraImage coming soon 1382740 Tenuta Water €16.70
18
 photo_cameraImage coming soon 1380090 Piston Guide €12.55
19
 photo_cameraImage coming soon 961240 O-Ring €4.80
20
 photo_cameraImage coming soon 880330 Tenuta Water €8.14
21
 photo_cameraImage coming soon 1383130 Ring €10.75
22
 photo_cameraImage coming soon 1382770 Pump Housing €112.58
23
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
24
 photo_cameraImage coming soon 880130 Stopper €6.67
25
 photo_cameraImage coming soon 2280340 Bearing €26.80
26
 photo_cameraImage coming soon 640030 O-Ring €5.01
27
 photo_cameraImage coming soon 1380120 Thickness 0.10 Mm €5.22
27
 photo_cameraImage coming soon 1380130 Thickness 0.20 Mm €5.22
27
 photo_cameraImage coming soon 1380530 Thickness 0.25 Mm €6.05
27
 photo_cameraImage coming soon 1382810 Thickness 0.05 Mm €5.08
28
 photo_cameraImage coming soon 1380050 Support €20.71
29
 photo_cameraImage coming soon 850370 screw €2.26
30
 photo_cameraImage coming soon 2280060 Tree €109.40
32
 photo_cameraImage coming soon 1383140 Bearing €19.05
33
 photo_cameraImage coming soon 180340 Ring €10.20
34
 photo_cameraImage coming soon 1380040 Support €22.03
35
 photo_cameraImage coming soon 962010 Nut €6.12
36
 photo_cameraImage coming soon 962000 Washer €4.87
37
 photo_cameraImage coming soon 1380940 Piston €31.99
38
 photo_cameraImage coming soon 1380950 Disk €4.94
39
 photo_cameraImage coming soon 1389272 Pre-Assembly Head €189.82
40
 photo_cameraImage coming soon 1080401 ring €2.13
41
 photo_cameraImage coming soon 1380920 Piston €26.73
42
 photo_cameraImage coming soon 1380060 Plug €6.39
43
 photo_cameraImage coming soon 1383050 Piston Rod €17.05
44
 photo_cameraImage coming soon 1780510 O-Ring €5.35
47
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
48
 photo_cameraImage coming soon 1140450 O-Ring €4.25
49
 photo_cameraImage coming soon 1789010 Cover €24.45
50
 photo_cameraImage coming soon 50068 Gasket €6.57
51
 photo_cameraImage coming soon 50069 Box €18.90
52
 photo_cameraImage coming soon 20638 Pre-Installing Pump €456.02
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

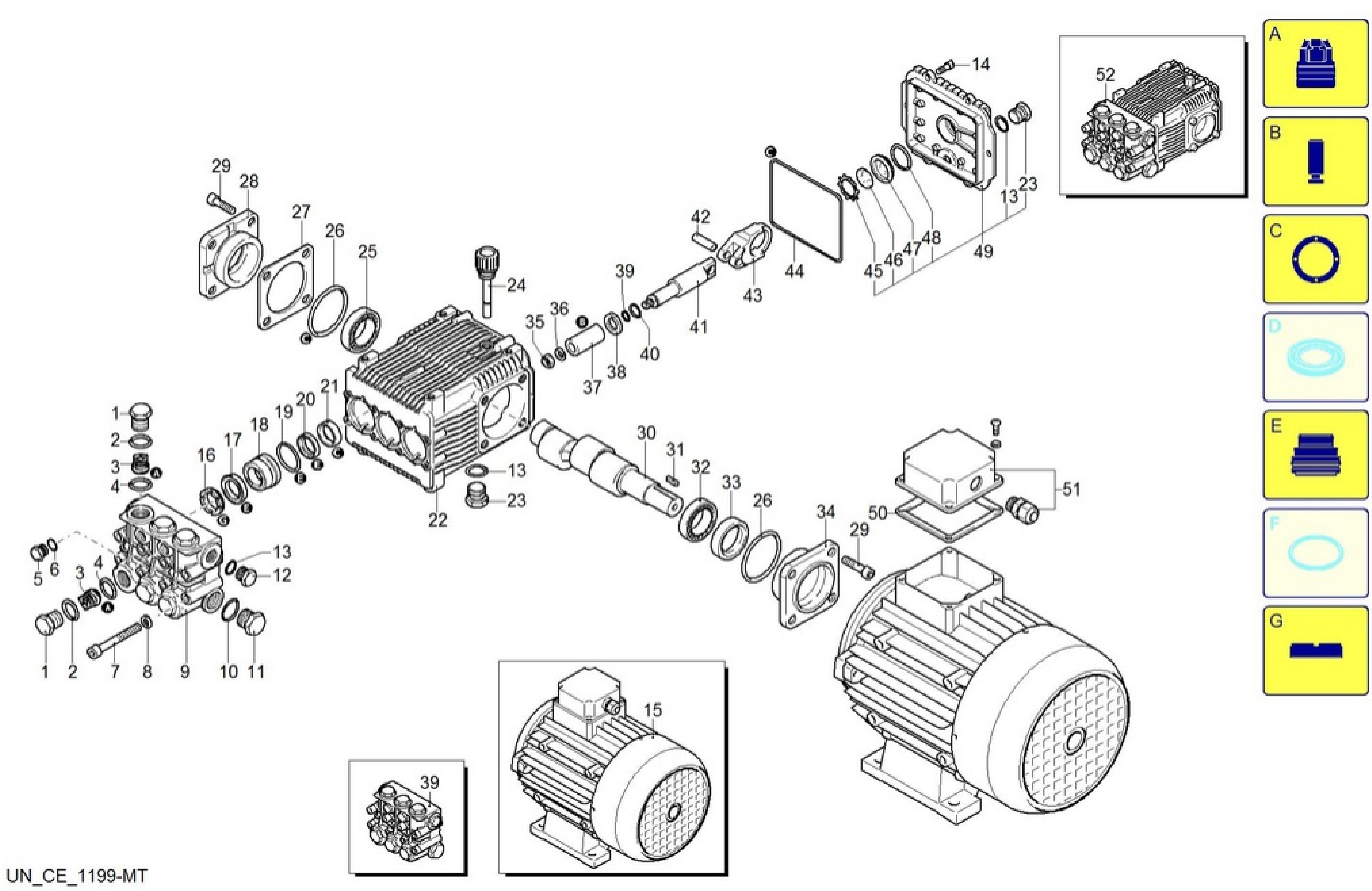

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
F
 photo_cameraImage coming soon 2611 Gasket Kit €17.56
1
 photo_cameraImage coming soon 1560580 Stopper €5.28
2
 photo_cameraImage coming soon 540290 Screw €5.47
3
 photo_cameraImage coming soon 1660210 Nut €4.59
4
 photo_cameraImage coming soon 1560400 Knob €6.39
5
 photo_cameraImage coming soon 1080070 plug €2.64
6
 photo_cameraImage coming soon 1560420 Screw €30.81
7
 photo_cameraImage coming soon 1560410 Driving €27.03
8
 photo_cameraImage coming soon 1560440 Disk €12.46
9
 photo_cameraImage coming soon 1560350 Spring €7.98
10
 photo_cameraImage coming soon 1080610 Disk €6.61
11
 photo_cameraImage coming soon 1080660 Plug €5.54
12
 photo_cameraImage coming soon 1080540 Piston €18.64
13
 photo_cameraImage coming soon 391000 O-Ring €4.73
14
 photo_cameraImage coming soon 1080640 Ring €5.20
15
 photo_cameraImage coming soon 1560150 O-Ring €4.59
16
 photo_cameraImage coming soon 1560100 Shutter €12.13
17
 photo_cameraImage coming soon 1560140 Spring €5.98
18
 photo_cameraImage coming soon 180101 O-Ring €4.73
19
 Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
21
 photo_cameraImage coming soon 1560010 Valve Body €27.03
22
 photo_cameraImage coming soon 1080550 Ring €5.42
23
 photo_cameraImage coming soon 480480 O-ring €5.63
24
 photo_cameraImage coming soon 1560280 Washer €7.49
25
 photo_cameraImage coming soon 1560320 Piston €22.26
26
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
 photo_cameraImage coming soon 1560051 Junction €21.52
28
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
 photo_cameraImage coming soon 1560510 Nut €10.40
30
 photo_cameraImage coming soon 1560530 Junction €23.07
31
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
32
 photo_cameraImage coming soon 1250280 sphere €2.67
33
 photo_cameraImage coming soon 480480 O-ring €5.63
34
 photo_cameraImage coming soon 1560660 Ring €4.65
35
 photo_cameraImage coming soon 1540020 Collector €24.21
36
 photo_cameraImage coming soon 1540120 Washer €5.81
37
 photo_cameraImage coming soon 1540090 Junction €17.83
38
 photo_cameraImage coming soon 1560290 Washer €7.62
39
 Complete Valve for Pressure Washers AR BC 6950 20082 Complete Valve for Pressure Washers AR BC 6950 €144.99
40
 photo_cameraImage coming soon 1560650 Hose €15.90
41
 photo_cameraImage coming soon 800560 O-ring €1.59
43
 photo_cameraImage coming soon 1560670 Knob €9.25
44
 photo_cameraImage coming soon 1780510 O-Ring €5.35
47
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
48
 photo_cameraImage coming soon 1140450 O-Ring €4.25
49
 photo_cameraImage coming soon 1789010 Cover €24.45
50
 photo_cameraImage coming soon 50068 Gasket €6.57
51
 photo_cameraImage coming soon 50069 Box €18.90
52
 photo_cameraImage coming soon 20638 Pre-Installing Pump €456.02
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

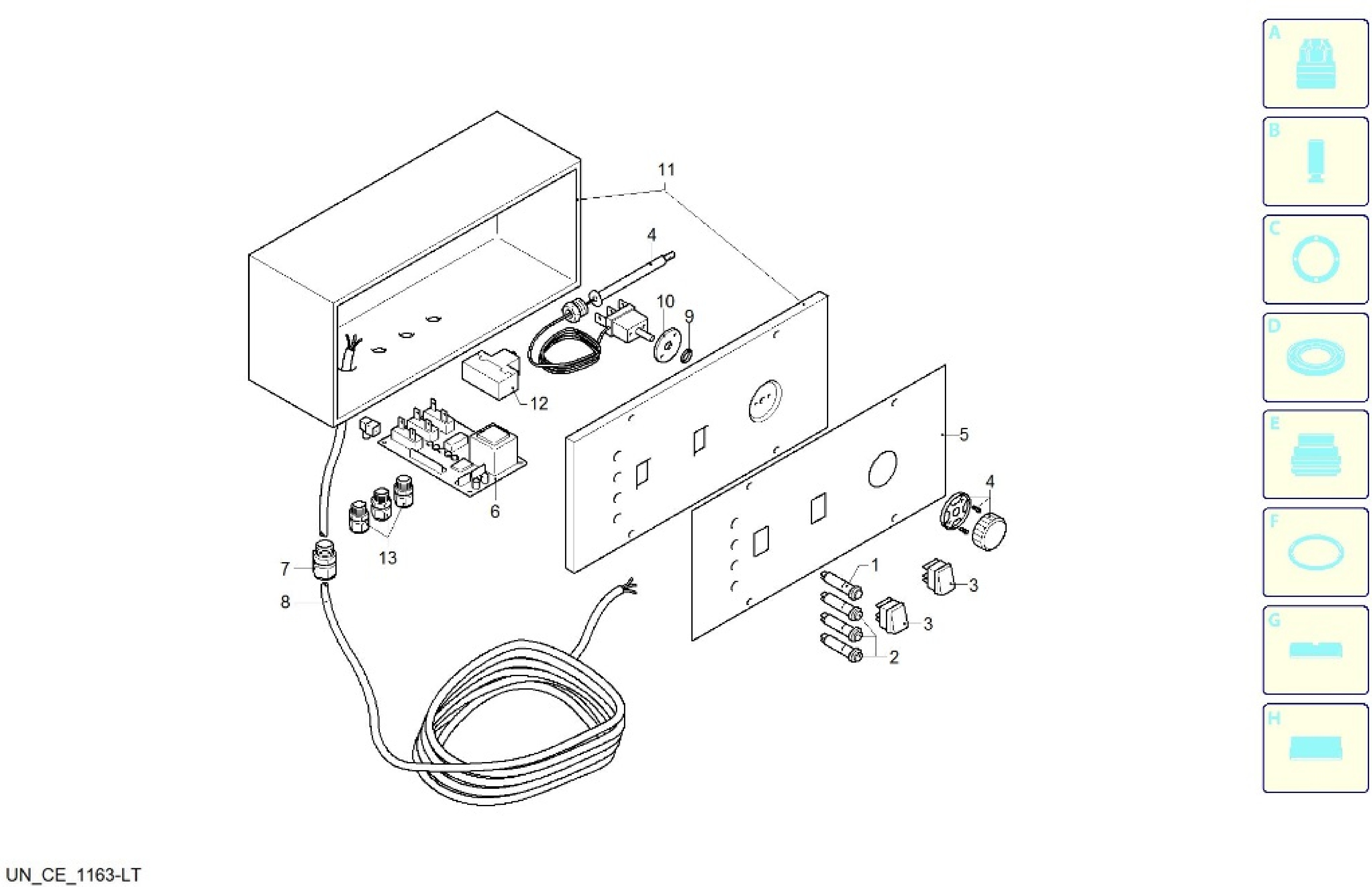

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50514 Washer €4.63
2
 photo_cameraImage coming soon 50541 Washer €1.48
3
 photo_cameraImage coming soon 50527 Nut €4.42
4
 photo_cameraImage coming soon 51415 Tube €47.55
5
 photo_cameraImage coming soon 3260310 High Pressure Hose €33.60
6
 photo_cameraImage coming soon 50481 Junction €18.51
7
 photo_cameraImage coming soon 50517 Washer €6.24
8
 photo_cameraImage coming soon 50463 Junction €9.59
9
 photo_cameraImage coming soon 50480 Junction €8.41
10
 photo_cameraImage coming soon 50461 Junction €29.58
11
 photo_cameraImage coming soon 50463 Junction €9.59
12
 photo_cameraImage coming soon 50322 Thermostat €54.64
13
 photo_cameraImage coming soon 50607 Tube €5.31
14
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
15
 photo_cameraImage coming soon 1560600 Junction €19.94
16
 photo_cameraImage coming soon 3000 Filter €14.72
17
 photo_cameraImage coming soon 50488 Junction €4.42
18
 photo_cameraImage coming soon 50466 Junction €8.78
19
 photo_cameraImage coming soon 51416 Support €77.76
20
 photo_cameraImage coming soon 50467 Junction €6.47
21
 photo_cameraImage coming soon 3260110 Safety Valve €43.48
24
 photo_cameraImage coming soon 3260510 Pressure Switch €29.74
25
 photo_cameraImage coming soon 50469 Hose €11.72

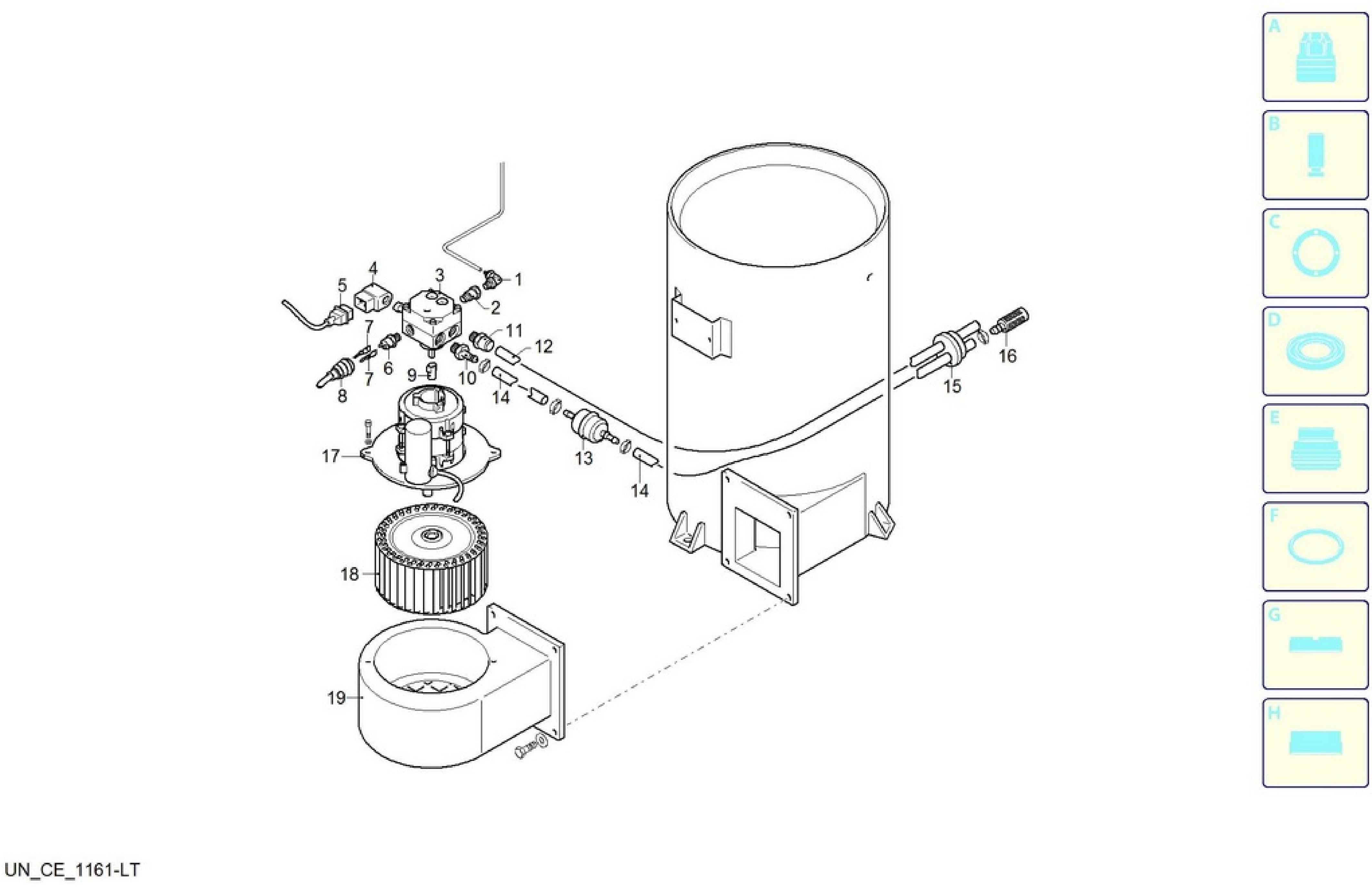

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50751 Junction €9.38
2
 photo_cameraImage coming soon 50468 Junction €13.25
3
 photo_cameraImage coming soon 3160310 Pump €141.04
4
 photo_cameraImage coming soon 3160320 Solenoid €44.36
5
 photo_cameraImage coming soon 3161440 Cable €8.80
6
 photo_cameraImage coming soon 3260050 Pressure Switch €67.59
7
 photo_cameraImage coming soon 3260370 Connector €3.86
8
 photo_cameraImage coming soon 3260380 Protection €13.25
9
 photo_cameraImage coming soon 3160300 Coupling €8.52
10
 photo_cameraImage coming soon 50491 Hose €5.89
11
 photo_cameraImage coming soon 50464 Junction €11.95
12
 photo_cameraImage coming soon 50603 Tube €7.23
13
 photo_cameraImage coming soon 50747 Filter €8.86
14
 photo_cameraImage coming soon 50608 Tube €3.69
15
 photo_cameraImage coming soon 50595 Stopper €5.31
16
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
17
 photo_cameraImage coming soon 50647 Engine €261.90
18
 photo_cameraImage coming soon 50584 Fan €39.54
19
 photo_cameraImage coming soon 50590 Sump €134.84
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3260120 Light €5.00
2
 photo_cameraImage coming soon 3260140 Light €5.00
3
 photo_cameraImage coming soon 50674 Switch €10.99
4
 photo_cameraImage coming soon 50322 Thermostat €54.64
6
 photo_cameraImage coming soon 3260080 Card €371.96
7
 photo_cameraImage coming soon 50577 Fairlead €9.52
8
 photo_cameraImage coming soon 1760450 cable €28.26
9
 photo_cameraImage coming soon 3260440 O-Ring €1.43
10
 photo_cameraImage coming soon 3260450 Seal €7.10
12
 photo_cameraImage coming soon 1382060 Switch €77.87
13
 photo_cameraImage coming soon 50577 Fairlead €9.52

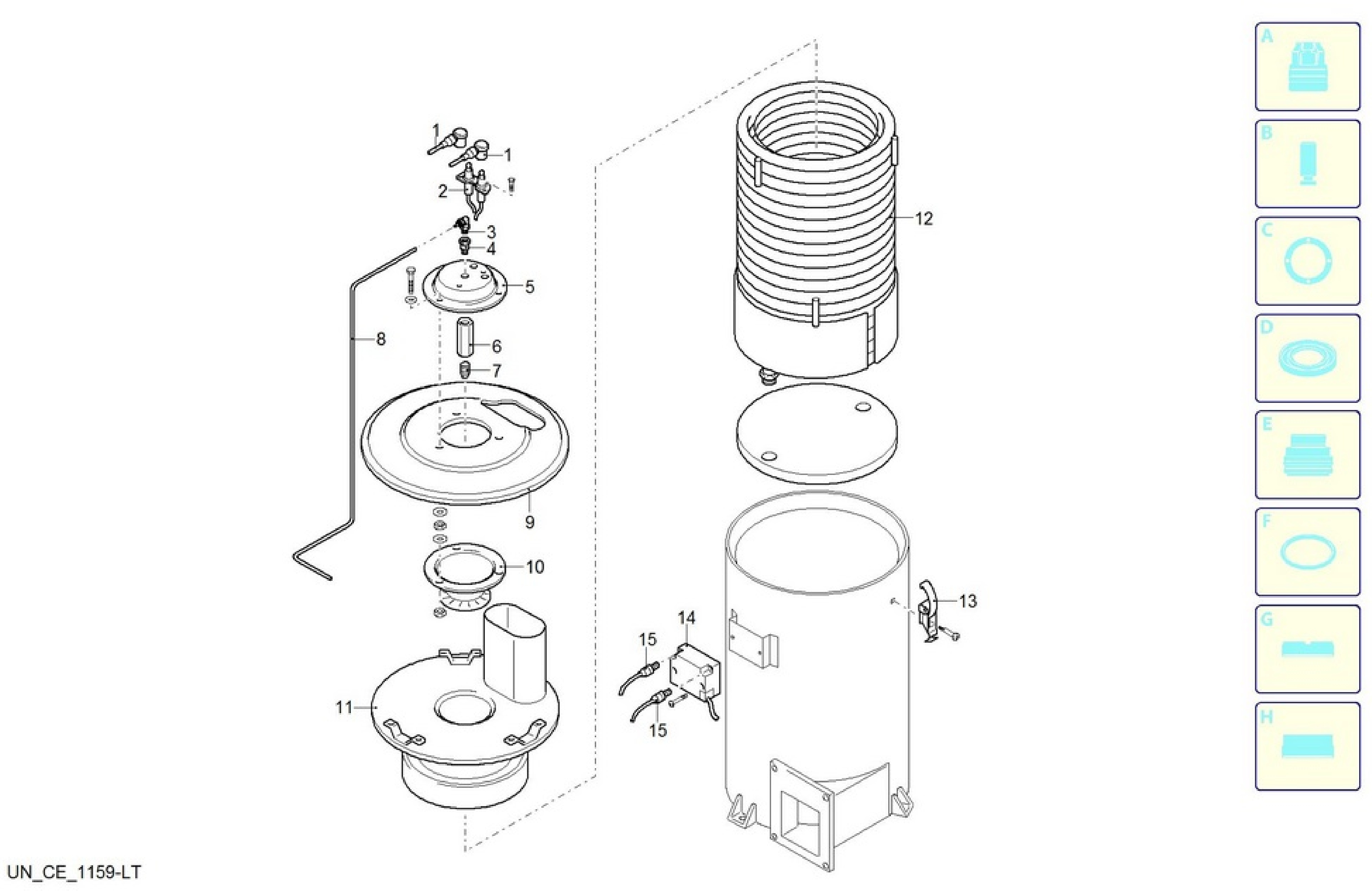

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3260520 Cable €14.57
2
 photo_cameraImage coming soon 50548 Electrode €30.45
3
 photo_cameraImage coming soon 50751 Junction €9.38
4
 photo_cameraImage coming soon 50468 Junction €13.25
5
 photo_cameraImage coming soon 50586 Cover €97.49
6
 photo_cameraImage coming soon 50465 Junction €22.57
7
 photo_cameraImage coming soon 51129 Nozzle €30.45
8
 photo_cameraImage coming soon 50603 Tube €7.23
9
 photo_cameraImage coming soon 50586 Cover €97.49
10
 photo_cameraImage coming soon 50588 Support €40.88
11
 photo_cameraImage coming soon 50593 Cover €602.56
12
 photo_cameraImage coming soon 50589 Resistance €556.88
13
 photo_cameraImage coming soon 50450 Hook €9.52
14
 photo_cameraImage coming soon 3260040 Transformer €110.74
15
 photo_cameraImage coming soon 3260520 Cable €14.57

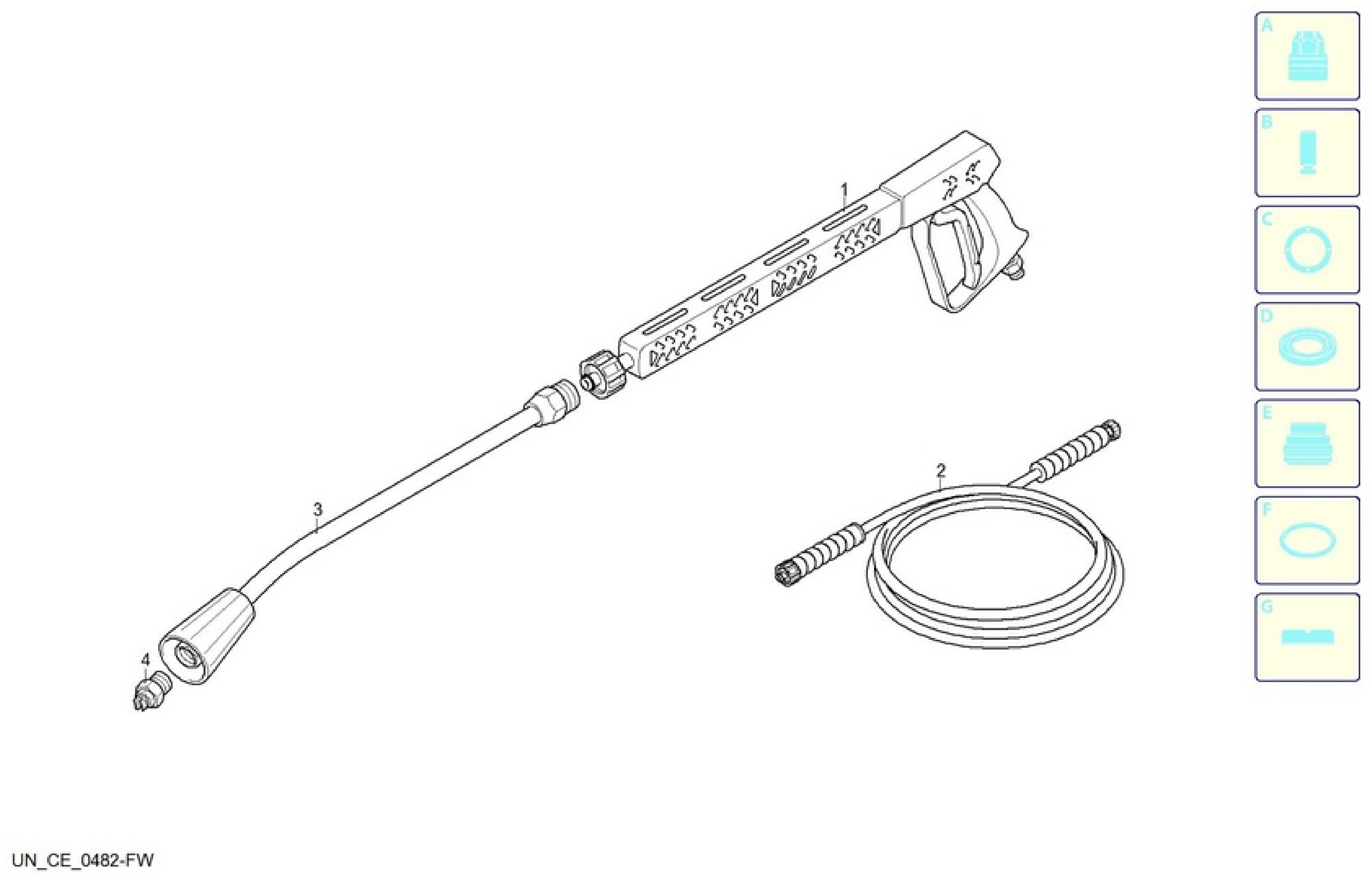

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 41089 Gun €133.22
2
 photo_cameraImage coming soon 3160160 High Pressure Hose €224.56
3
 Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
4
 photo_cameraImage coming soon 3083 Nozzle €21.33

Shipping and delivery information will be available shortly.

Annovi & Reverberi Parts for Pressure Washer AR 1350

Annovi & Reverberi Genuine Parts or replacement Parts for to repair damaged parts, for Pressure Washer Blue Clean 1350 - 23656.
In the following tables, look for the spare part and its respective code.
Annovi Reverberi 1350 - 23656

Pressure Washer Blue Clean AR1350 - 23656
Casing 1350 Pag.1
# Part Num. Description
1 50611 Stopper
2 51421 Tank
3 51443 Stopper
4 50601 Seal
5 51429 Hood
6 50628 Protection
7 50627 Wheel
8 51417 Frame
9 51420 Porta-Accessories
Pump 1350 Pag.2
1 960090 Stopper
2 960160 O-Ring
3 1389051 Complete Valve
4 880830 O-Ring
5 880581 Stopper
6 820510 O-Ring
7 820150 Screw
8 1381850 Washer
9 1381071 Head
10 180101 O-Ring
11 820361 Stopper
12 1980740 Stopper
13 740290 O-Ring
14 1343510 Screw
15 44285 Engine
16 960110 Ring
17 1382740 Watertight
18 1380090 Piston Guide
19 961240 O-Ring
20 880330 Watertight
21 1383130 Ring
22 1382770 Pump Housing
23 1980740 Stopper
24 880130 Stopper
25 2280340 Bearing
26 640030 O-Ring
27 1380120 Thickness 0.10 Mm
27 1380130 Thickness 0.20 Mm
27 1380530 Thickness 0.25 Mm
27 1382810 Thickness 0.05 Mm
28 1380050 Support
29 850370 Screw
30 2280060 Tree
31 1380520 Tongue
32 1383140 Bearing
33 180340 Ring
34 1380040 Support
35 962010 Nut
36 962000 Washer
37 1380940 Piston
38 1380950 Disk
39 1389272 Pre-Assembly Head
40 1080401 Ring
41 1380920 Piston
42 1380060 Plug
43 1383050 Piston Rod
44 1780510 O-Ring
45 1260430 Ring
46 1780690 Disk
47 1260250 Level Indicator
48 1140450 O-Ring
49 1789010 Cover
50 50068 Seal
51 50069 Box
52 20638 Pre-Installing Pump
A 2864 Kit Valves
B 2757 Piston Kit
C 1855 Kit Kept Oil
E 1857 Water Seal Kit
G 1829 Kit Support Rings
Valve 1350 Pag.3
1 1560580 Stopper
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1080070 Plug
6 1560420 Screw
7 1560410 Driving
8 1560440 Disk
9 1560350 Spring
10 1080610 Disk
11 1080660 Plug
12 1080540 Piston
13 391000 O-Ring
14 1080640 Ring
15 1560150 O-Ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-Ring
19 1540272 Screw
21 1560010 Valve Body
22 1080550 Ring
23 480480 O-Ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Sphere
33 480480 O-Ring
34 1560660 Ring
35 1540020 Collector
36 1540120 Washer
37 1540090 Junction
38 1560290 Washer
39 20082 Complete Valve
40 1560650 Hose
41 800560 O-Ring
42 480560 O-Ring
43 1560670 Knob
F 2611 Seal Kit

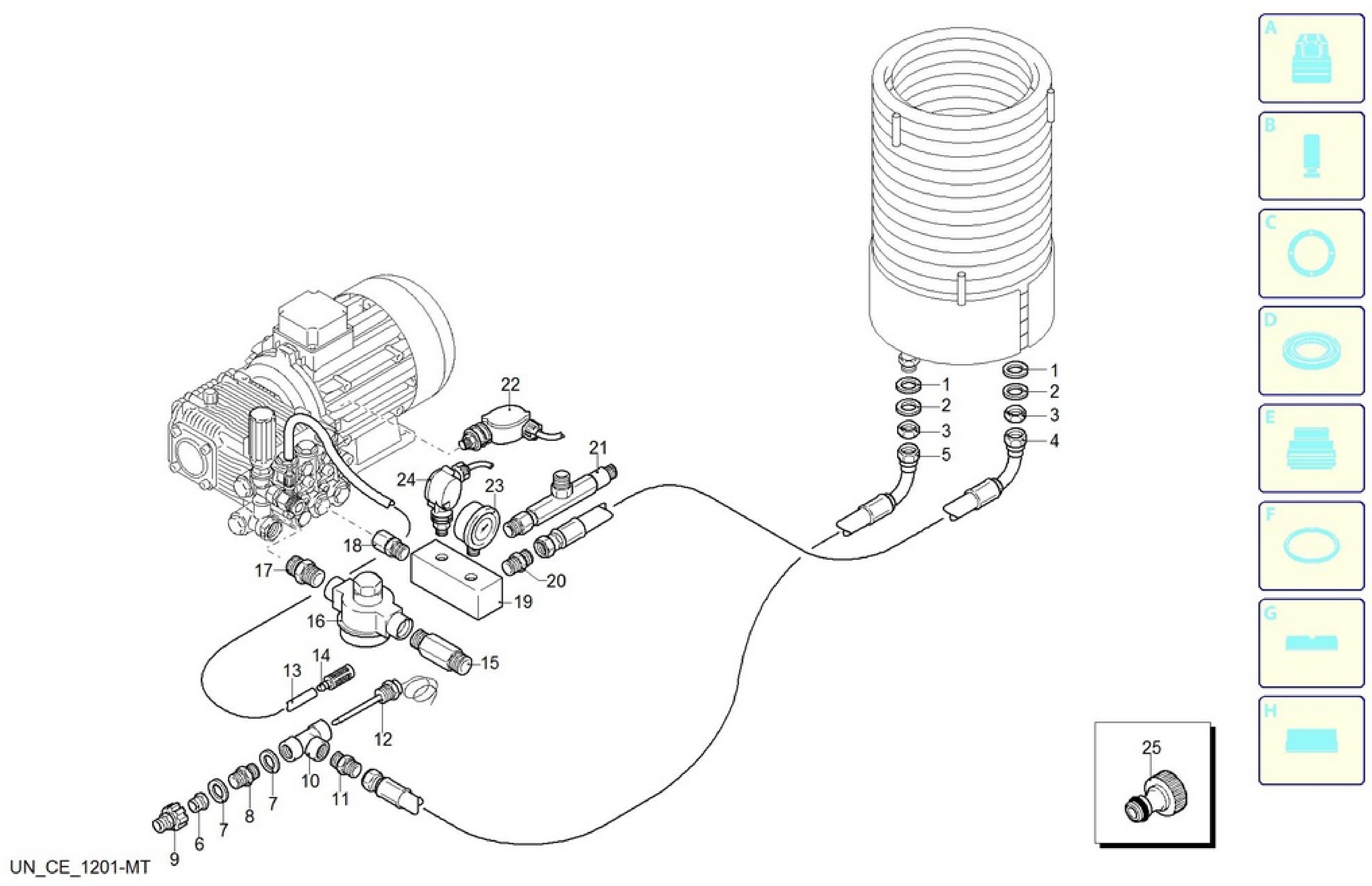

Water Circuit 1350 Pag.4
1 50514 Washer
2 50541 Washer
3 50527 Nut
4 51415 Tube
5 3260310 High Pressure Hose
6 50481 Junction
7 50517 Washer
8 50463 Junction
9 50480 Junction
10 50461 Junction
11 50463 Junction
12 50322 Thermostat
13 50607 Tube
14 1341030 Filter
15 1560600 Junction
16 3000 Filter
17 50488 Junction
18 50466 Junction
19 51416 Support
20 50467 Junction
21 3260110 Safety Valve
22 51427 Pressure Switch
23 51426 Manometer
24 3260510 Pressure Switch
25 50469 Hose
Fuel Circuit 1350 Pag.5
1 50751 Junction
2 50468 Junction
3 3160310 Pump
4 3160320 Solenoid
5 3161440 Cable
6 3260050 Pressure Switch
7 3260370 Connector
8 3260380 Protection
9 3160300 Coupling
10 50491 Hose
11 50464 Junction
12 50603 Tube
13 50747 Filter
14 50608 Tube
15 50595 Stopper
16 1341030 Filter
17 50647 Engine
18 50584 Fan
19 50590 Sump
Electric Circuit 1350 Pag.6
1 3260120 Light
2 3260140 Light
3 50674 Switch
4 50322 Thermostat
5 51424 License Plate
6 3260080 Card
7 50577 Fairlead
8 1760450 Cable
9 3260440 O-Ring
10 3260450 Seal
11 51428 Box
12 1382060 Switch
13 50577 Fairlead
Boiler 1350 Pag.7
1 3260520 Cable
2 50548 Electrode
3 50751 Junction
4 50468 Junction
5 50586 Cover
6 50465 Junction
7 51129 Nozzle
8 50603 Tube
9 50586 Cover
10 50588 Support
11 50593 Cover
12 50589 Resistance
13 50450 Hook
14 3260040 Transformer
15 3260520 Cable
Accessories 1350 Pag.8
1 41089 Gun
2 3160160 High Pressure Hose
3 40826 Lance
4 3083 Nozzle

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1350 - 23656
12 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi Reverberi AR1350

Diagram Annovi Reverberi AR1350

Download (804.85KB)

You might also like

HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Usually Ships in: 7/10 Business Days Approx. €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
AVAILABLE €17.95
Details
Switch for Pressure Washers Annovi & Reverberi AR395-490
Annovi Reverberi S.p.A. SKU: 3082010
Switch for Pressure Washers Annovi & Reverberi AR395-490
Switch for Pressure Washers Annovi & Reverberi AR395-490 Genuine Part Annovi & Reverberi, Switch Assembly for models AR BC  Blue Clean Series 3 AR395 - Series 4 AR490 - Series 5 - AR588 - AR590. - For the Following Products:...
AVAILABLE €15.67
Details
Fan Motor for Pressure Washers Blue Clean AR395-490-588-590
Annovi Reverberi S.p.A. SKU: 3440370
Fan Motor for Pressure Washers Blue Clean AR395-490-588-590
Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 Cooling fan for electric pump, spare original Annovi & Reverberi for repair or replacement of damaged parts, for models Blue Clean AR395 - AR490 - AR588 - AR590 ....
AVAILABLE €7.03
Details
Capacitor for Pressure Washers Blue Clean AR590
Annovi Reverberi S.p.A. SKU: 3400760
Capacitor for Pressure Washers Blue Clean AR590
Capacitor for Pressure Washers Blue Clean AR590 Capacitor, spare original Annovi & Reverberi for repair or replacement of damaged parts, for models Blue Clean AR590 . Part  For the Following Products: - Pressure Washer AR...
AVAILABLE €22.86
Details
Capacitor for Pressure Washers Blue Clean AR395-490-588
Annovi Reverberi S.p.A. SKU: 3081620
Capacitor for Pressure Washers Blue Clean AR395-490-588
Capacitor for Pressure Washers Blue Clean AR395-490-588 Genuine replacement part  Annovi & Reverberi, Capacitor  for A&R Pressure Washers models  Blue Clean  AR395 - AR490 - AR588 . Part for the following Items: - Pressure...
AVAILABLE €22.86
Details
Piston Guide for Pressure Washers AR 757-767-780-787-797
Annovi Reverberi S.p.A. SKU: 1320351
Piston Guide for Pressure Washers AR 757-767-780-787-797
Piston Guide for Pressure Washers AR 757-767-780-787-797 Genuine Parts for Annovi & Reverberi, Piston Guide mm 18 for Pressure Washer AR 780/787/797 - AR 6640/6670 - PROLINER SV 1310 - RS 11.20 - 12.13 - 13.17 - 15.15 - XPRO. Part...
on 7/10 Business Days Approx €8.47
Details
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010
Annovi Reverberi S.p.A. SKU: 1857
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 Genuine Part Annovi & Reverberi, Water Seal Kit for Pressure Washers AR1010 - AR1015 - AR1007 - AR1380 - AR6970. Part for the Following Items: -  Pressure Washer...
AVAILABLE €60.64
Details
Complete Valve for Pressure Washers AR BC 6950
Annovi Reverberi S.p.A. SKU: 20082
Complete Valve for Pressure Washers AR BC 6950
Complete Valve for Pressure Washers AR BC 6950 Original part Annovi Reverberi, Complete Valve for Pressure Washers models Blue Clean AR 6950 - AR 6970 - AR 7850 - AR 7870. Part for the following...
Usually Ships in: 10/15 Business Days Approx. €144.99
Details
Comments (0)
No customer reviews for the moment.
