Annovi Reverberi S.p.A.

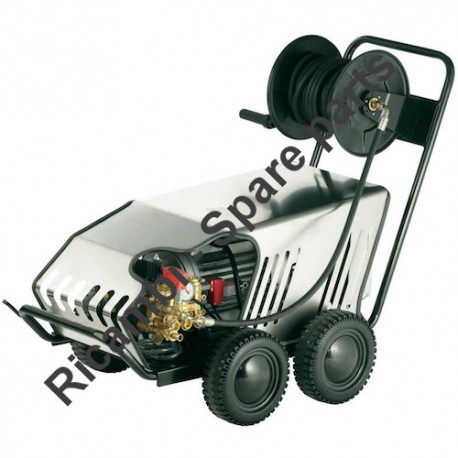

Annovi & Reverberi Parts for Pressure Washer AR1130

SKU: Annovi Reverberi 1130 - 22376
€86.09
VAT included

Annovi & Reverberi Parts for Pressure Washer AR1130

Annovi & Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR1130 cod.22376

Fix Your Annovi Reverberi Pressure Washer Blue Clean AR 1130 - 22376. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
Annovi & Reverberi Parts for Pressure Washer AR1130
  • On sale!
  • Annovi & Reverberi Parts for Pressure Washer AR1130
  • Annovi & Reverberi Parts for Pressure Washer AR1130
  • Annovi & Reverberi Parts for Pressure Washer AR1130
  • Annovi & Reverberi Parts for Pressure Washer AR1130
  • Annovi & Reverberi Parts for Pressure Washer AR1130
  • Annovi & Reverberi Parts for Pressure Washer AR1130
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1130

SKU: Annovi Reverberi 1130 - 22376 Condition: New
€86.09
VAT included

Annovi & Reverberi Parts for Pressure Washer AR1130

Annovi & Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR1130 cod.22376

Fix Your Annovi Reverberi Pressure Washer Blue Clean AR 1130 - 22376. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
settings 119 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
104 spare parts
Esploso pagina 1
Pos. Item Price Buy
5
 photo_cameraImage coming soon 3076 Blast Nozzle €14.29
5
 photo_cameraImage coming soon 50487 Junction €5.72
5
 photo_cameraImage coming soon 50499 Screw €4.50
5
 photo_cameraImage coming soon 50582 Transformer €102.12
5
 photo_cameraImage coming soon 820361 Stopper €4.41
16
 photo_cameraImage coming soon 1942690 Tenuta Water €10.47
16
 photo_cameraImage coming soon 50657 Float €22.71
17
 photo_cameraImage coming soon 1942480 Piston Guide €13.76
17
 photo_cameraImage coming soon 50528 Nut €2.87
17
 photo_cameraImage coming soon 50573 Fuse €17.05
18
 photo_cameraImage coming soon 50570 Fuse Holder €345.83
18
 photo_cameraImage coming soon 50918 Bowl €213.21
19
 photo_cameraImage coming soon 1940560 Ring €4.84
19
 photo_cameraImage coming soon 50617 Box €90.70
20
 photo_cameraImage coming soon 1941330 Pump Housing €98.04
20
 photo_cameraImage coming soon 50915 IGNITION SWITCH ASSEMBLY €106.31
21
 photo_cameraImage coming soon 1140410 Bearing €51.56
21
 photo_cameraImage coming soon 50914 IGNITION SWITCH ASSEMBLY €106.31
21
 photo_cameraImage coming soon 50929 Valve Adjustment €1,749.50
22
 photo_cameraImage coming soon 50463 Junction €9.59
22
 photo_cameraImage coming soon 50572 Switch €101.36
23
 photo_cameraImage coming soon 1941240 Support €21.45
23
 photo_cameraImage coming soon 50909 3/8 "-1/4" MF €12.76
25
 photo_cameraImage coming soon 50530 Junction €9.96
25
 photo_cameraImage coming soon 820680 Ring €7.00
27
 photo_cameraImage coming soon 50529 3/8 "-1/4" MF €9.96
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2871 Kit Valves €60.25
B
 photo_cameraImage coming soon 2872 Piston Kit €81.75
C
 photo_cameraImage coming soon 2873 Kit Kept Oil €22.28
E
 photo_cameraImage coming soon 2874 Kit Kept Water €75.81
G
 photo_cameraImage coming soon 42120 Kit Support Rings €64.89
1
 photo_cameraImage coming soon 50558 Fairlead €7.10
1
 photo_cameraImage coming soon 50601 Gasket €11.73
1
 photo_cameraImage coming soon 50906 Nut €6.37
1
 photo_cameraImage coming soon 850260 M10 x 90 socket head cap screw €3.50
2
 photo_cameraImage coming soon 50644 Frame €453.96
2
 photo_cameraImage coming soon 50755 3/8 "-1/4" MF €11.38
2
 photo_cameraImage coming soon 50924 Cable gland €15.92
2
 photo_cameraImage coming soon 50926 Gun €556.99
2
 photo_cameraImage coming soon 650530 washer €2.03
3
 photo_cameraImage coming soon 1942190 Head €210.15
3
 photo_cameraImage coming soon 20927 Control Knob [Black] €1,478.15
3
 photo_cameraImage coming soon 50547 Screw €5.57
3
 photo_cameraImage coming soon 50615 Box €206.07
3
 photo_cameraImage coming soon 50910 Gauge €111.97
4
 photo_cameraImage coming soon 180101 O-Ring €4.73
4
 photo_cameraImage coming soon 50262 EXTENSION €289.72
4
 photo_cameraImage coming soon 50526 Nut €2.56
4
 photo_cameraImage coming soon 50616 Plate €65.91
4
 photo_cameraImage coming soon 50908 3/8 "-1/4" MF €16.84
6
 photo_cameraImage coming soon 50263 High Pressure Hose €388.67
6
 photo_cameraImage coming soon 50519 Washer €2.20
6
 photo_cameraImage coming soon 50566 Fuse €2.20
6
 photo_cameraImage coming soon 50913 3/8 "-1/4" MF €4.50
6
 photo_cameraImage coming soon 740290 O-ring €2.67
7
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
7
 photo_cameraImage coming soon 50565 Card €475.38
7
 photo_cameraImage coming soon 50923 Colgate Tube €26.07
8
 photo_cameraImage coming soon 1949052 Complete Valve €14.96
8
 photo_cameraImage coming soon 50449 Wheel €43.98
8
 photo_cameraImage coming soon 50579 Stirrup €19.19
8
 photo_cameraImage coming soon 50907 3/8 "-1/4" MF €5.32
9
 photo_cameraImage coming soon 50916 Switch €422.34
9
 photo_cameraImage coming soon 50922 600W Motor €2,905.28
9
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
10
 photo_cameraImage coming soon 50489 Junction €4.29
10
 photo_cameraImage coming soon 50567 Clamp €25.51
10
 photo_cameraImage coming soon 50919 1.060 flange €446.82
11
 photo_cameraImage coming soon 1940940 Stopper €7.15
11
 photo_cameraImage coming soon 50448 Wheel €25.51
11
 photo_cameraImage coming soon 50554 Contactor €283.60
11
 photo_cameraImage coming soon 50925 Valve Adjustment €86.01
12
 photo_cameraImage coming soon 50553 Contactor €279.52
12
 photo_cameraImage coming soon 50905 Knob €68.05
13
 photo_cameraImage coming soon 50457 Protection €5.72
13
 photo_cameraImage coming soon 50537 3/8 "-1/4" MF €18.47
14
 photo_cameraImage coming soon 1942700 Gasket €15.26
14
 photo_cameraImage coming soon 50645 Case €1,700.53
14
 photo_cameraImage coming soon 50911 3/8 "-1/4" MF €4.50
15
 photo_cameraImage coming soon 1942470 Piston Guide €15.41
15
 photo_cameraImage coming soon 50580 Fuse Holder €26.94
15
 photo_cameraImage coming soon 50683 Fairlead €16.03
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
24
 photo_cameraImage coming soon 850370 screw €2.26
26
 photo_cameraImage coming soon 1940410 O-Ring €2.04
29
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
30
 photo_cameraImage coming soon 1140450 O-Ring €4.25
31
 photo_cameraImage coming soon 1949010 Cover €24.46
32
 photo_cameraImage coming soon 1200430 Screw €4.64
33
 photo_cameraImage coming soon 1140370 Stopper €6.17
34
 photo_cameraImage coming soon 650250 Tongue €5.75
35
 photo_cameraImage coming soon 1940970 Tree €99.73
36
 photo_cameraImage coming soon 1940051 Piston Rod €31.30
37
 photo_cameraImage coming soon 1940060 Plug €4.16
38
 photo_cameraImage coming soon 1941390 Thickness 0.05 Mm €4.70
38
 photo_cameraImage coming soon 1941400 Thickness 0.10 Mm €5.34
38
 photo_cameraImage coming soon 1941410 Thickness 0.19 Mm €5.60
38
 photo_cameraImage coming soon 1941420 Thickness 0.25 Mm €6.17
39
 photo_cameraImage coming soon 1941290 Ring €2.30
41
 photo_cameraImage coming soon 1941270 Level Indicator €1.66
43
 photo_cameraImage coming soon 1949011 Cover €23.69
45
 photo_cameraImage coming soon 1940960 Piston €21.93
47
 photo_cameraImage coming soon 1941020 Piston €27.51
49
 photo_cameraImage coming soon 1940920 Bolt M6x16 €1.24
51
 photo_cameraImage coming soon 1949215 Pre-Assembly Head €425.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR1130

Annovi & Reverberi genuine spare parts or replacemtents parts for to repair Pressure Washer Blue Clean AR1130 cod.22376

Fix Your Annovi Reverberi Pressure Washer Blue Clean AR 1130 - 22376. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

In the following tables, look for the spare part and its respective code.

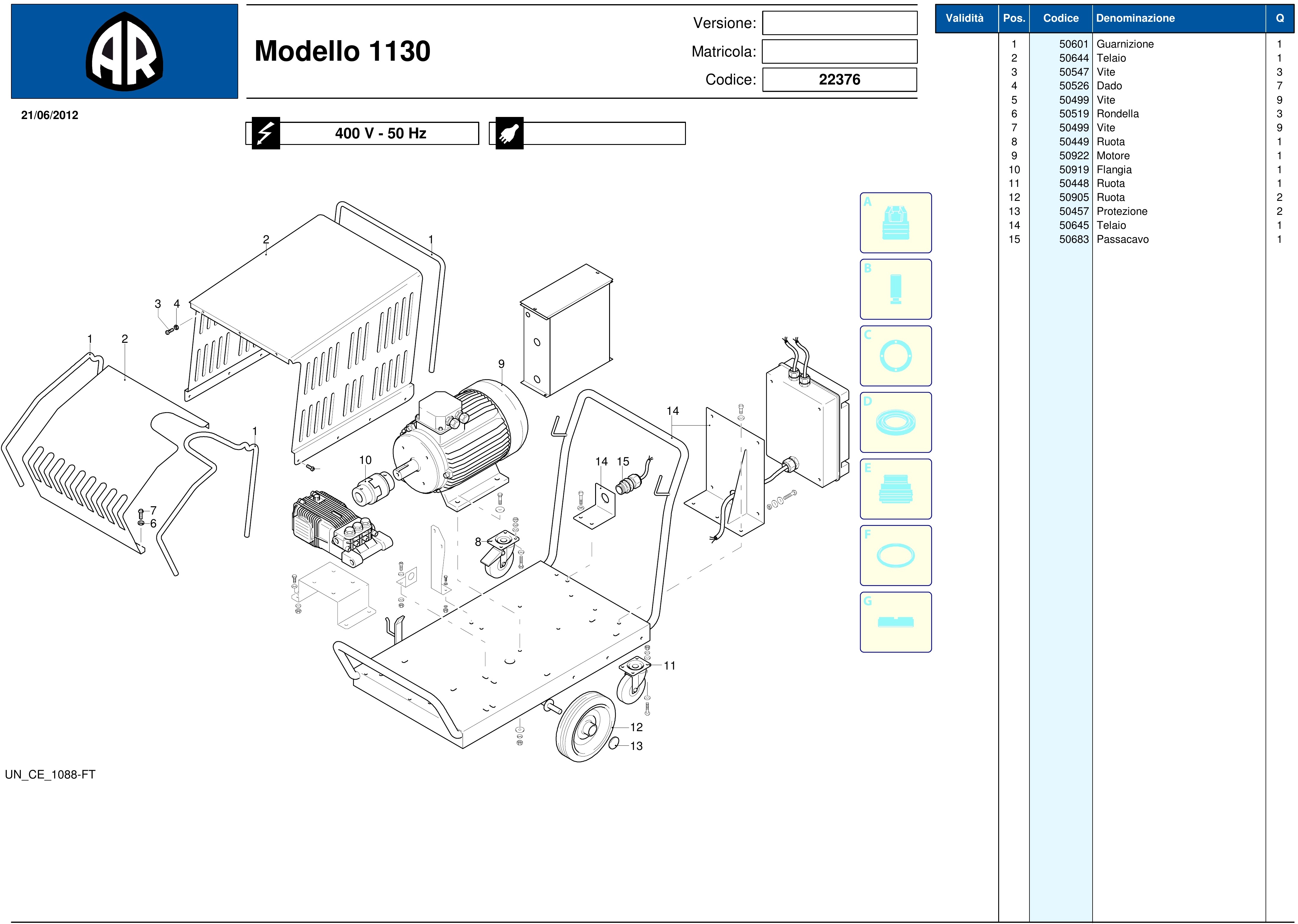

Casing 1130
1 50601 Gasket
2 50644 Frame
3 50547 Screw
4 50526 Nut
5 50499 Screw
6 50519 Washer
7 50499 Screw
8 50449 Wheel
9 50922 Engine
10 50919 Flange
11 50448 Wheel
12 50905 Wheel
13 50457 Protection
14 50645 Frame
15 50683 Fairlead

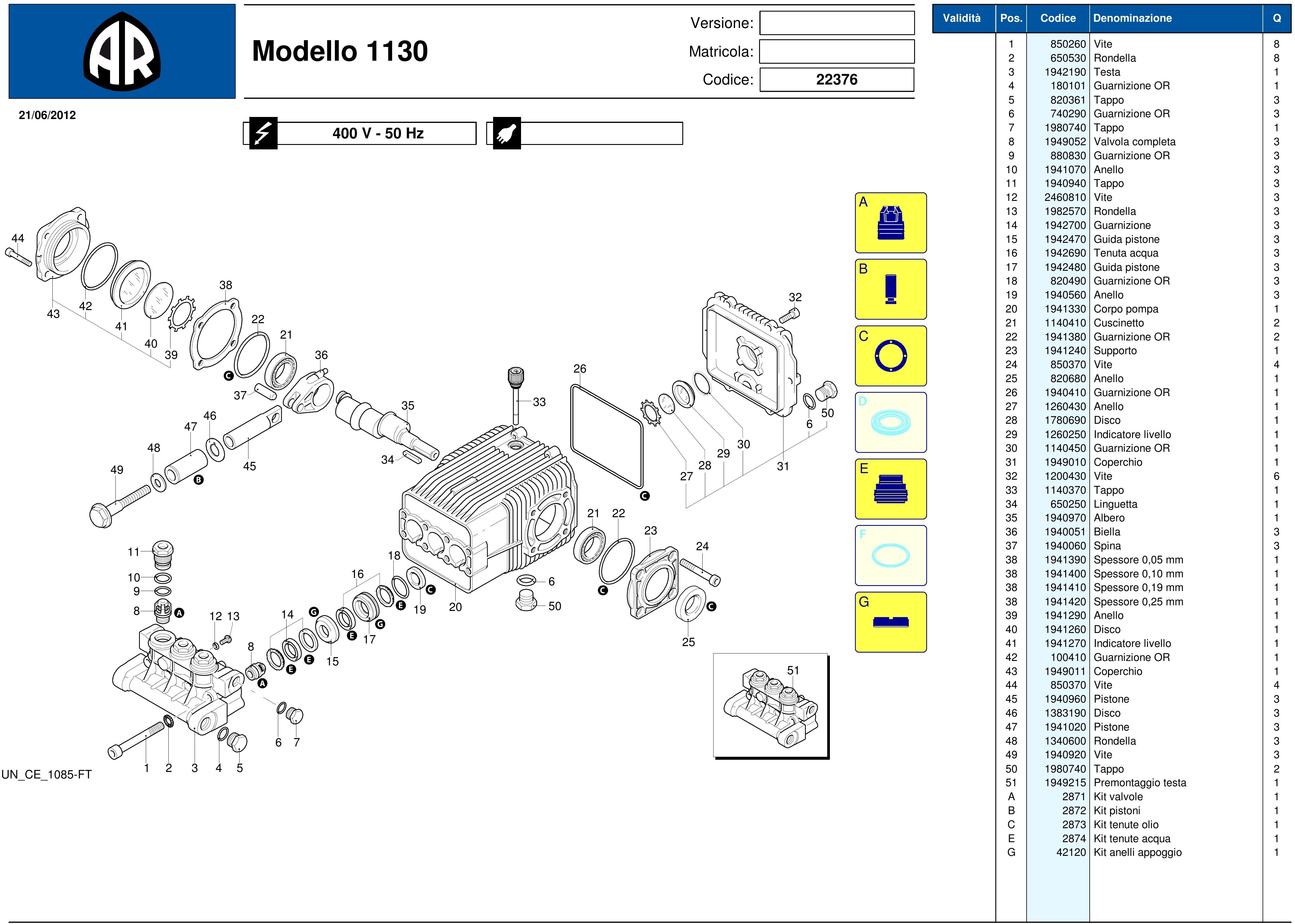

Pump 1130
1 850260 Screw
2 650530 Washer
3 1942190 Head
4 180101 O-Ring
5 820361 Stopper
6 740290 O-Ring
7 1980740 Stopper
8 1949052 Complete Valve
9 880830 O-Ring
10 1941070 Ring
11 1940940 Stopper
12 2460810 Screw
13 1982570 Washer
14 1942700 Gasket
15 1942470 Piston Guide
16 1942690 Tenuta Water
17 1942480 Piston Guide
18 820490 O-Ring
19 1940560 Ring
20 1941330 Pump Housing
21 1140410 Bearing
22 1941380 O-Ring
23 1941240 Support
24 850370 Screw
25 820680 Ring
26 1940410 O-Ring
27 1260430 Ring
28 1780690 Disk
29 1260250 Level Indicator
30 1140450 O-Ring
31 1949010 Cover
32 1200430 Screw
33 1140370 Stopper
34 650250 Tongue
35 1940970 Tree
36 1940051 Piston Rod
37 1940060 Plug
38 1941390 Thickness 0.05 Mm
38 1941400 Thickness 0.10 Mm
38 1941410 Thickness 0.19 Mm
38 1941420 Thickness 0.25 Mm
39 1941290 Ring
40 1941260 Disk
41 1941270 Level Indicator
42 100410 O-Ring
43 1949011 Cover
44 850370 Screw
45 1940960 Piston
46 1383190 Disk
47 1941020 Piston
48 1340600 Washer
49 1940920 Screw
50 1980740 Stopper
51 1949215 Pre-Assembly Head
A 2871 Kit Valves
B 2872 Piston Kit
C 2873 Kit Oil Seals
E 2874 Kit Kept Water
G 42120 Kit Support Rings

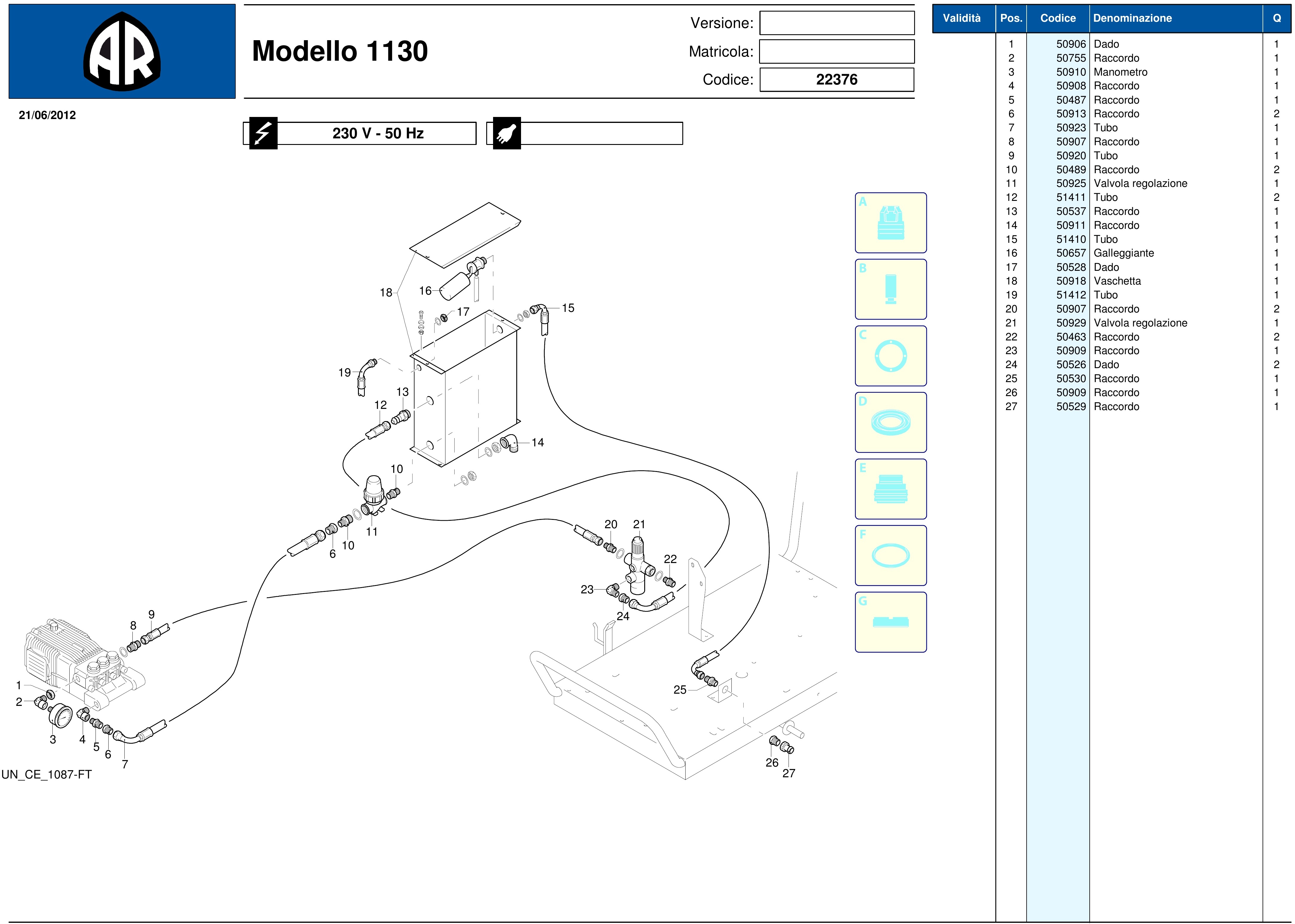

Water Circuit 1130
1 50906 Nut
2 50755 Junction
3 50910 Manometer
4 50908 Junction
5 50487 Junction
6 50913 Junction
7 50923 Tube
8 50907 Junction
9 50920 Tube
10 50489 Junction
11 50925 Valve Adjustment
12 51411 Tube
13 50537 Junction
14 50911 Junction
15 51410 Tube
16 50657 Float
17 50528 Nut
18 50918 Bowl
19 51412 Tube
20 50907 Junction
21 50929 Valve Adjustment
22 50463 Junction
23 50909 Junction
24 50526 Nut
25 50530 Junction
26 50909 Junction
27 50529 Junction

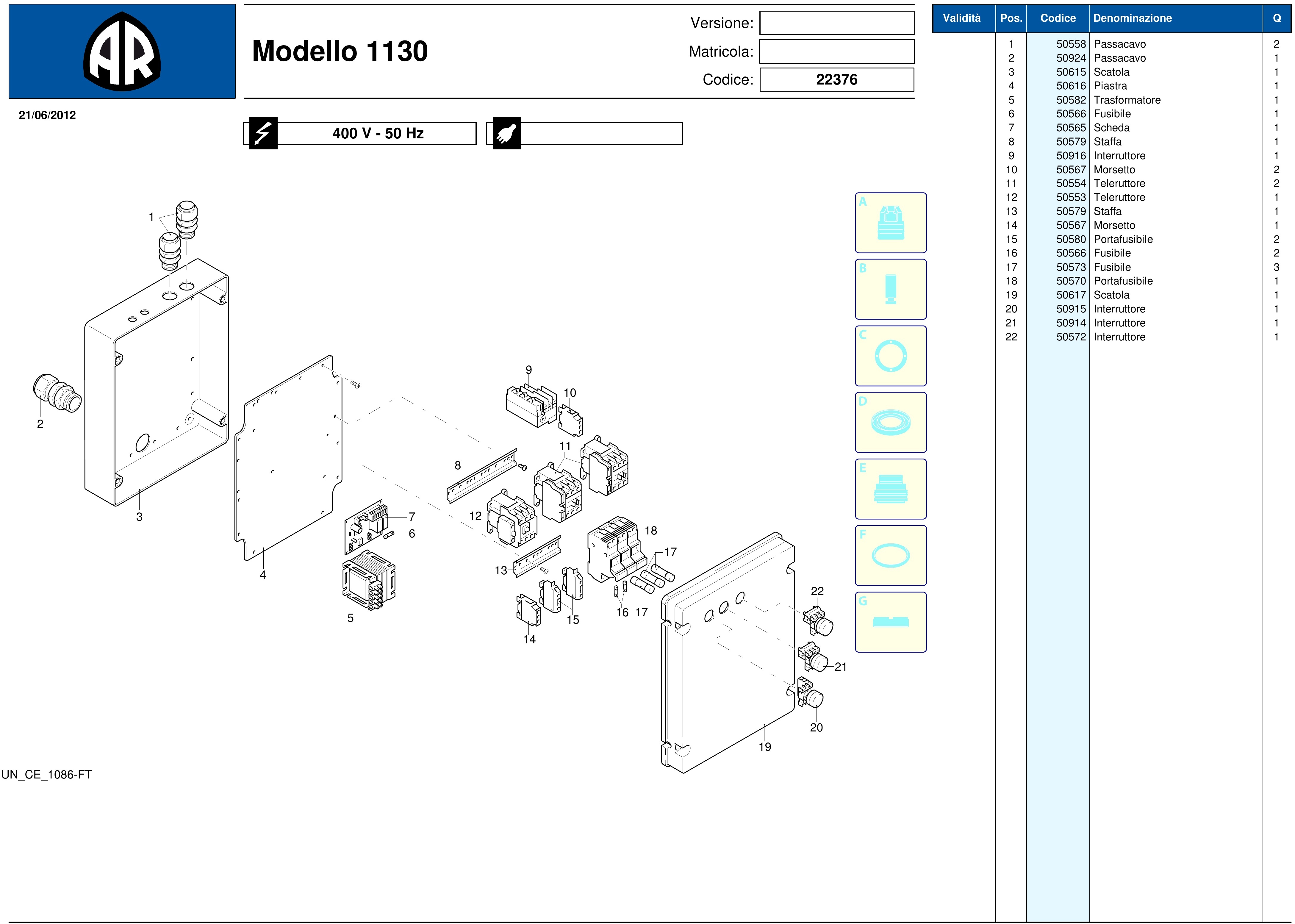

Electrical Circuit 1130
1 50558 Fairlead
2 50924 Fairlead
3 50615 Box
4 50616 Plate
5 50582 Transformer
6 50566 Fuse
7 50565 Card
8 50579 Stirrup
9 50916 Switch
10 50567 Clamp
11 50554 Contactor
12 50553 Contactor
13 50579 Stirrup
14 50567 Clamp
15 50580 Fuse Holder
16 50566 Fuse
17 50573 Fuse
18 50570 Fuse Holder
19 50617 Box
20 50915 Switch
21 50914 Switch
22 50572 Switch
Accessories 1130
1 50463 Junction
2 50926 Gun
3 20927 Knob
4 50262 Lance
5 3076 Nozzle
6 50263 High Pressure Hose

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1130 - 22376
9 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi&Reverberi AR1130

Diagram Annovi&Reverberi AR1130

Download (553.67KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Comments (0)
