Annovi Reverberi S.p.A.

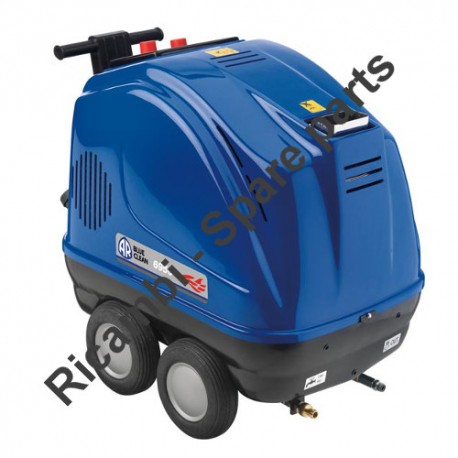

Annovi & Reverberi Parts for Pressure Washer AR6950

SKU: Annovi Reverberi 6950 - 24103
€22.00
VAT included

Annovi Reverberi Parts for Pressure Washer AR6950

Annovi Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Blue Clean AR6950 - 24103.

Annovi Reverberi 6950 - 24103
Annovi & Reverberi Parts for Pressure Washer AR6950/6970
  • Annovi & Reverberi Parts for Pressure Washer AR6950/6970
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
  • Annovi & Reverberi Parts for Pressure Washer AR6950
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR6950

SKU: Annovi Reverberi 6950 - 24103 Condition: New
€22.00
VAT included

Annovi Reverberi Parts for Pressure Washer AR6950

Annovi Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Blue Clean AR6950 - 24103.

Annovi Reverberi 6950 - 24103
settings 192 Spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
192 spare parts
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
31
 photo_cameraImage coming soon 3162300 Gasket €4.66
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

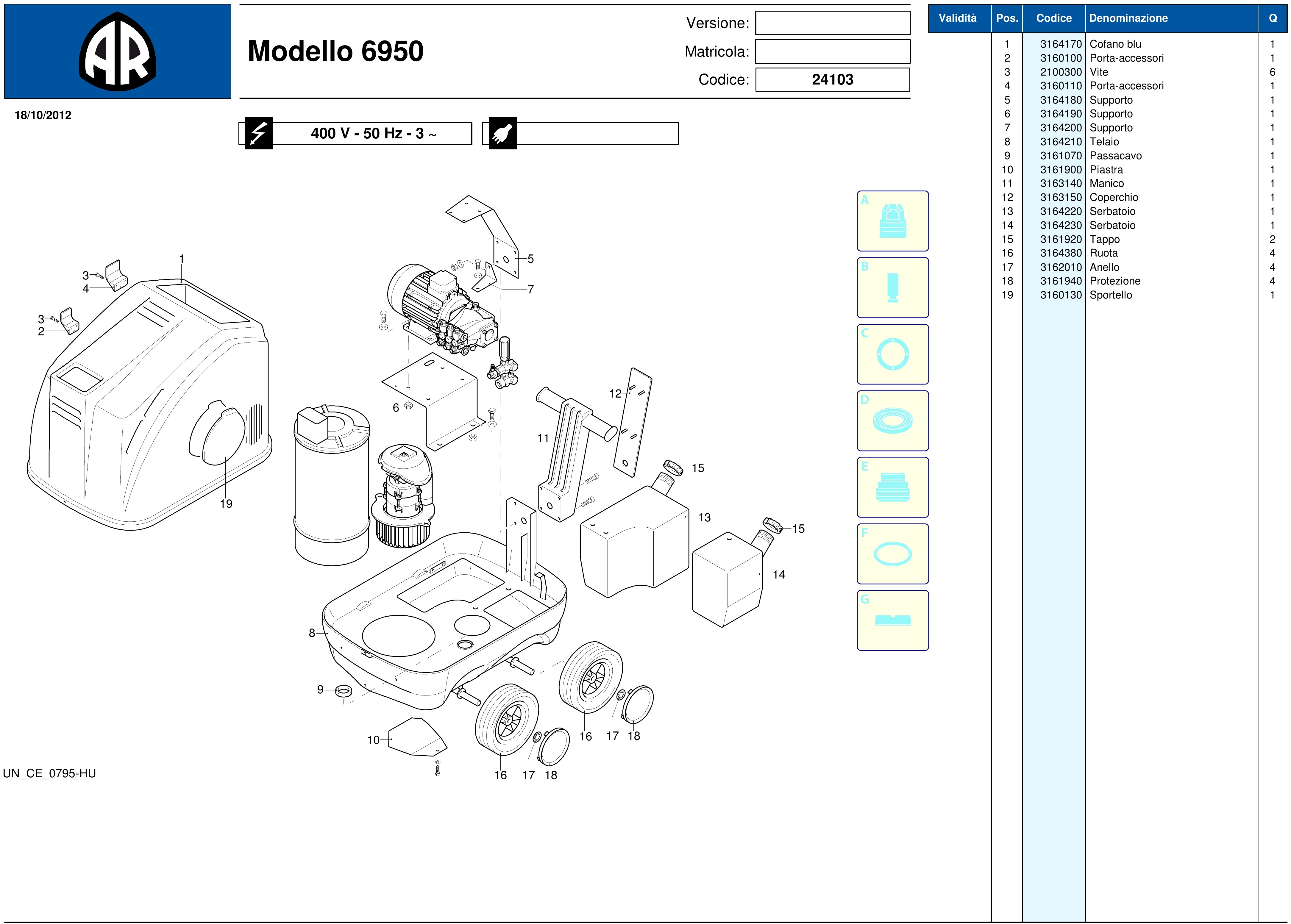

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3164170 Casing Bleu €349.91
2
 photo_cameraImage coming soon 3160100 Porta-Accessories €11.78
3
 screw 2100300 screw €4.72
4
 photo_cameraImage coming soon 3160110 Porta-Accessories €11.99
5
 photo_cameraImage coming soon 3164180 Support €129.54
6
 photo_cameraImage coming soon 3164190 Support €184.77
7
 photo_cameraImage coming soon 3164200 Support €44.25
8
 photo_cameraImage coming soon 3164210 Frame €564.94
9
 photo_cameraImage coming soon 3161070 Fairlead €22.40
10
 photo_cameraImage coming soon 3161900 Plate €9.43
11
 photo_cameraImage coming soon 3163140 Handle €31.57
12
 photo_cameraImage coming soon 3163150 Cover €11.88
13
 photo_cameraImage coming soon 3164220 Tank €214.77
14
 photo_cameraImage coming soon 3164230 Tank €129.54
15
 photo_cameraImage coming soon 3161920 Stopper €13.93
16
 photo_cameraImage coming soon 3164380 Wheel €46.58
17
 photo_cameraImage coming soon 3162010 Ring €8.52
18
 photo_cameraImage coming soon 3161940 Protection €12.05
19
 photo_cameraImage coming soon 3160130 Door €13.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

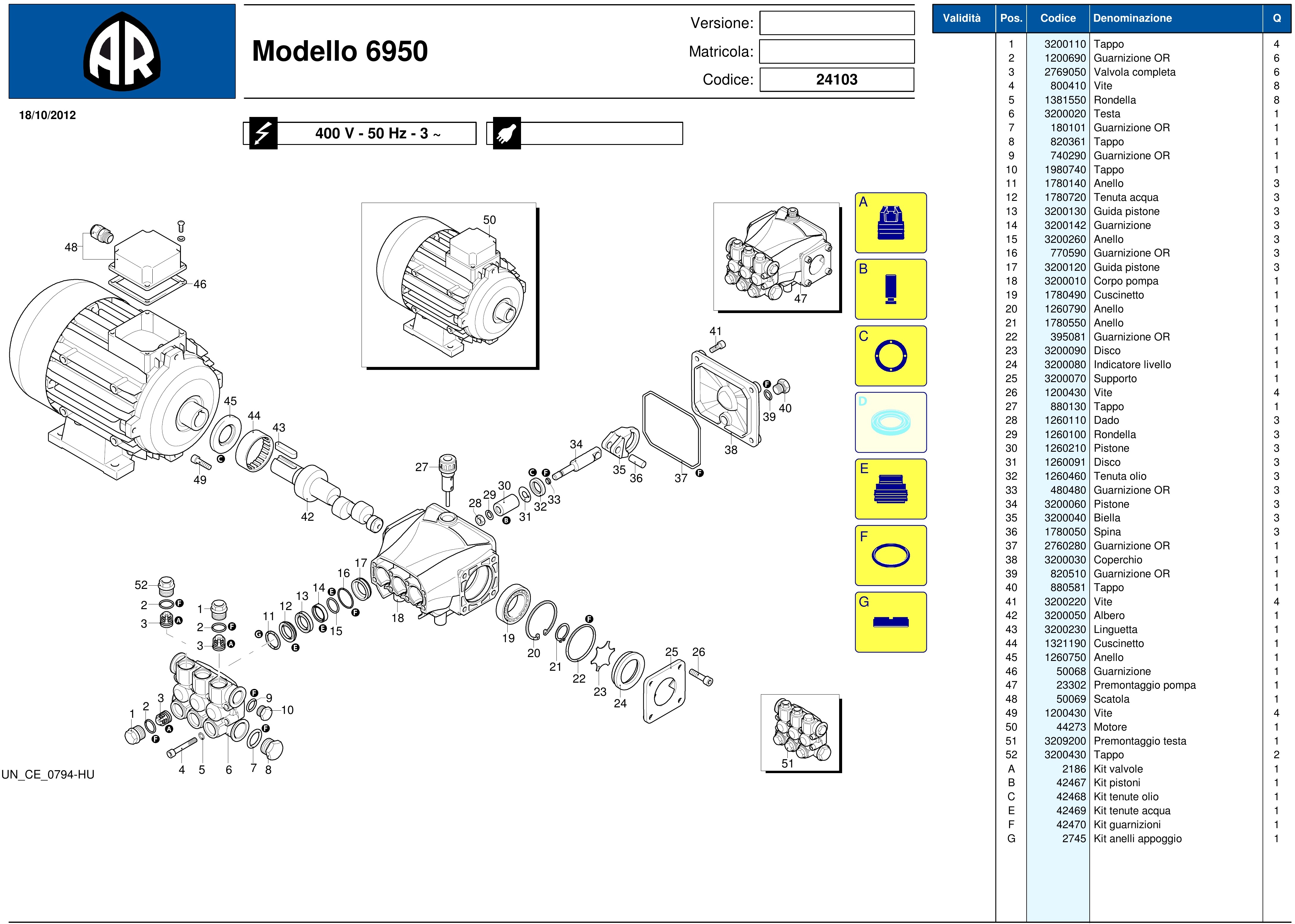

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2186 Kit Valves €21.37
F
 photo_cameraImage coming soon 2611 Gasket Kit €17.56
G
 AR Seal Support Ring Kit 2745 AR Seal Support Ring Kit €3.00
B
 photo_cameraImage coming soon 42467 Piston Kit €28.92
C
 photo_cameraImage coming soon 42468 Kit Oil Seals €11.58
E
 photo_cameraImage coming soon 42469 Kit Kept Water €26.05
F
 photo_cameraImage coming soon 42470 Gasket Kit €9.15
1
 photo_cameraImage coming soon 3200110 Stopper €8.03
2
 photo_cameraImage coming soon 1200690 O-ring €4.26
3
 Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
4
 photo_cameraImage coming soon 800410 Screw €4.60
6
 photo_cameraImage coming soon 3200020 Head €68.36
7
 photo_cameraImage coming soon 180101 O-Ring €4.73
8
 photo_cameraImage coming soon 820361 Stopper €4.41
9
 photo_cameraImage coming soon 740290 O-ring €2.67
10
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
11
 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 1780140 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 €0.96
12
 photo_cameraImage coming soon 1780720 Tenuta Water €10.97
13
 photo_cameraImage coming soon 3200130 Piston Guide €7.86
14
 Gasket 3200142 Gasket €2.03
16
 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
17
 photo_cameraImage coming soon 3200120 Piston Guide €7.00
18
 photo_cameraImage coming soon 3200010 Pump Housing €71.98
19
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
20
 photo_cameraImage coming soon 1260790 Ring €1.36 Not available for order
21
 photo_cameraImage coming soon 1780550 Ring €4.87
22
 photo_cameraImage coming soon 395081 O-Ring €5.72
23
 photo_cameraImage coming soon 3200090 Disk €1.88
24
 photo_cameraImage coming soon 3200080 Level Indicator €7.26
25
 photo_cameraImage coming soon 3200070 Support €6.38
26
 photo_cameraImage coming soon 1200430 Screw €4.64
27
 photo_cameraImage coming soon 880130 Stopper €6.67
28
 photo_cameraImage coming soon 1260110 Nut €1.65
30
 photo_cameraImage coming soon 1260210 Piston €16.88
32
 photo_cameraImage coming soon 1260460 oil seal €4.47
33
 photo_cameraImage coming soon 480480 O-ring €5.63
34
 Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200060 Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €16.12
35
 Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200040 Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €9.34
36
 photo_cameraImage coming soon 1780050 Plug €6.18
37
 photo_cameraImage coming soon 2760280 O-Ring €5.06
38
 photo_cameraImage coming soon 3200030 Cover €12.79
39
 photo_cameraImage coming soon 820510 O-ring €5.63
40
 photo_cameraImage coming soon 880581 stopper €7.73
42
 photo_cameraImage coming soon 3200050 Shaft €85.57
44
 photo_cameraImage coming soon 1321190 Bearing €14.57
45
 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
46
 photo_cameraImage coming soon 50068 Gasket €6.57
47
 photo_cameraImage coming soon 23302 Pump Pre-Assembly €383.81
48
 photo_cameraImage coming soon 50069 Box €18.90
49
 photo_cameraImage coming soon 1200430 Screw €4.64
50
 photo_cameraImage coming soon 44273 Engine €595.32
51
 photo_cameraImage coming soon 3209200 Pre-Assembly Head €148.90
52
 photo_cameraImage coming soon 3200430 Stopper €17.49
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

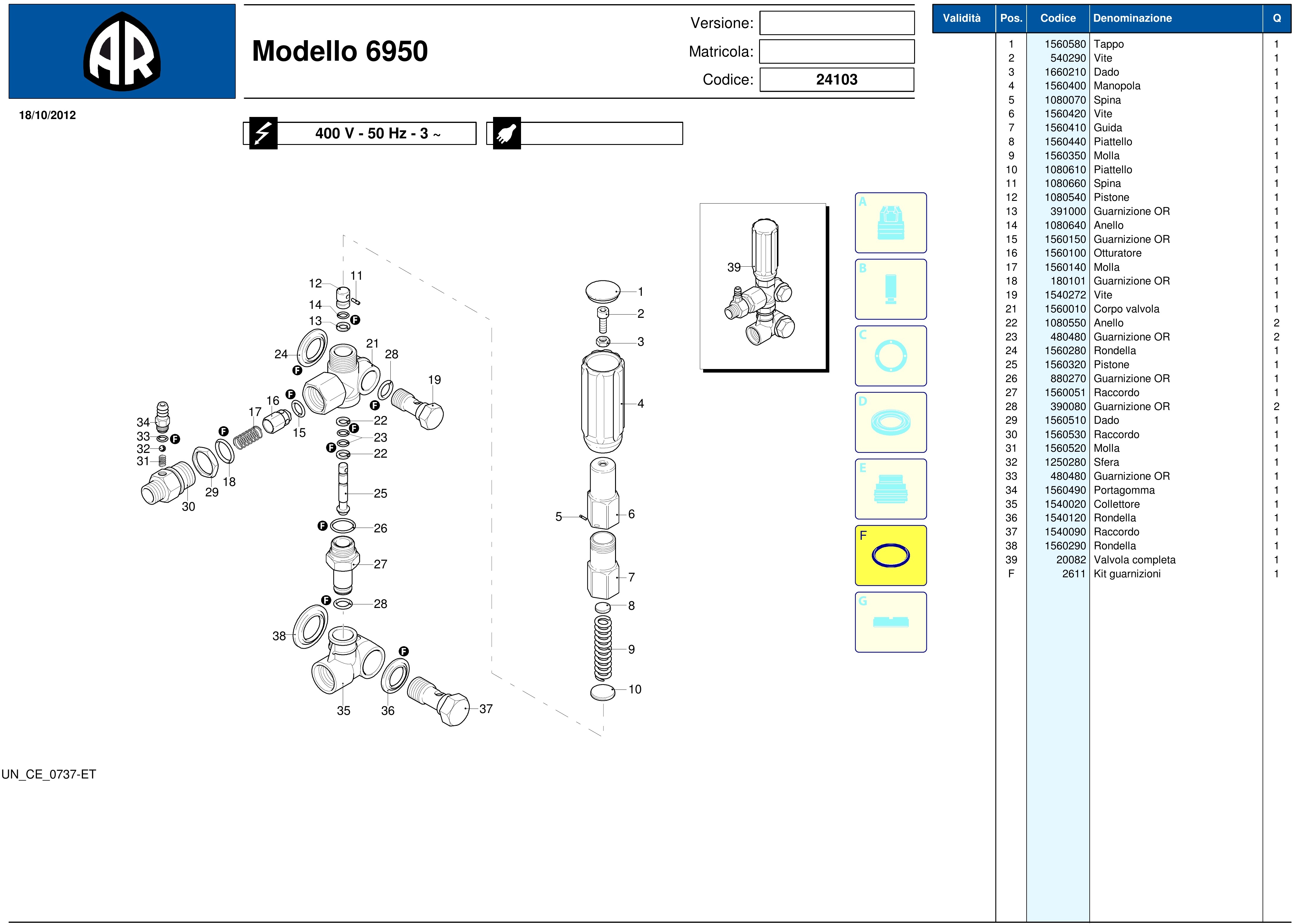

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
F
 photo_cameraImage coming soon 2611 Gasket Kit €17.56
1
 photo_cameraImage coming soon 1560580 Stopper €5.28
2
 photo_cameraImage coming soon 540290 Screw €5.47
3
 photo_cameraImage coming soon 1660210 Nut €4.59
4
 photo_cameraImage coming soon 1560400 Knob €6.39
5
 photo_cameraImage coming soon 1080070 plug €2.64
6
 photo_cameraImage coming soon 1560420 Screw €30.81
7
 photo_cameraImage coming soon 1560410 Driving €27.03
8
 photo_cameraImage coming soon 1560440 Disk €12.46
9
 photo_cameraImage coming soon 1560350 Spring €7.98
10
 photo_cameraImage coming soon 1080610 Disk €6.61
11
 photo_cameraImage coming soon 1080660 Plug €5.54
12
 photo_cameraImage coming soon 1080540 Piston €18.64
13
 photo_cameraImage coming soon 391000 O-Ring €4.73
14
 photo_cameraImage coming soon 1080640 Ring €5.20
15
 photo_cameraImage coming soon 1560150 O-Ring €4.59
16
 photo_cameraImage coming soon 1560100 Shutter €12.13
17
 photo_cameraImage coming soon 1560140 Spring €5.98
18
 photo_cameraImage coming soon 180101 O-Ring €4.73
19
 Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
21
 photo_cameraImage coming soon 1560010 Valve Body €27.03
22
 photo_cameraImage coming soon 1080550 Ring €5.42
23
 photo_cameraImage coming soon 480480 O-ring €5.63
24
 photo_cameraImage coming soon 1560280 Washer €7.49
25
 photo_cameraImage coming soon 1560320 Piston €22.26
26
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
 photo_cameraImage coming soon 1560051 Junction €21.52
28
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
 photo_cameraImage coming soon 1560510 Nut €10.40
30
 photo_cameraImage coming soon 1560530 Junction €23.07
31
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
32
 photo_cameraImage coming soon 1250280 sphere €2.67
33
 photo_cameraImage coming soon 480480 O-ring €5.63
34
 photo_cameraImage coming soon 1560490 Hose €7.24
35
 photo_cameraImage coming soon 1540020 Collector €24.21
36
 photo_cameraImage coming soon 1540120 Washer €5.81
37
 photo_cameraImage coming soon 1540090 Junction €17.83
38
 photo_cameraImage coming soon 1560290 Washer €7.62
39
 Complete Valve for Pressure Washers AR BC 6950 20082 Complete Valve for Pressure Washers AR BC 6950 €144.99
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

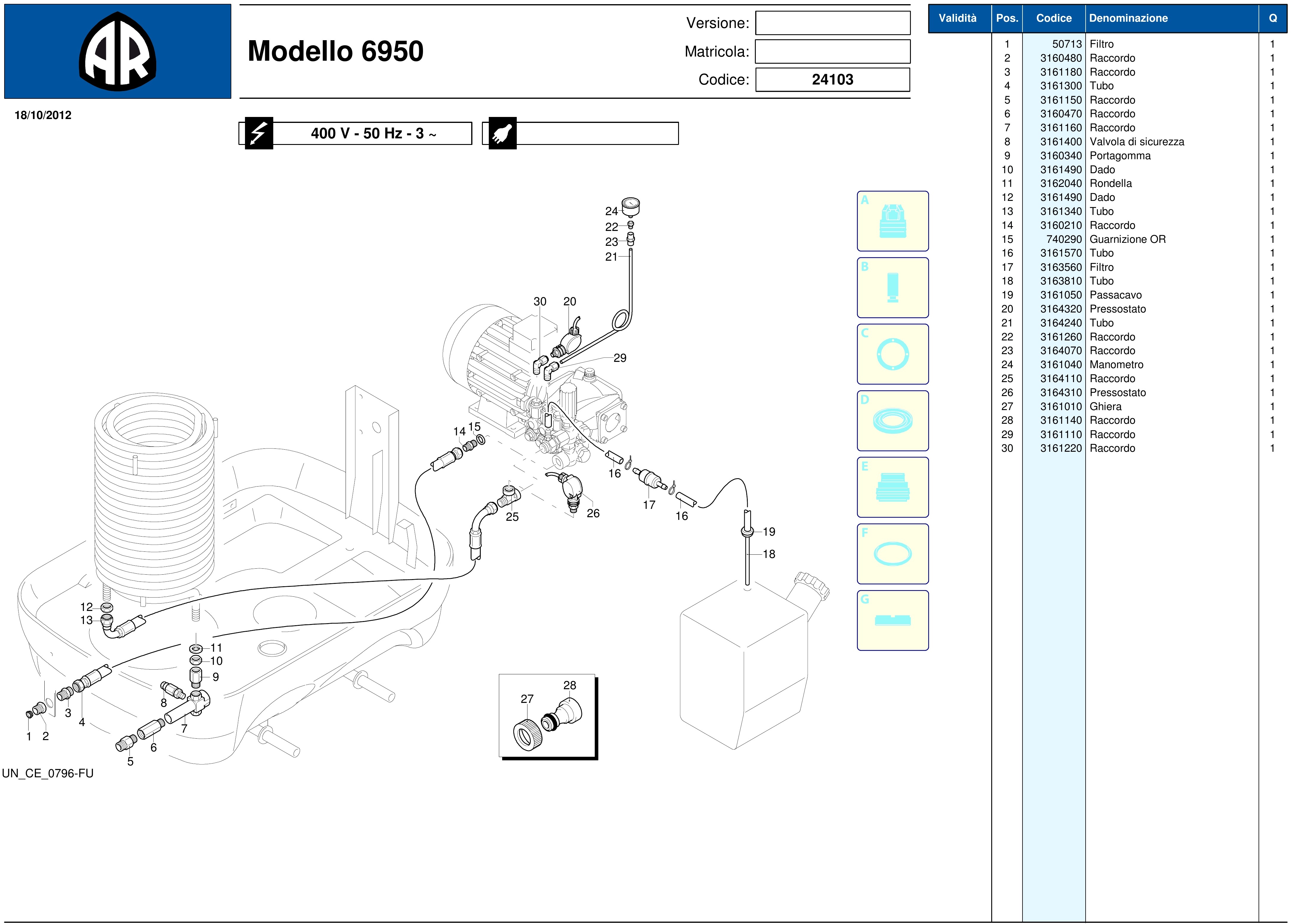

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50713 Filter €10.53
2
 photo_cameraImage coming soon 3160480 Fitting €16.62
3
 photo_cameraImage coming soon 3161180 Fitting €11.28
4
 photo_cameraImage coming soon 3161300 Tube €44.51
5
 photo_cameraImage coming soon 3161150 Fitting €11.28
6
 photo_cameraImage coming soon 3160470 Junction €25.53
7
 photo_cameraImage coming soon 3161160 Junction €82.03
8
 photo_cameraImage coming soon 3161400 Safety Valve €49.74
9
 photo_cameraImage coming soon 3160340 Hose €5.36
10
 photo_cameraImage coming soon 3161490 Nut €14.70
11
 photo_cameraImage coming soon 3162040 Washer €5.85
12
 photo_cameraImage coming soon 3161490 Nut €14.70
13
 photo_cameraImage coming soon 3161340 Tube €47.18
14
 photo_cameraImage coming soon 3160210 Junction €18.77
15
 photo_cameraImage coming soon 740290 O-ring €2.67
16
 photo_cameraImage coming soon 3161570 Tube €11.70
17
 photo_cameraImage coming soon 3163560 Filter €10.84
18
 photo_cameraImage coming soon 3163810 Tube €19.20
19
 photo_cameraImage coming soon 3161050 Fairlead €10.68
20
 photo_cameraImage coming soon 3164320 Pressure Switch €24.99
21
 photo_cameraImage coming soon 3164240 Tube €18.28
22
 photo_cameraImage coming soon 3161260 Fitting €9.43
23
 photo_cameraImage coming soon 3164070 Fitting €9.43
24
 Gauge for Pressure Washers Annovi & Reverberi Series 66 3161040 Gauge for Pressure Washers Annovi & Reverberi Series 66 €50.93
25
 photo_cameraImage coming soon 3164110 Junction €24.72
26
 photo_cameraImage coming soon 3164310 Pressure Switch €26.25
27
 photo_cameraImage coming soon 3161010 Ferrule €16.53
28
 photo_cameraImage coming soon 3161140 Junction €16.53
29
 photo_cameraImage coming soon 3161110 Fitting €17.43
30
 photo_cameraImage coming soon 3161220 Junction €12.81
31
 photo_cameraImage coming soon 3162300 Gasket €4.66
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

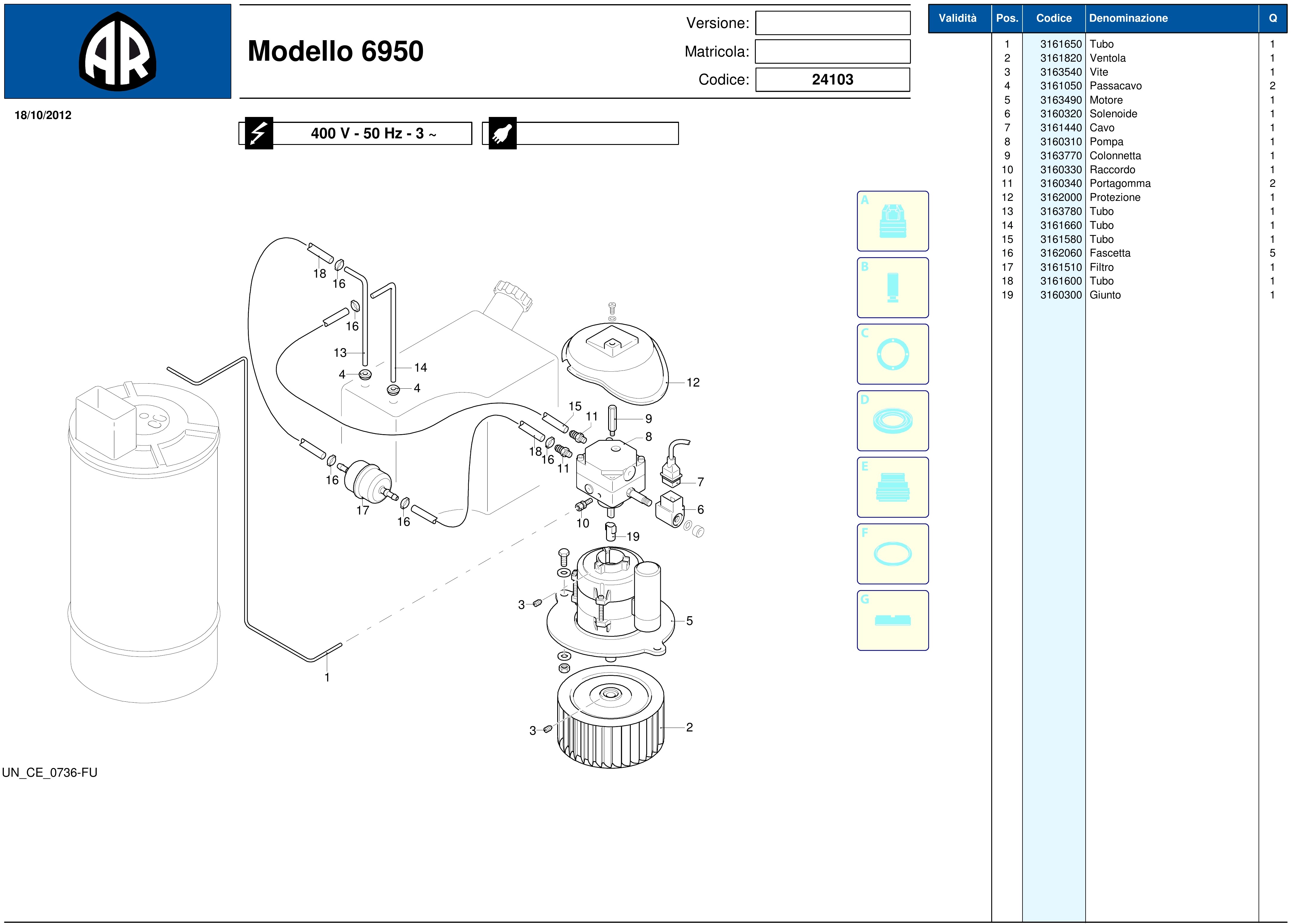

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3161650 Tube €38.77
2
 photo_cameraImage coming soon 3161820 Fan €29.54
3
 photo_cameraImage coming soon 3163540 Screw €1.56
4
 photo_cameraImage coming soon 3161050 Fairlead €10.68
5
 photo_cameraImage coming soon 3163490 Engine €180.77
6
 photo_cameraImage coming soon 3160320 Solenoid €44.36
7
 photo_cameraImage coming soon 3161440 Cable €8.80
8
 photo_cameraImage coming soon 3160310 Pump €141.04
9
 photo_cameraImage coming soon 3163770 Standoff €19.20
10
 photo_cameraImage coming soon 3160330 Fitting €11.28
11
 photo_cameraImage coming soon 3160340 Hose €5.36
12
 photo_cameraImage coming soon 3162000 Protection €13.92
13
 photo_cameraImage coming soon 3163780 Tube €19.43
14
 photo_cameraImage coming soon 3161660 Tube €10.37
15
 photo_cameraImage coming soon 3161580 Tube €20.01
16
 photo_cameraImage coming soon 3162060 Band €7.51
17
 photo_cameraImage coming soon 3161510 Filter €13.47
18
 photo_cameraImage coming soon 3161600 Tube €10.37
19
 photo_cameraImage coming soon 3160300 Coupling €8.52
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3161980 Knob €8.18
2
 photo_cameraImage coming soon 3160840 Switch €60.09
3
 photo_cameraImage coming soon 3164260 Fairlead €9.16
4
 photo_cameraImage coming soon 3164270 Plate €29.25
5
 photo_cameraImage coming soon 3164280 Support €64.33
6
 Control PCB ALB 529 for Pressure Washer AR BC 6950 3164160 Control PCB ALB 529 for Pressure Washer AR BC 6950 €217.26
7
 Thermostat for Pressure Washers Annovi&Reverberi AR 6950-6970-7850-8840 3161800 Thermostat for Pressure Washers Annovi&Reverberi AR 6950-6970-7850-8840 €89.05
8
 photo_cameraImage coming soon 3163720 Fuse Holder €11.28
9
 photo_cameraImage coming soon 3160920 Fuse €9.64
10
 photo_cameraImage coming soon 3164290 Box €64.33
11
 photo_cameraImage coming soon 3160860 Fairlead €11.15
12
 photo_cameraImage coming soon 3160870 Fairlead €17.70
13
 photo_cameraImage coming soon 3160810 Cable €47.45
14
 photo_cameraImage coming soon 3161970 Knob €8.18
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

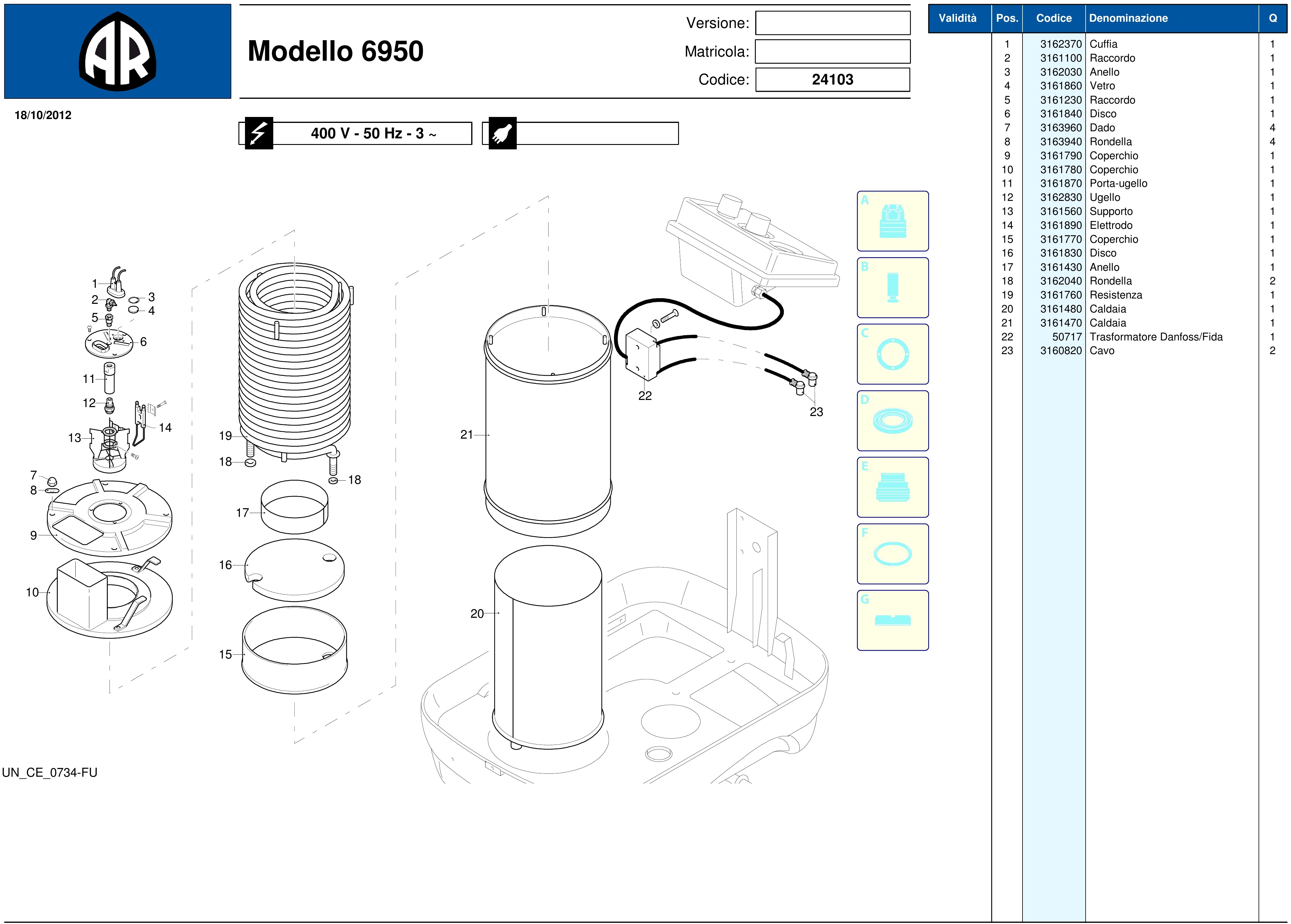

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3162370 Headphones €19.38
2
 photo_cameraImage coming soon 3161100 Fitting €14.81
3
 photo_cameraImage coming soon 3162030 Ring €7.58
4
 photo_cameraImage coming soon 3161860 Glass €9.39
5
 photo_cameraImage coming soon 3161230 Fitting €4.67
6
 photo_cameraImage coming soon 3161840 Disk €32.98
7
 photo_cameraImage coming soon 3163960 Nut €7.58
8
 photo_cameraImage coming soon 3163940 Washer €8.59
9
 photo_cameraImage coming soon 3161790 Cover €57.44
10
 photo_cameraImage coming soon 3161780 Cover €136.45
11
 photo_cameraImage coming soon 3161870 The Nozzle Holder €13.86
12
 photo_cameraImage coming soon 3162830 Nozzle €33.11
13
 photo_cameraImage coming soon 3161560 Support €74.79
14
 photo_cameraImage coming soon 3161890 Electrode €26.92
15
 photo_cameraImage coming soon 3161770 Cover €57.44
16
 photo_cameraImage coming soon 3161830 Disk €49.94
17
 photo_cameraImage coming soon 3161430 Ring €43.79
18
 photo_cameraImage coming soon 3162040 Washer €5.85
19
 photo_cameraImage coming soon 3161760 Resistance €336.61
20
 photo_cameraImage coming soon 3161480 Boiler €284.19
21
 photo_cameraImage coming soon 3161470 Boiler €169.60
22
 photo_cameraImage coming soon 50717 Transformer Danfoss / Fida €120.57
23
 photo_cameraImage coming soon 3160820 Cable €25.01
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

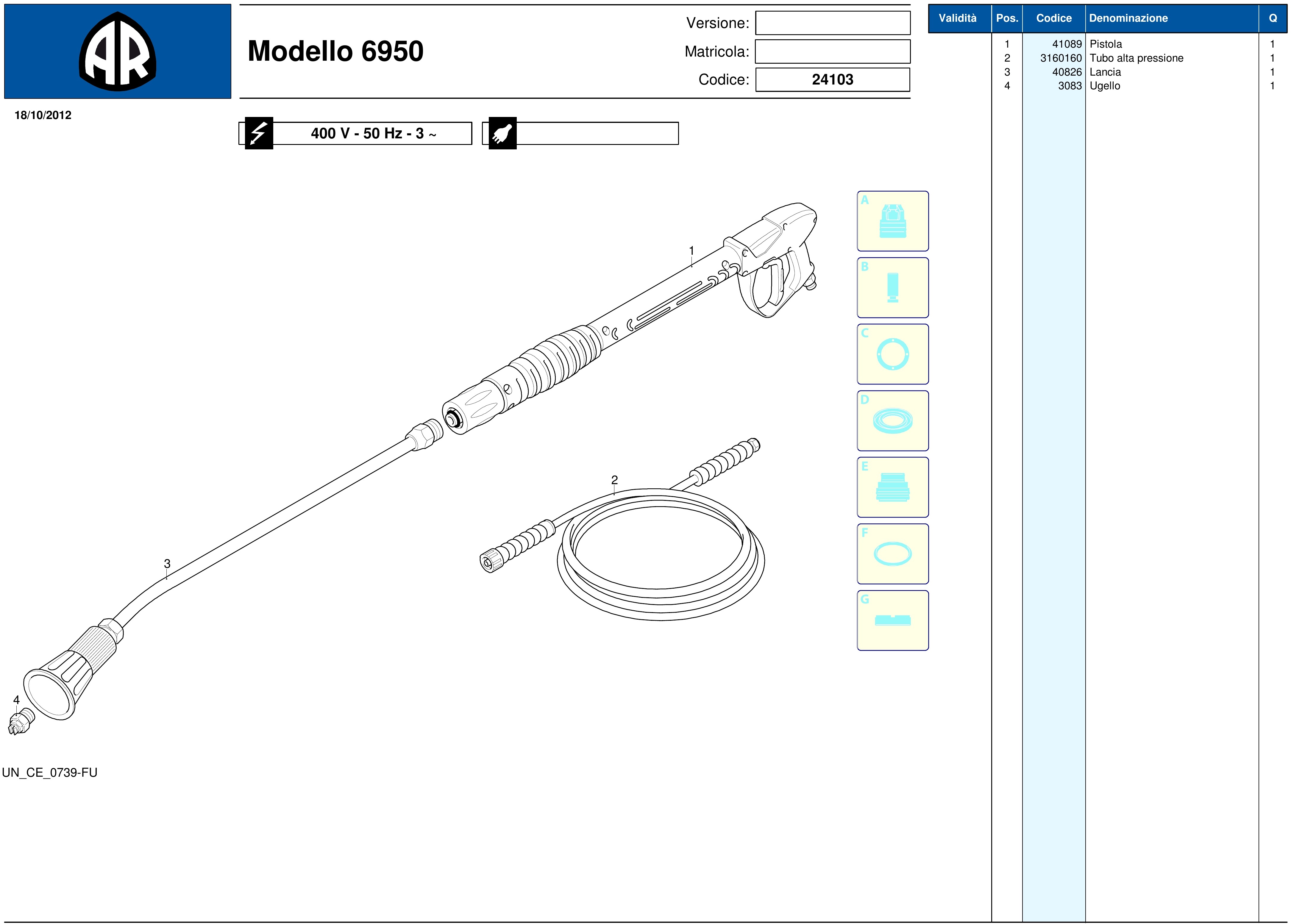

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 41089 Gun €133.22
2
 photo_cameraImage coming soon 3160160 High Pressure Hose €224.56
3
 Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
4
 photo_cameraImage coming soon 3083 Nozzle €21.33

Shipping and delivery information will be available shortly.

Annovi Reverberi Parts for Pressure Washer AR6950

Annovi Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Blue Clean AR6950 - 24103.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 6950 - 24103

Pressure Washer AR Blue Clean 6950 - 24103
Casing 6950 - 24103 Pag.1
# Part Num. Description
1 3164170 Bleu Casing
2 3160100 Holders Accessories
3 2100300 Screw
4 3160110 Holders Accessories
5 3164180 Support
6 3164190 Support
7 3164200 Support
8 3164210 Frame
9 3161070 Fairlead
10 3161900 Plate
11 3163140 Handle
12 3163150 Cover
13 3164220 Tank
14 3164230 Tank
15 3161920 Cork
16 3164380 Wheel
17 3162010 Ring
18 3161940 Protection
19 3160130 Door
Pump 6950 - 24103 Pag.2
1 3200110 Cork
2 1200690 O-Ring
3 2769050 Valve Complete
4 800410 Screw
5 1381550 Washer
6 3200020 Top
7 180101 O-Ring
8 820361 Cork
9 740290 O-Ring
10 1980740 Cork
11 1780140 Ring
12 1780720 Watertight
13 3200130 Piston Guide
14 3200142 Gasket
15 3200260 Ring
16 770590 O-Ring
17 3200120 Piston Guide
18 3200010 Body Pump
19 1780490 Bearing
20 1260790 Ring
21 1780550 Ring
22 395081 O-Ring
23 3200090 Disk
24 3200080 Level Indicator
25 3200070 Support
26 1200430 Screw
27 880130 Cork
28 1260110 Nut
29 1260100 Washer
30 1260210 Piston
31 1260091 Disk
32 1260460 Oil Seal
33 480480 O-Ring
34 3200060 Piston
35 3200040 Piston Rod
36 1780050 Plug
37 2760280 O-Ring
38 3200030 Cover
39 820510 O-Ring
40 880581 Cork
41 3200220 Screw
42 3200050 Shaft
43 3200230 Tab
44 1321190 Bearing
45 1260750 Ring
46 50068 Gasket
47 23302 Pump Pre-Assembly
48 50069 Box
49 1200430 Screw
50 44273 Engine
51 3209200 Pre-Assembly Head
52 3200430 Cork
A 2186 Valve Kit
B 42467 Piston Kit
C 42468 Oil Seals Kit
E 42469 Kit Held Water
F 42470 Seal Kit
G 2745 Kit Support Rings
Valve 6950 - 24103 Pag.3
1 1560580 Cork
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1080070 Plug
6 1560420 Screw
7 1560410 Guide
8 1560440 Disk
9 1560350 Spring
10 1080610 Disk
11 1080660 Plug
12 1080540 Piston
13 391000 O-Ring
14 1080640 Ring
15 1560150 O-Ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-Ring
19 1540272 Screw
21 1560010 Valve Body
22 1080550 Ring
23 480480 O-Ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Ball
33 480480 O-Ring
34 1560490 Hose
35 1540020 Collector
36 1540120 Washer
37 1540090 Junction
38 1560290 Washer
39 20082 Valve Complete
F 2611 Seal Kit
Water Circuit 6950 - 24103 Pag.4
1 50713 Filter
2 3160480 Junction
3 3161180 Junction
4 3161300 Tube
5 3161150 Junction
6 3160470 Junction
7 3161160 Junction
8 3161400 Safety Valve
9 3160340 Hose
10 3161490 Nut
11 3162040 Washer
12 3161490 Nut
13 3161340 Tube
14 3160210 Junction
15 740290 O-Ring
16 3161570 Tube
17 3163560 Filter
18 3163810 Tube
19 3161050 Fairlead
20 3164320 Pressure Switch
21 3164240 Tube
22 3161260 Junction
23 3164070 Junction
24 3161040 Manometer
25 3164110 Junction
26 3164310 Pressure Switch
27 3161010 Ferrule
28 3161140 Junction
29 3161110 Junction
30 3161220 Junction
31 3162300 Gasket
Fuel Circuit 6950 - 24103 Pag.5
1 3161650 Tube
2 3161820 Fan
3 3163540 Screw
4 3161050 Fairlead
5 3163490 Engine
6 3160320 Solenoid
7 3161440 Cable
8 3160310 Pump
9 3163770 Standoff
10 3160330 Junction
11 3160340 Hose
12 3162000 Protection
13 3163780 Tube
14 3161660 Tube
15 3161580 Tube
16 3162060 Band
17 3161510 Filter
18 3161600 Tube
19 3160300 Coupling
Electric Circuit 6950 - 24103 Pag.6
1 3161980 Knob
2 3160840 Switch
3 3164260 Fairlead
4 3164270 Plate
5 3164280 Support
6 3164160 Contol PCB - ALB 529
7 3161800 Thermostat
8 3163720 Fuse Holder
9 3160920 Fuse
10 3164290 Box
11 3160860 Fairlead
12 3160870 Fairlead
13 3160810 Cable
14 3161970 Knob
Boiler 6950 - 24103 Pag.7
1 3162370 Headphones
2 3161100 Junction
3 3162030 Ring
4 3161860 Glass
5 3161230 Junction
6 3161840 Disk
7 3163960 Nut
8 3163940 Washer
9 3161790 Cover
10 3161780 Cover
11 3161870 The Nozzle Holder
12 3162830 Nozzle
13 3161560 Support
14 3161890 Electrode
15 3161770 Cover
16 3161830 Disk
17 3161430 Ring
18 3162040 Washer
19 3161760 Resistance
20 3161480 Boiler
21 3161470 Boiler
22 50717 Transformer Danfoss / Fida
23 3160820 Cable
Accessories 6950 - 24103 Pag.8
1 41089 Gun
2 3160160 High Pressure Tube
3 40826 Lance
4 3083 Nozzle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 6950 - 24103
5 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR6950

Diagram Annovi AR6950

Download (951.79KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
AVAILABLE €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
AVAILABLE €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
AVAILABLE €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Usually Ships in: 7/10 Business Days Approx. €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
AVAILABLE €17.95
Details
Valve for Pressure Washers AR 780-787-797-810-820-830-840
Annovi Reverberi S.p.A. SKU: 2769050
Valve for Pressure Washers AR 780-787-797-810-820-830-840
Valve for Pressure Washers AR 780-787-797-810-820-830-840 Genuine Part for Annovi & Reverberi, Valve Assembly for Pressure Washer AR 780/787/797 - AR 810/820/830/840 - AR 6640/6670 - AR 6950/6970 - AR 1001/1003 - AR 1005/1007....
AVAILABLE €6.46
Details
Gauge for Pressure Washers Annovi & Reverberi Series 66 Sale
Annovi Reverberi S.p.A. SKU: 3161040
Gauge for Pressure Washers Annovi & Reverberi Series 66
Gauge for Pressure Washers Annovi & Reverberi Series 66 Original part Annovi & Reverberi, High pressure gauge for pressure washers models Blue Clean Series 66 - 6630 - 6640 - 6650 - 6670 Part for the Following Products: - AR...
AVAILABLE €50.93
Details
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005
Annovi Reverberi S.p.A. SKU: 3200040
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 Original Spare Part Annovi & Reverberi, Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 - AR6950 - KDB 940 - AR5850. Part for the following...
on 10/15 Business Days Approx €9.34
Details
Complete Valve for Pressure Washers AR BC 6950
Annovi Reverberi S.p.A. SKU: 20082
Complete Valve for Pressure Washers AR BC 6950
Complete Valve for Pressure Washers AR BC 6950 Original part Annovi Reverberi, Complete Valve for Pressure Washers models Blue Clean AR 6950 - AR 6970 - AR 7850 - AR 7870. Part for the following...
Usually Ships in: 10/15 Business Days Approx. €144.99
Details
Control PCB ALB 529 for Pressure Washer AR BC 6950
Annovi Reverberi S.p.A. SKU: 3164160
Control PCB ALB 529 for Pressure Washer AR BC 6950
Control PCB ALB 529 for Pressure Washer AR BC 6950 Original part Annovi Reverberi, Control PCB ALB 529 for Pressure Washers models Blue Clean AR 6950 - AR 6970. Part for the following products: - ...
on 10 Business Days Approx. €217.26
Details
Comments (0)
No customer reviews for the moment.
