Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR3590

SKU: Annovi Reverberi 3590 -24425
€10.53
VAT included

Annovi Reverberi Parts for Pressure Washer AR3590

Annovi & Reverberi genuine spare parts or replacements parts for to repair Pressure Washer Blue Clean AR 3590 -24425.

Fix Your Pressure Washer Blue Clean AR 3590. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Annovi Reverberi 3590 -24425
Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
  • Annovi & Reverberi Parts for Pressure Washer AR3590
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR3590

SKU: Annovi Reverberi 3590 -24425 Condition: New
€10.53
VAT included

Annovi Reverberi Parts for Pressure Washer AR3590

Annovi & Reverberi genuine spare parts or replacements parts for to repair Pressure Washer Blue Clean AR 3590 -24425.

Fix Your Pressure Washer Blue Clean AR 3590. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Annovi Reverberi 3590 -24425
settings 137 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
130 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

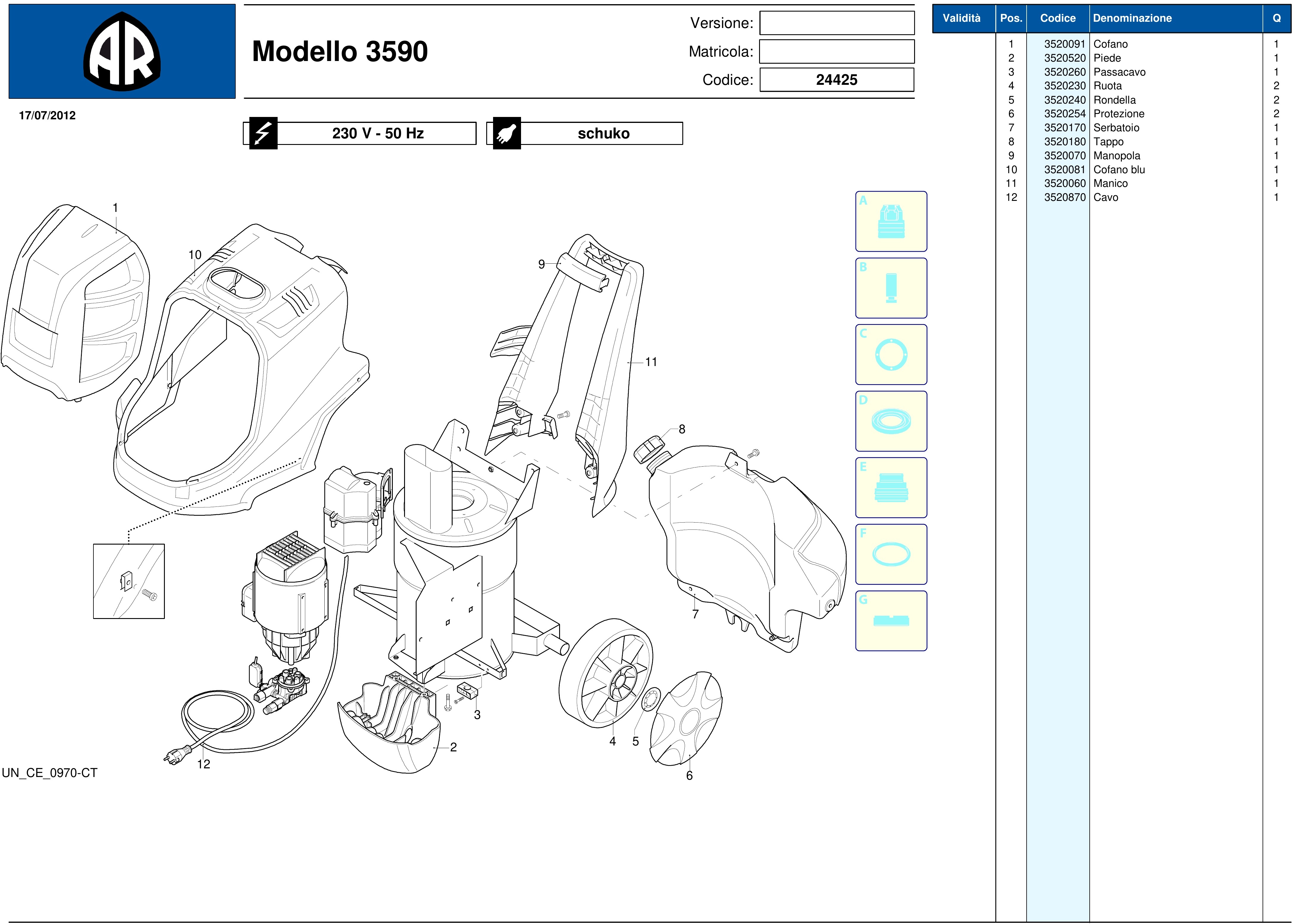

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520091 Casing €32.36
2
 photo_cameraImage coming soon 3520520 Foot €73.63
3
 photo_cameraImage coming soon 3520260 Fairlead €5.57
4
 photo_cameraImage coming soon 3520230 Wheel €55.88
5
 Washer D.25 Wheel Lock for Pressure Washer AR 2590 3520240 Washer D.25 Wheel Lock for Pressure Washer AR 2590 €14.68
6
 photo_cameraImage coming soon 3520254 Protection €14.05
7
 photo_cameraImage coming soon 3520170 Tank €135.73
8
 photo_cameraImage coming soon 3520180 Stopper €11.39
9
 photo_cameraImage coming soon 3520070 Knob €12.79
10
 photo_cameraImage coming soon 3520081 Blue Casing €54.00
11
 photo_cameraImage coming soon 3520060 Handle €33.97
12
 photo_cameraImage coming soon 3520870 Cable €93.91

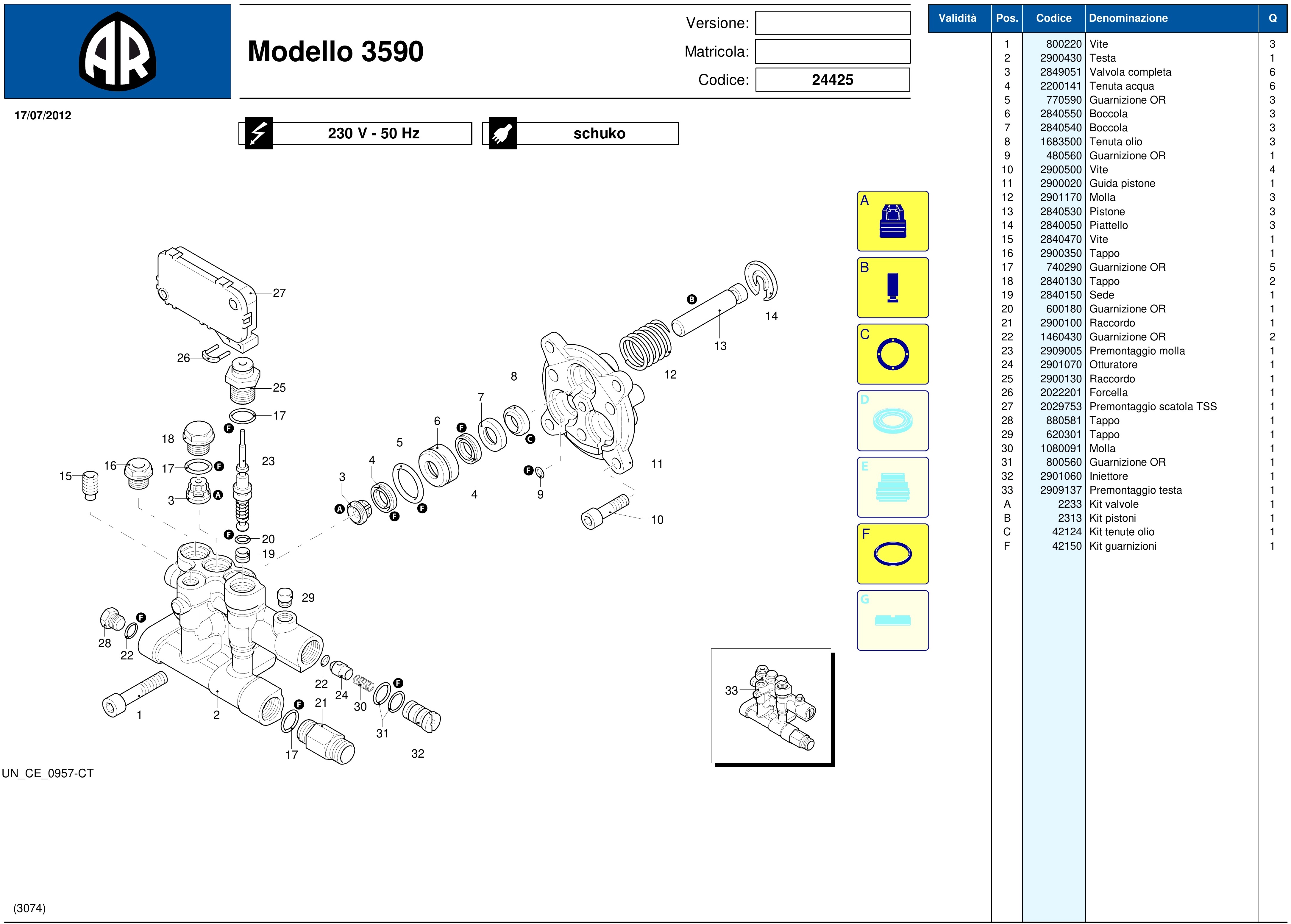

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2233 Valve Kit €10.83
B
 photo_cameraImage coming soon 2313 Piston Kit €10.55
C
 photo_cameraImage coming soon 42124 Oil Seals Kit €7.33
F
 photo_cameraImage coming soon 42150 Gasket Kit €16.34
1
 photo_cameraImage coming soon 800220 screw €2.26
2
 photo_cameraImage coming soon 2900430 head €145.99
3
 photo_cameraImage coming soon 2849051 Complete Valve €2.99
4
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
5
 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
6
 photo_cameraImage coming soon 2840550 bushing €7.80
7
 photo_cameraImage coming soon 2840540 bushing €3.25
8
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
10
 photo_cameraImage coming soon 2900500 Screw €2.26
11
 photo_cameraImage coming soon 2900020 Piston Guide €17.05
12
 AR589 Spring 2901170 AR589 Spring €4.38
13
 photo_cameraImage coming soon 2840530 Piston €7.59
14
 AR589 Lock 2840050 AR589 Lock €2.18
15
 photo_cameraImage coming soon 2840470 Screw €2.79
16
 ARSG HOT 1309 Plug 2900350 ARSG HOT 1309 Plug €12.36
17
 photo_cameraImage coming soon 740290 O-ring €2.67
18
 photo_cameraImage coming soon 2840130 stopper €4.71
19
 photo_cameraImage coming soon 2840150 Office €2.59
20
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
21
 photo_cameraImage coming soon 2900100 Junction €20.05
22
 photo_cameraImage coming soon 1460430 O-ring €4.60
23
 photo_cameraImage coming soon 2909005 Pre-Assembly Spring €19.23
24
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
25
 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 2900130 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 €10.82
26
 photo_cameraImage coming soon 2022201 fork €3.36
27
 Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 2029753 Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 €32.93
28
 photo_cameraImage coming soon 880581 stopper €7.73
29
 photo_cameraImage coming soon 1262400 washer €1.73
29
 photo_cameraImage coming soon 620301 Cork €2.46
30
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
31
 photo_cameraImage coming soon 800560 O-ring €1.59
32
 photo_cameraImage coming soon 2901060 Injector €8.60
33
 photo_cameraImage coming soon 2909137 Pre-Assembly Head €253.04

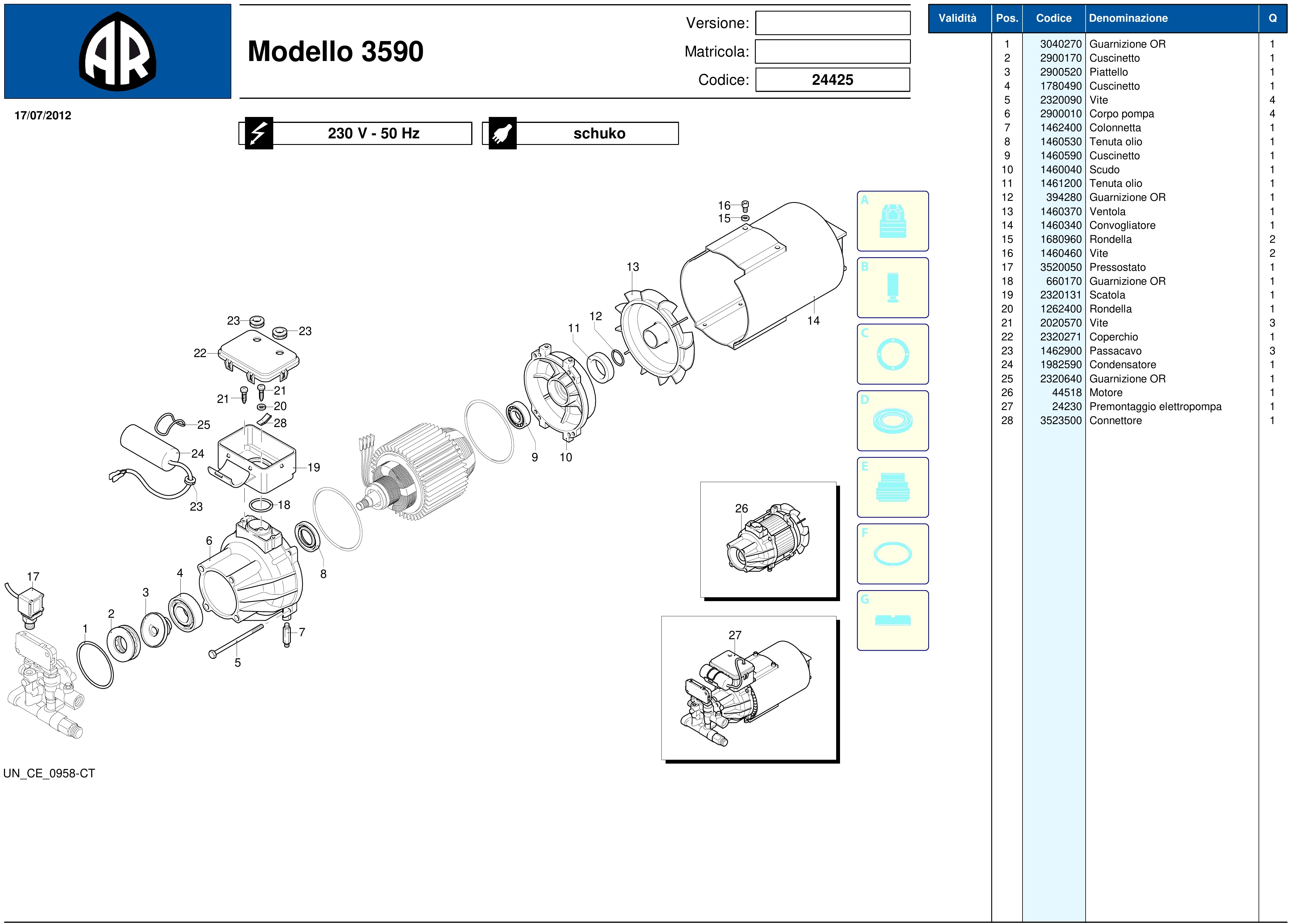

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
2
 Thrust Bearing for Pressure Washer DeWalt DXPW001E 2900170 Thrust Bearing for Pressure Washer DeWalt DXPW001E €20.36
3
 photo_cameraImage coming soon 2900520 Disk €8.89
4
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
6
 photo_cameraImage coming soon 2900010 Body Pump €22.70
7
 photo_cameraImage coming soon 1462400 Stud bolt €5.85
8
 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E 1460530 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E €7.93
9
 photo_cameraImage coming soon 1460590 bearing €7.15
10
 photo_cameraImage coming soon 1460040 shield €23.19
11
 photo_cameraImage coming soon 1461200 oil seal €1.88
12
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
13
 photo_cameraImage coming soon 1460370 fan €6.01
14
 photo_cameraImage coming soon 1460340 conveyor €16.59
15
 photo_cameraImage coming soon 1680960 washer €1.51
16
 photo_cameraImage coming soon 1460460 screw €1.58
17
 AR2590 Pressure Switch 3520050 AR2590 Pressure Switch €33.68
18
 photo_cameraImage coming soon 660170 O-ring €1.81
19
 photo_cameraImage coming soon 2320131 box €6.85
21
 photo_cameraImage coming soon 2020570 screw €1.59
22
 photo_cameraImage coming soon 2320271 Cover €2.04
23
 photo_cameraImage coming soon 1462900 Cable Sleeve €2.19
24
 photo_cameraImage coming soon 1982590 Capacitor €19.88
25
 photo_cameraImage coming soon 2320640 O-Ring €1.93
26
 Motor 240V Ass'y for Pressure Washer AR BC 3590 44518 Motor 240V Ass'y for Pressure Washer AR BC 3590 €280.75
27
 photo_cameraImage coming soon 24230 Pre-Assembly Electric €697.72

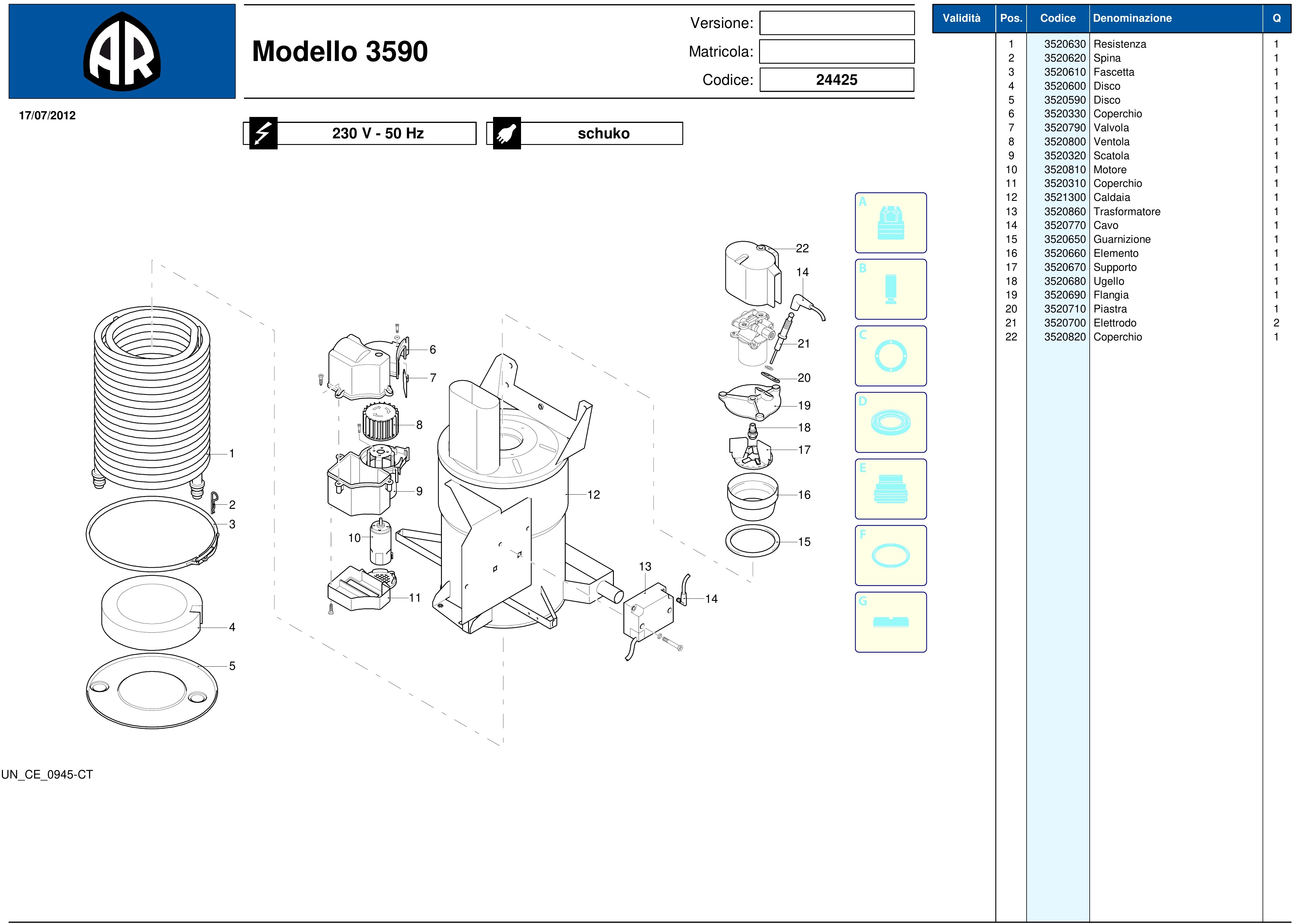

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520630 Resistance €213.06
2
 photo_cameraImage coming soon 3520620 Plug €12.79
3
 photo_cameraImage coming soon 3520610 Band €17.87
4
 photo_cameraImage coming soon 3520600 Disk €44.48
5
 photo_cameraImage coming soon 3520590 Disk €38.15
6
 photo_cameraImage coming soon 3520330 Cover €21.66
7
 photo_cameraImage coming soon 3520790 Valve €16.59
10
 Boiler Burner Motor for Pressure Washers AR2590-3590-4590 3520810 Boiler Burner Motor for Pressure Washers AR2590-3590-4590 €126.94
11
 photo_cameraImage coming soon 3520310 Cover €17.87
12
 photo_cameraImage coming soon 3521300 Boiler €636.39
13
 photo_cameraImage coming soon 3520860 Transformer €180.10
14
 photo_cameraImage coming soon 3520770 Cable €58.23
15
 photo_cameraImage coming soon 3520650 Gasket €11.39
16
 photo_cameraImage coming soon 3520660 Element €106.59
17
 photo_cameraImage coming soon 3520670 Support €78.70
18
 photo_cameraImage coming soon 3520680 Nozzle €91.38
19
 photo_cameraImage coming soon 3520690 Flange €117.98
20
 photo_cameraImage coming soon 3520710 Plate €73.63
21
 photo_cameraImage coming soon 3520700 Electrode €44.48
22
 photo_cameraImage coming soon 3520820 Cover €21.76

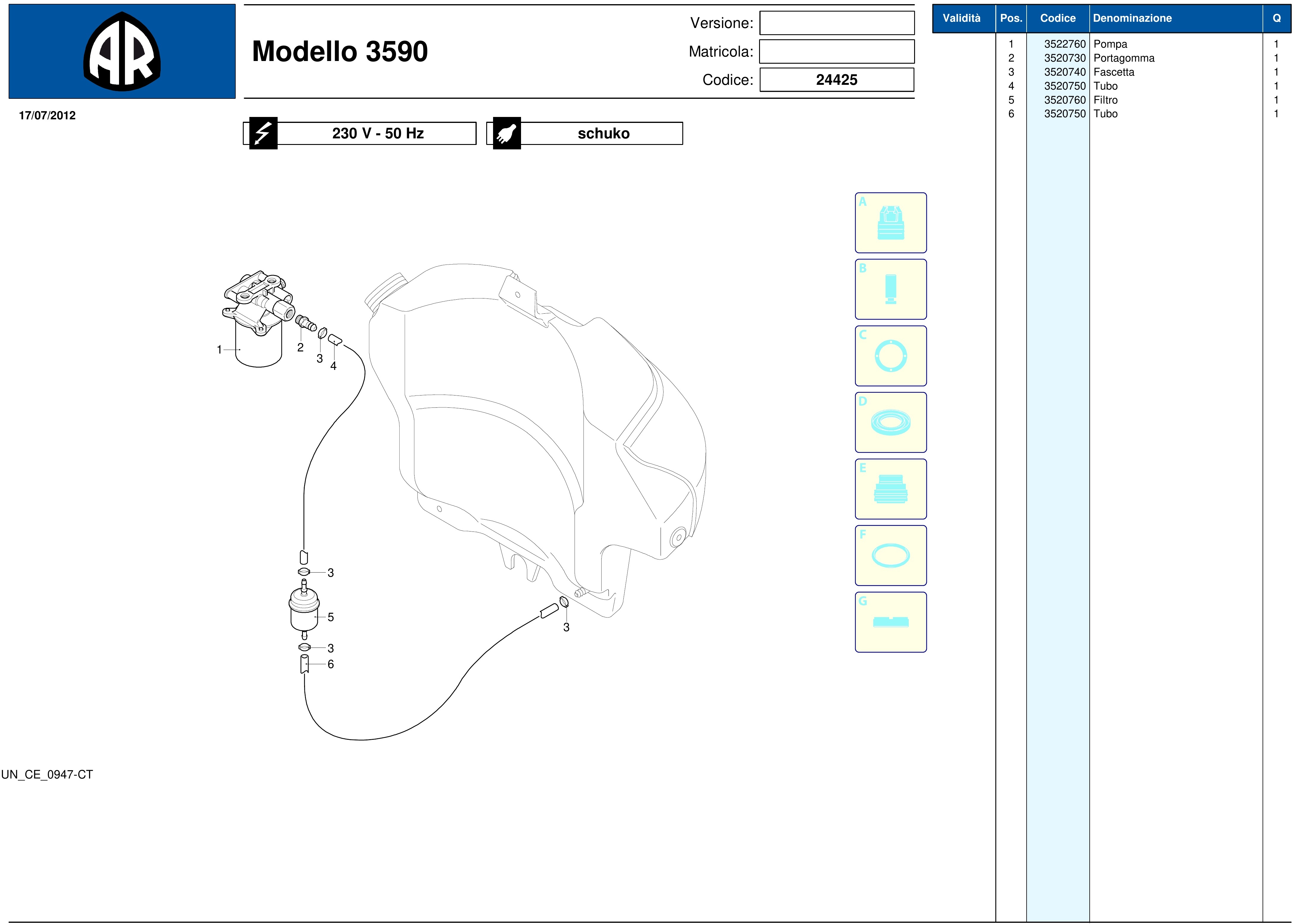

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
1
 Diesel Pump for Pressure Washer AR2590 3522760 Diesel Pump for Pressure Washer AR2590 €201.63
2
 photo_cameraImage coming soon 3520730 Hose €16.59
3
 photo_cameraImage coming soon 3520740 Band €7.53
4
 photo_cameraImage coming soon 3520750 Tube €10.66
5
 Diesel Pump Filter for Pressure Washer AR2590 3520760 Diesel Pump Filter for Pressure Washer AR2590 €27.32

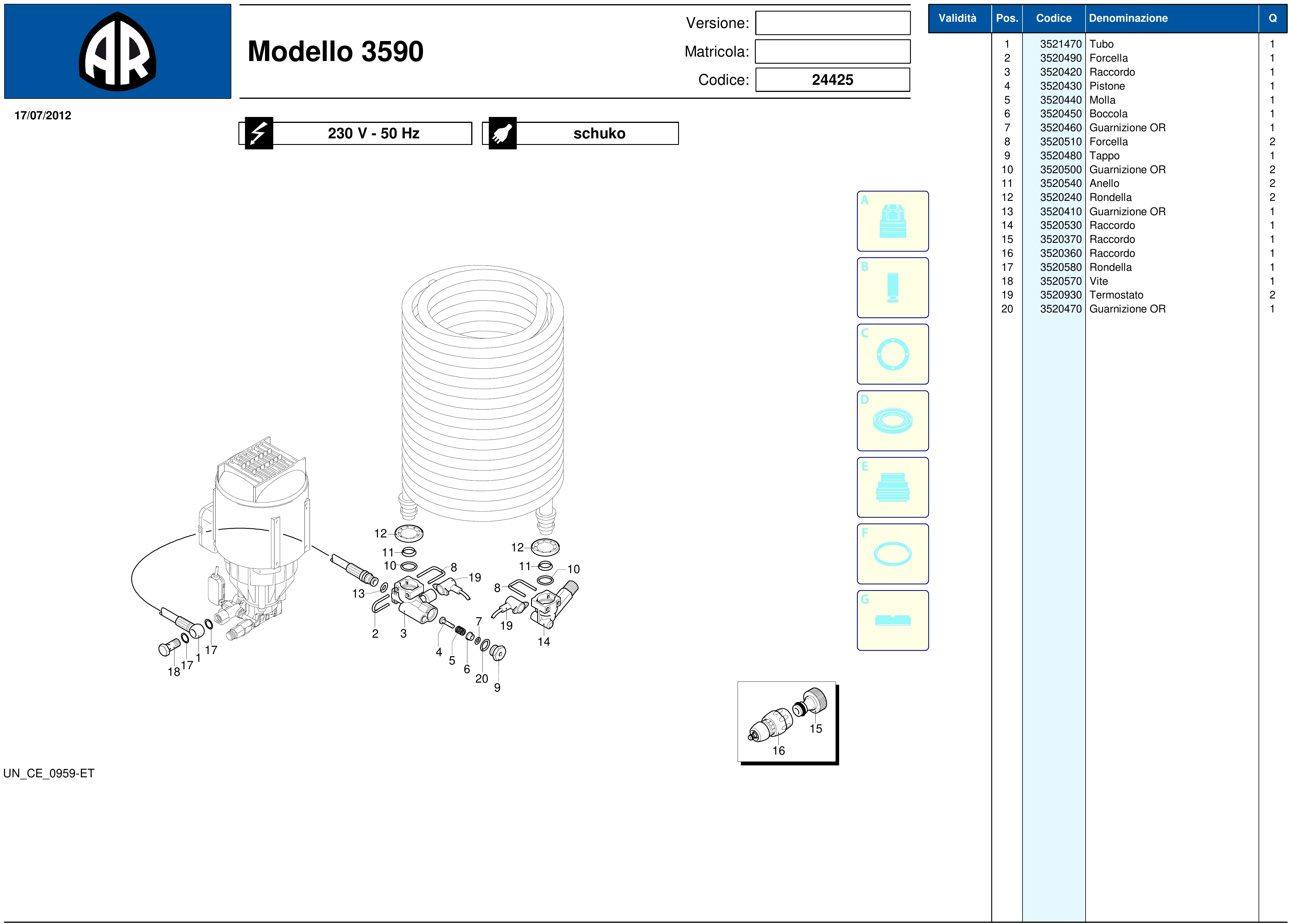

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3521470 Tube €58.42
2
 photo_cameraImage coming soon 3520490 Fork €16.59
3
 Boiler Inlet Fitting for Pressure Washer AR BC 2590 3520420 Boiler Inlet Fitting for Pressure Washer AR BC 2590 €23.55
4
 photo_cameraImage coming soon 3520430 Piston €22.84
5
 photo_cameraImage coming soon 3520440 Spring €16.35
6
 photo_cameraImage coming soon 3520450 Bushing €16.59
7
 photo_cameraImage coming soon 3520460 O-Ring €4.23
8
 photo_cameraImage coming soon 3520510 Fork €15.32
9
 photo_cameraImage coming soon 3520480 Stopper €21.22
10
 photo_cameraImage coming soon 3520500 O-Ring €5.53
11
 photo_cameraImage coming soon 3520540 Ring €10.94
13
 photo_cameraImage coming soon 3520410 O-Ring €4.23
14
 Boiler Outlet Fitting for Pressure Washer AR BC 2590 3520530 Boiler Outlet Fitting for Pressure Washer AR BC 2590 €23.69
15
 photo_cameraImage coming soon 3520370 Fitting €17.87
16
 photo_cameraImage coming soon 3520360 Fitting €20.39
17
 photo_cameraImage coming soon 3520580 Washer €9.81
18
 photo_cameraImage coming soon 3520570 Screw €16.59
19
 Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 3520930 Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 €38.89
20
 photo_cameraImage coming soon 3520470 O-Ring €10.29

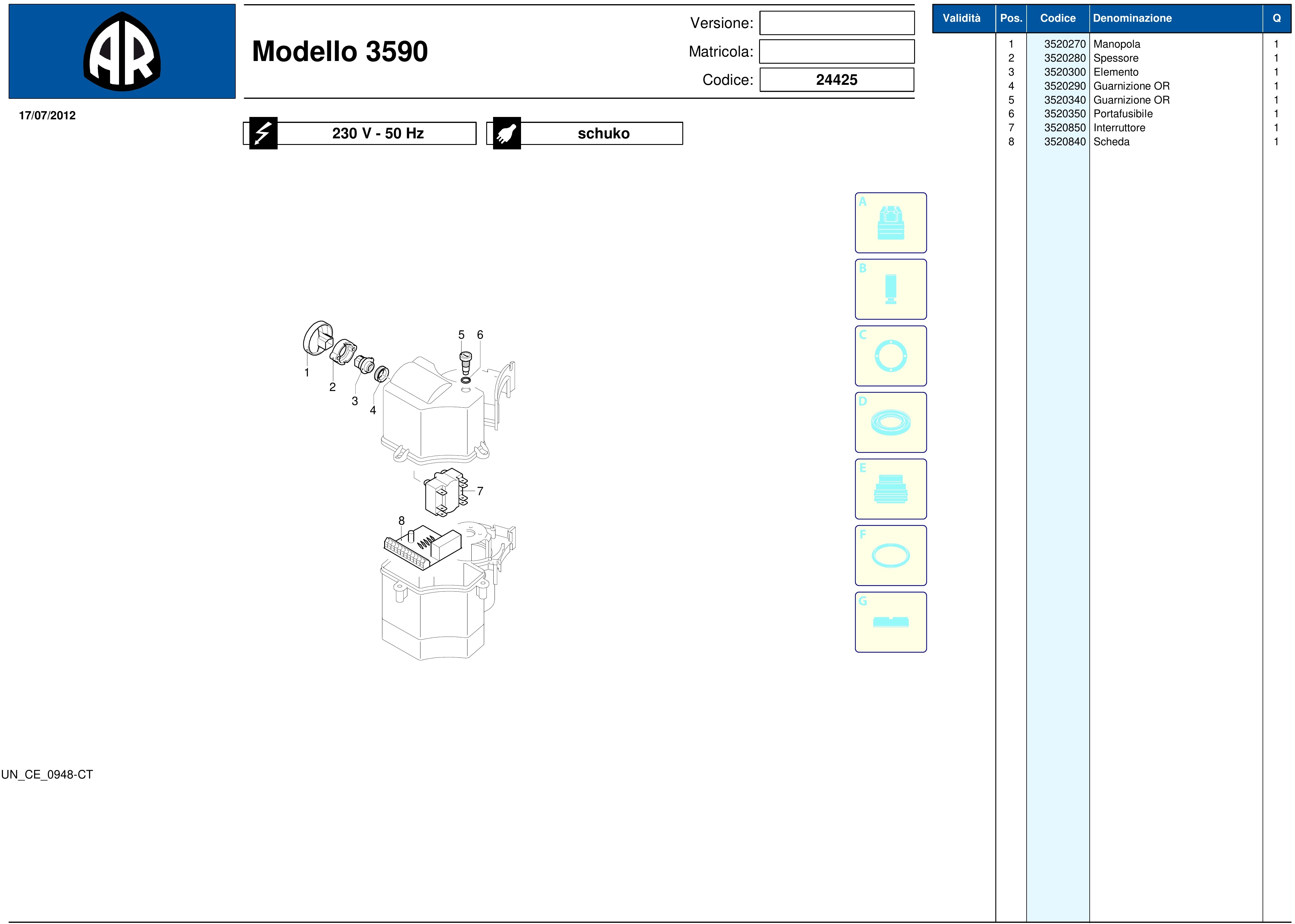

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520270 Knob €15.32
2
 photo_cameraImage coming soon 3520280 Thickness €12.79
3
 photo_cameraImage coming soon 3520300 Element €12.79
4
 photo_cameraImage coming soon 3520290 O-Ring €11.39
5
 photo_cameraImage coming soon 3520340 O-Ring €19.13
6
 photo_cameraImage coming soon 3520350 Fuse Holder €21.66
7
 photo_cameraImage coming soon 3520850 Switch €72.37
8
 photo_cameraImage coming soon 3520840 Card €78.91

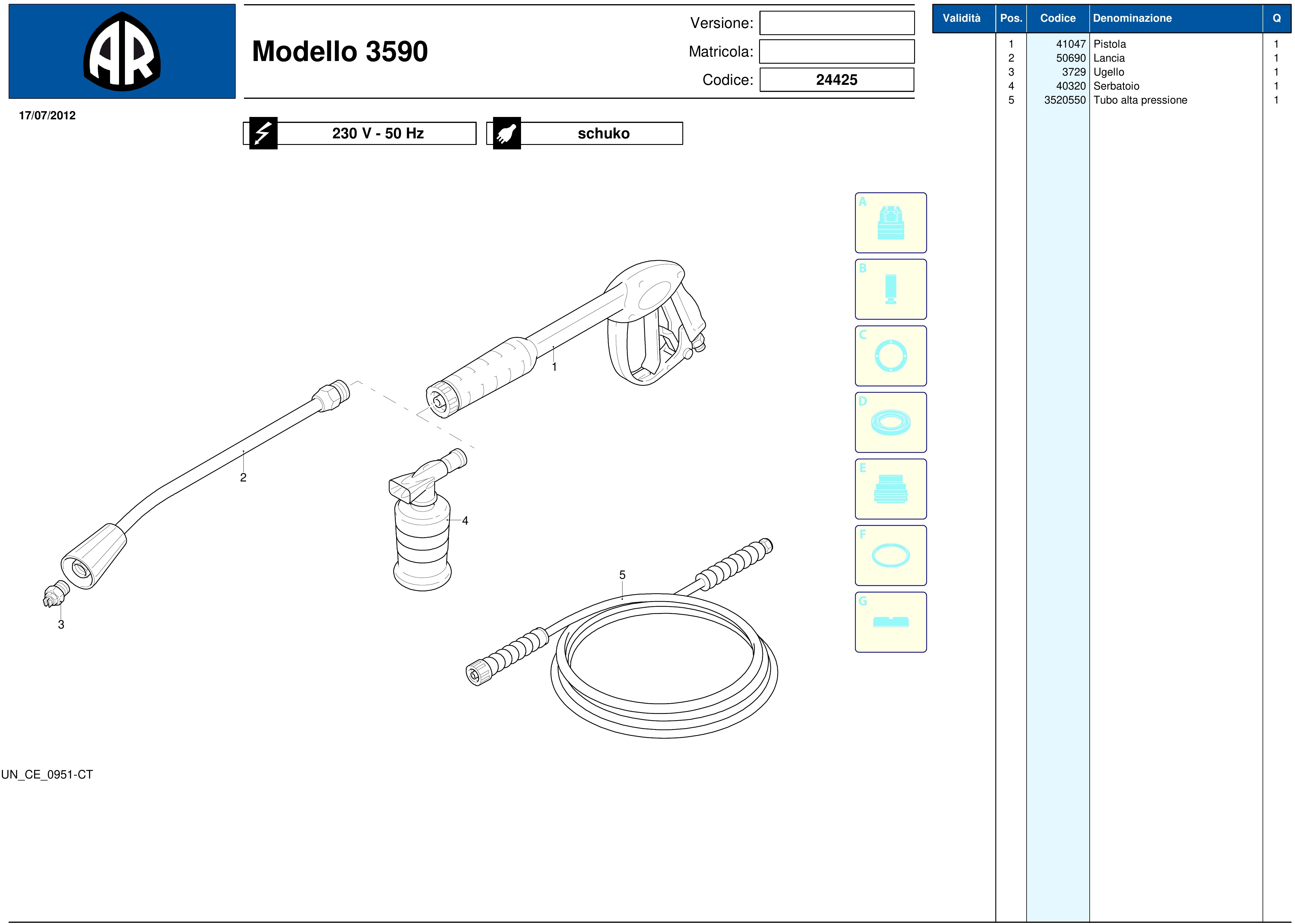

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division 41047 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division €45.96
2
 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division 50690 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division €18.18
3
 photo_cameraImage coming soon 3729 Nozzle €22.63
4
 photo_cameraImage coming soon 40320 Tank €23.29
5
 Hose HP Reinforced 8mt for Pressure Washer AR Blue Clean 2590 3520550 Hose HP Reinforced 8mt for Pressure Washer AR Blue Clean 2590 €118.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR3590

Fix Your Pressure Washer Blue Clean AR 3590 - 24425. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 3590 -24425

Pressure Washer Blue Clean AR 3590 - 24425
Casing Pag.1
# Part Num. Description
1 3520091 Casing
2 3520520 Foot
3 3520260 Fairlead
4 3520230 Wheel
5 3520240 Washer
6 3520254 Protection
7 3520170 Tank
8 3520180 Stopper
9 3520070 Knob
10 3520081 Blue Casing
11 3520060 Handle
12 3520870 Cable
Pump 3590 Pag.2
1 800220 Screw
2 2900430 Head
3 2849051 Complete Valve
4 2200141 Tenuta Water
5 770590 O-Ring
6 2840550 Bushing
7 2840540 Bushing
8 1683500 Oil Seal
9 480560 O-Ring
10 2900500 Screw
11 2900020 Piston Guide
12 2901170 Spring
13 2840530 Piston
14 2840050 Firm
15 2840470 Screw
16 2900350 Stopper
17 740290 O-Ring
18 2840130 Stopper
19 2840150 Office
20 600180 O-Ring
21 2900100 Junction
22 1460430 O-Ring
23 2909005 Pre-Assembly Spring
24 2901070 Shutter
25 2900130 Junction
26 2022201 Fork
27 2029753 Pre-Assembly Box TSS
28 880581 Stopper
29 620301 Stopper
30 1080091 Spring
31 800560 O-Ring
32 2901060 Injector
33 2909137 Pre-Assembly Head
A 2233 Kit Valves
B 2313 Piston Kit
C 42124 Kit Oil Seals
F 42150 Gasket Kit
Engine 3590 Pag.3
1 3040270 O-Ring
2 2900170 Thrust Bearing
3 2900520 Disk
4 1780490 BALL Bearing
5 2320090 Screw
6 2900010 Pump Housing
7 1462400 Colonnetta
8 1460530 Oil Seal
9 1460590 Bearing
10 1460040 Shield
11 1461200 Oil Seal
12 394280 O-Ring
13 1460370 Fan
14 1460340 Conveyor
15 1680960 Washer
16 1460460 Screw
17 3520050 Pressure Switch
18 660170 O-Ring
19 2320131 Box
20 1260490 Washer
21 2020570 Screw
22 2320271 Cover
23 1462900 Fairlead
24 1982590 Condenser
25 2320640 O-Ring
26 44518 Motor 240V
27 24230 Pre-Assembly Electric
28 3523500 Connector
29 1262400 Washer
Boiler 3590 Pag.4
1 3520630 Resistance
2 3520620 Plug
3 3520610 Band
4 3520600 Disk
5 3520590 Disk
6 3520330 Cover
7 3520790 Valve
8 3520800 Fan - Substituited by Kit 3524390
9 3520320 Box - Substituited by Kit 3524390
10 3520810 Motor - Substituited by Kit 3524390
11 3520310 Cover
12 3521300 Boiler
13 3520860 Transformer
14 3520770 Cable
15 3520650 Gasket
16 3520660 Element
17 3520670 Support
18 3520680 Nozzle
19 3520690 Flange
20 3520710 Plate
21 3520700 Electrode
22 3520820 Cover
Circuit Cartburante 3590 Pag.5
1 3522760 Pump
2 3520730 Hose
3 3520740 Band
4 3520750 Tube
5 3520760 Filter
6 3520750 Tube
Circuit Water 3590 Pag.6
1 3521470 Tube
2 3520490 Fork
3 3520420 Fitting
4 3520430 Piston
5 3520440 Spring
6 3520450 Bushing
7 3520460 O-Ring
8 3520510 Fork
9 3520480 Stopper
10 3520500 O-Ring
11 3520540 Ring
12 3520240 Washer
13 3520410 O-Ring
14 3520530 Fitting
15 3520370 Fitting
16 3520360 Fitting
17 3520580 Washer
18 3520570 Screw
19 3520930 Thermostat
20 3520470 O-Ring
Circuit Electric 3590 Pag.7
1 3520270 Knob
2 3520280 Thickness
3 3520300 Element
4 3520290 O-Ring
5 3520340 O-Ring
6 3520350 Fuse Holder
7 3520850 Switch
8 3520840 Card
Accessories 3590 Pag.8
1 41047 Gun
2 50690 Lance
3 3729 Nozzle
4 40320 Tank
5 3520550 High Pressure Hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 3590 -24425
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi&Reverberi AR3590

Diagram Annovi&Reverberi AR3590

Download (681.74KB)

You might also like

Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Annovi Reverberi S.p.A. SKU: 2029753
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 Genuine part Annovi & Reverberi, Pre-assembly box TSS for Pressure Washers Blue Clean AR767 - AR1003 - AR3590. - For the Following items : - AR Blue Clean Models 50...
Last items in stock €32.93
Details
Boiler Burner Engine for Pressure Washers AR2590-3590-4590
Annovi Reverberi S.p.A. SKU: 3520810
Boiler Burner Motor for Pressure Washers AR2590-3590-4590
Boiler Burner Motor Kit for Pressure Washers AR2590-3590-4590 Genuine part Annovi Reverberi, Boiler Burner Motor + Fan Kit MP 43.5 230 V 50 Hz (# 8+9+10) for Pressure Washers Annovi & Reverberi AR 2590 - AR 3590 - AR 4590. Parts For...
Last items in stock €126.94
Details
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Annovi Reverberi S.p.A. SKU: 2020041
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Holder Seal for Pressure Washer AR BC Serie 1 - 2 Genuine part Annovi&Reverberi, Holder Seal for Pressure Washer AR BC Serie 1 - 2 - ARSG Mirage - HOT 120 - Event 131...
AVAILABLE €1.40
Details
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Annovi Reverberi S.p.A. SKU: 2508
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 Original part Annovi & Rverberi, Piston Kit S.210 for Pressure Washers Series HOT - HOT 120 - 1106 - Event - 131 N TSS - Event - 141 N TSS PRO - Event...
AVAILABLE €16.82
Details
Diesel Pump for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 3522760
Diesel Pump for Pressure Washer AR2590
Diesel Pump for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Diesel Pump VSC 63 A5H 220V 50/60HZ 0.5 GPH 15 BAR for Pressure Washers AR BC - AR 2590 - AR 3590 - AR 4590. Part For the Following...
Last items in stock €201.63
Details
Diesel Pump Filter for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 3520760
Diesel Pump Filter for Pressure Washer AR2590
Diesel Pump Filter for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Diesel Pump Filter for Pressure Washers AR BC - AR 2590 - AR 3590 - AR 4590. Part For the Following Products: -  Pressure Washer AR Blue Clean AR 2590...
Last items in stock €27.32
Details
Boiler Inlet Fitting for Pressure Washer AR BC 2590
Annovi Reverberi S.p.A. SKU: 3520420
Boiler Inlet Fitting for Pressure Washer AR BC 2590
Boiler Inlet Fitting for Pressure Washer AR BC 2590 Genuine part Annovi & Reverberi, Boiler Inlet Fitting for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following Products: -  Idropulitrice AR Blue Clean...
Last items in stock €23.55
Details
Boiler Outlet Fitting for Pressure Washer AR BC 2590
Annovi Reverberi S.p.A. SKU: 3520530
Boiler Outlet Fitting for Pressure Washer AR BC 2590
Boiler Outlet Fitting for Pressure Washer AR BC 2590 Genuine part Annovi & Reverberi, Boiler Outlet Fitting for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following...
Last items in stock €23.69
Details
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 2900170
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Thrust Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Thrust Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Ball Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1780490
Ball Bearing for Pressure Washer DeWalt DXPW001E
Ball Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Ball Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1460530
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674...
on 7/10 Business Days Approx €7.93
Details
Washer D.25 Wheel Lock for Pressure Washer AR 2590
Annovi Reverberi S.p.A. SKU: 3520240
Washer D.25 Wheel Lock for Pressure Washer AR 2590
Washer D.25 Wheel Lock for Pressure Washer AR Blue Clean 2590 Genuine part Annovi Reverberi, Washer D.25 Wheel Lock for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following Products: -  Idropulitrice AR Blue...
on 7/10 Business Days Approx €14.68
Details
Motor 240V Ass'y for Pressure Washer AR BC 3590
Annovi Reverberi S.p.A. SKU: 44518
Motor 240V Ass'y for Pressure Washer AR BC 3590
Motor 240V Ass'y for Pressure Washer AR BC 3590 Genuine part Annovi Reverberi, Motor 240V Assembly for Pressure Washers Blu Clean 3590 - 3590 SPECIAL - ARSG HOT 1408 - PW 3550 HOT. - Part For the Following items: -  AR BC - Models 50...
Last items in stock €280.75
Details
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590
Annovi Reverberi S.p.A. SKU: 3520930
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 Genuine part Annovi Reverberi, Thermostat for Pressure Washers AR Blue Clean PRO HOT - Serie 25 - 35 - 45. Part for the following products: -  Cleaning - AR Blue Clean - PRO...
Last items in stock €38.89
Details
AR Pressure Washer 585 Shutter
Annovi Reverberi S.p.A. SKU: 2901070
AR Pressure Washer 585 Shutter
AR Shutter for Pressure Washer AR 585 Genuine Parts for Annovi Reverberi, non return Valve (Shutter) for Pressure Washer AR585 - MPX 150 HL - MPX 160 RBP - AR589. Part for the following products: - Annovi Reverberi 4590 - 24426 -...
Usually Ships in: 7/10 Business Days Approx. €3.84
Details
AR589 Spring
Annovi Reverberi S.p.A. SKU: 2901170
AR589 Spring
AR Spring for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Spring for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Annovi Reverberi 589 - 14989 - ARSG PRO CLEAN 150...
Last items in stock €4.38
Details
AR589
Annovi Reverberi S.p.A. SKU: 2840050
AR589 Lock
AR Lock for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Lock for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Michelin MPX 200 THO - 25619 - Annovi Reverberi 589 -...
Last items in stock €2.18
Details
AR2590 Pressure Switch
Annovi Reverberi S.p.A. SKU: 3520050
AR2590 Pressure Switch
Pressure Switch for Pressure Washer AR2590 Genuine part Annovi Reverberi, Pressure Switch for Pressure Washers AR 2590 - ARSG HOT 1408. Part for the following products: - Annovi Reverberi 1408 - 26412 - AR Blue...
Last items in stock €33.68
Details
ARSG HOT 1309 Plug
Annovi Reverberi S.p.A. SKU: 2900350
ARSG HOT 1309 Plug
ARSG Plug for Pressure Washer HOT 1309 Original parts ANNOVI & REVERBERI, Plug for pressure washers ARSG HOT 1309 - HOT 1408 - MPX 140HL. Part for the following products: - Pressure Washer ARSG HOT 1309 - 23112 - Pressure...
build View Spare Parts
Comments (0)
