Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR4590

SKU: Annovi Reverberi 4590 - 24426
€19.96
VAT included

Annovi Reverberi Parts for Pressure Washer AR4590

Annovi Reverberi Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Pressure Washer AR Blue Clean AR4590 - 24426.

Annovi Reverberi 4590 - 24426
Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
  • Annovi & Reverberi Parts for Pressure Washer AR4590
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR4590

SKU: Annovi Reverberi 4590 - 24426 Condition: New
€19.96
VAT included

Annovi Reverberi Parts for Pressure Washer AR4590

Annovi Reverberi Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Pressure Washer AR Blue Clean AR4590 - 24426.

Annovi Reverberi 4590 - 24426
settings 168 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
154 spare parts
Esploso pagina 1
Pos. Item Price Buy
7
 photo_cameraImage coming soon 3520460 O-Ring €4.23
8
 photo_cameraImage coming soon 3520510 Fork €15.32
9
 photo_cameraImage coming soon 3520480 Stopper €21.22
10
 photo_cameraImage coming soon 3520500 O-Ring €5.53
11
 photo_cameraImage coming soon 3520540 Ring €10.94
13
 photo_cameraImage coming soon 3520410 O-Ring €4.23
14
 Boiler Outlet Fitting for Pressure Washer AR BC 2590 3520530 Boiler Outlet Fitting for Pressure Washer AR BC 2590 €23.69
15
 photo_cameraImage coming soon 3520580 Washer €9.81
16
 photo_cameraImage coming soon 3520570 Screw €16.59
17
 Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 3520930 Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 €38.89
18
 photo_cameraImage coming soon 3520470 O-Ring €10.29
22
 photo_cameraImage coming soon 3520820 Cover €21.76
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

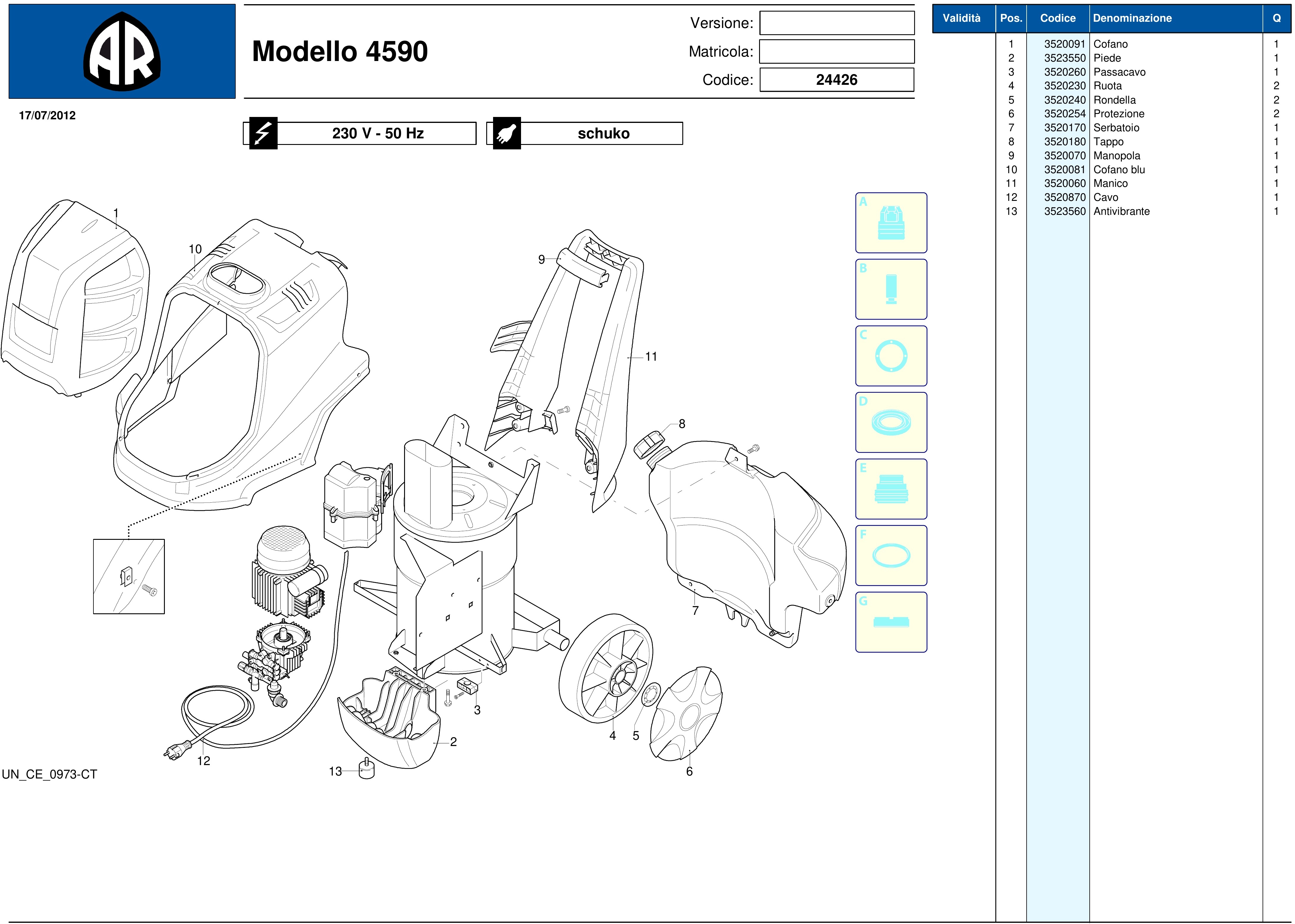

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520091 Casing €32.36
2
 photo_cameraImage coming soon 3523550 Foot €4.73
3
 photo_cameraImage coming soon 3520260 Fairlead €5.57
4
 photo_cameraImage coming soon 3520230 Wheel €55.88
5
 Washer D.25 Wheel Lock for Pressure Washer AR 2590 3520240 Washer D.25 Wheel Lock for Pressure Washer AR 2590 €14.68
6
 photo_cameraImage coming soon 3520254 Protection €14.05
7
 photo_cameraImage coming soon 3520170 Tank €135.73
8
 photo_cameraImage coming soon 3520180 Stopper €11.39
9
 photo_cameraImage coming soon 3520070 Knob €12.79
10
 photo_cameraImage coming soon 3520081 Blue Casing €54.00
11
 photo_cameraImage coming soon 3520060 Handle €33.97
12
 photo_cameraImage coming soon 3520870 Cable €93.91
13
 photo_cameraImage coming soon 3523560 Antivibration €27.52
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

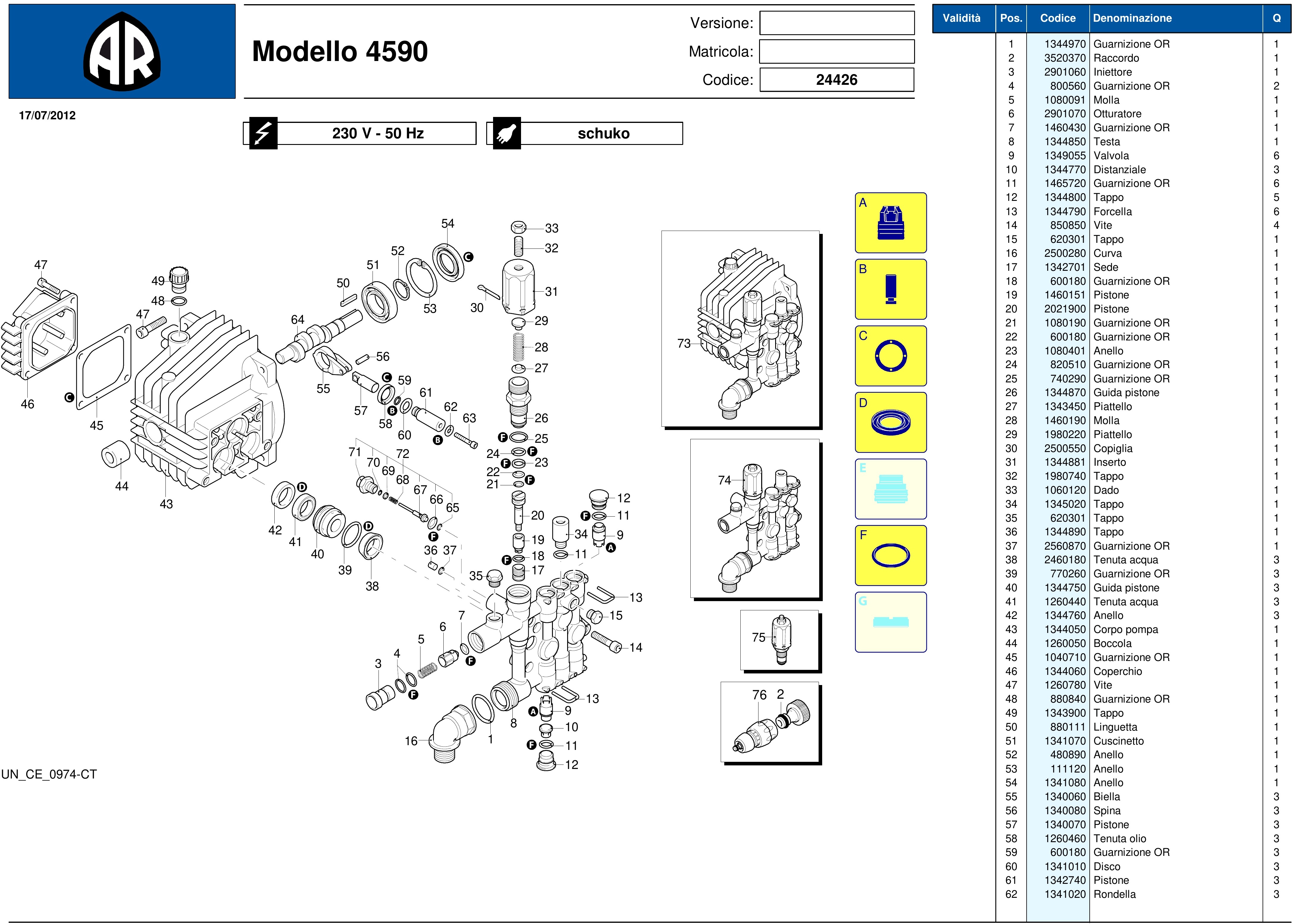

Esploso pagina 2
Pos. Item Price Buy
C
 photo_cameraImage coming soon 1876 Oil Seals Kit €19.97
B
 photo_cameraImage coming soon 2623 Piston Kit €64.53
A
 photo_cameraImage coming soon 42566 Kit Valves €58.17
D
 photo_cameraImage coming soon 42567 Kit Kept Water €28.64
F
 photo_cameraImage coming soon 42568 Gasket Kit €15.77
1
 photo_cameraImage coming soon 1344970 O-Ring €8.15
2
 photo_cameraImage coming soon 3520370 Fitting €17.87
3
 photo_cameraImage coming soon 2901060 Injector €8.60
4
 photo_cameraImage coming soon 800560 O-ring €1.59
5
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
6
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
7
 photo_cameraImage coming soon 1460430 O-ring €4.60
8
 photo_cameraImage coming soon 1344850 Head €88.84
9
 photo_cameraImage coming soon 1349055 Valve €13.52
10
 photo_cameraImage coming soon 1344770 Spacer €9.84
12
 photo_cameraImage coming soon 1344800 Stopper €6.69
13
 photo_cameraImage coming soon 1344790 Fork €7.48
15
 photo_cameraImage coming soon 620301 Cork €2.46
16
 photo_cameraImage coming soon 2500280 Curve €10.67
17
 photo_cameraImage coming soon 1342701 Office €8.45
18
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
19
 photo_cameraImage coming soon 1460151 Piston €7.26
20
 photo_cameraImage coming soon 2021900 Piston €10.84
21
 photo_cameraImage coming soon 1080190 O-ring €4.40
23
 photo_cameraImage coming soon 1080401 ring €2.13
24
 photo_cameraImage coming soon 820510 O-ring €5.63
25
 photo_cameraImage coming soon 740290 O-ring €2.67
26
 photo_cameraImage coming soon 1344870 Piston Guide €19.32
27
 photo_cameraImage coming soon 1343450 Disk €3.26
28
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
29
 photo_cameraImage coming soon 1980220 disk €2.13
31
 photo_cameraImage coming soon 1344881 Insert €16.12
32
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
33
 photo_cameraImage coming soon 1060120 Nut €1.54
34
 photo_cameraImage coming soon 1345020 Stopper €19.32
36
 photo_cameraImage coming soon 1344890 Stopper €5.17
38
 photo_cameraImage coming soon 2460180 Tenuta water €7.58
39
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
40
 photo_cameraImage coming soon 1344750 Piston Guide €10.65
41
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
42
 photo_cameraImage coming soon 1344760 Ring €5.89
43
 photo_cameraImage coming soon 1344050 Pump Casing €81.14
44
 photo_cameraImage coming soon 1260050 Bush €12.90
46
 photo_cameraImage coming soon 1344060 Cover €14.54
47
 photo_cameraImage coming soon 1260780 Screw €4.81
48
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
49
 photo_cameraImage coming soon 1343900 Cork €6.43
51
 photo_cameraImage coming soon 1341070 Bearing €13.15
53
 photo_cameraImage coming soon 111120 Ring €1.85
54
 photo_cameraImage coming soon 1341080 Ring €5.64
55
 photo_cameraImage coming soon 1340060 Piston Rod €10.36
56
 photo_cameraImage coming soon 1340080 Plug €1.77
57
 photo_cameraImage coming soon 1340070 Piston €18.25
58
 photo_cameraImage coming soon 1260460 oil seal €4.47
60
 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 1341010 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 €1.43
61
 photo_cameraImage coming soon 1342740 Piston €21.55
64
 photo_cameraImage coming soon 1340170 Shaft €83.89
65
 photo_cameraImage coming soon 1120680 O-Ring €1.54
67
 photo_cameraImage coming soon 2022040 Rod €4.56
68
 photo_cameraImage coming soon 2021630 Spring €1.99
69
 photo_cameraImage coming soon 2021650 Washer €1.74
70
 photo_cameraImage coming soon 1260820 O-ring €1.59
71
 photo_cameraImage coming soon 1344830 Junction €8.94
72
 TSS Retrofit kit for Pressure Washer AR 4590 42580 TSS Retrofit kit for Pressure Washer AR 4590 €24.00
73
 AR Blue Clean 4590 Pump Assembly 1349297 AR Blue Clean 4590 Pump Assembly €317.09
74
 photo_cameraImage coming soon 1349114 Pre-Assembly Head €258.10
75
 Valve Kit Adjustment for Pressure Washer AR BC PRO COLD 1001 42579 Valve Kit Adjustment for Pressure Washer AR BC PRO COLD 1001 €42.85
76
 photo_cameraImage coming soon 3520360 Fitting €20.39
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

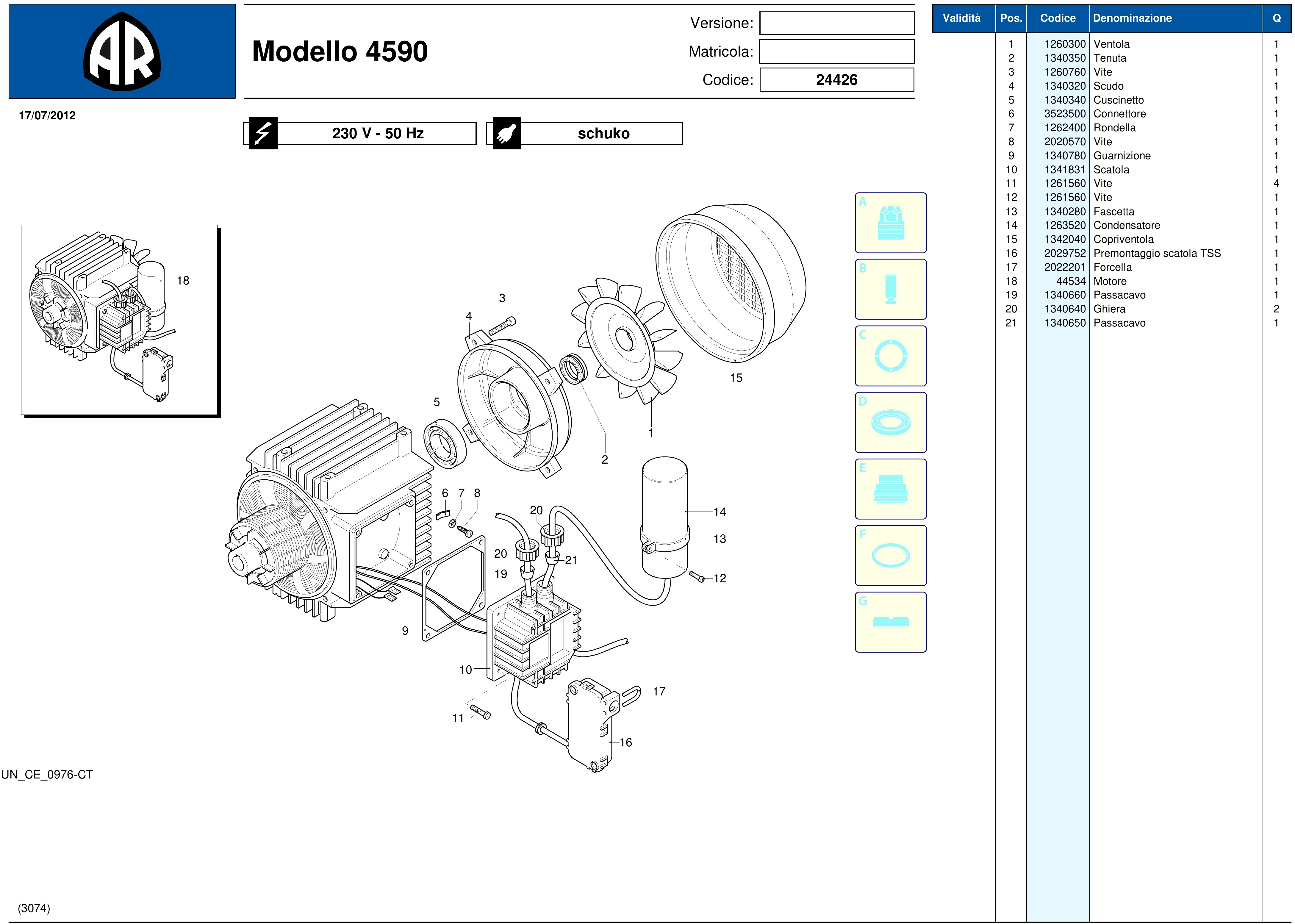

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1260300 Fan €6.15
2
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
4
 photo_cameraImage coming soon 1340320 Shield €21.55
5
 photo_cameraImage coming soon 1340340 Bearing €7.38
8
 photo_cameraImage coming soon 2020570 screw €1.59
9
 photo_cameraImage coming soon 1340780 Gasket €2.85
10
 photo_cameraImage coming soon 1341831 Box €11.33
11
 photo_cameraImage coming soon 1261560 Screw €4.67
13
 photo_cameraImage coming soon 1340280 Band €2.02
14
 photo_cameraImage coming soon 1263520 Capacitor €38.65
15
 photo_cameraImage coming soon 1342040 Fan Cover €6.32
16
 photo_cameraImage coming soon 2029752 Pre-assembly box TSS €34.86
17
 photo_cameraImage coming soon 2022201 fork €3.36
18
 Motor 220-240 V 1,7 HP for Pressure Washer AR 4590 44534 Motor 220-240 V 1,7 HP for Pressure Washer AR 4590 €268.93
19
 photo_cameraImage coming soon 1340660 Fairlead €5.43
20
 photo_cameraImage coming soon 1340640 Ring €6.08
21
 photo_cameraImage coming soon 1340650 Fairlead €5.11
22
 photo_cameraImage coming soon 1262400 washer €1.73
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520630 Resistance €213.06
2
 photo_cameraImage coming soon 3520620 Plug €12.79
3
 photo_cameraImage coming soon 3520610 Band €17.87
4
 photo_cameraImage coming soon 3520600 Disk €44.48
5
 photo_cameraImage coming soon 3520590 Disk €38.15
6
 photo_cameraImage coming soon 3520330 Cover €21.66
7
 photo_cameraImage coming soon 3520790 Valve €16.59
10
 Boiler Burner Motor for Pressure Washers AR2590-3590-4590 3520810 Boiler Burner Motor for Pressure Washers AR2590-3590-4590 €126.94
11
 photo_cameraImage coming soon 3520310 Cover €17.87
12
 photo_cameraImage coming soon 3523570 Boiler €243.10
13
 photo_cameraImage coming soon 3520860 Transformer €180.10
14
 photo_cameraImage coming soon 3520770 Cable €58.23
15
 photo_cameraImage coming soon 3520650 Gasket €11.39
16
 photo_cameraImage coming soon 3520660 Element €106.59
17
 photo_cameraImage coming soon 3520670 Support €78.70
18
 photo_cameraImage coming soon 3520680 Nozzle €91.38
19
 photo_cameraImage coming soon 3520690 Flange €117.98
20
 photo_cameraImage coming soon 3520710 Plate €73.63
21
 photo_cameraImage coming soon 3520700 Electrode €44.48
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
Pos. Item Price Buy
1
 Diesel Pump for Pressure Washer AR2590 3522760 Diesel Pump for Pressure Washer AR2590 €201.63
2
 photo_cameraImage coming soon 3520730 Hose €16.59
3
 photo_cameraImage coming soon 3520740 Band €7.53
4
 photo_cameraImage coming soon 3520750 Tube €10.66
5
 Diesel Pump Filter for Pressure Washer AR2590 3520760 Diesel Pump Filter for Pressure Washer AR2590 €27.32
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3521470 Tube €58.42
2
 photo_cameraImage coming soon 3520490 Fork €16.59
3
 Boiler Inlet Fitting for Pressure Washer AR BC 2590 3520420 Boiler Inlet Fitting for Pressure Washer AR BC 2590 €23.55
4
 photo_cameraImage coming soon 3520430 Piston €22.84
5
 photo_cameraImage coming soon 3520440 Spring €16.35
6
 photo_cameraImage coming soon 3520450 Bushing €16.59
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520270 Knob €15.32
2
 photo_cameraImage coming soon 3520280 Thickness €12.79
3
 photo_cameraImage coming soon 3520300 Element €12.79
4
 photo_cameraImage coming soon 3520290 O-Ring €11.39
5
 photo_cameraImage coming soon 3520340 O-Ring €19.13
6
 photo_cameraImage coming soon 3520350 Fuse Holder €21.66
7
 photo_cameraImage coming soon 3520850 Switch €72.37
8
 photo_cameraImage coming soon 3520840 Card €78.91
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division 41047 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division €45.96
2
 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division 50690 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division €18.18
3
 photo_cameraImage coming soon 3104 Nozzle €24.85
4
 photo_cameraImage coming soon 40320 Tank €23.29
5
 Hose HP Reinforced 8mt for Pressure Washer AR Blue Clean 2590 3520550 Hose HP Reinforced 8mt for Pressure Washer AR Blue Clean 2590 €118.12
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 9
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR4590

Annovi Reverberi Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Pressure Washer AR Blue Clean AR4590 - 24426.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 4590 - 24426

Pressure Washer AR Blue Clean 4590 - 24426
Casing AR4590 - 24426 Pag.1
# Part Num. Description
1 3520091 Casing
2 3523550 Foot
3 3520260 Fairlead
4 3520230 Wheel
5 3520240 Washer
6 3520254 Protection
7 3520170 Tank
8 3520180 Stopper
9 3520070 Knob
10 3520081 Blue Casing
11 3520060 Handle
12 3520870 Cable
13 3523560 Antivibration
Pump 4590 Pag.2
1 1344970 O-Ring
2 3520370 Junction
3 2901060 Injector
4 800560 O-Ring
5 1080091 Spring
6 2901070 Shutter
7 1460430 O-Ring
8 1344850 Head
9 1349055 Valve
10 1344770 Spacer
11 1465720 O-Ring
12 1344800 Stopper
13 1344790 Fork
14 850850 Screw
15 620301 Stopper
16 2500280 Curve
17 1342701 Office
18 600180 O-Ring
19 1460151 Piston
20 2021900 Piston
21 1080190 O-Ring
22 600180 O-Ring
23 1080401 Ring
24 820510 O-Ring
25 740290 O-Ring
26 1344870 Piston Guide
27 1343450 Disk
28 1460190 Spring
29 1980220 Disk
30 2500550 Cotter Pin
31 1344881 Insert
32 1980740 Stopper
33 1060120 Nut
34 1345020 Stopper
35 620301 Stopper
36 1344890 Stopper
37 2560870 O-Ring
38 2460180 O-Ring
39 770260 O-Ring
40 1344750 Piston Guide
41 1260440 Tenuta Water
42 1344760 Ring
43 1344050 Pump Housing
44 1260050 Bushing
45 1040710 O-Ring
46 1344060 Cover
47 1260780 Screw
48 880840 O-Ring
49 1343900 Stopper
50 880111 Tongue
51 1341070 Bearing
52 480890 Ring
53 111120 Ring
54 1341080 Ring
55 1340060 Piston Rod
56 1340080 Plug
57 1340070 Piston
58 1260460 Oil Seal
59 600180 O-Ring
60 1341010 Disk
61 1342740 Piston
62 1341020 Washer
63 850670 Screw
64 1340170 Tree
65 1120680 O-Ring
66 600180 O-Ring
67 2022040 Rod
68 2021630 Spring
69 2021650 Washer
70 1260820 O-Ring
71 1344830 Junction
72 42580 Retrofit Kit TSS
73 1349297 Pre-Assembly Pump
74 1349114 Pre-Assembly Head
75 42579 Valve Kit Adjustment
76 3520360 Junction
A 42566 Kit Valves
B 2623 Piston Kit
C 1876 Kit Oil Seals
D 42567 Kit Kept Water
F 42568 Gasket Kit
Engine 4590 Pag.3
1 1260300 Fan
2 1340350 Estate
3 1260760 Screw
4 1340320 Shield
5 1340340 Bearing
6 3523500 Connector
7 1260490 Washer
8 2020570 Screw
9 1340780 Gasket
10 1341831 Box
11 1261560 Screw
12 1261560 Screw
13 1340280 Band
14 1263520 Condenser
15 1342040 Fan Cover
16 2029752 Pre-Assembly Box TSS
17 2022201 Fork
18 44534 Motor
19 1340660 Fairlead
20 1340640 Ferrule
21 1340650 Fairlead
22 1262400 Washer
Boiler 4590 Pag.4
1 3520630 Resistance
2 3520620 Plug
3 3520610 Band
4 3520600 Disk
5 3520590 Disk
6 3520330 Cover
7 3520790 Valve
8 3520800 Fan - Substituited by Kit 3520800
9 3520320 Box - Substituited by Kit 3520800
10 3520810 Boiler Motor - Substituited by Kit 3520800
11 3520310 Cover
12 3523570 Boiler
13 3520860 Transformer
14 3520770 Cable
15 3520650 Gasket
16 3520660 Element
17 3520670 Support
18 3520680 Nozzle
19 3520690 Flange
20 3520710 Plate
21 3520700 Electrode
22 3520820 Cover
Circuit Petrol 4590 Pag.5
1 3522760 Pump
2 3520730 Hose
3 3520740 Band
4 3520750 Tube
5 3520760 Filter
6 3520750 Tube
Circuit Water 4590 Pag.6
1 3521470 Tube
2 3520490 Fork
3 3520420 Fitting
4 3520430 Piston
5 3520440 Spring
6 3520450 Bushing
7 3520460 O-Ring
8 3520510 Fork
9 3520480 Stopper
10 3520500 O-Ring
11 3520540 Ring
12 3520240 Washer
13 3520410 O-Ring
14 3520530 Fitting
15 3520580 Washer
16 3520570 Screw
17 3520930 Thermostat
18 3520470 O-Ring
Circuit Electric 4590 Pag.7
1 3520270 Knob
2 3520280 Thickness
3 3520300 Element
4 3520290 O-Ring
5 3520340 O-Ring
6 3520350 Fuse Holder
7 3520850 Switch
8 3520840 Card
Accessories 4590 Pag.8
1 41047 Gun
2 50690 Lance
3 3104 Nozzle
4 40320 Tank
5 3520550 High Pressure Hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 4590 - 24426
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi&Reverberi AR4590

Diagram Annovi&Reverberi AR4590

Download (906.38KB)

You might also like

Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Annovi Reverberi S.p.A. SKU: 2029753
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 Genuine part Annovi & Reverberi, Pre-assembly box TSS for Pressure Washers Blue Clean AR767 - AR1003 - AR3590. - For the Following items : - AR Blue Clean Models 50...
Last items in stock €32.93
Details
Boiler Burner Engine for Pressure Washers AR2590-3590-4590
Annovi Reverberi S.p.A. SKU: 3520810
Boiler Burner Motor for Pressure Washers AR2590-3590-4590
Boiler Burner Motor Kit for Pressure Washers AR2590-3590-4590 Genuine part Annovi Reverberi, Boiler Burner Motor + Fan Kit MP 43.5 230 V 50 Hz (# 8+9+10) for Pressure Washers Annovi & Reverberi AR 2590 - AR 3590 - AR 4590. Parts For...
Last items in stock €126.94
Details
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Annovi Reverberi S.p.A. SKU: 2020041
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Holder Seal for Pressure Washer AR BC Serie 1 - 2 Genuine part Annovi&Reverberi, Holder Seal for Pressure Washer AR BC Serie 1 - 2 - ARSG Mirage - HOT 120 - Event 131...
AVAILABLE €1.40
Details
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Annovi Reverberi S.p.A. SKU: 2508
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 Original part Annovi & Rverberi, Piston Kit S.210 for Pressure Washers Series HOT - HOT 120 - 1106 - Event - 131 N TSS - Event - 141 N TSS PRO - Event...
AVAILABLE €16.82
Details
Diesel Pump for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 3522760
Diesel Pump for Pressure Washer AR2590
Diesel Pump for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Diesel Pump VSC 63 A5H 220V 50/60HZ 0.5 GPH 15 BAR for Pressure Washers AR BC - AR 2590 - AR 3590 - AR 4590. Part For the Following...
Last items in stock €201.63
Details
Diesel Pump Filter for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 3520760
Diesel Pump Filter for Pressure Washer AR2590
Diesel Pump Filter for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Diesel Pump Filter for Pressure Washers AR BC - AR 2590 - AR 3590 - AR 4590. Part For the Following Products: -  Pressure Washer AR Blue Clean AR 2590...
Last items in stock €27.32
Details
Boiler Inlet Fitting for Pressure Washer AR BC 2590
Annovi Reverberi S.p.A. SKU: 3520420
Boiler Inlet Fitting for Pressure Washer AR BC 2590
Boiler Inlet Fitting for Pressure Washer AR BC 2590 Genuine part Annovi & Reverberi, Boiler Inlet Fitting for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following Products: -  Idropulitrice AR Blue Clean...
Last items in stock €23.55
Details
Boiler Outlet Fitting for Pressure Washer AR BC 2590
Annovi Reverberi S.p.A. SKU: 3520530
Boiler Outlet Fitting for Pressure Washer AR BC 2590
Boiler Outlet Fitting for Pressure Washer AR BC 2590 Genuine part Annovi & Reverberi, Boiler Outlet Fitting for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following...
Last items in stock €23.69
Details
Washer D.25 Wheel Lock for Pressure Washer AR 2590
Annovi Reverberi S.p.A. SKU: 3520240
Washer D.25 Wheel Lock for Pressure Washer AR 2590
Washer D.25 Wheel Lock for Pressure Washer AR Blue Clean 2590 Genuine part Annovi Reverberi, Washer D.25 Wheel Lock for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following Products: -  Idropulitrice AR Blue...
on 7/10 Business Days Approx €14.68
Details
Motor 220-240 V 1,7 HP for Pressure Washer AR 4590
Annovi Reverberi S.p.A. SKU: 44534
Motor 220-240 V 1,7 HP for Pressure Washer AR 4590
Motor 220-240 V 1,7 HP for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, Motor MP 4EM. 1,7 HP TSS 220-240 V 50 Hz S.134 2P for Pressure Washers Annovi  Reverberi AR 4590 - <michelin MPX 150 HL. Parts For the...
Last items in stock €268.93
Details
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590
Annovi Reverberi S.p.A. SKU: 3520930
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 Genuine part Annovi Reverberi, Thermostat for Pressure Washers AR Blue Clean PRO HOT - Serie 25 - 35 - 45. Part for the following products: -  Cleaning - AR Blue Clean - PRO...
Last items in stock €38.89
Details
TSS Retrofit kit for Pressure Washer AR 4590
Annovi Reverberi S.p.A. SKU: 42580
TSS Retrofit kit for Pressure Washer AR 4590
TSS Retrofit kit for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, TSS Retrofit kit for Pressure Washers Annovi  Reverberi AR 4590 - Michelin MPX 150 HL. Parts For the Following Products: - ...
Last items in stock €24.00
Details
AR Blue Clean 4590 Pump Assembly
Annovi Reverberi S.p.A. SKU: 1349297
AR Blue Clean 4590 Pump Assembly
AR Blue Clean 4590 Pump Assembly Genuine part Annovi Reverberi, Pump Assembly for Pressure Washers AR Blue Clean Series 45 - 4590 - Michelin MPX 150HL. Parts For the Following Products: - Annovi Reverberi - PROFESSIONAL - Serie HOT -...
Last items in stock €317.09
Details
AR Pressure Washer 585 Shutter
Annovi Reverberi S.p.A. SKU: 2901070
AR Pressure Washer 585 Shutter
AR Shutter for Pressure Washer AR 585 Genuine Parts for Annovi Reverberi, non return Valve (Shutter) for Pressure Washer AR585 - MPX 150 HL - MPX 160 RBP - AR589. Part for the following products: - Annovi Reverberi 4590 - 24426 -...
Usually Ships in: 7/10 Business Days Approx. €3.84
Details
AR Spring for Pressure Washer AR589
Annovi Reverberi S.p.A. SKU: 1460190
AR Spring for Pressure Washer AR589
Annovi Reverberi Spring for Pressure Washer AR589 Genuine spare part Annovi Reverberi, Spring for Pressure Washers AR589 - AR757 - AR1001 - AR555. Part for the following products: - Pressure Washer Annovi Reverberi 589 -...
AVAILABLE €3.09
Details
Comments (0)
