Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1010

SKU: Annovi Reverberi 1010 - 23890
€11.93
VAT included

Annovi Reverberi Parts for Pressure Washer AR1010

Annovi Reverberi Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Pressure Washer Blue Clean AR1010 - 23890.

Annovi Reverberi 1010 - 23890
Annovi & Reverberi Parts for Pressure Washer AR1010
  • Annovi & Reverberi Parts for Pressure Washer AR1010
  • Annovi & Reverberi Parts for Pressure Washer AR1010/1015/1018
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1010

SKU: Annovi Reverberi 1010 - 23890 Condition: New
€11.93
VAT included

Annovi Reverberi Parts for Pressure Washer AR1010

Annovi Reverberi Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Pressure Washer Blue Clean AR1010 - 23890.

Annovi Reverberi 1010 - 23890
settings 128 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
121 spare parts
Page 1 zoom_in View exploded
Esploso pagina 1
Esploso pagina 2
Esploso pagina 3

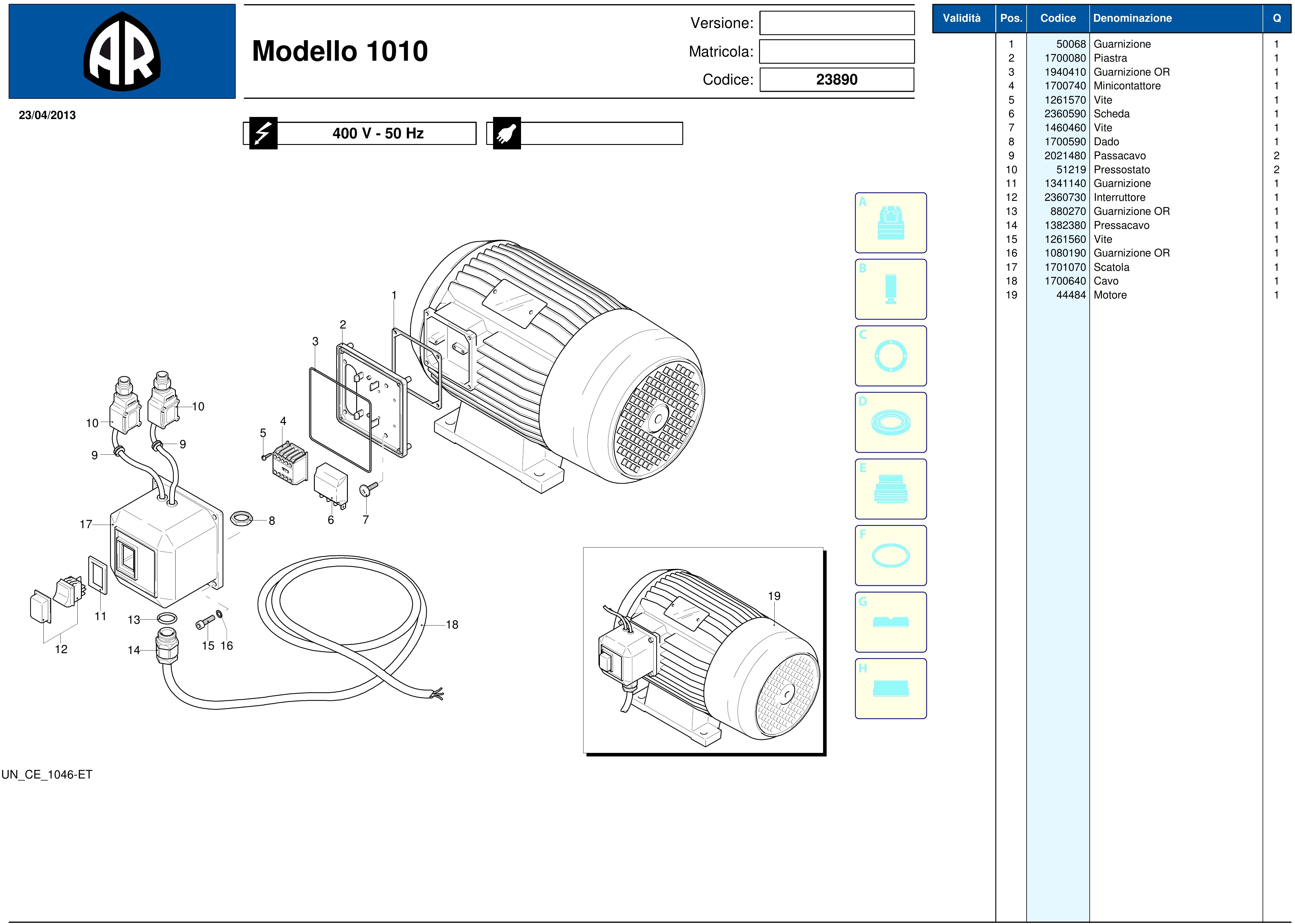

Esploso pagina 4

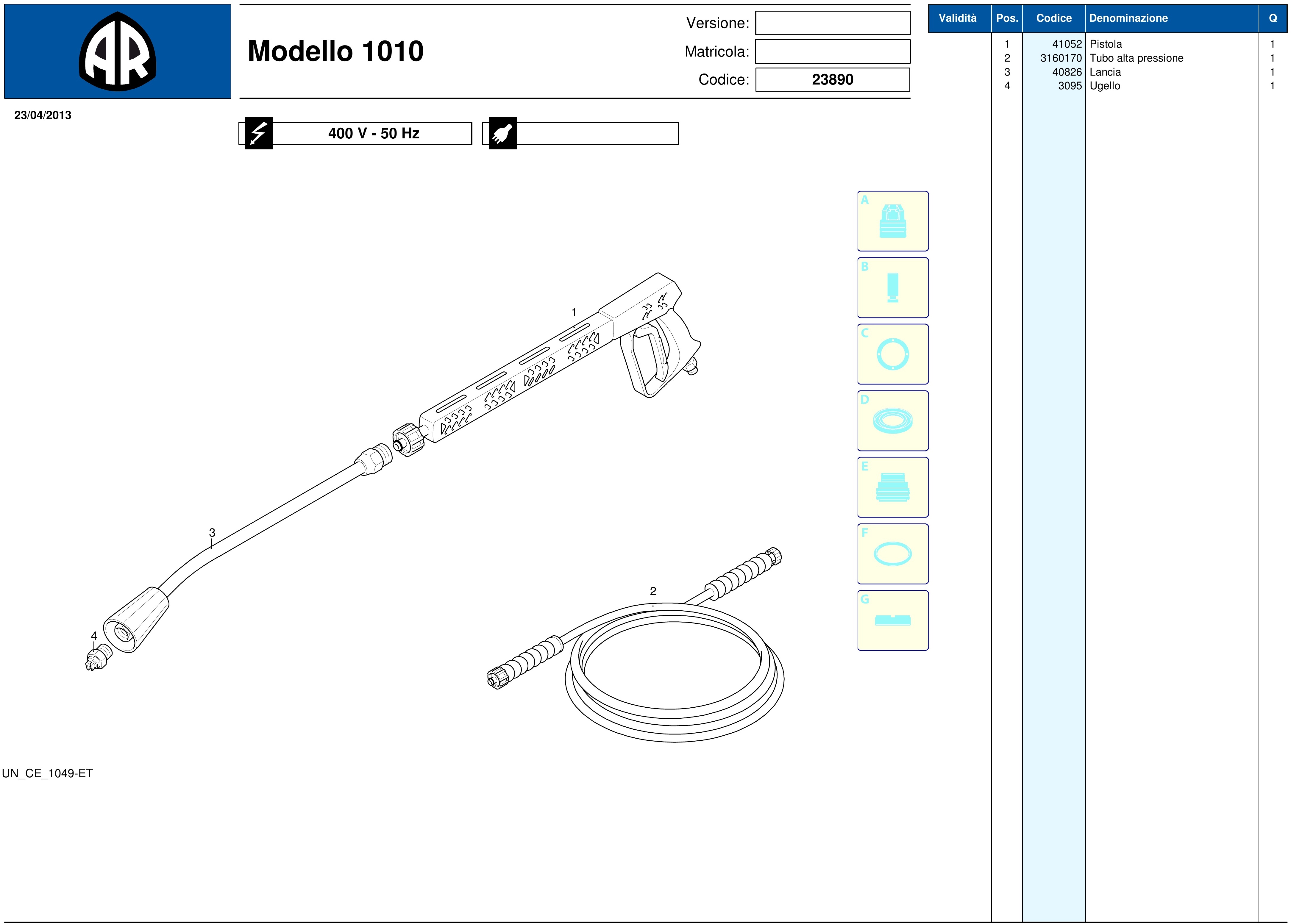

Esploso pagina 5
1 / 5
Pos. Item Price Buy
photo_cameraImage coming soon 1829 Kit Support Rings €11.93
photo_cameraImage coming soon 1855 Kit Oil Seals €35.52
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 1857 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 €60.64
photo_cameraImage coming soon 2611 Gasket Kit €17.56
photo_cameraImage coming soon 2757 Piston Kit €88.44
photo_cameraImage coming soon 2864 Kit Valves €18.08
1
 photo_cameraImage coming soon 1560580 Stopper €5.28
1
 photo_cameraImage coming soon 41052 Gun €97.94
1
 photo_cameraImage coming soon 50068 Gasket €6.57
1
 photo_cameraImage coming soon 50601 Gasket €11.73
1
 photo_cameraImage coming soon 960090 Stopper €5.85
2
 photo_cameraImage coming soon 1700080 Plate €2.44
2
 Annovi AR1018 High Pressure Hose 3160170 Annovi AR1018 High Pressure Hose €174.07 €135.77 -22%
2
 photo_cameraImage coming soon 51387 Hood €460.97
2
 photo_cameraImage coming soon 540290 Screw €5.47
2
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
 photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
3
 photo_cameraImage coming soon 1389051 Complete Valve €4.82
3
 photo_cameraImage coming soon 1660210 Nut €4.59
3
 photo_cameraImage coming soon 1940410 O-Ring €2.04
3
 Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
4
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
4
 photo_cameraImage coming soon 1560400 Knob €6.39
4
 photo_cameraImage coming soon 1700740 Mini-Contactor €56.84
4
 photo_cameraImage coming soon 3095 Nozzle €15.51
4
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
5
 photo_cameraImage coming soon 1080070 plug €2.64
5
 photo_cameraImage coming soon 50531 Junction €15.15
5
 photo_cameraImage coming soon 880581 stopper €7.73
6
 photo_cameraImage coming soon 1123960 Junction €14.87
6
 photo_cameraImage coming soon 1560420 Screw €30.81
6
 photo_cameraImage coming soon 2360590 Card €64.21
6
 photo_cameraImage coming soon 820510 O-ring €5.63
7
 photo_cameraImage coming soon 1460460 screw €1.58
7
 photo_cameraImage coming soon 1560410 Driving €27.03
7
 photo_cameraImage coming soon 51219 Pressure Switch €48.32
7
 photo_cameraImage coming soon 820150 Screw €5.42
8
 photo_cameraImage coming soon 1560440 Disk €12.46
8
 photo_cameraImage coming soon 1700590 Nut €6.65
8
 photo_cameraImage coming soon 50641 Frame €328.56
9
 photo_cameraImage coming soon 1381071 Head €140.12
9
 photo_cameraImage coming soon 1560350 Spring €7.98
9
 photo_cameraImage coming soon 2021480 Grommet €4.16
9
 photo_cameraImage coming soon 50447 Spring €7.91
10
 photo_cameraImage coming soon 1080610 Disk €6.61
10
 photo_cameraImage coming soon 180101 O-Ring €4.73
10
 photo_cameraImage coming soon 50627 Wheel €55.98
11
 photo_cameraImage coming soon 1080660 Plug €5.54
11
 photo_cameraImage coming soon 50628 Protection €4.26
11
 photo_cameraImage coming soon 820361 Stopper €4.41
12
 photo_cameraImage coming soon 1080540 Piston €18.64
12
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
12
 photo_cameraImage coming soon 2360730 Switch €9.09
12
 photo_cameraImage coming soon 3260170 Junction €5.86
13
 photo_cameraImage coming soon 391000 O-Ring €4.73
13
 photo_cameraImage coming soon 740290 O-ring €2.67
14
 photo_cameraImage coming soon 1080640 Ring €5.20
14
 photo_cameraImage coming soon 1382380 Gland €8.18
15
 photo_cameraImage coming soon 1261560 Screw €4.67
15
 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
15
 photo_cameraImage coming soon 1560150 O-Ring €4.59
16
 photo_cameraImage coming soon 1080190 O-ring €4.40
16
 photo_cameraImage coming soon 1560100 Shutter €12.13
16
 photo_cameraImage coming soon 960110 Ring €2.41
17
 photo_cameraImage coming soon 1382740 Tenuta Water €16.70
17
 photo_cameraImage coming soon 1560140 Spring €5.98
17
 photo_cameraImage coming soon 1701070 Box €11.29
18
 photo_cameraImage coming soon 1380090 Piston Guide €12.55
18
 photo_cameraImage coming soon 1700640 Cable €47.79
19
 Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
19
 photo_cameraImage coming soon 44484 Engine €565.53
19
 photo_cameraImage coming soon 961240 O-Ring €4.80
20
 photo_cameraImage coming soon 880330 Tenuta Water €8.14
21
 photo_cameraImage coming soon 1383130 Ring €10.75
21
 photo_cameraImage coming soon 1560010 Valve Body €27.03
22
 photo_cameraImage coming soon 1080550 Ring €5.42
22
 photo_cameraImage coming soon 1382770 Pump Housing €112.58
23
 photo_cameraImage coming soon 480480 O-ring €5.63
24
 photo_cameraImage coming soon 1560280 Washer €7.49
24
 photo_cameraImage coming soon 880130 Stopper €6.67
25
 photo_cameraImage coming soon 1560320 Piston €22.26
25
 photo_cameraImage coming soon 2280240 Bearing €9.96
26
 photo_cameraImage coming soon 640030 O-Ring €5.01
26
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
 photo_cameraImage coming soon 1380120 Thickness 0.10 Mm €5.22
27
 photo_cameraImage coming soon 1380130 Thickness 0.20 Mm €5.22
27
 photo_cameraImage coming soon 1380530 Thickness 0.25 Mm €6.05
27
 photo_cameraImage coming soon 1382810 Thickness 0.05 Mm €5.08
27
 photo_cameraImage coming soon 1560051 Junction €21.52
28
 photo_cameraImage coming soon 1380050 Support €20.71
28
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
 photo_cameraImage coming soon 1560510 Nut €10.40
29
 photo_cameraImage coming soon 850370 screw €2.26
30
 photo_cameraImage coming soon 1560530 Junction €23.07
30
 photo_cameraImage coming soon 2280060 Tree €109.40
31
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
32
 photo_cameraImage coming soon 1250280 sphere €2.67
32
 photo_cameraImage coming soon 840370 Bearing €16.84
33
 photo_cameraImage coming soon 180340 Ring €10.20
34
 photo_cameraImage coming soon 1380040 Support €22.03
34
 photo_cameraImage coming soon 1560490 Hose €7.24
35
 photo_cameraImage coming soon 1540020 Collector €24.21
35
 photo_cameraImage coming soon 962010 Nut €6.12
36
 photo_cameraImage coming soon 1540120 Washer €5.81
36
 photo_cameraImage coming soon 962000 Washer €4.87
37
 photo_cameraImage coming soon 1380940 Piston €31.99
37
 photo_cameraImage coming soon 1540090 Junction €17.83
38
 photo_cameraImage coming soon 1380950 Disk €4.94
38
 photo_cameraImage coming soon 1560290 Washer €7.62
39
 Complete Valve for Pressure Washers AR BC 6950 20082 Complete Valve for Pressure Washers AR BC 6950 €144.99
39
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
40
 photo_cameraImage coming soon 1080401 ring €2.13
41
 photo_cameraImage coming soon 1380920 Piston €26.73
42
 photo_cameraImage coming soon 1380060 Plug €6.39
43
 photo_cameraImage coming soon 1383050 Piston Rod €17.05
44
 photo_cameraImage coming soon 1780510 O-Ring €5.35
47
 photo_cameraImage coming soon 1260250 Level Indicator €1.69
48
 photo_cameraImage coming soon 1140450 O-Ring €4.25
49
 photo_cameraImage coming soon 1789010 Cover €24.45
51
 photo_cameraImage coming soon 1389270 Pre-Assembly Head €231.02
52
 photo_cameraImage coming soon 20897 Pre-Assembly Pump €668.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR1010

Annovi Reverberi Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Pressure Washer Blue Clean AR1010 - 23890.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 1010 - 23890
Pressure Washer Blue Clean AR1010 - 23890

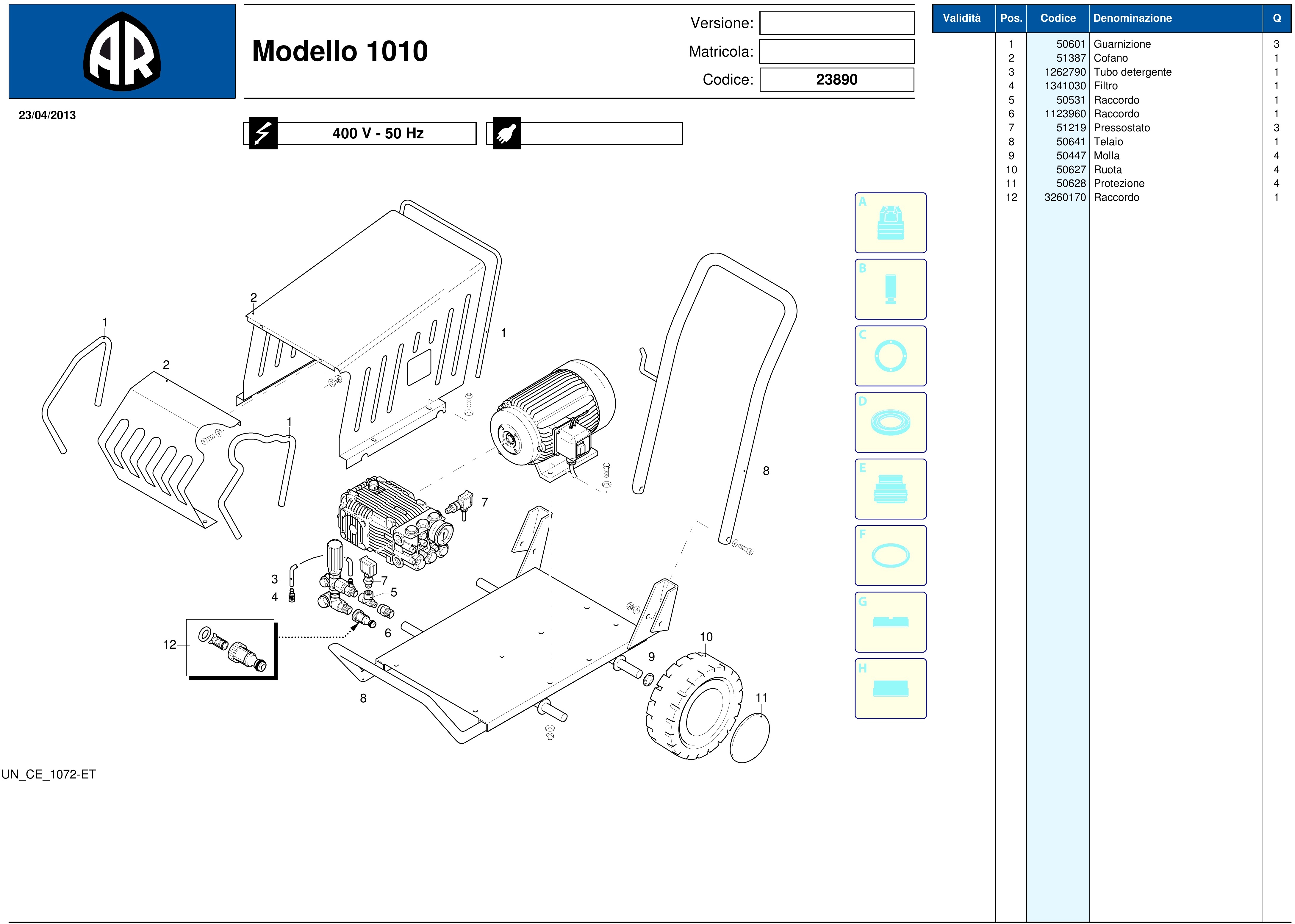

Casing 1010
# Part Num. Description
1 50601 Gasket
2 51387 Hood
3 1262790 Pipe Cleaner
4 1341030 Filter
5 50531 Junction
6 1123960 Junction
7 51219 Pressure Switch
8 50641 Frame
9 50447 Spring
10 50627 Wheel
11 50628 Protection
12 3260170 Junction

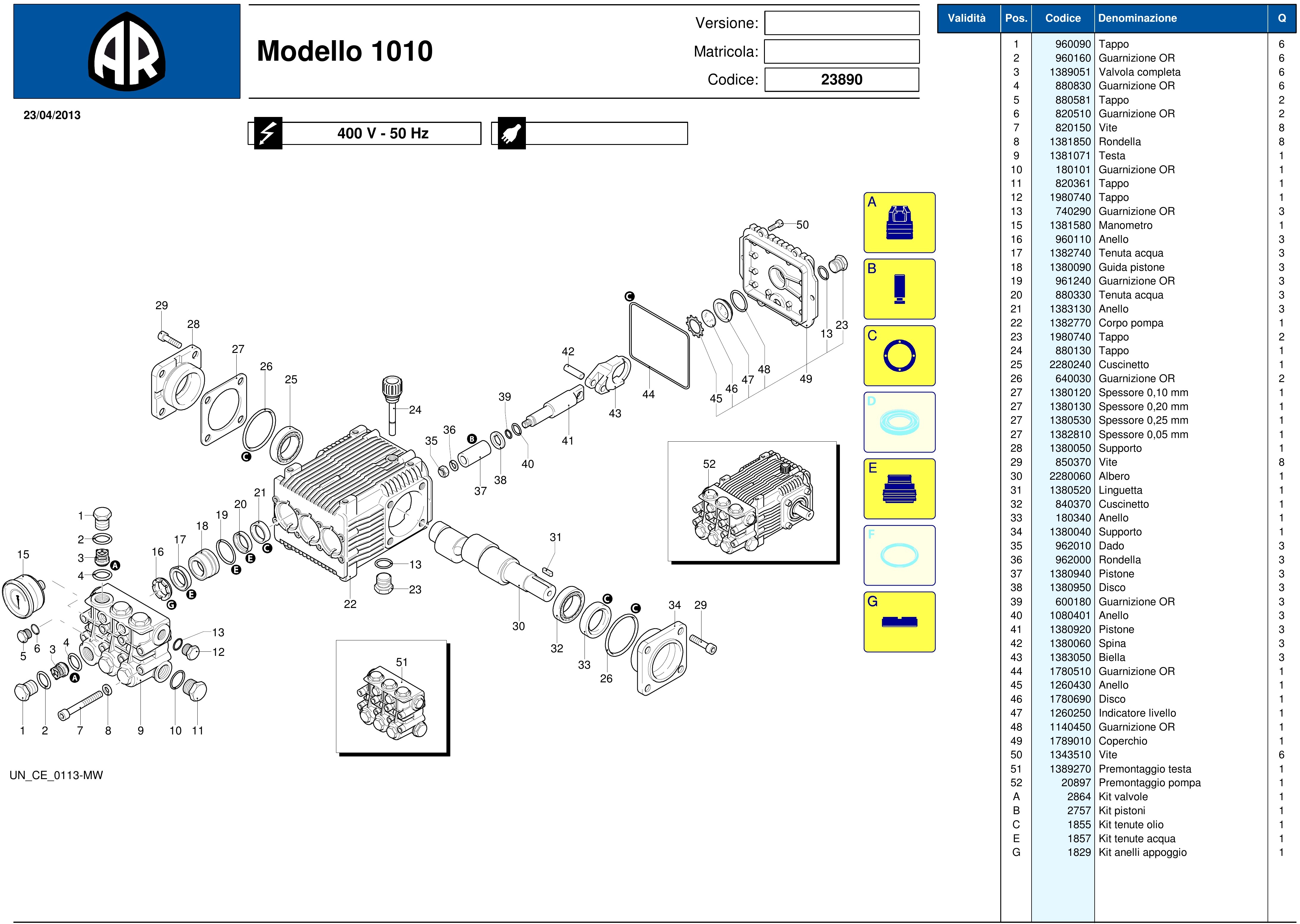

Pump 1010
1 960090 Stopper
2 960160 O-Ring
3 1389051 Complete Valve
4 880830 O-Ring
5 880581 Stopper
6 820510 O-Ring
7 820150 Screw
8 1381850 Washer
9 1381071 Head
10 180101 O-Ring
11 820361 Stopper
12 1980740 Stopper
13 740290 O-Ring
15 1381580 Manometer
16 960110 Ring
17 1382740 Tenuta Water
18 1380090 Piston Guide
19 961240 O-Ring
20 880330 Tenuta Water
21 1383130 Ring
22 1382770 Pump Housing
23 1980740 Stopper
24 880130 Stopper
25 2280240 Bearing
26 640030 O-Ring
27 1380120 Thickness 0.10 Mm
27 1380130 Thickness 0.20 Mm
27 1380530 Thickness 0.25 Mm
27 1382810 Thickness 0.05 Mm
28 1380050 Support
29 850370 Screw
30 2280060 Tree
31 1380520 Tongue
32 840370 Bearing
33 180340 Ring
34 1380040 Support
35 962010 Nut
36 962000 Washer
37 1380940 Piston
38 1380950 Disk
39 600180 O-Ring
40 1080401 Ring
41 1380920 Piston
42 1380060 Plug
43 1383050 Piston Rod
44 1780510 O-Ring
45 1260430 Ring
46 1780690 Disk
47 1260250 Level Indicator
48 1140450 O-Ring
49 1789010 Cover
50 1343510 Screw
51 1389270 Pre-Assembly Head
52 20897 Pre-Assembly Pump
A 2864 Kit Valves
B 2757 Piston Kit
C 1855 Kit Oil Seals
E 1857 Water Seals Kit
G 1829 Kit Support Rings

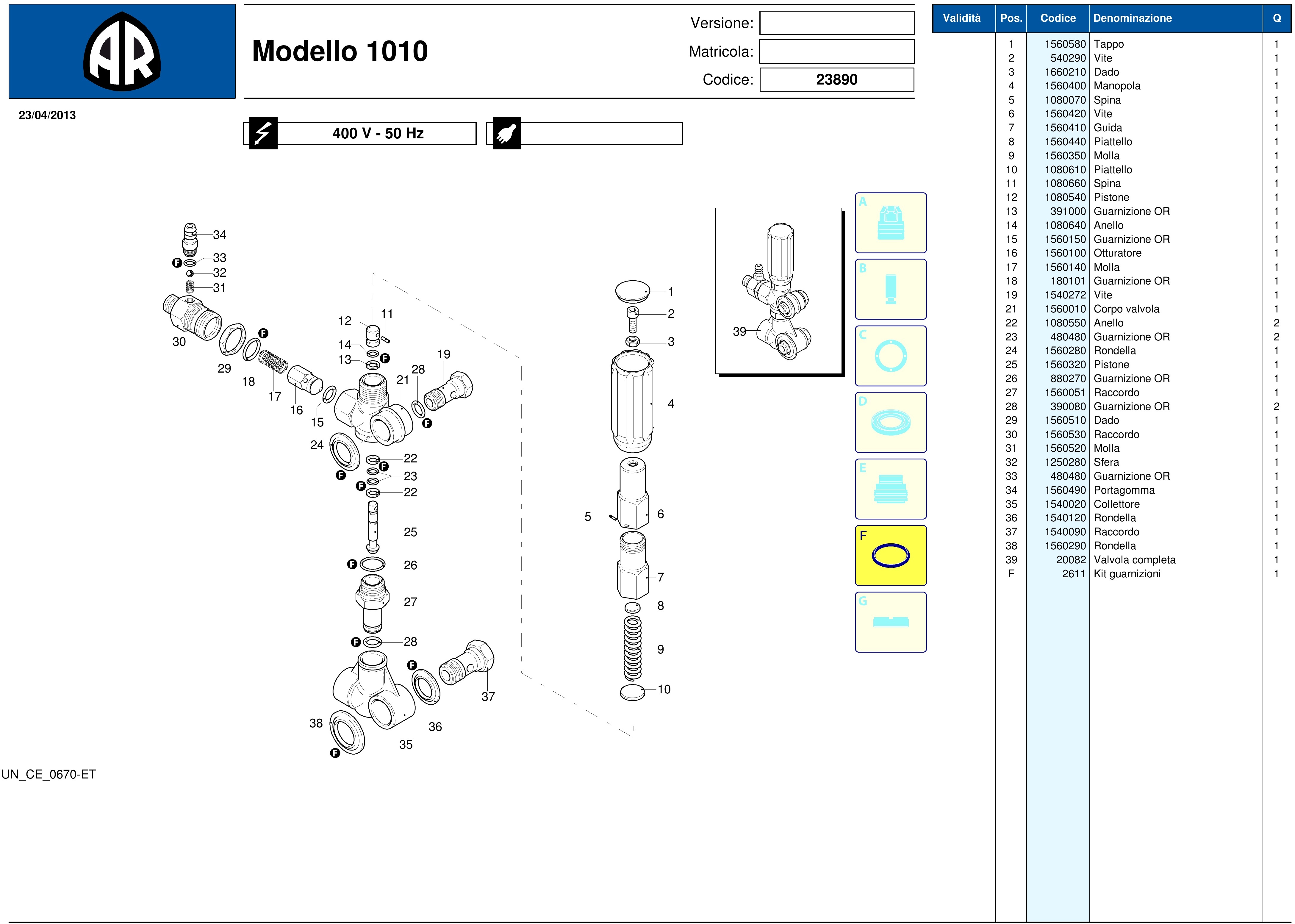

Valve 1010
1 1560580 Stopper
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1080070 Plug
6 1560420 Screw
7 1560410 Driving
8 1560440 Disk
9 1560350 Spring
10 1080610 Disk
11 1080660 Plug
12 1080540 Piston
13 391000 O-Ring
14 1080640 Ring
15 1560150 O-Ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-Ring
19 1540272 Screw
21 1560010 Valve Body
22 1080550 Ring
23 480480 O-Ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Sphere
33 480480 O-Ring
34 1560490 Hose
35 1540020 Collector
36 1540120 Washer
37 1540090 Junction
38 1560290 Washer
39 20082 Complete Valve
F 2611 Gasket Kit
Engine 1010
1 50068 Gasket
2 1700080 Plate
3 1940410 O-Ring
4 1700740 Mini-Contactor
5 1261570 Screw
6 2360590 Card
7 1460460 Screw
8 1700590 Nut
9 2021480 Fairlead
10 51219 Pressure Switch
11 1341140 Gasket
12 2360730 Switch
13 880270 O-Ring
14 1382380 Gland
15 1261560 Screw
16 1080190 O-Ring
17 1701070 Box
18 1700640 Cable
19 44484 Engine
Accessories 1010
1 41052 Gun
2 3160170 High Pressure Hose
3 40826 Lance
4 3095 Nozzle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1010 - 23890
12 Items

Specific References

New

Download

Diagram Annovi AR1010

Diagram Annovi AR1010

Download (618.09KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010
Annovi Reverberi S.p.A. SKU: 1857
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 Genuine Part Annovi & Reverberi, Water Seal Kit for Pressure Washers AR1010 - AR1015 - AR1007 - AR1380 - AR6970. Part for the Following Items: -  Pressure Washer...
AVAILABLE €60.64
Details
Complete Valve for Pressure Washers AR BC 6950
Annovi Reverberi S.p.A. SKU: 20082
Complete Valve for Pressure Washers AR BC 6950
Complete Valve for Pressure Washers AR BC 6950 Original part Annovi Reverberi, Complete Valve for Pressure Washers models Blue Clean AR 6950 - AR 6970 - AR 7850 - AR 7870. Part for the following...
Last items in stock €144.99
Details
Comments (0)
