Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1001

SKU: Annovi Reverberi 1001 - 24384
€19.96
VAT included

Annovi Reverberi Parts for Pressure Washer AR1001

Annovi Reverberi Original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Pressure Washer Blue Clean AR1001 - 24384.

Pressure Washer Blue Clean AR1001 - 24384
Annovi & Reverberi Parts for Pressure Washer AR1001
  • Annovi & Reverberi Parts for Pressure Washer AR1001
  • Annovi & Reverberi Parts for Pressure Washer AR1001/1003
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR1001

SKU: Annovi Reverberi 1001 - 24384 Condition: New
€19.96
VAT included

Annovi Reverberi Parts for Pressure Washer AR1001

Annovi Reverberi Original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Pressure Washer Blue Clean AR1001 - 24384.

Pressure Washer Blue Clean AR1001 - 24384
settings 135 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
119 spare parts

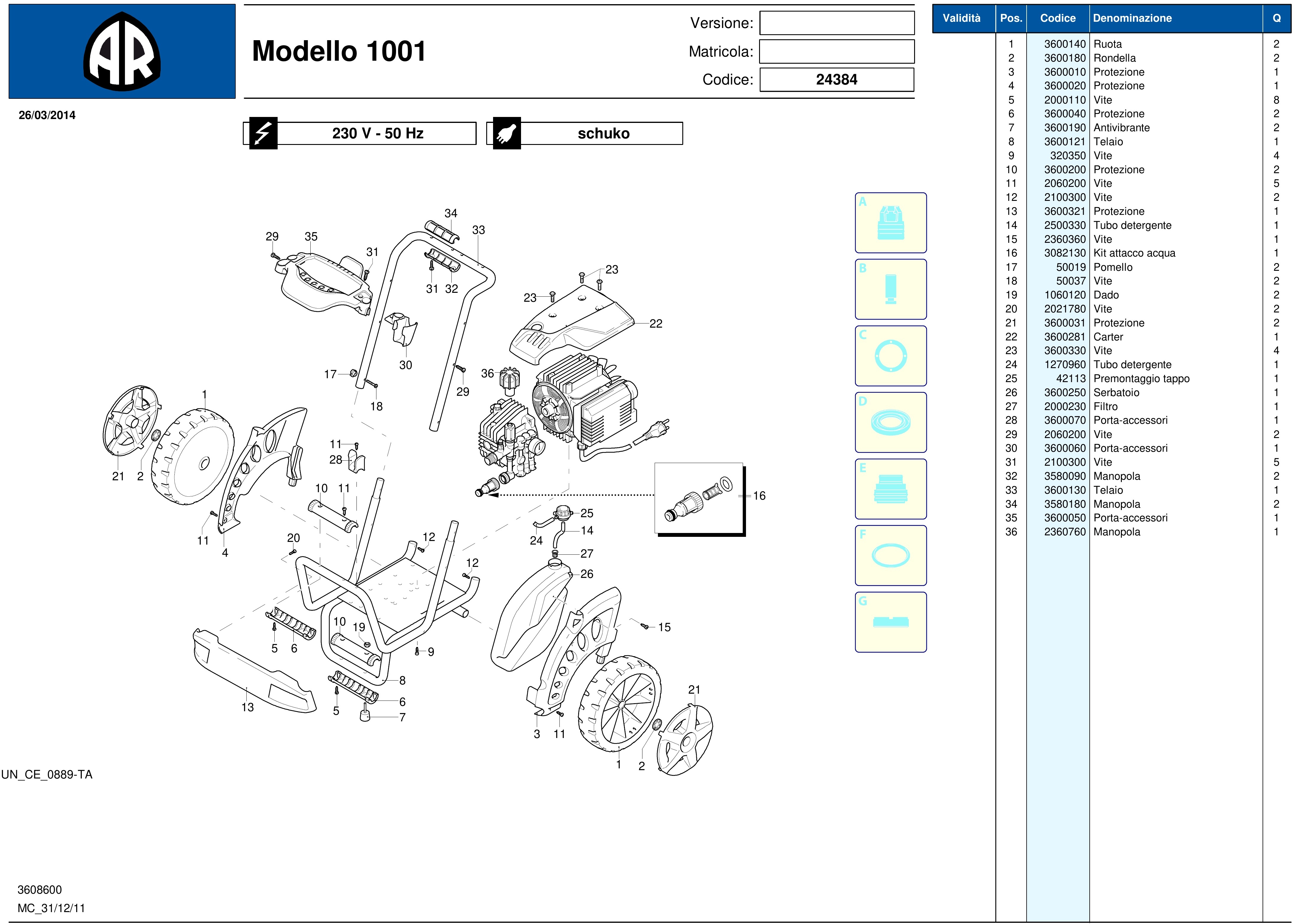

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3600140 Wheel €29.14
2
 photo_cameraImage coming soon 3600180 Washer €2.37
3
 photo_cameraImage coming soon 3600010 Protection €16.08
4
 photo_cameraImage coming soon 3600020 Protection €16.08
6
 photo_cameraImage coming soon 3600040 Protection €6.00
7
 photo_cameraImage coming soon 3600190 Antivibration €10.58
8
 photo_cameraImage coming soon 3600121 Frame €200.87
10
 photo_cameraImage coming soon 3600200 Protection €5.85
12
 photo_cameraImage coming soon 2100300 screw €4.72
13
 photo_cameraImage coming soon 3600321 Protection €18.97
14
 photo_cameraImage coming soon 2500330 pipe cleaner €4.40
16
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
17
 photo_cameraImage coming soon 50019 Knob €5.55
18
 Armature Ball Bearing Bushing for Sander Stayer LOM10B 50037 Armature Ball Bearing Bushing for Sander Stayer LOM10B €3.05
19
 photo_cameraImage coming soon 1060120 Nut €1.54
22
 photo_cameraImage coming soon 3600281 Sump €39.19
23
 photo_cameraImage coming soon 3600330 Screw €4.60
24
 photo_cameraImage coming soon 1270960 pipe cleaner €4.41
25
 photo_cameraImage coming soon 42113 Pre-assembly plug €5.62
26
 photo_cameraImage coming soon 3600250 Tank €24.18
27
 photo_cameraImage coming soon 2000230 filter €2.03
28
 photo_cameraImage coming soon 3600070 Holds Accessories €4.54
30
 photo_cameraImage coming soon 3600060 Holds Accessories €4.54
32
 photo_cameraImage coming soon 3580090 Knob €4.18
33
 photo_cameraImage coming soon 3600130 Frame €43.65
34
 photo_cameraImage coming soon 3580180 Knob €4.18
35
 photo_cameraImage coming soon 3600050 Holds Accessories €14.62
36
 photo_cameraImage coming soon 2360760 Knob €4.14

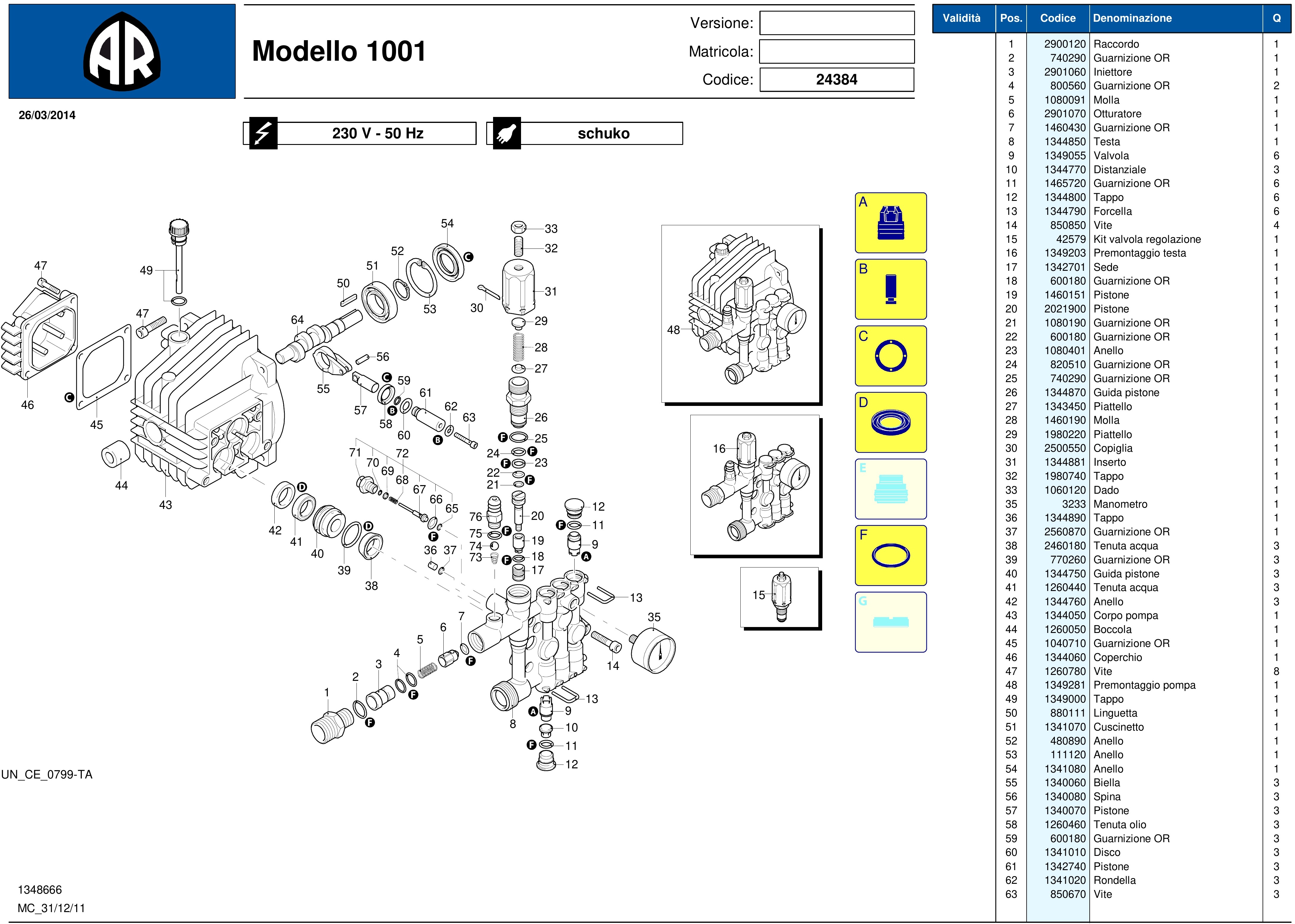

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
C
 photo_cameraImage coming soon 1876 Oil Seals Kit €19.97
B
 photo_cameraImage coming soon 2623 Piston Kit €64.53
A
 photo_cameraImage coming soon 42566 Kit Valves €58.17
D
 photo_cameraImage coming soon 42567 Kit Kept Water €28.64
F
 photo_cameraImage coming soon 42568 Gasket Kit €15.77
1
 photo_cameraImage coming soon 2900120 Junction €16.90
2
 photo_cameraImage coming soon 740290 O-ring €2.67
3
 photo_cameraImage coming soon 2901060 Injector €8.60
4
 photo_cameraImage coming soon 800560 O-ring €1.59
5
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
6
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
7
 photo_cameraImage coming soon 1460430 O-ring €4.60
8
 photo_cameraImage coming soon 1344850 Head €88.84
9
 photo_cameraImage coming soon 1349055 Valve €13.52
10
 photo_cameraImage coming soon 1344770 Spacer €9.84
12
 photo_cameraImage coming soon 1344800 Stopper €6.69
13
 photo_cameraImage coming soon 1344790 Fork €7.48
15
 Valve Kit Adjustment for Pressure Washer AR BC PRO COLD 1001 42579 Valve Kit Adjustment for Pressure Washer AR BC PRO COLD 1001 €42.85
16
 photo_cameraImage coming soon 1349203 Pre-Assembly Head €220.13
17
 photo_cameraImage coming soon 1342701 Office €8.45
18
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
19
 photo_cameraImage coming soon 1460151 Piston €7.26
20
 photo_cameraImage coming soon 2021900 Piston €10.84
21
 photo_cameraImage coming soon 1080190 O-ring €4.40
23
 photo_cameraImage coming soon 1080401 ring €2.13
24
 photo_cameraImage coming soon 820510 O-ring €5.63
26
 photo_cameraImage coming soon 1344870 Piston Guide €19.32
27
 photo_cameraImage coming soon 1343450 Disk €3.26
28
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
29
 photo_cameraImage coming soon 1980220 disk €2.13
31
 photo_cameraImage coming soon 1344881 Insert €16.12
32
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
35
 Gauge for Pressure Washers Annovi & Reverberi AR737-1001 3233 Gauge for Pressure Washers Annovi & Reverberi AR737-1001 €27.18
36
 photo_cameraImage coming soon 1344890 Stopper €5.17
38
 photo_cameraImage coming soon 2460180 Tenuta water €7.58
39
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
40
 photo_cameraImage coming soon 1344750 Piston Guide €10.65
41
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
42
 photo_cameraImage coming soon 1344760 Ring €5.89
43
 photo_cameraImage coming soon 1344050 Pump Casing €81.14
44
 photo_cameraImage coming soon 1260050 Bush €12.90
46
 photo_cameraImage coming soon 1344060 Cover €14.54
47
 photo_cameraImage coming soon 1260780 Screw €4.81
48
 photo_cameraImage coming soon 1349281 Pre-Assembly Pump €428.75
49
 photo_cameraImage coming soon 1349000 Stopper €10.76
51
 photo_cameraImage coming soon 1341070 Bearing €13.15
53
 photo_cameraImage coming soon 111120 Ring €1.85
54
 photo_cameraImage coming soon 1341080 Ring €5.64
55
 photo_cameraImage coming soon 1340060 Piston Rod €10.36
56
 photo_cameraImage coming soon 1340080 Plug €1.77
57
 photo_cameraImage coming soon 1340070 Piston €18.25
58
 photo_cameraImage coming soon 1260460 oil seal €4.47
60
 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 1341010 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 €1.43
61
 photo_cameraImage coming soon 1342740 Piston €21.55
64
 photo_cameraImage coming soon 1340170 Shaft €83.89
65
 photo_cameraImage coming soon 1120680 O-Ring €1.54
67
 photo_cameraImage coming soon 2022040 Rod €4.56
68
 photo_cameraImage coming soon 2021630 Spring €1.99
69
 photo_cameraImage coming soon 2021650 Washer €1.74
70
 photo_cameraImage coming soon 1260820 O-ring €1.59
71
 photo_cameraImage coming soon 1344830 Junction €8.94
72
 TSS Retrofit kit for Pressure Washer AR 4590 42580 TSS Retrofit kit for Pressure Washer AR 4590 €24.00
73
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
74
 photo_cameraImage coming soon 1250280 sphere €2.67
75
 photo_cameraImage coming soon 480480 O-ring €5.63
76
 photo_cameraImage coming soon 1982520 Hose €6.27

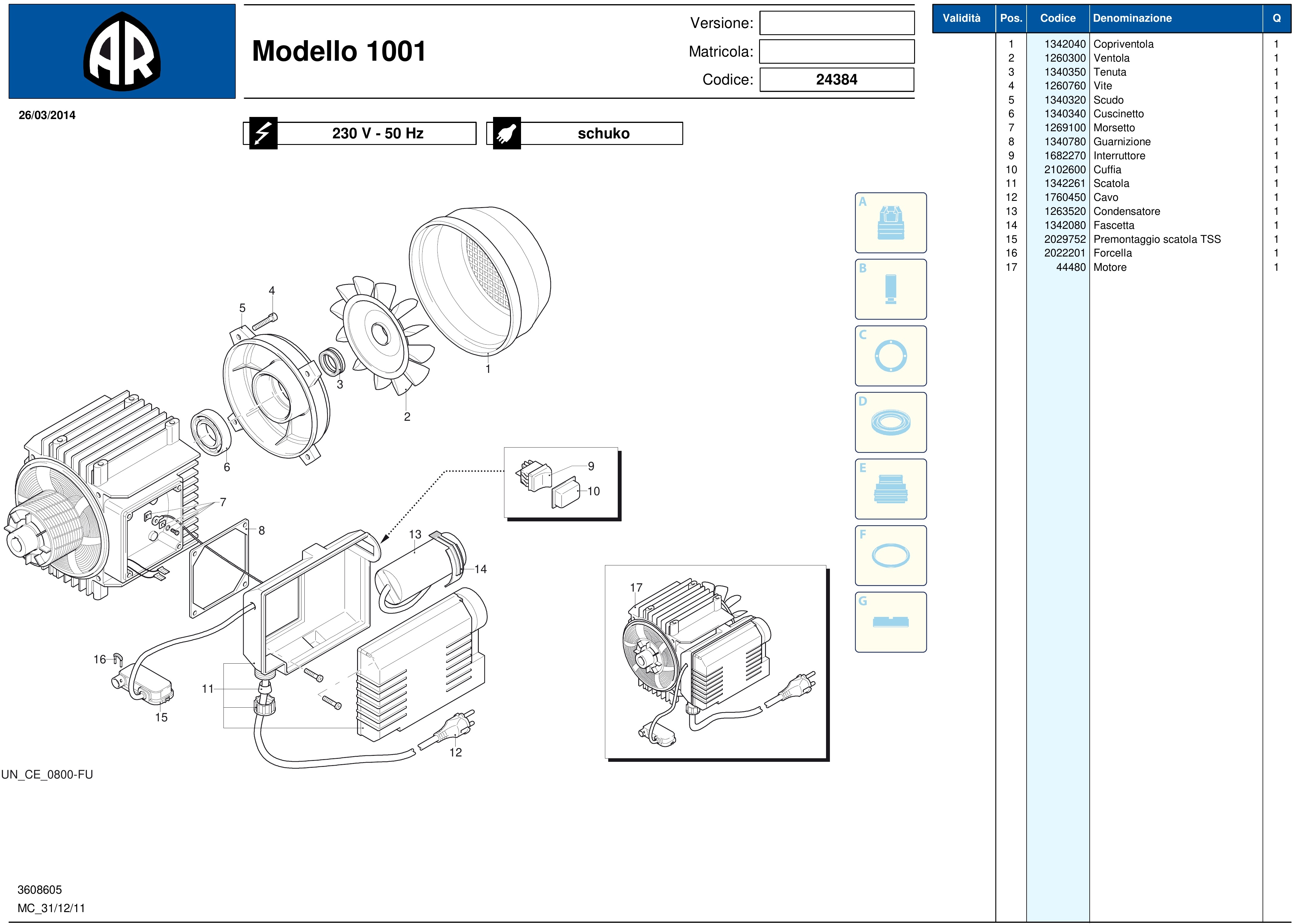

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1342040 Fan Cover €6.32
2
 photo_cameraImage coming soon 1260300 Fan €6.15
3
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
5
 photo_cameraImage coming soon 1340320 Shield €21.55
6
 photo_cameraImage coming soon 1340340 Bearing €7.38
7
 photo_cameraImage coming soon 1269100 Clamp €4.00
8
 photo_cameraImage coming soon 1340780 Gasket €2.85
9
 photo_cameraImage coming soon 1682270 Switch €6.38
10
 photo_cameraImage coming soon 2102600 Hood €7.37
11
 photo_cameraImage coming soon 1342261 Box €10.78
12
 photo_cameraImage coming soon 1760450 cable €28.26
13
 photo_cameraImage coming soon 1263520 Capacitor €38.65
14
 photo_cameraImage coming soon 1342080 Band €5.27
15
 photo_cameraImage coming soon 2029752 Pre-assembly box TSS €34.86
16
 photo_cameraImage coming soon 2022201 fork €3.36
17
 photo_cameraImage coming soon 44480 Engine €246.06

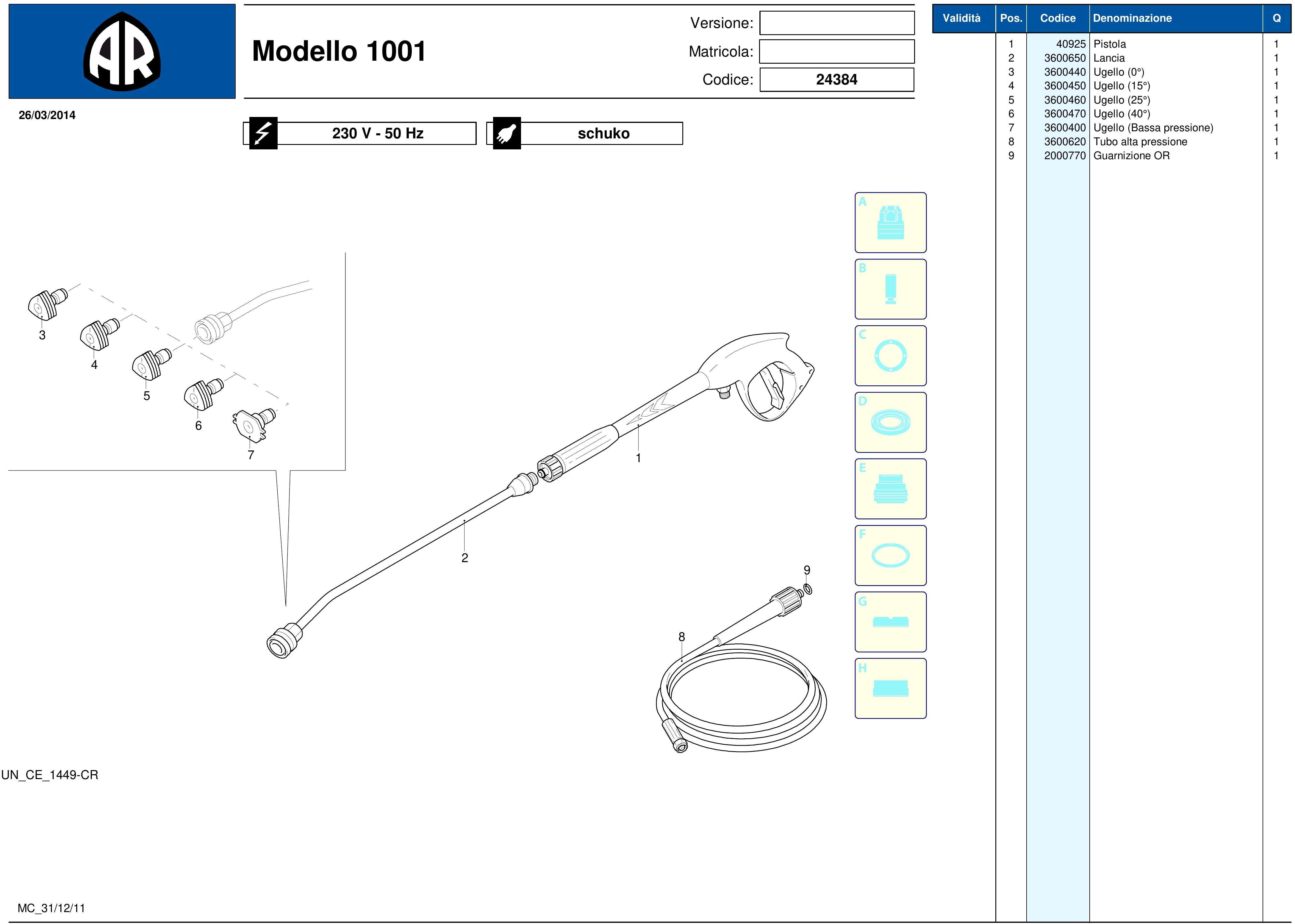

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47
2
 Lance for Pressure Washer Annovi & Reverberi AR1001 3600650 Lance for Pressure Washer Annovi & Reverberi AR1001 €26.27
3
 photo_cameraImage coming soon 3600440 Nozzle (0 °) €15.01
4
 photo_cameraImage coming soon 3600450 Nozzle (15 °) €15.01
5
 photo_cameraImage coming soon 3600460 Nozzle (25 °) €15.01
6
 photo_cameraImage coming soon 3600470 Nozzle (40 °) €15.01
7
 photo_cameraImage coming soon 3600400 Nozzle (Low Pressure) €12.33
8
 photo_cameraImage coming soon 3600620 High Pressure Hose €145.31
9
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 5
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR1001

Annovi & Reverberi Original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Pressure Washer Blue Clean AR1001 - 24384.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 1001 - 24384

Pressure Washer AR Blue Clean AR1001 - 24384 Pag.1
Casing 1001
# Part Num. Description
1 3600140 Wheel
2 3600180 Washer
3 3600010 Protection
4 3600020 Protection
5 2000110 Screw
6 3600040 Protection
7 3600190 Antivibration
8 3600121 Frame
9 320350 Screw
10 3600200 Protection
11 2060200 Screw
12 2100300 Screw
13 3600321 Protection
14 2500330 Pipe Cleaner
15 2360360 Screw
16 3082130 Kit For Water
17 50019 Knob
18 50037 Screw
19 1060120 Nut
20 2021780 Screw
21 3600031 Protection
22 3600281 Sump
23 3600330 Screw
24 1270960 Pipe Cleaner
25 42113 Pre-Assembly Cap
26 3600250 Tank
27 2000230 Filter
28 3600070 Holds Accessories
29 2060200 Screw
30 3600060 Holds Accessories
31 2100300 Screw
32 3580090 Knob
33 3600130 Frame
34 3580180 Knob
35 3600050 Holds Accessories
36 2360760 Knob
Pump 1001 Pag.2
1 2900120 Junction
2 740290 O-Ring
3 2901060 Injector
4 800560 O-Ring
5 1080091 Spring
6 2901070 Shutter
7 1460430 O-Ring
8 1344850 Head
9 1349055 Valve
10 1344770 Spacer
11 1465720 O-Ring
12 1344800 Stopper
13 1344790 Fork
14 850850 Screw
15 42579 Valve Kit Adjustment
16 1349203 Pre-Assembly Head
17 1342701 Office
18 600180 O-Ring
19 1460151 Piston
20 2021900 Piston
21 1080190 O-Ring
22 600180 O-Ring
23 1080401 Ring
24 820510 O-Ring
25 740290 O-Ring
26 1344870 Piston Guide
27 1343450 Disk
28 1460190 Spring
29 1980220 Disk
30 2500550 Cotter Pin
31 1344881 Insert
32 1980740 Stopper
33 1060120 Nut
35 3233 Manometer
36 1344890 Stopper
37 2560870 O-Ring
38 2460180 O-Ring
39 770260 O-Ring
40 1344750 Piston Guide
41 1260440 Tenuta Water
42 1344760 Ring
43 1344050 Pump Housing
44 1260050 Bushing
45 1040710 O-Ring
46 1344060 Cover
47 1260780 Screw
48 1349281 Pre-Assembly Pump
49 1349000 Stopper
50 880111 Tongue
51 1341070 Bearing
52 480890 Ring
53 111120 Ring
54 1341080 Ring
55 1340060 Piston Rod
56 1340080 Plug
57 1340070 Piston
58 1260460 Oil Seal
59 600180 O-Ring
60 1341010 Disk
61 1342740 Piston
62 1341020 Washer
63 850670 Screw
64 1340170 Tree
65 1120680 O-Ring
66 600180 O-Ring
67 2022040 Rod
68 2021630 Spring
69 2021650 Washer
70 1260820 O-Ring
71 1344830 Junction
72 42580 Retrofit Kit TSS
73 1560520 Spring
74 1250280 Sphere
75 480480 O-Ring
76 1982520 Hose
A 42566 Kit Valves
B 2623 Piston Kit
C 1876 Kit Oil Seals
D 42567 Kit Kept Water
F 42568 Gasket Kit
Engine 1001 Pag.3
1 1342040 Fan Cover
2 1260300 Fan
3 1340350 Seal
4 1260760 Screw
5 1340320 Shield
6 1340340 Bearing
7 1269100 Clamp
8 1340780 Gasket
9 1682270 Switch
10 2102600 Headphones
11 1342261 Box
12 1760450 Cable
13 1263520 Condenser
14 1342080 Band
15 2029752 Pre-Assembly Box TSS
16 2022201 Fork
17 44480 Engine
Accessories 1001 Pag.4
1 40925 Gun
2 3600650 Lance
3 3600440 Nozzle (0 °)
4 3600450 Nozzle (15 °)
5 3600460 Nozzle (25 °)
6 3600470 Nozzle (40 °)
7 3600400 Nozzle (Low Pressure)
8 3600620 High Pressure Hose
9 2000770 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 1001 - 24384
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi AR1001

Diagram Annovi AR1001

Download (834.29KB)

You might also like

Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Annovi Reverberi S.p.A. SKU: 2029753
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 Genuine part Annovi & Reverberi, Pre-assembly box TSS for Pressure Washers Blue Clean AR767 - AR1003 - AR3590. - For the Following items : - AR Blue Clean Models 50...
Last items in stock €32.93
Details
Valve for Pressure Washers AR 780-787-797-810-820-830-840
Annovi Reverberi S.p.A. SKU: 2769050
Valve for Pressure Washers AR 780-787-797-810-820-830-840
Valve for Pressure Washers AR 780-787-797-810-820-830-840 Genuine Part for Annovi & Reverberi, Valve Assembly for Pressure Washer AR 780/787/797 - AR 810/820/830/840 - AR 6640/6670 - AR 6950/6970 - AR 1001/1003 - AR 1005/1007....
AVAILABLE €6.46
Details
Gauge for Pressure Washers Annovi & Reverberi AR737-1001
Annovi Reverberi S.p.A. SKU: 3233
Gauge for Pressure Washers Annovi & Reverberi AR737-1001
Gauge for Pressure Washers Annovi & Reverberi AR737-1001 Original part Annovi & Reverberi, high pressure gauge for pressure washers models Blue Clean AR 737 - AR 1001 - PROLINER Z 8.150 Z. Part for the...
Last items in stock €27.18
Details
Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW Sale
Annovi Reverberi S.p.A. SKU: 40786
Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW
Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW Genuine part Annovi & Reverberi, High Pressure Gauge for Pressure Washers Models Blue Clean AR 1003 - AR 1003 RLW Part for the following products: - Pressure...
Last items in stock €27.18
Details
Lance for Pressure Washer Annovi & Reverberi AR1001
Annovi Reverberi S.p.A. SKU: 3600650
Lance for Pressure Washer Annovi & Reverberi AR1001
Lance for Pressure Washer Annovi & Reverberi AR1001 Original part Annovi & Reverberi, Lance for Pressure Washers Models AR BC Serie 10 - 1001 - 1003 - 1004 - 1005 - 1007 - 1008 - Serie 14 - 1425 - 1430 - 1435 - 1440 Part for...
Last items in stock €26.27
Details
TSS Retrofit kit for Pressure Washer AR 4590
Annovi Reverberi S.p.A. SKU: 42580
TSS Retrofit kit for Pressure Washer AR 4590
TSS Retrofit kit for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, TSS Retrofit kit for Pressure Washers Annovi  Reverberi AR 4590 - Michelin MPX 150 HL. Parts For the Following Products: - ...
Last items in stock €24.00
Details
AR Pressure Washer 585 Shutter
Annovi Reverberi S.p.A. SKU: 2901070
AR Pressure Washer 585 Shutter
AR Shutter for Pressure Washer AR 585 Genuine Parts for Annovi Reverberi, non return Valve (Shutter) for Pressure Washer AR585 - MPX 150 HL - MPX 160 RBP - AR589. Part for the following products: - Annovi Reverberi 4590 - 24426 -...
Usually Ships in: 7/10 Business Days Approx. €3.84
Details
AR Spring for Pressure Washer AR589
Annovi Reverberi S.p.A. SKU: 1460190
AR Spring for Pressure Washer AR589
Annovi Reverberi Spring for Pressure Washer AR589 Genuine spare part Annovi Reverberi, Spring for Pressure Washers AR589 - AR757 - AR1001 - AR555. Part for the following products: - Pressure Washer Annovi Reverberi 589 -...
AVAILABLE €3.09
Details
Comments (0)
