Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR757

SKU: Annovi Reverberi 757 - 12363
€1.02
VAT included

Annovi Reverberi Parts for Pressure Washer AR757

Annovi Reverberi Genuine spare parts or replacement parts for to fix Pressure Washer Blue Clean AR757 - 12363.

Annovi Reverberi 757 - 12363
Annovi & Reverberi Parts for Pressure Washer AR757
  • Annovi & Reverberi Parts for Pressure Washer AR757
  • Annovi & Reverberi Parts for Pressure Washer AR737/747
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR757

SKU: Annovi Reverberi 757 - 12363 Condition: New
€1.02
VAT included

Annovi Reverberi Parts for Pressure Washer AR757

Annovi Reverberi Genuine spare parts or replacement parts for to fix Pressure Washer Blue Clean AR757 - 12363.

Annovi Reverberi 757 - 12363
settings 128 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
107 spare parts

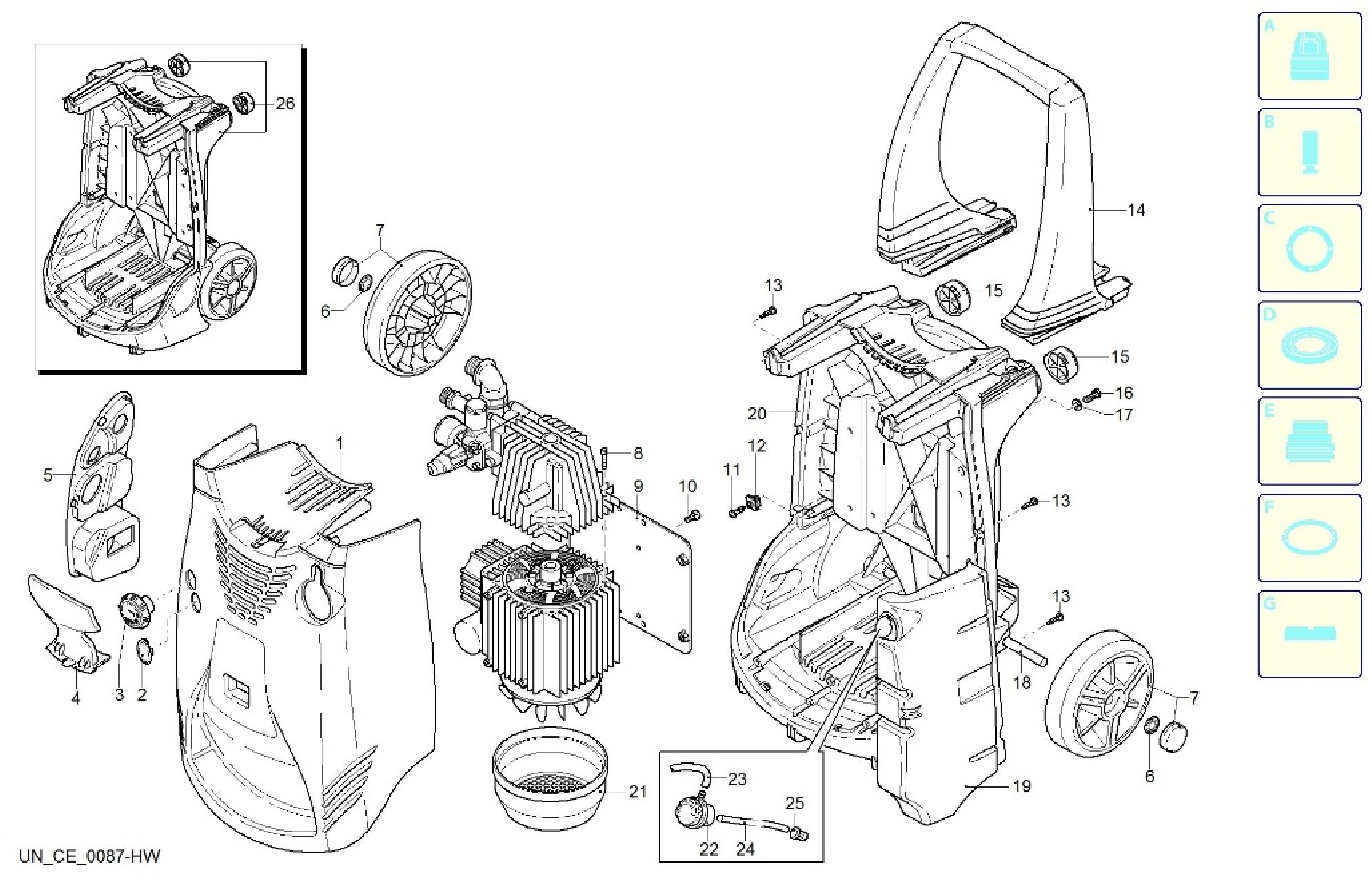

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2500045 Blue Casing €31.39
2
 photo_cameraImage coming soon 2500340 Stopper €2.46
3
 photo_cameraImage coming soon 2500310 knob €7.15
4
 photo_cameraImage coming soon 2500050 hook €6.68
5
 photo_cameraImage coming soon 2500260 Bowl €8.30
6
 Annovi AR747 Lock Washer 1680880 Annovi AR747 Lock Washer €1.03
da 5 pz: €0.10
7
 Wheel for Pressure Washers AR Farmer's - AR Blu Clean 2500320 Wheel for Pressure Washers AR Farmer's - AR Blu Clean €11.86
8
 photo_cameraImage coming soon 1260780 Screw €4.81
9
 photo_cameraImage coming soon 2500100 Plate €19.22
11
 photo_cameraImage coming soon 2100300 screw €4.72
12
 photo_cameraImage coming soon 2600100 cable clamp €2.74
14
 photo_cameraImage coming soon 2500020 handle €62.87
15
 ARSG - AR Pressure Washer Grommet 2500130 ARSG - AR Pressure Washer Grommet €3.09
16
 photo_cameraImage coming soon 880280 screw €2.03
17
 photo_cameraImage coming soon 2180300 washer €2.20
18
 photo_cameraImage coming soon 2500120 Axle €16.59
19
 photo_cameraImage coming soon 2500110 tank €23.19
20
 photo_cameraImage coming soon 2500010 base €82.50
21
 photo_cameraImage coming soon 1342040 Fan Cover €6.32
22
 photo_cameraImage coming soon 42113 Pre-assembly plug €5.62
23
 photo_cameraImage coming soon 2500330 pipe cleaner €4.40
25
 photo_cameraImage coming soon 2000230 filter €2.03
26
 photo_cameraImage coming soon 2509000 Pre-assembly base €111.35

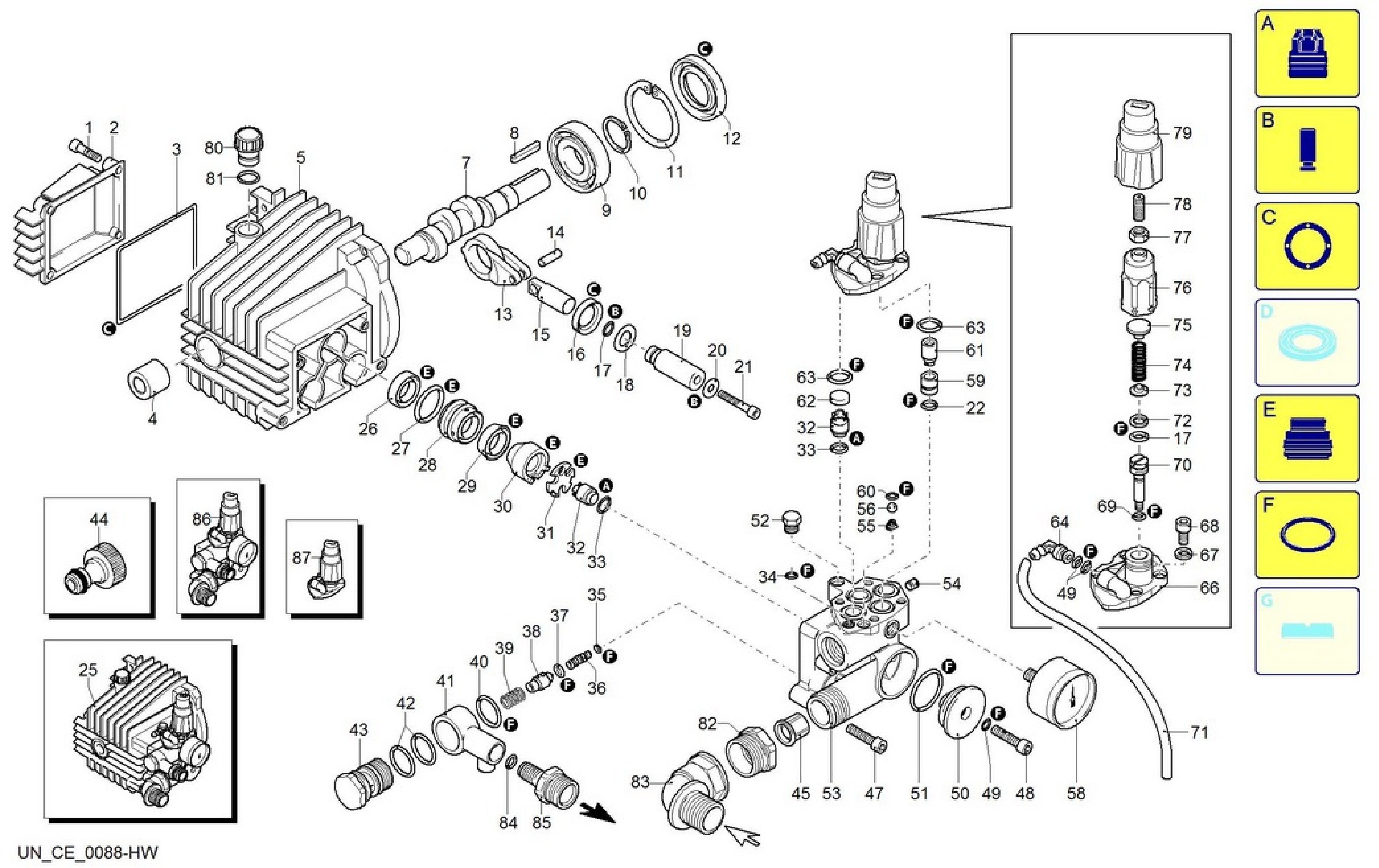

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
C
 photo_cameraImage coming soon 1876 Oil Seals Kit €19.97
A
 photo_cameraImage coming soon 1880 Valve Kit €20.48
B
 photo_cameraImage coming soon 2623 Piston Kit €64.53
E
 photo_cameraImage coming soon 2624 Kit Held Water €45.52
F
 photo_cameraImage coming soon 2767 Kit Parts OR €10.91
2
 photo_cameraImage coming soon 1344060 Cover €14.54
4
 photo_cameraImage coming soon 1260050 Bush €12.90
5
 photo_cameraImage coming soon 1344050 Pump Casing €81.14
7
 photo_cameraImage coming soon 1340170 Shaft €83.89
9
 photo_cameraImage coming soon 1341070 Bearing €13.15
11
 photo_cameraImage coming soon 111120 Ring €1.85
12
 photo_cameraImage coming soon 1341080 Ring €5.64
13
 photo_cameraImage coming soon 1340060 Piston Rod €10.36
14
 photo_cameraImage coming soon 1340080 Plug €1.77
15
 photo_cameraImage coming soon 1340070 Piston €18.25
16
 photo_cameraImage coming soon 1260460 oil seal €4.47
17
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
18
 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 1341010 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 €1.43
19
 photo_cameraImage coming soon 1342740 Piston €21.55
25
 photo_cameraImage coming soon 1349265 Pump Pre-Assembly €370.19
26
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
27
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
28
 Piston Guide for Pressure Washers AR Farmer's S1308-VIP8.130-HOT1308 1342730 Piston Guide for Pressure Washers AR Farmer's S1308-VIP8.130-HOT1308 €8.23
29
 photo_cameraImage coming soon 1342760 Water Seal €5.52
31
 photo_cameraImage coming soon 1342750 Disk €1.53
32
 Valve for Pressure Washer ARSG Proliner S 1308 1349053 Valve for Pressure Washer ARSG Proliner S 1308 €7.52
33
 photo_cameraImage coming soon 800560 O-ring €1.59
34
 photo_cameraImage coming soon 390341 O-Ring €1.54
36
 photo_cameraImage coming soon 1342710 Nozzle €4.37
37
 photo_cameraImage coming soon 1460430 O-ring €4.60
38
 photo_cameraImage coming soon 1460260 Piston €3.75
40
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
41
 photo_cameraImage coming soon 1560090 Junction €11.48
43
 photo_cameraImage coming soon 2500190 Cork €15.35
44
 photo_cameraImage coming soon 1461470 junction €3.26
45
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
48
 photo_cameraImage coming soon 680700 Screw €2.32
49
 photo_cameraImage coming soon 480480 O-ring €5.63
50
 photo_cameraImage coming soon 1340190 Cover €2.96
52
 photo_cameraImage coming soon 620301 Cork €2.46
53
 Head for Pressure Washer ARSG Vip - 8.130 1342670 Head for Pressure Washer ARSG Vip - 8.130 €83.47
56
 photo_cameraImage coming soon 1250280 sphere €2.67
58
 Gauge for Pressure Washers Annovi & Reverberi AR757-767 3226 Gauge for Pressure Washers Annovi & Reverberi AR757-767 €27.18
59
 photo_cameraImage coming soon 1342700 Venue €6.02
61
 photo_cameraImage coming soon 1460150 Piston €6.43
63
 photo_cameraImage coming soon 740290 O-ring €2.67
64
 photo_cameraImage coming soon 1260670 Junction €1.89
66
 photo_cameraImage coming soon 1342680 Cover €30.02
69
 photo_cameraImage coming soon 1080190 O-ring €4.40
70
 photo_cameraImage coming soon 2021900 Piston €10.84
72
 photo_cameraImage coming soon 1080401 ring €2.13
73
 photo_cameraImage coming soon 1343450 Disk €3.26
74
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
75
 photo_cameraImage coming soon 1343000 Disk €5.37
76
 photo_cameraImage coming soon 2500400 Insert €11.04
77
 photo_cameraImage coming soon 1060120 Nut €1.54
79
 photo_cameraImage coming soon 2500210 Knob €1.70
80
 photo_cameraImage coming soon 1343900 Cork €6.43
81
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
82
 photo_cameraImage coming soon 2180740 Ferrule €2.09
83
 photo_cameraImage coming soon 2500280 Curve €10.67
85
 photo_cameraImage coming soon 2500200 Junction €14.15
86
 photo_cameraImage coming soon 42391 Pre-Assembly Head €315.14
87
 photo_cameraImage coming soon 42520 Kit Valve Adjustment €68.01

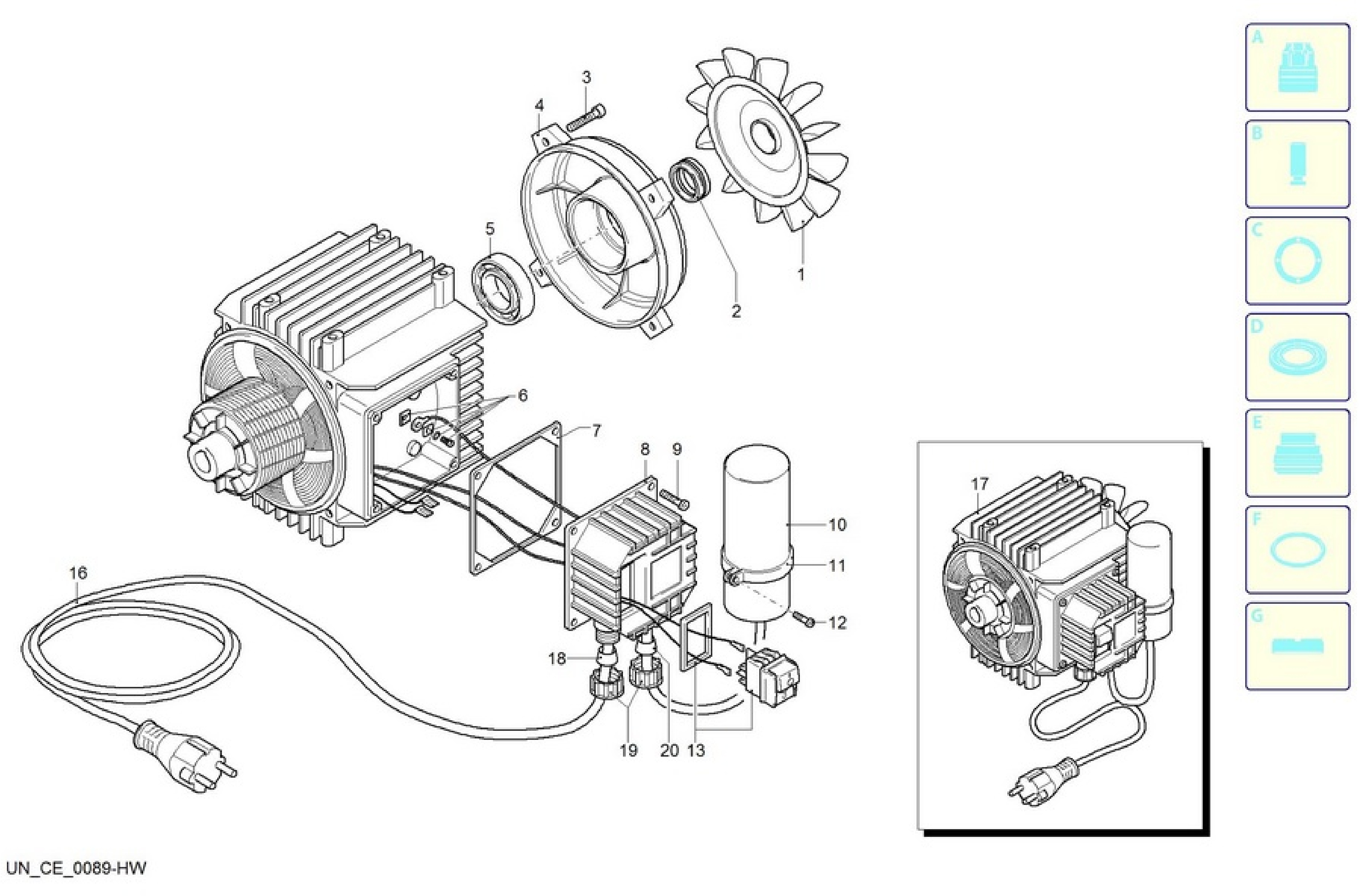

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1260300 Fan €6.15
2
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
4
 photo_cameraImage coming soon 1340320 Shield €21.55
5
 photo_cameraImage coming soon 1340340 Bearing €7.38
6
 photo_cameraImage coming soon 1269100 Clamp €4.00
7
 photo_cameraImage coming soon 1340780 Gasket €2.85
8
 photo_cameraImage coming soon 1340480 Box €6.40
9
 photo_cameraImage coming soon 1261560 Screw €4.67
10
 photo_cameraImage coming soon 1263520 Capacitor €38.65
11
 photo_cameraImage coming soon 1340280 Band €2.02
13
 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 2320280 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 €10.01
16
 photo_cameraImage coming soon 1760450 cable €28.26
17
 photo_cameraImage coming soon 4919 Engine €233.52
18
 photo_cameraImage coming soon 1340660 Fairlead €5.43
19
 photo_cameraImage coming soon 1340640 Ring €6.08
20
 photo_cameraImage coming soon 1340650 Fairlead €5.11

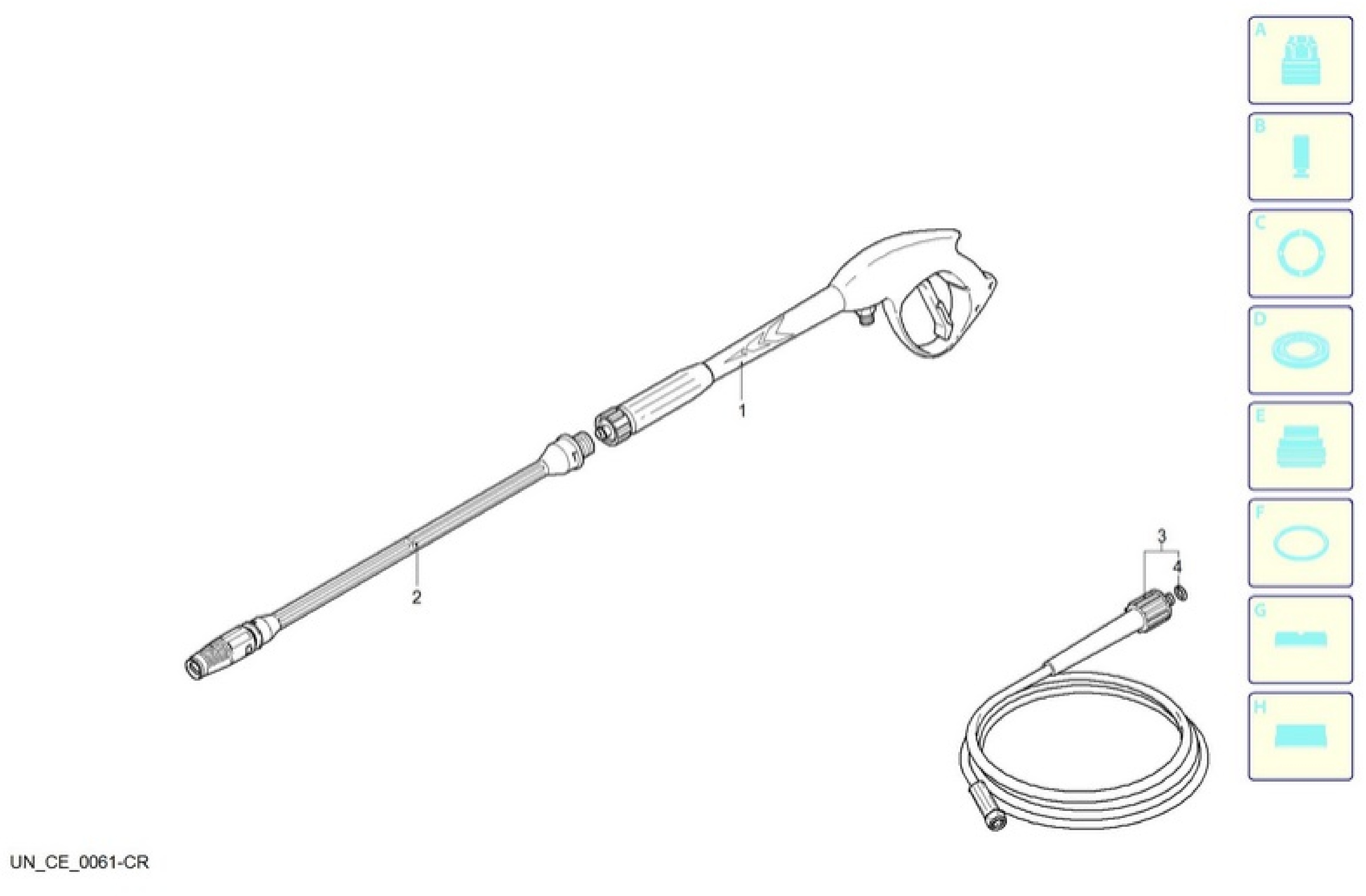

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47
2
 Lance + Lance Head for Pressure Washer A & R Blue Clean 757 40030 Lance + Lance Head for Pressure Washer A & R Blue Clean 757 €25.00
3
 photo_cameraImage coming soon 1271350 High Pressure Hose €135.82
4
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi Parts for Pressure Washer AR757

Annovi Reverberi Genuine spare parts or replacement parts for to fix Pressure Washer Blue Clean AR757 - 12363.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 757 - 12363

Pressure Washer Blue Clean AR757 - 12363
Casing 757 Pag.1
# Part Num. Description
1 2500045 Blue Casing
2 2500340 Stopper
3 2500310 Knob
4 2500050 Hook
5 2500260 Bowl
6 1680880 Washer
7 2500320 Wheel
8 1260780 Screw
9 2500100 Plate
10 320350 Screw
11 2100300 Screw
12 2600100 Gland
13 2100300 Screw
14 2500020 Handle
15 2500130 Rubber
16 880280 Screw
17 2180300 Washer
18 2500120 Axle
19 2500110 Tank
20 2500010 Basis
21 1342040 Fan Cover
22 42113 Pre-Assembly Cap
23 2500330 Pipe Cleaner
24 2500330 Pipe Cleaner
25 2000230 Filter
26 2509000 Pre-Assembly Base
Pump 757 Pag.2
1 1260780 Screw
2 1344060 Cover
3 1040710 O-Ring
4 1260050 Bushing
5 1344050 Pump Housing
7 1340170 Tree
8 880111 Tongue
9 1341070 Bearing
10 480890 Ring
11 111120 Ring
12 1341080 Ring
13 1340060 Piston Rod
14 1340080 Plug
15 1340070 Piston
16 1260460 Oil Seal
17 600180 O-Ring
18 1341010 Disk
19 1342740 Piston
20 1341020 Washer
21 850670 Screw
22 600180 O-Ring
25 1349265 Pre-Assembly Pump
26 1260440 Tenuta Water
27 770260 O-Ring
28 1342730 Piston Guide
29 1342760 Tenuta Water
30 1342720 Ring
31 1342750 Disk
32 1349053 Valve
33 800560 O-Ring
34 390341 O-Ring
35 1343110 O-Ring
36 1342710 Nozzle
37 1460430 O-Ring
38 1460260 Piston
39 1540140 Spring
40 880270 O-Ring
41 1560090 Junction
42 770570 O-Ring
43 2500190 Stopper
44 1461470 Junction
45 1340260 Filter
47 881470 Screw
48 680700 Screw
49 480480 O-Ring
50 1340190 Cover
51 780050 O-Ring
52 620301 Cap
53 1342670 Head
54 851100 Screw
55 1250270 Spring
56 1250280 Sphere
58 3226 Manometer
59 1342700 Office
60 1460430 O-Ring
61 1460150 Piston
62 1343810 Tablet
63 740290 O-Ring
64 1260670 Junction
66 1342680 Cover
67 1381550 Washer
68 1343510 Screw
69 1080190 O-Ring
70 2021900 Piston
71 2500330 Pipe Cleaner
72 1080401 Ring
73 1343450 Disk
74 1460190 Spring
75 1343000 Disk
76 2500400 Insert
77 1060120 Nut
78 2500480 Screw
79 2500210 Knob
80 1343900 Stopper
81 880840 O-Ring
82 2180740 Ferrule
83 2500280 Curve
84 480560 O-Ring
85 2500200 Junction
86 42391 Pre-Assembly Head
87 42520 Kit Valve Adjustment
A 1880 Kit Valves
B 2623 Piston Kit
C 1876 Kit Oil Seals
E 2624 Kit Kept Water
F 2767 Gasket Kit
Engine 757 Pag.3
1 1260300 Fan
2 1340350 Estate
3 1260760 Screw
4 1340320 Shield
5 1340340 Bearing
6 1269100 Clamp
7 1340780 Gasket
8 1340480 Box
9 1261560 Screw
10 1263520 Condenser
11 1340280 Band
12 1260810 Screw
13 2320280 Switch
16 1760450 Cable
17 4919 Engine
18 1340660 Fairlead
19 1340640 Ferrule
20 1340650 Fairlead
Accessories 757 Pag.4
1 40925 Gun
2 40030 Lancia + Head
3 1271350 High Pressure Hose
4 2000770 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 757 - 12363
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS

Specific References

New

Download

Diagram Annovi AR757

Diagram Annovi AR757

Download (565.6KB)

You might also like

Gauge for Pressure Washers Annovi & Reverberi AR757-767
Annovi Reverberi S.p.A. SKU: 3226
Gauge for Pressure Washers Annovi & Reverberi AR757-767
Gauge for Pressure Washers Annovi & Reverberi AR757-767 Original part Annovi & Reverberi, high pressure gauge for pressure washers models Blue Clean PROLINER SV 1310 TSS - S 1308 - XPRO 9.14 - XPRO 9.141...
Last items in stock €27.18
Details
Kit Parts OR for Pressure Washers PROLINER-VIP-AR757/767-HOT
Annovi Reverberi S.p.A. SKU: AR-2767
Kit Parts OR for Pressure Washers PROLINER-VIP-AR757/767-HOT
Kit Parts OR for Pressure Washers PROLINER-VIP-AR757/767-HOT Genuine Parts Annovi & Reverberi, Kit Parts OR for models PROLINER-VIP-AR757/767-HOT. Part for the following products: - PROLINER S 1308 - 12462   - PROLINER S 1308...
AVAILABLE €10.90
Details
Wheel for Pressure Washers AR Farmer's - AR Blu Clean
Annovi Reverberi S.p.A. SKU: 2500320
Wheel for Pressure Washers AR Farmer's - AR Blu Clean
Wheel for Pressure Washers AR Farmer's - AR Blu Clean Original Parts Annovi & Reverberi, Wheel for Pressure Washers ARSG - AR Blu Clean - Michelin. Part for the following items: - ARSG - Models 50 Hz - Proliner Z - 8.150 Z TSS -...
Last items in stock €11.86
Details
Head for Pressure Washer ARSG Vip - 8.130
Annovi Reverberi S.p.A. SKU: 1342670
Head for Pressure Washer ARSG Vip - 8.130
Head for Pressure Washer ARSG Vip - 8.130 Genuine part Annovi & Reverberi, Head for Pressure Washers ARSG Vip - 8.130 - Proliner S - S 1308 - HOT 1308.  Part for the following products:...
Last items in stock €83.47
Details
Valve for Pressure Washer ARSG Proliner S 1308
Annovi Reverberi S.p.A. SKU: 1349053
Valve for Pressure Washer ARSG Proliner S 1308
Valve for Pressure Washer ARSG Proliner S 1308 Original parts Annovi & Rverberi, Valve, for Pressure Washers AR Farmer's Division Proliner S 1308 - VIP 8130 - HOT 1308 Parts for the Following Products: -  Pressure Washer Annovi...
AVAILABLE €7.52
Details
ARSG - AR Pressure Washer Grommet
Annovi Reverberi S.p.A. SKU: 2500130
ARSG - AR Pressure Washer Grommet
ARSG - AR Pressure Washer Grommet Genuine part Annovi Reverberi, Grommet for Pressure Washers ARSG - AR. Part for the following products: - Annovi Reverberi 780 - 22341 - ARSG PROLINER Z 9.160 Z TSS - 12395 - ARSG PROLINER...
AVAILABLE €3.09
Details
AR Spring for Pressure Washer AR589
Annovi Reverberi S.p.A. SKU: 1460190
AR Spring for Pressure Washer AR589
Annovi Reverberi Spring for Pressure Washer AR589 Genuine spare part Annovi Reverberi, Spring for Pressure Washers AR589 - AR757 - AR1001 - AR555. Part for the following products: - Pressure Washer Annovi Reverberi 589 -...
AVAILABLE €3.09
Details
Annovi AR747 Lock Washer
Annovi Reverberi S.p.A. SKU: 1680880
Annovi AR747 Lock Washer
Annovi Washer for Pressure Washer AR747 Genuine replacement part Annovi Reverberi, Lock Washer for Pressure Washer AR747 - AR780. Part for the following items: -  Pressure Washer Annovi Reverberi 747 - 12362 -  Pressure...
AVAILABLE €1.03
Details
Comments (0)
