Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR820

SKU: Annovi Reverberi 820 - 22327
€30.47
VAT included

Annovi & Reverberi Parts for Pressure Washer AR820

We are Annovi & Reverberi original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer AR Blue Clean AR820.

Annovi Reverberi 820 - 22327
Annovi & Reverberi Parts for Pressure Washer AR820
  • Annovi & Reverberi Parts for Pressure Washer AR820
  • Annovi & Reverberi Parts for Pressure Washer AR820
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Pressure Washer AR820

SKU: Annovi Reverberi 820 - 22327 Condition: New
€30.47
VAT included

Annovi & Reverberi Parts for Pressure Washer AR820

We are Annovi & Reverberi original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer AR Blue Clean AR820.

Annovi Reverberi 820 - 22327
settings 119 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
114 spare parts
Esploso pagina 1
Pos. Item Price Buy
25
 photo_cameraImage coming soon 1560320 Piston €22.26
25
 AR Pressure Washer 787 Shutter 2760130 AR Pressure Washer 787 Shutter €6.40
26
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
 photo_cameraImage coming soon 1560051 Junction €21.52
27
 photo_cameraImage coming soon 801080 Screw €4.67
28
 O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
 photo_cameraImage coming soon 1560510 Nut €10.40
29
 photo_cameraImage coming soon 2760330 Head €88.09
34
 photo_cameraImage coming soon 1560490 Hose €7.24
34
 photo_cameraImage coming soon 2760590 Stopper €16.63
40
 photo_cameraImage coming soon 1540020 Collector €24.21
40
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
41
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
41
 photo_cameraImage coming soon 1540120 Washer €5.81
42
 photo_cameraImage coming soon 1540090 Junction €17.83
42
 photo_cameraImage coming soon 640070 O-Ring €4.47
43
 photo_cameraImage coming soon 1560290 Washer €7.62
43
 photo_cameraImage coming soon 2760310 Spacer €5.28
44
 photo_cameraImage coming soon 1260460 oil seal €4.47
44
 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
50
 photo_cameraImage coming soon 1560880 Junction €22.33
50
 photo_cameraImage coming soon 880130 Stopper €6.67
51
 photo_cameraImage coming soon 2760040 Piston €25.76
51
 photo_cameraImage coming soon 40393 Junction €13.66
53
 photo_cameraImage coming soon 1780710 Piston Rod €25.83
53
 photo_cameraImage coming soon 22454 Complete Valve €125.16
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2186 Kit Valves €21.37
B
 photo_cameraImage coming soon 2187 Piston Kit €65.52
C
 photo_cameraImage coming soon 2188 Kit Oil Seals €25.49
E
 photo_cameraImage coming soon 2189 Kit Kept Water €34.02
F
 photo_cameraImage coming soon 2190 Gasket Kit €8.93
G
 photo_cameraImage coming soon 2191 Kit Support Rings €6.22
F
 photo_cameraImage coming soon 2611 Gasket Kit €17.56
1
 photo_cameraImage coming soon 1980300 nut €1.58
1
 photo_cameraImage coming soon 2281640 Handle €125.97
1
 photo_cameraImage coming soon 3082 Nozzle €24.68
2
 photo_cameraImage coming soon 2281630 Frame €249.96
2
 photo_cameraImage coming soon 40541 Lancia + Head Without Nozzle €62.30
3
 photo_cameraImage coming soon 1980390 insert €11.72
3
 photo_cameraImage coming soon 2281700 Knob €18.64
3
 photo_cameraImage coming soon 40650 Lancia + Head €77.48
4
 photo_cameraImage coming soon 1980220 disk €2.13
4
 photo_cameraImage coming soon 2281690 Antivibration €16.63
4
 photo_cameraImage coming soon 41322 Gun €81.51
5
 photo_cameraImage coming soon 1540110 Washer €5.54
5
 photo_cameraImage coming soon 2760410 Spring €3.54
5
 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 380561 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 €30.53
6
 photo_cameraImage coming soon 2760400 Piston €12.80
6
 photo_cameraImage coming soon 3119 High Pressure Tube €283.68
6
 photo_cameraImage coming soon 50016 Stopper €8.16
7
 photo_cameraImage coming soon 2260100 O-Ring €1.29
7
 photo_cameraImage coming soon 320620 Washer €4.67
8
 photo_cameraImage coming soon 200230 Screw €4.81
8
 photo_cameraImage coming soon 660190 O-ring €4.40
9
 photo_cameraImage coming soon 2240110 Nut €5.68
9
 photo_cameraImage coming soon 2760210 Ring €1.58
10
 photo_cameraImage coming soon 2760570 Driving €18.43
10
 photo_cameraImage coming soon 4925 Engine €1,769.13
11
 photo_cameraImage coming soon 1200690 O-ring €4.26
11
 photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
12
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
13
 photo_cameraImage coming soon 1269115 Pre-Assembly Tube €11.20
13
 photo_cameraImage coming soon 2260070 Shutter €15.62
14
 photo_cameraImage coming soon 2180150 Pipe Cleaner €4.47
14
 photo_cameraImage coming soon 2760090 Office €7.17
15
 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
15
 photo_cameraImage coming soon 961900 Screw €5.54
24
 photo_cameraImage coming soon 1560280 Washer €7.49
30
 photo_cameraImage coming soon 1560530 Junction €23.07
38
 photo_cameraImage coming soon 1981580 Ring €4.94
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
16
 photo_cameraImage coming soon 1982520 Hose €6.27
17
 photo_cameraImage coming soon 480480 O-ring €5.63
18
 photo_cameraImage coming soon 1250280 sphere €2.67
19
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
20
 photo_cameraImage coming soon 2760230 Junction €11.62
22
 photo_cameraImage coming soon 1470210 O-ring €1.58
23
 AR780 Injector Insert 2760120 AR780 Injector Insert €3.41
33
 photo_cameraImage coming soon 2760260 Stopper €3.41
35
 Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
36
 photo_cameraImage coming soon 2760220 Ring €4.94
37
 photo_cameraImage coming soon 1342761 Tenuta Water €10.92
39
 photo_cameraImage coming soon 1981570 Piston Guide €8.50
45
 photo_cameraImage coming soon 2760010 Pump Housing €55.85
46
 photo_cameraImage coming soon 1266740 Oil Seal €3.95
47
 photo_cameraImage coming soon 1260790 Ring €1.36
48
 photo_cameraImage coming soon 1780550 Ring €4.87
49
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
52
 photo_cameraImage coming soon 1780050 Plug €6.18
54
 photo_cameraImage coming soon 2760280 O-Ring €5.06
55
 photo_cameraImage coming soon 802190 Screw €4.47
56
 photo_cameraImage coming soon 2760110 Cover €18.59
58
 photo_cameraImage coming soon 1321190 Bearing €14.57
59
 photo_cameraImage coming soon 1321080 Ring €7.98
62
 photo_cameraImage coming soon 2769211 Pre-Assembly Head €230.28
64
 photo_cameraImage coming soon 480671 Ring €11.25
66
 photo_cameraImage coming soon 180030 screw €2.03
67
 photo_cameraImage coming soon 820440 Screw €4.74
68
 photo_cameraImage coming soon 1780920 Tree €117.78
71
 photo_cameraImage coming soon 2760290 Flange €22.62
72
 photo_cameraImage coming soon 2761090 Washer €4.67
73
 photo_cameraImage coming soon 2761080 Junction €14.95
74
 photo_cameraImage coming soon 2760180 Stopper €8.86
79
 photo_cameraImage coming soon 1981780 Knob €2.28
80
 photo_cameraImage coming soon 1080070 plug €2.64
81
 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
82
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
83
 photo_cameraImage coming soon 2500490 Junction €23.39
84
 photo_cameraImage coming soon 740290 O-ring €2.67
85
 photo_cameraImage coming soon 3212 Fitting Kit €20.68
87
 photo_cameraImage coming soon 2760630 Valve €16.36
88
 photo_cameraImage coming soon 1461470 junction €3.26
90
 photo_cameraImage coming soon 40086 Junction €8.16
91
 photo_cameraImage coming soon 23614 Pre-Assembly Pump €557.71
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

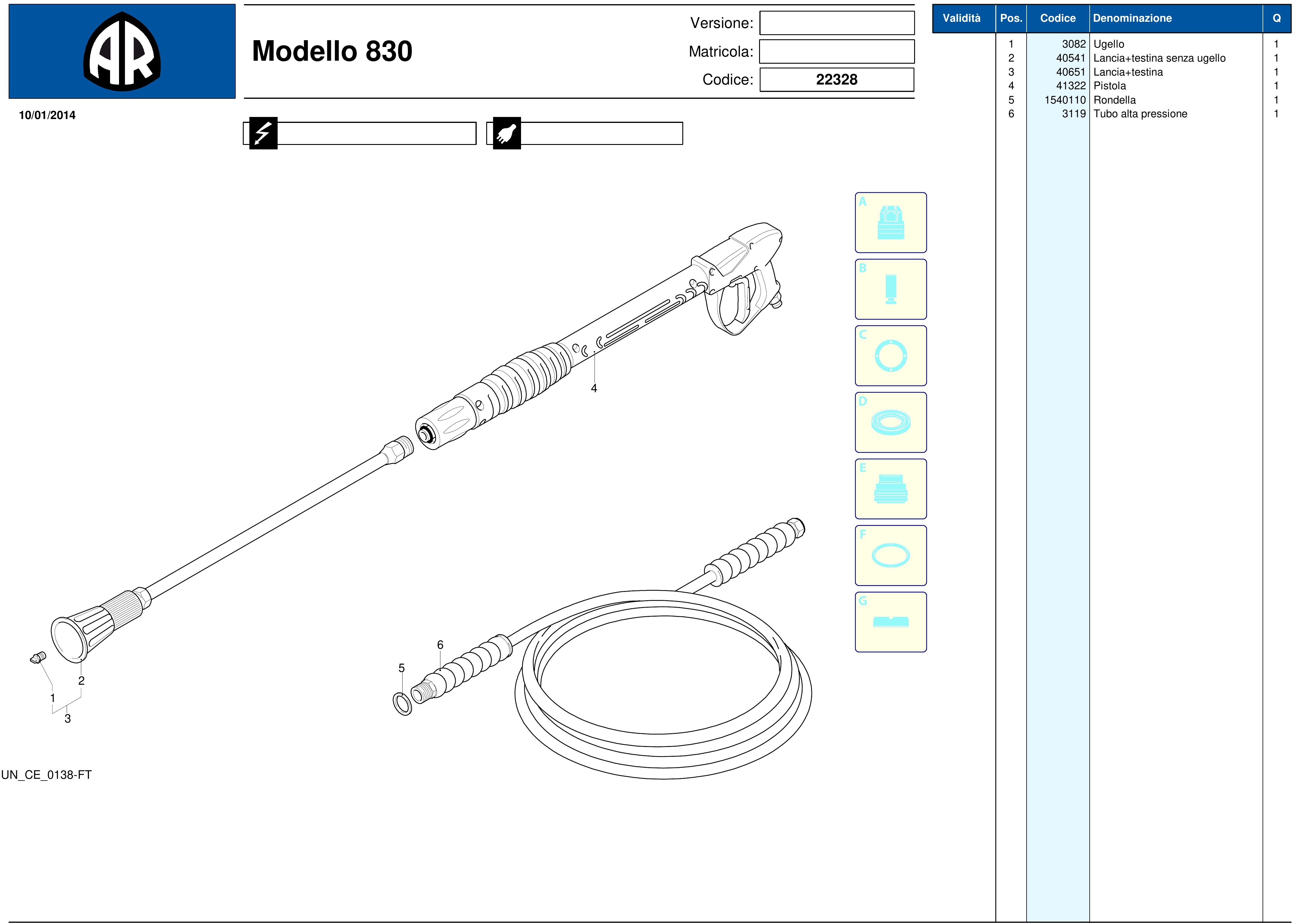

Esploso pagina 4
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Pressure Washer AR820

We are Annovi & Reverberi original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer AR Blue Clean AR820.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 820 - 22327

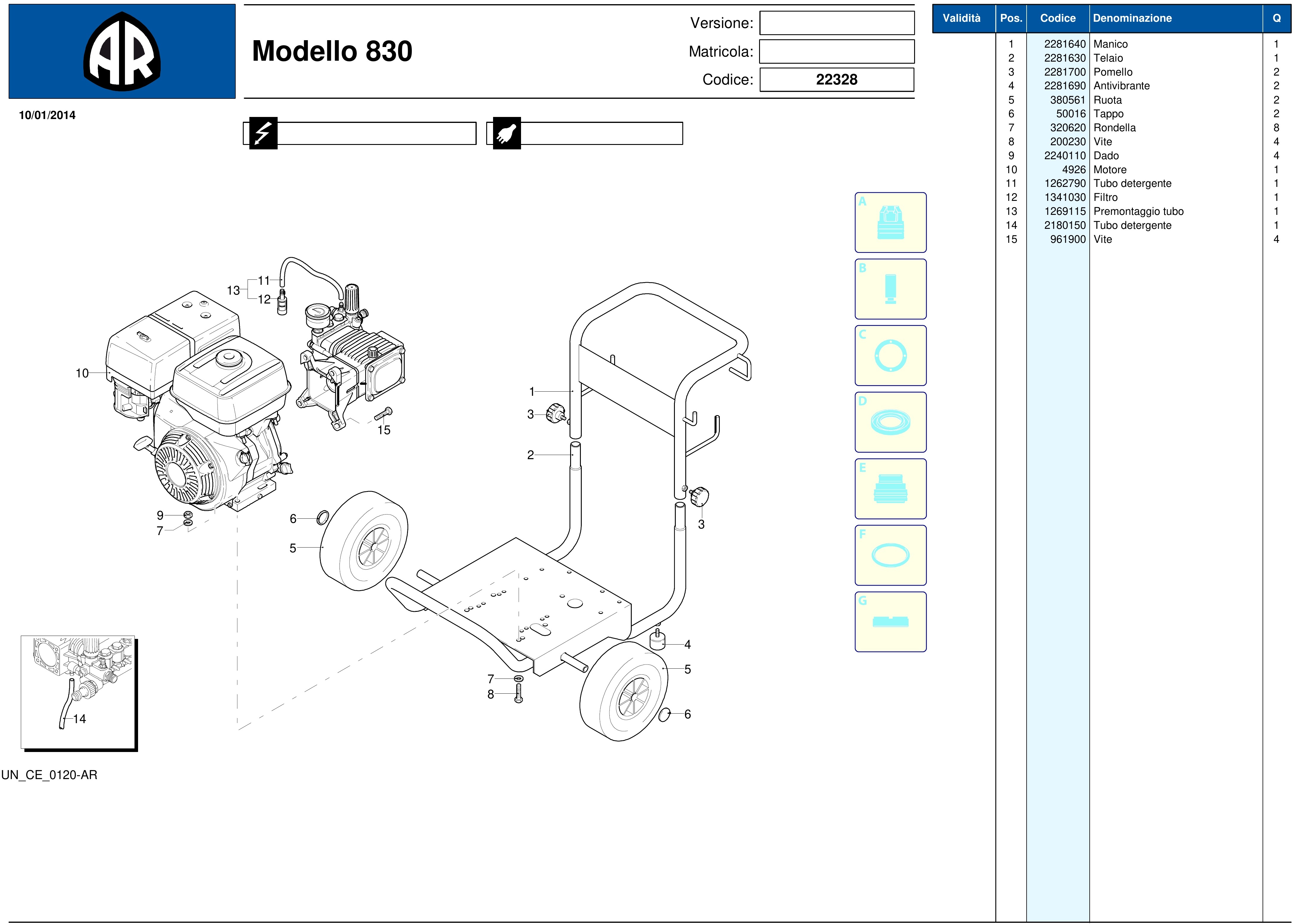

Pressure Washer 820 Casing
# Part Num. Description
1 2281640 Handle
2 2281630 Frame
3 2281700 Knob
4 2281690 Antivibration
5 380561 Wheel
6 50016 Stopper
7 320620 Washer
8 200230 Screw
9 2240110 Nut
10 4925 Engine
11 1262790 Pipe Cleaner
12 1341030 Filter
13 1269115 Pre-Assembly Tube
14 2180150 Pipe Cleaner
15 961900 Screw

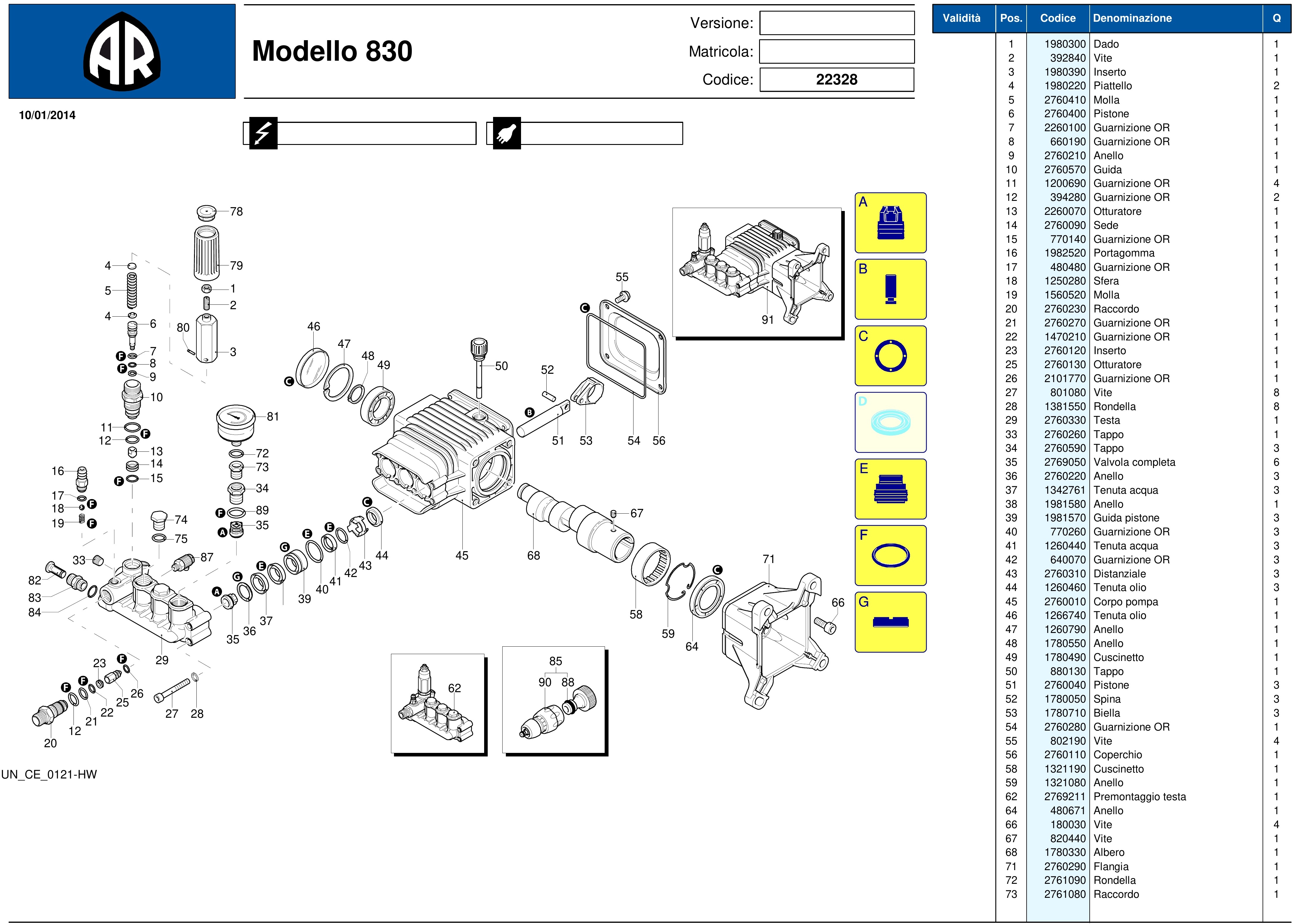

Pump 820
1 1980300 Nut
2 392840 Screw
3 1980390 Insert
4 1980220 Disk
5 2760410 Spring
6 2760400 Piston
7 2260100 O-Ring
8 660190 O-Ring
9 2760210 Ring
10 2760570 Driving
11 1200690 O-Ring
12 394280 O-Ring
13 2260070 Shutter
14 2760090 Office
15 770140 O-Ring
16 1982520 Hose
17 480480 O-Ring
18 1250280 Sphere
19 1560520 Spring
20 2760230 Junction
21 2760270 O-Ring
22 1470210 O-Ring
23 2760120 Insert
25 2760130 Shutter
26 2101770 O-Ring
27 801080 Screw
28 1381550 Washer
29 2760330 Head
33 2760260 Stopper
34 2760590 Stopper
35 2769050 Complete Valve
36 2760220 Ring
37 1342761 Tenuta Water
38 1981580 Ring
39 1981570 Piston Guide
40 770260 O-Ring
41 1260440 Tenuta Water
42 640070 O-Ring
43 2760310 Spacer
44 1260460 Oil Seal
45 2760010 Pump Housing
46 1266740 Oil Seal
47 1260790 Ring
48 1780550 Ring
49 1780490 Bearing
50 880130 Stopper
51 2760040 Piston
52 1780050 Plug
53 1780710 Piston Rod
54 2760280 O-Ring
55 802190 Screw
56 2760110 Cover
58 1321190 Bearing
59 1321080 Ring
62 2769211 Pre-Assembly Head
64 480671 Ring
66 180030 Screw
67 820440 Screw
68 1780920 Tree
71 2760290 Flange
72 2761090 Washer
73 2761080 Junction
74 2760180 Stopper
75 1200690 O-Ring
78 1981770 Stopper
79 1981780 Knob
80 1080070 Plug
81 1381580 Manometer
82 1340260 Filter
83 2500490 Junction
84 740290 O-Ring
85 3212 Fitting Kit
87 2760630 Valve
88 1461470 Junction
89 2761090 Washer
90 40086 Junction
91 23614 Pre-Assembly Pump
A 2186 Kit Valves
B 2187 Piston Kit
C 2188 Kit Oil Seals
E 2189 Kit Kept Water
F 2190 Gasket Kit
G 2191 Kit Support Rings
Accessories 820
1 3082 Nozzle
2 40541 Lancia + Head Without Nozzle
3 40650 Lancia + Head
4 41322 Gun
5 1540110 Washer
6 3119 High Pressure Tube
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Sphere
33 480480 O-Ring
34 1560490 Hose
40 1540020 Collector
41 1540120 Washer
42 1540090 Junction
43 1560290 Washer
44 480440 O-Ring
50 1560880 Junction
51 40393 Junction
52 1340260 Filter
53 22454 Complete Valve
F 2611 Gasket Kit

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Annovi Reverberi 820 - 22327
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Annovi & Reverberi AR820

Diagram Annovi & Reverberi AR820

Download (734.67KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082280 / 3082284
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142
Gun for Pressure Washer Annovi & Reverberi Blue Clean 142 Original parts Annovi & Reverberi, Gun with bayonet Plug for pressure washers Blue Clean 142 - Black & Decker PW 1300 B - SIMPLY 110 TSS. Part for the following products: -...
Last items in stock €20.00
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Annovi Reverberi S.p.A. SKU: 3400260
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590
Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 Genuine parts ANNOVI & REVERBERI, Trigger Gun with plug M22x1,5 mm. Part for the following products: - AR BLU CLEAN 588 - 13027 - AR BLU CLEAN 588 - 13626 - AR BLU...
Last items in stock €25.00
Details
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Annovi Reverberi S.p.A. SKU: 3083070
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490
Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 Genuine spare part Annovi & Reverberi, Lance with plug M22x1,5 mm. Part for the following products: - AR BC - Models 50 Hz - Serie 4 - 490 - 12769 - AR BC - Models 50...
Last items in stock €20.36
Details
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
Annovi Reverberi S.p.A. SKU: 50969
HP Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 388
HP Hose for Pressure Washer Annovi Reverberi Blue Clean AR 388 Genuine part Annovi Reverberi, AP-HP Hose 1/4'' - Diameter MM 15 - Lenght 5.5 Meters PVC, Connection M22x1,5 + Quick Connection for Pressure Washer Annovi Reverberi AR...
Last items in stock €23.00
Details
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Annovi Reverberi S.p.A. SKU: 50972
Detergent Tank for Pressure Washer AR Blue Clean 260-388
Chemical Tank for Pressure Washer AR Blue Clean 260-388 Original parts Annovi & Reverberi, Chemical Tank with Quick Connection and spear bayonet coupling. Part for the following article: - AR Blu Clean 260 - AR Blu Clean 388 -...
Last items in stock €17.95
Details
Valve for Pressure Washers AR 780-787-797-810-820-830-840
Annovi Reverberi S.p.A. SKU: 2769050
Valve for Pressure Washers AR 780-787-797-810-820-830-840
Valve for Pressure Washers AR 780-787-797-810-820-830-840 Genuine Part for Annovi & Reverberi, Valve Assembly for Pressure Washer AR 780/787/797 - AR 810/820/830/840 - AR 6640/6670 - AR 6950/6970 - AR 1001/1003 - AR 1005/1007....
AVAILABLE €6.46
Details
Gauge for Pressure Washers Annovi & Reverberi AR777-787-797
Annovi Reverberi S.p.A. SKU: 3232
Gauge for Pressure Washers Annovi & Reverberi AR777-787-797
Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 Original part Annovi & Reverberi, high pressure gauge for pressure washers models Blue Clean AR 777 - AR 787 - AR 797 - AR 810 - AR 935 - AR 1005 - PROLINER SV 1510...
Last items in stock €34.75
Details
AR Pressure Washer 787 Shutter
Annovi Reverberi S.p.A. SKU: 2760130
AR Pressure Washer 787 Shutter
AR Shutter for Pressure Washer AR 787 Genuine Parts for Annovi & Reverberi, Shutter for Pressure Washer AR787 - ARSG 830 H4S - KDB 940 - PROLINER RS 15.15 RLW. Part for the following products: - Annovi Reverberi 820 - 22327 -...
Last items in stock €6.40
Details
AR780 Injector Insert
Annovi Reverberi S.p.A. SKU: 2760120
AR780 Injector Insert
Annovi Reverberi Injector Insert for Pressure Washer AR780 Genuine part Annovi Reverberi, Injector Insert D.2 for Pressure Washers AR780 - AR797 - DXPW 006 E - MPX 160HDC. Part for the Following Products: - AR Blue Clean...
AVAILABLE €3.41
Details
Annovi Reverberi Spring for AR747
Annovi Reverberi S.p.A. SKU: 1560520
Annovi Reverberi Spring for AR747
Annovi Reverberi Spring for Pressure Washer AR747 Genuine spare part Annovi Reverberi, Spring De 4,55x6,5x0,25 for Pressure Washers AR747 - AR767 - AR945. Part for the following products: -  Pressure Washer XPRO 13.17 M 21295 -...
AVAILABLE €1.02
Details
Comments (0)
