Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure HOT 120

SKU: ARSG HOT 120 - 22835
€23.25
VAT included

AR Farmer's Division Parts for Pressure HOT 120

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer ARSG HOT 120 - 22835.
AR Farmer's Division Parts for Pressure HOT 120
  • AR Farmer's Division Parts for Pressure HOT 120
  • AR Farmer's Division Parts for Pressure HOT 120
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure HOT 120

SKU: ARSG HOT 120 - 22835 Condition: New
€23.25
VAT included

AR Farmer's Division Parts for Pressure HOT 120

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer ARSG HOT 120 - 22835.
settings 120 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
115 spare parts
Esploso pagina 1
Pos. Item Price Buy
10
 photo_cameraImage coming soon 3160510 Fitting €22.16
11
 photo_cameraImage coming soon 3160530 Junction €24.68
12
 photo_cameraImage coming soon 3160540 Valve €60.35
14
 photo_cameraImage coming soon 3162040 Washer €5.85
15
 photo_cameraImage coming soon 3161030 Gasket €9.28
16
 photo_cameraImage coming soon 3160490 Ferrule €8.95
17
 photo_cameraImage coming soon 3161120 Junction €13.46
18
 photo_cameraImage coming soon 3161240 Junction €3.64
19
 photo_cameraImage coming soon 1140690 Band €2.67
Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3163530 Protection €13.93
1
 photo_cameraImage coming soon 50898 Yellow Casing €20.49
2
 photo_cameraImage coming soon 3162010 Ring €8.52
3
 photo_cameraImage coming soon 3160240 Wheel €19.39
4
 photo_cameraImage coming soon 3160230 Tank €290.42
5
 photo_cameraImage coming soon 50933 Cork €10.88
6
 photo_cameraImage coming soon 3163520 Yellow Bonnet €269.45
7
 photo_cameraImage coming soon 3160010 Stirrup €8.33
9
 photo_cameraImage coming soon 3160020 Stirrup €8.33
10
 photo_cameraImage coming soon 3160220 Plate €778.20
11
 photo_cameraImage coming soon 3163580 Knob €18.07
12
 photo_cameraImage coming soon 1680960 washer €1.51
Page 2 zoom_in View exploded

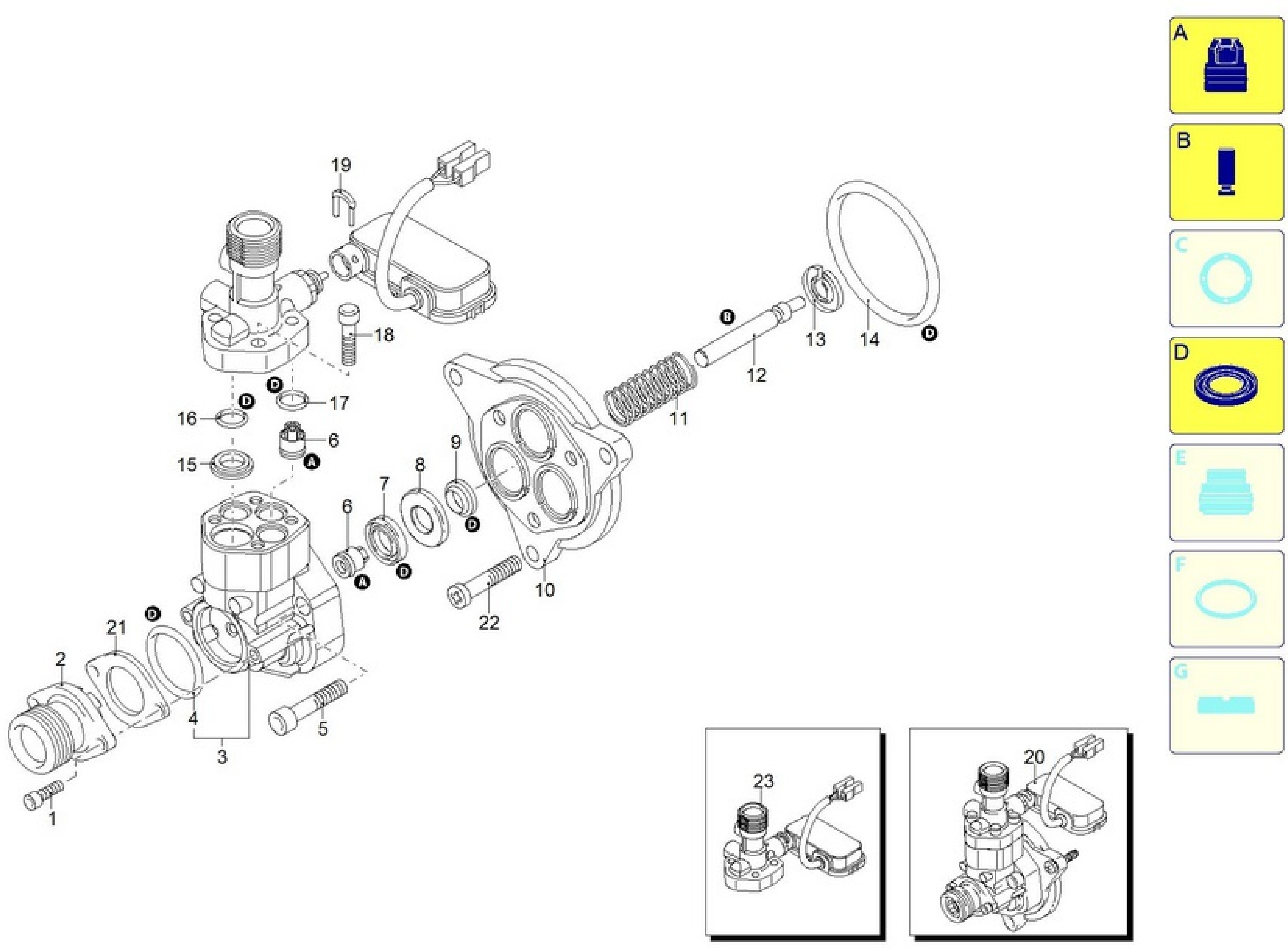

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2101000 Screw €4.80
2
 photo_cameraImage coming soon 2100540 Junction €5.28
3
 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 2122 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 €19.40
4
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
6
 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS 2109050 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS €2.41
7
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
8
 Holder Seal for Pressure Washer AR BC Serie 1 - 2 2020041 Holder Seal for Pressure Washer AR BC Serie 1 - 2 €1.40
9
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
10
 photo_cameraImage coming soon 2100030 Piston Guide €12.30
11
 photo_cameraImage coming soon 2561120 Spring €5.21
12
 photo_cameraImage coming soon 2100130 Piston €9.67
13
 photo_cameraImage coming soon 2020140 Ring €5.00
14
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
15
 photo_cameraImage coming soon 2560480 Bushing €1.40
16
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
17
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
19
 photo_cameraImage coming soon 2021960 Fork €4.94
21
 photo_cameraImage coming soon 2101450 Flange €6.77
22
 photo_cameraImage coming soon 2100960 Screw €4.41
Page 3 zoom_in View exploded
Esploso pagina 3
Pos. Item Price Buy
1
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
2
 Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410 1682640 Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410 €15.03
3
 photo_cameraImage coming soon 2102170 Disk €12.51
4
 photo_cameraImage coming soon 2109270 Pre-Assembly Body Pump €26.29
5
 photo_cameraImage coming soon 2100110 Fairlead €5.09
6
 photo_cameraImage coming soon 2100980 Screw €4.53
7
 photo_cameraImage coming soon 2020850 Washer €5.08
8
 photo_cameraImage coming soon 1680250 Fan €7.11
9
 photo_cameraImage coming soon 44210 Engine €137.86
10
 photo_cameraImage coming soon 2102110 Conveyor €12.81
11
 photo_cameraImage coming soon 22760 Pre-Installing Pump €336.14
12
 photo_cameraImage coming soon 3162900 Pressure Switch €59.35
Page 4 zoom_in View exploded
Esploso pagina 4
Pos. Item Price Buy
B
 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 2508 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 €16.82
A
 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker 2574 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker €9.62
D
 photo_cameraImage coming soon 42421 Kit Held €12.74
1
 photo_cameraImage coming soon 3160410 Tube €40.82
2
 photo_cameraImage coming soon 3160420 Tube €51.32
3
 photo_cameraImage coming soon 3160430 Fitting €36.89
4
 photo_cameraImage coming soon 3161150 Fitting €11.28
5
 photo_cameraImage coming soon 3160460 Tube €58.87
6
 photo_cameraImage coming soon 3161180 Fitting €11.28
7
 photo_cameraImage coming soon 3160480 Fitting €16.62
8
 photo_cameraImage coming soon 50713 Filter €10.53
9
 photo_cameraImage coming soon 1461470 junction €3.26
Page 5 zoom_in View exploded
Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3160270 Casing €27.70
2
 photo_cameraImage coming soon 3160280 Fan €24.93
3
 photo_cameraImage coming soon 3160290 Cover €44.20
4
 photo_cameraImage coming soon 50718 Engine €216.92
5
 photo_cameraImage coming soon 3160300 Coupling €8.52
6
 photo_cameraImage coming soon 3160310 Pump €141.04
7
 photo_cameraImage coming soon 3160320 Solenoid €44.36
8
 photo_cameraImage coming soon 3160330 Fitting €11.28
9
 photo_cameraImage coming soon 3160340 Hose €5.36
10
 photo_cameraImage coming soon 3160350 Tube €5.71
11
 photo_cameraImage coming soon 3161520 Filter €8.52
12
 photo_cameraImage coming soon 3160360 Tube €16.62
13
 photo_cameraImage coming soon 3163600 Tube €5.71
14
 photo_cameraImage coming soon 3161440 Cable €8.80
15
 photo_cameraImage coming soon 3163540 Screw €1.56
16
 photo_cameraImage coming soon 3163590 Plate €8.52
17
 photo_cameraImage coming soon 3162060 Band €7.51
18
 photo_cameraImage coming soon 3163920 Band €41.43
Page 6 zoom_in View exploded
Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1272600 Cable €25.01
2
 photo_cameraImage coming soon 3160380 Box €56.73
3
 photo_cameraImage coming soon 3160390 Cover €65.16
4
 photo_cameraImage coming soon 50721 Switch €38.67
5
 photo_cameraImage coming soon 3160450 Horn €82.25
6
 photo_cameraImage coming soon 3160860 Fairlead €11.15
7
 photo_cameraImage coming soon 3163610 Stirrup €39.14
8
 photo_cameraImage coming soon 3163750 Fuse €5.71
9
 photo_cameraImage coming soon 3163720 Fuse Holder €11.28
Page 7 zoom_in View exploded

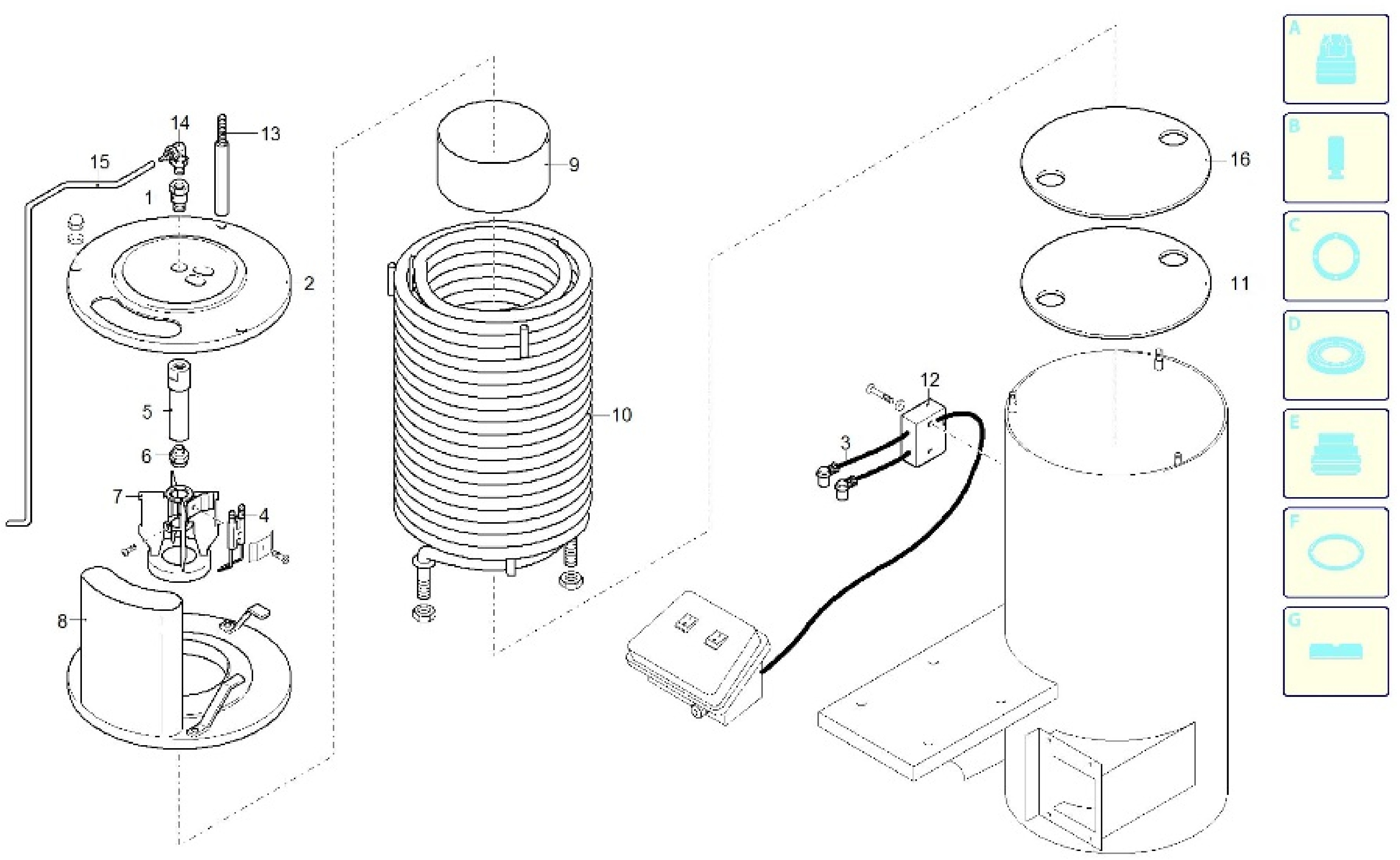

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3161230 Fitting €4.67
2
 photo_cameraImage coming soon 3163360 Cover €55.29
3
 Cable Danfoss-Fida for Pressure Washers ARSG HOT 1308 - 1309 3162240 Cable Danfoss-Fida for Pressure Washers ARSG HOT 1308 - 1309 €33.76
3
 photo_cameraImage coming soon 3163370 Cable Brahma €34.34
4
 photo_cameraImage coming soon 3161880 Electrode €31.92
5
 photo_cameraImage coming soon 3161870 The Nozzle Holder €13.86
6
 photo_cameraImage coming soon 50724 Nozzle €59.19
7
 photo_cameraImage coming soon 3161560 Support €74.79
8
 photo_cameraImage coming soon 3163400 Cover €118.68
9
 photo_cameraImage coming soon 3163410 Ring €27.70
10
 photo_cameraImage coming soon 3163420 Resistance €351.82
11
 Annovi Reverberi Disc for AR BC4550 3163430 Annovi Reverberi Disc for AR BC4550 €69.60
12
 photo_cameraImage coming soon 3163220 Transformer Brahma €126.60
12
 photo_cameraImage coming soon 50717 Transformer Danfoss / Fida €120.57
13
 photo_cameraImage coming soon 3160400 Extension €22.16
14
 photo_cameraImage coming soon 3163340 Junction €11.28
15
 photo_cameraImage coming soon 3163330 Tube €14.69
16
 photo_cameraImage coming soon 3164420 Disk €33.24
Page 8 zoom_in View exploded

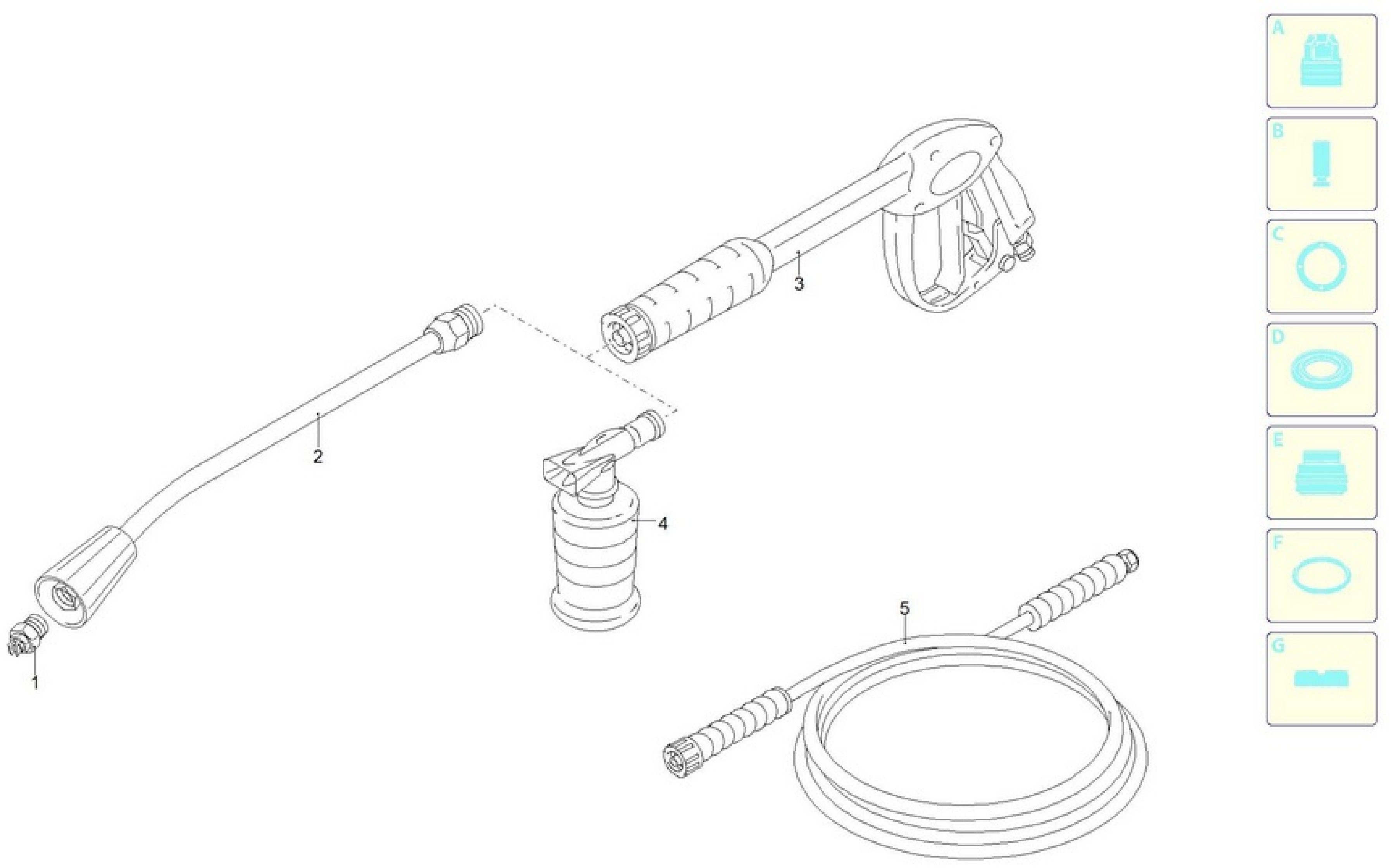

Esploso pagina 8
Pos. Item Price Buy
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
1
 photo_cameraImage coming soon 3729 Nozzle €22.63
2
 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division 50690 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division €18.18
3
 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division 41047 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division €45.96
4
 photo_cameraImage coming soon 40320 Tank €23.29
5
 photo_cameraImage coming soon 50689 High Pressure Hose €108.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure HOT 120

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer ARSG HOT 120 - 22835.

In the following tables, look for the spare part and its respective code.
Pressure Washer ARSG HOT 120 - 22835

Pressure Washer ARSG HOT 120 - 22835

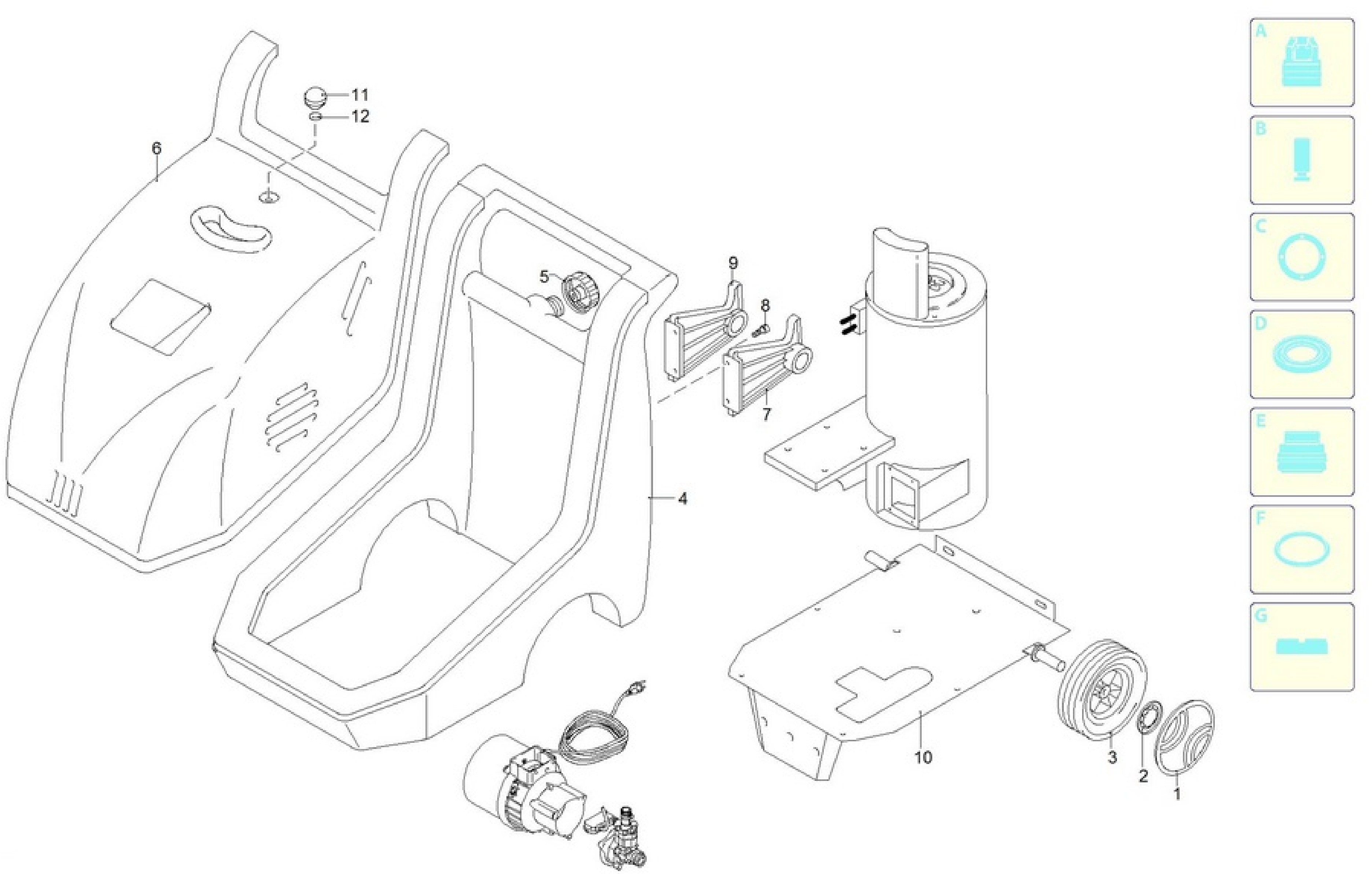

Casing HOT 120 - 22835 Pag.1
# Part NUm. Description
1 3163530 Protection
1 50898 Yellow Casing
2 3162010 Ring
3 3160240 Wheel
4 3160230 Tank
5 50933 Cork
6 3163520 Yellow Bonnet
7 3160010 Stirrup
8 1681080 Screw
9 3160020 Stirrup
10 3160220 Plate
11 3163580 Knob
12 1680960 Washer
Pump HOT 120 - 22835 Pag.2
1 2101000 Screw
2 2100540 Junction
3 2122 Head + OR
4 550350 O-Ring
5 850850 Screw
6 2109050 Valve
7 2200141 Watertight
8 2020041 Ring
9 1683500 Oil Seal
10 2100030 Piston Guide
11 2561120 Spring
12 2100130 Piston
13 2020140 Ring
14 850840 O-Ring
15 2560480 Bush
16 394280 O-Ring
17 880840 O-Ring
18 1260760 Screw
19 2021960 Fork
20 42420 Pre-Installing Pump TSS
21 2101450 Flange
22 2100960 Screw
23 2264 Pre-Assembly Fitting
A 2574 Valve Kit
B 2508 Piston Kit
D 42421 Kit Held

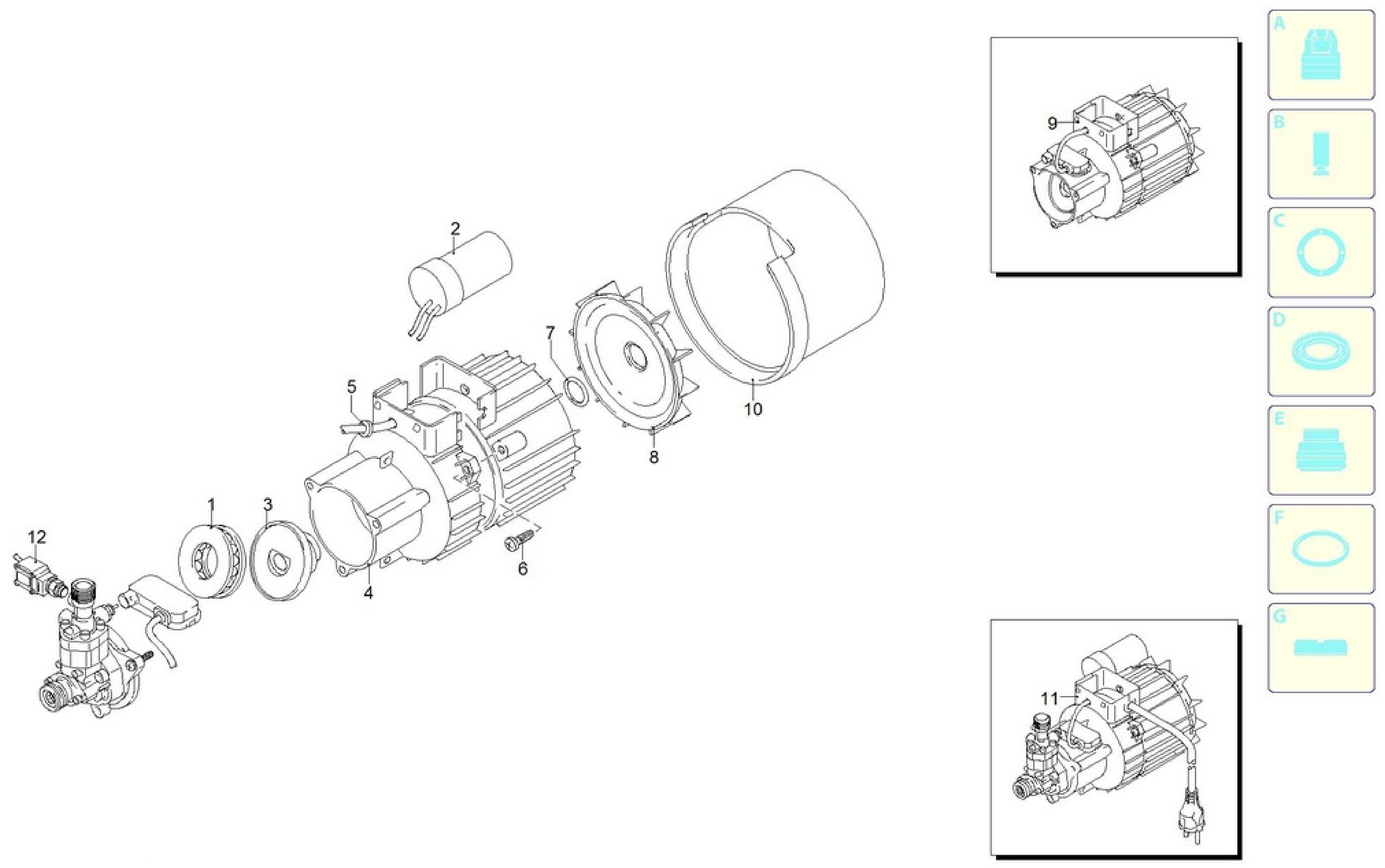

Engine HOT 120 - 22835 Pag.3
1 2021570 Bearing
2 1682640 Capacitor
3 2102170 Disk
4 2109270 Pre-Installing The Pump Body
5 2100110 Fairlead
6 2100980 Screw
7 2020850 Washer
8 1680250 Fan
9 44210 Engine
10 2102110 Conveyor
11 22760 Pre-Installing Pump
12 3162900 Pressure Switch

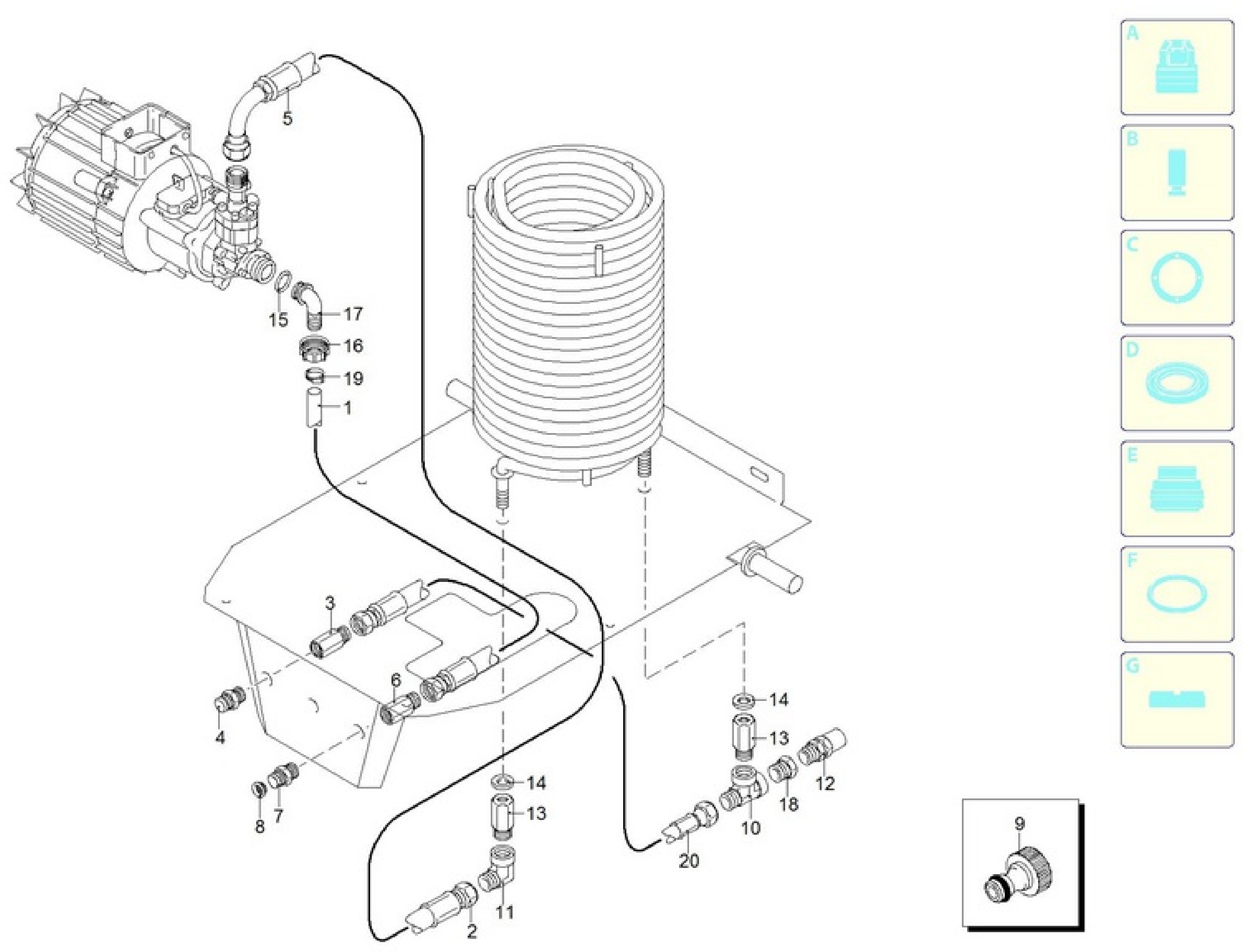

Water Circuit HOT 120 - 22835 Pag.4
1 3160410 Tube
2 3160420 Tube
3 3160430 Junction
4 3161150 Junction
5 3160460 Tube
6 3161180 Junction
7 3160480 Junction
8 50713 Filter
9 1461470 Junction
10 3160510 Junction
11 3160530 Junction
12 3160540 Valve
13 3160430 Junction
14 3162040 Washer
15 3161030 Gasket
16 3160490 Ferrule
17 3161120 Junction
18 3161240 Junction
19 1140690 Band
20 3160420 Tube

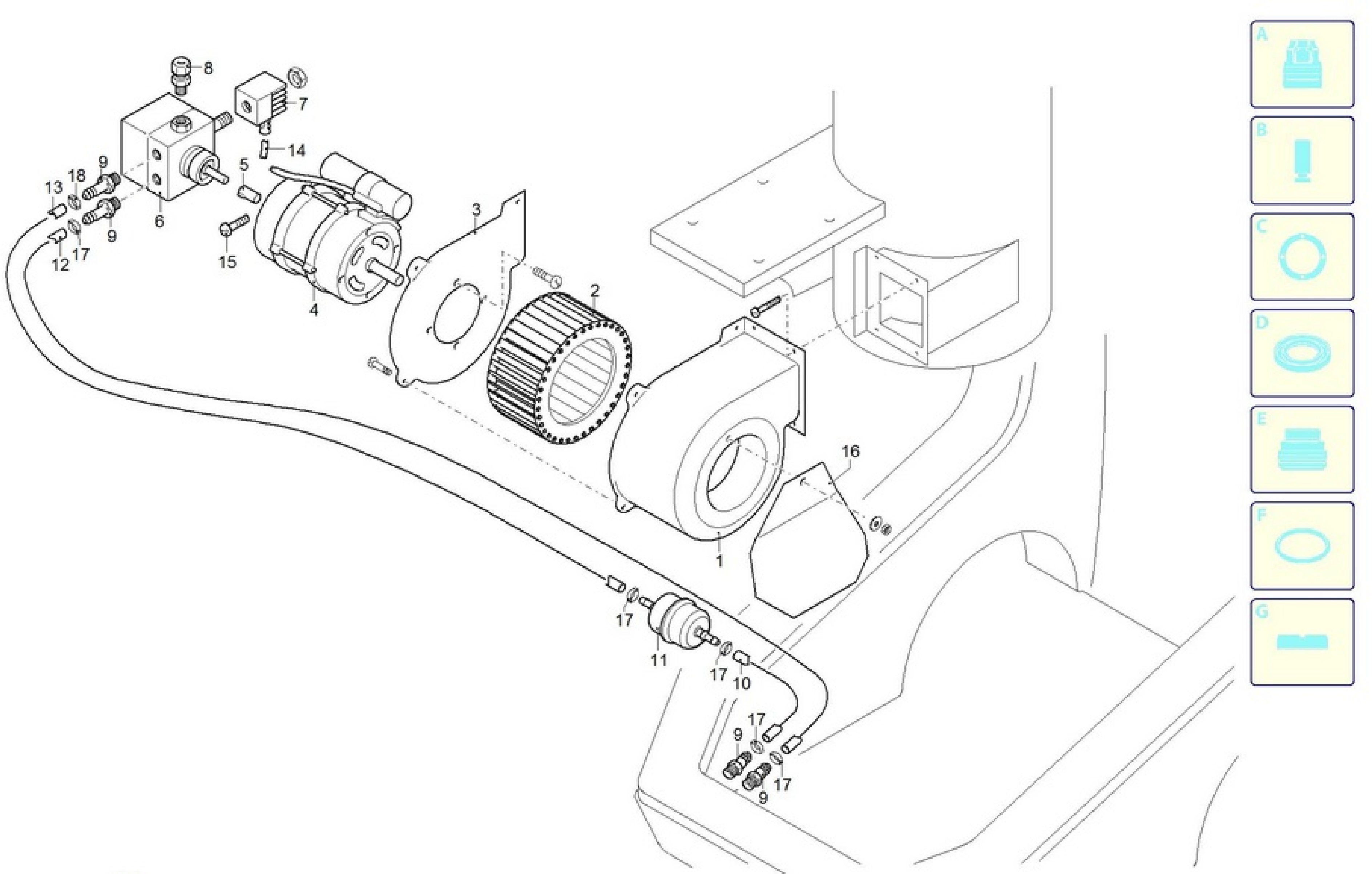

Fuel Circuit HOT 120 - 22835 Pag.5
1 3160270 Casing
2 3160280 Fan
3 3160290 Cover
4 50718 Engine
5 3160300 Coupling
6 3160310 Pump
7 3160320 Solenoid
8 3160330 Junction
9 3160340 Hose
10 3160350 Tube
11 3161520 Filter
12 3160360 Tube
13 3163600 Tube
14 3161440 Cable
15 3163540 Screw
16 3163590 Plate
17 3162060 Band
18 3163920 Band

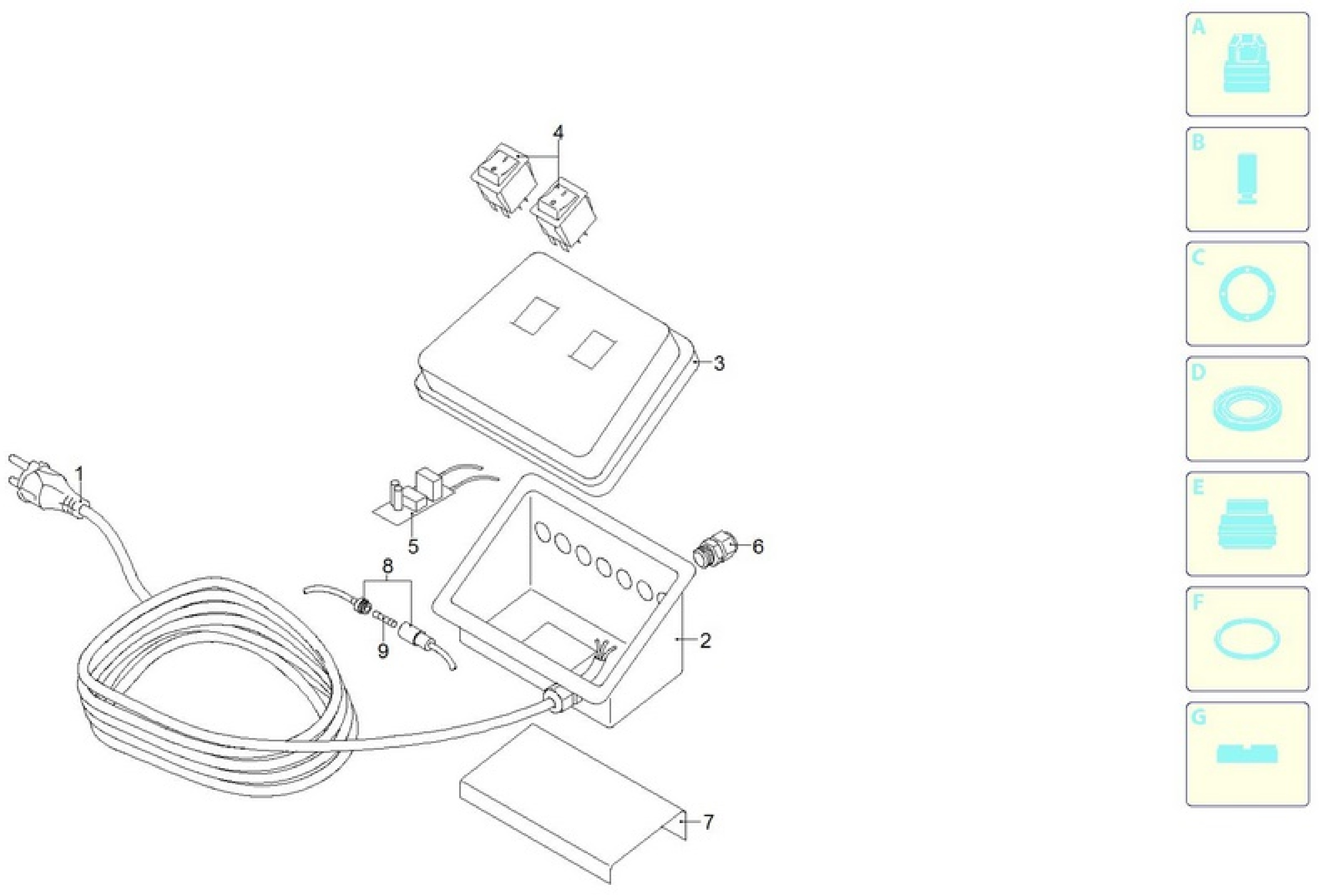

Electric Circuit HOT 120 - 22835 Pag.6
1 1272600 Cable
2 3160380 Box
3 3160390 Cover
4 50721 Switch
5 3160450 Horn
6 3160860 Fairlead
7 3163610 Stirrup
8 3163750 Fuse
9 3163720 Fuse Holder
Boiler HOT 120 - 22835 Pag.7
1 3161230 Jnction
2 3163360 Cover
3 3162240 Danfoss / Fida cable
3 3163370 Cable Brahma
4 3161880 Electrode
5 3161870 Nozzle Holder
6 50724 Nozzle
7 3161560 Support
8 3163400 Cover
9 3163410 Ring
10 3163420 Resistance
11 3163430 Disk
12 3163220 Transformer Brahma
12 50717 Transformer Danfoss / Fida
13 3160400 Extension
14 3163340 Junction
15 3163330 Tube
16 3164420 Disk
Accessories HOT 120 - 22835 Pag.8
1 3729 Nozzle
2 50690 Lance
3 41047 Gun
4 40320 Tank
5 50689 High Pressure Hose
2000570 OR 10x2 Parker
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG HOT 120 - 22835
12 Items

Specific References

New

Download

Diagram AR Farmer's HOT 120

Diagram AR Farmer's HOT 120

Download (684.75KB)

You might also like

Water Cleaning Hose
Ferritalia SKU: DES91914
Hight Pressure Washers Hose 8 mt
Hight Pressure Washers Hose 8 mt Original spare part for high pressure washer with a maximum pressure of about 180 bar. - Diameter connections F-F: M14x1,5 mm - Max Pressure: 18 MPa - about 180 bar - Maximum temperature: 60 ° C. -...
Last items in stock €32.35
Details
Water Cleaning Hose
Valex s.p.a. SKU: 1520117
Hight Pressure Washers Hose 7,5 mt
Hight Pressure Washers Hose 7,5 mt Original spare part for high pressure washer with a maximum pressure of about 300 bar. Part for the following products:  - HIGHT PRESSURE HOSE FOR PRESSURE WASHER CARRY 2500 - Tech Info: -...
Last items in stock €36.30
Details
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Annovi Reverberi S.p.A. SKU: 2508
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 Original part Annovi & Rverberi, Piston Kit S.210 for Pressure Washers Series HOT - HOT 120 - 1106 - Event - 131 N TSS - Event - 141 N TSS PRO - Event...
AVAILABLE €16.82
Details
Pump Bearing for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 2021570
Pump Bearing for Pressure Washer AR2590
Pump Bearing for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Pump Bearing for Pressure Washer Annovi & Reverberi AR BC - Model 50 Hz - Series 25 - 2590 - 24424. Parts For the Following Products: - AR BC - 50 Hz...
Last items in stock €9.62
Details
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Annovi Reverberi S.p.A. SKU: 1683500
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG Genuine Part for Annovi & Reverberi, Oil Seal mm 12x2x5/7" for Pressure Washers ARSG EVENT - EXTREME - MR CLEAN - NRG - PRO CLEAN...
AVAILABLE €2.54
Details
Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410
Annovi Reverberi S.p.A. SKU: 1682640
Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410
Capacitor 25 μF 425V for Pressure Washer AR Blu Clean 410 Genuine part Annovi & Reverberi, 25 μF 425V - 10000h/cl.B - 475V 3000 h/cl.C, Capacitor for Pressure Washers AR BC Series 4 - 410 - Series 15 - 1550 - Series 25 - 2550....
AVAILABLE €15.03
Details
Cable Danfoss-Fida for Pressure Washers ARSG HOT 1308 - 1309
Annovi Reverberi S.p.A. SKU: 3162240
Cable Danfoss-Fida for Pressure Washers ARSG HOT 1308 - 1309
Cable Danfoss-Fida for Pressure Washers ARSG HOT 1308 - 1309 Genuine Part Annovi & Reverberi, Cable Danfoss-Fida for Pressure Washers ARSG HOT 1308 - 23537 - HOT 1309 - 23112. Part for the following items:  -  Pressure Washer HOT...
Last items in stock €33.76
Details
AR O RING for Pressure Washer AR8880
Annovi Reverberi S.p.A. SKU: 550350
AR O-RING for Pressure Washer AR8880
AR O-RING for Pressure Washer AR8880 Genuine spare part Annovi Reverberi, O-RING for Pressure Washers AR8880 - AR8840 - AR8860 - AR1120. Part for the following products: -  Pressure Washer Annovi Reverberi 8880 - 22915 - ...
AVAILABLE €0.62
Details
Annovi Reverberi Disc for AR BC4550
Annovi Reverberi S.p.A. SKU: 3163430
Annovi Reverberi Disc for AR BC4550
Annovi Reverberi Rigid Disc for AR BC4550 Genuine replacement part Annovi Reverberi, Heat Resistant Rigid Disc for Pressure Washer AR BC4550. Part for the following items: -  ARSG HOT 120 - 22835 -  ARSG HOT 1106...
Last items in stock €69.60
Details
Comments (0)
