Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure FRESH FOG - 13672

SKU: ARSG FRESH FOG - 13672
€23.25
VAT included

AR Farmer's Division Parts for Pressure FRESH FOG - 13672

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models FRESH FOG - 13672.
AR Farmer's Division Parts for Pressure FRESH FOG
  • AR Farmer's Division Parts for Pressure FRESH FOG
  • AR Farmer's Division Parts for Pressure FRESH FOG - 13672
  • AR Farmer's Division Parts for Pressure FRESH FOG - 13672
  • AR Farmer's Division Parts for Pressure FRESH FOG - 13672
  • AR Farmer's Division Parts for Pressure FRESH FOG - 13672
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure FRESH FOG - 13672

SKU: ARSG FRESH FOG - 13672 Condition: New
€23.25
VAT included

AR Farmer's Division Parts for Pressure FRESH FOG - 13672

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models FRESH FOG - 13672.
settings 42 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

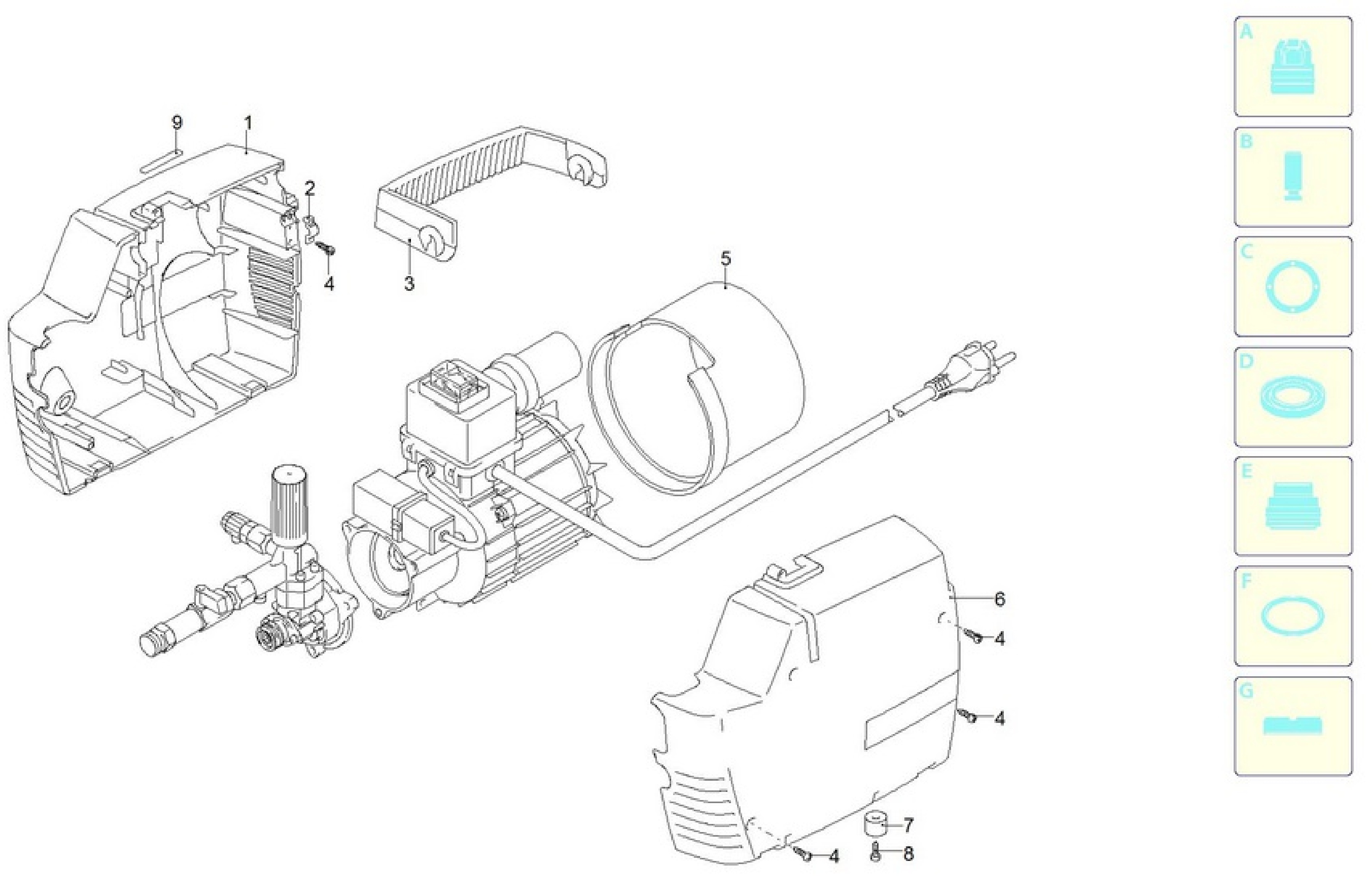

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1263020 Clamp €4.67
5
 photo_cameraImage coming soon 2100070 Conveyor €1.71
8
 photo_cameraImage coming soon 2100300 screw €4.72
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

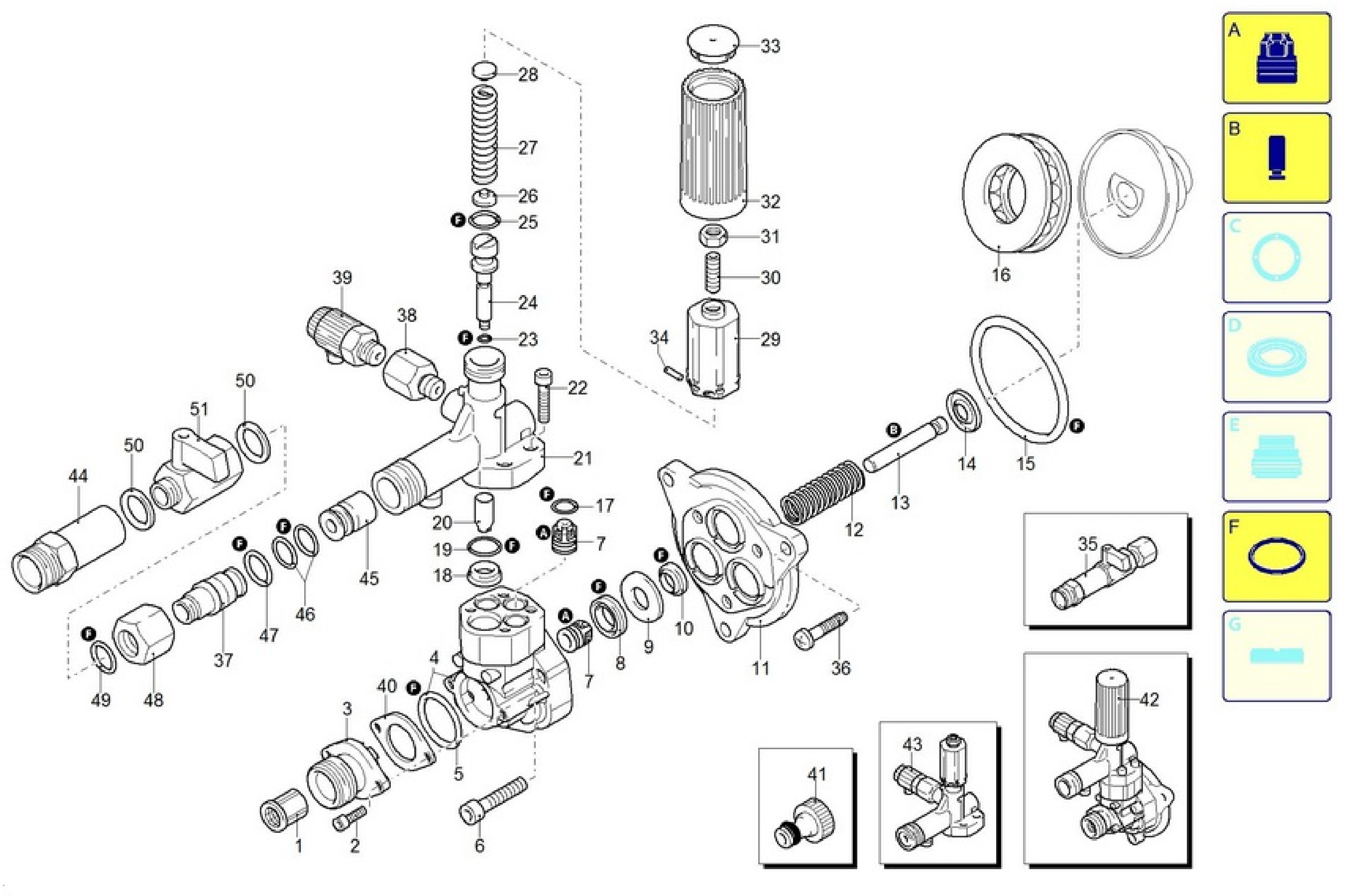

Esploso pagina 2
Pos. Item Price Buy
B
 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 2508 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 €16.82
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
3
 photo_cameraImage coming soon 2100540 Junction €5.28
4
 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 2122 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 €19.40
5
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
8
 Water Seal for Pressure Washers ARSG FRESH FOG 2200140 Water Seal for Pressure Washers ARSG FRESH FOG €1.37
9
 AR Seal Support Ring D.12 2020040 AR Seal Support Ring D.12 €5.14
10
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
11
 photo_cameraImage coming soon 2100030 Piston Guide €12.30
12
 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS 2020150 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS €6.90
13
 photo_cameraImage coming soon 2100130 Piston €9.67
14
 photo_cameraImage coming soon 2020140 Ring €5.00
15
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
16
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
17
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
18
 photo_cameraImage coming soon 2020481 Office €8.66
19
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
20
 photo_cameraImage coming soon 1460150 Piston €6.43
46
 photo_cameraImage coming soon 800560 O-ring €1.59
47
 photo_cameraImage coming soon 391000 O-Ring €4.73
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2100280 Headphones €5.13
2
 photo_cameraImage coming soon 2102070 Switch €12.38
3
 AR Capacitor Box for AR 111 2100060 AR Capacitor Box for AR 111 €6.13
da 2 pz: €0.50
4
 Annovi Reverberi O-Ring for Pressure Washer 2590 390201 Annovi Reverberi O-Ring for Pressure Washer 2590 €0.87
5
 photo_cameraImage coming soon 1683790 Capacitor €9.26
6
 photo_cameraImage coming soon 1262400 washer €1.73
7
 photo_cameraImage coming soon 2020570 screw €1.59
9
 photo_cameraImage coming soon 2109204 Pre-Installing The Pump Body €13.55
10
 photo_cameraImage coming soon 2102050 Box €5.70
11
 photo_cameraImage coming soon 1462900 Cable Sleeve €2.19
16
 photo_cameraImage coming soon 2102060 Box €5.70
17
 photo_cameraImage coming soon 2100980 Screw €4.53
18
 photo_cameraImage coming soon 2100110 Fairlead €5.09
19
 photo_cameraImage coming soon 2200090 Cable €16.03
20
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
21
 photo_cameraImage coming soon 2020850 Washer €5.08
22
 photo_cameraImage coming soon 1680250 Fan €7.11
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

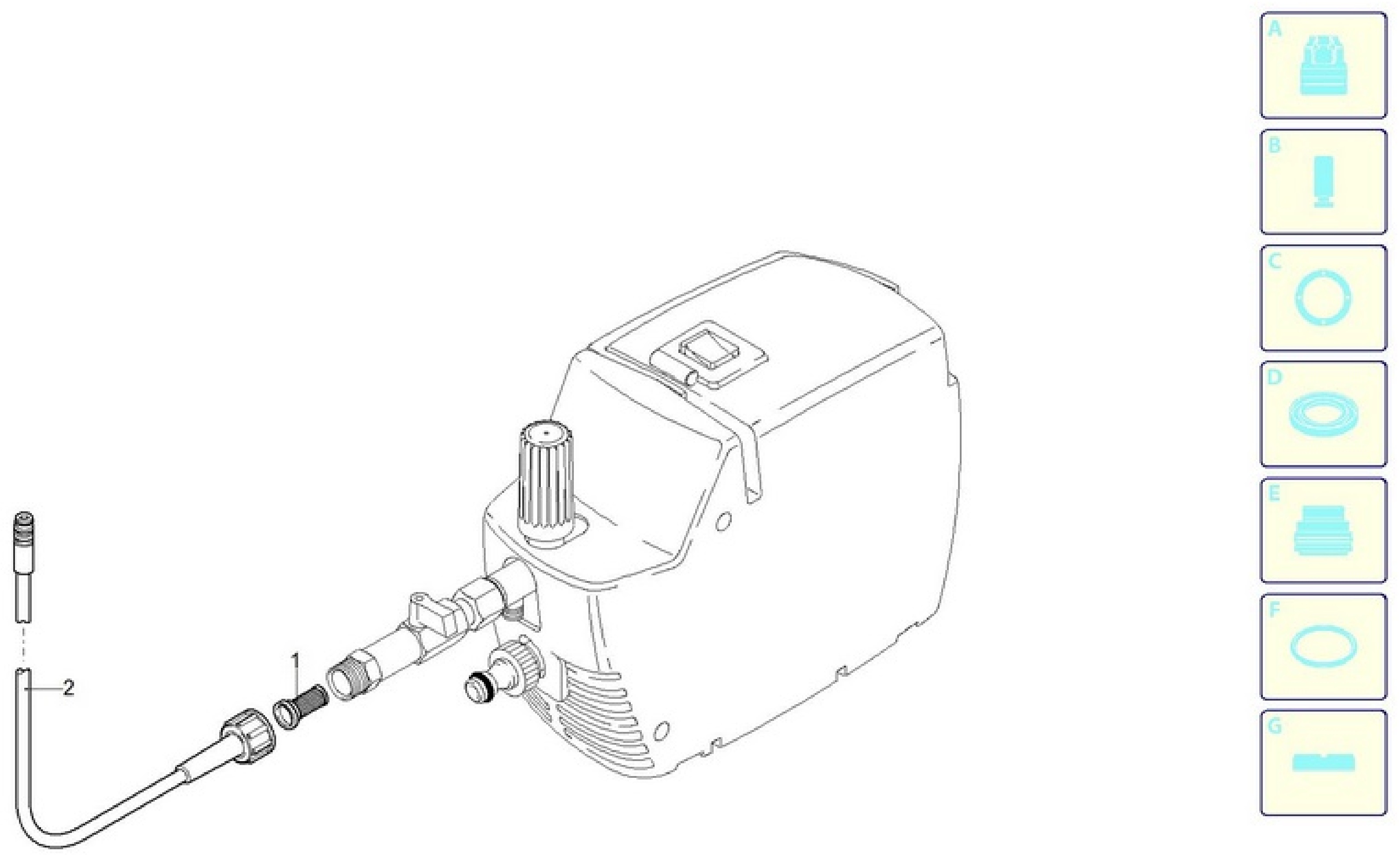

Esploso pagina 4
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure FRESH FOG - 13672

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models FRESH FOG - 13672.

In the following tables, look for the spare part and its respective code.
FRESH FOG - 13672

Casing FRESH FOG - 13672 Pag.1
1 2100505 Green Casing
2 1263020 Clamp
3 2100510 Handle
4 2000110 Screw
5 2100070 Conveyor
6 2100495 Green Bonnet
7 2102010 Antivibration
8 2100300 Screw
9 2102400 Gasket
Pump FRESH FOG - 13672 Pag.2
1 1340260 Filter
2 2101090 Screw
3 2100540 Junction
4 2122 Head + OR
5 550350 O-Ring
6 850850 Screw
7 2109052 Valve
8 2200140 Watertight
9 2020040 Ring
10 1683500 Oil Seal
11 2100030 Piston Guide
12 2020150 Spring
13 2100130 Piston
14 2020140 Ring
15 850840 O-Ring
16 2021570 Bearing
17 880840 O-Ring
18 2020481 Venue
19 394280 O-Ring
20 1460150 Piston
21 2021810 Junction
22 1260760 Screw
23 1080190 O-Ring
24 2021900 Piston
25 600180 O-Ring
26 1343450 Disk
27 1460190 Spring
28 1343000 Disk
29 1980390 Insert
30 1060120 Nut
31 392840 Screw
32 1981780 Knob
33 1981770 Cork
34 1080070 Plug
35 2109280 Preassembly Tap
36 2100960 Screw
37 1123810 Junction
38 2022010 Junction
39 2100710 Valve
40 2101450 Flange
41 1461470 Junction
42 2109455 Pump Pre-Assembly
43 2109288 Pre-Assembly Fitting
44 2102140 Junction
45 2102090 Spacer
46 800560 O-Ring
47 391000 O-Ring
48 2102100 Walker
49 800560 O-Ring
50 2100890 Washer
51 2100900 Valve
A 42327 Valve Kit
B 2508 Piston Kit
F 42315 Seal Kit
Engine FRESH FOG - 13672 Pag.3
1 2100280 Cap
2 2102070 Switch
3 2100060 Capacitor Box
4 390201 O-Ring
5 1683790 Capacitor
6 1262400 Washer
7 2020570 Screw
8 2102650 Disk
9 2109204 Pre-Assembly Body Pump
10 2102050 Box
11 1462900 Fairlead
12 2102020 Cable
13 2100300 Screw
14 2102540 Card
15 1201760 O-Ring
16 2102060 Box
17 2100980 Screw
18 2100110 Fairlead
19 2200090 Cable
20 1340350 Estate
21 2020850 Washer
22 1680250 Fan
23 44295 Engine
Accessories FRESH FOG - 13672 Pag.4
1 2102130 Filter
2 2102430 Tube
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG FRESH FOG - 13672
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's FRESH FOG

Diagram AR Farmer's FRESH FOG

Download (344.19KB)
