Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure 108 H4S Line

SKU: ARSG 108 H4S - 23147
€25.49
VAT included

AR Farmer's Division Parts for Pressure 108 H4S Line

We are AR Farmer's Division original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer model 108 H4S Line - 23147.

AR Farmer's Division Parts for Pressure H4S Line 108-208-308
  • AR Farmer's Division Parts for Pressure H4S Line 108-208-308
  • AR Farmer's Division Parts for Pressure 108 H4S Line
  • AR Farmer's Division Parts for Pressure 108 H4S Line
  • AR Farmer's Division Parts for Pressure 108 H4S Line
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure 108 H4S Line

SKU: ARSG 108 H4S - 23147 Condition: New
€25.49
VAT included

AR Farmer's Division Parts for Pressure 108 H4S Line

We are AR Farmer's Division original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer model 108 H4S Line - 23147.

settings 96 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
94 spare parts

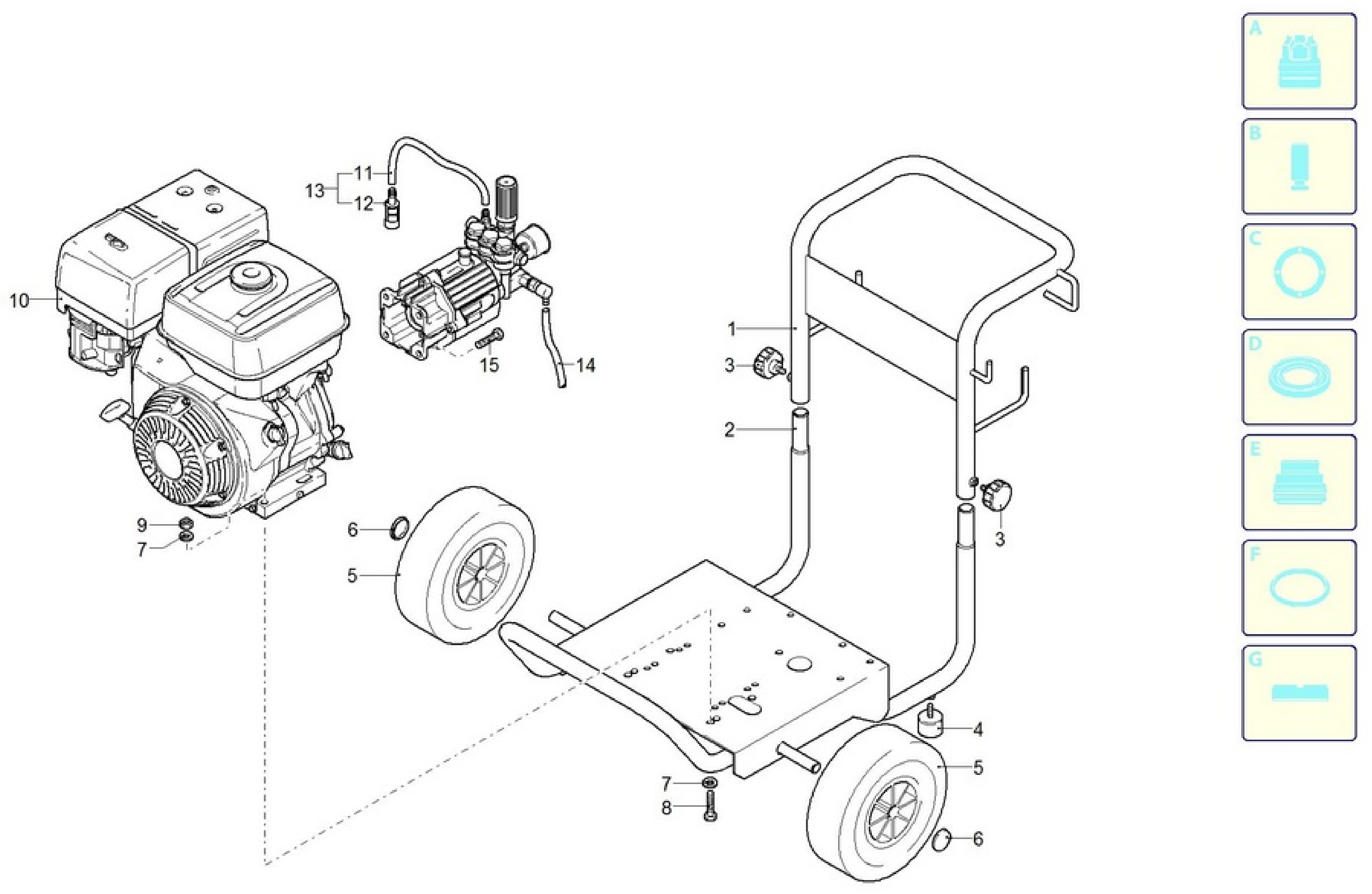

Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2281641 Handle €126.72
2
 photo_cameraImage coming soon 2281631 Casing €251.48
3
 photo_cameraImage coming soon 2281700 Knob €18.64
4
 photo_cameraImage coming soon 2281690 Antivibration €16.63
5
 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 380561 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 €30.53
6
 photo_cameraImage coming soon 50016 Stopper €8.16
7
 photo_cameraImage coming soon 390311 Washer €4.60
8
 photo_cameraImage coming soon 380250 Screw €5.21
9
 photo_cameraImage coming soon 160311 Nut €6.22
10
 photo_cameraImage coming soon 4903 Engine €987.56
11
 photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
12
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
13
 photo_cameraImage coming soon 1269115 Pre-Assembly Tube €11.20
14
 photo_cameraImage coming soon 2180150 Pipe Cleaner €4.47
15
 Full Piston for Motor Pump CM 25 620440 Full Piston for Motor Pump CM 25 €40.86 Not available for order

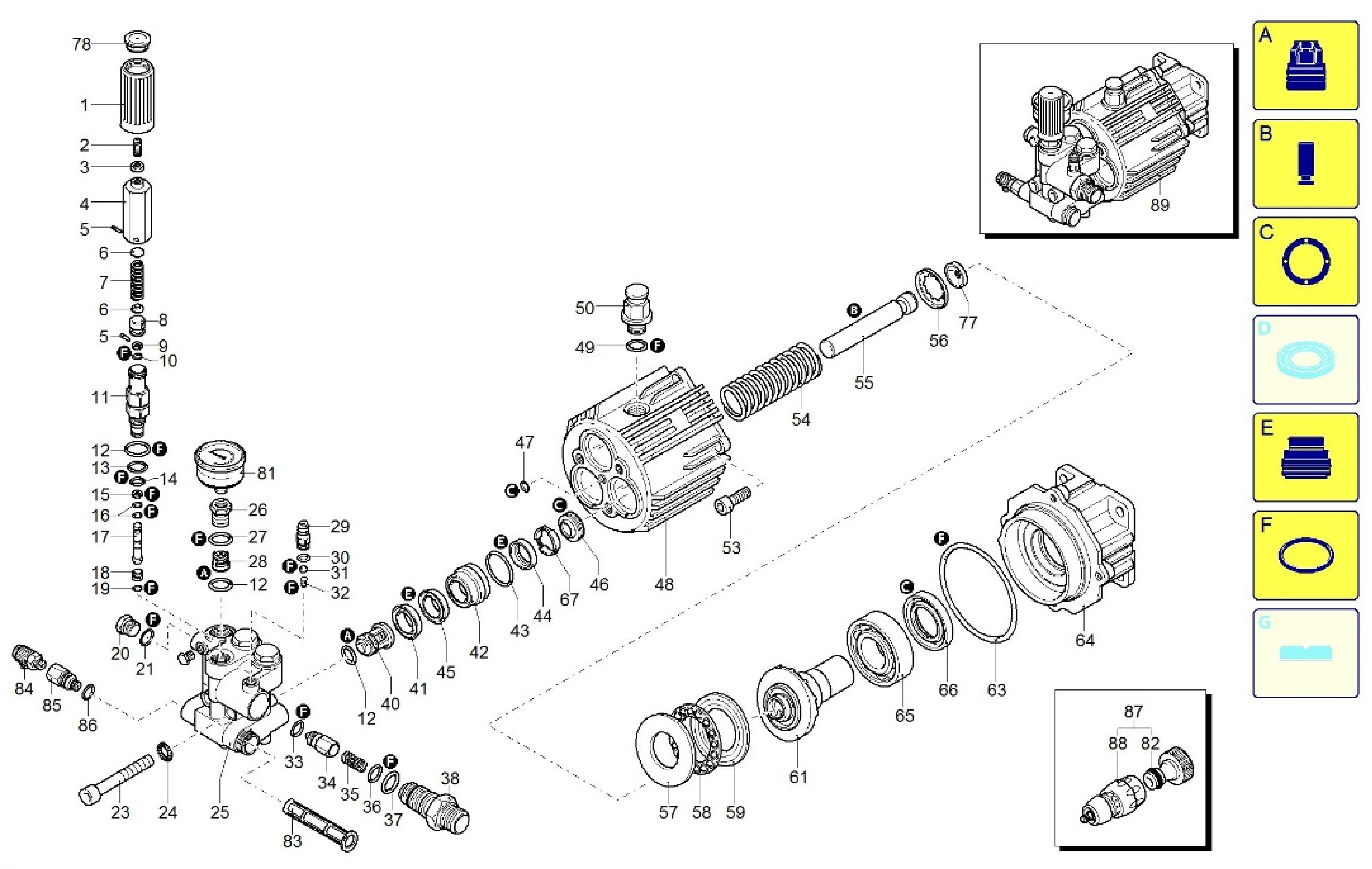

Page 2 zoom_in View exploded
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1981780 Knob €2.28
2
 photo_cameraImage coming soon 1980300 nut €1.58
3
 photo_cameraImage coming soon 1980470 screw €1.73
4
 photo_cameraImage coming soon 1980390 insert €11.72
5
 photo_cameraImage coming soon 1080070 plug €2.64
6
 photo_cameraImage coming soon 1980220 disk €2.13
7
 AR6640 Piston Guide Spring 1271070 AR6640 Piston Guide Spring €3.01
8
 photo_cameraImage coming soon 1080041 piston €12.34
9
 photo_cameraImage coming soon 1080401 ring €2.13
10
 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
11
 photo_cameraImage coming soon 1980210 piston guide €15.49
12
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
13
 photo_cameraImage coming soon 740290 O-ring €2.67
14
 photo_cameraImage coming soon 800560 O-ring €1.59
15
 photo_cameraImage coming soon 1271170 ring €2.03
16
 photo_cameraImage coming soon 1080190 O-ring €4.40
17
 photo_cameraImage coming soon 1271160 piston €19.89
18
 photo_cameraImage coming soon 1980200 seat €8.07
19
 photo_cameraImage coming soon 1470210 O-ring €1.58
20
 photo_cameraImage coming soon 880581 stopper €7.73
21
 photo_cameraImage coming soon 820510 O-ring €5.63
23
 photo_cameraImage coming soon 1980310 screw €2.34
24
 photo_cameraImage coming soon 650530 washer €2.03
25
 photo_cameraImage coming soon 1982450 Head €85.73
26
 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1260162 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €8.28
27
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
28
 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 1269050 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 €4.43
29
 photo_cameraImage coming soon 1982520 Hose €6.27
30
 photo_cameraImage coming soon 480480 O-ring €5.63
31
 photo_cameraImage coming soon 1250280 sphere €2.67
32
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
33
 photo_cameraImage coming soon 1460430 O-ring €4.60
34
 photo_cameraImage coming soon 1540170 shutter €5.08
35
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
36
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
37
 photo_cameraImage coming soon 1200690 O-ring €4.26
38
 photo_cameraImage coming soon 1270091 injector €12.02
40
 photo_cameraImage coming soon 1989050 Complete Valve €8.56
41
 photo_cameraImage coming soon 1342761 Tenuta Water €10.92
42
 photo_cameraImage coming soon 1981570 Piston Guide €8.50
43
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
44
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
45
 photo_cameraImage coming soon 1981580 Ring €4.94
46
 photo_cameraImage coming soon 1980410 Oil Seal €5.61
47
 photo_cameraImage coming soon 770090 O-ring €1.58
48
 photo_cameraImage coming soon 1983050 Pump Housing €27.84
50
 photo_cameraImage coming soon 1980380 Stopper €5.13
53
 photo_cameraImage coming soon 180030 screw €2.03
54
 photo_cameraImage coming soon 1981140 spring €3.87
55
 photo_cameraImage coming soon 1981120 Piston €21.66
56
 photo_cameraImage coming soon 1980150 ring €2.26
57
 photo_cameraImage coming soon 1983100 Fifth Wheel €16.55
58
 photo_cameraImage coming soon 1980250 Fifth wheel €10.28
59
 photo_cameraImage coming soon 1980240 Fifth wheel €4.47
61
 photo_cameraImage coming soon 1982840 Tree €26.09
63
 photo_cameraImage coming soon 1980340 O-ring €2.26
64
 photo_cameraImage coming soon 1981420 Flange €24.28
65
 Ball Bearing 7207 BTN for Pressure Washer AR Blue Clean 810 1982360 Ball Bearing 7207 BTN for Pressure Washer AR Blue Clean 810 €19.16
66
 photo_cameraImage coming soon 1140380 Ring €9.97
67
 photo_cameraImage coming soon 1980430 spacer €2.12
77
 photo_cameraImage coming soon 1981130 Disk €9.10
81
 Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 3232 Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 €34.75
82
 Snap Fitting For Pressure Washers ARSG Blitz - 8.13 - 8.15 1270940 Snap Fitting For Pressure Washers ARSG Blitz - 8.13 - 8.15 €2.71
83
 Water Filter for Pressure Washers AR Farmer's Division Blitz 8.13 1260660 Water Filter for Pressure Washers AR Farmer's Division Blitz 8.13 €2.08
84
 photo_cameraImage coming soon 2760630 Valve €16.36
85
 photo_cameraImage coming soon 1983550 Junction €19.37
88
 photo_cameraImage coming soon 40086 Junction €8.16
89
 photo_cameraImage coming soon 22347 Pre-Assembly Pump €408.60

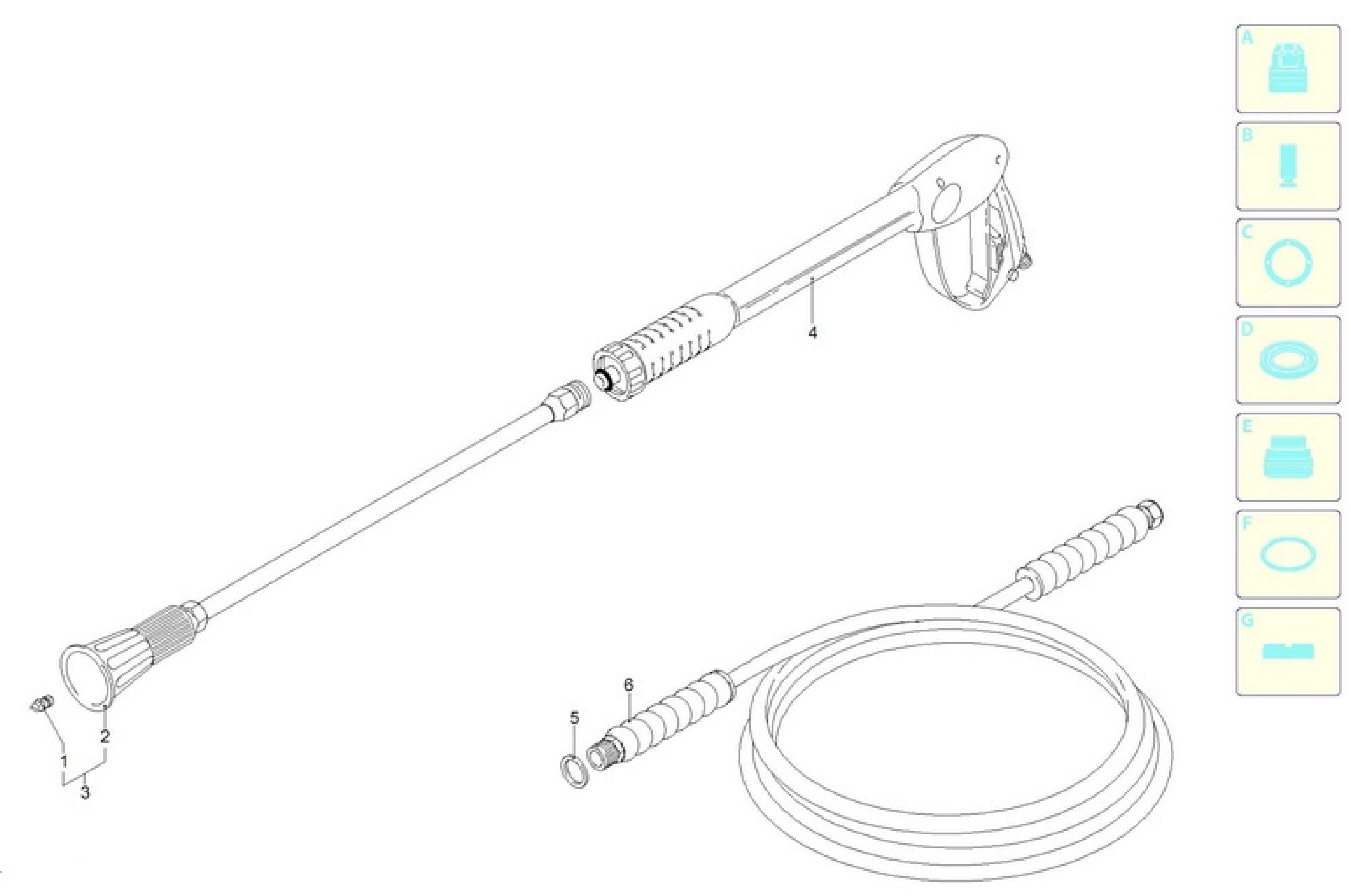

Page 3 zoom_in View exploded
Esploso pagina 3
Pos. Item Price Buy
E
 photo_cameraImage coming soon 2167 Kit Kept Water €24.75
B
 photo_cameraImage coming soon 2513 Piston Kit €67.67
C
 photo_cameraImage coming soon 2797 Kit Oil Seals €15.21
F
 Kit Gaskets OR for Pressure Washers AR Blue Clean 737-747 2799 Kit Gaskets OR for Pressure Washers AR Blue Clean 737-747 €11.58
A
 photo_cameraImage coming soon 2869 Kit Valves €29.58
1
 photo_cameraImage coming soon 3195 Nozzle €22.16
2
 photo_cameraImage coming soon 40541 Lancia + Head Without Nozzle €62.30
3
 photo_cameraImage coming soon 40649 Lancia + Head €77.47
4
 photo_cameraImage coming soon 40770 Gun €84.99
5
 photo_cameraImage coming soon 1540110 Washer €5.54
6
 photo_cameraImage coming soon 1700190 High Pressure Tube €145.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure 108 H4S Line

We are AR Farmer's Division original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer model 108 H4S Line - 23147.

In the following tables, look for the spare part and its respective code.
ARSG 108 H4S - 23147

Casing 108 H4S - 23147 Pag.1
# Part Num. Description
1 2281641 Handle
2 2281631 Casing
3 2281700 Knob
4 2281690 Antivibration
5 380561 Wheel
6 50016 Cork
7 390311 Washer
8 380250 Screw
9 160311 Nut
10 4903 Engine
11 1262790 Pipe Cleaner
12 1341030 Filter
13 1269115 Pre-Assembly Tube
14 2180150 Pipe Cleaner
15 620440 Screw
Pump108 H4S - 23147 Pag.2
1 1981780 Knob
2 1980300 Nut
3 1980470 Screw
4 1980390 Insert
5 1080070 Plug
6 1980220 Disk
7 1271070 Spring
8 1080041 Piston
9 1080401 Ring
10 1080250 O-Ring
11 1980210 Piston Guides
12 880830 O-Ring
13 740290 O-Ring
14 800560 O-Ring
15 1271170 Ring
16 1080190 O-Ring
17 1271160 Piston
18 1980200 Office
19 1470210 O-Ring
20 880581 Cork
21 820510 O-Ring
23 1980310 Screw
24 650530 Floodlights
25 1982450 Head
26 1260162 Cork
27 960160 O-Ring
28 1269050 Complete Valve
29 1982520 Hose
30 480480 O-Ring
31 1250280 Ball
32 1560520 Spring
33 1460430 O-Ring
34 1540170 Shutter
35 1080091 Spring
36 394280 O-Ring
37 1200690 O-Ring
38 1270091 Injector
40 1989050 Complete Valve
41 1342761 Water Seal
42 1981570 Piston Guides
43 770260 O-Ring
44 1260440 Water Seal
45 1981580 Ring
46 1980410 Oil Seal
47 770090 O-Ring
48 1983050 Pump Housing
49 740290 O-Ring
50 1980380 Cork
53 180030 Screw
54 1981140 Spring
55 1981120 Piston
56 1980150 Ring
57 1983100 Fifth Wheel
58 1980250 Fifth Wheel
59 1980240 Fifth Wheel
61 1982840 Shaft
63 1980340 O-Ring
64 1981420 Flanges
65 1982360 Bearing
66 1140380 Ring
67 1980430 Spacer
77 1981130 Disk
78 1981770 Cork
81 3232 Manometer
82 1270940 Junction
83 1260660 Filter
84 2760630 Valve
85 1983550 Junction
86 820510 O-Ring
87 40111 Fitting Kit
88 40086 Junction
89 22347 Pre-Installing Pump
A 2869 Valve Kit
B 2513 Piston Kit
C 2797 Oil Seals Kit
E 2167 Kit Held Water
F 2799 Seal Kit
Accessories 108 H4S - 23147 Pag.3
1 3195 Nozzle
2 40541 Lance + Head Without Nozzle
3 40649 Lance + Head
4 40770 Gun
5 1540110 Washer
6 1700190 High Pressure Tube

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG 108 H4S - 23147
6 Items

Specific References

New

Download

Diagram AR Farmer's 108

Diagram AR Farmer's 108

Download (328.31KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Cold Water High Pressure Washer 120 bar AR142 Sale
Annovi Reverberi S.p.A. SKU: AR142
Cold Water High Pressure Washer 120 bar AR142
Cold Water High Pressure Washer 120 bar AR142 3 Axial piston pump driven by the oscillating plate, hardened stainless steel pistons, an automatic safety valve with pressure in the pump head, water filter. Complete kit with foam tank of...
Last items in stock €108.09
Details
Cold Water High Pressure Washer 145 bar AR491 -5% Sale
Annovi Reverberi S.p.A. SKU: AR491
Cold Water High Pressure Washer 145 bar AR491
Cold Water High Pressure Washer 145 bar AR491 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminium head, tempered stainless steel pistons.
Last items in stock €330.09 €347.46
Details
Cold Water High Pressure Washer 135 bar AR391 -5% Sale
Annovi Reverberi S.p.A. SKU: AR391
Cold Water High Pressure Washer 135 bar AR391
Cold Water High Pressure Washer 135 bar AR391 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminim head, tempered stainless steel pistons. Automatic by-pass valve with pump head...
Last items in stock €207.38 €218.29
Details
Cold Water High Pressure Washer 160 bar AR590 -5% Sale
Annovi Reverberi S.p.A. SKU: AR590
Cold Water High Pressure Washer 160 bar AR590
Cold Water High Pressure Washer 160 bar AR590 Three-piston pump hardened stainless. Brass head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection. Total stop to halt. Water...
Last items in stock €424.26 €446.59
Details
Water Cleaning Hose
Ferritalia SKU: DES91914
Hight Pressure Washers Hose 8 mt
Hight Pressure Washers Hose 8 mt Original spare part for high pressure washer with a maximum pressure of about 180 bar. - Diameter connections F-F: M14x1,5 mm - Max Pressure: 18 MPa - about 180 bar - Maximum temperature: 60 ° C. -...
Last items in stock €32.35
Details
Water Cleaning Hose
Valex s.p.a. SKU: 1520117
Hight Pressure Washers Hose 7,5 mt
Hight Pressure Washers Hose 7,5 mt Original spare part for high pressure washer with a maximum pressure of about 300 bar. Part for the following products:  - HIGHT PRESSURE HOSE FOR PRESSURE WASHER CARRY 2500 - Tech Info: -...
Last items in stock €36.30
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Ball Bearing 7207 BTN for Pressure Washer AR Blue Clean 810
Annovi Reverberi S.p.A. SKU: 1982360
Ball Bearing 7207 BTN for Pressure Washer AR Blue Clean 810
Ball Bearing 7207 BTN for Pressure Washer AR Blue Clean 810 Genuine part Annovi Reverberi, Ball Bearing 7207 BTN for Pressure Washers Blue Clean 810 - RSG 108 H4S Line - ARSG 810 H4S Line.  Parts For the Following Products: -...
Last items in stock €19.16
Details
AR Spring for Pressure Washer AR6640
Annovi Reverberi S.p.A. SKU: 1271070
AR6640 Piston Guide Spring
Annovi Reverberi Piston Guide Spring for Pressure Washer AR6640 Genuine spare part Annovi Reverberi, Piston Guide Spring for Pressure Washers AR747 - AR767 - AR1330. Part for the following products: -  Pressure Washer...
AVAILABLE €3.01
Details
Comments (0)
