Annovi Reverberi S.p.A.

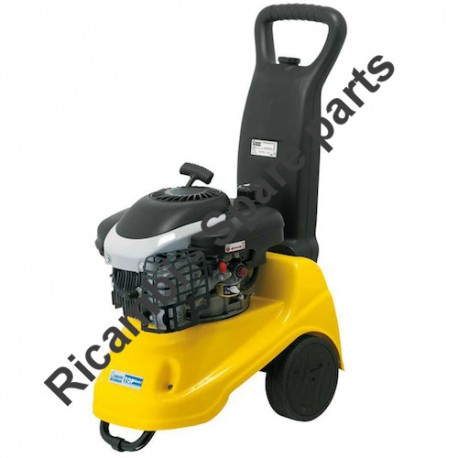

ARSG Parts for Pressure Washer Top Wash S 100 T - 20435

SKU: Top Wash S 100 T - 20435
€23.30
VAT included

ARSG Parts for Pressure Washer Top Wash S 100 T - 20435

AR Farmer's Division Genuine Spare parts or replacements parts for to repair Pressure Washer Top Wash S 100 T - 20435

ARSG Parts for Pressure Washer Top Wash S 100 T - 20435
  • ARSG Parts for Pressure Washer Top Wash S 100 T - 20435
  • ARSG Parts for Pressure Washer Top Wash S 100 T - 20435
  • ARSG Parts for Pressure Washer Top Wash S 100 T - 20435
  • ARSG Parts for Pressure Washer Top Wash S 100 T - 20435
Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer Top Wash S 100 T - 20435

SKU: Top Wash S 100 T - 20435 Condition: New
€23.30
VAT included

ARSG Parts for Pressure Washer Top Wash S 100 T - 20435

AR Farmer's Division Genuine Spare parts or replacements parts for to repair Pressure Washer Top Wash S 100 T - 20435

settings 60 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded

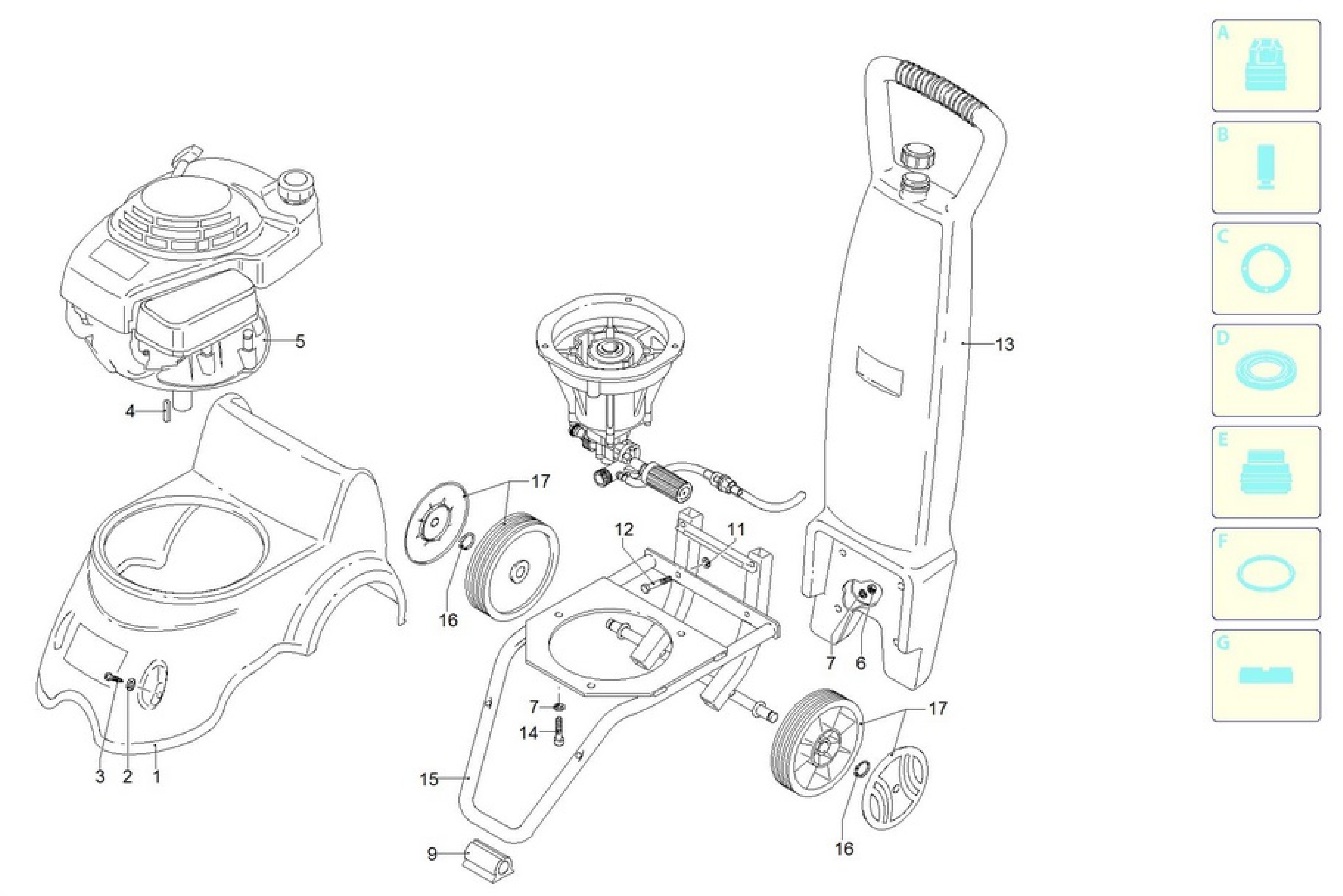

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2020990 Washer €4.72
6
 photo_cameraImage coming soon 160311 Nut €6.22
7
 photo_cameraImage coming soon 390311 Washer €4.60
11
 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner 2000240 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner €0.33
12
 photo_cameraImage coming soon 380250 Screw €5.21
14
 photo_cameraImage coming soon 620610 Screw €5.01
Page 2 zoom_in View exploded

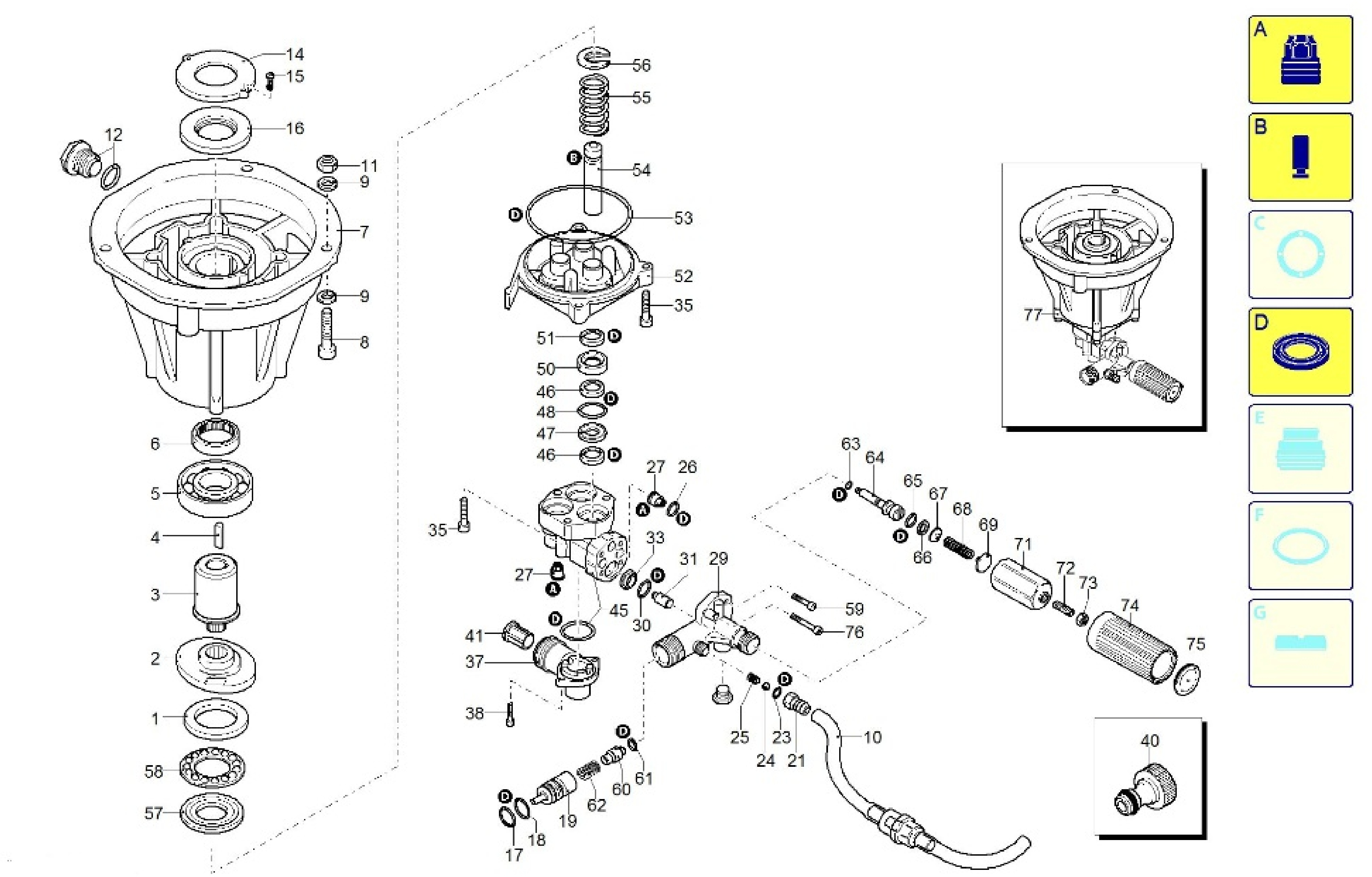

Esploso pagina 2
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1683000 Wobble plate €11.87
5
 photo_cameraImage coming soon 621130 Bearing €18.59
17
 photo_cameraImage coming soon 820510 O-ring €5.63
23
 photo_cameraImage coming soon 480480 O-ring €5.63
24
 photo_cameraImage coming soon 1250280 sphere €2.67
26
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
27
 photo_cameraImage coming soon 2109051 Valve €6.77
30
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
31
 photo_cameraImage coming soon 1460150 Piston €6.43
37
 photo_cameraImage coming soon 2100610 Connection €6.56
38
 photo_cameraImage coming soon 2101000 Screw €4.80
40
 photo_cameraImage coming soon 40393 Junction €13.66
41
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
45
 Head with O-R for Pressure Washers AR Top Wash 100 T-EXTREME 150 TSS 2123 Head with O-R for Pressure Washers AR Top Wash 100 T-EXTREME 150 TSS €22.20
46
 Water Seal for Pressure Washers ARSG FRESH FOG 2200140 Water Seal for Pressure Washers ARSG FRESH FOG €1.37
47
 AR Seal Support Ring D.12 2020040 AR Seal Support Ring D.12 €5.14
48
 photo_cameraImage coming soon 2021740 O-ring €4.80
50
 photo_cameraImage coming soon 2020030 Bushing €7.11
51
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
52
 AR410 Piston Guide 2020120 AR410 Piston Guide €21.12
53
 photo_cameraImage coming soon 1680680 O-Ring €5.27
54
 photo_cameraImage coming soon 2020130 Piston €10.64
55
 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS 2020150 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS €6.90
56
 photo_cameraImage coming soon 2020140 Ring €5.00
60
 photo_cameraImage coming soon 1460260 Piston €3.75
61
 photo_cameraImage coming soon 1460430 O-ring €4.60
63
 photo_cameraImage coming soon 1080190 O-ring €4.40
64
 photo_cameraImage coming soon 1460140 Piston €16.50
65
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
66
 photo_cameraImage coming soon 1080401 ring €2.13
67
 photo_cameraImage coming soon 1343450 Disk €3.26
68
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
69
 photo_cameraImage coming soon 1343000 Disk €5.37
71
 photo_cameraImage coming soon 1980640 Insert €5.73
73
 photo_cameraImage coming soon 1060120 Nut €1.54
74
 photo_cameraImage coming soon 1981780 Knob €2.28
Page 3 zoom_in View exploded

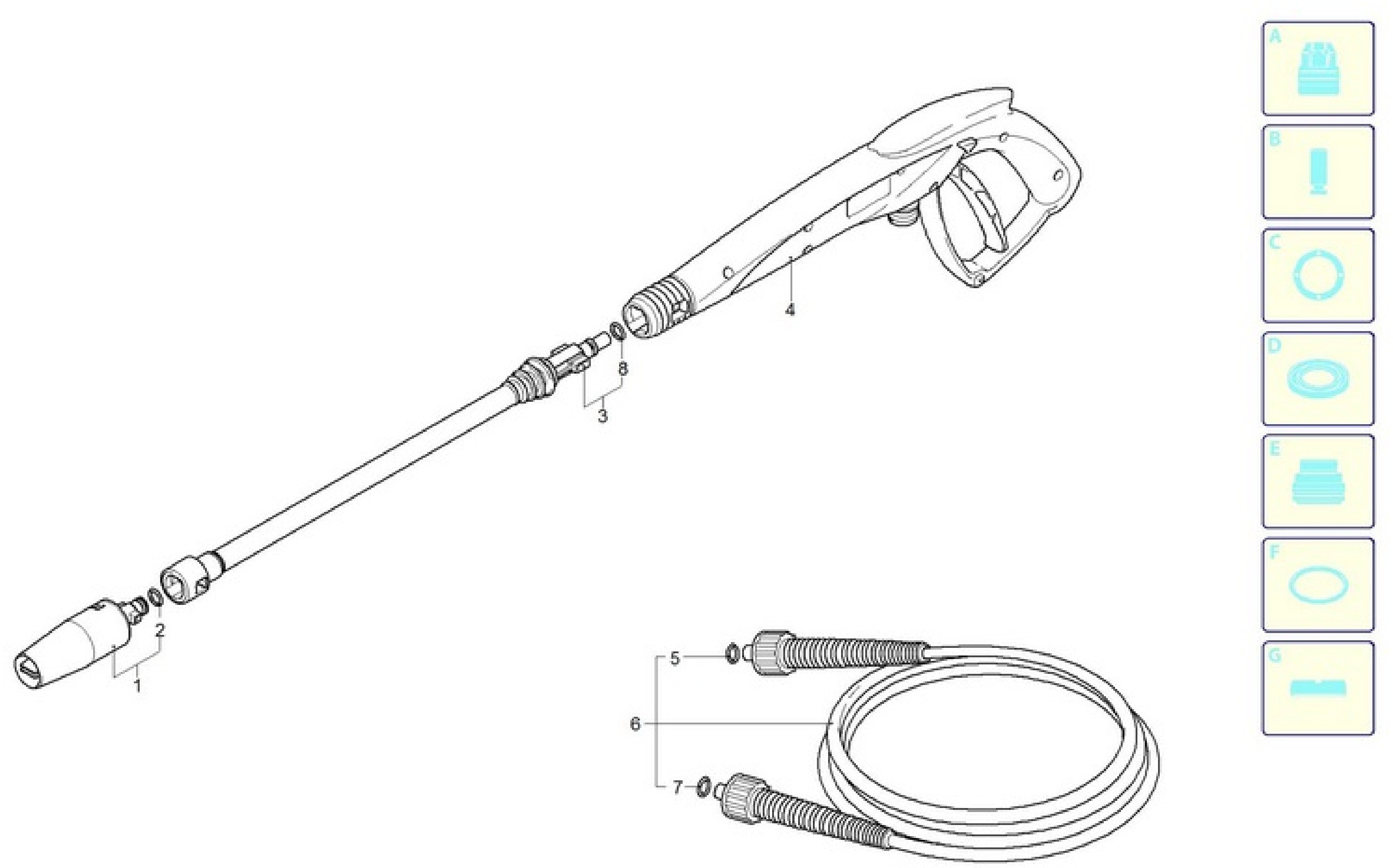

Esploso pagina 3
Pos. Item Price Buy
A
 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division 2577 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division €14.62
D
 Kit Inlet-Outlet Valves for Pressure Washers Black & Decker PW 1800 W 2687 Kit Inlet-Outlet Valves for Pressure Washers Black & Decker PW 1800 W €18.20
B
 photo_cameraImage coming soon 2734 Piston Kit €22.01
1
 photo_cameraImage coming soon 40442 Lance head €22.72
2
 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND 1680220 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND €0.45
3
 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 40667 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 €16.78
4
 photo_cameraImage coming soon 40350 Gun->40925+3082750+3780492 €36.26
5
 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
7
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ARSG Parts for Pressure Washer Top Wash S 100 T - 20435

AR Farmer's Division Genuine Spare parts or replacements parts for to repair Pressure Washer Top Wash S 100 T - 20435

In the following tables, look for the spare part and its respective code.

ARSG Top Wash

Casing 100 T - 20435 Pag.1
1 2060170 Yellow Casing
2 2020990 Washer
3 2060200 Screw
4 621390 Tab
5 4274 Engine
6 160311 Nut
7 390311 Washer
9 1262540 Foot
11 2000240 O-Ring
12 380250 Screw
13 2060180 Handle
14 620610 Screw
15 2060190 Base
16 2060110 Ring
17 2060160 Wheel
Pump 100 T – 20435 Pag.2
1 1460070 Fifth Wheel
2 1683000 Disk
3 2060020 Shaft
4 621390 Tab
5 621130 Bearing
6 550280 Bush
7 2060010 Flanged
8 1520840 Screw
9 390311 Washer
10 1269119 Pre-Assembly Tube
11 160311 Nut
12 740440 Cork
14 2060030 Cover
15 1261570 Screw
16 540331 Ring
17 820510 O-Ring
18 1465720 O-Ring
19 2020490 Injector
21 1460382 Hose
23 480480 O-Ring
24 1250280 Ball
25 1250270 Spring
26 880840 O-Ring
27 2109051 Valve
29 2060300 Junction
30 394280 O-Ring
31 1460150 Piston
33 2020480 Office
35 850850 Screw
37 2100610 Junction
38 2101000 Screw
40 40393 Junction
41 1340260 Filter
45 2123 Head + OR
46 2200140 Watertight
47 2020040 Ring
48 2021740 O-Ring
50 2020030 Bush
51 1683500 Oil Seal
52 2020120 Piston Guide
53 1680680 O-Ring
54 2020130 Piston
55 2020150 Spring
56 2020140 Ring
57 1680340 Fifth Wheel
58 1461770 Fifth Wheel
59 1260760 Screw
60 1460260 Piston
61 1460430 O-Ring
62 1540140 Spring
63 1080190 O-Ring
64 1460140 Piston
65 600180 O-Ring
66 1080401 Ring
67 1343450 Disk
68 1460190 Spring
69 1343000 Disk
71 1980640 Insert
72 392840 Screw
73 1060120 Nut
74 1981780 Knob
75 1981770 Cork
76 1260760 Screw
77 20364 Pump Pre-Assembly
A 2577 Valve Kit
B 2734 Piston Kit
D 2687 Kit Held
Accessories 100 T – 20435 Pag.3
1 40442 Head
2 1680220 O-ring
3 40667 lance
4 40350 Trigger Gun->40925+3082750+3780492
5 1080250 O-ring
6 2620470 High pressure tube
7 2000770 O-ring
8 880840 O-ring

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Top Wash S 100 T - 20435
12 Items

Specific References

New

Download

Diagram AR Farmer's 100 T-20435

Diagram AR Farmer's 100 T-20435

Download (305.56KB)
