AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

SKU: XPRO SK 920 TSS - 24605
€11.93
VAT included

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer XPRO SK 920 TSS - 24605.
AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920
  • AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920
  • AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

SKU: XPRO SK 920 TSS - 24605 Condition: New
€11.93
VAT included

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer XPRO SK 920 TSS - 24605.
settings 156 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

140 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 960090 Stopper €5.85
14
photo_cameraImage coming soon 800560 O-ring €1.59
33
photo_cameraImage coming soon 180340 Ring €10.20

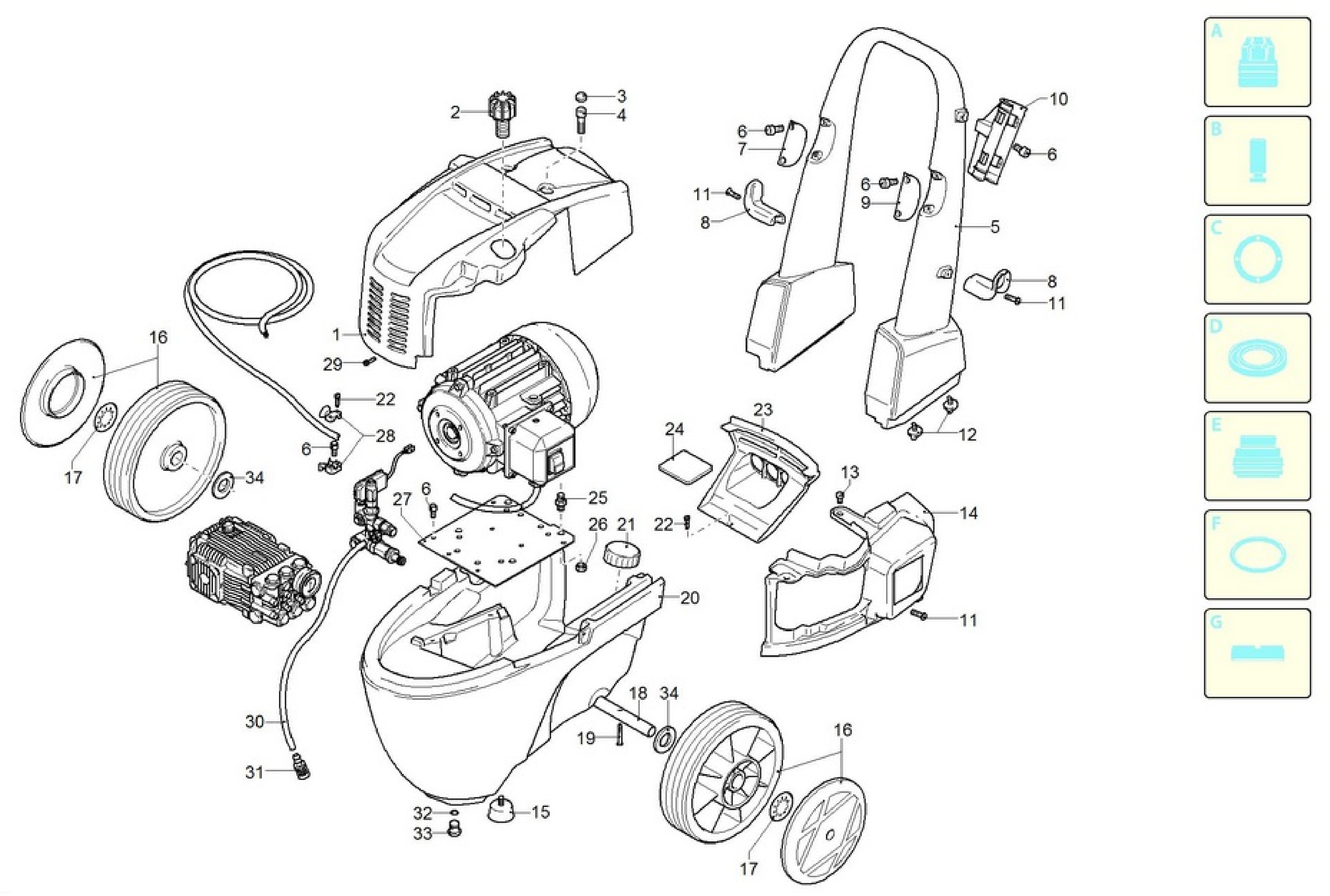

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 2360760 Knob €4.14
3
photo_cameraImage coming soon 1270910 Stopper €5.01
5
photo_cameraImage coming soon 2360020 Handle €82.61
7
photo_cameraImage coming soon 2360300 Cork €5.92
8
photo_cameraImage coming soon 2360090 Hook €5.68
9
photo_cameraImage coming soon 2360170 Cork €5.92
10
photo_cameraImage coming soon 2360100 Support €6.32
11
photo_cameraImage coming soon 2100300 screw €4.72
15
photo_cameraImage coming soon 2360780 Antivibration €8.47
17
photo_cameraImage coming soon 380620 Washer €5.39
18
photo_cameraImage coming soon 2360560 Axle €18.74
19
photo_cameraImage coming soon 1470220 Screw €4.26
20
photo_cameraImage coming soon 2360010 Bonnet Black €117.67
21
photo_cameraImage coming soon 91680930 Cork €12.43
23
photo_cameraImage coming soon 2360040 Black Hood €14.23
24
photo_cameraImage coming soon 2360370 Gasket €4.97
25
photo_cameraImage coming soon 2360580 Stud bolt €8.39
28
photo_cameraImage coming soon 2360110 Clamp €4.84
30
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
31
photo_cameraImage coming soon 2000230 filter €2.03
32
O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner 2000240 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner €0.33
33
Cap for Pressure Washers AR Farmer's ProLiner 13.17-15.15-9.14-9.141 1682420 Cap for Pressure Washers AR Farmer's ProLiner 13.17-15.15-9.14-9.141 €1.24

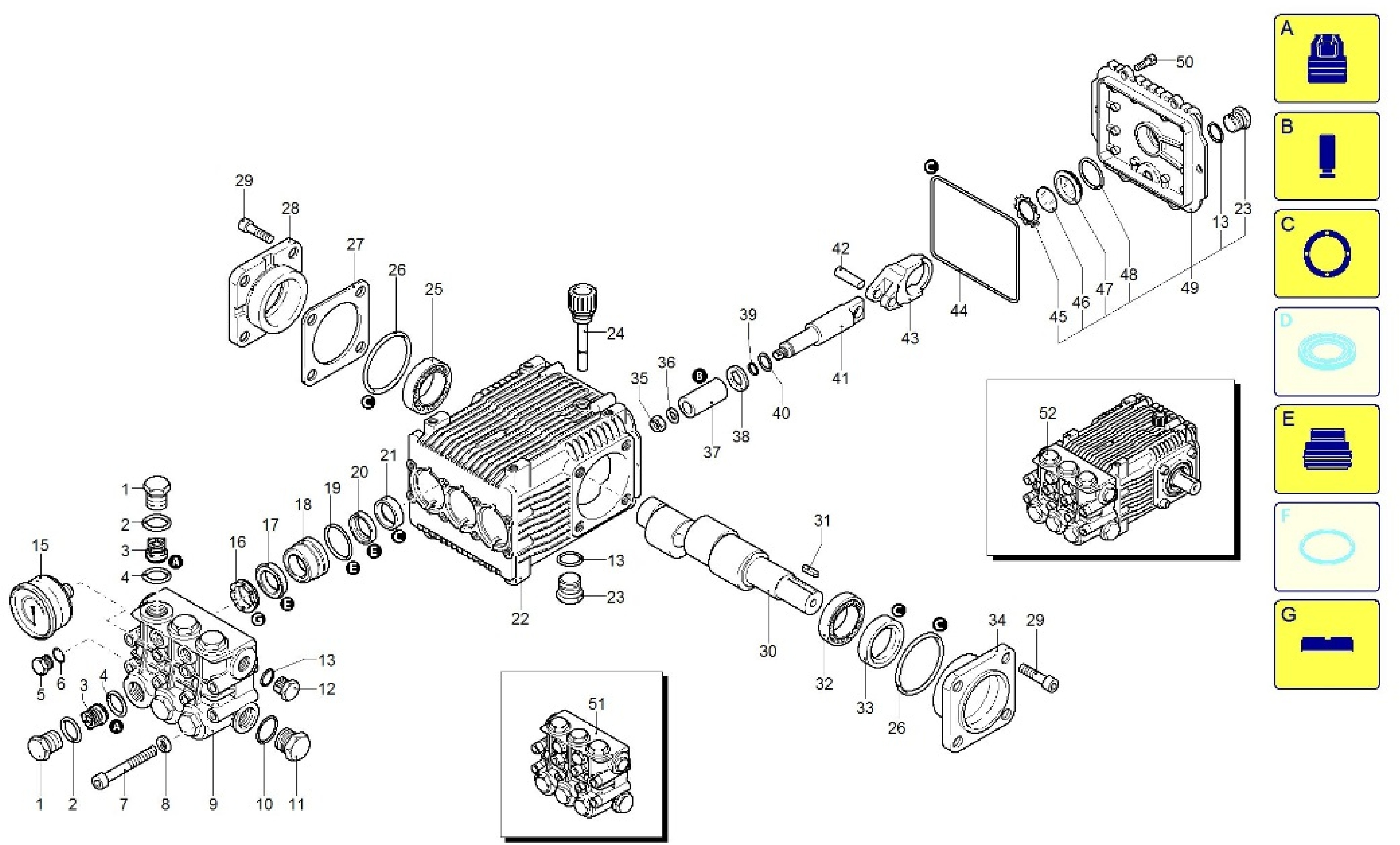

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
photo_cameraImage coming soon 1389051 Complete Valve €4.82
4
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
5
photo_cameraImage coming soon 880581 stopper €7.73
6
photo_cameraImage coming soon 820510 O-ring €5.63
7
photo_cameraImage coming soon 820150 Screw €5.42
9
photo_cameraImage coming soon 1381071 Head €140.12
10
photo_cameraImage coming soon 180101 O-Ring €4.73
11
photo_cameraImage coming soon 820361 Stopper €4.41
12
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
13
photo_cameraImage coming soon 740290 O-ring €2.67
15
Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
16
photo_cameraImage coming soon 960110 Ring €2.41
17
photo_cameraImage coming soon 1382740 Tenuta Water €16.70
18
photo_cameraImage coming soon 1380090 Piston Guide €12.55
19
photo_cameraImage coming soon 961240 O-Ring €4.80
20
photo_cameraImage coming soon 880330 Tenuta Water €8.14
21
photo_cameraImage coming soon 1383130 Ring €10.75
22
photo_cameraImage coming soon 1382770 Pump Housing €112.58
24
photo_cameraImage coming soon 880130 Stopper €6.67
25
photo_cameraImage coming soon 2280340 Bearing €26.80
26
photo_cameraImage coming soon 640030 O-Ring €5.01
27
photo_cameraImage coming soon 1380120 Thickness 0.10 Mm €5.22
27
photo_cameraImage coming soon 1380130 Thickness 0.20 Mm €5.22
27
photo_cameraImage coming soon 1380530 Thickness 0.25 Mm €6.05
27
photo_cameraImage coming soon 1382810 Thickness 0.05 Mm €5.08
28
photo_cameraImage coming soon 1380050 Support €20.71
29
photo_cameraImage coming soon 850370 screw €2.26
30
photo_cameraImage coming soon 2280060 Tree €109.40
32
photo_cameraImage coming soon 1383140 Bearing €19.05
34
photo_cameraImage coming soon 1380040 Support €22.03
35
photo_cameraImage coming soon 962010 Nut €6.12
36
photo_cameraImage coming soon 962000 Washer €4.87
37
photo_cameraImage coming soon 1380940 Piston €31.99
38
photo_cameraImage coming soon 1380950 Disk €4.94
39
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
41
photo_cameraImage coming soon 1380920 Piston €26.73
42
photo_cameraImage coming soon 1380060 Plug €6.39
44
photo_cameraImage coming soon 1780510 O-Ring €5.35
47
photo_cameraImage coming soon 1260250 Level Indicator €1.69
48
photo_cameraImage coming soon 1140450 O-Ring €4.25
52
photo_cameraImage coming soon 20897 Pre-Assembly Pump €668.52
53
photo_cameraImage coming soon 1260820 O-ring €1.59
54
photo_cameraImage coming soon 1540881 Piston €43.38
55
Annovi Spring for Pressure Washer AR747 1981320 Annovi Spring for Pressure Washer AR747 €1.54
56
photo_cameraImage coming soon 2022201 fork €3.36
57
photo_cameraImage coming soon 2029758 Pre-Assembly Box TSS €16.09
58
photo_cameraImage coming soon 660190 O-ring €4.40
59
O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
60
photo_cameraImage coming soon 1540870 Stopper €13.59
62
photo_cameraImage coming soon 1123960 Junction €14.87
63
photo_cameraImage coming soon 1569206 Pre-Assembly IDR €15.68
65
Kit TSS for Pressure Washers AR Farmer's Proliner SV 1310 TSS-XPro 9.14 TSS 42458 Kit TSS for Pressure Washers AR Farmer's Proliner SV 1310 TSS-XPro 9.14 TSS €27.78
66
photo_cameraImage coming soon 1080192 O-Ring €4.32

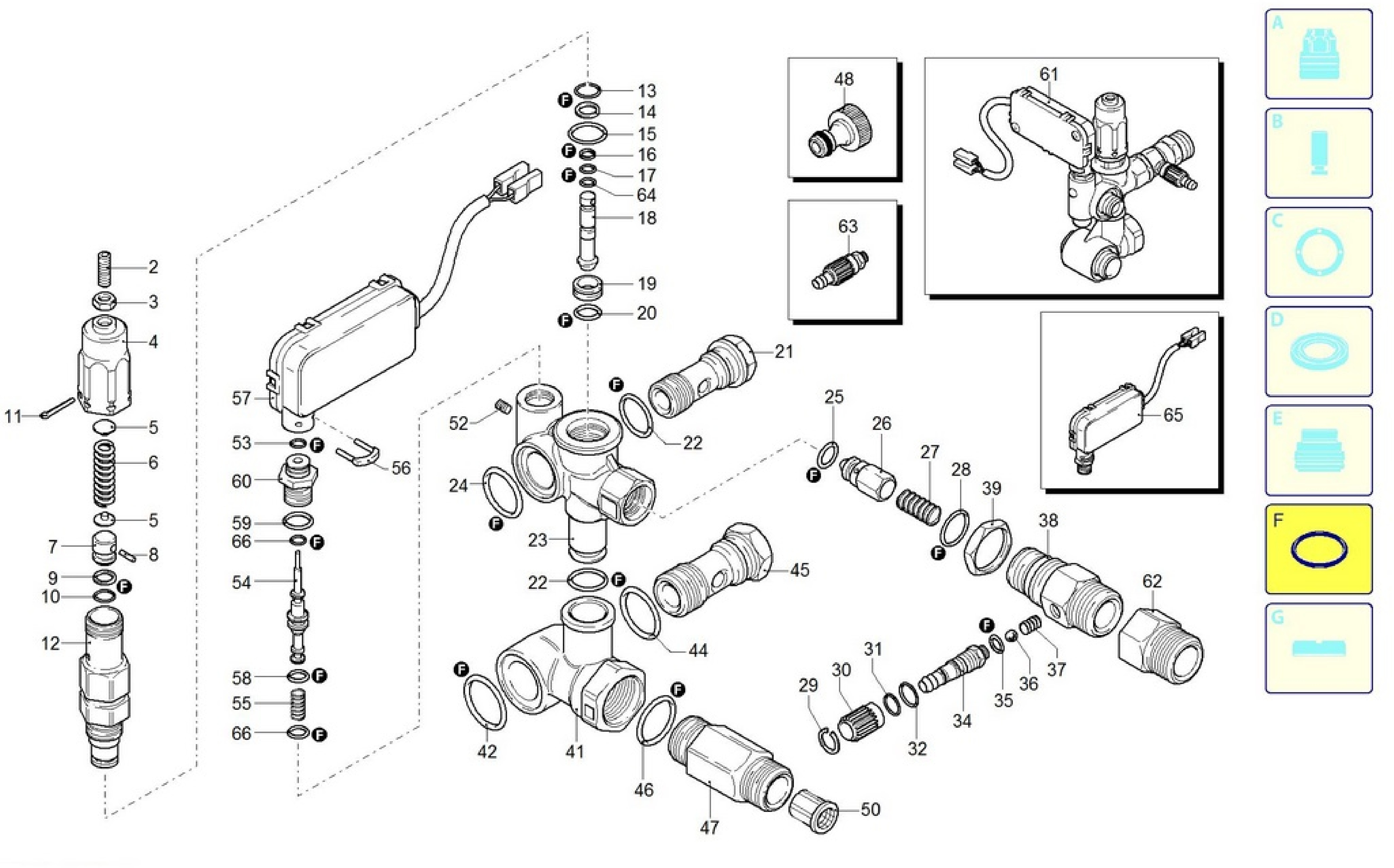

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 1980300 nut €1.58
4
photo_cameraImage coming soon 2500540 Insert €14.20
5
photo_cameraImage coming soon 1980220 disk €2.13
6
AR6640 Piston Guide Spring 1271070 AR6640 Piston Guide Spring €3.01
7
photo_cameraImage coming soon 1080041 piston €12.34
8
photo_cameraImage coming soon 1080070 plug €2.64
10
O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
12
photo_cameraImage coming soon 1980210 piston guide €15.49
16
photo_cameraImage coming soon 1271170 ring €2.03
17
photo_cameraImage coming soon 1080190 O-ring €4.40
18
photo_cameraImage coming soon 1271160 piston €19.89
19
photo_cameraImage coming soon 2460420 Office €7.84
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
23
photo_cameraImage coming soon 1540660 Valve Body €30.04
25
photo_cameraImage coming soon 1460430 O-ring €4.60
26
photo_cameraImage coming soon 1540170 shutter €5.08
27
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
28
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
29
photo_cameraImage coming soon 1560660 Ring €4.65
30
photo_cameraImage coming soon 1560680 Knob €4.47
34
photo_cameraImage coming soon 1560650 Hose €15.90
35
photo_cameraImage coming soon 480480 O-ring €5.63
36
photo_cameraImage coming soon 1250280 sphere €2.67
37
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
38
photo_cameraImage coming soon 1540570 Junction €21.24
39
photo_cameraImage coming soon 1540300 Nut €6.39
40
photo_cameraImage coming soon 1080401 ring €2.13
41
photo_cameraImage coming soon 1540280 Collector €13.12
43
photo_cameraImage coming soon 1383050 Piston Rod €17.05
44
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
45
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
46
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
47
photo_cameraImage coming soon 1560900 Junction €23.09
48
photo_cameraImage coming soon 40393 Junction €13.66
49
photo_cameraImage coming soon 1789010 Cover €24.45
50
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
51
photo_cameraImage coming soon 1389270 Pre-Assembly Head €231.02
52
photo_cameraImage coming soon 1981190 screw €1.58

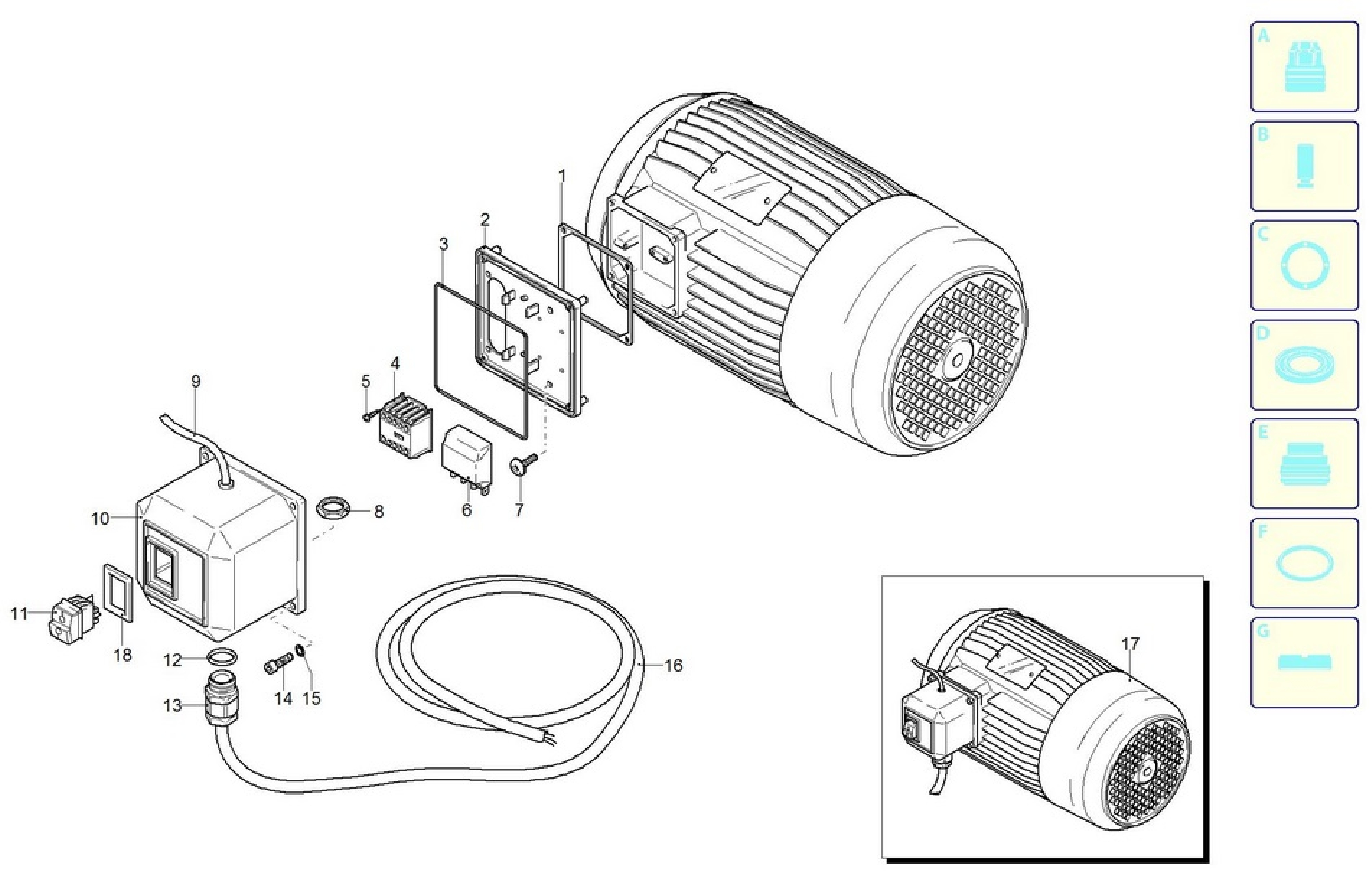

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
G
photo_cameraImage coming soon 1829 Kit Support Rings €11.93
C
photo_cameraImage coming soon 1855 Kit Oil Seals €35.52
E
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 1857 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 €60.64
B
photo_cameraImage coming soon 2757 Piston Kit €88.44
A
photo_cameraImage coming soon 2864 Kit Valves €18.08
F
Parts Kit OR for TSS for Pressure Washers AR-BC 767-777 42451 Parts Kit OR for TSS for Pressure Washers AR-BC 767-777 €7.18
1
photo_cameraImage coming soon 50068 Gasket €6.57
2
photo_cameraImage coming soon 1700080 Plate €2.44
3
photo_cameraImage coming soon 1940410 O-Ring €2.04
7
photo_cameraImage coming soon 1460460 screw €1.58
8
photo_cameraImage coming soon 1700590 Nut €6.65
9
photo_cameraImage coming soon 2021560 Cable €7.11
10
photo_cameraImage coming soon 1700930 Cover €3.85
11
photo_cameraImage coming soon 2360730 Switch €9.09
13
photo_cameraImage coming soon 1382380 Gland €8.18
14
photo_cameraImage coming soon 1261560 Screw €4.67

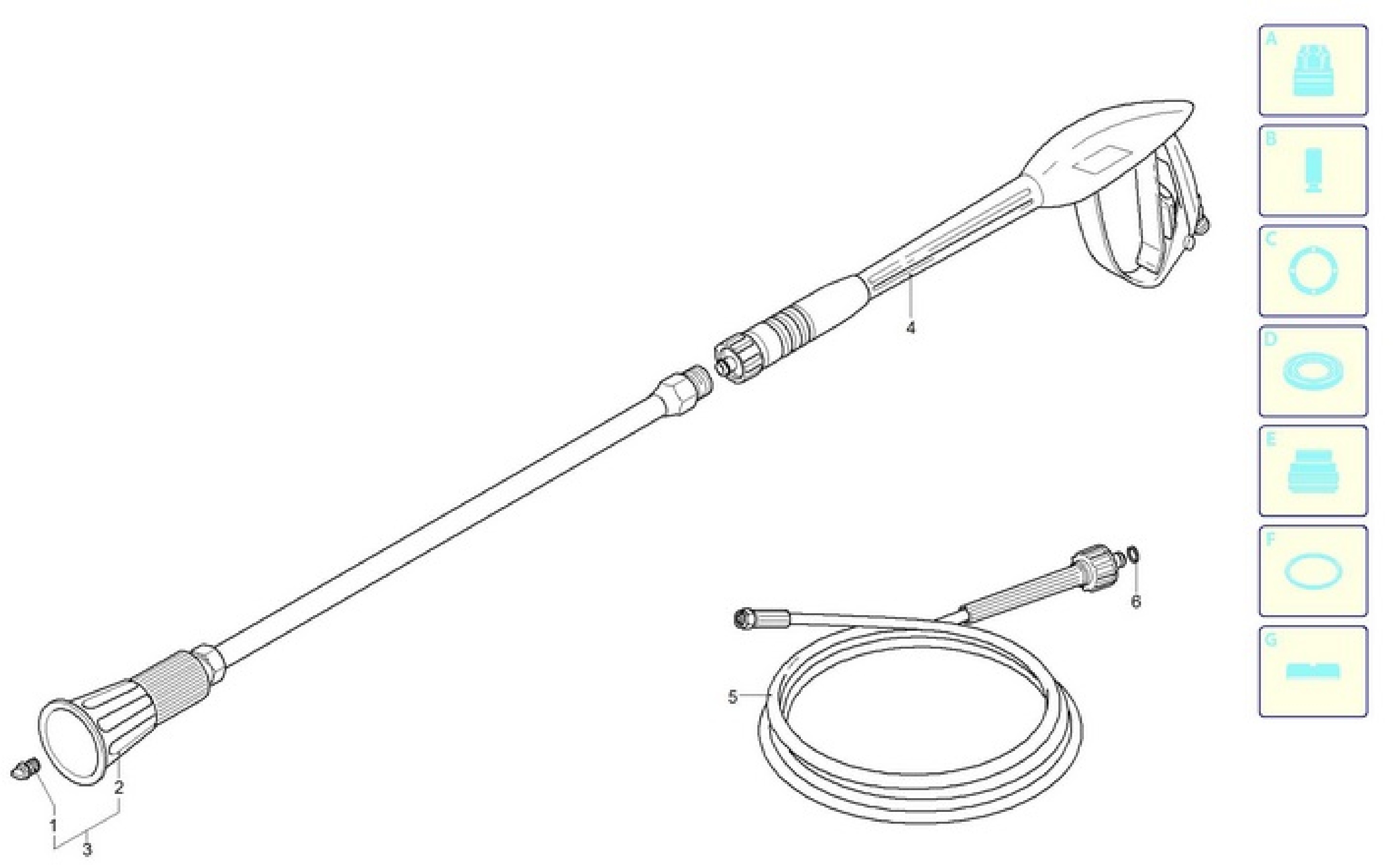

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3086 Nozzle €23.19
2
photo_cameraImage coming soon 40541 Lancia + Head Without Nozzle €62.30
3
photo_cameraImage coming soon 40651 Lance + Nozzle €77.48
4
photo_cameraImage coming soon 41045 Gun €38.82
5
photo_cameraImage coming soon 1700980 High Pressure Hose €158.54
6
O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer XPRO SK 920 TSS - 24605.

In the following tables, look for the spare part and its respective code.
AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920

Casing 920 TSS - 24605 Pag.1
1 2360541 Yellow Casing
2 2360760 Knob
3 1270910 Stopper
4 850250 Screw
5 2360020 Handle
6 2360360 Screw
7 2360300 Cork
8 2360090 Hook
9 2360170 Cork
10 2360100 Support
11 2100300 Screw
12 2360720 Knob
13 850250 Screw
14 2360551 Yellow Hood
15 2360780 Antivibration
16 2360570 Wheel
17 380620 Washer
18 2360560 Axle
19 1470220 Screw
20 2360010 Base
21 91680930 Cork
22 2000110 Screw
23 2360040 Black Hood
24 2360370 Gasket
25 2360580 Standoff
26 380240 Nut
27 2360052 Plate
28 2360110 Clamp
29 2360710 Screw
30 1270960 Tube Cleaner
31 2000230 Filter
32 2000240 O-Ring
33 1682420 Cork
34 380570 Washer
Pump 920 TSS - 24605 Pag.2
1 960090 Stopper
2 960160 O-Ring
3 1389051 Complete Valve
4 880830 O-Ring
5 880581 Stopper
6 820510 O-Ring
7 820150 Screw
8 1381850 Washer
9 1381071 Head
10 180101 O-Ring
11 820361 Stopper
12 1980740 Stopper
13 740290 O-Ring
15 1381580 Manometer
16 960110 Ring
17 1382740 Watertight
18 1380090 Piston Guide
19 961240 O-Ring
20 880330 Watertight
21 1383130 Ring
22 1382770 Pump Housing
23 1980740 Stopper
24 880130 Stopper
25 2280340 Bearing
26 640030 O-Ring
27 1380120 Thickness 0.10 Mm
27 1380130 Thickness 0.20 Mm
27 1380530 Thickness 0.25 Mm
27 1382810 Thickness 0.05 Mm
28 1380050 Support
29 850370 Screw
30 2280060 Tree
31 1380520 Tab
32 1383140 Bearing
33 180340 Ring
34 1380040 Support
35 962010 Nut
36 962000 Washer
37 1380940 Piston
38 1380950 Disk
39 600180 O-Ring
40 1080401 Ring
41 1380920 Piston
42 1380060 Plug
43 1383050 Piston Rod
44 1780510 O-Ring
45 1260430 Ring
46 1780690 Disk
47 1260250 Level Indicator
48 1140450 O-Ring
49 1789010 Cover
50 1343510 Screw
51 1389270 Pre-Assembly Head
52 20897 Pre-Installing Pump
A 2864 Valve Kit
B 2757 Piston Kit
C 1855 Oil Seals Kit
E 1857 Water Seal Kit
G 1829 Kit Support Rings
Valve 920 TSS - 24605 Pag.3
2 392840 Screw
3 1980300 Nut
4 2500540 Insert
5 1980220 Disk
6 1271070 Spring
7 1080041 Piston
8 1080070 Plug
9 1080401 Ring
10 1080250 O-Ring
11 2500550 Cotter Pin
12 1980210 Piston Guide
13 740290 O-Ring
14 800560 O-Ring
15 880830 O-Ring
16 1271170 Ring
17 1080190 O-Ring
18 1271160 Piston
19 2460420 Office
20 1080250 O-Ring
21 1540272 Screw
22 390080 O-Ring
23 1540660 Valve Body
24 1140450 O-Ring
25 1460430 O-Ring
26 1540170 Shutter
27 1080091 Spring
28 394280 O-Ring
29 1560660 Ring
30 1560680 Knob
31 480560 O-Ring
32 800560 O-Ring
34 1560650 Hose
35 480480 O-Ring
36 1250280 Ball
37 1560520 Spring
38 1540570 Junction
39 1540300 Nut
41 1540280 Collector
42 1540630 O-Ring
44 880270 O-Ring
45 2260420 Screw
46 480440 O-Ring
47 1560900 Junction
48 40393 Junction
50 1340260 Filter
52 1981190 Screw
53 1260820 O-Ring
54 1540881 Piston
55 1981320 Spring
56 2022201 Fork
57 2029758 Pre-Assembly Box TSS
58 660190 O-Ring
59 880840 O-Ring
60 1540870 Stopper
61 22335 Complete Valve
62 1123960 Junction
63 1569206 Pre-Assembly IDR
64 1120681 O-Ring
65 42458 Kit TSS
66 1080192 O-Ring
F 42451 Seal Kit
Motor 920 TSS - 24605 Pag.4
1 50068 Gasket
2 1700080 Plate
3 1940410 O-Ring
4 2360850 Mini-Contactor
5 1261570 Screw
6 2360840 Card
7 1460460 Screw
8 1700590 Nut
9 2021560 Cable
10 1700930 Cover
11 2360730 Switch
12 880270 O-Ring
13 1382380 Strain Relief
14 1261560 Screw
15 1080190 O-Ring
16 1381640 Cable
17 44296 Engine
18 1341140 Gasket
Accessories 920 TSS - 24605 Pag.5
1 3086 Nozzle
2 40541 Lance + Head Without Nozzle
3 40651 Lance + Nozzle
4 41045 Gun
5 1700980 High Pressure Tube
6 2000770 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XPRO SK 920 TSS - 24605
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's 920 TSS

Diagram AR Farmer's 920 TSS

Download (622.08KB)

You might also like

Annovi Reverberi S.p.A. SKU: 1857
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 Genuine Part Annovi & Reverberi, Water Seal Kit for Pressure Washers AR1010 - AR1015 - AR1007 - AR1380 - AR6970. Part for the Following Items: -  Pressure Washer...
AVAILABLE €60.64
Annovi Reverberi S.p.A. SKU: 1981320
Annovi Spring for Pressure Washer AR747 Genuine part Annovi Reverberi, TSS Spring DE 8,7 X 15,9 x 1,2 for Pressure Washer AR747 - AR767 - AR780. Part for the Following Products: -  Pressure Washer AR Farmer's...
AVAILABLE €1.54
Annovi Reverberi S.p.A. SKU: 1271070
Annovi Reverberi Piston Guide Spring for Pressure Washer AR6640 Genuine spare part Annovi Reverberi, Piston Guide Spring for Pressure Washers AR747 - AR767 - AR1330. Part for the following products: -  Pressure Washer...
AVAILABLE €3.01
Comments (0)
