AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739

SKU: ARSG BLITZ 8.15 - 8739
€30.06
VAT included

AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer BLITZ 8.15 - 8739.

ARSG BLITZ 8.15 - 8739
AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739
  • AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739
  • AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739
  • AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739
  • AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739
  • AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739
  • AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739

AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739

SKU: ARSG BLITZ 8.15 - 8739 Condition: New
€30.06
VAT included

AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer BLITZ 8.15 - 8739.

ARSG BLITZ 8.15 - 8739
settings 134 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

125 spare parts

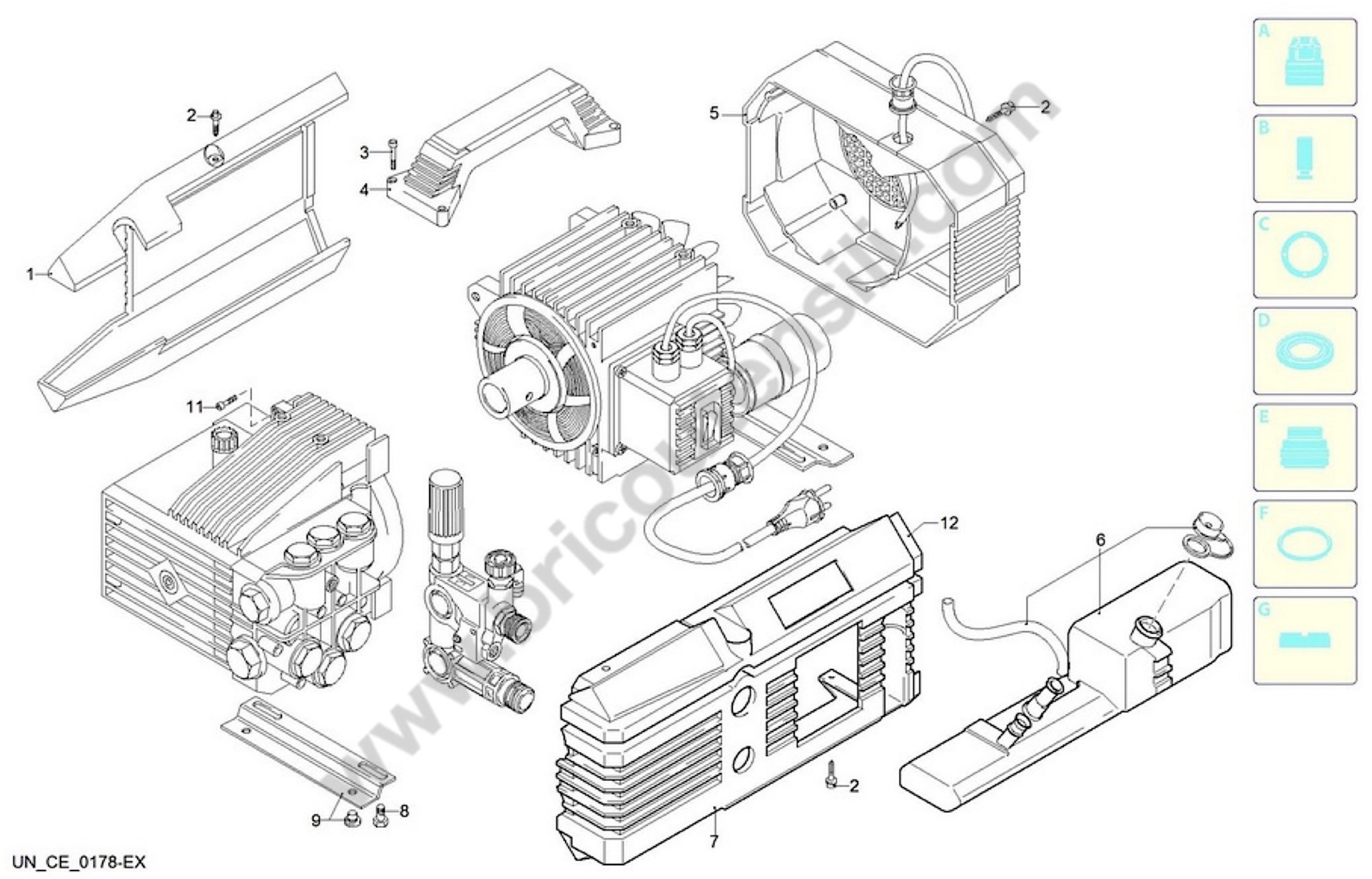

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
A
photo_cameraImage coming soon 1864 Kit Valves €29.19
C
Oil Sealed for Pressure Washers AR Farmer's Division BLITZ-PROLINER 1865 Oil Sealed for Pressure Washers AR Farmer's Division BLITZ-PROLINER €22.86
E
Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1866 Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €42.50
F
Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS 2040 Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS €6.90
B
photo_cameraImage coming soon 2628 Piston Kit €79.19
F
Kit O-Ring for Pressure Washers AR Farmer's Division BLITZ-COMFORT-S 2715 Kit O-Ring for Pressure Washers AR Farmer's Division BLITZ-COMFORT-S €12.06
1
photo_cameraImage coming soon 1260270 Casing Yellow €19.07
3
photo_cameraImage coming soon 180030 screw €2.03
4
photo_cameraImage coming soon 1260710 Handle €13.73
5
photo_cameraImage coming soon 1260311 Fan Cover €17.24
6
photo_cameraImage coming soon 1269110 Tank €23.32
7
photo_cameraImage coming soon 1265350 Bonnet Yellow €13.81
9
photo_cameraImage coming soon 1260830 Foot €13.73
11
photo_cameraImage coming soon 1260780 Screw €4.81
12
photo_cameraImage coming soon 1265360 Bonnet Yellow €7.45

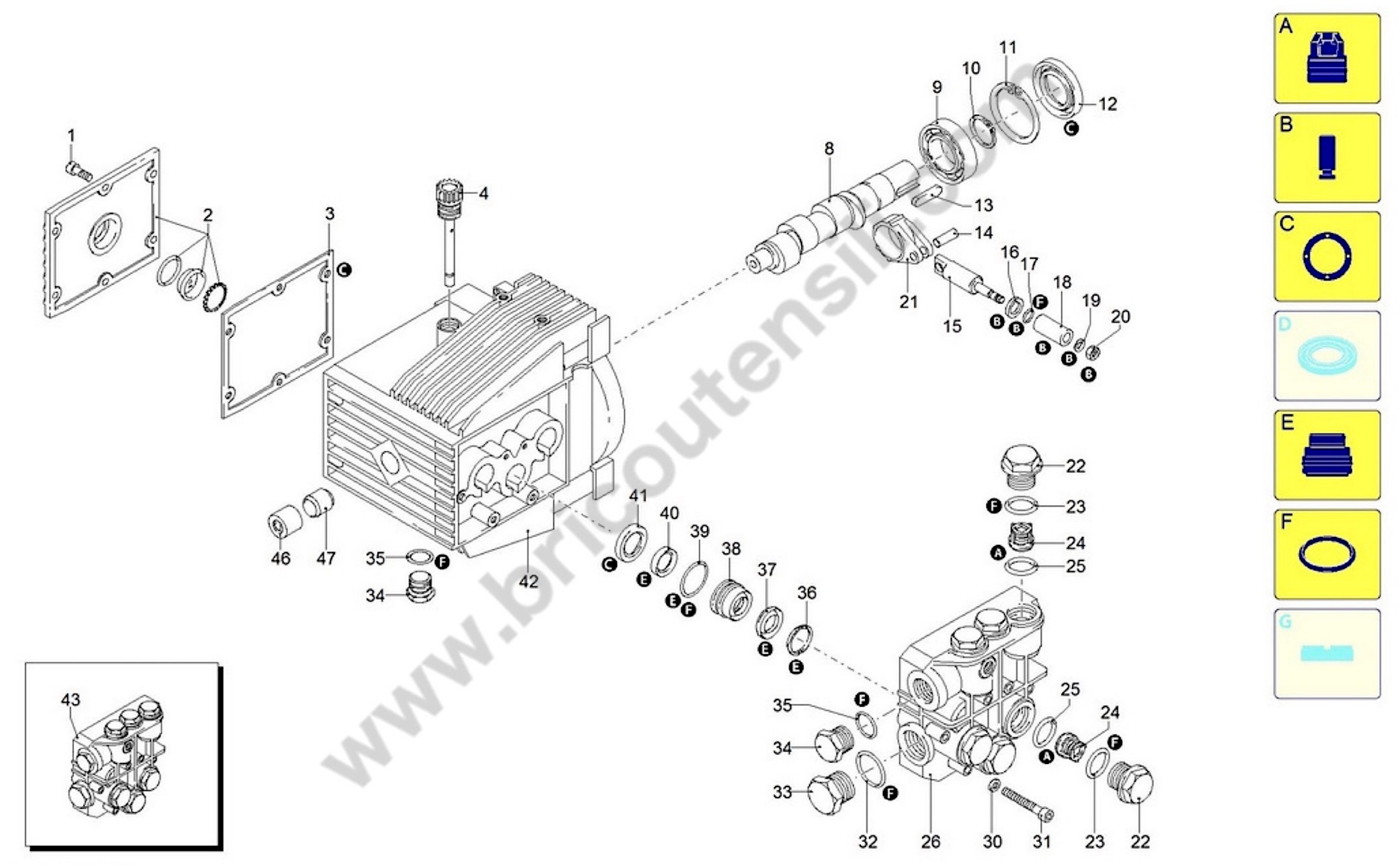

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
A
photo_cameraImage coming soon 1864 Kit Valves €29.19
C
Oil Sealed for Pressure Washers AR Farmer's Division BLITZ-PROLINER 1865 Oil Sealed for Pressure Washers AR Farmer's Division BLITZ-PROLINER €22.86
E
Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1866 Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €42.50
F
Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS 2040 Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS €6.90
B
photo_cameraImage coming soon 2628 Piston Kit €79.19
2
photo_cameraImage coming soon 1269101 Cover €21.37
3
photo_cameraImage coming soon 1260040 Oil Seal €3.64
4
photo_cameraImage coming soon 1260480 Stopper €7.85
8
photo_cameraImage coming soon 1260170 Shaft €79.55
9
photo_cameraImage coming soon 1320370 Bearing €5.94
10
photo_cameraImage coming soon 1260770 Ring €4.74
11
photo_cameraImage coming soon 1260790 Ring €1.36
12
Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
14
photo_cameraImage coming soon 1260080 Plug €2.19
15
photo_cameraImage coming soon 1260070 Piston €20.01
17
photo_cameraImage coming soon 480480 O-ring €5.63
18
Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1260120 Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €23.59
20
photo_cameraImage coming soon 1260110 Nut €1.65
21
photo_cameraImage coming soon 1320140 Piston Rod €25.00
22
Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1260162 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €8.28
23
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
24
Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 1269050 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 €4.43
25
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
26
photo_cameraImage coming soon 1323220 Head €224.90
31
photo_cameraImage coming soon 680570 Screw €5.48
32
photo_cameraImage coming soon 180101 O-Ring €4.73
33
photo_cameraImage coming soon 820361 Stopper €4.41
34
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
35
photo_cameraImage coming soon 740290 O-ring €2.67
36
photo_cameraImage coming soon 1260141 Ring €4.94
37
photo_cameraImage coming soon 1271650 Water Seal €5.94
38
photo_cameraImage coming soon 1260151 Piston Guide €8.54
39
O-Ring 26,70x1,78 for Pressure Washers AR 780-787-797-945-6670-7850 1260420 O-Ring 26,70x1,78 for Pressure Washers AR 780-787-797-945-6670-7850 €0.38
40
photo_cameraImage coming soon 1260440 Watertight 3 €4.53
41
photo_cameraImage coming soon 1260460 oil seal €4.47
42
photo_cameraImage coming soon 1260011 Body Pump €77.96
43
photo_cameraImage coming soon 1269132 Pre-Assembly Head €105.02
46
photo_cameraImage coming soon 1264010 Bearing €8.15
47
photo_cameraImage coming soon 1264000 Ring €14.67

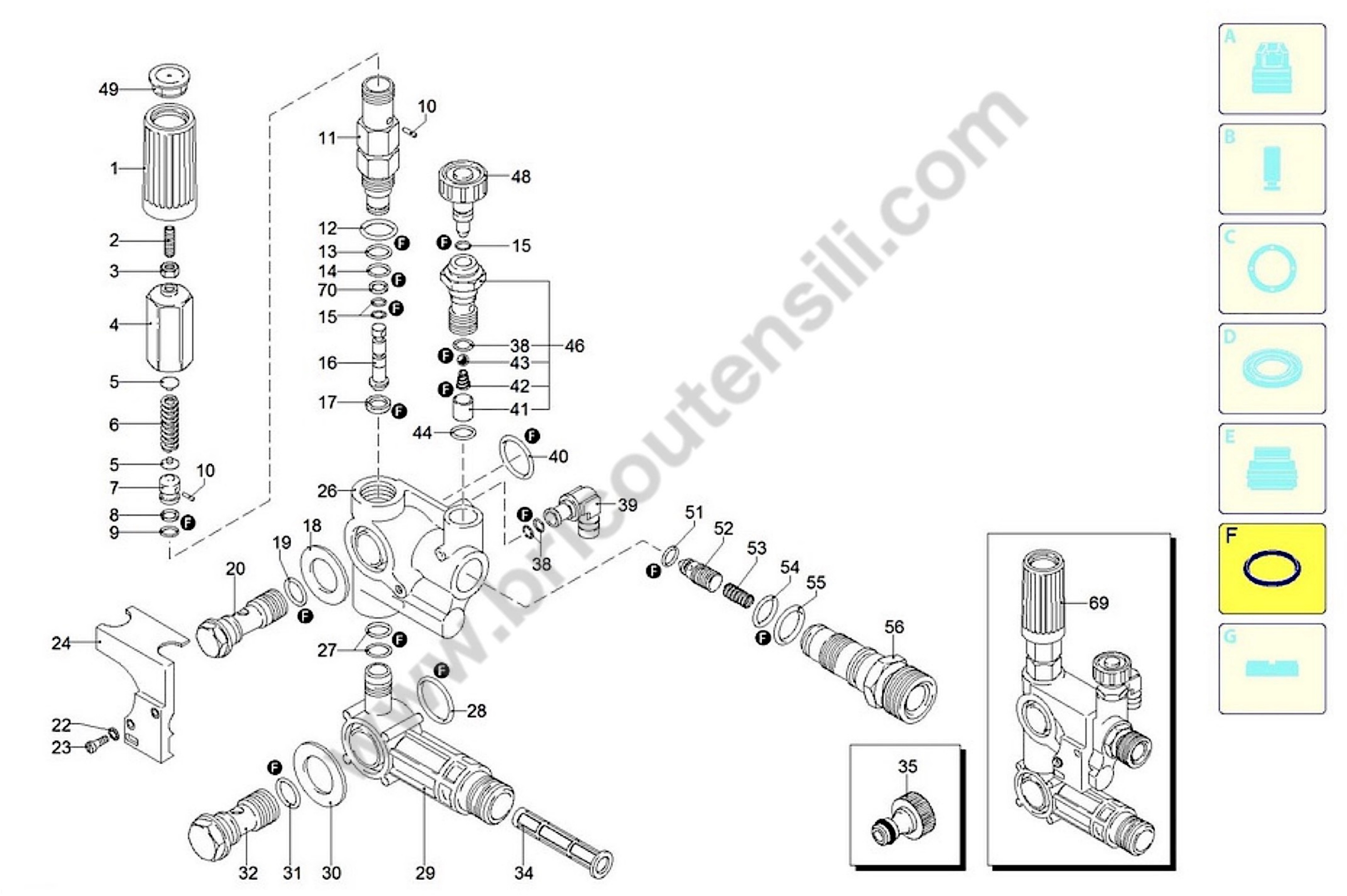

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
F
Kit O-Ring for Pressure Washers AR Farmer's Division BLITZ-COMFORT-S 2715 Kit O-Ring for Pressure Washers AR Farmer's Division BLITZ-COMFORT-S €12.06
1
photo_cameraImage coming soon 1981780 Knob €2.28
2
photo_cameraImage coming soon 1980470 screw €1.73
3
photo_cameraImage coming soon 1980300 nut €1.58
4
photo_cameraImage coming soon 1980390 insert €11.72
5
photo_cameraImage coming soon 1980220 disk €2.13
6
AR6640 Piston Guide Spring 1271070 AR6640 Piston Guide Spring €3.01
7
photo_cameraImage coming soon 1080041 piston €12.34
8
photo_cameraImage coming soon 1080401 ring €2.13
9
O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
10
photo_cameraImage coming soon 1080070 plug €2.64
11
photo_cameraImage coming soon 1980210 piston guide €15.49
12
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
13
photo_cameraImage coming soon 740290 O-ring €2.67
14
photo_cameraImage coming soon 800560 O-ring €1.59
15
photo_cameraImage coming soon 1080190 O-ring €4.40
16
photo_cameraImage coming soon 1271160 piston €19.89
17
photo_cameraImage coming soon 1080121 Venue €7.31
18
Washer D. 21,1 mm Z/B for Pressure Washers AR Farmer's Division BLITZ 1260570 Washer D. 21,1 mm Z/B for Pressure Washers AR Farmer's Division BLITZ €0.96
19
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
20
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
photo_cameraImage coming soon 395370 Washer €4.54
23
photo_cameraImage coming soon 395270 Screw €4.54
24
photo_cameraImage coming soon 1260531 Cover €3.47
26
photo_cameraImage coming soon 1271740 Valve Body €84.14
27
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
28
O-Ring for Pressure Washers AR Farmer's Division BLITZ 1180140 O-Ring for Pressure Washers AR Farmer's Division BLITZ €0.46
29
photo_cameraImage coming soon 1260540 Collector €12.06
30
Washer D. 21,1 mm Z/B for Pressure Washers AR Farmer's Division BLITZ 1260560 Washer D. 21,1 mm Z/B for Pressure Washers AR Farmer's Division BLITZ €0.76
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
34
Water Filter for Pressure Washers AR Farmer's Division Blitz 8.13 1260660 Water Filter for Pressure Washers AR Farmer's Division Blitz 8.13 €2.08
35
Snap Fitting For Pressure Washers ARSG Blitz - 8.13 - 8.15 1270940 Snap Fitting For Pressure Washers ARSG Blitz - 8.13 - 8.15 €2.71
38
photo_cameraImage coming soon 480480 O-ring €5.63
39
photo_cameraImage coming soon 1260670 Junction €1.89
40
O-Ring for Pressure Washers AR Farmer's Division BLITZ 720030 O-Ring for Pressure Washers AR Farmer's Division BLITZ €0.29
41
photo_cameraImage coming soon 1262940 Bush €6.36
43
photo_cameraImage coming soon 1250280 sphere €2.67
44
O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
46
Injector for Pressure Washer AR Farmer's Division Blitz 8.13 1269041 Injector for Pressure Washer AR Farmer's Division Blitz 8.13 €19.77
48
photo_cameraImage coming soon 1269010 Knob €10.42
51
photo_cameraImage coming soon 1460430 O-ring €4.60
52
photo_cameraImage coming soon 1540170 shutter €5.08
53
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
54
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
55
photo_cameraImage coming soon 1200690 O-ring €4.26
56
photo_cameraImage coming soon 1270091 injector €12.02
69
Combiset Assembly for Pressure Washer ARSG Blitz 8.15 1279225 Combiset Assembly for Pressure Washer ARSG Blitz 8.15 €110.02
70
photo_cameraImage coming soon 1271170 ring €2.03

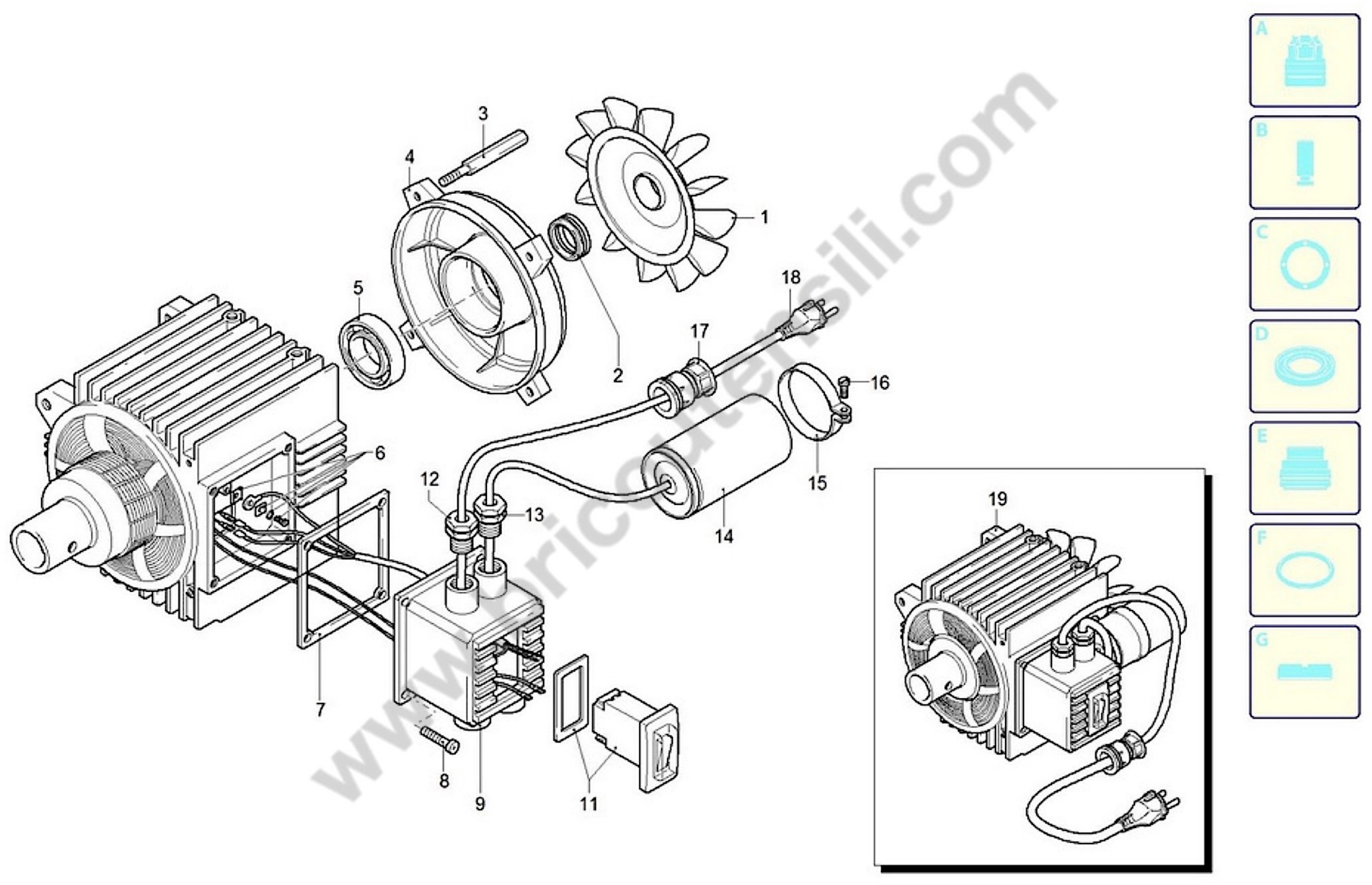

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1260300 Fan €6.15
2
photo_cameraImage coming soon 1260970 Estate €4.94
3
photo_cameraImage coming soon 1260360 Standoff €6.97
4
photo_cameraImage coming soon 1260960 Shield €23.53
5
Motor Bearing for Pressure Washer AR767 1260950 Motor Bearing for Pressure Washer AR767 €7.01
6
photo_cameraImage coming soon 1269100 Clamp €4.00
7
photo_cameraImage coming soon 1260400 Gasket €7.44
8
photo_cameraImage coming soon 1261560 Screw €4.67
9
photo_cameraImage coming soon 1260340 Box €10.22
11
photo_cameraImage coming soon 1263110 Switch €50.36
12
photo_cameraImage coming soon 1271950 Cable Clamp €9.13
13
photo_cameraImage coming soon 1269090 Cable Clamp €9.20
14
photo_cameraImage coming soon 1266810 Capacitor €35.22
15
photo_cameraImage coming soon 1340280 Band €2.02
16
photo_cameraImage coming soon 1271880 Screw €4.47
17
photo_cameraImage coming soon 1262370 Deck Fill €13.36
18
photo_cameraImage coming soon 1270950 Cable €22.57
19
photo_cameraImage coming soon 4832 Engine €280.65

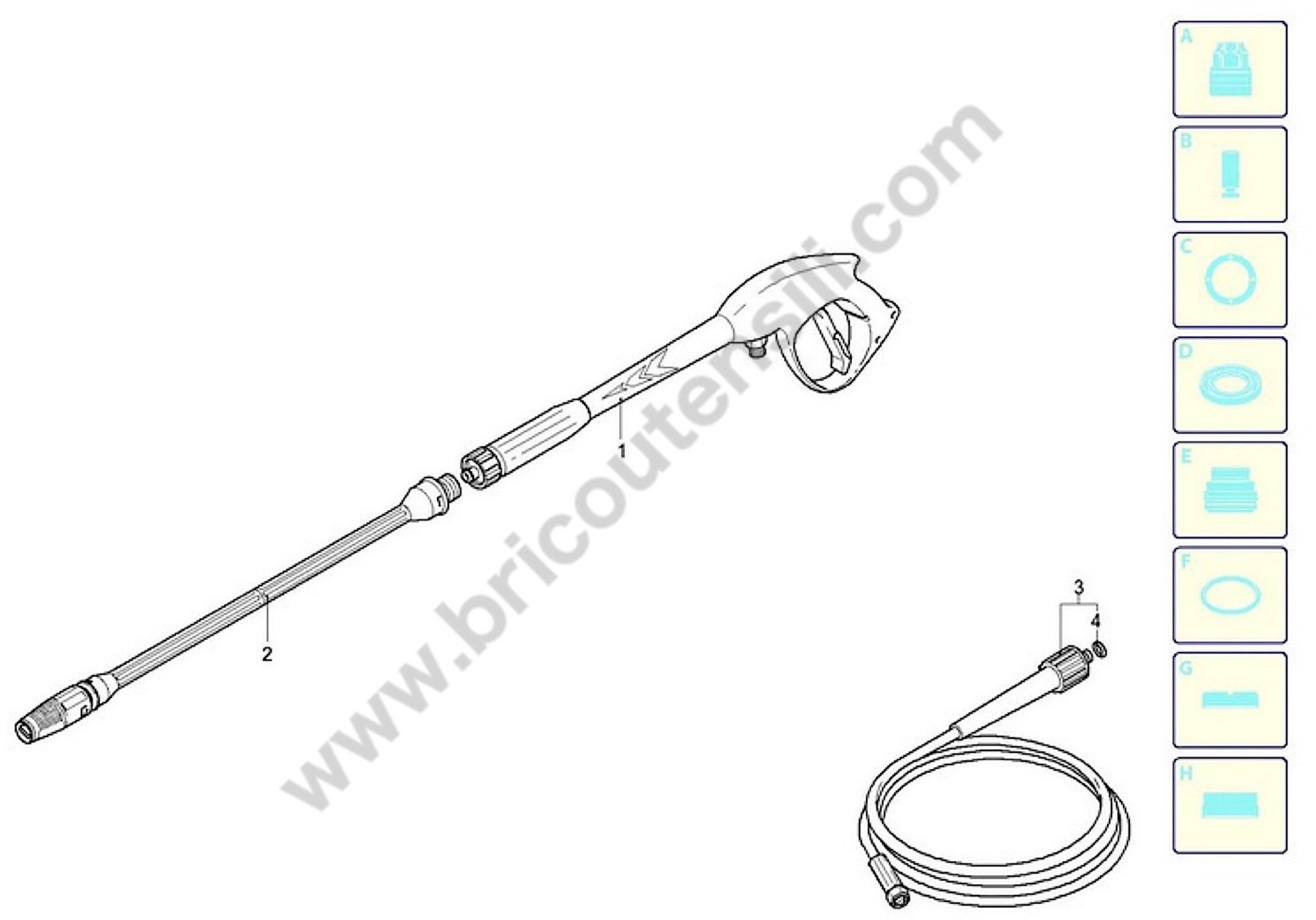

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47
2
Lance + Head for Washer AR Farmer's Division BLITZ 8.15 40113 Lance + Head for Washer AR Farmer's Division BLITZ 8.15 €58.77
3
photo_cameraImage coming soon 1262443 High Pressure Tube €45.25
4
O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure Washer BLITZ 8.15 - 8739

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer BLITZ 8.15 - 8739.

In the following tables, look for the spare part and its respective code.
ARSG BLITZ 8.15 - 8739

AR Farmer's Division Pressure Washer BLITZ 8.15 - 8739
Casing 8.15 - 8739 Pag.1
# Part NUm. Description
1 1260270 Casing Yellow
2 1261551 Screw
3 180030 Screw
4 1260710 Handle
5 1260311 Fan Cover
6 1269110 Tank
7 1265350 Bonnet Yellow
8 1260470 Screw
9 1260830 Foot
11 1260780 Screw
12 1265360 Bonnet Yellow
Pump 8.15 - 8739 Pag.2
1 1260760 Screw
2 1269101 Cover
3 1260040 Oil Seal
4 1260480 Stopper
8 1260170 Shaft
9 1320370 Bearing
10 1260770 Ring
11 1260790 Ring
12 1260750 Ring
13 1380520 Tongue
14 1260080 Plug
15 1260070 Piston
16 1260091 Disk
17 480480 O-Ring
18 1260120 Piston
19 1260100 Washer
20 1260110 Nut
21 1320140 Piston Rod
22 1260162 Stopper
23 960160 O-Ring
24 1269050 Valve Complete
25 880830 O-Ring
26 1323220 Head
30 1381550 Washer
31 680570 Screw
32 180101 O-Ring
33 820361 Stopper
34 1980740 Stopper
35 740290 O-Ring
36 1260141 Ring
37 1271650 Water Seal
38 1260151 Piston Guide
39 1260420 O-Ring
40 1260440 Water Seal
41 1260460 Oil Seal
42 1260011 Body Pump
43 1269132 Pre-Assembly Head
46 1264010 Bearing
47 1264000 Ring
A 1864 Valve Kit
B 2628 Piston Kit
C 1865 Oil Seals Kit
E 1866 Kit Held Water
F 2040 Seal Kit
Valve 8.15 - 8739 Pag.3
1 1981780 Knob
2 1980470 Screw
3 1980300 Nut
4 1980390 Insert
5 1980220 Disk
6 1271070 Spring
7 1080041 Piston
8 1080401 Ring
9 1080250 O-Ring
10 1080070 Plug
11 1980210 Piston Guide
12 880830 O-Ring
13 740290 O-Ring
14 800560 O-Ring
15 1080190 O-Ring
16 1271160 Piston
17 1080121 Venue
18 1260570 Washer
19 390080 O-Ring
20 1540272 Screw
22 395370 Washer
23 395270 Screw
24 1260531 Cover
26 1271740 Valve Body
27 770140 O-Ring
28 1180140 O-Ring
29 1260540 Collector
30 1260560 Washer
31 880270 O-Ring
32 2260420 Screw
34 1260660 Filter
35 1270940 Junction
38 480480 O-Ring
39 1260670 Junction
40 720030 O-Ring
41 1262940 Bush
42 1250270 Spring
43 1250280 Sphere
44 880840 O-Ring
46 1269041 Injector
48 1269010 Knob
49 1981770 Stopper
51 1460430 O-Ring
52 1540170 Shutter
53 1080091 Spring
54 394280 O-Ring
55 1200690 O-Ring
56 1270091 Injector
69 1279225 Pre-Assembly Combiset
70 1271170 Ring
F 2715 Seal Kit
Motor 8.15 - 8739 Pag.4
1 1260300 Fan
2 1260970 Sealing
3 1260360 Standoff
4 1260960 Shield
5 1260950 Bearing
6 1269100 Clamp
7 1260400 Gasket
8 1261560 Screw
9 1260340 Box
11 1263110 Switch
12 1271950 Cable Clamp
13 1269090 Cable Clamp
14 1266810 Capacitor
15 1340280 Band
16 1271880 Screw
17 1262370 Deck Fill
18 1270950 Cable
19 4832 Engine
Accessories 8.15 - 8739 Pag.5
1 40925 Gun
2 40113 Lance + Head
3 1262443 High Pressure Tube
4 2000770 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG BLITZ 8.15 - 8739
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

ARSG BLITZ 8.15 - 8739 Drawing

ARSG BLITZ 8.15 - 8739 Drawing

Download (1.5MB)

You might also like

Annovi Reverberi S.p.A. SKU: 2260420
Collector Screw for Pressure Washers Annovi Reverberi Genuine Spare Part Annovi Reverberi, Collector Screw for Pressure Washers Blitz - 8.13 - 8.15 - 10.12 - Proliner SV - SV 1310 TSS - SV 1510 TSS...
Last items in stock €8.09
Annovi Reverberi S.p.A. SKU: 1269041
Injector for Pressure Washer AR Farmer's Division Blitz 8.13 Original part Annovi Reverberi, Injector for Pressure Washers AR Farmer's Division Blitz - 8.13 - 10.12 - 8.15. Par for the following products: -  ARSG - Models 50 Hz -...
Last items in stock €19.77
Annovi Reverberi S.p.A. SKU: 40113
Lance + Head for Washer AR Farmer's Division BLITZ 8.15 Original Spare Part Annovi & Rverberi, Lance + Head for Pressure Washers AR Farmer's Division Blitz - 8.15 - 8739 - AR BC Serie 6 - 650 - 12455...
AVAILABLE €58.77
Motor Bearing for Pressure Washer AR767 Sale
Annovi Reverberi S.p.A. SKU: 1260950
Motor Bearing for Pressure Washer AR767 Genuine part Annovi & Reverberi, Motor Bearing (6205 Z) for Pressure Washers Annovi & Reverberi AR BC Serie 7 - 767 - 12364 - 767 RLW - 12409 - 777 - 12365. Part For the Following...
AVAILABLE €7.01
Annovi Reverberi S.p.A. SKU: 2040
Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS Genuine Part Annovi & Reverberi, O-Ring Gasket Kit for Pressure Washers ARSG Proliner SV - SV 1310 TSS - 12402 - Proliner SV - SV 1510 TSS - 12403, Part for the...
AVAILABLE €6.90
Annovi Reverberi S.p.A. SKU: 1279225
Combiset Assembly for Pressure Washer ARSG Blitz 8.15 Original part ANNOVI & REVERBERI, Combiset Assembly Complete Valve for Pressure Washer ARSG - Blitz - 8.15 - 8739. Par for the following products:...
Last items in stock €110.02
Annovi Reverberi S.p.A. SKU: 1271070
Annovi Reverberi Piston Guide Spring for Pressure Washer AR6640 Genuine spare part Annovi Reverberi, Piston Guide Spring for Pressure Washers AR747 - AR767 - AR1330. Part for the following products: -  Pressure Washer...
AVAILABLE €3.01
Comments (0)
