Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure VIP

SKU: ARSG VIP 8.130 - 10418
€19.97
VAT included

AR Farmer's Division Parts for Pressure VIP 8.130 - 10418

AR Farmer's Division original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for High Pressure Washer VIP 8.130 - 10418.
AR Farmer's Division Parts for Pressure VIP
  • AR Farmer's Division Parts for Pressure VIP
  • AR Farmer's Division Parts for Pressure VIP
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure VIP

SKU: ARSG VIP 8.130 - 10418 Condition: New
€19.97
VAT included

AR Farmer's Division Parts for Pressure VIP 8.130 - 10418

AR Farmer's Division original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for High Pressure Washer VIP 8.130 - 10418.
settings 108 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
89 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

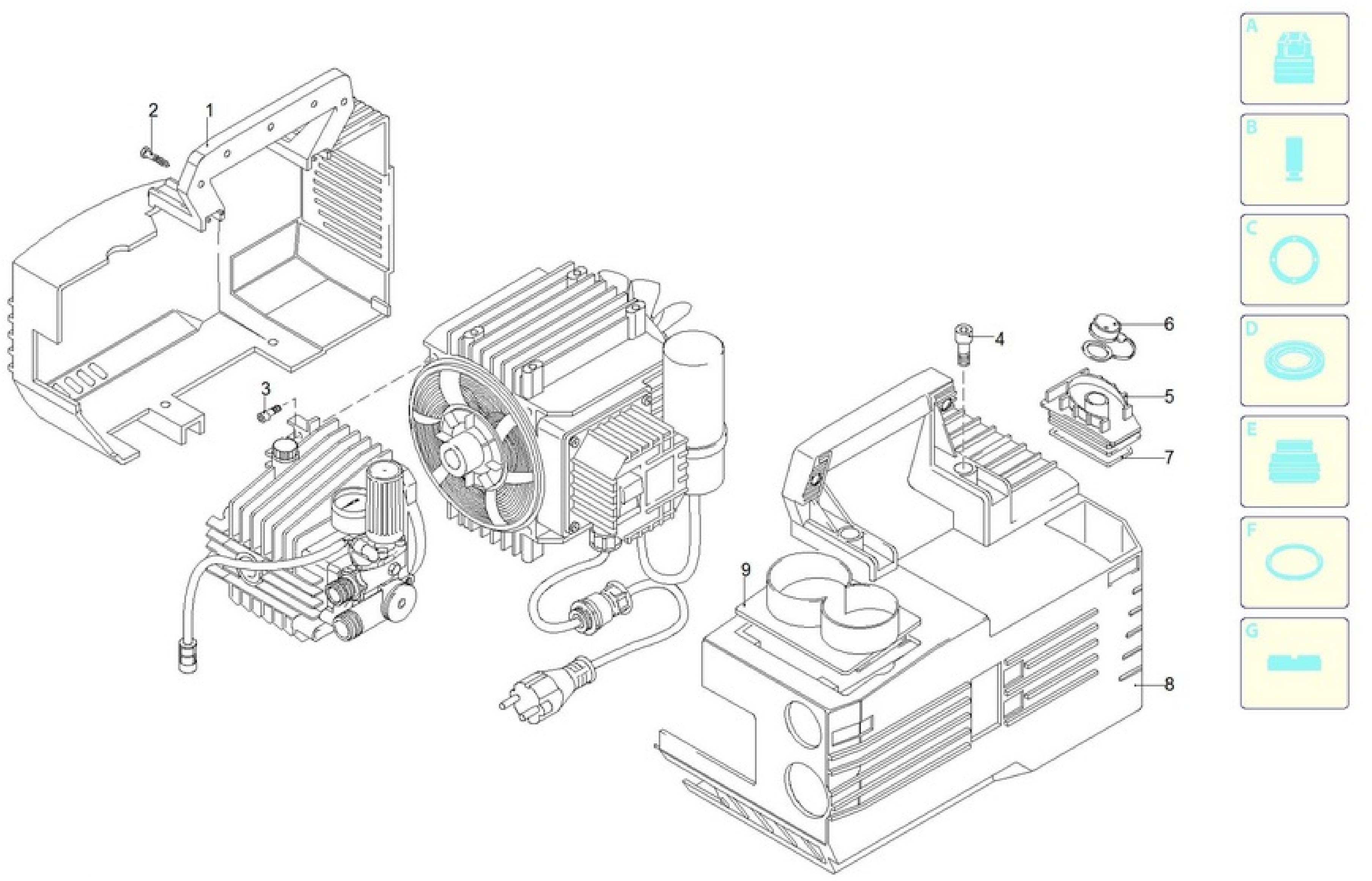

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1340700 Black Casing €19.64
2
 photo_cameraImage coming soon 1261560 Screw €4.67
3
 photo_cameraImage coming soon 1260780 Screw €4.81
4
 photo_cameraImage coming soon 1200430 Screw €4.64
5
 Annovi Reverberi Plug for VIP 8.13 1340810 Annovi Reverberi Plug for VIP 8.13 €6.83
6
 Annovi Reverberi Plug for AR610 1260351 Annovi Reverberi Plug for AR610 €6.41
7
 photo_cameraImage coming soon 390210 O-Ring €4.88
8
 photo_cameraImage coming soon 1342010 Black Bonnet €19.98
9
 photo_cameraImage coming soon 1342000 Yellow Cover €6.62
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

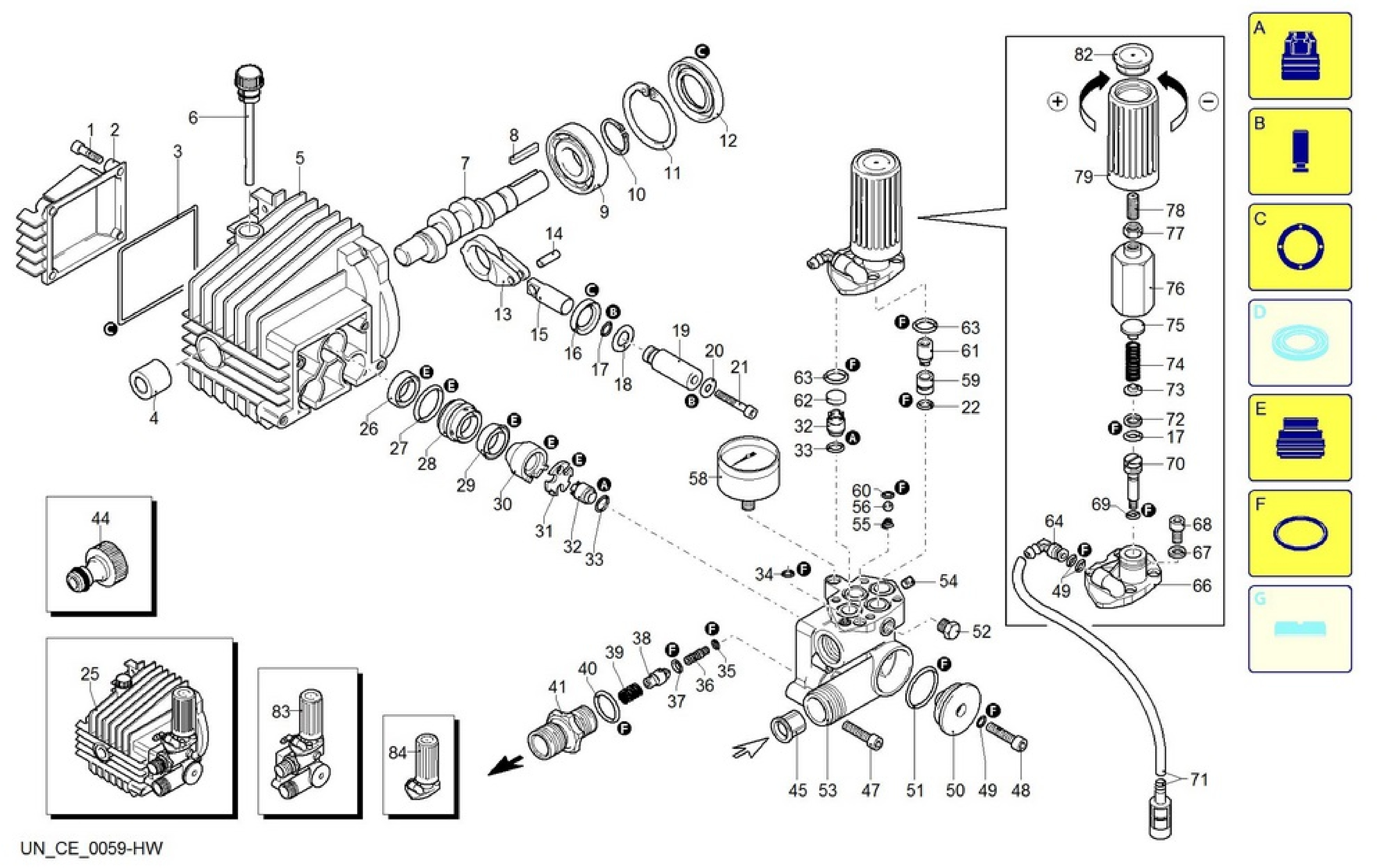

Esploso pagina 2
Pos. Item Price Buy
C
 photo_cameraImage coming soon 1876 Oil Seals Kit €19.97
A
 photo_cameraImage coming soon 1880 Valve Kit €20.48
B
 photo_cameraImage coming soon 2623 Piston Kit €64.53
E
 photo_cameraImage coming soon 2624 Kit Held Water €45.52
F
 photo_cameraImage coming soon 2767 Kit Parts OR €10.91
2
 photo_cameraImage coming soon 1344060 Cover €14.54
4
 photo_cameraImage coming soon 1260050 Bush €12.90
5
 photo_cameraImage coming soon 1344050 Pump Casing €81.14
6
 photo_cameraImage coming soon 1349000 Stopper €10.76
7
 photo_cameraImage coming soon 1340170 Shaft €83.89
9
 photo_cameraImage coming soon 1341070 Bearing €13.15
11
 photo_cameraImage coming soon 111120 Ring €1.85
12
 photo_cameraImage coming soon 1341080 Ring €5.64
13
 photo_cameraImage coming soon 1340060 Piston Rod €10.36
14
 photo_cameraImage coming soon 1340080 Plug €1.77
15
 photo_cameraImage coming soon 1340070 Piston €18.25
16
 photo_cameraImage coming soon 1260460 oil seal €4.47
17
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
18
 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 1341010 Piston Disc for Pressure Washers AR ProLiner S-1308-HOT VIP8.130-AR757 €1.43
19
 photo_cameraImage coming soon 1342740 Piston €21.55
25
 Pump Assembly for Pressure Washer ARSG Vip - 8.130 1349269 Pump Assembly for Pressure Washer ARSG Vip - 8.130 €374.71
26
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
27
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
28
 Piston Guide for Pressure Washers AR Farmer's S1308-VIP8.130-HOT1308 1342730 Piston Guide for Pressure Washers AR Farmer's S1308-VIP8.130-HOT1308 €8.23
29
 photo_cameraImage coming soon 1342760 Water Seal €5.52
31
 photo_cameraImage coming soon 1342750 Disk €1.53
32
 Valve for Pressure Washer ARSG Proliner S 1308 1349053 Valve for Pressure Washer ARSG Proliner S 1308 €7.52
33
 photo_cameraImage coming soon 800560 O-ring €1.59
34
 photo_cameraImage coming soon 390341 O-Ring €1.54
36
 photo_cameraImage coming soon 1342710 Nozzle €4.37
37
 photo_cameraImage coming soon 1460430 O-ring €4.60
38
 photo_cameraImage coming soon 1460260 Piston €3.75
40
 O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
41
 photo_cameraImage coming soon 1342690 Junction €9.71
44
 photo_cameraImage coming soon 1461470 junction €3.26
45
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
48
 photo_cameraImage coming soon 680700 Screw €2.32
49
 photo_cameraImage coming soon 480480 O-ring €5.63
50
 photo_cameraImage coming soon 1340190 Cover €2.96
52
 photo_cameraImage coming soon 620301 Cork €2.46
53
 Head for Pressure Washer ARSG Vip - 8.130 1342670 Head for Pressure Washer ARSG Vip - 8.130 €83.47
56
 photo_cameraImage coming soon 1250280 sphere €2.67
58
 Gauge for Pressure Washer Annovi & Reverberi AR 610 40806 Gauge for Pressure Washer Annovi & Reverberi AR 610 €25.00
59
 photo_cameraImage coming soon 1342700 Venue €6.02
61
 photo_cameraImage coming soon 1460150 Piston €6.43
63
 photo_cameraImage coming soon 740290 O-ring €2.67
64
 photo_cameraImage coming soon 1260670 Junction €1.89
66
 photo_cameraImage coming soon 1342680 Cover €30.02
69
 photo_cameraImage coming soon 1080190 O-ring €4.40
70
 photo_cameraImage coming soon 2021900 Piston €10.84
71
 photo_cameraImage coming soon 1269115 Pre-Assembly Tube €11.20
72
 photo_cameraImage coming soon 1080401 ring €2.13
73
 photo_cameraImage coming soon 1343450 Disk €3.26
74
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
75
 photo_cameraImage coming soon 1343000 Disk €5.37
76
 photo_cameraImage coming soon 1980640 Insert €5.73
77
 photo_cameraImage coming soon 1060120 Nut €1.54
79
 photo_cameraImage coming soon 1981780 Knob €2.28
83
 photo_cameraImage coming soon 2693 Pre-Assembly Head €274.30
84
 photo_cameraImage coming soon 2668 Kit Valve Adjustment €72.11
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

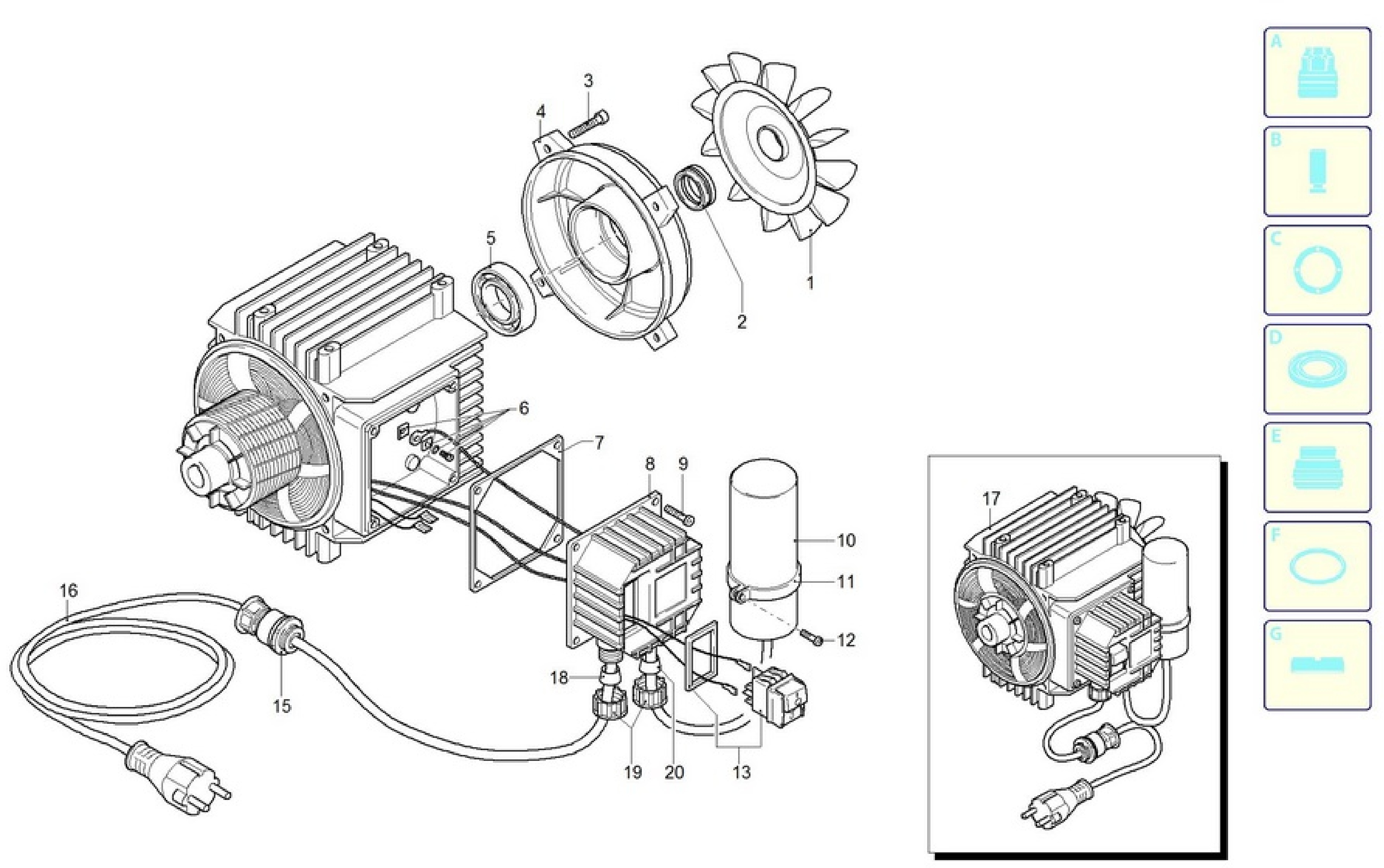

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1260300 Fan €6.15
2
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
4
 photo_cameraImage coming soon 1340320 Shield €21.55
5
 photo_cameraImage coming soon 1340340 Bearing €7.38
6
 photo_cameraImage coming soon 1269100 Clamp €4.00
7
 photo_cameraImage coming soon 1340780 Gasket €2.85
8
 photo_cameraImage coming soon 1340480 Box €6.40
10
 photo_cameraImage coming soon 1263510 Capacitor €22.00
11
 photo_cameraImage coming soon 1340280 Band €2.02
13
 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 2320280 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 €10.01
15
 photo_cameraImage coming soon 1262370 Deck Fill €13.36
16
 photo_cameraImage coming soon 1466460 Cable €25.06
17
 photo_cameraImage coming soon 4811 Engine €249.54
18
 photo_cameraImage coming soon 1340660 Fairlead €5.43
19
 photo_cameraImage coming soon 1340640 Ring €6.08
20
 photo_cameraImage coming soon 1340650 Fairlead €5.11
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

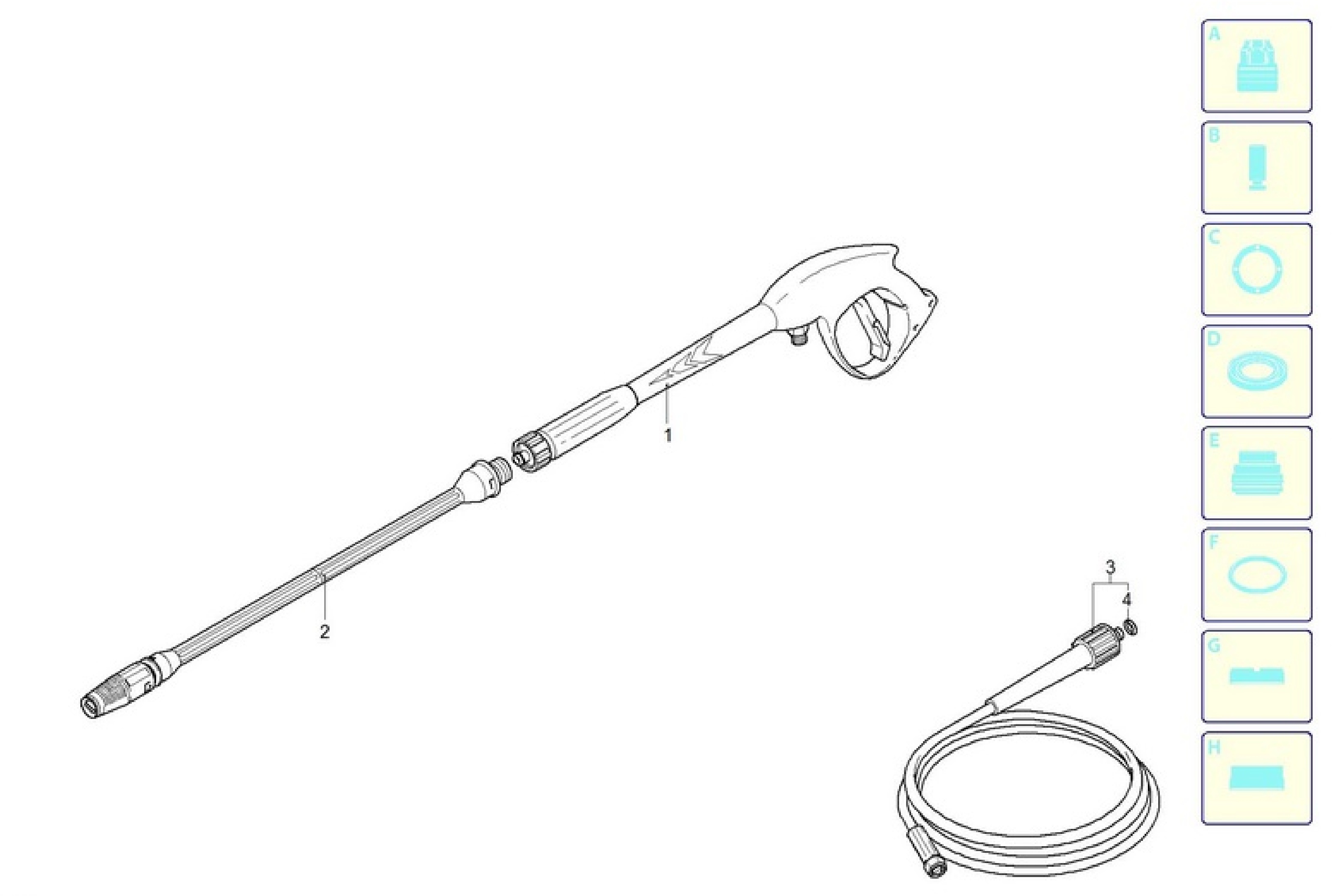

Esploso pagina 4
Pos. Item Price Buy
1
 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47
2
 Lance + Lance Head for Pressure Washer A & R Blue Clean 757 40030 Lance + Lance Head for Pressure Washer A & R Blue Clean 757 €25.00
3
 High Pressure Hose for Pressure Washer ARSG Vip - 8.130 1460702 High Pressure Hose for Pressure Washer ARSG Vip - 8.130 €22.66
4
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure VIP 8.130 - 10418

AR Farmer's Division original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for High Pressure Washer VIP 8.130 - 10418.

In the following tables, look for the spare part and its respective code.
ARSG VIP 8.130 - 10418

ARSG High Pressure Washer VIP 8.130 - 10418
Casing 8.130 - 10418 Pag.1
# Part Num. Description
1 1340700 Black Casing
2 1261560 Screw
3 1260780 Screw
4 1200430 Screw
5 1340810 Stopper
6 1260351 Stopper
7 390210 O-Ring
8 1342010 Black Bonnet
9 1342000 Yellow Cover
Pump 8.130 - 10418 Pag.2
1 1260780 Screw
2 1344060 Cover
3 1040710 O-Ring
4 1260050 Bush
5 1344050 Pump Casing
6 1349000 Stopper
7 1340170 Shaft
8 880111 Tongue
9 1341070 Bearing
10 480890 Ring
11 111120 Ring
12 1341080 Ring
13 1340060 Piston Rod
14 1340080 Plug
15 1340070 Piston
16 1260460 Oil Seal
17 600180 O-Ring
18 1341010 Disk
19 1342740 Piston
20 1341020 Washer
21 850670 Screw
22 600180 O-Ring
25 1349269 Pump Assembly
26 1260440 Water Seal
27 770260 O-Ring
28 1342730 Piston Guide
29 1342760 Water Seal
30 1342720 Ring
31 1342750 Disk
32 1349053 Valve
33 800560 O-Ring
34 390341 O-Ring
35 1343110 O-Ring
36 1342710 Nozzle
37 1460430 O-Ring
38 1460260 Piston
39 1540140 Spring
40 880270 O-Ring
41 1342690 Junction
44 1461470 Junction
45 1340260 Filter
47 881470 Screw
48 680700 Screw
49 480480 O-Ring
50 1340190 Cover
51 780050 O-Ring
52 620301 Stopper
53 1342670 Head
54 851100 Screw
55 1250270 Spring
56 1250280 Sphere
58 40806 Manometer
59 1342700 Venue
60 1460430 O-Ring
61 1460150 Piston
62 1343810 Tablet
63 740290 O-Ring
64 1260670 Junction
66 1342680 Cover
67 1381550 Washer
68 1343510 Screw
69 1080190 O-Ring
70 2021900 Piston
71 1269115 Pre-Assembly Tube
72 1080401 Ring
73 1343450 Disk
74 1460190 Spring
75 1343000 Disk
76 1980640 Insert
77 1060120 Nut
78 392840 Screw
79 1981780 Knob
82 1981770 Stopper
83 2693 Pre-Assembly Head
84 2668 Kit Valve Adjustment
A 1880 Valve Kit
B 2623 Piston Kit
C 1876 Oil Seals Kit
E 2624 Kit Held Water
F 2767 Kit Parts OR
Motor 8.130 - 10418 Pag.3
1 1260300 Fan
2 1340350 Sealing
3 1260760 Screw
4 1340320 Shield
5 1340340 Bearing
6 1269100 Clamp
7 1340780 Gasket
8 1340480 Box
9 1261560 Screw
10 1263510 Capacitor
11 1340280 Band
12 1260810 Screw
13 2320280 Switch
15 1262370 Deck Fill
16 1466460 Cable
17 4811 Engine
18 1340660 Fairlead
19 1340640 Ring
20 1340650 Fairlead
Accessories 8.130 - 10418 Pag.4
1 40925 Gun
2 40030 Lance + Nozle
3 1460702 High Pressure Hose
4 2000770 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG VIP 8.130 - 10418
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's 8.130

Diagram AR Farmer's 8.130

Download (452.56KB)

You might also like

Kit Parts OR for Pressure Washers PROLINER-VIP-AR757/767-HOT
Annovi Reverberi S.p.A. SKU: AR-2767
Kit Parts OR for Pressure Washers PROLINER-VIP-AR757/767-HOT
Kit Parts OR for Pressure Washers PROLINER-VIP-AR757/767-HOT Genuine Parts Annovi & Reverberi, Kit Parts OR for models PROLINER-VIP-AR757/767-HOT. Part for the following products: - PROLINER S 1308 - 12462   - PROLINER S 1308...
AVAILABLE €10.90
Details
Kit Valves S.134 for Pressure Washers AR BC 610-757
Annovi Reverberi S.p.A. SKU: AR-1880
Kit Valves S.134 for Pressure Washers AR BC 610-757
Kit Valves S.134 for Pressure Washers AR BC 610-757 Genuine Parts Annovi & Reverberi, Kit Parts Valves S.134 models AR Blue Clean 610 - 757 - 4550 - ARSG Vip 8.130 - Proliner S-S 1308 - Michelin - MPX 130 VP. Part...
AVAILABLE €20.47
Details
High Pressure Hose for Pressure Washer ARSG Vip - 8.130
Annovi Reverberi S.p.A. SKU: 1460702
High Pressure Hose for Pressure Washer ARSG Vip - 8.130
High Pressure Hose for Pressure Washer ARSG Vip - 8.130 Genuine part Annovi & Reverberi, High Pressure Hose for Pressure Washers ARSG Vip - 8.130 - Proliner S - S 1308 - Event - 141 N TSS...
Last items in stock €22.66
Details
Gauge for Pressure Washer Annovi & Reverberi AR 610
Annovi Reverberi S.p.A. SKU: 40806
Gauge for Pressure Washer Annovi & Reverberi AR 610
Gauge for Pressure Washer Annovi Reverberi AR 610 Genuine part Annovi Reverberi, High Pressure Gauge for Pressure Washers Series 6 - 610 - 12358 - 13869 - Series 7 - 757 RLW - 12524 - ARSG - Vip - 8.130 - 10418 - Michelin Europe - MPX...
AVAILABLE €25.00
Details
Head for Pressure Washer ARSG Vip - 8.130
Annovi Reverberi S.p.A. SKU: 1342670
Head for Pressure Washer ARSG Vip - 8.130
Head for Pressure Washer ARSG Vip - 8.130 Genuine part Annovi & Reverberi, Head for Pressure Washers ARSG Vip - 8.130 - Proliner S - S 1308 - HOT 1308.  Part for the following products:...
Last items in stock €83.47
Details
Valve for Pressure Washer ARSG Proliner S 1308
Annovi Reverberi S.p.A. SKU: 1349053
Valve for Pressure Washer ARSG Proliner S 1308
Valve for Pressure Washer ARSG Proliner S 1308 Original parts Annovi & Rverberi, Valve, for Pressure Washers AR Farmer's Division Proliner S 1308 - VIP 8130 - HOT 1308 Parts for the Following Products: -  Pressure Washer Annovi...
AVAILABLE €7.52
Details
Pump Assembly for Pressure Washer ARSG Vip - 8.130
Annovi Reverberi S.p.A. SKU: 1349269
Pump Assembly for Pressure Washer ARSG Vip - 8.130
Pump Assembly for Pressure Washer ARSG Vip - 8.130 Genuine part Annovi Reverberi, Pump Assembly N.T.50Hz 100 Bar MH.40806 for Pressure Washers Vip - 8.130 - AR BC Series 6 - 610 - 12358. Part for the following products: -  ARSG - 50...
Last items in stock €374.71
Details
AR Spring for Pressure Washer AR589
Annovi Reverberi S.p.A. SKU: 1460190
AR Spring for Pressure Washer AR589
Annovi Reverberi Spring for Pressure Washer AR589 Genuine spare part Annovi Reverberi, Spring for Pressure Washers AR589 - AR757 - AR1001 - AR555. Part for the following products: - Pressure Washer Annovi Reverberi 589 -...
AVAILABLE €3.09
Details
Annovi Reverberi Plug for AR610
Annovi Reverberi S.p.A. SKU: 1260351
Annovi Reverberi Plug for AR610
Annovi Reverberi Plug for AR610 Genuine replacement part Annovi Reverberi, Plug for Pressure Washer AR610. Part for the following items: - Pressure Washer > Serie VIP > VIP 8.13 • 10418 - Pressure Washer...
AVAILABLE €6.41
Details
Annovi Reverberi Plug for VIP 8.13
Annovi Reverberi S.p.A. SKU: 1340810
Annovi Reverberi Plug for VIP 8.13
Annovi Reverberi Plug for VIP 8.13 Genuine replacement part Annovi Reverberi, Plug for Pressure Washer VIP 8.13. Part for the following items: - Pressure Washer > Serie VIP > VIP 8.13 • 10418 - Pressure...
AVAILABLE €6.83
Details
Comments (0)
